Specification

  • Power: 36W
  •  Light source: TC-L fluorescent tubes (2x18W)
  •  Lamp-holder: 2G11
  •  Ballast Type: EVG
  •  Polycarbonate prismatic diffuser
  •  Impact-resistant casing and multi-positional arm
  •  Rubber cable H07RN-F 2x1,0mm2 (5m)
  • Weight: 2,0kg - 2,4kg

Optionally available:

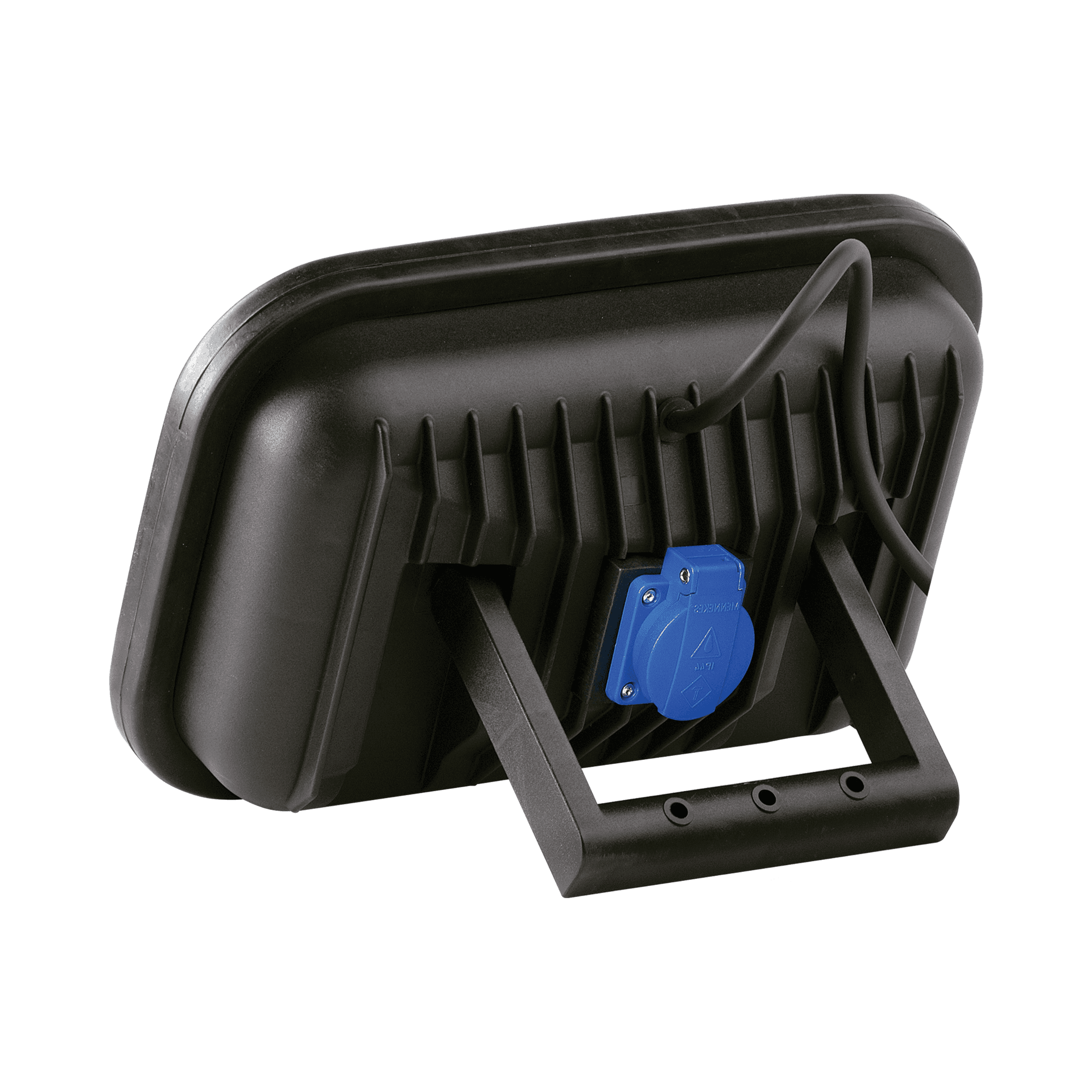

  •  One socket at the backside of the fitting
  • Rubber cable H07RN-F 3x1,5mm2 (5m)
Options
Nominal power [W]Ingress protectionSocket typeSocketsElectrical protection classSupply voltage [V]Dimensions (H/W/T/S) [mm]Index
36 IP54 - - II 220 - 240 340/230/110 242113
36 IP54 UNI-SCHUKO 1 I 220 - 240 340/230/110 242380
36 IP54 PL-FR 1 I 220 - 240 340/230/110 242144
36 IP44 - - III 24 340/230/110 888076
36 IP44 - - III 24 340/230/110 888403
NameIndex
A set of three wheels to the large tripod 016684

016684
