Specification

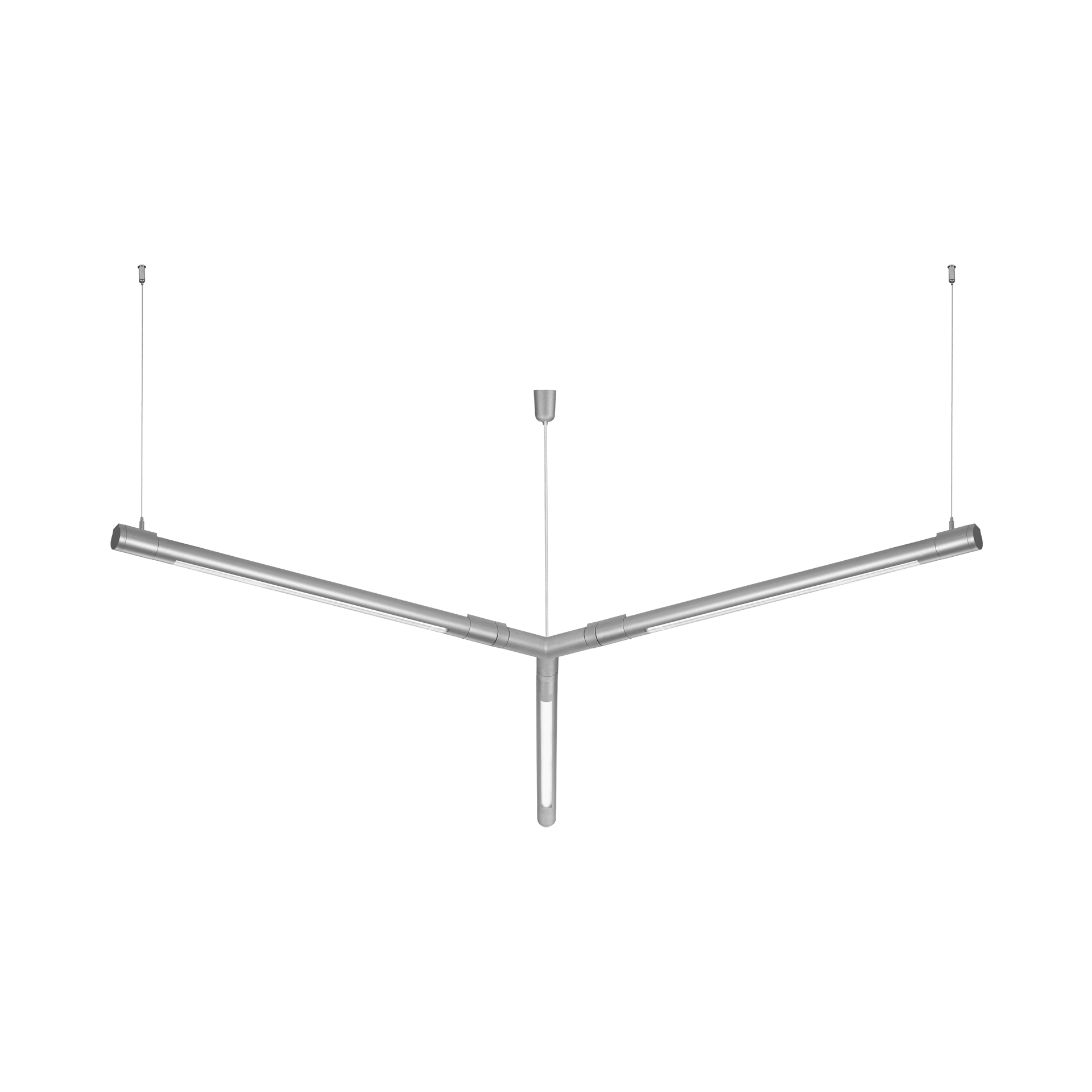

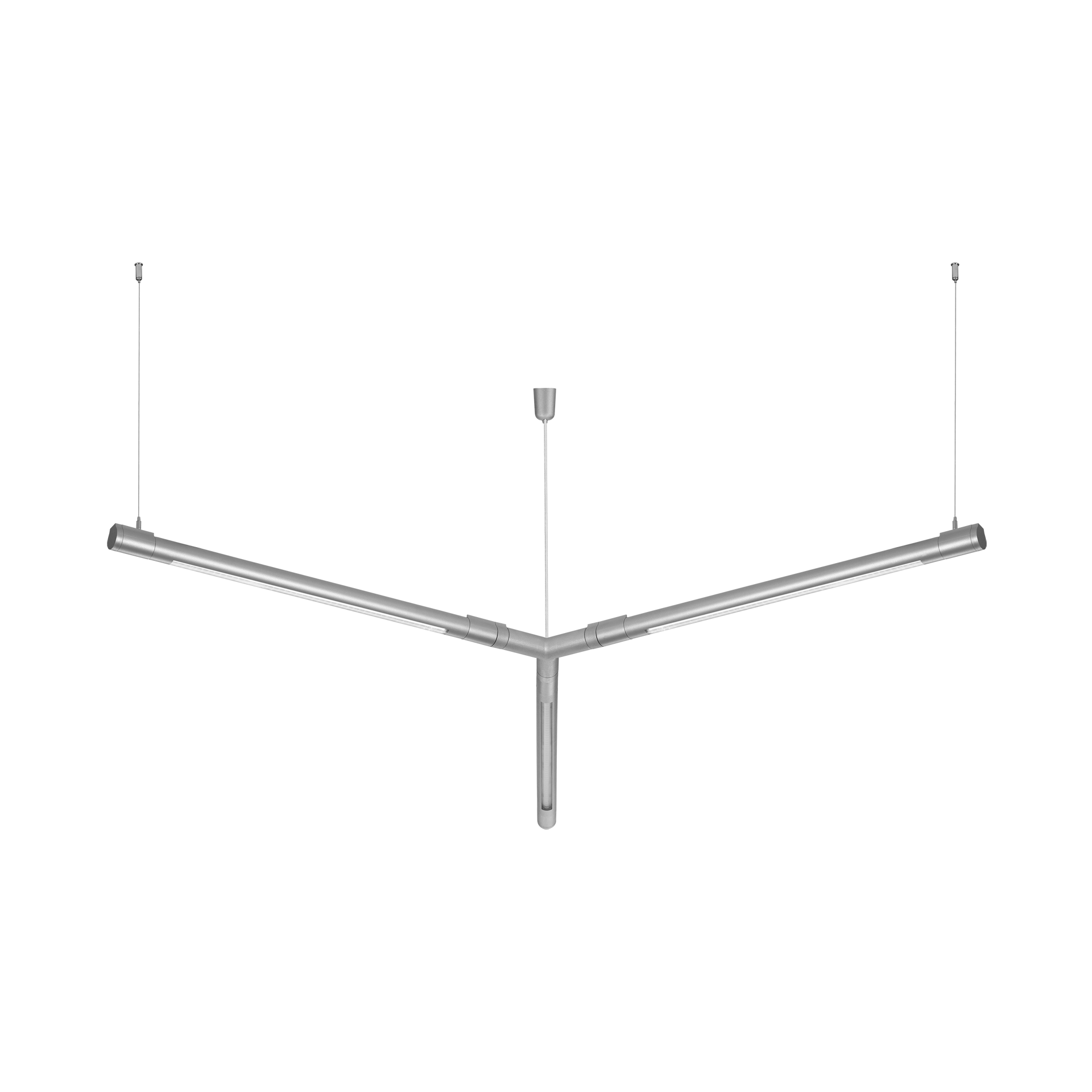

LED luminaire system designed for suspended and surface mounting on walls and ceilings. Provides a combination of high illumination parameters and functionality. With its slim diameter of 42 mm possible to mount in hard-to-reach locations. Mounting is easy and quick. Due to the line lens, it is possible to adjust the fitting to different lighting requirements – three light distribution options: 90°, 60°, 30°. Colour temperature 4000K, CRI>80, lifespan of LED 50 000h (L70B50) ta= 25ºC.

Application

Luminaire intended for both outdoor and indoor use in industrial areas and passageways. Provides good surface lighting and is perfect in situations that require eyesight concentration. Four housing sizes are available. Suitable for mounting in all types of suspended ceilings (modular, plasterboard).

Other products from the Tube LED Evo

See our luminaires on the BIMobject platform

Options

Nominal
power [W]
Colour
temperature [K]
Luminous
flux [lm]
Diffuser
type
Beam
angle [°]
DIMM
DALI
Through
wiring
Dimensions
[mm]
Index
14W
14 4000 1350 transparent 30 - LS1 42/45/785 269103
14 4000 1350 transparent 30 - LS2 42/45/785 269134
14 4000 1700 transparent 60 - LS1 42/45/785 269110
14 4000 1700 transparent 60 - LS2 42/45/785 269141
14 4000 1600 transparent 90 - LS2 42/45/785 269158
14 4000 1600 transparent 90 - LS1 42/45/785 269127
21W
21 4000 2000 transparent 30 - LS1 42/45/1065 269165
21 4000 2000 transparent 30 - LS2 42/45/1065 269196
21 4000 2000 transparent 30 yes LS1 42/45/1065 267666
21 4000 2000 transparent 30 yes LS2 42/45/1065 267697
21 4000 2500 transparent 60 - LS1 42/45/1065 269172
21 4000 2500 transparent 60 - LS2 42/45/1065 269202
21 4000 2500 transparent 60 yes LS1 42/45/1065 267673
21 4000 2500 transparent 60 yes LS2 42/45/1065 267703
21 4000 2350 transparent 90 - LS1 42/45/1065 269189
21 4000 2350 transparent 90 - LS2 42/45/1065 269219
21 4000 2350 transparent 90 yes LS1 42/45/1065 267680
21 4000 2350 transparent 90 yes LS2 42/45/1065 267710
28W
28 4000 2650 transparent 30 - LS1 42/45/1346 269226
28 4000 2650 transparent 30 - LS2 42/45/1346 269257
28 4000 2650 transparent 30 yes LS1 42/45/1346 267727
28 4000 2650 transparent 30 yes LS2 42/45/1346 267758
28 4000 3300 transparent 60 - LS1 42/45/1346 269233
28 4000 3300 transparent 60 - LS2 42/45/1346 269264
28 4000 3300 transparent 60 yes LS1 42/45/1346 267734
28 4000 3300 transparent 60 yes LS2 42/45/1346 267765
28 4000 3100 transparent 90 - LS1 42/45/1346 269240
28 4000 3100 transparent 90 - LS2 42/45/1346 269271
28 4000 3100 transparent 90 yes LS1 42/45/1346 267741
28 4000 3100 transparent 90 yes LS2 42/45/1346 267772
36W
36 4000 3350 transparent 30 - LS1 42/45/1626 269288
36 4000 3350 transparent 30 - LS2 42/45/1626 269318
36 4000 3350 transparent 30 yes LS1 42/45/1626 267789
36 4000 3350 transparent 30 yes LS2 42/45/1626 267819
36 4000 4200 transparent 60 - LS1 42/45/1626 269295
36 4000 4200 transparent 60 - LS2 42/45/1626 269325
36 4000 4200 transparent 60 yes LS1 42/45/1626 267796
36 4000 4200 transparent 60 yes LS2 42/45/1626 267826
36 4000 3950 transparent 90 - LS1 42/45/1626 269301
36 4000 3950 transparent 90 - LS2 42/45/1626 269332
36 4000 3950 transparent 90 yes LS1 42/45/1626 267802
36 4000 3950 transparent 90 yes LS2 42/45/1626 267833
IndexName
266591 Tube LED EVO electric suspension
266829 Tube LED EVO Suspension (round box)
266607 Tube LED EVO suspension cord
267604 Tube LED EVO surface mounting bracket adjustable +/- 100 degrees
266492 Star connector TUBE LED EVO system
266485 Star connector TUBE LED EVO system matt white
266478 Star connector TUBE LED EVO system matt black

TUBE LED EVO
