Skver LED S (R2 MF)

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

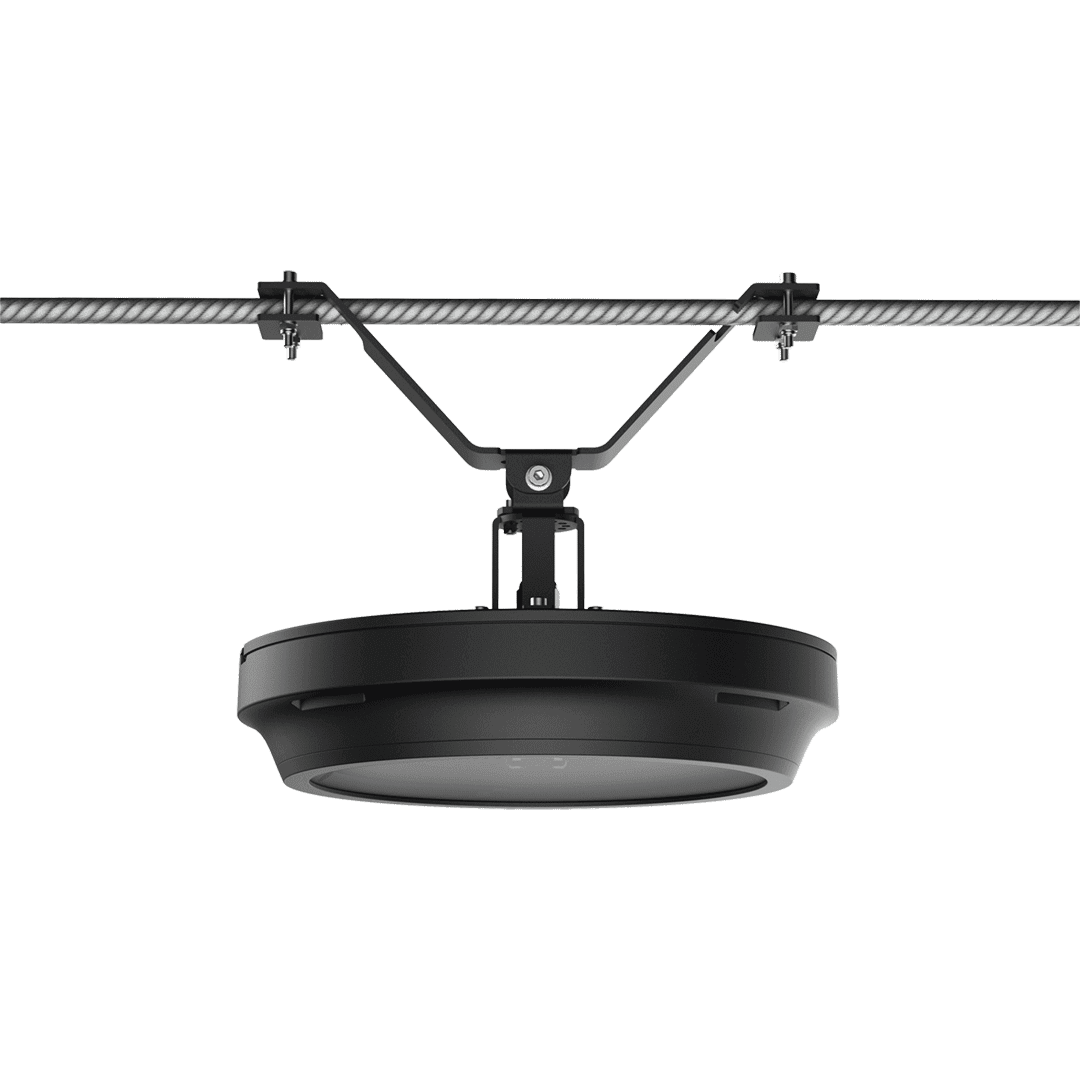

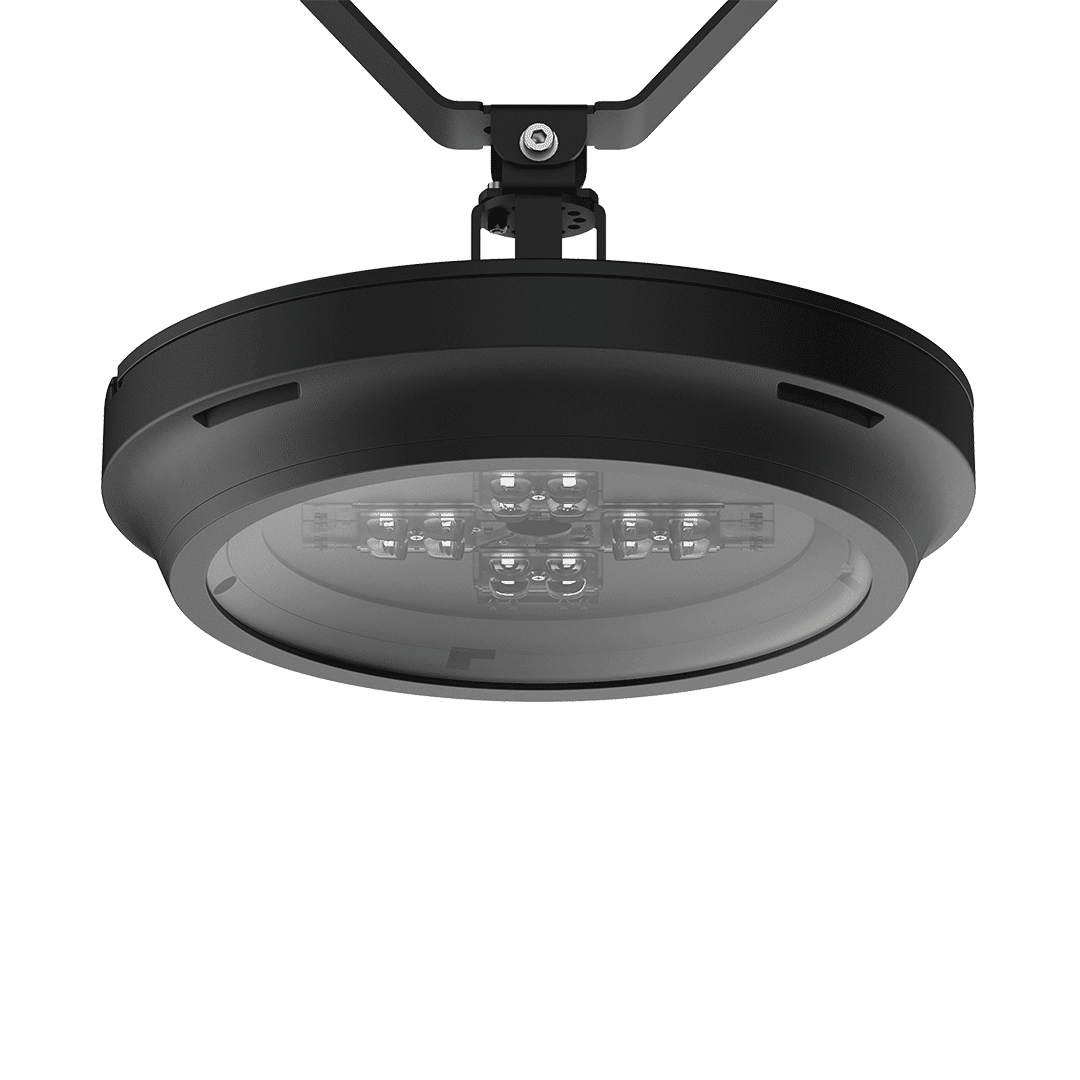

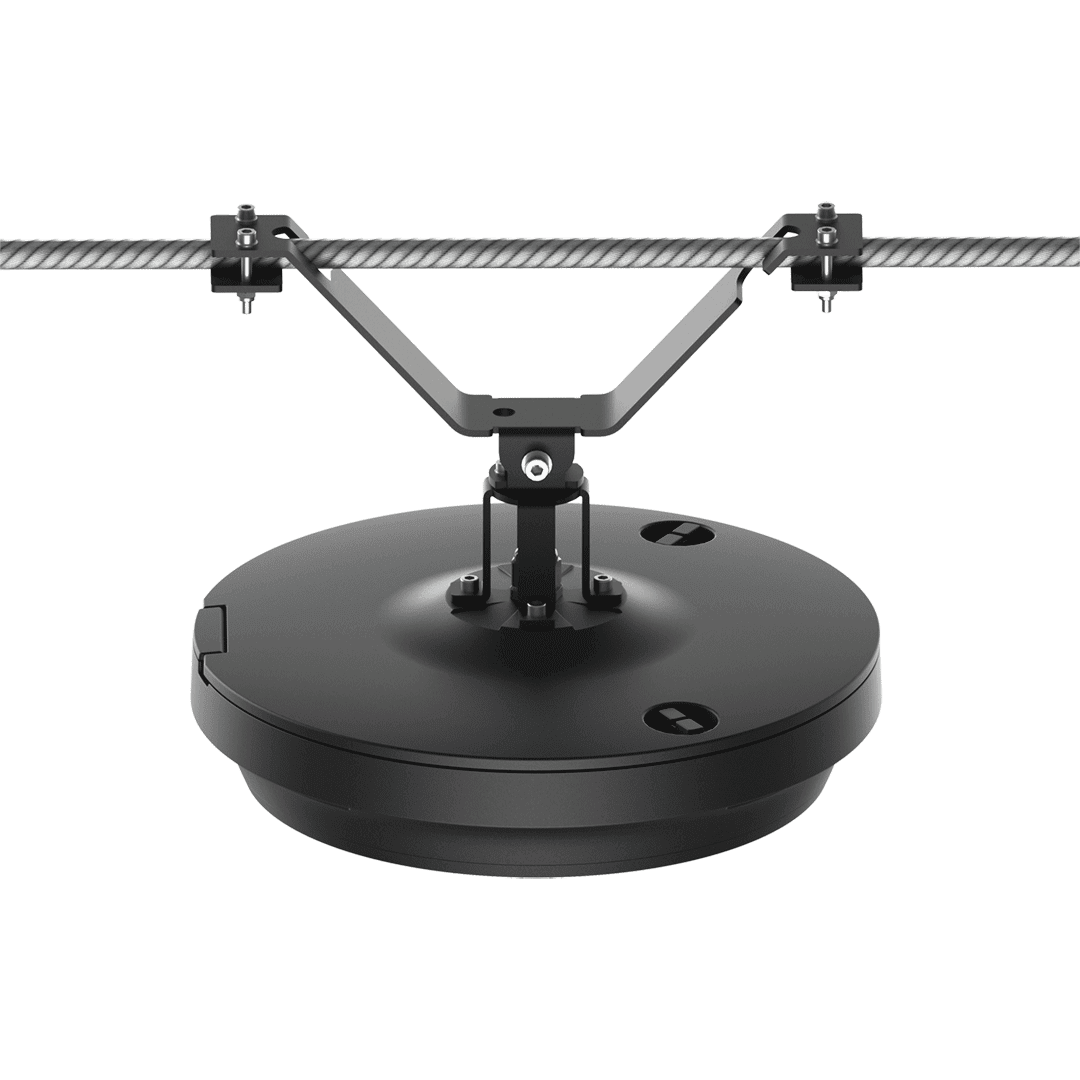

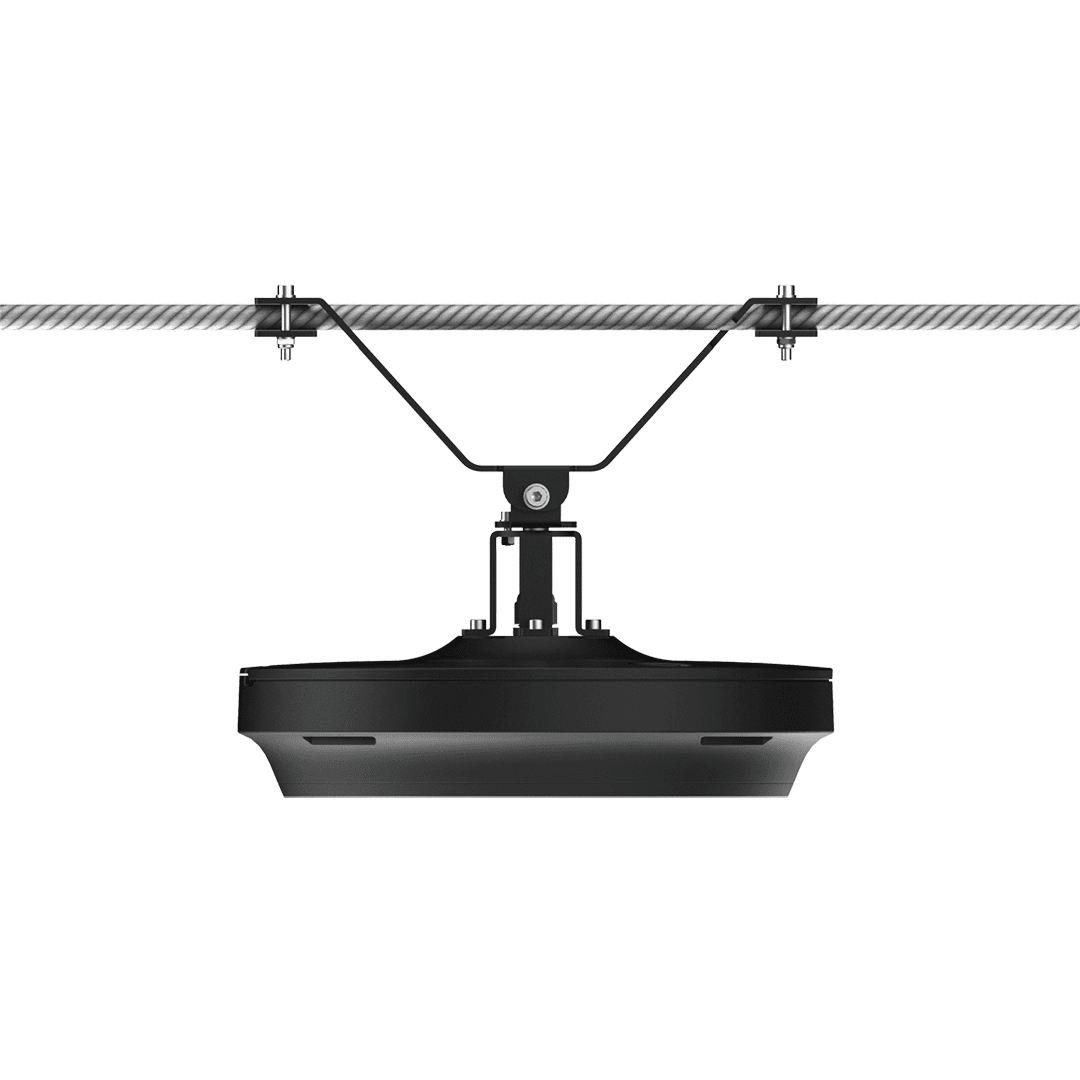

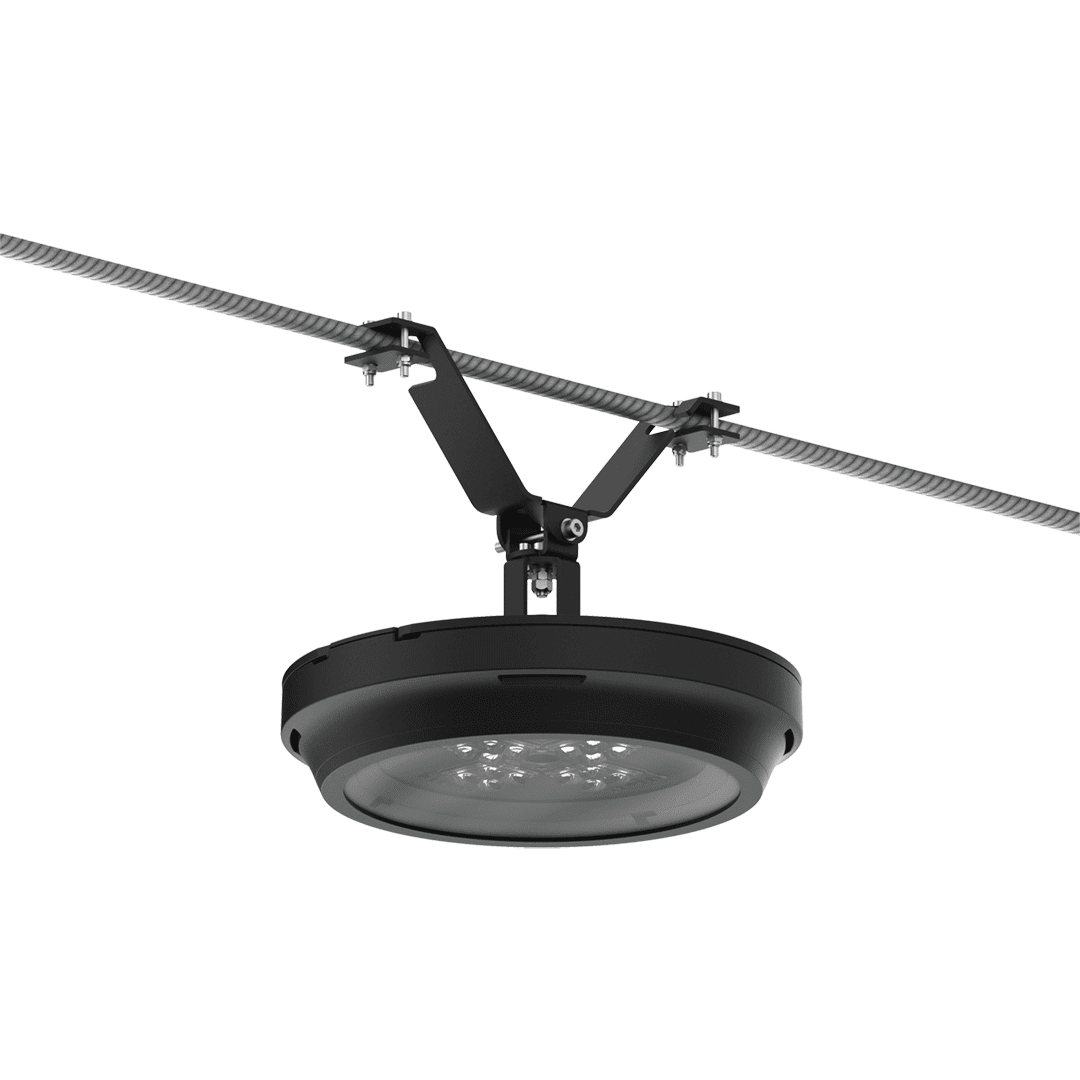

Modular, suspended, innovative LED luminaire for parks and urban areas, fitted with a mounting bracket for suspension from cables with a diameter of 6mm to 16mm, with 360° adjustment of the luminaire’s position. The bracket features a built-in locking mechanism and an additional stainless steel safety cable with a dedicated carabiner, enabling quick and easy installation and removal.

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	transparent
Mounting version	suspended
Dimensions [mm]	ø360/304
Application	parkings and bicycle paths streets and roads public areas non-public estate roads roads, squares, internal and private areas

LED220-240vIIik10ip66enecENEC PlusCEZhaga-D4i EPD

Ask about this product

Options

Skver LED S (R2 MF)

Ask about this product

Options

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	transparent
Mounting version	suspended
Application	parkings and bicycle paths streets and roads public areas non-public estate roads roads, squares, internal and private areas

Downloads

Download All

Characteristics

Skver LED S (R2 MF) is a modular, suspended, innovative LED luminaire for parks and urban areas, fitted with a bracket for suspension from cables with a diameter of 6 mm to 16 mm, allowing the luminaire’s position to be adjusted through 360°. The bracket features a built-in locking mechanism and an additional stainless steel safety cable with a dedicated carabiner, enabling quick and easy installation and removal. Park and urban LED luminaire with tool-free access to the equipment compartment, fitted with a tool-free service panel compliant with the Zhaga Book 13 and Zhaga Book 15 standards. Made from die-cast aluminium, fitted with a PC diffuser, characterised by a low ULR, enhanced resistance to mechanical impact and an improved colour rendering index. The luminaire is available in both omnidirectional and directional light distribution variants. Its modular design allows for the use of dedicated functional accessories to adapt the luminaire to specific requirements, whether in terms of mounting method, light distribution or design.

Key features:

omnidirectional and directional light distribution
variants available with standard (CRI70) and enhanced colour rendering index (CRI80)
architectural build quality
highest impact resistance rating (IK10)
high luminous efficacy of up to 161 lm/W
stainless steel suspension system cable lock, adjustable through 360°
suitable for installation on cables with a diameter of 6–16 mm
additional safety cable
tool-free access to the equipment compartment
can be fitted with a dedicated anti-glare shield can be fitted with dedicated accessories: ULR < 1 canopy, urban canopy
can be fitted with a Zhaga connector compliant with Zhaga-D4i (ZD4i)
a variety of mounting options
certified for the highest levels of performance and environmental quality: ENEC, ENEC+, ZD4i, Environmental Product Declaration (EPD)
tool-free service panel, compliant with the ZhagaBook13 and ZhagaBook15 standards
blade connector that cuts off the power supply during maintenance work.

Application

Biologically active space with a special role for the protection of dark skies parks squares urban green islands urban interiors according to photometric design pedestrian routes estate roads car parks garden arrangements.
Various hanging standards.

The R MF variant, due to its ULR = 0 parameter, protects the urban ecosystem from excessive light emission into the upper atmosphere, thus restoring dark night skies over our cities.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Colour temperature [K]	Luminous efficacy [lm/W]	Energy efficiency class	Color rendering index (Ra) >	Socket type	Dimensions (H/W/T/S) [mm]	Index
19	2600	3000	137	C	70	-	ø360/304	492914
19	2600	3000	137	C	70	ZHAGA	ø360/304	492976
19	2700	4000	142	C	70	-	ø360/304	492884
19	2700	4000	142	C	70	ZHAGA	ø360/304	492945
39	5200	3000	133	D	70	-	ø360/304	492907
39	5200	3000	133	D	70	ZHAGA	ø360/304	492969
39	5400	4000	138	C	70	-	ø360/304	492877
39	5400	4000	138	C	70	ZHAGA	ø360/304	492938
50	6400	3000	128	D	70	-	ø360/304	492891
50	6400	3000	128	D	70	ZHAGA	ø360/304	492952
50	6700	4000	134	D	70	ZHAGA	ø360/304	492921
50	6700	4000	134	D	70	-	ø360/304	492860
19	2400	3000	126	D	80	ZHAGA	ø360/304	618390
19	2400	3000	126	D	80	-	ø360/304	613395
19	2500	4000	132	D	80	-	ø360/304	613432
19	2500	4000	132	D	80	ZHAGA	ø360/304	618369
39	4800	3000	123	D	80	-	ø360/304	613418
39	4800	3000	123	D	80	ZHAGA	ø360/304	618383
39	5000	4000	128	D	80	-	ø360/304	492990
39	5000	4000	128	D	80	ZHAGA	ø360/304	618352
50	6000	3000	120	D	80	-	ø360/304	613425
50	6000	3000	120	D	80	ZHAGA	ø360/304	618376
50	6300	4000	126	D	80	ZHAGA	ø360/304	618345
50	6300	4000	126	D	80	-	ø360/304	492983

Show more ↓ Show less ↑

Accessories

Hide accessories

Index	Accessory name
WSEL431	HAI HD05R RC Programming Remote Control for HD0406VRH IoT

HAI HD05R RC Programming Remote Control for HD0406VRH IoT (WSEL431)

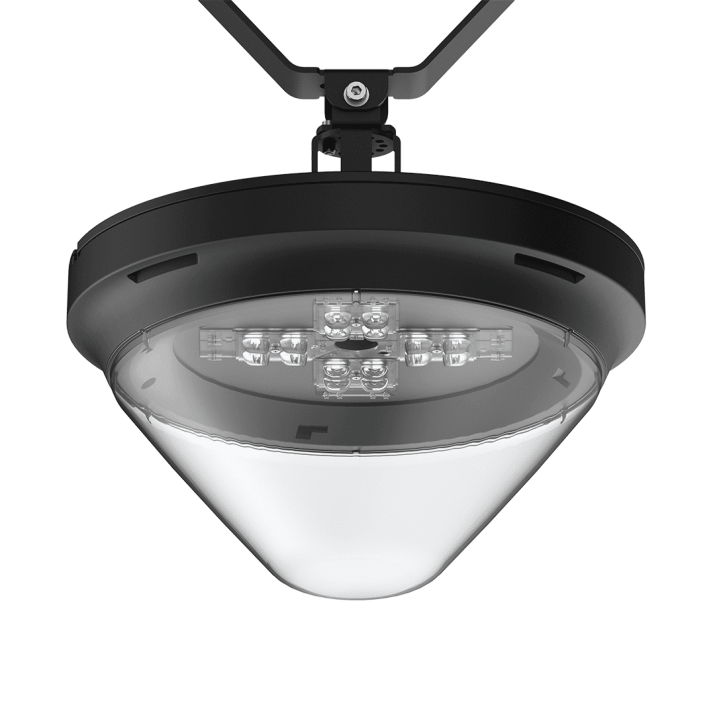

Skver LED S (R2 WJ)
