Industrial lighting Factor LED HB C5-M

Downloads

Specification

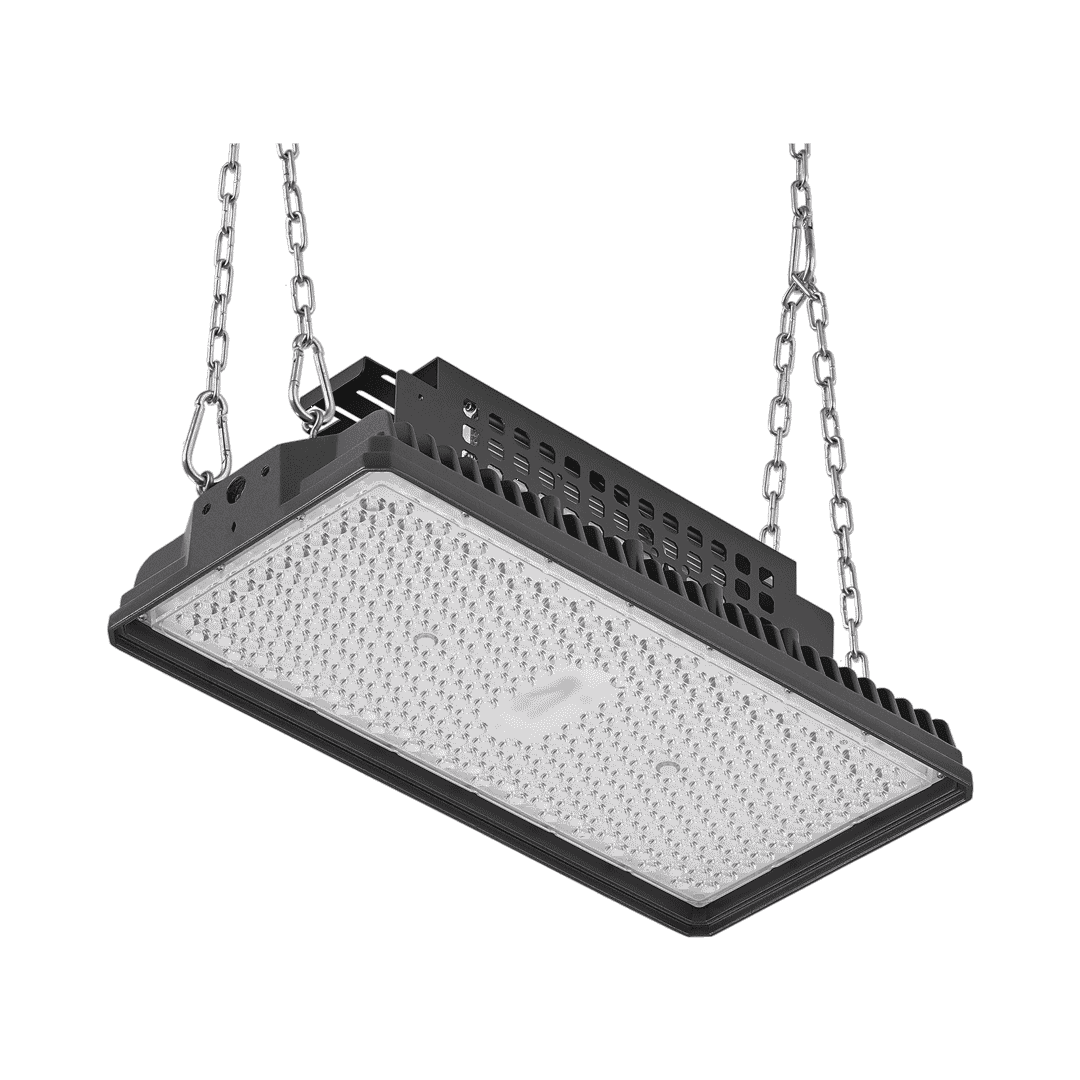

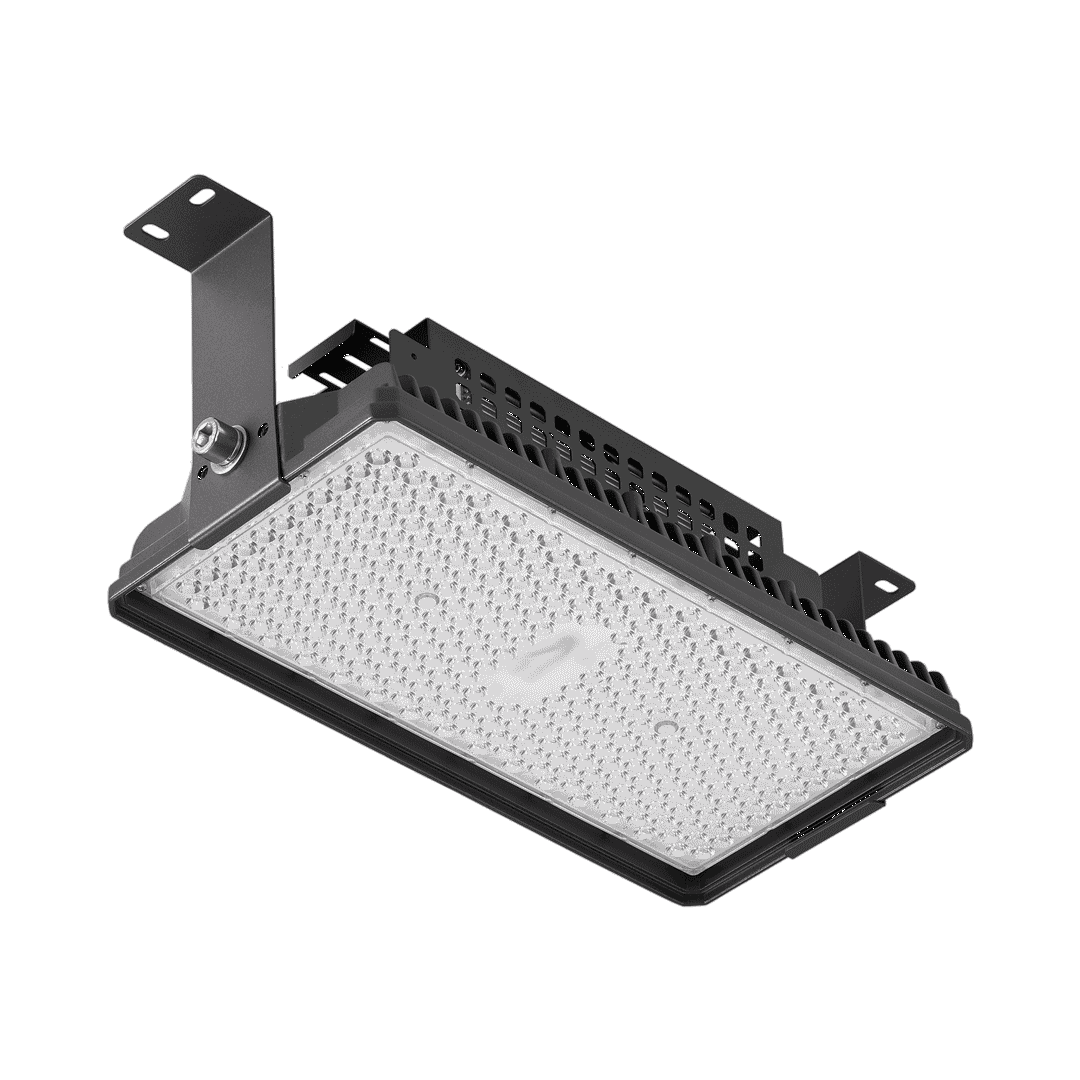

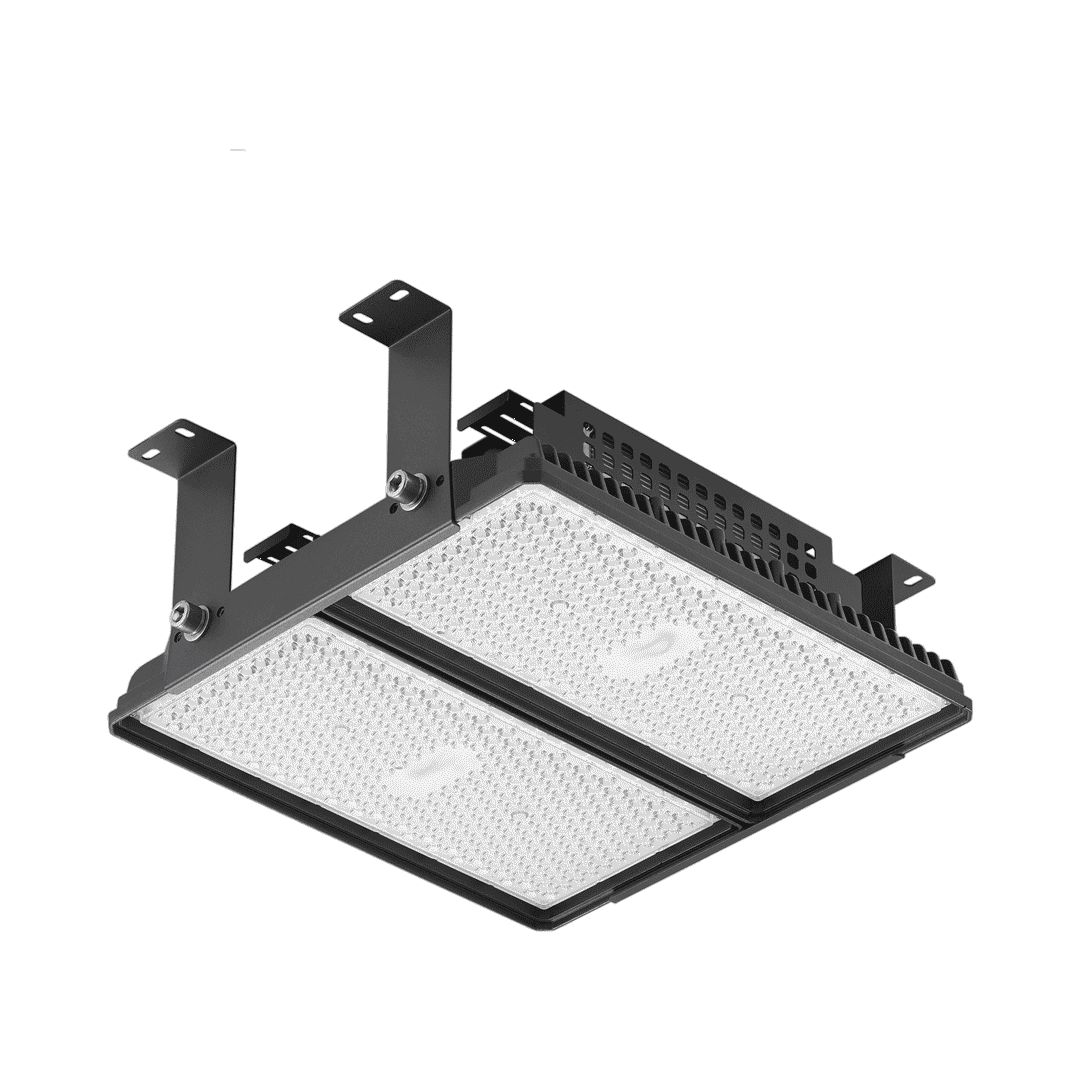

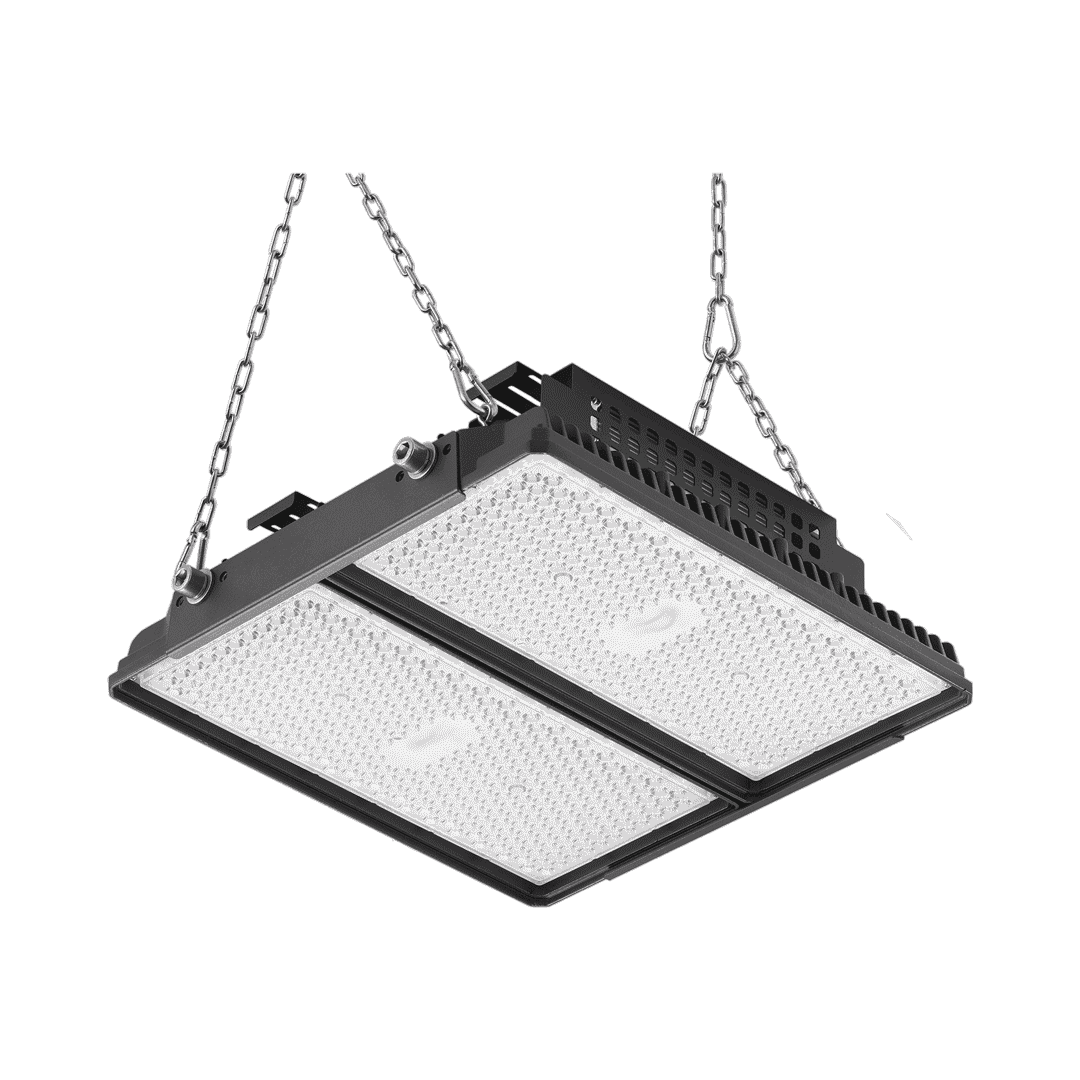

Factor Led HB C5-M (corrosion protection in harsh industrial and marine environments) is the latest generation of high bay with high power and high lumen output. It is characterised not only by very high luminous efficacy, but also by high IP66 sealing and IK09 impact resistance. These parameters have been achieved thanks to the branded components used, the robust housing made of cast aluminium LM-6 (aluminium-silicon alloy) and the use of a passive lamp cooling system, which allows excess heat generation to be dissipated during lamp operation. In the C5-M version, the paint coating plays an even more important role. The Factor Led has the advantage of being very quickly and easily suspended or surface-mounted. The design allows the hanging or mounting of a lamp consisting of one or two light modules.

Application

Very good sealing and impact resistance parameters, the ability to operate at elevated temperatures - up to 45˚C as standard - and an extensive range of beam patterns provide great flexibility in choosing the optimum solution. Factor LED HB is ideally suited for use in industrial halls, warehouses, sports halls, logistics and exhibition centres and workshops.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	Diffuser material	Diffuser type	Colour rendering index	DIMM DALI	Dimensions (H/W/T/S) [mm]	Index
101	16000	90	PC	matrix led	>80	-	191/397/125	682858
120	16600	120	tempered glass	transparent	>70	-	191/397/125	682865
163	23200	90	PC	matrix led	>80	-	191/397/125	682872
194	25300	120	tempered glass	transparent	>70	-	191/397/125	682889
202	32000	90	PC	matrix led	>80	-	387/397/125	682957
217	29400	90	PC	matrix led	>80	yes	191/397/125	682919
217	29400	90	PC	matrix led	>80	-	191/397/125	682926
233	29000	120	tempered glass	transparent	>70	yes	191/397/125	682896
233	29000	120	tempered glass	transparent	>70	-	191/397/125	683114
240	33200	120	tempered glass	transparent	>70	-	387/397/125	682964
281	37700	90	PC	matrix led	>80	-	191/397/125	682933
326	46400	90	PC	matrix led	>80	-	387/397/125	682971
388	50600	120	tempered glass	transparent	>70	-	387/397/125	682988
434	58800	90	PC	matrix led	>80	yes	387/397/125	683015
434	58800	90	PC	matrix led	>80	-	387/397/125	683022
466	58000	120	tempered glass	transparent	>70	yes	387/397/125	682995
466	58000	120	tempered glass	transparent	>70	-	387/397/125	683008
562	75400	90	PC	matrix led	>80	-	387/397/125	683039

Show more Show less

Accessories

Hide accessories

Index	Accessory name
987984	FACTOR LED HB surface mount single 1M
987991	FACTOR LED HB surface mount bracket double 2M

FACTOR LED HB surface mount single 1M (987984)

FACTOR LED HB surface mount bracket double 2M (987991)
