Specification

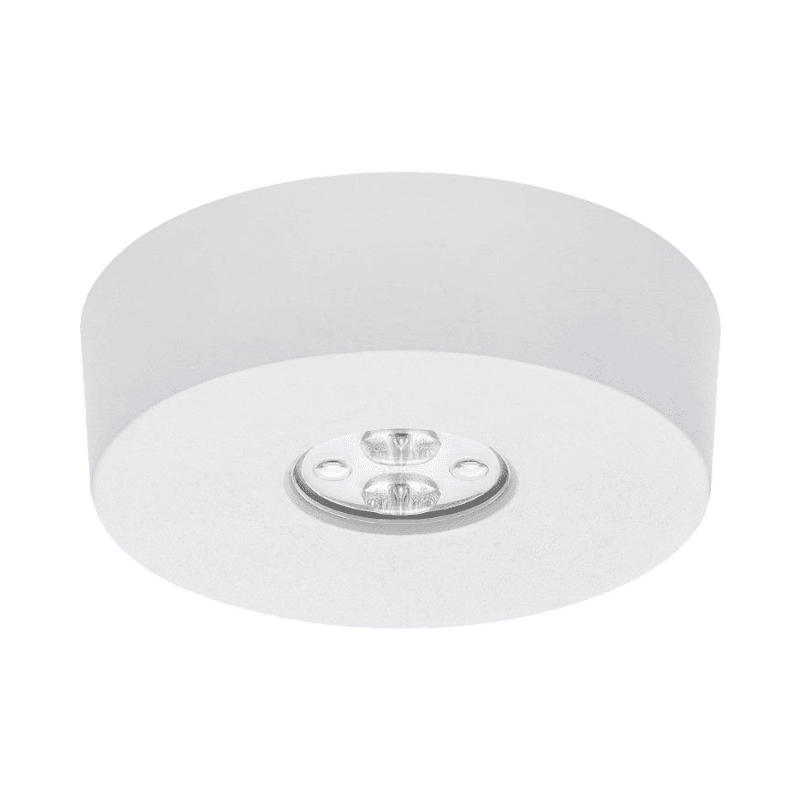

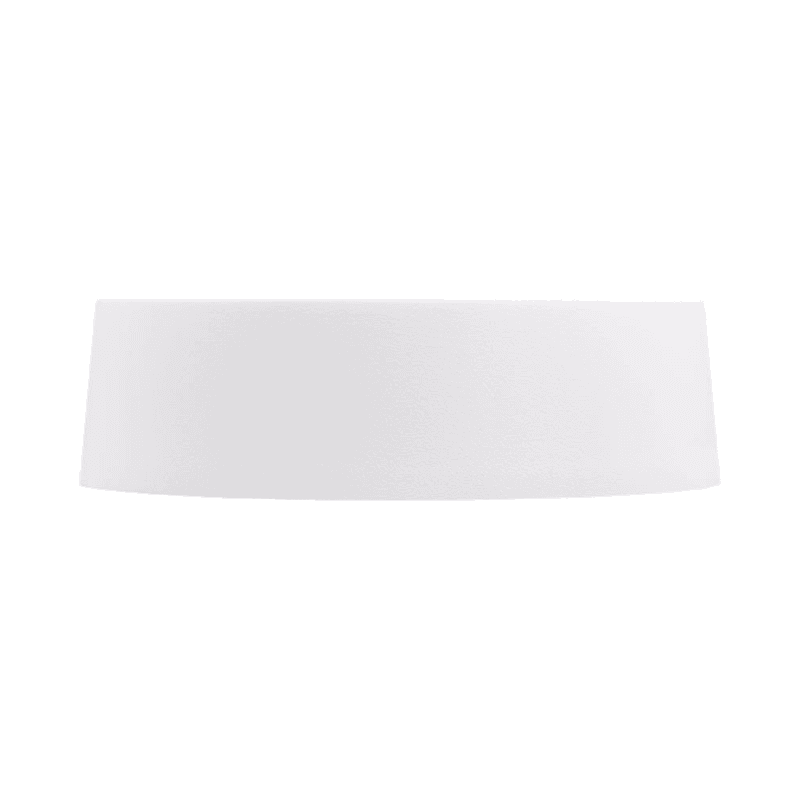

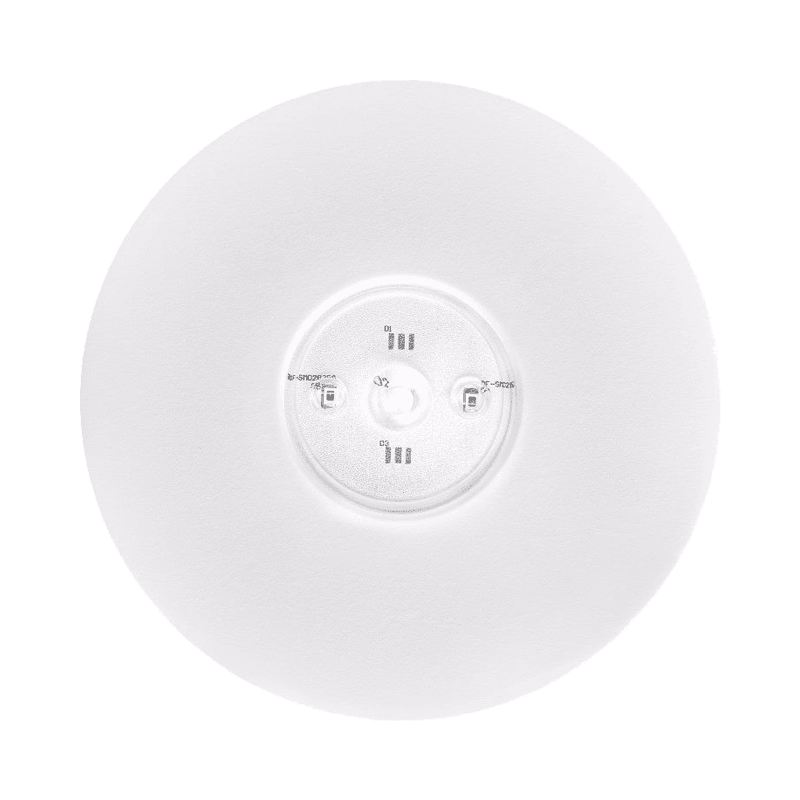

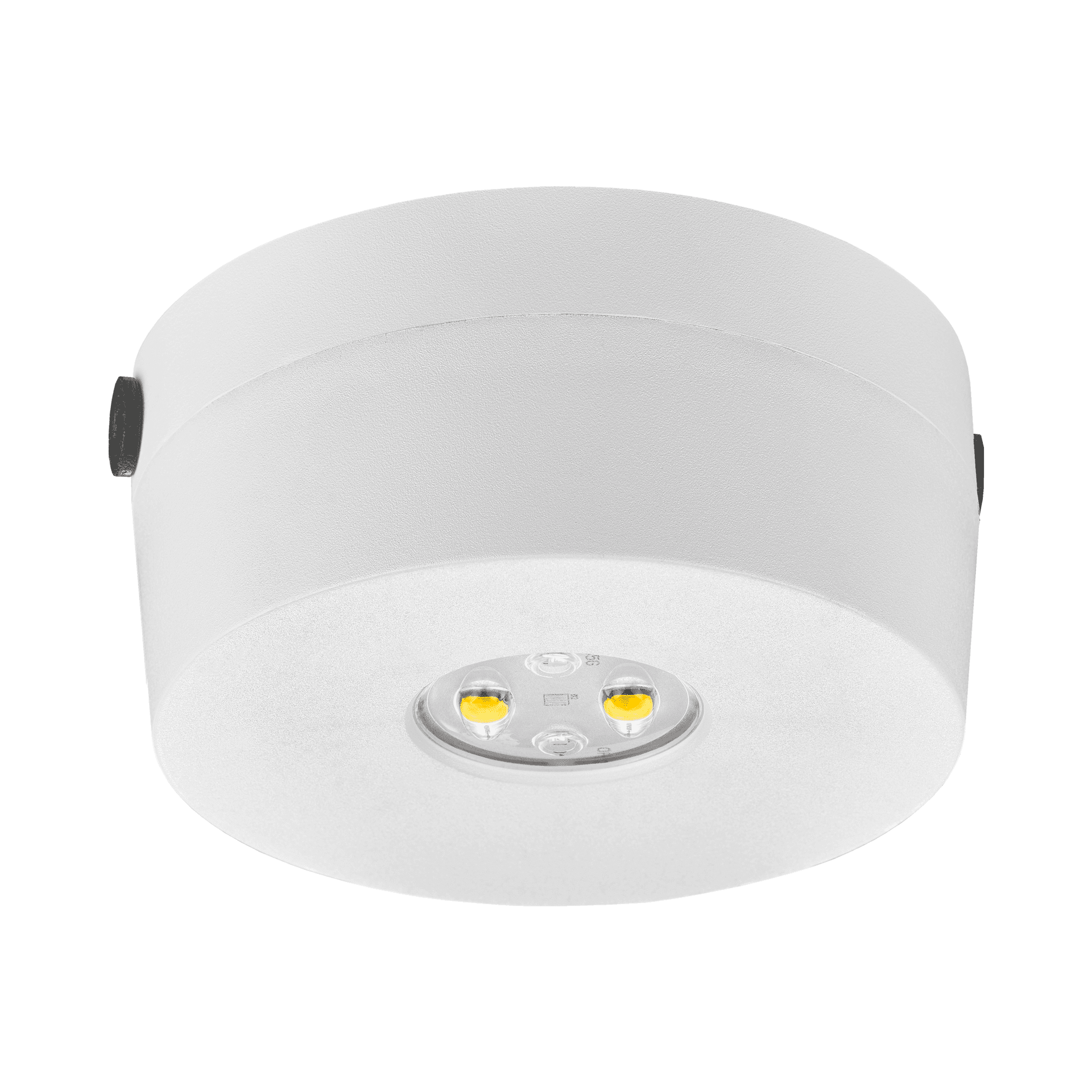

Surface-mounted 3W standalone emergency luminaire with an integrated, energy-efficient LED light module with 450lm light output. Body made of polycarbonate (PC). Optics available in 4 variants: general wide, general narrow, corridor wide, corridor narrow. DOT LED EVO has a built-in Li-ion battery, with an emergency operating time of 1h or 3h. The luminaire is available in an autotest (AT) version. Available in white or black.

Application

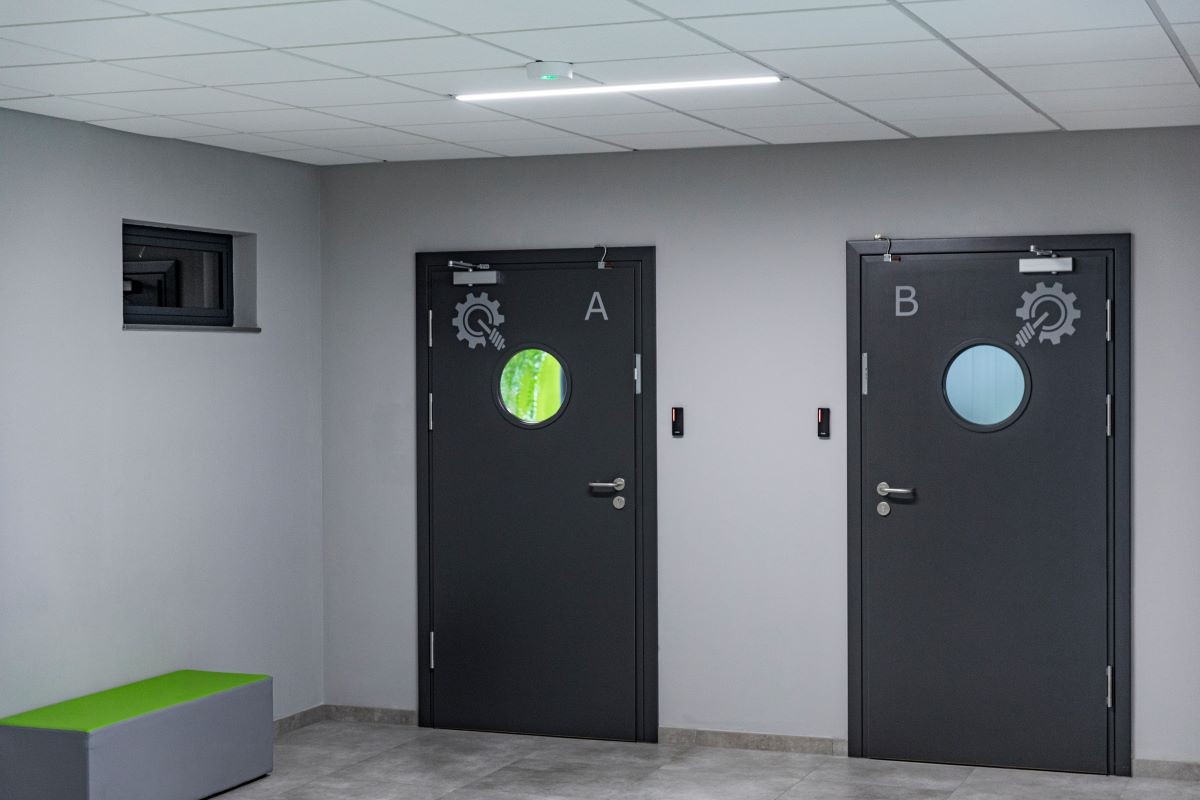

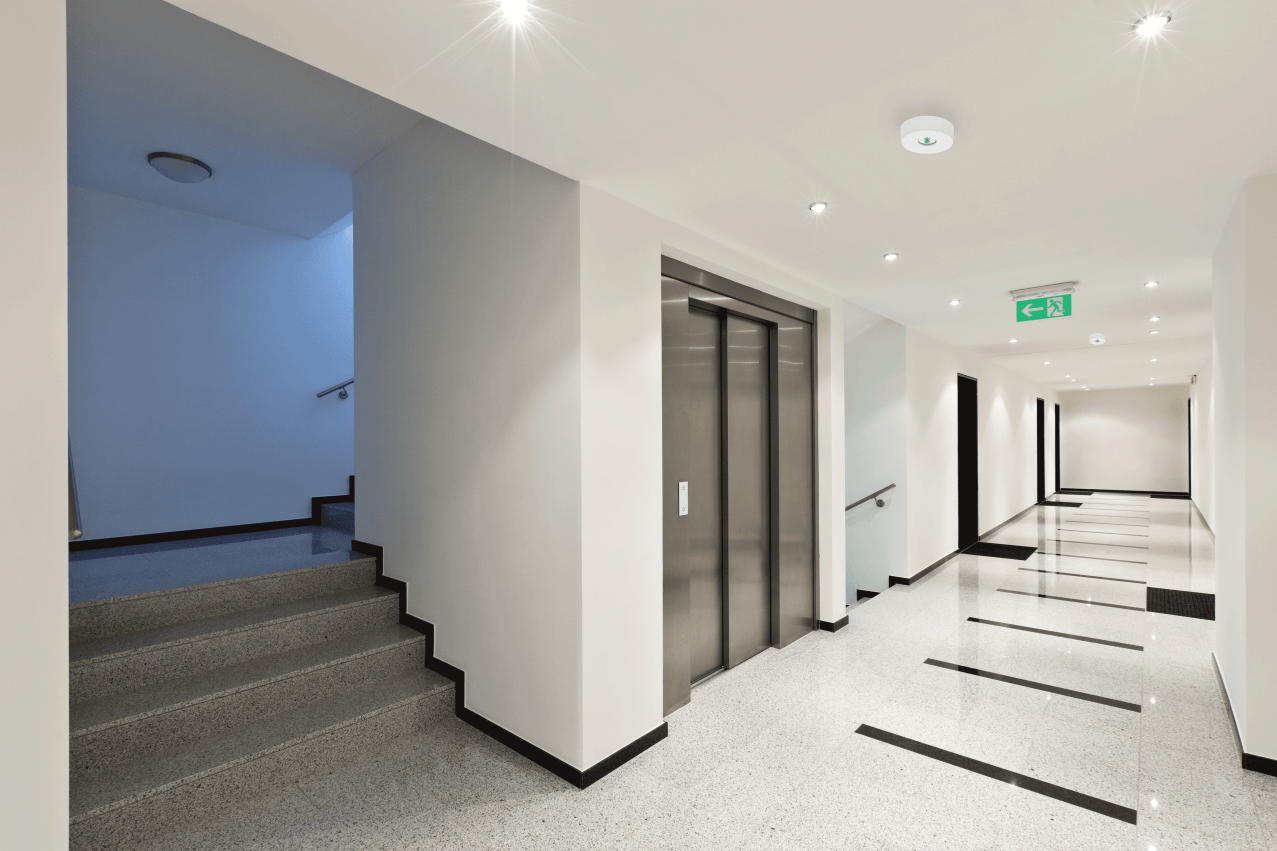

A self-contained emergency luminaire whose main use is to illuminate escape routes and fire protection equipment following a mains power failure. Particularly recommended where it is necessary to install emergency lighting as part of the modernisation of an existing installation. It successfully replaces lamps with a built-in emergency module. Thanks to additional sealing, the luminaire achieves IP65 sealing and can be used in areas with increased humidity or outdoors under cover.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Emergency lighting [h]	Beam angle [°]	Light distribution type	Index
3	4000	450	1	CSCLB	corridor narrow	233715
3	4000	450	3	CSCLB	corridor narrow	233753
3	4000	450	1	CSCLB	corridor narrow	236327
3	4000	450	3	CSCLB	corridor narrow	236365
3	4000	450	1	CRLB	general narrow	233708
3	4000	450	3	CSLB	general narrow	233746
3	4000	450	1	CSLB	general narrow	236310
3	4000	450	3	CSLB	general narrow	236358
3	4000	450	1	CSCHB	wide corridor	233722
3	4000	450	3	CSCHB	wide corridor	233760
3	4000	450	1	CSCHB	wide corridor	236334
3	4000	450	3	CSCHB	wide corridor	236372
3	4000	450	1	CSHB	general wide	233739
3	4000	450	3	CSHB	general wide	233777
3	4000	450	1	CSHB	general wide	236341
3	4000	450	3	CSHB	general wide	236389

Show more Show less

Accessories

Hide accessories

Index	Accessory name
551161	Ceiling spacer DOT white matt
545672	DOT CS galvanized steel arm

Ceiling spacer DOT white matt (551161)

DOT CS galvanized steel arm (545672)

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Light source	LED
Colour temperature	4000K
Mounting version	surface
Application	commercial educational HoReCa medical residential industrial sports art and culture architectural office

Dot CS LED Evo

Technical specifications

Downloads

Related products

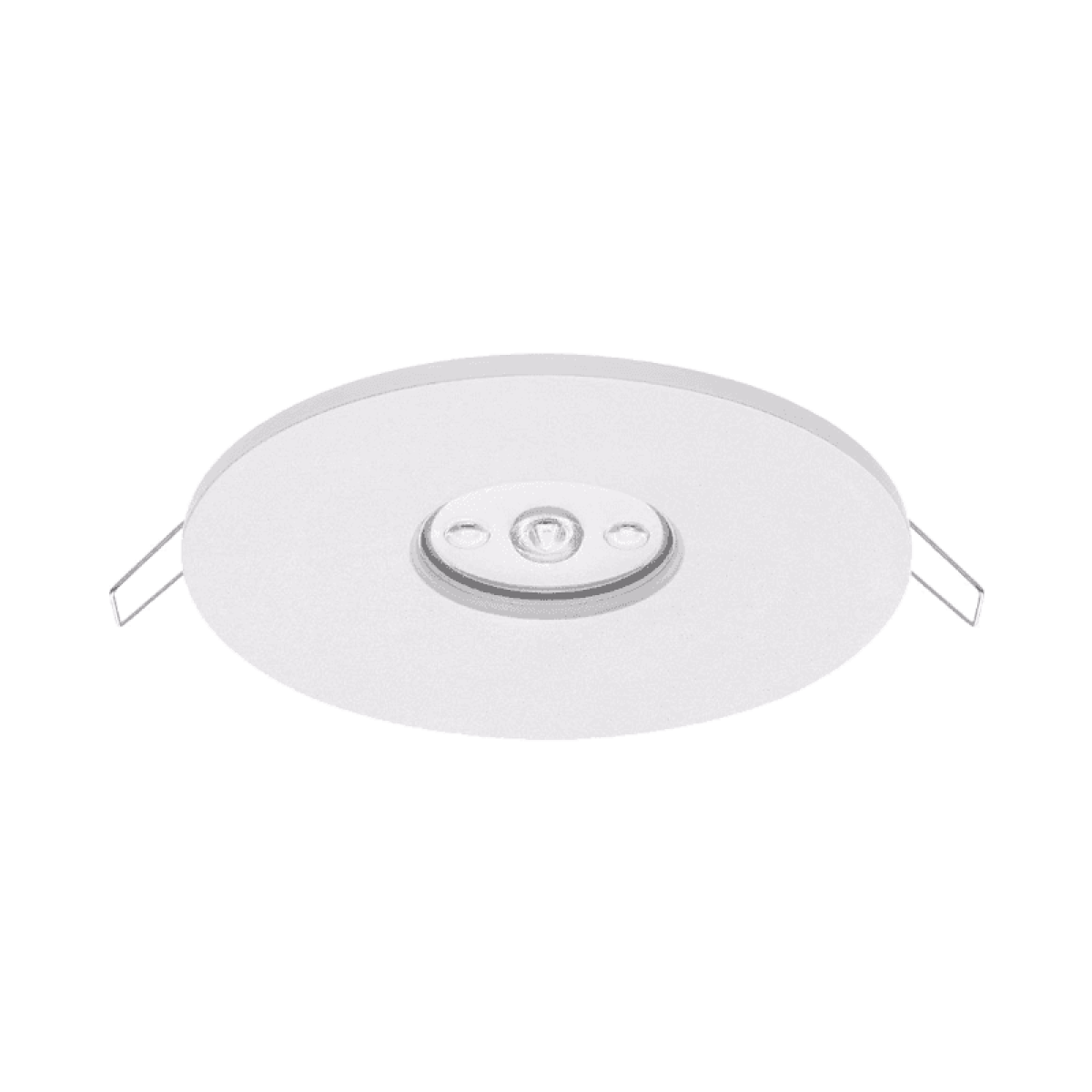

Dot CR LED Evo
