Constelia LED

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

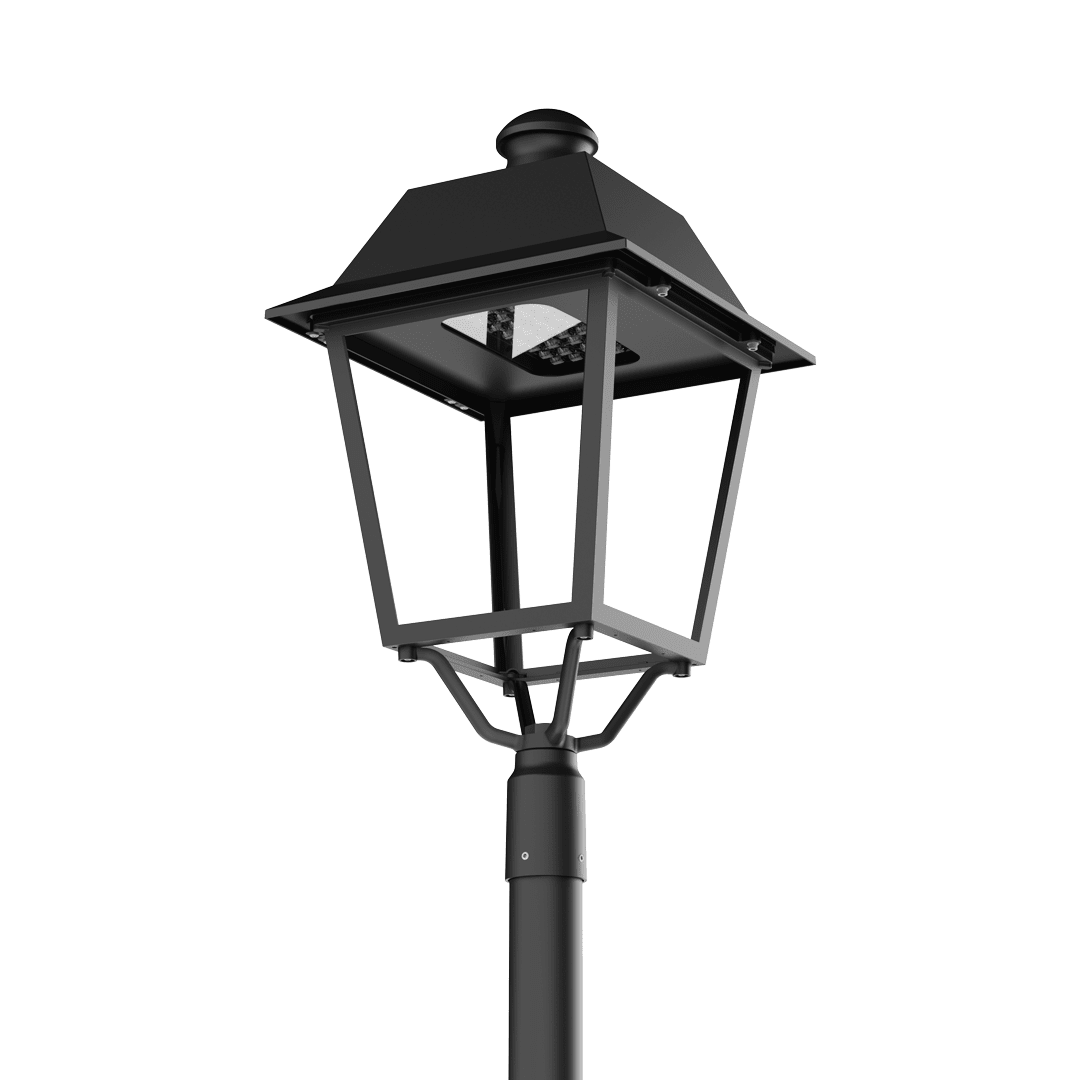

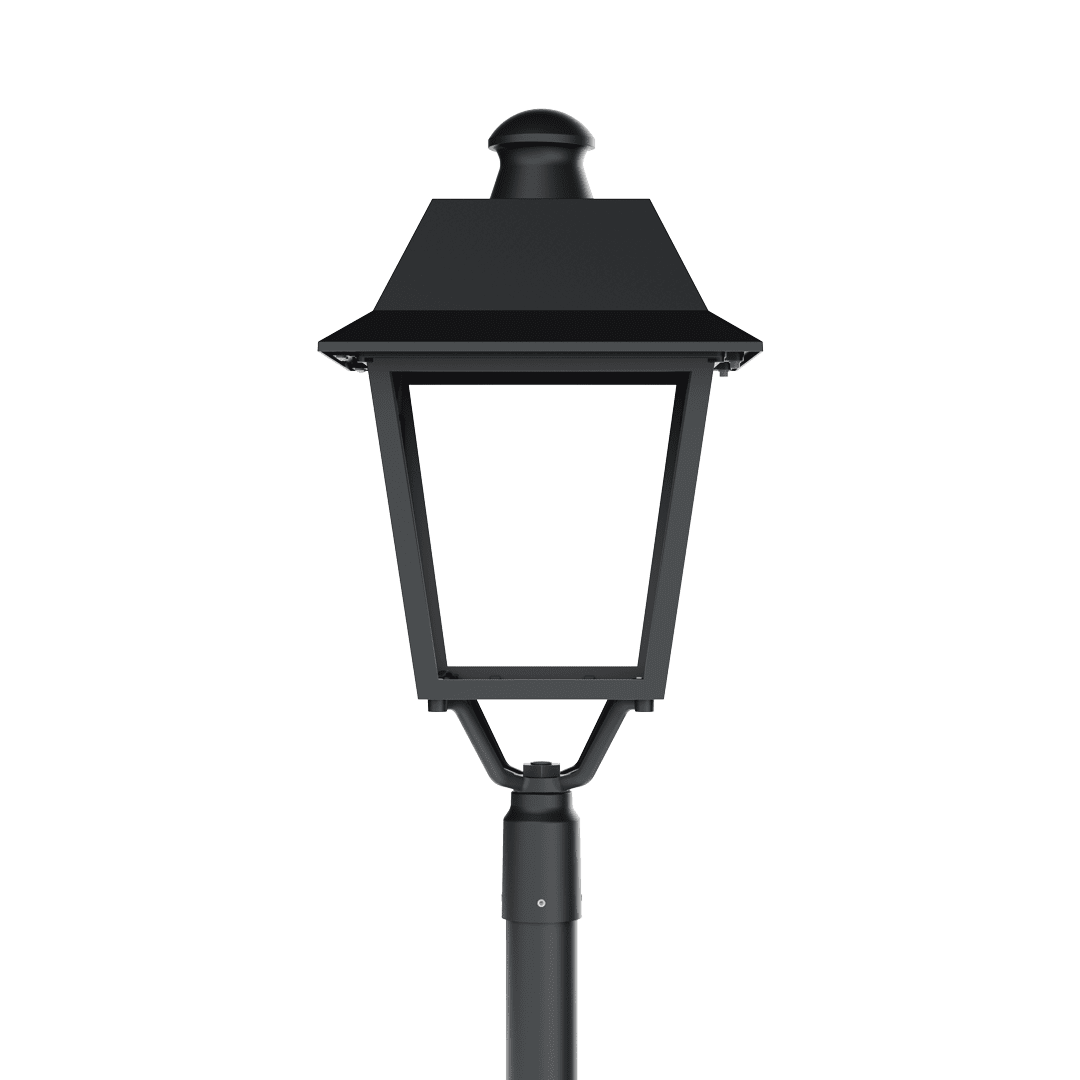

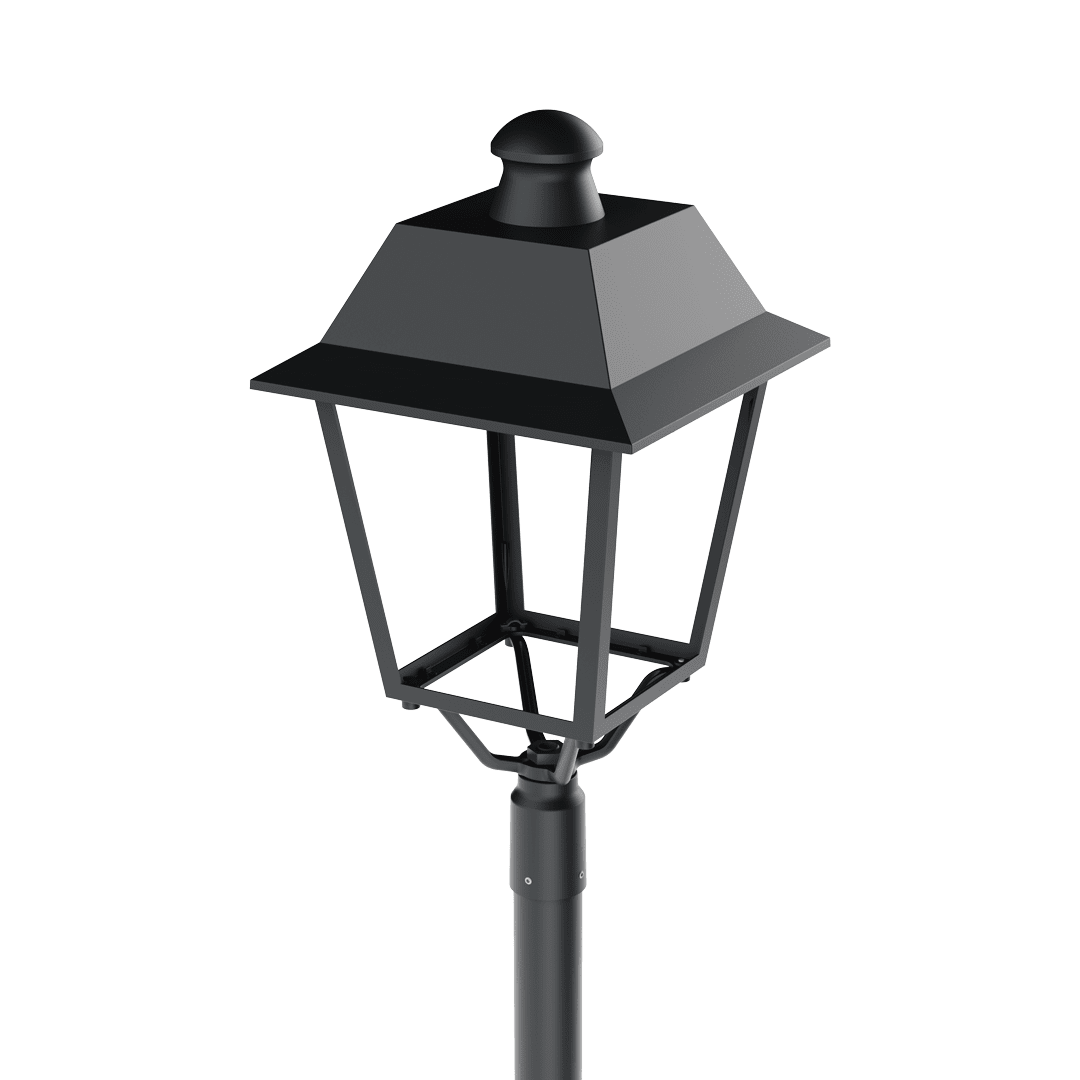

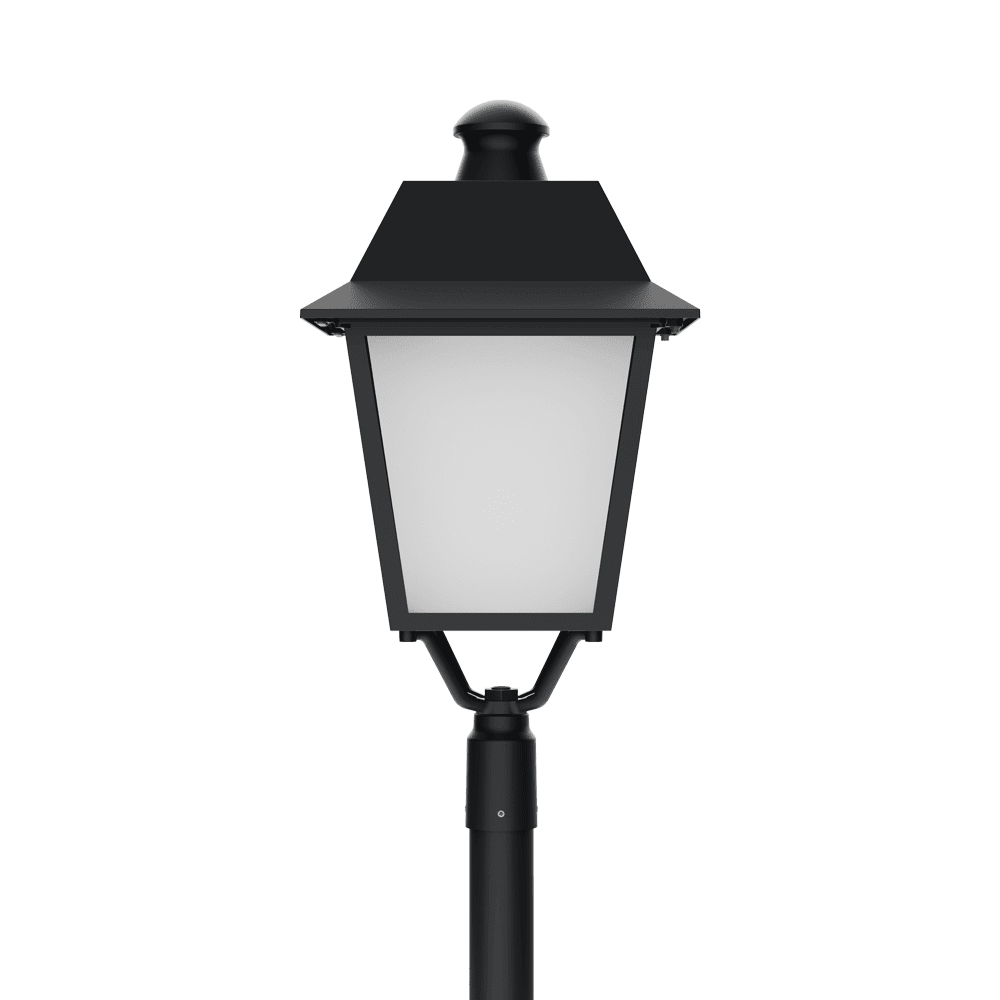

Constelia LED is a new generation of stylised LED park-town luminaires. The luminaire allows for quick and convenient service, allowing one integrated component to be replaced without having to dismantle the entire luminaire and make soldered or bolted connections.

Technical specifications

Light source	LED
Colour temperature	4000K

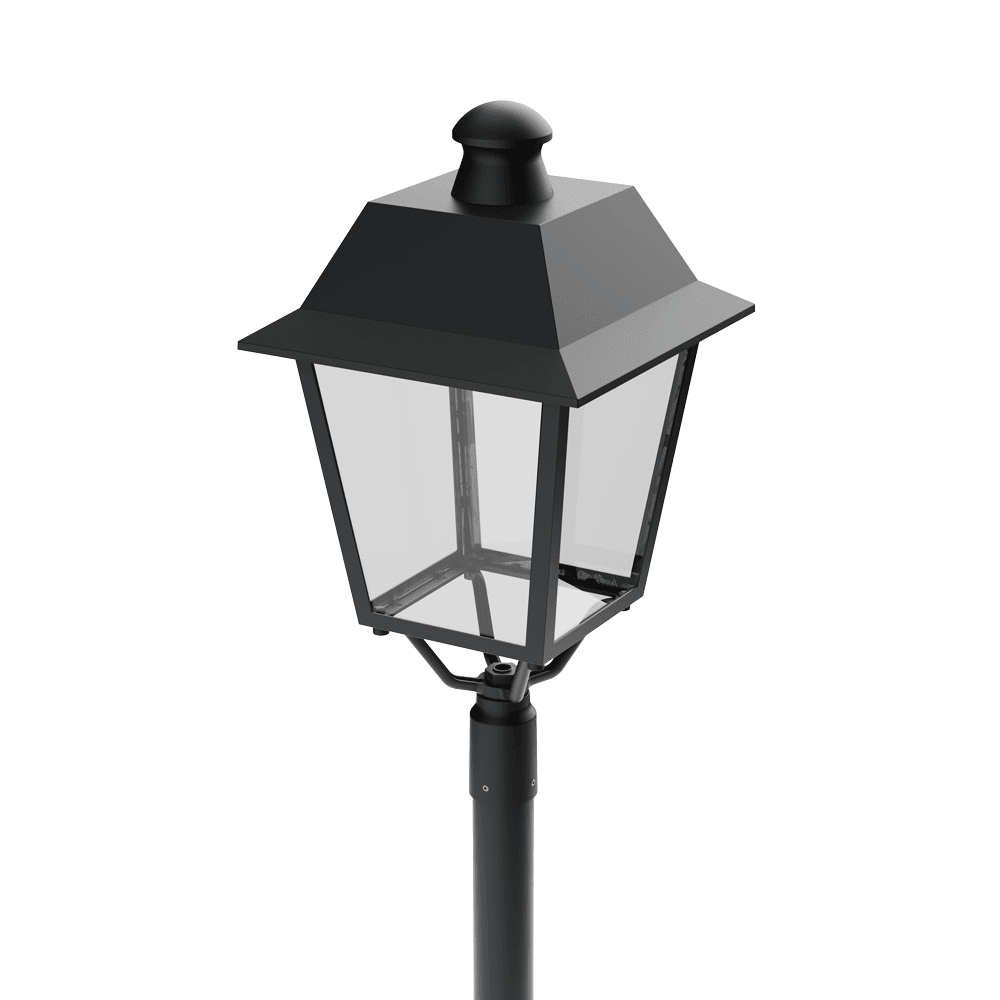

Diffuser type	transparent
Mounting version	post top
Application	parkings and bicycle paths streets and roads public areas non-public estate roads roads, squares, internal and private areas

LED220-240vIIik09ip66enecENEC PlusCEZhaga-D4i

Ask about this product

Options

Downloads

Specification

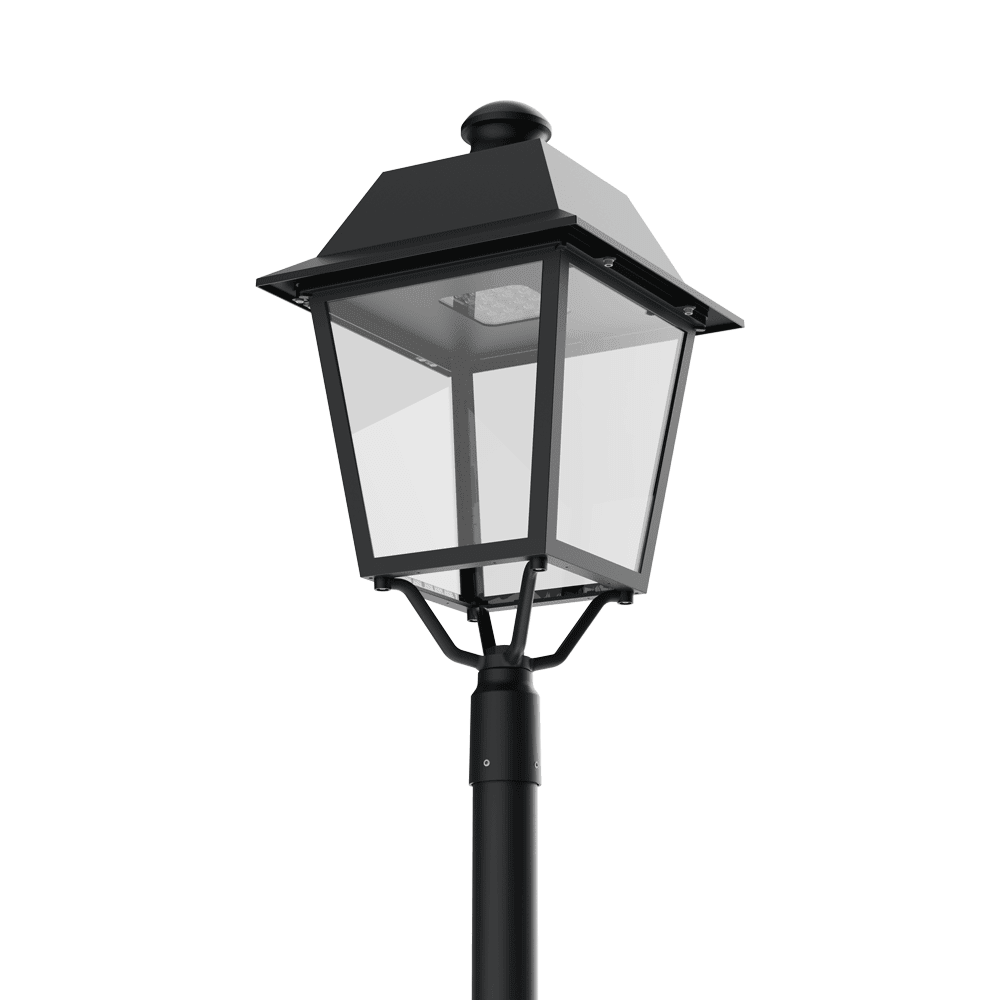

Constelia LED is a new generation of stylised LED park-and-ride luminaires. It uses directional multi-lens matrices, made of PMMA, with each lens having dedicated optics, ensuring the light characteristics remain consistent over time. The luminaire's design ensures that the luminaire's internal chamber remains sealed. As standard, the luminaire offers tool-free access to the electrical equipment, which, if desired and to protect against vandalism or uncontrolled opening, can optionally be permanently secured with screws. The luminaire offers rapid and convenient serviceability, allowing one integrated component to be replaced without the need to dismantle the entire luminaire and make soldered or screwed connections. No on-site service work is required. Simply replace the module with a spare (accessory) close the luminaire and the service work is then carried out on site: at the luminaire owner's facility or sent back to the manufacturer's service centre. The luminaire body and handle are made of die-cast aluminium, powder-coated black and have a very high IP66 ingress protection and IK09 mechanical shock resistance.

Accessories available:

NTC overheating protection;
fully programmable DALI driver;
luminaire CLO and Autonomous 5-step power reduction functions available;
connection terminals;
tool-free access protected by a knife disconnect switch to de-energise the integral module if the compartment is opened.

Additional options:

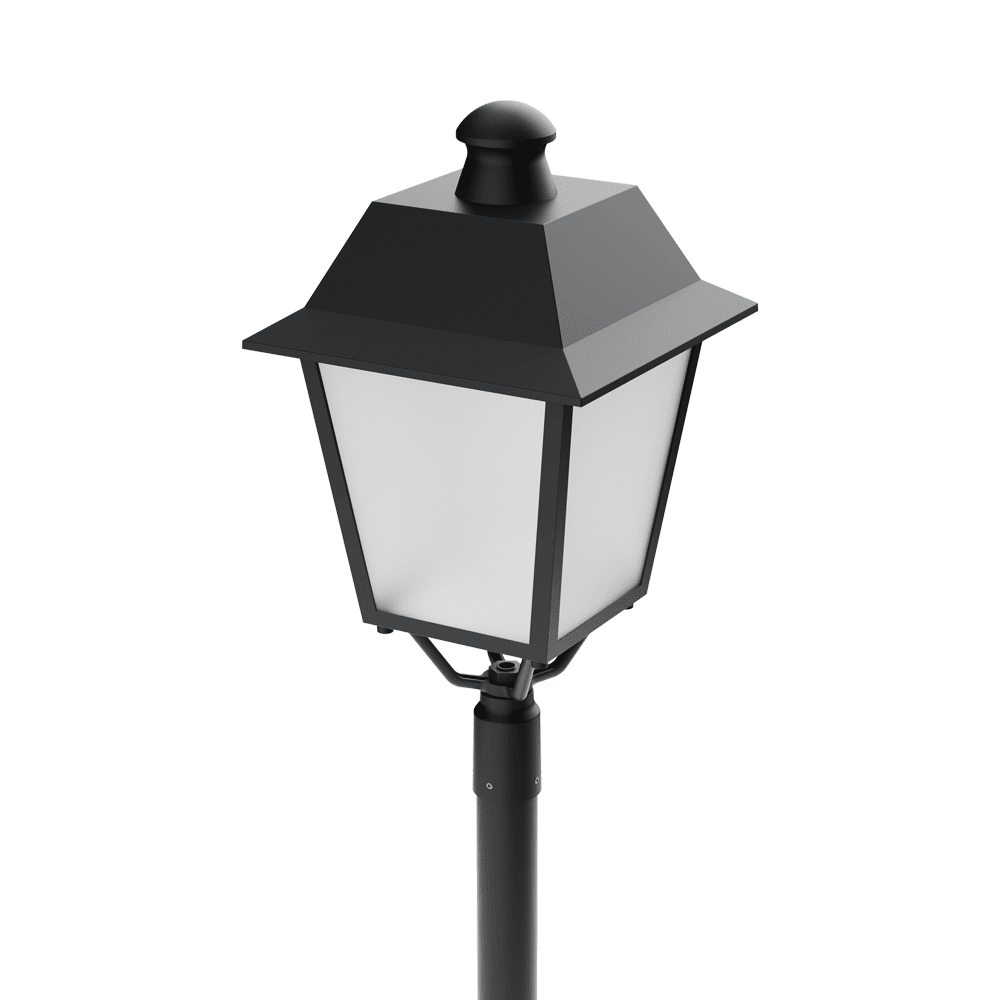

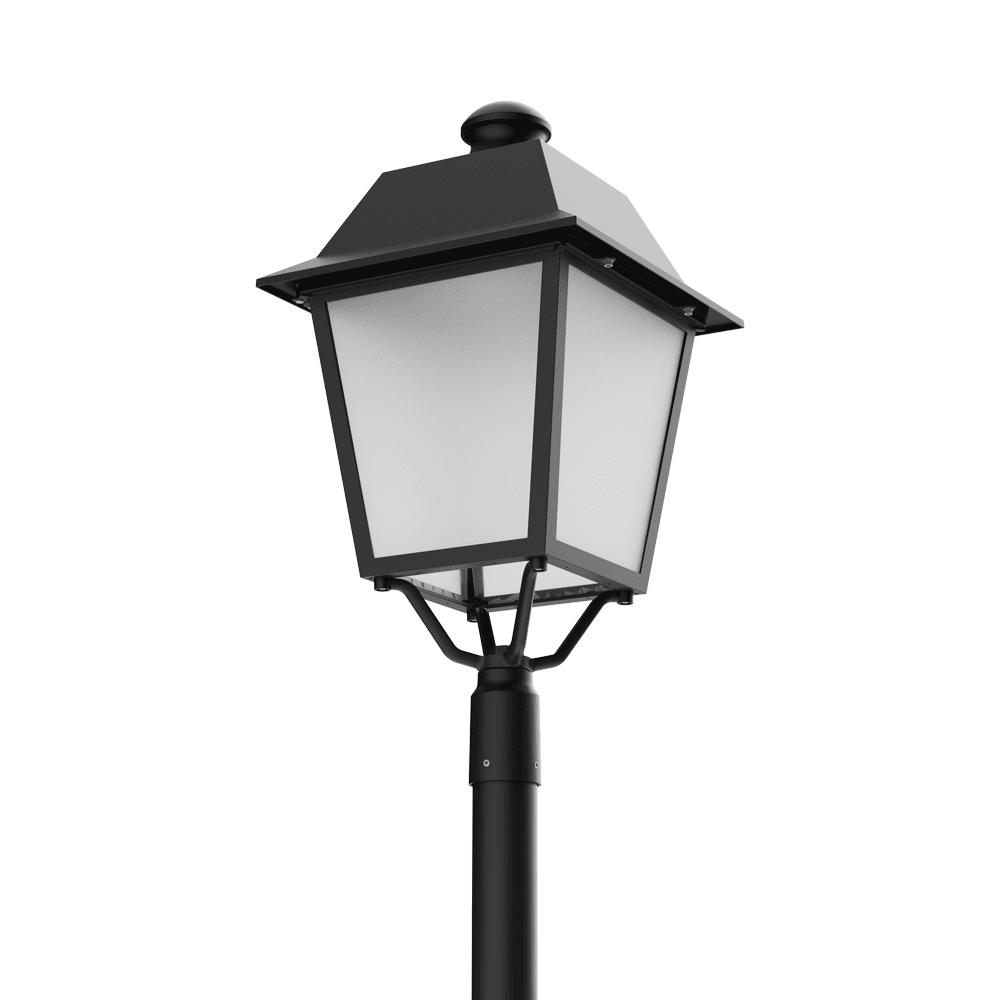

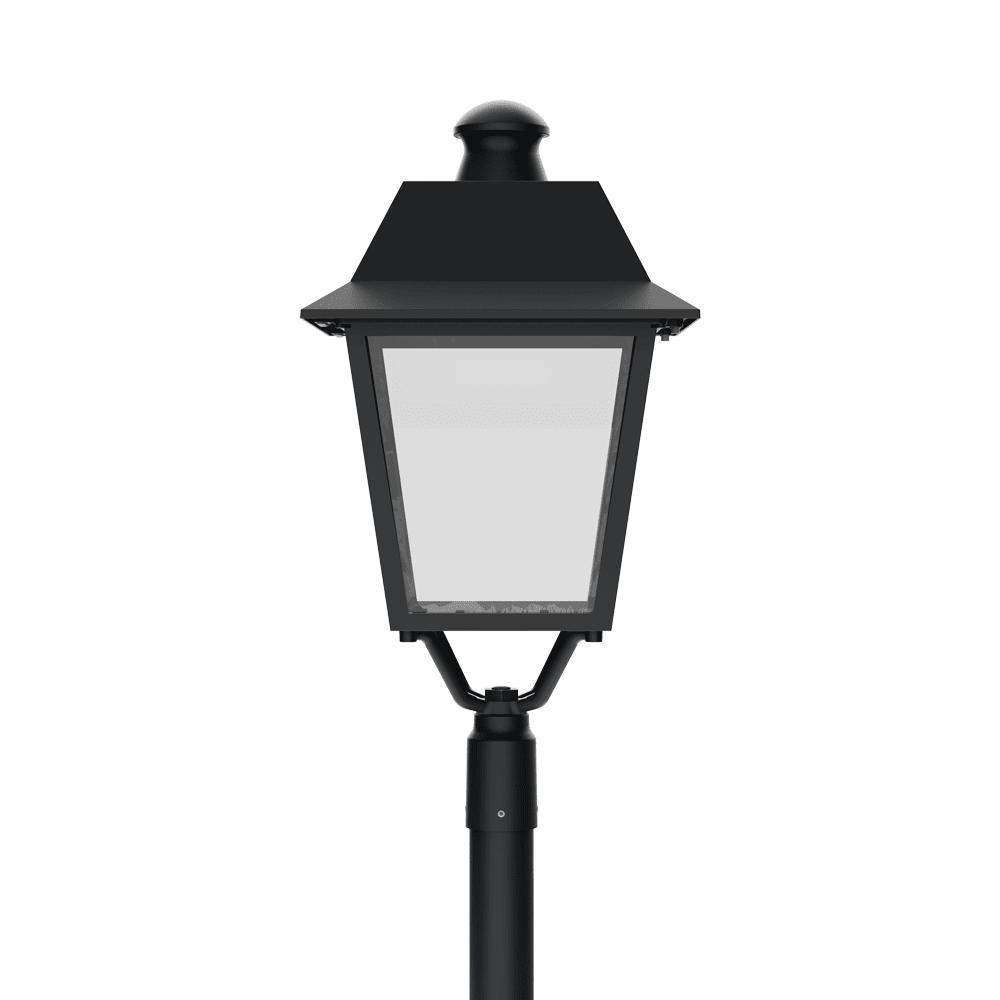

stylised glazing to transform the external appearance of the luminaire, ZHAGA connector (ZhagaBook 18);
interfacing with control systems, anti-vandal protection with screws;
additional SP10kV protection outside the power supply, on/off power supply without power reduction;
design with cable terminated with quick connector;
painting in any RAL colour.

Certifications: CE, RoHS, ENEC, ENEC+, Zhaga-D4i.

Application

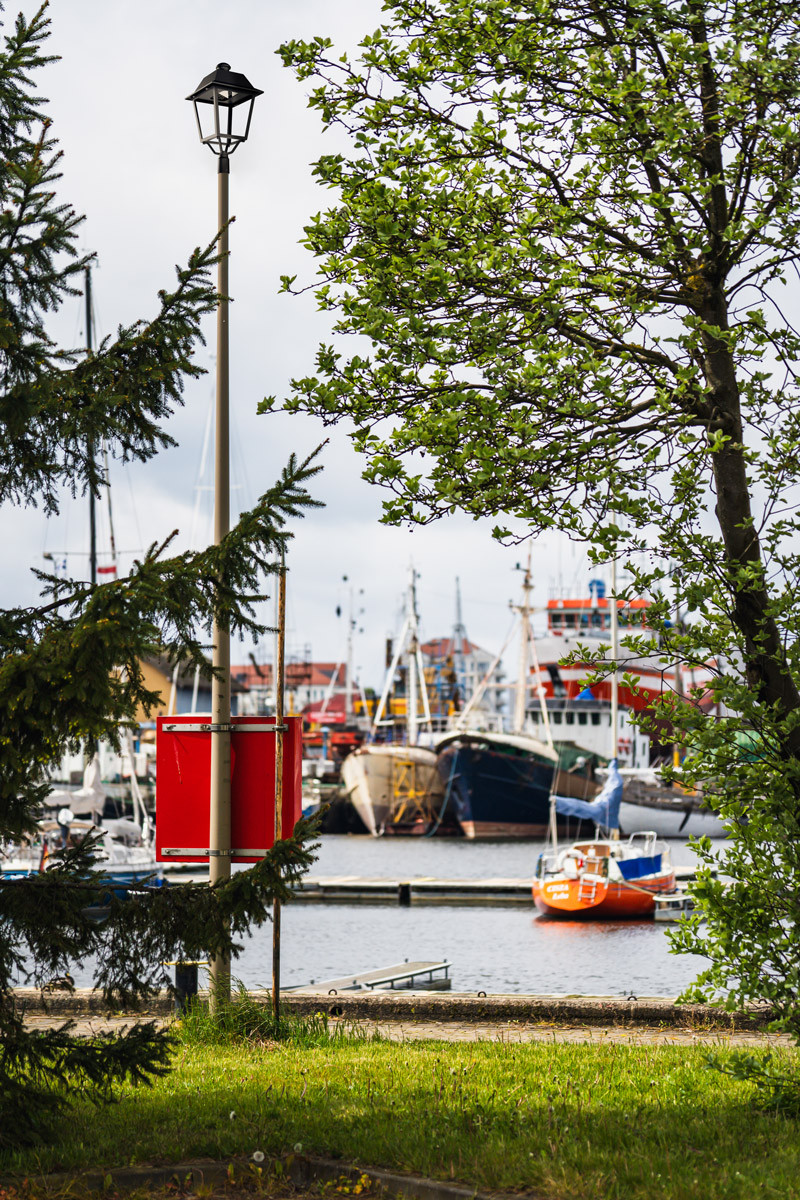

Outdoor areas of places such as town halls, libraries, town halls, health facilities, schools, kindergartens, public gardens, streets, pavements, recreational areas: playing fields, playgrounds, cycle paths, historical sites, old towns.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Energy efficiency class	DIMM DALI	Socket type	Protection type	Dimensions (H/W/T/S) [mm]	Index
8	1125	C	yes	-	-	425/425/827	809101
16	2250	C	yes	-	-	425/425/827	809118
24	3200	D	yes	-	NTC + ESD + SP10kV/10kA	425/425/827	809125
33	4800	C	yes	-	-	425/425/827	809132
39	5100	D	yes	-	-	425/425/827	809149
47	5900	D	yes	-	-	425/425/827	809156
52	6400	D	yes	-	-	425/425/827	809163
52	6400	D	yes	ZG-DN	-	425/425/827	809316
61	8400	C	yes	-	-	425/425/827	809170
70	9800	C	yes	ZG-DN	NTC + ESD	425/425/827	809187
76	10150	D	yes	-	-	425/425/827	809194

Show more Show less
