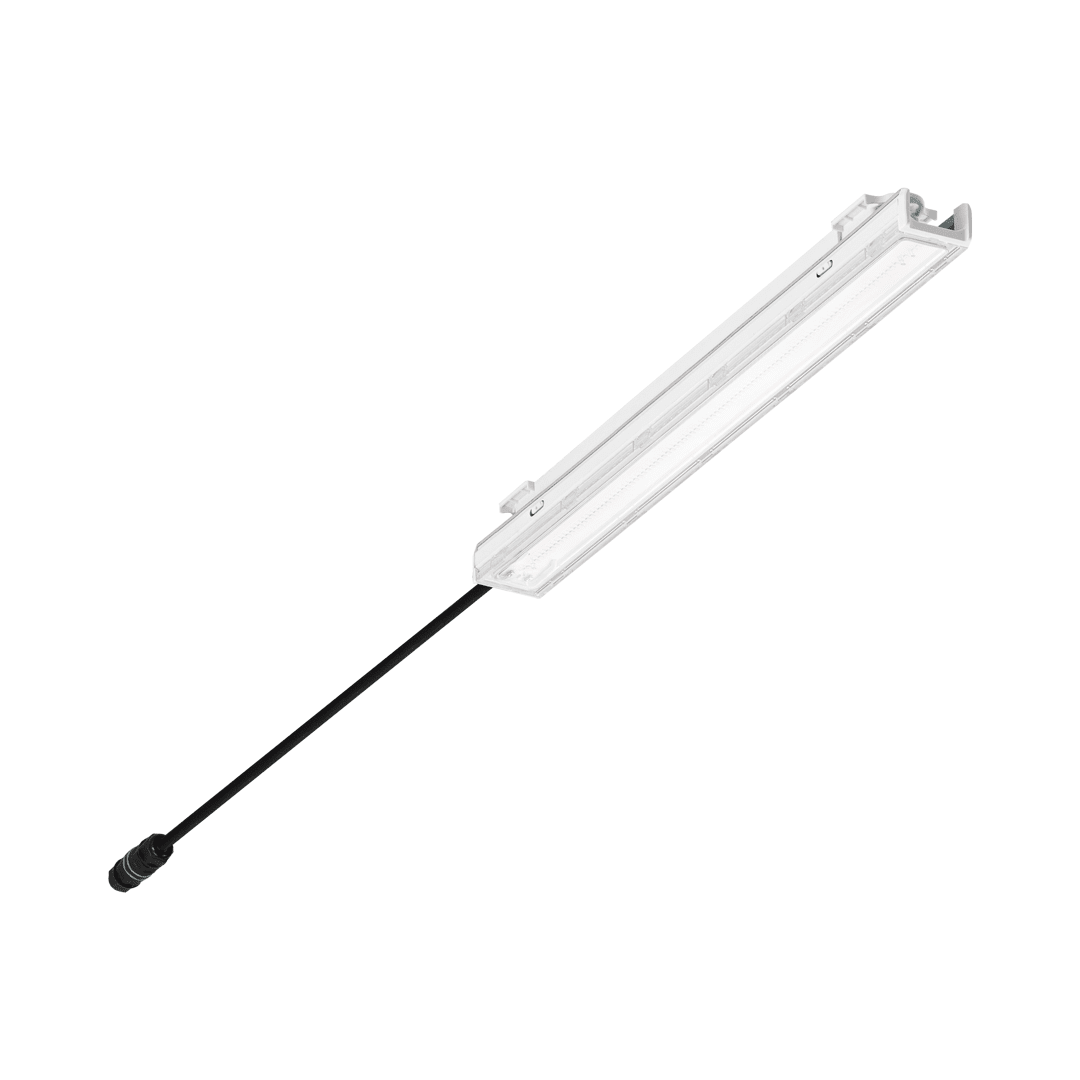

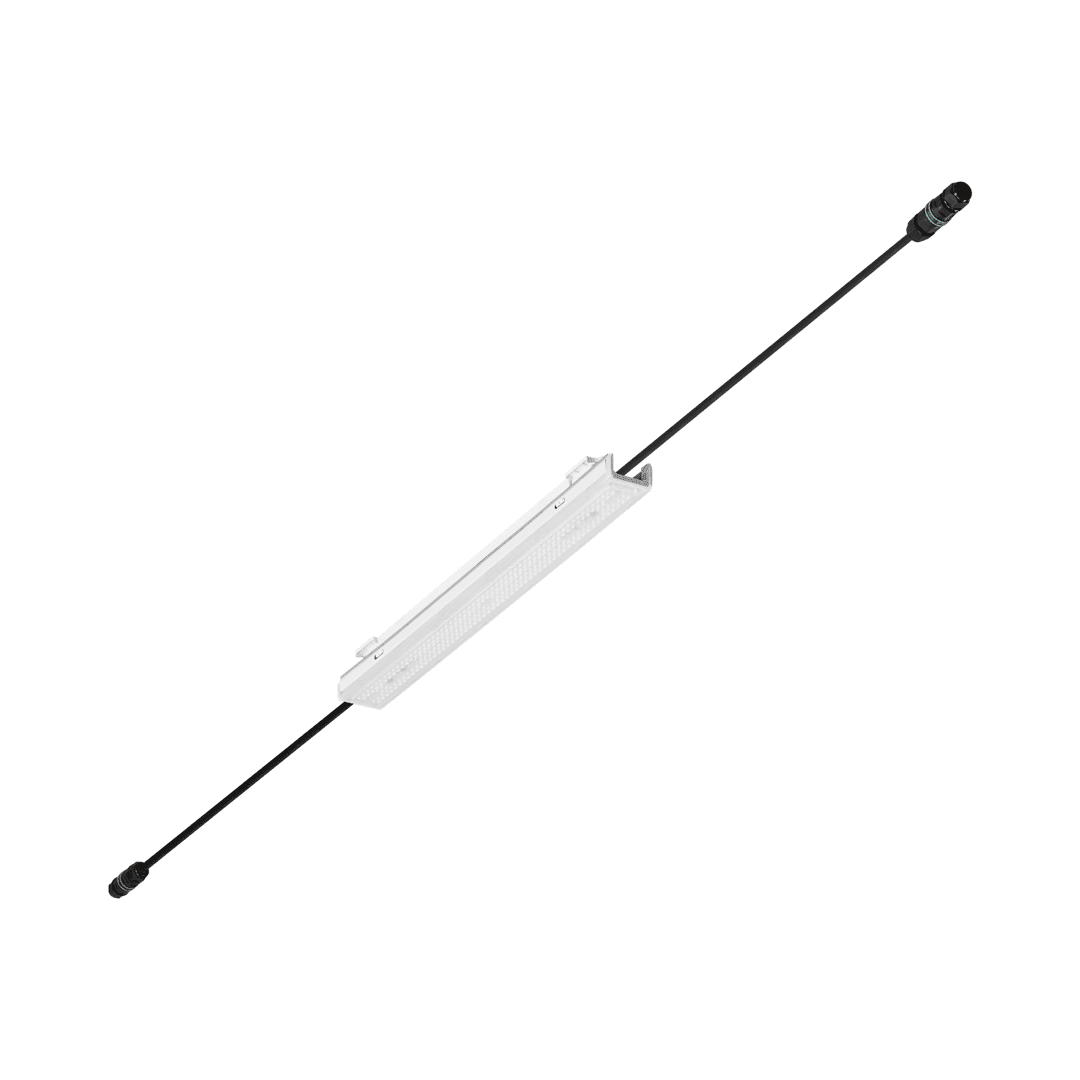

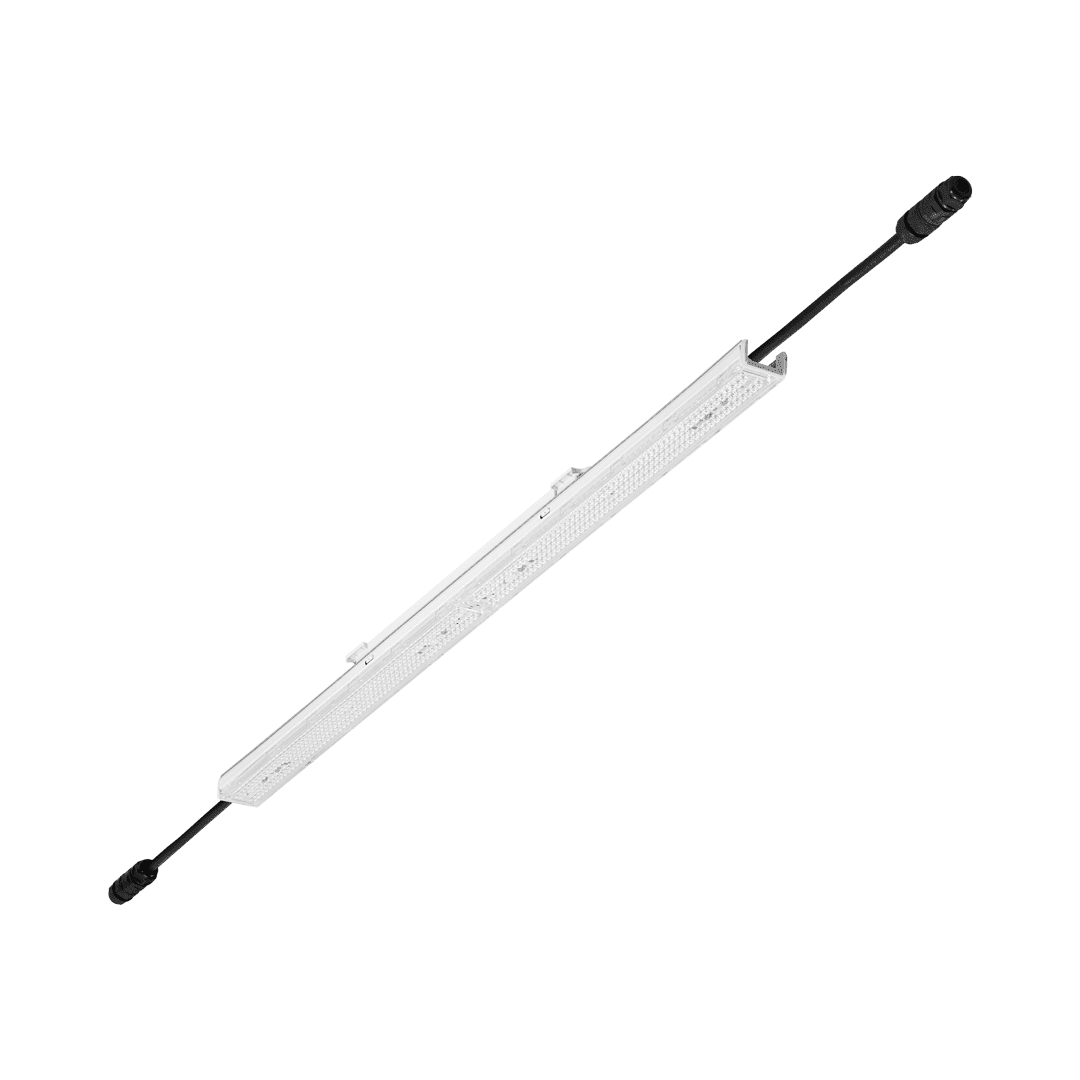

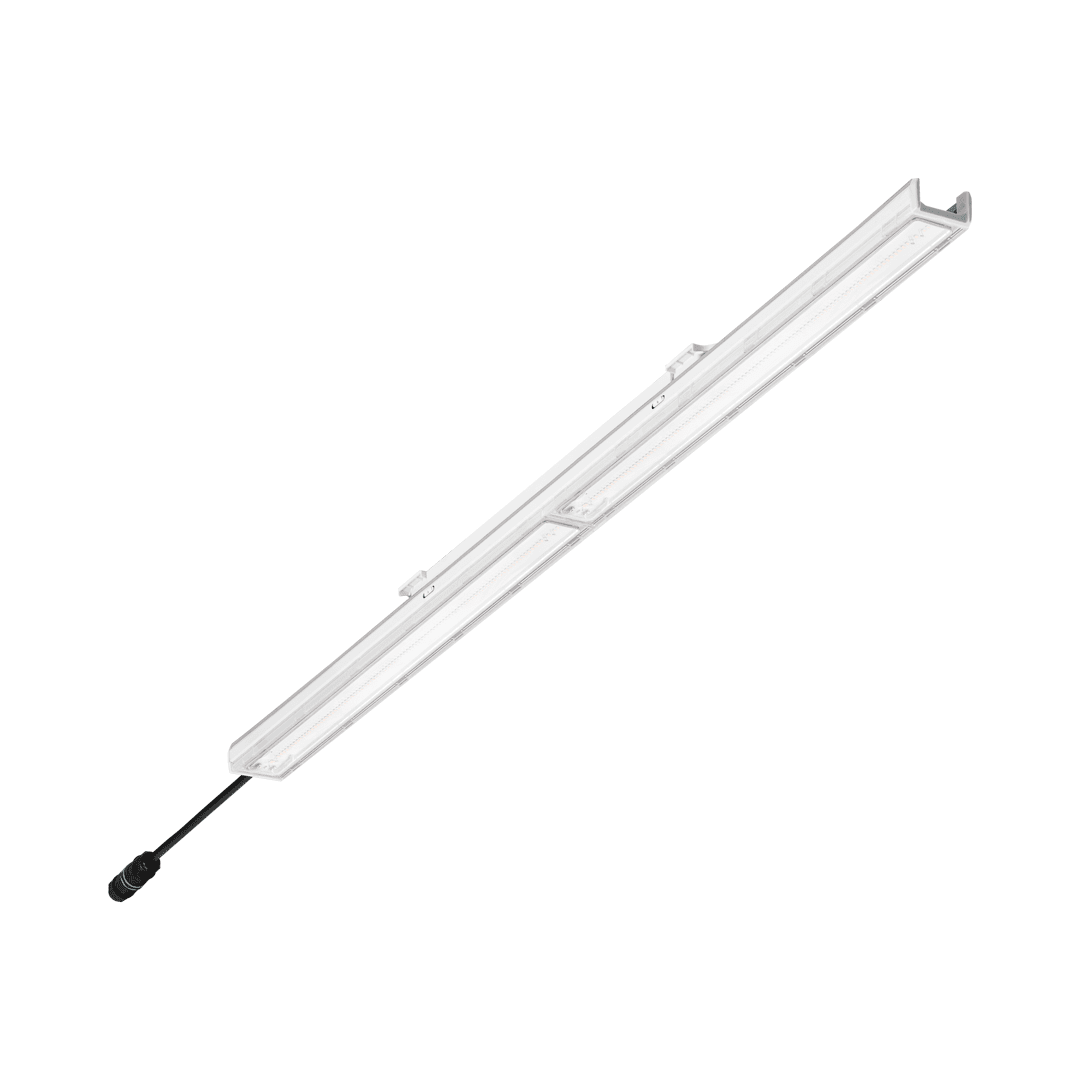

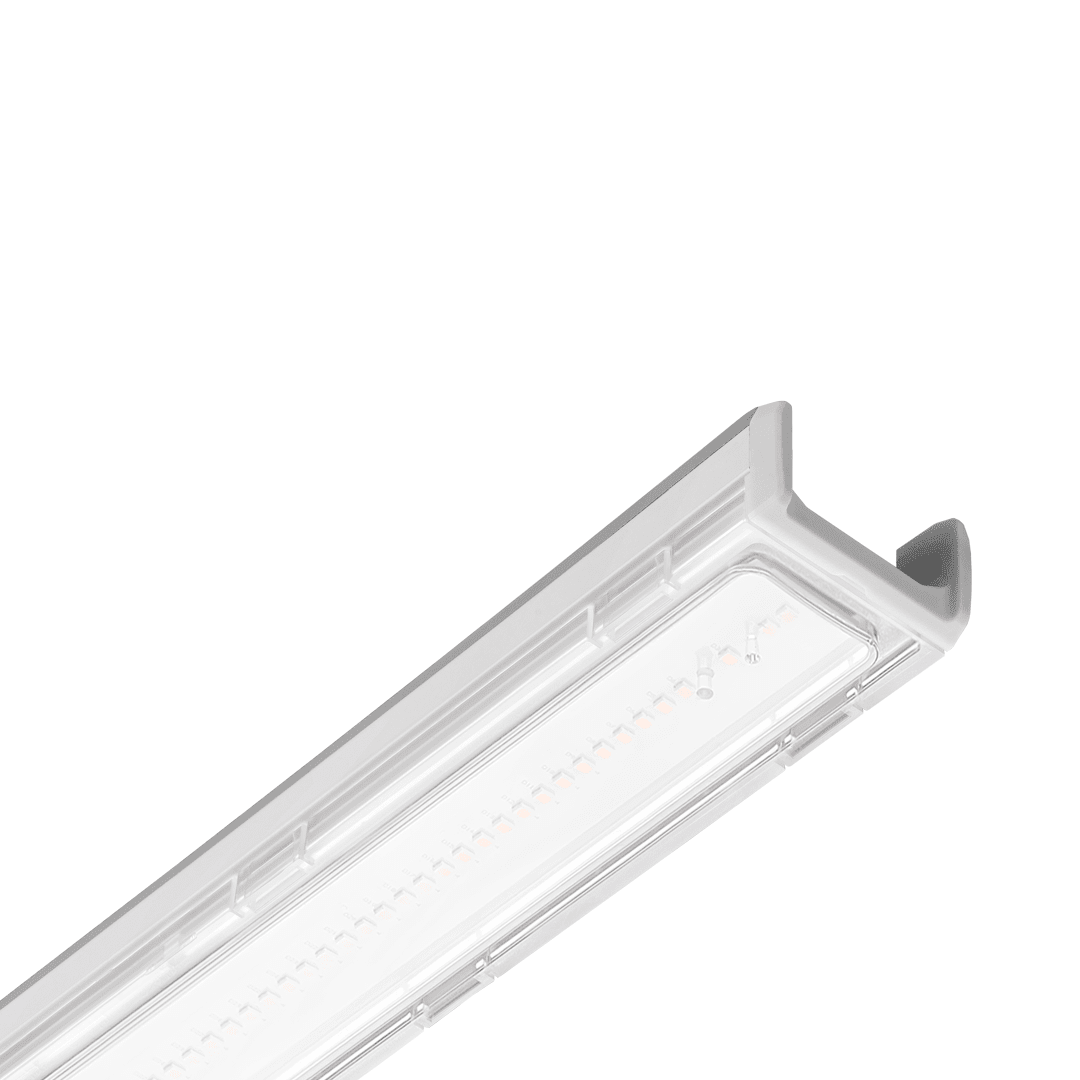

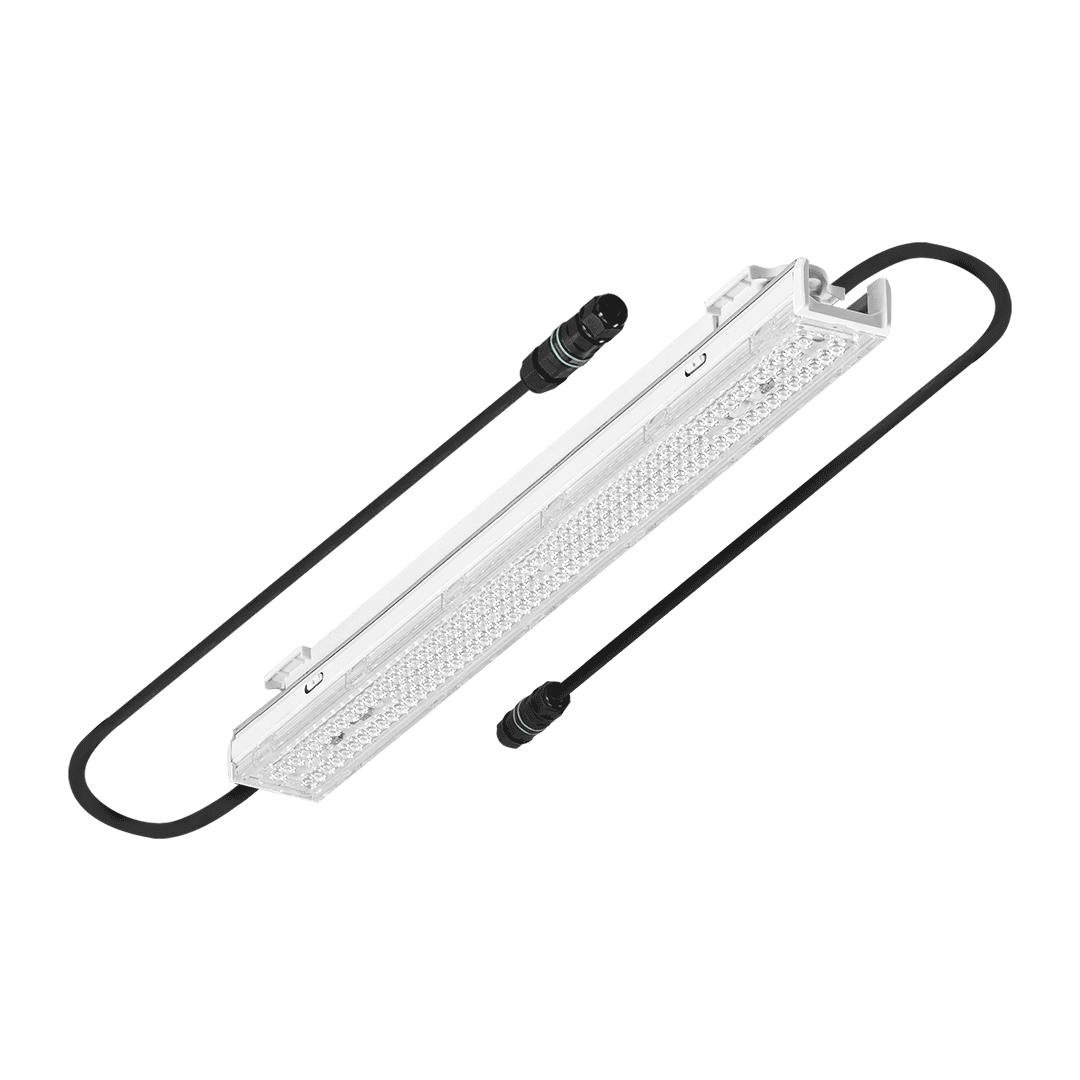

Tytan Steel LED Pro Rapid

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Technical specifications

Light source	LED
Colour temperature	4000K

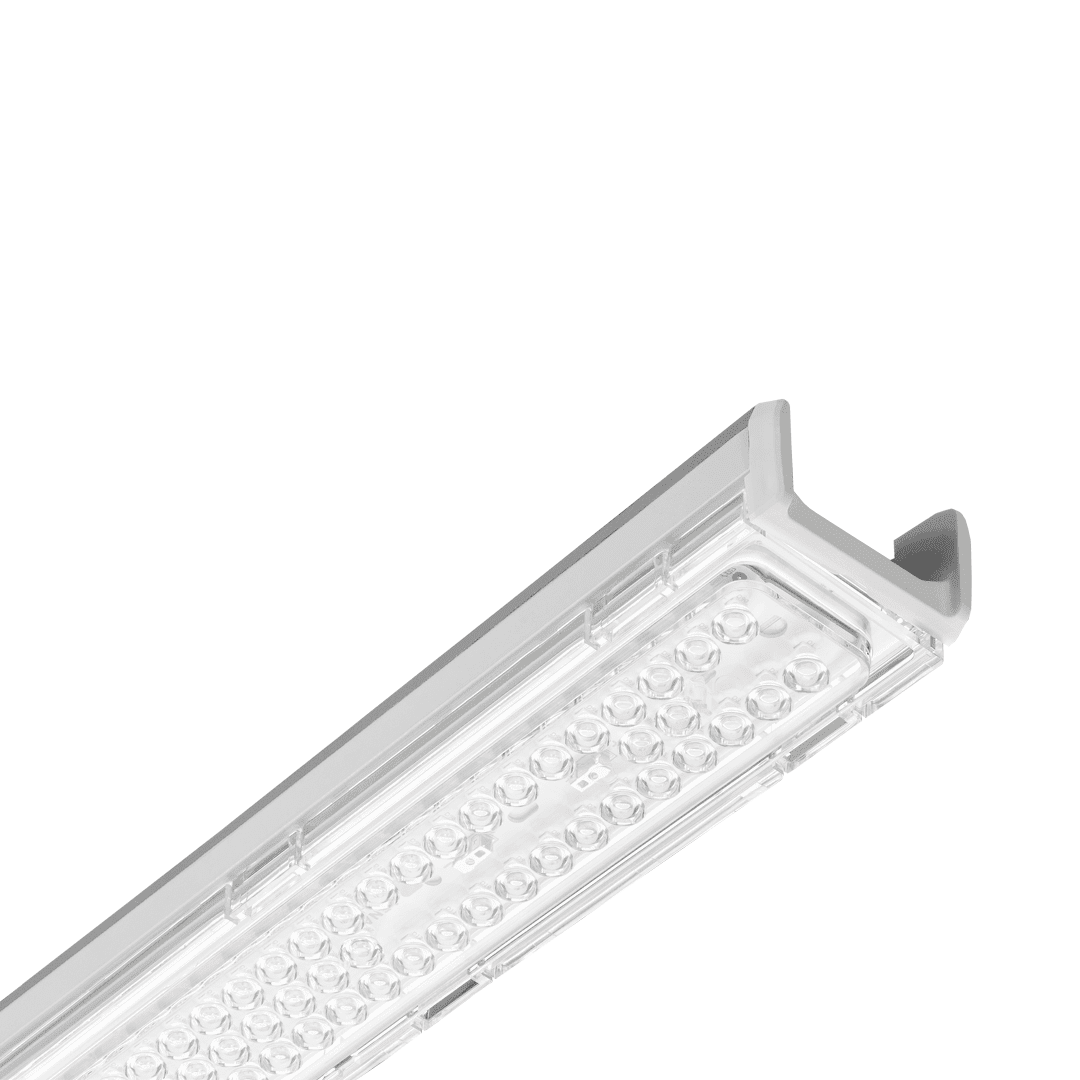

Diffuser type	lens matrix
Mounting version	surface suspended
Dimensions [mm]	600/57/45; 1188/57/45; 1315/57/45
Application	industrial

LED220-240vIik06ip66ugr19CEQuick installationHigh efficiency

Ask about this product

Options

Downloads

Specification

Tytan Steel LED Pro RAPID is an innovative solution in the category of classic hermetic luminaires, combining functionality with modern design. All the technical advantages of a traditional hermetic luminaire are enclosed in an elegant, low-profile housing, enhanced with advanced optics, which make Tytan Steel LED Pro RAPID a versatile luminaire. It is suitable for both the simplest applications and advanced industrial solutions. The product is distinguished by its very quick installation and low purchase and operating costs (192 lm/W).

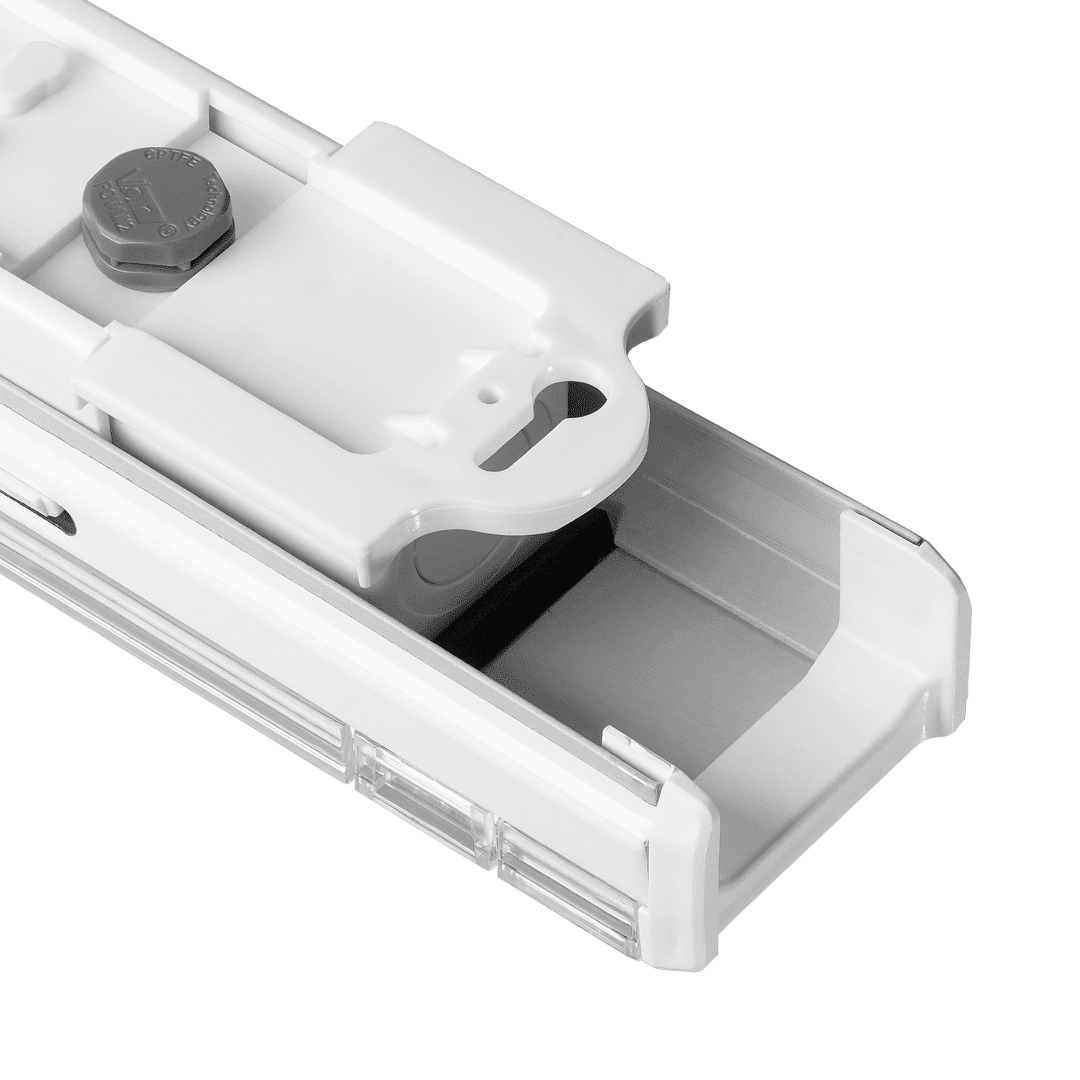

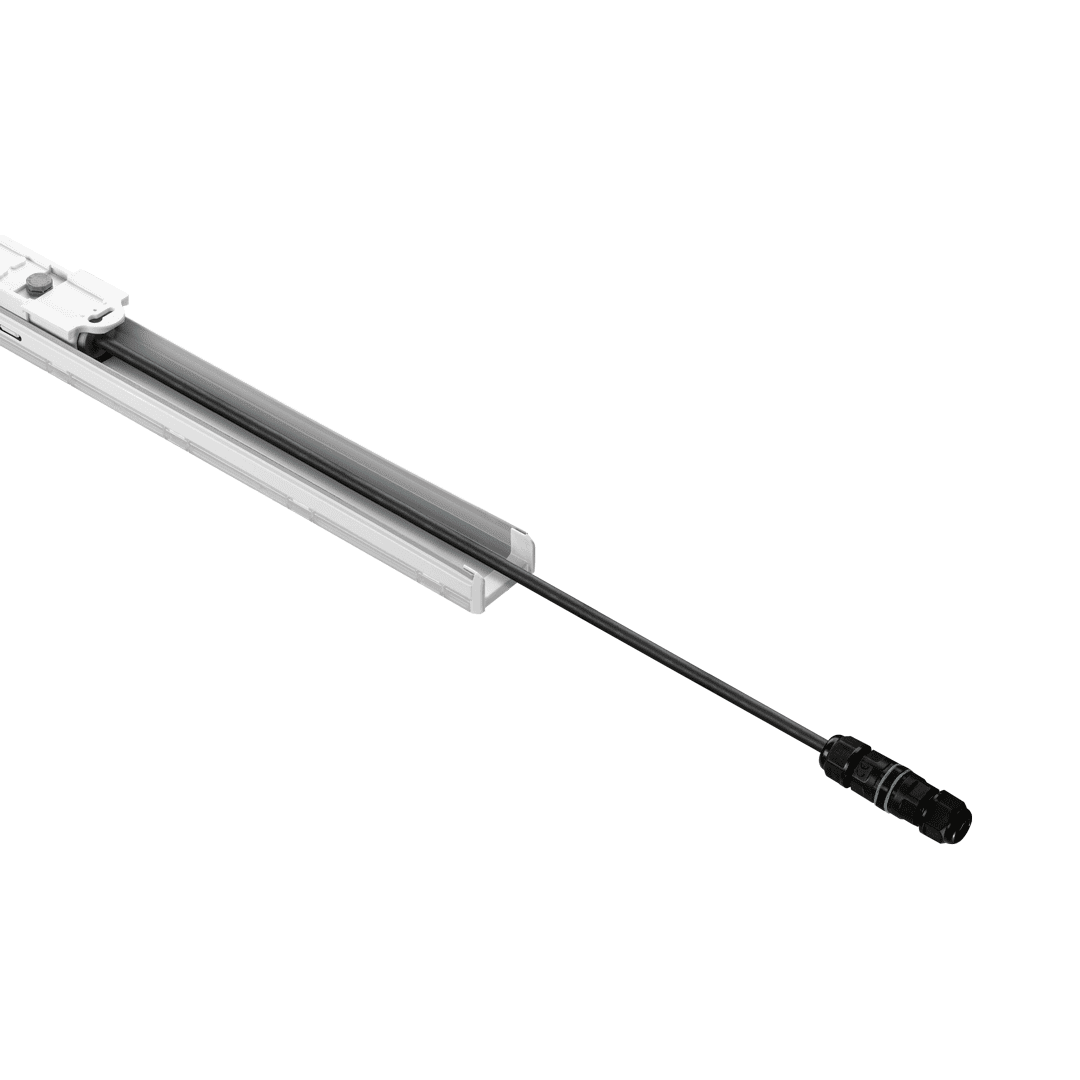

The RAPID designation indicates even faster installation (compared to classic, openable hermetic luminaires) thanks to a 0.6 m long cable leading directly from the luminaire and terminated with a sealed quick connector. This allows the power supply to be connected without opening the lamp. At the same time, the luminaire can still be opened for servicing. Through-wired versions have two cables of the same design. The reliable components used in the lamp minimise the need for servicing. The Tytan Steel LED Pro Rapid lamp is made of steel, which ensures its exceptional durability, and thanks to its U-shaped profile design, it retains the lightness characteristic of plastic luminaires, which facilitates installation and does not burden the supporting structures.

Tytan Steel LED Pro Rapid is the ideal economical and functional solution for a wide range of applications.

UGR < 19
Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare.

Application

The multi-purpose LED lamp is designed for use in areas with high dust and water resistance requirements. It is particularly recommended for lighting industrial and warehouse halls, garages, car parks (underground and multi-storey), public facilities, including hospitals, educational and childcare facilities, commercial and service facilities, transport terminals and underground passages. The lamp is ideal for new lighting applications as well as for replacing traditional fluorescent luminaires with energy-efficient LED solutions. Its design is suitable for surface-mounted and suspended installation.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	DIMM DALI	Through wiring	Dimensions (H/W/T/S) [mm]	Index
1188/57/45
52	9150	105	-	-	1188/57/45	188077
52	9150	105	-	LS2 (2.5)	1188/57/45	189951
52	9450	butterfly	-	-	1188/57/45	188114
52	9450	butterfly	-	LS2 (2.5)	1188/57/45	192579
52	9500	asymmetric	-	-	1188/57/45	188152
52	9500	asymmetric	-	LS2 (2.5)	1188/57/45	190599
52	9850	65	-	-	1188/57/45	188190
52	9850	35/67	-	-	1188/57/45	188237
52	9850	30	-	-	1188/57/45	188275
52	9850	65	-	LS2 (2.5)	1188/57/45	190636
52	9850	35/67	-	LS2 (2.5)	1188/57/45	190674
52	9850	30	-	LS2 (2.5)	1188/57/45	190711
52	9900	80	-	-	1188/57/45	188312
52	9900	105	-	-	1188/57/45	188350
52	9900	90	-	-	1188/57/45	188398
52	9900	80	-	LS2 (2.5)	1188/57/45	190759
52	9900	105	-	LS2 (2.5)	1188/57/45	190773
52	9900	90	-	LS2 (2.5)	1188/57/45	190803
52	10000	120	-	-	1188/57/45	188039
52	10000	120	-	LS2 (2.5)	1188/57/45	189913
63	11100	105	-	-	1188/57/45	188060
63	11100	105	yes	-	1188/57/45	188633
63	11100	105	-	LS2 (2.5)	1188/57/45	189944
63	11100	105	yes	LS2 (2.5)	1188/57/45	190964
63	11400	butterfly	-	-	1188/57/45	188107
63	11400	butterfly	yes	-	1188/57/45	188657
63	11400	butterfly	-	LS2 (2.5)	1188/57/45	189968
63	11400	butterfly	yes	LS2 (2.5)	1188/57/45	192975
63	11600	asymmetric	-	-	1188/57/45	188145
63	11600	asymmetric	yes	-	1188/57/45	188671
63	11600	asymmetric	-	LS2 (2.5)	1188/57/45	189999
63	11600	asymmetric	yes	LS2 (2.5)	1188/57/45	190971
63	12000	65	-	-	1188/57/45	188183
63	12000	35/67	-	-	1188/57/45	188220
63	12000	30	-	-	1188/57/45	188268
63	12000	80	-	-	1188/57/45	188305
63	12000	105	-	-	1188/57/45	188343
63	12000	90	-	-	1188/57/45	188381
63	12000	65	yes	-	1188/57/45	188695
63	12000	35/67	yes	-	1188/57/45	188718
63	12000	30	yes	-	1188/57/45	188732
63	12000	80	yes	-	1188/57/45	188756
63	12000	105	yes	-	1188/57/45	188770
63	12000	90	yes	-	1188/57/45	188794
63	12000	65	-	LS2 (2.5)	1188/57/45	190629
63	12000	35/67	-	LS2 (2.5)	1188/57/45	190667
63	12000	30	-	LS2 (2.5)	1188/57/45	190704
63	12000	80	-	LS2 (2.5)	1188/57/45	190742
63	12000	105	-	LS2 (2.5)	1188/57/45	190766
63	12000	90	-	LS2 (2.5)	1188/57/45	190797
63	12000	65	yes	LS2 (2.5)	1188/57/45	192456
63	12000	35/67	yes	LS2 (2.5)	1188/57/45	192470
63	12000	30	yes	LS2 (2.5)	1188/57/45	192494
63	12000	80	yes	LS2 (2.5)	1188/57/45	192500
63	12000	105	yes	LS2 (2.5)	1188/57/45	192524
63	12000	90	yes	LS2 (2.5)	1188/57/45	192548
63	12100	120	-	-	1188/57/45	188022
63	12100	120	yes	-	1188/57/45	188619
63	12100	120	-	LS2 (2.5)	1188/57/45	189906
63	12100	120	yes	LS2 (2.5)	1188/57/45	192944
73	12700	105	-	-	1188/57/45	188053
73	12700	105	-	LS2 (2.5)	1188/57/45	189937
73	13000	butterfly	-	-	1188/57/45	188091
73	13000	butterfly	-	LS2 (2.5)	1188/57/45	192562
73	13200	asymmetric	-	-	1188/57/45	188138
73	13200	asymmetric	-	LS2 (2.5)	1188/57/45	189982
73	13600	65	-	-	1188/57/45	188176
73	13600	35/67	-	-	1188/57/45	188213
73	13600	30	-	-	1188/57/45	188251
73	13600	65	-	LS2 (2.5)	1188/57/45	190612
73	13600	35/67	-	LS2 (2.5)	1188/57/45	190650
73	13600	30	-	LS2 (2.5)	1188/57/45	190698
73	13700	80	-	-	1188/57/45	188299
73	13700	105	-	-	1188/57/45	188336
73	13700	90	-	-	1188/57/45	188374
73	13700	80	-	LS2 (2.5)	1188/57/45	190735
73	13700	90	-	LS2 (2.5)	1188/57/45	190780
73	13700	105	-	LS2 (2.5)	1188/57/45	192593
73	13800	120	-	-	1188/57/45	188015
73	13800	120	-	LS2 (2.5)	1188/57/45	189890
80	14050	105	-	-	1188/57/45	188046
80	14050	105	yes	-	1188/57/45	188626
80	14050	105	-	LS2 (2.5)	1188/57/45	189920
80	14050	105	yes	LS2 (2.5)	1188/57/45	192951
80	14500	butterfly	-	-	1188/57/45	188084
80	14500	butterfly	yes	-	1188/57/45	188640
80	14500	butterfly	-	LS2 (2.5)	1188/57/45	192555
80	14500	butterfly	yes	LS2 (2.5)	1188/57/45	192968
80	14600	asymmetric	-	-	1188/57/45	188121
80	14600	asymmetric	yes	-	1188/57/45	188664
80	14600	asymmetric	-	LS2 (2.5)	1188/57/45	189975
80	14600	asymmetric	yes	LS2 (2.5)	1188/57/45	192982
80	15050	65	-	-	1188/57/45	188169
80	15050	35/67	-	-	1188/57/45	188206
80	15050	30	-	-	1188/57/45	188244
80	15050	65	yes	-	1188/57/45	188688
80	15050	35/67	yes	-	1188/57/45	188701
80	15050	30	yes	-	1188/57/45	188725
80	15050	65	-	LS2 (2.5)	1188/57/45	190605
80	15050	35/67	-	LS2 (2.5)	1188/57/45	190643
80	15050	30	-	LS2 (2.5)	1188/57/45	190681
80	15050	65	yes	LS2 (2.5)	1188/57/45	192449
80	15050	35/67	yes	LS2 (2.5)	1188/57/45	192463
80	15050	30	yes	LS2 (2.5)	1188/57/45	192487
80	15150	80	-	-	1188/57/45	188282
80	15150	105	-	-	1188/57/45	188329
80	15150	90	-	-	1188/57/45	188367
80	15150	80	yes	-	1188/57/45	188749
80	15150	105	yes	-	1188/57/45	188763
80	15150	90	yes	-	1188/57/45	188787
80	15150	80	-	LS2 (2.5)	1188/57/45	190728
80	15150	105	yes	LS2 (2.5)	1188/57/45	192517
80	15150	90	yes	LS2 (2.5)	1188/57/45	192531
80	15150	105	-	LS2 (2.5)	1188/57/45	192586
80	15150	90	-	LS2 (2.5)	1188/57/45	192630
80	15150	80	yes	LS2 (2.5)	1188/57/45	192999
80	15300	120	-	-	1188/57/45	187995
80	15300	120	yes	-	1188/57/45	188602
80	15300	120	-	LS2 (2.5)	1188/57/45	189883
80	15300	120	yes	LS2 (2.5)	1188/57/45	190957
1315/57/45
52	9150	105	-	-	1315/57/45	188817
52	9450	butterfly	-	-	1315/57/45	188824
52	9500	asymmetric	-	-	1315/57/45	188831
52	9850	65	-	-	1315/57/45	188848
52	9850	35/67	-	-	1315/57/45	188855
52	9850	30	-	-	1315/57/45	188862
52	9900	80	-	-	1315/57/45	188879
52	9900	105	-	-	1315/57/45	188886
52	9900	90	-	-	1315/57/45	188893
52	10000	120	-	-	1315/57/45	188800
600/57/45
23	3600	105	-	-	600/57/45	187667
23	3600	105	-	LS2 (2.5)	600/57/45	189432
23	3750	butterfly	-	-	600/57/45	187704
23	3750	asymmetric	-	-	600/57/45	187742
23	3750	butterfly	-	LS2 (2.5)	600/57/45	189470
23	3750	asymmetric	-	LS2 (2.5)	600/57/45	189630
23	3900	65	-	-	600/57/45	187780
23	3900	35/67	-	-	600/57/45	187827
23	3900	30	-	-	600/57/45	187865
23	3900	80	-	-	600/57/45	187902
23	3900	105	-	-	600/57/45	187940
23	3900	90	-	-	600/57/45	187988
23	3900	65	-	LS2 (2.5)	600/57/45	189678
23	3900	35/67	-	LS2 (2.5)	600/57/45	189715
23	3900	30	-	LS2 (2.5)	600/57/45	189753
23	3900	80	-	LS2 (2.5)	600/57/45	189791
23	3900	105	-	LS2 (2.5)	600/57/45	189838
23	3900	90	-	LS2 (2.5)	600/57/45	189876
23	3950	120	-	-	600/57/45	187629
23	3950	120	-	LS2 (2.5)	600/57/45	189395
28	4500	105	-	-	600/57/45	187650
28	4500	105	yes	-	600/57/45	188435
28	4500	105	-	LS2 (2.5)	600/57/45	189425
28	4500	105	yes	LS2 (2.5)	600/57/45	190841
28	4650	butterfly	-	-	600/57/45	187698
28	4650	butterfly	yes	-	600/57/45	188459
28	4650	butterfly	-	LS2 (2.5)	600/57/45	189463
28	4650	butterfly	yes	LS2 (2.5)	600/57/45	192647
28	4700	asymmetric	-	-	600/57/45	187735
28	4700	asymmetric	yes	-	600/57/45	188473
28	4700	asymmetric	-	LS2 (2.5)	600/57/45	189623
28	4700	asymmetric	yes	LS2 (2.5)	600/57/45	190865
28	4850	65	-	-	600/57/45	187773
28	4850	35/67	-	-	600/57/45	187810
28	4850	30	-	-	600/57/45	187858
28	4850	80	-	-	600/57/45	187896
28	4850	105	-	-	600/57/45	187933
28	4850	90	-	-	600/57/45	187971
28	4850	65	yes	-	600/57/45	188497
28	4850	35/67	yes	-	600/57/45	188510
28	4850	30	yes	-	600/57/45	188534
28	4850	80	yes	-	600/57/45	188558
28	4850	105	yes	-	600/57/45	188572
28	4850	90	yes	-	600/57/45	188596
28	4850	65	-	LS2 (2.5)	600/57/45	189661
28	4850	35/67	-	LS2 (2.5)	600/57/45	189708
28	4850	30	-	LS2 (2.5)	600/57/45	189746
28	4850	80	-	LS2 (2.5)	600/57/45	189784
28	4850	105	-	LS2 (2.5)	600/57/45	189821
28	4850	90	-	LS2 (2.5)	600/57/45	189869
28	4850	30	yes	LS2 (2.5)	600/57/45	190896
28	4850	80	yes	LS2 (2.5)	600/57/45	190919
28	4850	90	yes	LS2 (2.5)	600/57/45	190940
28	4850	65	yes	LS2 (2.5)	600/57/45	192913
28	4850	35/67	yes	LS2 (2.5)	600/57/45	192920
28	4850	105	yes	LS2 (2.5)	600/57/45	192937
28	4900	120	-	-	600/57/45	187612
28	4900	120	yes	-	600/57/45	188411
28	4900	120	-	LS2 (2.5)	600/57/45	189388
28	4900	120	yes	LS2 (2.5)	600/57/45	190827
34	5550	105	-	-	600/57/45	187643
34	5550	105	-	LS2 (2.5)	600/57/45	189418
34	5650	butterfly	-	-	600/57/45	187681
34	5650	asymmetric	-	-	600/57/45	187728
34	5650	butterfly	-	LS2 (2.5)	600/57/45	189456
34	5650	asymmetric	-	LS2 (2.5)	600/57/45	189494
34	5850	65	-	-	600/57/45	187766
34	5850	35/67	-	-	600/57/45	187803
34	5850	30	-	-	600/57/45	187841
34	5850	65	-	LS2 (2.5)	600/57/45	189654
34	5850	35/67	-	LS2 (2.5)	600/57/45	189692
34	5850	30	-	LS2 (2.5)	600/57/45	189739
34	5900	80	-	-	600/57/45	187889
34	5900	105	-	-	600/57/45	187926
34	5900	90	-	-	600/57/45	187964
34	5900	80	-	LS2 (2.5)	600/57/45	189777
34	5900	105	-	LS2 (2.5)	600/57/45	189814
34	5900	90	-	LS2 (2.5)	600/57/45	189852
34	5950	120	-	-	600/57/45	187605
34	5950	120	-	LS2 (2.5)	600/57/45	189371
40	6250	105	-	-	600/57/45	187636
40	6250	105	yes	-	600/57/45	188428
40	6250	105	-	LS2 (2.5)	600/57/45	189401
40	6250	105	yes	LS2 (2.5)	600/57/45	190834
40	6450	butterfly	-	-	600/57/45	187674
40	6450	butterfly	yes	-	600/57/45	188442
40	6450	butterfly	-	LS2 (2.5)	600/57/45	189449
40	6450	butterfly	yes	LS2 (2.5)	600/57/45	190858
40	6500	asymmetric	-	-	600/57/45	187711
40	6500	asymmetric	yes	-	600/57/45	188466
40	6500	asymmetric	-	LS2 (2.5)	600/57/45	189487
40	6500	asymmetric	yes	LS2 (2.5)	600/57/45	192654
40	6700	65	-	-	600/57/45	187759
40	6700	35/67	-	-	600/57/45	187797
40	6700	30	-	-	600/57/45	187834
40	6700	65	yes	-	600/57/45	188480
40	6700	35/67	yes	-	600/57/45	188503
40	6700	30	yes	-	600/57/45	188527
40	6700	65	-	LS2 (2.5)	600/57/45	189647
40	6700	35/67	-	LS2 (2.5)	600/57/45	189685
40	6700	30	-	LS2 (2.5)	600/57/45	189722
40	6700	35/67	yes	LS2 (2.5)	600/57/45	190872
40	6700	30	yes	LS2 (2.5)	600/57/45	190889
40	6700	65	yes	LS2 (2.5)	600/57/45	192661
40	6750	80	-	-	600/57/45	187872
40	6750	105	-	-	600/57/45	187919
40	6750	90	-	-	600/57/45	187957
40	6750	80	yes	-	600/57/45	188541
40	6750	105	yes	-	600/57/45	188565
40	6750	90	yes	-	600/57/45	188589
40	6750	80	-	LS2 (2.5)	600/57/45	189760
40	6750	105	-	LS2 (2.5)	600/57/45	189807
40	6750	90	-	LS2 (2.5)	600/57/45	189845
40	6750	80	yes	LS2 (2.5)	600/57/45	190902
40	6750	105	yes	LS2 (2.5)	600/57/45	190926
40	6750	90	yes	LS2 (2.5)	600/57/45	190933
40	7000	120	-	-	600/57/45	187599
40	7000	120	yes	-	600/57/45	188404
40	7000	120	-	LS2 (2.5)	600/57/45	189364
40	7000	120	yes	LS2 (2.5)	600/57/45	190810

Show more Show less

Accessories

Hide accessories

Index	Accessory name
598906	Tytan Steel protection grid 1188mm RAL9003
598913	Protection grid Sensor Hytronik HIM84 RAL 9003
598432	Tytan Steel - suspension bracket (set)

Tytan Steel protection grid 1188mm RAL9003 (598906)

Protection grid Sensor Hytronik HIM84 RAL 9003 (598913)

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail:

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: .
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: .
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Contact

Lena Lighting S.A.
Kornicka street 52
Sroda Wielkopolska
63-000, Poland

Office
+48 61 28 60 300

Customer service
+48 61 28 60 333

Tytan Steel LED Pro Rapid

Technical specifications

Downloads

Related products

Quest LED Evo XS RGBW

Contra LED 400 Multi

Lumedic SM R

TTL 112.000

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
