TUBE LED EVO 2

Power supply 230V LED  Electrical protection class 2  Ingress protection IP65 Impact resistance  IK08 Declaration of conformity CE


Specifications:

LED luminaire system designed for suspended and surface mounting on walls and ceilings. Provides a combination of  high  illumination parameters and  functionality. With its  slim diameter of 42 mm possible to mount  in  hard-to-reach locations.  Mounting is easy and quick. Due to the line lens, it is possible to adjust the fitting to different lighting requirements – three light distribution options: 90°, 60°, 30°. Colour temperature 4000K, CRI>80, lifespan of LED 50 000h (L70B50) ta= 25ºC.

Application:
Luminaire intended for both outdoor and indoor use in industry areas and passageways. Provides good surface lighting and is perfect in situations that require eyesight concentration. Four housing sizes available. Suitable for mounting in all types of suspended ceilings (modular, plasterboard).

Other products from the TUBE LED EVO
Options
Nominal
power [W]
Colour
temperature [K]
Luminous
flux [lm]
Diffuser
type
Beam
angle [°]
DIMM
DALI
Through
wiring
Dimensions
[mm]
Energy
efficiency class
Index
TUBE LED EVO 2 14W
14 4000 1350 transparent 30 - LS1 42/45/785 A 269103
14 4000 1350 transparent 30 - LS2 42/45/785 A 269134
14 4000 1700 transparent 60 - LS1 42/45/785 A+ 269110
14 4000 1700 transparent 60 - LS2 42/45/785 A+ 269141
14 4000 1600 transparent 90 - LS2 42/45/785 A+ 269158
14 4000 1600 transparent 90 - LS1 42/45/785 A+ 269127
TUBE LED EVO 2 21W
21 4000 2000 transparent 30 - LS1 42/45/1065 A 269165
21 4000 2000 transparent 30 - LS2 42/45/1065 A 269196
21 4000 2000 transparent 30 yes LS1 42/45/1065 A 267666
21 4000 2000 transparent 30 yes LS2 42/45/1065 A 267697
21 4000 2500 transparent 60 - LS1 42/45/1065 A+ 269172
21 4000 2500 transparent 60 - LS2 42/45/1065 A+ 269202
21 4000 2500 transparent 60 yes LS1 42/45/1065 A+ 267673
21 4000 2500 transparent 60 yes LS2 42/45/1065 A+ 267703
21 4000 2350 transparent 90 - LS1 42/45/1065 A+ 269189
21 4000 2350 transparent 90 - LS2 42/45/1065 A+ 269219
21 4000 2350 transparent 90 yes LS1 42/45/1065 A+ 267680
21 4000 2350 transparent 90 yes LS2 42/45/1065 A+ 267710
TUBE LED EVO 2 28W
28 4000 2650 transparent 30 - LS1 42/45/1346 A 269226
28 4000 2650 transparent 30 - LS2 42/45/1346 A 269257
28 4000 2650 transparent 30 yes LS1 42/45/1346 A 267727
28 4000 2650 transparent 30 yes LS2 42/45/1346 A 267758
28 4000 3300 transparent 60 - LS1 42/45/1346 A+ 269233
28 4000 3300 transparent 60 - LS2 42/45/1346 A+ 269264
28 4000 3300 transparent 60 yes LS1 42/45/1346 A+ 267734
28 4000 3300 transparent 60 yes LS2 42/45/1346 A+ 267765
28 4000 3100 transparent 90 - LS1 42/45/1346 A+ 269240
28 4000 3100 transparent 90 - LS2 42/45/1346 A+ 269271
28 4000 3100 transparent 90 yes LS1 42/45/1346 A+ 267741
28 4000 3100 transparent 90 yes LS2 42/45/1346 A+ 267772
TUBE LED EVO 2 36W
36 4000 3350 transparent 30 - LS1 42/45/1626 A 269288
36 4000 3350 transparent 30 - LS2 42/45/1626 A 269318
36 4000 3350 transparent 30 yes LS1 42/45/1626 A 267789
36 4000 3350 transparent 30 yes LS2 42/45/1626 A 267819
36 4000 4200 transparent 60 - LS1 42/45/1626 A+ 269295
36 4000 4200 transparent 60 - LS2 42/45/1626 A+ 269325
36 4000 4200 transparent 60 yes LS1 42/45/1626 A+ 267796
36 4000 4200 transparent 60 yes LS2 42/45/1626 A+ 267826
36 4000 3950 transparent 90 - LS1 42/45/1626 A+ 269301
36 4000 3950 transparent 90 - LS2 42/45/1626 A+ 269332
36 4000 3950 transparent 90 yes LS1 42/45/1626 A+ 267802
36 4000 3950 transparent 90 yes LS2 42/45/1626 A+ 267833

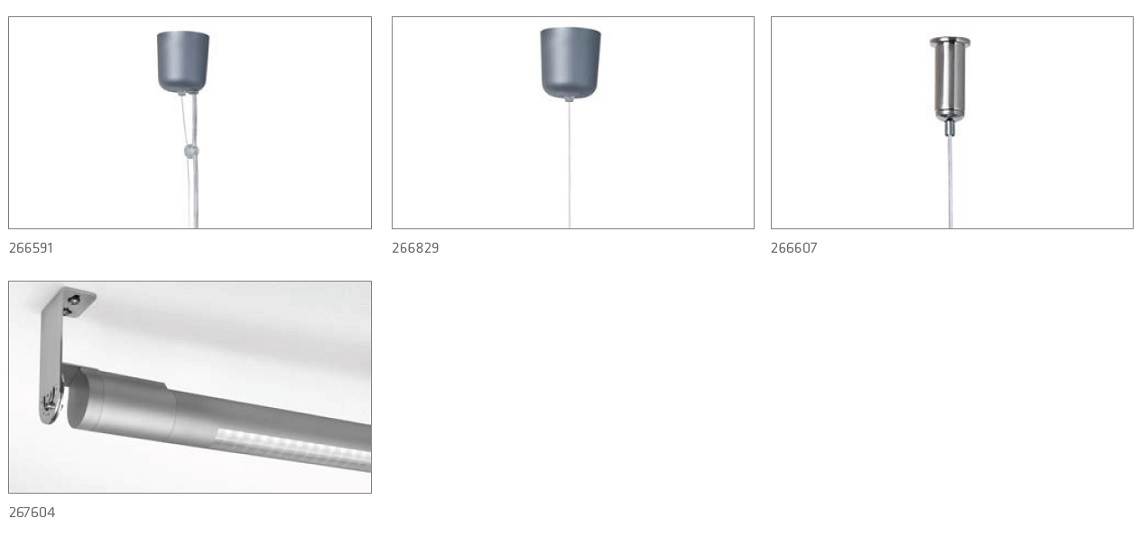

Accessories
TUBE LED EVO
