Tuba IP69K

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

The luminaire is ideal for use in high humidity, dusty environments. Ideal for clean industry, heavy industry, food industry, agro market, car washes, slaughterhouses and other demanding environments. Resistant to chemicals and pressure washing.

Technical specifications

Light source	LED
Colour temperature	4000K
Mounting version	surface suspended
Application	industrial

LED220-240vIik05ik06ik10ip69kCE

Ask about this product

Options

Downloads

Specification

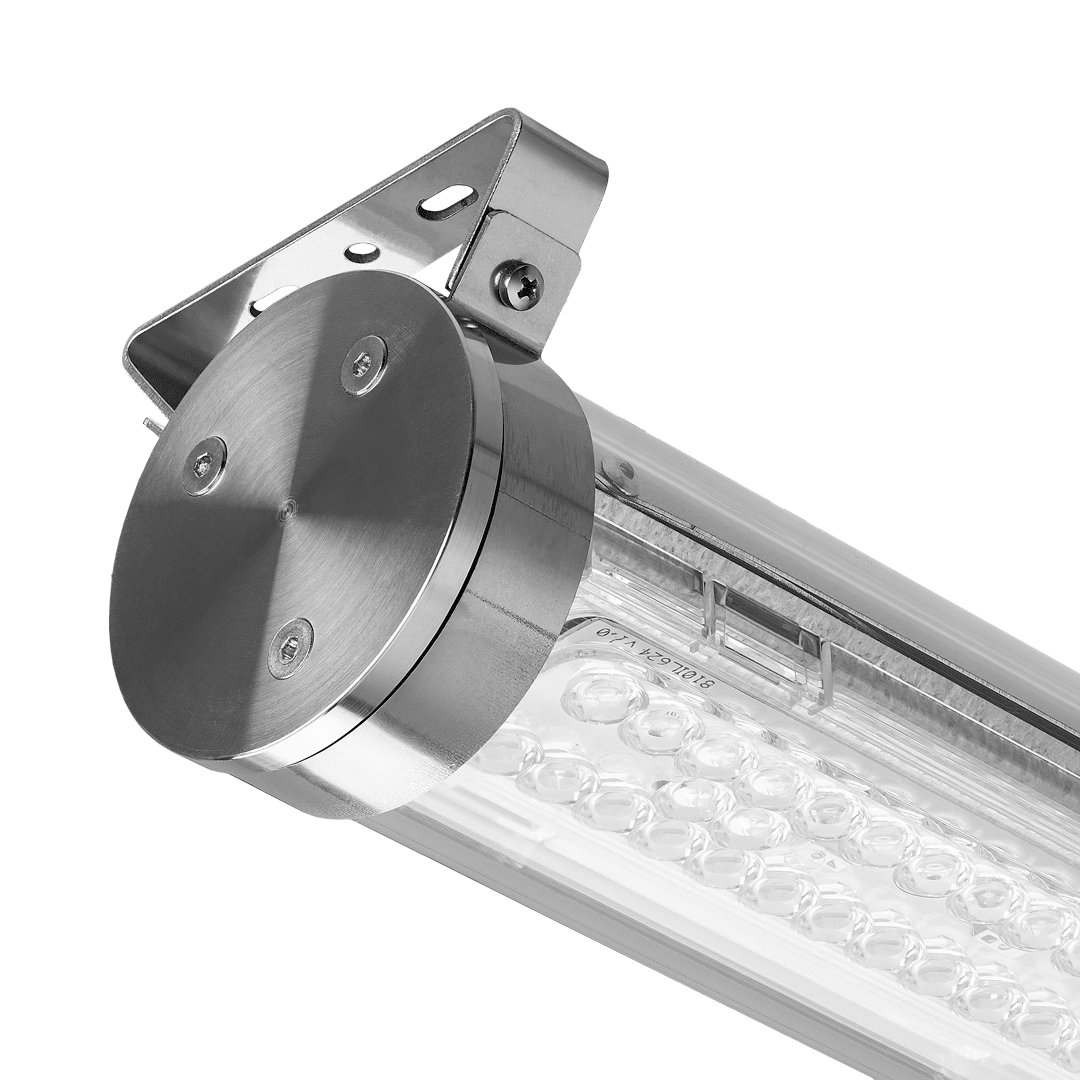

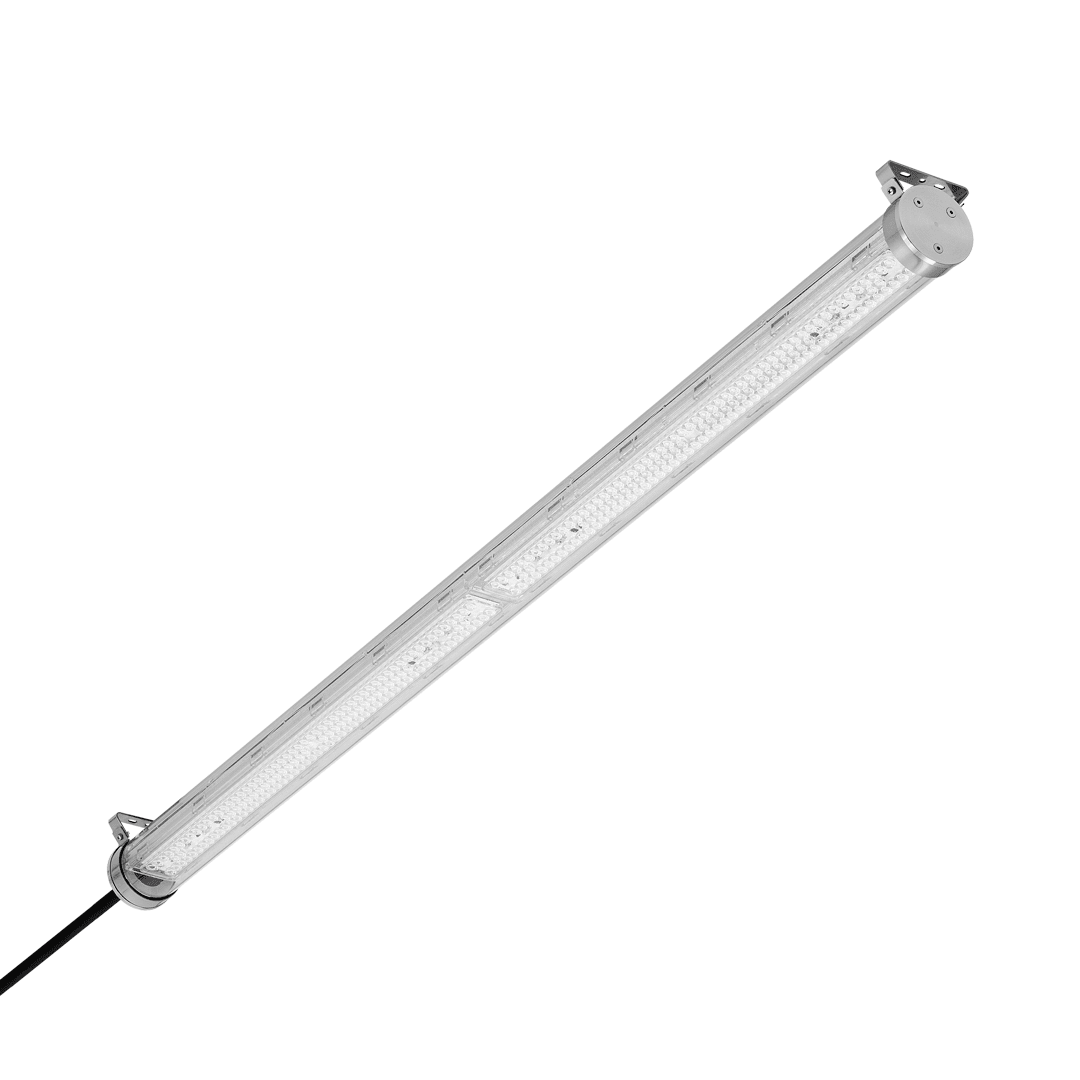

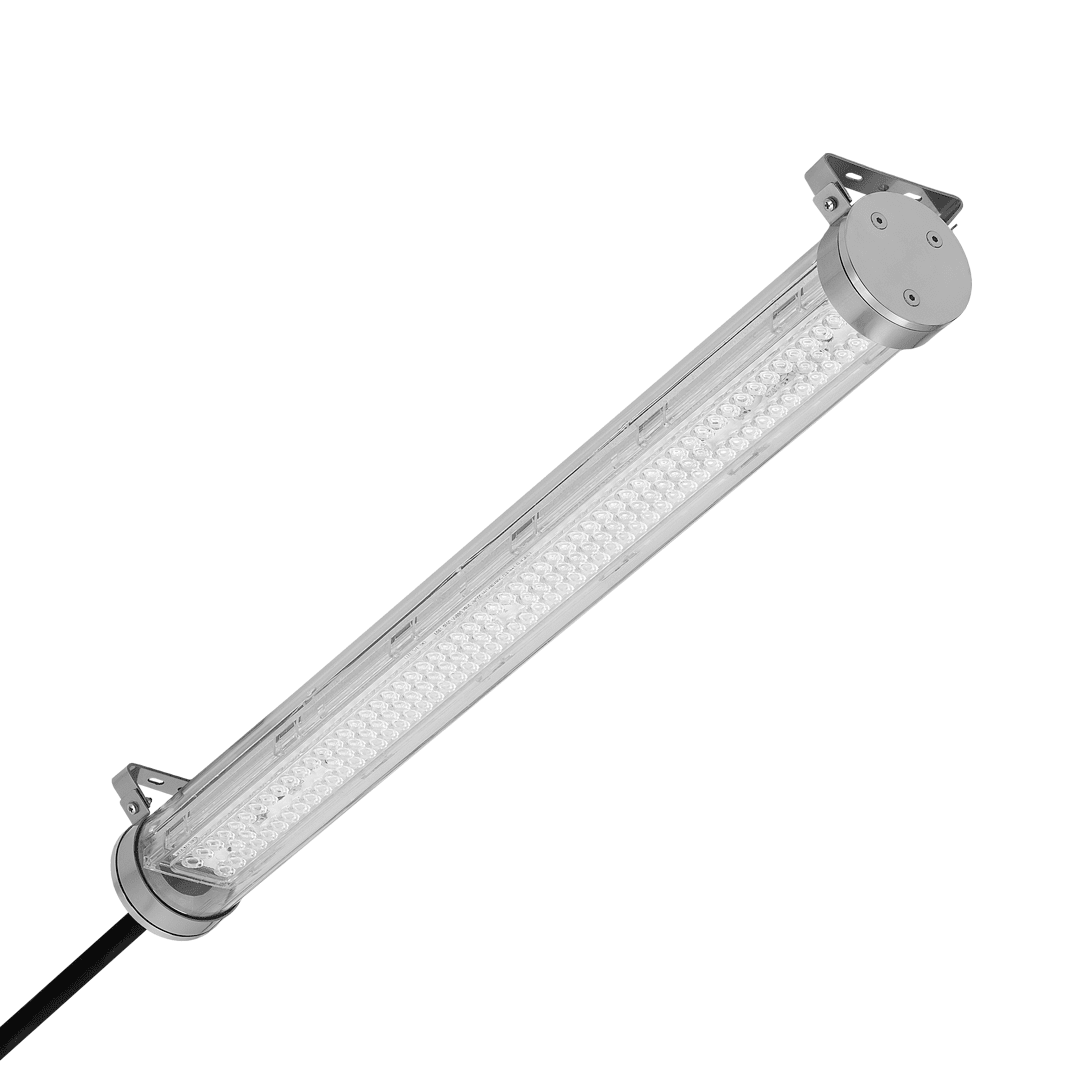

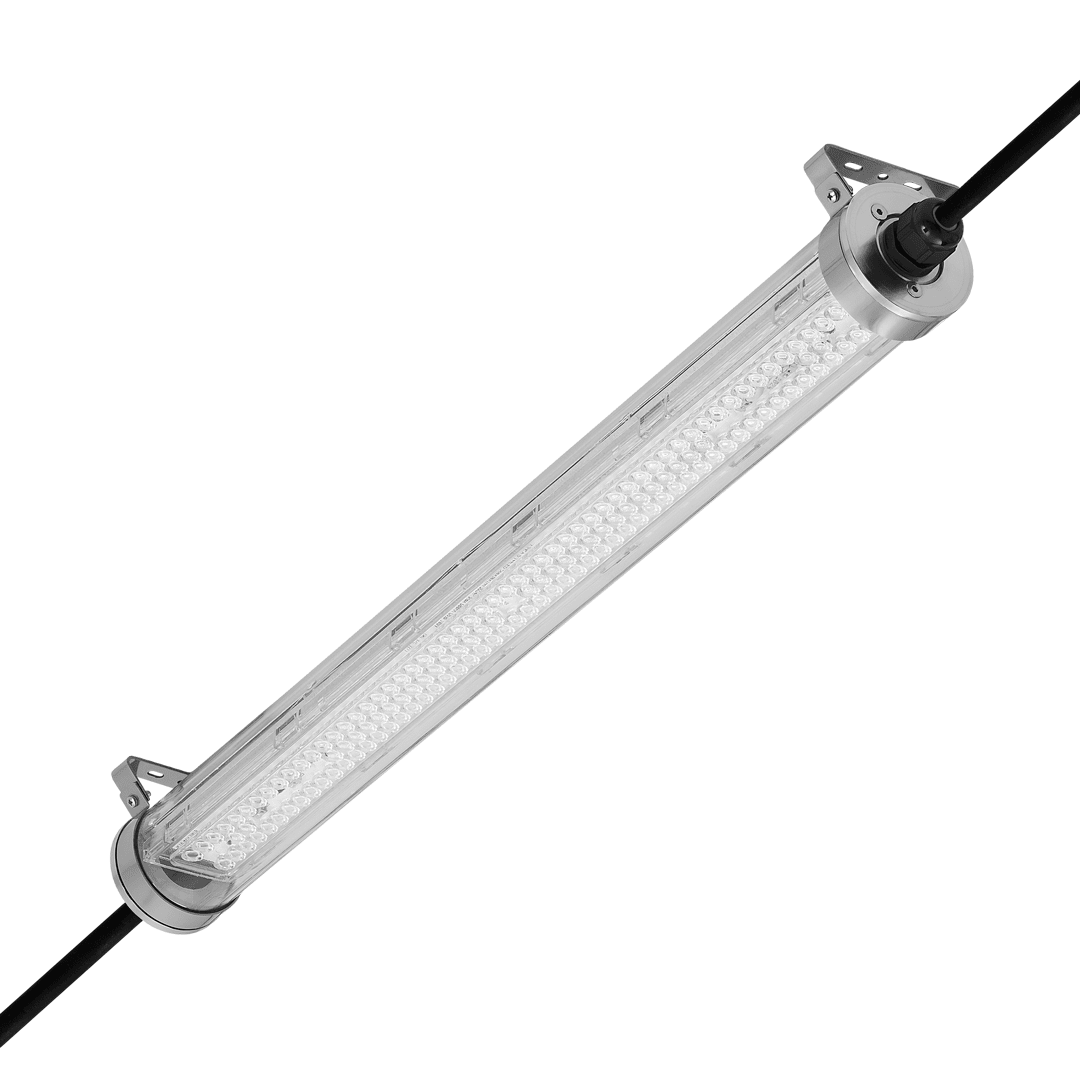

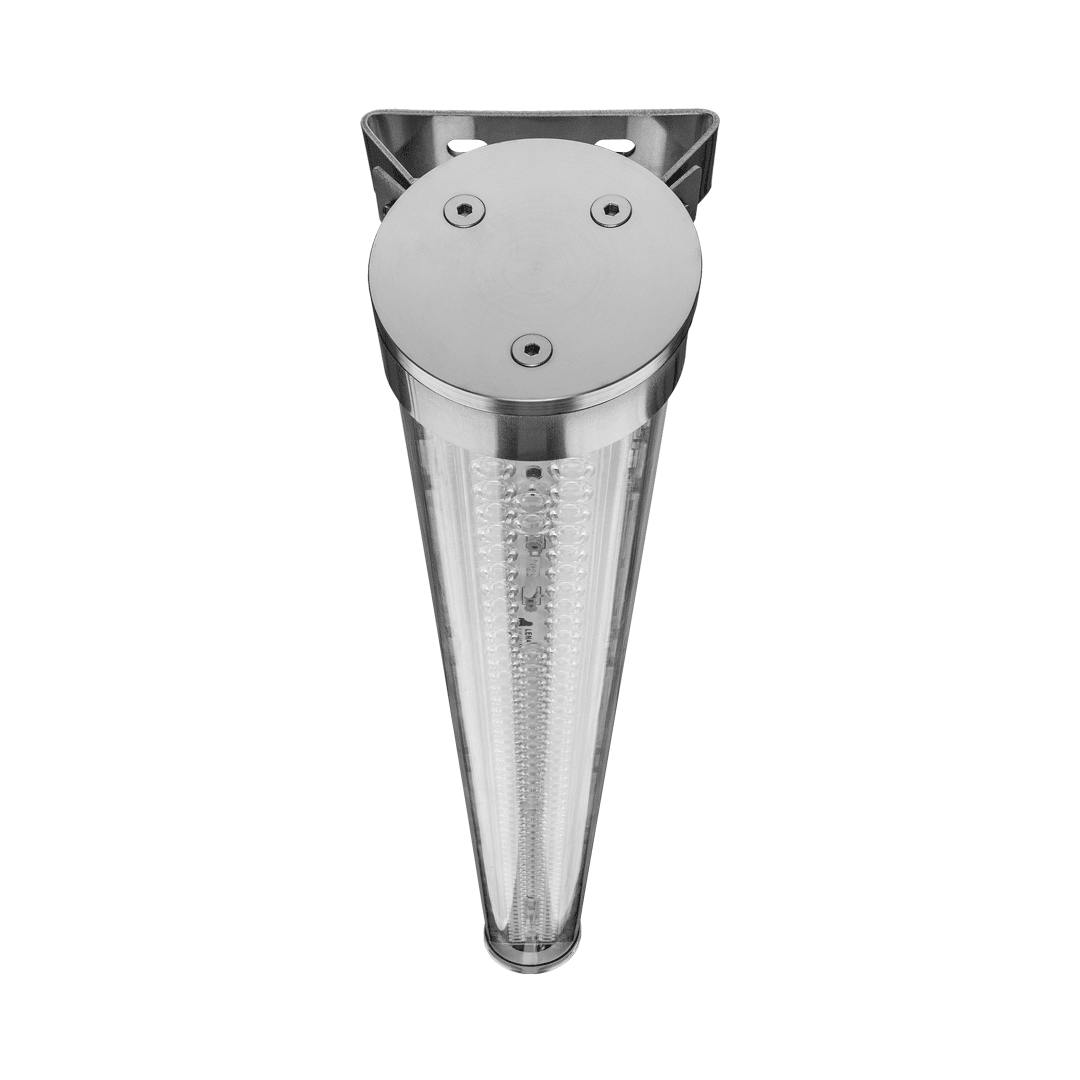

Tuba IP69K is a cylindrical luminaire for special tasks - where other solutions fail. Designed for extreme conditions, it combines superior sealing, chemical resistance and mechanical durability. Meeting the standard for IP69K means full protection against dust (IP6X) and complete resistance to water at extremely high pressure (100 bar) at 80°C (IPX9K). This makes the luminaire ideal for areas requiring intensive cleaning, including with powerful water jets and detergents.

The IP69K tube is designed to operate in the most demanding conditions. Made from chemically resistant materials: PMMA and extremely resistant borosilicate glass - ensuring exceptional durability even in aggressive industrial environments. The turned acid-resistant steel endcap eliminates the risk of corrosion, and its resistance to ammonia and zoonotic gases makes it ideal for livestock and processing facilities. Thanks to the decompression valve, the luminaire easily withstands rapid temperature changes, and the highest IK10 impact resistance rating (for the PC version) guarantees reliability in the harshest operating conditions.

The IP69K tube achieves up to 194 lm/W, meeting the requirements of the highest energy class A. Through-beam versions, different lens distributions and two lengths (630 and 1220 mm) are available. In addition, versions with UGR<19, UGR<22, UGR<25 provide visual comfort even in demanding applications. Minimalist design, ease of installation and cleanliness make the Tuba IP69K a reliable and timeless solution.

UGR < 19
The Unified Glare Rating is an indicator that characterises glare. The lower the Unified Glare Rating (UGR), the lower the glare.

Application

The luminaire is ideal for use in areas with high humidity, dust and very high temperatures. It is ideal for industrial applications requiring materials resistant to chemicals and pressure washing. It is suitable for clean industry, heavy industry, food industry, agro market (ammonia), car washes, slaughterhouses and other demanding environments.

New light distributions:

SW - a standard wide lens (80D conventional angle)

SW - a standard wide lens (80D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to its low glare index UGR<19 - in office areas of the building. It provides high luminous efficacy and helps meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-8m.

MW - medium wide lens (90D conventional angle)

MW - medium wide lens (90D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to the low glare UGR<19 - in office areas of the building. It provides high luminous efficacy and helps to meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-6m.

VW - very wide lens (105D conventional angle)

VW - very wide lens (105D conventional angle) with wide application in open spaces and low warehouses. It provides high luminous efficacy and helps meet the most stringent requirements of EN 12464-1 in terms of glare index (UGR<22, UGR<25), illuminance and high uniformity when the system is installed in low spaces. Particularly recommended for rooms where luminaires are mounted at a height of 2.5-5m.

SN - standard narrow lens (standard narrow, conventional angle 65D)

SN - standard narrow lens (standard narrow, conventional angle 65D) for general lighting in open areas in industrial and storage halls, workshops and even - due to the low glare index UGR<19 recommended for rooms where luminaires are mounted at a height of 8-12m.

VN - very narrow lens (very narrow, conventional angle 30D)

VN - very narrow lens (very narrow, conventional angle 30D) for illuminating open spaces in facilities where the luminaire mounting height exceeds 13m. Particularly recommended for premises where luminaires are mounted at heights of 13-20m.

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D)

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D) for communication lighting in industrial halls and shelf aisles in high storage warehouses. Particularly suitable for rooms where luminaires are mounted at a height of 7-12m.

DAN - butterfly lens, double asymmetric narrow

DAN - butterfly lens, double asymmetric narrow, for shelf lighting in retail facilities where it is essential to direct light onto the goods on display. Particularly recommended for premises where luminaires are mounted at heights of 3-4.5m.

Tuba LED IP69K - waterproof LED luminaire made to work in extreme conditions

Up to 194 lm/W

This is a cylindrical luminaire for special tasks - where other solutions fail. Available in through versions, different light distributions and two lengths (630 and 1220 mm).

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Impact resistance	Diffuser material	Beam angle [°]	Light distribution type	DIMM DALI	Through wiring	Remarks cable length [m]	Dimensions (H/W/T/S) [mm]	Index
10W
10	4000	1350	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773723
10	4000	1350	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773754
10	4000	1450	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773631
10	4000	1450	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773662
10	4000	1450	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773815
10	4000	1450	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773846
10	4000	1450	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	775260
10	4000	1450	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775291
10	4000	1450	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775802
10	4000	1450	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775833
10	4000	1450	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776342
10	4000	1450	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776373
10	4000	1550	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	773181
10	4000	1550	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773211
10	4000	1550	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	775178
10	4000	1550	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	775208
10	4000	1550	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775352
10	4000	1550	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775383
10	4000	1550	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775710
10	4000	1550	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775741
10	4000	1550	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775895
10	4000	1550	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775925
10	4000	1550	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	776250
10	4000	1550	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776281
10	4000	1550	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776434
10	4000	1550	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776465
10	4000	1650	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	773099
10	4000	1650	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773129
10	4000	1650	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	773273
10	4000	1650	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773303
13W
13	4000	1850	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773716
13	4000	1850	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773747
13	4000	1950	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776335
13	4000	1950	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776366
13	4000	2000	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773624
13	4000	2000	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773655
13	4000	2000	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773808
13	4000	2000	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773839
13	4000	2000	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	775253
13	4000	2000	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775284
13	4000	2000	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775796
13	4000	2000	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775826
13	4000	2100	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	776243
13	4000	2100	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776274
13	4000	2100	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776427
13	4000	2100	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776458
13	4000	2150	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	773174
13	4000	2150	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773204
13	4000	2150	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	775161
13	4000	2150	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	775192
13	4000	2150	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775345
13	4000	2150	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775376
13	4000	2150	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775703
13	4000	2150	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775734
13	4000	2150	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775888
13	4000	2150	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775918
13	4000	2300	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	773082
13	4000	2300	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773112
13	4000	2300	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	773266
13	4000	2300	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773297
22W
22	4000	3050	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773440
22	4000	3050	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773471
22	4000	3250	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	773983
22	4000	3250	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775017
22	4000	3250	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775529
22	4000	3250	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775550
22	4000	3250	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776069
22	4000	3250	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776090
22	4000	3300	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773358
22	4000	3300	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773389
22	4000	3300	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773532
22	4000	3300	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773563
22	4000	3500	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	772368
22	4000	3500	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772481
22	4000	3500	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	773891
22	4000	3500	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	773921
22	4000	3500	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775079
22	4000	3500	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775109
22	4000	3500	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775437
22	4000	3500	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775468
22	4000	3500	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775611
22	4000	3500	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775642
22	4000	3500	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	775970
22	4000	3500	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776007
22	4000	3500	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776151
22	4000	3500	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776182
22	4000	3750	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	772009
22	4000	3750	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772122
22	4000	3750	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	772726
22	4000	3750	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772849
26W
26	4000	3700	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773457
26	4000	3700	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773488
26	4000	3950	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776076
26	4000	3950	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776106
26	4000	4000	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773365
26	4000	4000	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773396
26	4000	4000	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773549
26	4000	4000	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773570
26	4000	4000	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	773990
26	4000	4000	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775024
26	4000	4000	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775536
26	4000	4000	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775567
26	4000	4250	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	775987
26	4000	4250	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776014
26	4000	4250	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776168
26	4000	4250	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776199
26	4000	4300	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	772375
26	4000	4300	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772498
26	4000	4300	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	773907
26	4000	4300	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	773938
26	4000	4300	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775086
26	4000	4300	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775116
26	4000	4300	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775444
26	4000	4300	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775475
26	4000	4300	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775628
26	4000	4300	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775659
26	4000	4600	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	772016
26	4000	4600	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772139
26	4000	4600	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	772733
26	4000	4600	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772856
32W
32	4000	4500	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773464
32	4000	4500	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773495
32	4000	4800	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	775000
32	4000	4800	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775031
32	4000	4800	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775543
32	4000	4800	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775574
32	4000	4800	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776083
32	4000	4800	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776113
32	4000	4850	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773372
32	4000	4850	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773402
32	4000	4850	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773556
32	4000	4850	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773587
32	4000	5150	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	775994
32	4000	5150	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776021
32	4000	5150	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776175
32	4000	5150	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776205
32	4000	5200	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	772382
32	4000	5200	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772504
32	4000	5200	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	773914
32	4000	5200	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	773945
32	4000	5200	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775093
32	4000	5200	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775123
32	4000	5200	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775451
32	4000	5200	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775482
32	4000	5200	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775635
32	4000	5200	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775666
32	4000	5550	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	772023
32	4000	5550	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772146
32	4000	5550	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	772740
32	4000	5550	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	772863
36W
36	4000	5050	IK10	PC	105	symmetric	yes	LS1	1.4m	660/64.5	772542
36	4000	5050	IK10	PC	105	symmetric	yes	LS2	2 x 1.4m	697/64.5	772559
36	4000	5050	IK10	PC	105	symmetric	-	LS1	1.4m	660/64.5	773730
36	4000	5050	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773761
36	4000	5200	IK10	PC	butterfly	DAN	-	LS1	1.4m	660/64.5	776649
36	4000	5250	IK10	PC	asymetric	SA	-	LS1	1.4m	660/64.5	776618
36	4000	5400	IK10	PC	105	VW	yes	LS1	1.4m	660/64.5	772665
36	4000	5400	IK10	PC	105	VW	yes	LS2	2 x 1.4m	697/64.5	772672
36	4000	5400	IK10	PC	105	VW	-	LS1	1.4m	660/64.5	775277
36	4000	5400	IK10	PC	105	VW	-	LS2	2 x 1.4m	697/64.5	775307
36	4000	5400	IK10	PC	90	MW	-	LS1	1.4m	660/64.5	775819
36	4000	5400	IK10	PC	90	MW	-	LS2	2 x 1.4m	697/64.5	775840
36	4000	5400	IK10	PC	65	SN	-	LS1	1.4m	660/64.5	776359
36	4000	5400	IK10	PC	65	SN	-	LS2	2 x 1.4m	697/64.5	776380
36	4000	5400	IK10	PC	80	SW	-	LS1	1.4m	660/64.5	776526
36	4000	5400	IK10	PC	35/67	CN	-	LS1	1.4m	660/64.5	776557
36	4000	5400	IK10	PC	30	VN	-	LS1	1.4m	660/64.5	776588
36	4000	5400	IK10	PC	90	MW	yes	LS1	1.4m	660/64.5	777929
36	4000	5400	IK10	PC	90	MW	yes	LS2	2 x 1.4m	697/64.5	777936
36	4000	5400	IK10	PC	65	SN	yes	LS1	1.4m	660/64.5	778018
36	4000	5400	IK10	PC	65	SN	yes	LS2	2 x 1.4m	697/64.5	778025
36	4000	5450	IK05	PMMA	105	symmetric	yes	LS1	1.4m	660/64.5	772184
36	4000	5450	IK05	PMMA	105	symmetric	yes	LS2	2 x 1.4m	697/64.5	772191
36	4000	5450	IK06	GLASS	105	symmetric	yes	LS1	1.4m	660/64.5	772900
36	4000	5450	IK06	GLASS	105	symmetric	yes	LS2	2 x 1.4m	697/64.5	772917
36	4000	5450	IK05	PMMA	105	symmetric	-	LS1	1.4m	660/64.5	773648
36	4000	5450	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773679
36	4000	5450	IK06	GLASS	105	symmetric	-	LS1	1.4m	660/64.5	773822
36	4000	5450	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	697/64.5	773853
36	4000	5650	IK05	PMMA	asymetric	SA	-	LS1	1.4m	660/64.5	776601
36	4000	5650	IK06	GLASS	asymetric	SA	-	LS1	1.4m	660/64.5	776625
36	4000	5650	IK05	PMMA	butterfly	DAN	-	LS1	1.4m	660/64.5	776632
36	4000	5650	IK06	GLASS	butterfly	DAN	-	LS1	1.4m	660/64.5	776656
36	4000	5800	IK05	PMMA	105	VW	yes	LS1	1.4m	660/64.5	772306
36	4000	5800	IK05	PMMA	105	VW	yes	LS2	2 x 1.4m	697/64.5	772313
36	4000	5800	IK06	GLASS	105	VW	yes	LS1	1.4m	660/64.5	773020
36	4000	5800	IK06	GLASS	105	VW	yes	LS2	2 x 1.4m	697/64.5	773037
36	4000	5800	IK05	PMMA	105	VW	-	LS1	1.4m	660/64.5	775185
36	4000	5800	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	697/64.5	775215
36	4000	5800	IK06	GLASS	105	VW	-	LS1	1.4m	660/64.5	775369
36	4000	5800	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	697/64.5	775390
36	4000	5800	IK05	PMMA	90	MW	-	LS1	1.4m	660/64.5	775727
36	4000	5800	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	697/64.5	775758
36	4000	5800	IK06	GLASS	90	MW	-	LS1	1.4m	660/64.5	775901
36	4000	5800	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	697/64.5	775932
36	4000	5800	IK05	PMMA	65	SN	-	LS1	1.4m	660/64.5	776267
36	4000	5800	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	697/64.5	776298
36	4000	5800	IK06	GLASS	65	SN	-	LS1	1.4m	660/64.5	776441
36	4000	5800	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	697/64.5	776472
36	4000	5800	IK05	PMMA	80	SW	-	LS1	1.4m	660/64.5	776519
36	4000	5800	IK06	GLASS	80	SW	-	LS1	1.4m	660/64.5	776533
36	4000	5800	IK05	PMMA	35/67	CN	-	LS1	1.4m	660/64.5	776540
36	4000	5800	IK06	GLASS	35/67	CN	-	LS1	1.4m	660/64.5	776564
36	4000	5800	IK05	PMMA	30	VN	-	LS1	1.4m	660/64.5	776571
36	4000	5800	IK06	GLASS	30	VN	-	LS1	1.4m	660/64.5	776595
36	4000	5800	IK05	PMMA	90	MW	yes	LS1	1.4m	660/64.5	777899
36	4000	5800	IK05	PMMA	90	MW	yes	LS2	2 x 1.4m	697/64.5	777905
36	4000	5800	IK06	GLASS	90	MW	yes	LS1	1.4m	660/64.5	777950
36	4000	5800	IK06	GLASS	90	MW	yes	LS2	2 x 1.4m	697/64.5	777967
36	4000	5800	IK05	PMMA	65	SN	yes	LS1	1.4m	660/64.5	777981
36	4000	5800	IK05	PMMA	65	SN	yes	LS2	2 x 1.4m	697/64.5	777998
36	4000	5800	IK06	GLASS	65	SN	yes	LS1	1.4m	660/64.5	778049
36	4000	5800	IK06	GLASS	65	SN	yes	LS2	2 x 1.4m	697/64.5	778056
36	4000	5850	IK10	PC	120	symmetric	yes	LS1	1.4m	660/64.5	772429
36	4000	5850	IK10	PC	120	symmetric	yes	LS2	2 x 1.4m	697/64.5	772436
36	4000	5850	IK10	PC	120	symmetric	-	LS1	1.4m	660/64.5	773198
36	4000	5850	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773228
36	4000	6250	IK05	PMMA	120	symmetric	yes	LS1	1.4m	660/64.5	772061
36	4000	6250	IK05	PMMA	120	symmetric	yes	LS2	2 x 1.4m	697/64.5	772078
36	4000	6250	IK06	GLASS	120	symmetric	yes	LS1	1.4m	660/64.5	772788
36	4000	6250	IK06	GLASS	120	symmetric	yes	LS2	2 x 1.4m	697/64.5	772795
36	4000	6250	IK05	PMMA	120	symmetric	-	LS1	1.4m	660/64.5	773105
36	4000	6250	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773136
36	4000	6250	IK06	GLASS	120	symmetric	-	LS1	1.4m	660/64.5	773280
36	4000	6250	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	697/64.5	773310
40W
40	4000	6200	IK10	PC	105	symmetric	-	LS1	1.4m	1250/64.5	776755
40	4000	6200	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776786
40	4000	6650	IK10	PC	65	SN	-	LS1	1.4m	1250/64.5	777561
40	4000	6650	IK10	PC	65	SN	-	LS2	2 x 1.4m	1281/64.5	777592
40	4000	6700	IK10	PC	105	VW	-	LS1	1.4m	1250/64.5	777028
40	4000	6700	IK10	PC	105	VW	-	LS2	2 x 1.4m	1281/64.5	777059
40	4000	6700	IK10	PC	90	MW	-	LS1	1.4m	1250/64.5	777295
40	4000	6700	IK10	PC	90	MW	-	LS2	2 x 1.4m	1281/64.5	777325
40	4000	6750	IK05	PMMA	105	symmetric	-	LS1	1.4m	1250/64.5	776663
40	4000	6750	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776694
40	4000	6750	IK06	GLASS	105	symmetric	-	LS1	1.4m	1250/64.5	776847
40	4000	6750	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776878
40	4000	7150	IK05	PMMA	65	SN	-	LS1	1.4m	1250/64.5	777479
40	4000	7150	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	1281/64.5	777509
40	4000	7150	IK06	GLASS	65	SN	-	LS1	1.4m	1250/64.5	777653
40	4000	7150	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	1281/64.5	777684
40	4000	7200	IK10	PC	120	symmetric	-	LS1	1.4m	1250/64.5	772399
40	4000	7200	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772511
40	4000	7200	IK05	PMMA	105	VW	-	LS1	1.4m	1250/64.5	776939
40	4000	7200	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	1281/64.5	776960
40	4000	7200	IK06	GLASS	105	VW	-	LS1	1.4m	1250/64.5	777110
40	4000	7200	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	1281/64.5	777141
40	4000	7200	IK05	PMMA	90	MW	-	LS1	1.4m	1250/64.5	777202
40	4000	7200	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	1281/64.5	777233
40	4000	7200	IK06	GLASS	90	MW	-	LS1	1.4m	1250/64.5	777387
40	4000	7200	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	1281/64.5	777417
40	4000	7750	IK05	PMMA	120	symmetric	-	LS1	1.4m	1250/64.5	772030
40	4000	7750	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772153
40	4000	7750	IK06	GLASS	120	symmetric	-	LS1	1.4m	1250/64.5	772757
40	4000	7750	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772870
46W
46	4000	7100	IK10	PC	105	symmetric	-	-	-	1250/64.5	776762
46	4000	7100	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776793
46	4000	7600	IK10	PC	105	VW	-	LS1	1.4m	1250/64.5	777035
46	4000	7600	IK10	PC	105	VW	-	LS2	2 x 1.4m	1281/64.5	777066
46	4000	7600	IK10	PC	90	MW	-	LS1	1.4m	1250/64.5	777301
46	4000	7600	IK10	PC	90	MW	-	LS2	2 x 1.4m	1281/64.5	777332
46	4000	7600	IK10	PC	65	SN	-	LS1	1.4m	1250/64.5	777578
46	4000	7600	IK10	PC	65	SN	-	LS2	2 x 1.4m	1281/64.5	777608
46	4000	7650	IK05	PMMA	105	symmetric	-	LS1	1.4m	1250/64.5	776670
46	4000	7650	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776700
46	4000	7650	IK06	GLASS	105	symmetric	-	LS1	1.4m	1250/64.5	776854
46	4000	7650	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776885
46	4000	8150	IK05	PMMA	65	SN	-	LS1	1.4m	1250/64.5	777486
46	4000	8150	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	1281/64.5	777516
46	4000	8150	IK06	GLASS	65	SN	-	LS1	1.4m	1250/64.5	777660
46	4000	8150	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	1281/64.5	777691
46	4000	8200	IK10	PC	120	symmetric	-	LS1	1.4m	1250/64.5	772405
46	4000	8200	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772528
46	4000	8200	IK05	PMMA	105	VW	-	LS1	1.4m	1250/64.5	776946
46	4000	8200	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	1281/64.5	776977
46	4000	8200	IK06	GLASS	105	VW	-	LS1	1.4m	1250/64.5	777127
46	4000	8200	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	1281/64.5	777158
46	4000	8200	IK05	PMMA	90	MW	-	LS1	1.4m	1250/64.5	777219
46	4000	8200	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	1281/64.5	777240
46	4000	8200	IK06	GLASS	90	MW	-	LS1	1.4m	1250/64.5	777394
46	4000	8200	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	1281/64.5	777424
46	4000	8800	IK05	PMMA	120	symmetric	-	LS1	1.4m	1250/64.5	772047
46	4000	8800	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772160
46	4000	8800	IK06	GLASS	120	symmetric	-	LS1	1.4m	1250/64.5	772764
46	4000	8800	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772887
59W
59	4000	9000	IK10	PC	105	symmetric	yes	LS1	1.4m	1250/64.5	772573
59	4000	9000	IK10	PC	105	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772580
59	4000	9000	IK10	PC	105	symmetric	-	LS1	1.4m	1250/64.5	776779
59	4000	9000	IK10	PC	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776809
59	4000	9350	IK10	PC	butterfly	DAN	-	LS1	1.4m	1250/64.5	777875
59	4000	9400	IK10	PC	asymetric	SA	-	LS1	1.4m	1250/64.5	777844
59	4000	9600	IK10	PC	65	SN	-	LS1	1.4m	1250/64.5	777585
59	4000	9600	IK10	PC	65	SN	-	LS2	2 x 1.4m	1281/64.5	777615
59	4000	9600	IK10	PC	35/67	CN	-	LS1	1.4m	1250/64.5	777783
59	4000	9600	IK10	PC	30	VN	-	LS1	1.4m	1250/64.5	777813
59	4000	9600	IK10	PC	65	SN	yes	LS1	1.4m	1250/64.5	778193
59	4000	9600	IK10	PC	65	SN	yes	LS2	2 x 1.4m	1281/64.5	778209
59	4000	9650	IK10	PC	105	VW	yes	LS1	1.4m	1250/64.5	772696
59	4000	9650	IK10	PC	105	VW	yes	LS2	2 x 1.4m	1281/64.5	772702
59	4000	9650	IK10	PC	105	VW	-	LS1	1.4m	1250/64.5	777042
59	4000	9650	IK10	PC	105	VW	-	LS2	2 x 1.4m	1281/64.5	777073
59	4000	9650	IK10	PC	90	MW	-	LS1	1.4m	1250/64.5	777318
59	4000	9650	IK10	PC	90	MW	-	LS2	2 x 1.4m	1281/64.5	777349
59	4000	9650	IK10	PC	80	SW	-	LS1	1.4m	1250/64.5	777752
59	4000	9650	IK10	PC	90	MW	yes	LS1	1.4m	1250/64.5	778100
59	4000	9650	IK10	PC	90	MW	yes	LS2	2 x 1.4m	1281/64.5	778117
59	4000	9700	IK05	PMMA	105	symmetric	yes	LS1	1.4m	1250/64.5	772214
59	4000	9700	IK05	PMMA	105	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772221
59	4000	9700	IK06	GLASS	105	symmetric	yes	LS1	1.4m	1250/64.5	772931
59	4000	9700	IK06	GLASS	105	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772948
59	4000	9700	IK05	PMMA	105	symmetric	-	LS1	1.4m	1250/64.5	776687
59	4000	9700	IK05	PMMA	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776717
59	4000	9700	IK06	GLASS	105	symmetric	-	LS1	1.4m	1250/64.5	776861
59	4000	9700	IK06	GLASS	105	symmetric	-	LS2	2 x 1.4m	1281/64.5	776892
59	4000	10050	IK05	PMMA	butterfly	DAN	-	LS1	1.4m	1250/64.5	777868
59	4000	10050	IK06	GLASS	butterfly	DAN	-	LS1	1.4m	1250/64.5	777882
59	4000	10100	IK05	PMMA	asymetric	SA	-	LS1	1.4m	1250/64.5	777837
59	4000	10100	IK06	GLASS	asymetric	SA	-	LS1	1.4m	1250/64.5	777851
59	4000	10350	IK05	PMMA	35/67	CN	-	LS1	1.4m	1250/64.5	777776
59	4000	10350	IK05	PMMA	65	SN	-	LS1	1.4m	1250/64.5	777493
59	4000	10350	IK05	PMMA	65	SN	-	LS2	2 x 1.4m	1281/64.5	777523
59	4000	10350	IK06	GLASS	65	SN	-	LS1	1.4m	1250/64.5	777677
59	4000	10350	IK06	GLASS	65	SN	-	LS2	2 x 1.4m	1281/64.5	777707
59	4000	10350	IK06	GLASS	35/67	CN	-	LS1	1.4m	1250/64.5	777790
59	4000	10350	IK05	PMMA	30	VN	-	LS1	1.4m	1250/64.5	777806
59	4000	10350	IK06	GLASS	30	VN	-	LS1	1.4m	1250/64.5	777820
59	4000	10350	IK05	PMMA	65	SN	yes	LS1	1.4m	1250/64.5	778162
59	4000	10350	IK05	PMMA	65	SN	yes	LS2	2 x 1.4m	1281/64.5	778179
59	4000	10350	IK06	GLASS	65	SN	yes	LS1	1.4m	1250/64.5	778223
59	4000	10350	IK06	GLASS	65	SN	yes	LS2	2 x 1.4m	1281/64.5	778230
59	4000	10400	IK05	PMMA	105	VW	yes	LS1	1.4m	1250/64.5	772337
59	4000	10400	IK05	PMMA	105	VW	yes	LS2	2 x 1.4m	1281/64.5	772344
59	4000	10400	IK06	GLASS	105	VW	yes	LS1	1.4m	1250/64.5	773051
59	4000	10400	IK06	GLASS	105	VW	yes	LS2	2 x 1.4m	1281/64.5	773068
59	4000	10400	IK05	PMMA	105	VW	-	LS1	1.4m	1250/64.5	776953
59	4000	10400	IK05	PMMA	105	VW	-	LS2	2 x 1.4m	1281/64.5	776984
59	4000	10400	IK06	GLASS	105	VW	-	LS1	1.4m	1250/64.5	777134
59	4000	10400	IK06	GLASS	105	VW	-	LS2	2 x 1.4m	1281/64.5	777165
59	4000	10400	IK05	PMMA	90	MW	-	LS1	1.4m	1250/64.5	777226
59	4000	10400	IK05	PMMA	90	MW	-	LS2	2 x 1.4m	1281/64.5	777257
59	4000	10400	IK06	GLASS	90	MW	-	LS1	1.4m	1250/64.5	777400
59	4000	10400	IK06	GLASS	90	MW	-	LS2	2 x 1.4m	1281/64.5	777431
59	4000	10400	IK05	PMMA	80	SW	-	LS1	1.4m	1250/64.5	777745
59	4000	10400	IK06	GLASS	80	SW	-	LS1	1.4m	1250/64.5	777769
59	4000	10400	IK05	PMMA	90	MW	yes	LS1	1.4m	1250/64.5	778070
59	4000	10400	IK05	PMMA	90	MW	yes	LS2	2 x 1.4m	1281/64.5	778087
59	4000	10400	IK06	GLASS	90	MW	yes	LS1	1.4m	1250/64.5	778131
59	4000	10400	IK06	GLASS	90	MW	yes	LS2	2 x 1.4m	1281/64.5	778148
59	4000	10450	IK10	PC	120	symmetric	-	LS1	1.4m	1250/64.5	772412
59	4000	10450	IK10	PC	120	symmetric	yes	LS1	1.4m	1250/64.5	772450
59	4000	10450	IK10	PC	120	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772467
59	4000	10450	IK10	PC	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772535
59	4000	11150	IK05	PMMA	120	symmetric	-	LS1	1.4m	1250/64.5	772054
59	4000	11150	IK05	PMMA	120	symmetric	yes	LS1	1.4m	1250/64.5	772092
59	4000	11150	IK05	PMMA	120	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772108
59	4000	11150	IK05	PMMA	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772177
59	4000	11150	IK06	GLASS	120	symmetric	-	LS1	1.4m	1250/64.5	772771
59	4000	11150	IK06	GLASS	120	symmetric	yes	LS1	1.4m	1250/64.5	772818
59	4000	11150	IK06	GLASS	120	symmetric	yes	LS2	2 x 1.4m	1281/64.5	772825
59	4000	11150	IK06	GLASS	120	symmetric	-	LS2	2 x 1.4m	1281/64.5	772894

Show more Show less

Accessories

Hide accessories

Index	Accessory name
778254	Tuba IP69K 3P connector set
778261	Connector set Tuba IP69K 5P DALI

Tuba IP69K 3P connector set (778254)

Connector set Tuba IP69K 5P DALI (778261)

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Contact

Lena Lighting S.A.
Kornicka street 52
Sroda Wielkopolska
63-000, Poland

Office
+48 61 28 60 300
office@lenalighting.pl

Customer service
+48 61 28 60 333
hello@lenalighting.pl

Tuba IP69K

Technical specifications

Downloads

New light distributions:

Tuba LED IP69K - waterproof LED luminaire made to work in extreme conditions

Up to 194 lm/W

Related products

Gamma LED

Oculus LED XS Eco

Quest LED Evo XS

Skver LED S (Z2 WJ)

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
