A HIGH-BAY luminaire from the NEXT GEN product line, constituting a new generation of luminaires dedicated to LED technology.
A HIGH-BAY luminaire from the NEXT GEN product line, constituting a new generation of luminaires dedicated to LED technology. The designed-from-scratch body – made of die-cast aluminium and powder-coated – uses natural conduction and convection processes, which have a positive effect on the luminaire’s heat management. The shape of the body with an integrated, effective heat sink and high-quality materials ensure maximum heat dissipation from the LED module. The driver’s external compartment, separated from the body, guarantees optimal thermal working conditions for the power supply system. This enables the luminaire to work at an ambient temperature of max 60°C. LEDs from a reputable manufacturer and new LED modules enable very high luminous efficiency. This guarantees that the required lighting level and significant energy savings are achieved. The diffuser and optical system are composed of precise lenses made of polycarbonate (PC). Standard equipped with a 0.3 m long H07RN-F cable terminated with an additional male and female connector, which makes the assembly easier and more convenient. Its design is adapted for suspended mounting and surface mounting (ceiling and wall) requiring the use of additional accessories.
A UGR (Unified Glare Rating) of less than 19 minimizes the effect of glare affecting well-being, reducing fatigue and fewer mistakes.

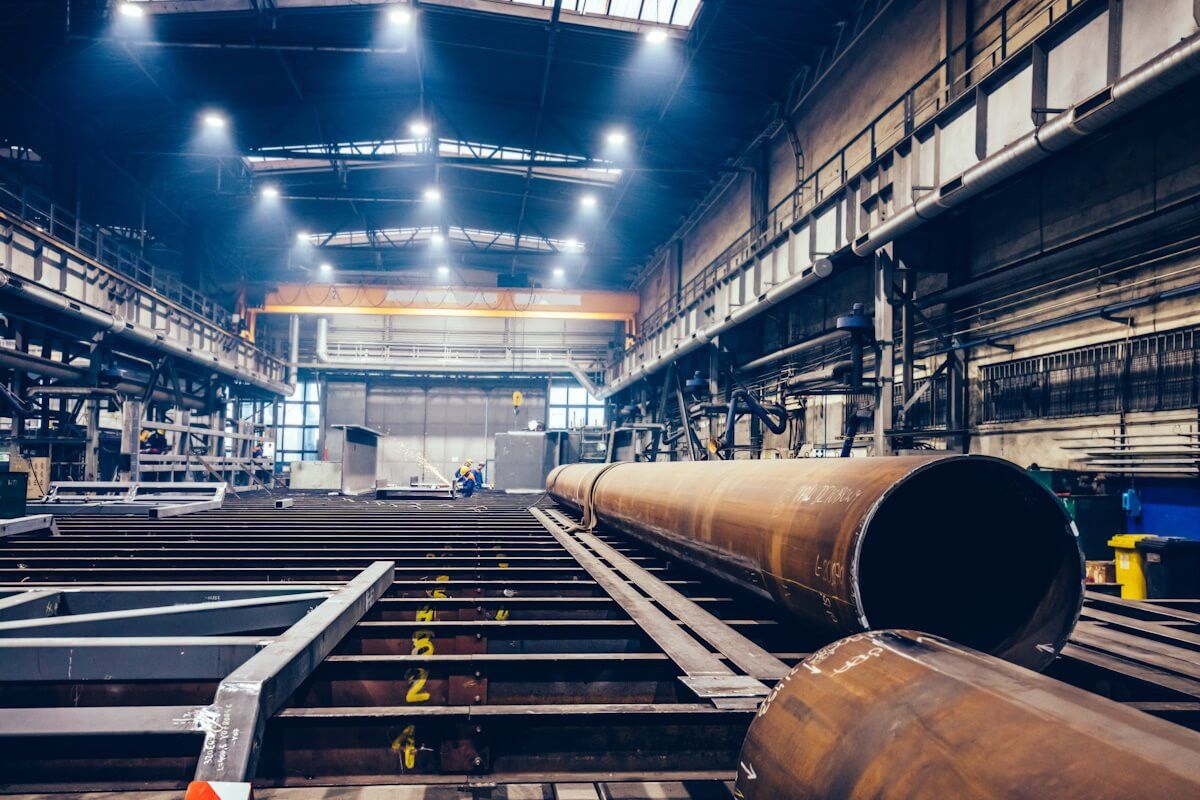

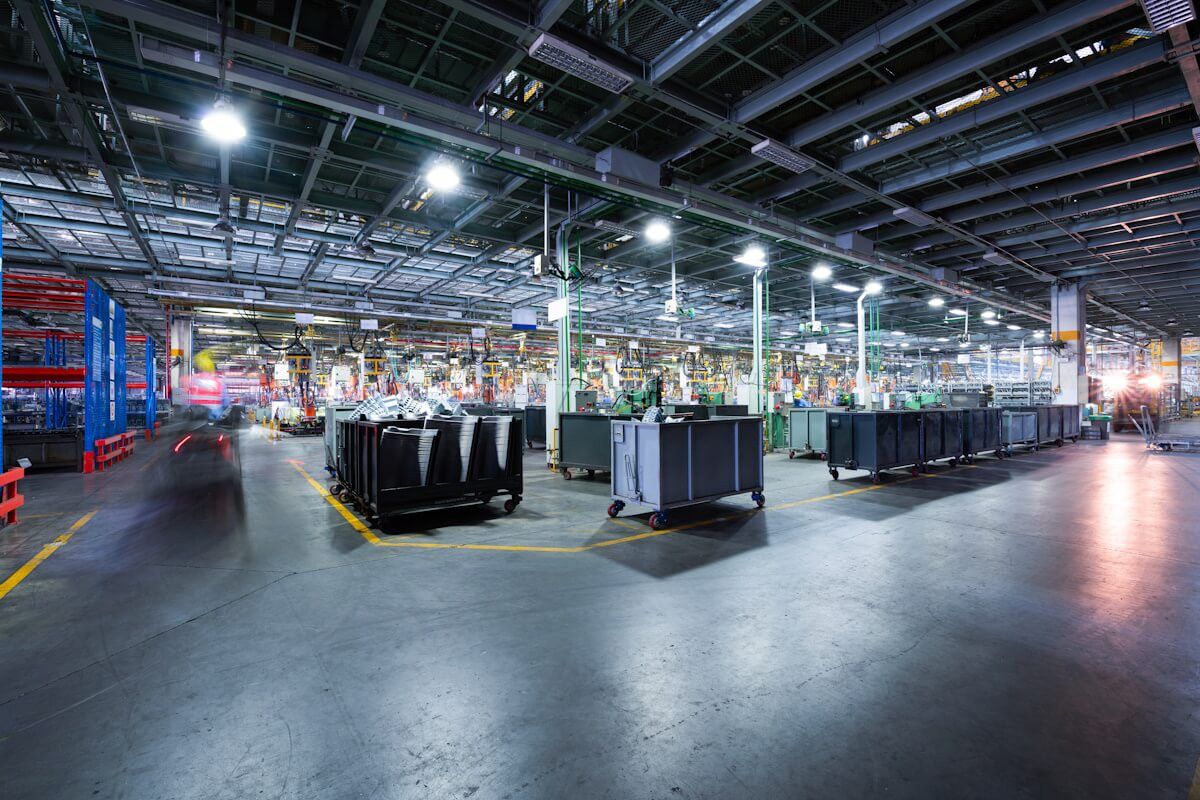

The luminaire is designed for suspended mounting using chains, ropes, etc. and with the use of additional accessories also surface-mounted (ceiling and wall) indoors. It works perfectly in factories and production halls as well as large-scale warehouses and logistics centers.
|Rated power of the luminaire [W]||Colour temperature [K]||Luminous flux [lm]||DIMM DALI||Working temperature [°C]||Dimensions [mm]||Index|
|74||4000||11300||-||from -20 to +60||106/371||561238|
|109||4000||15900||-||from -25 to +60||106/371||561221|
|109||4000||15900||yes||from -25 to +60||106/371||561252|
|129||4000||18700||-||from -25 to +60||106/371||561214|
|151||4000||21500||-||from -25 to +60||106/371||561108|
|218||4000||28800||-||from -25 to +45||106/371||561139|
|218||4000||28800||yes||from -25 to +45||106/371||561245|
