Expo Modular

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Expo Modular is a projector luminaire developed from scratch, which opens up a range of new functionalities for the user. Low UGR glare effect, precise optics, high CRI, the possibility of expanding the luminaire's functionality or giving it an individual character through a wide range of accessories such as ecoPET screens or accessories such as unusual shades, screens and covers made with 3D printing.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K
Mounting version	track
Dimensions [mm]	fi=80 L=215

LEDIIIP20CEQuick installationUkraine

Ask about this product

Options

Downloads

Specification

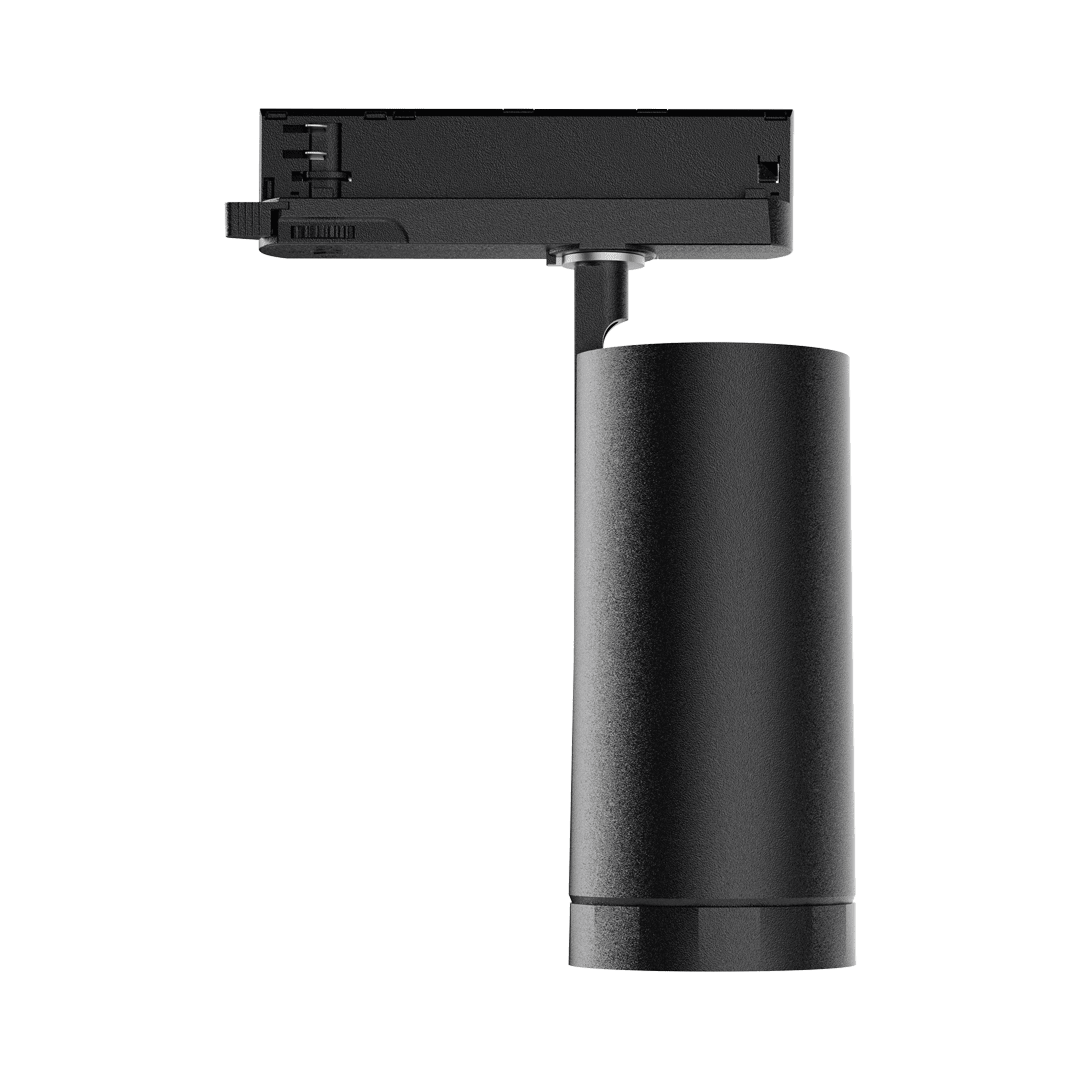

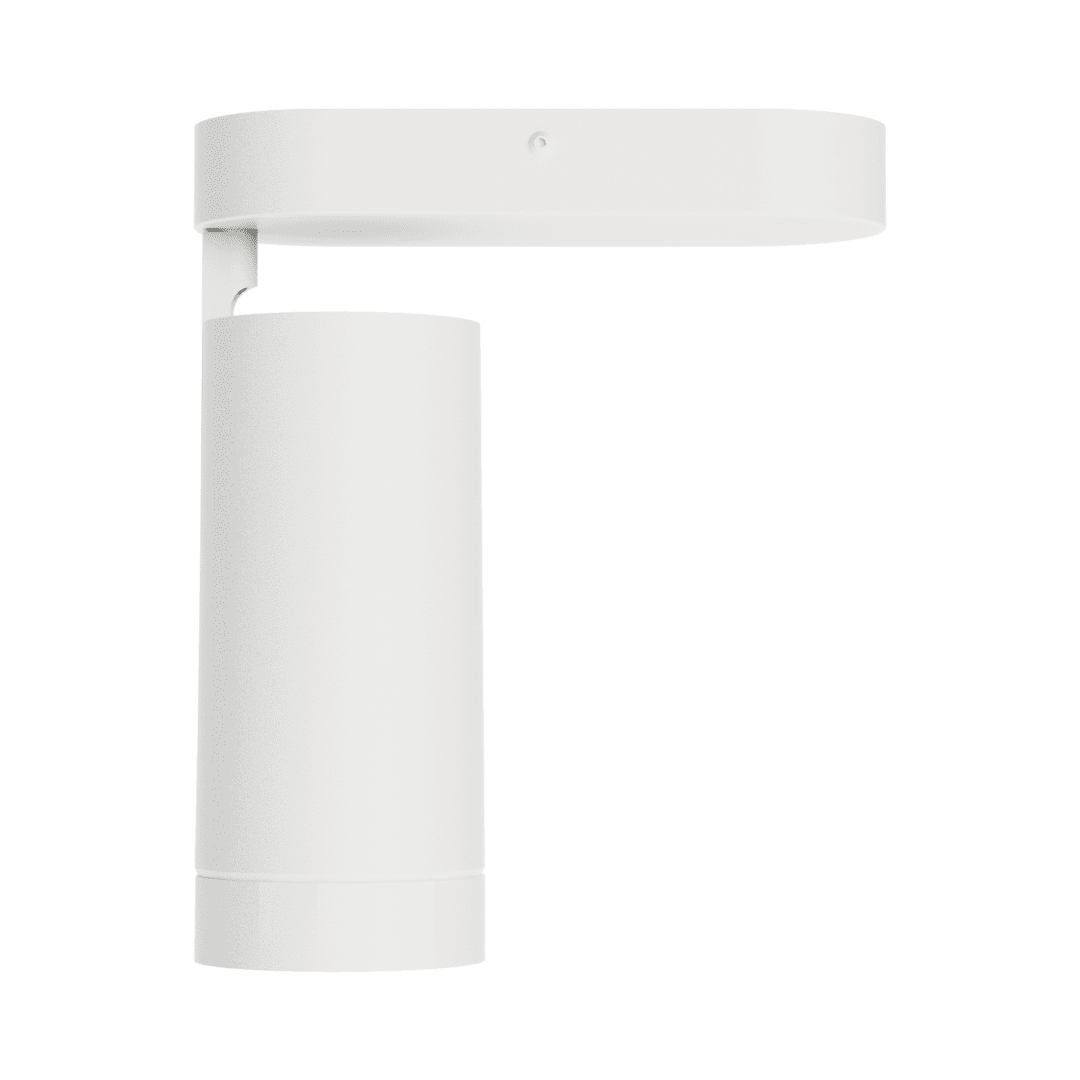

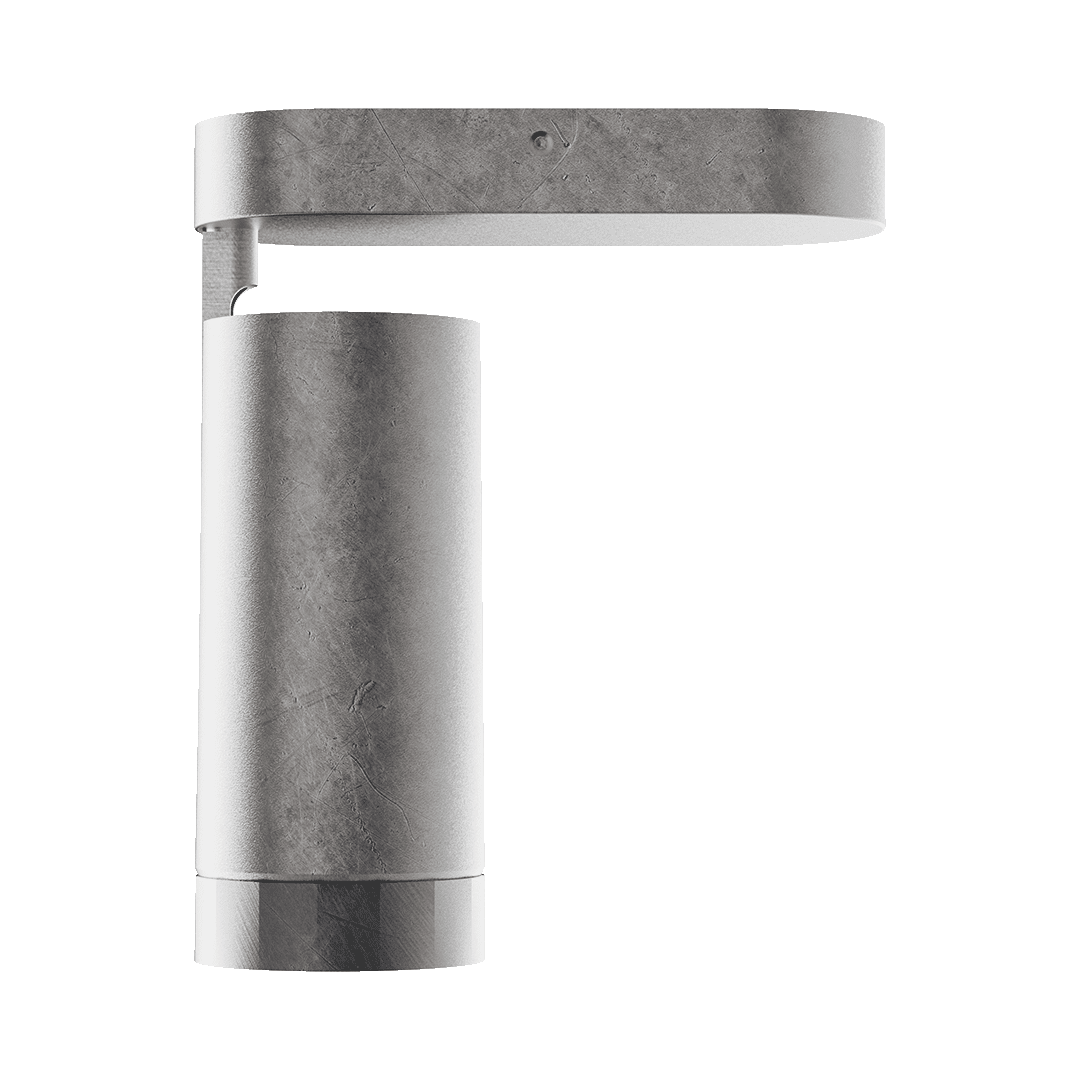

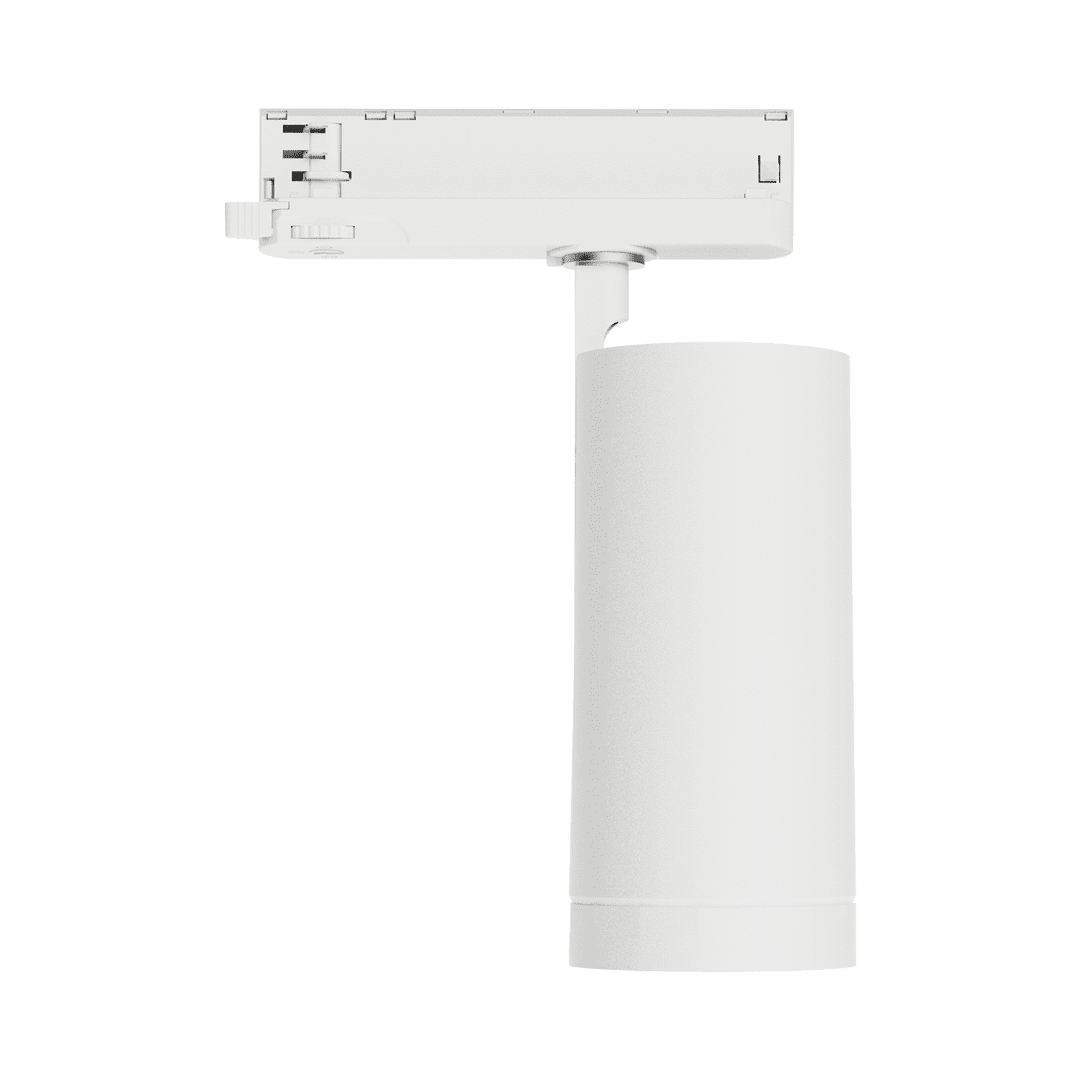

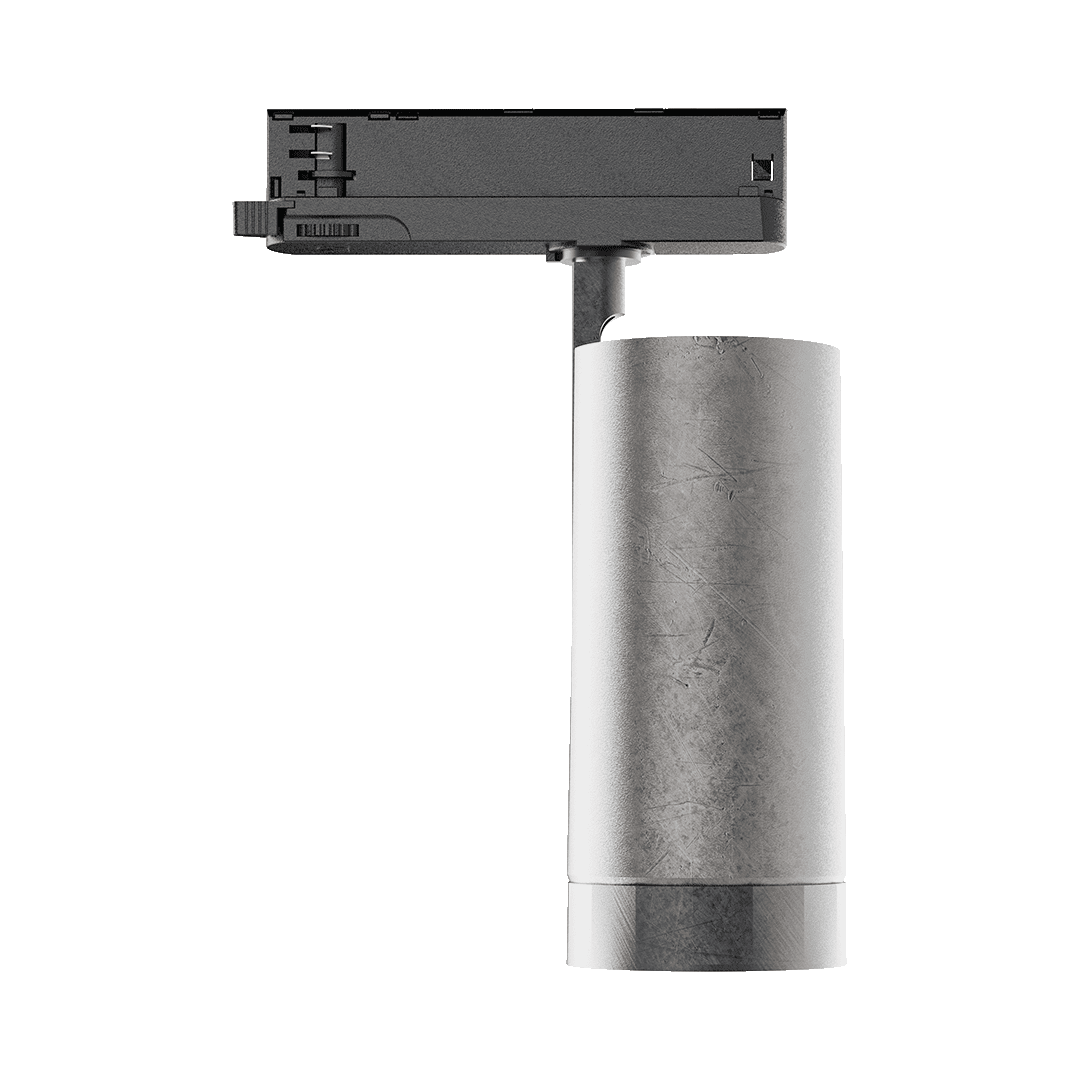

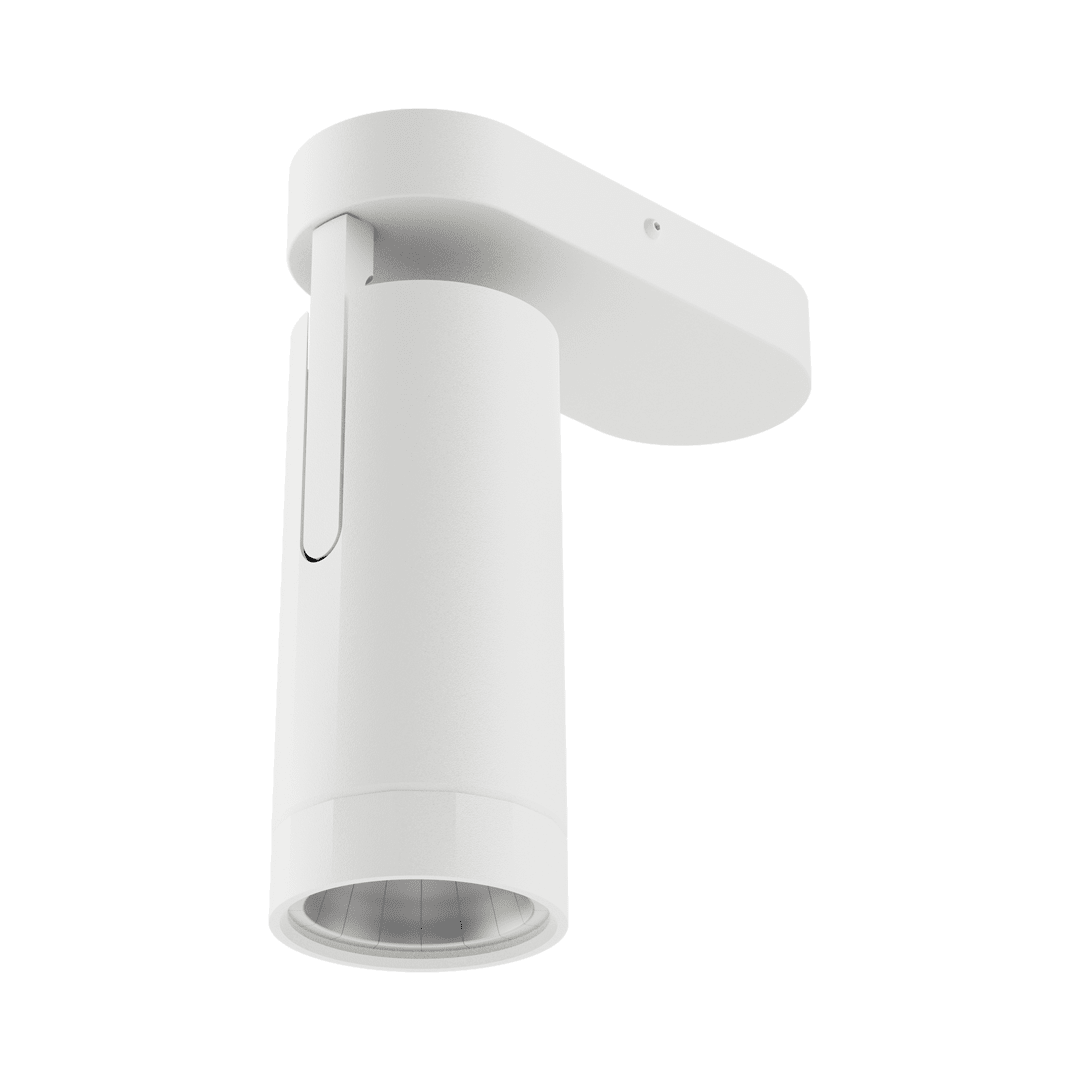

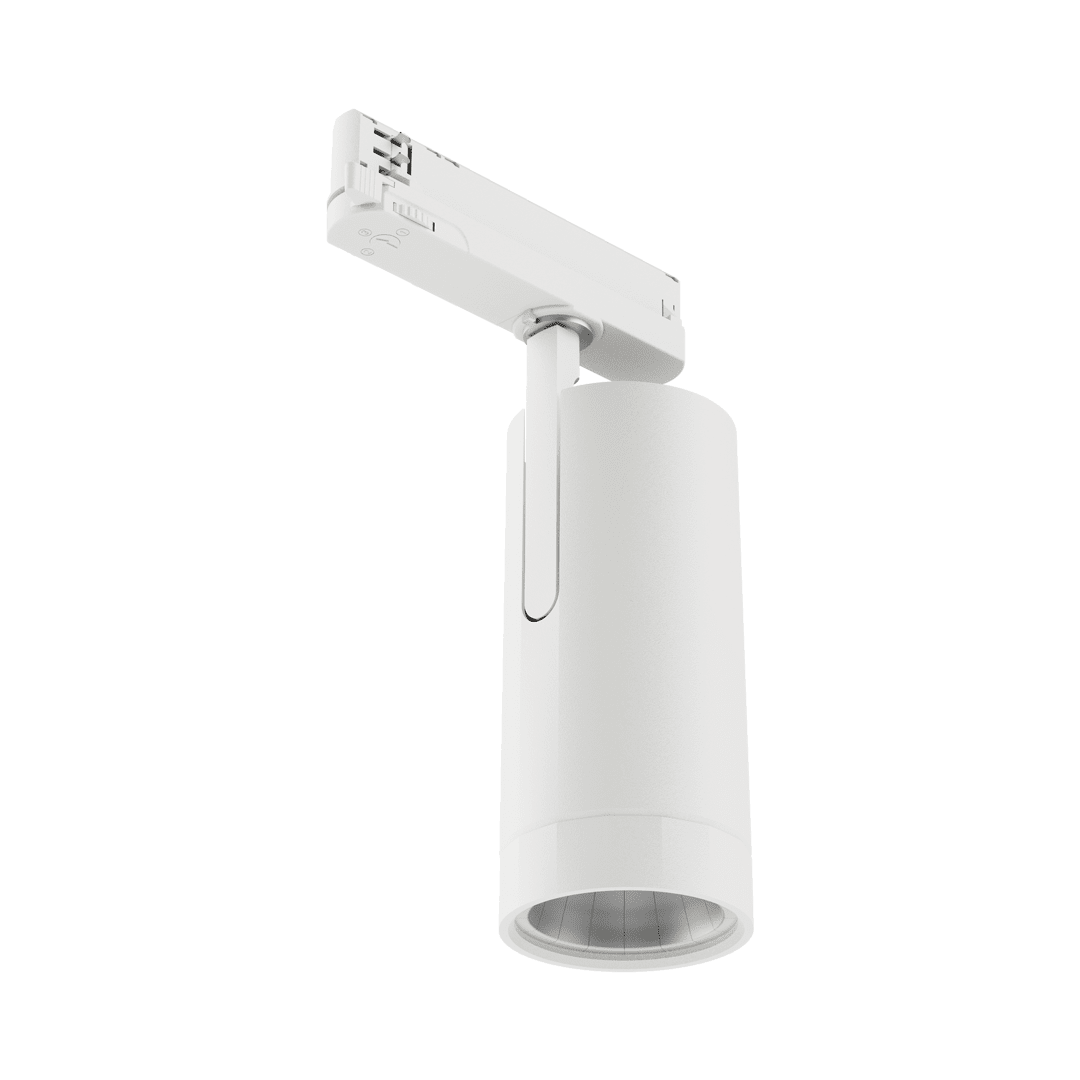

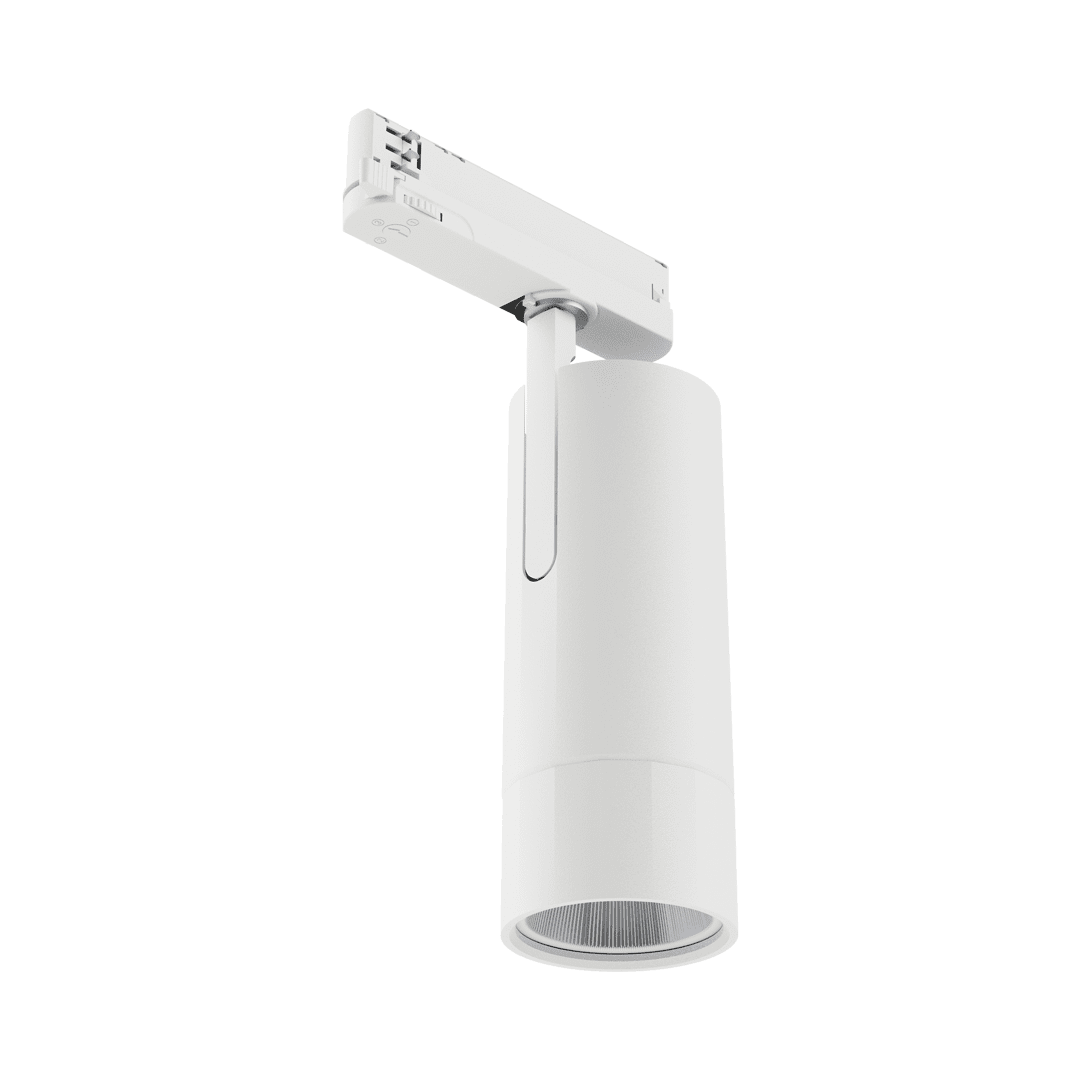

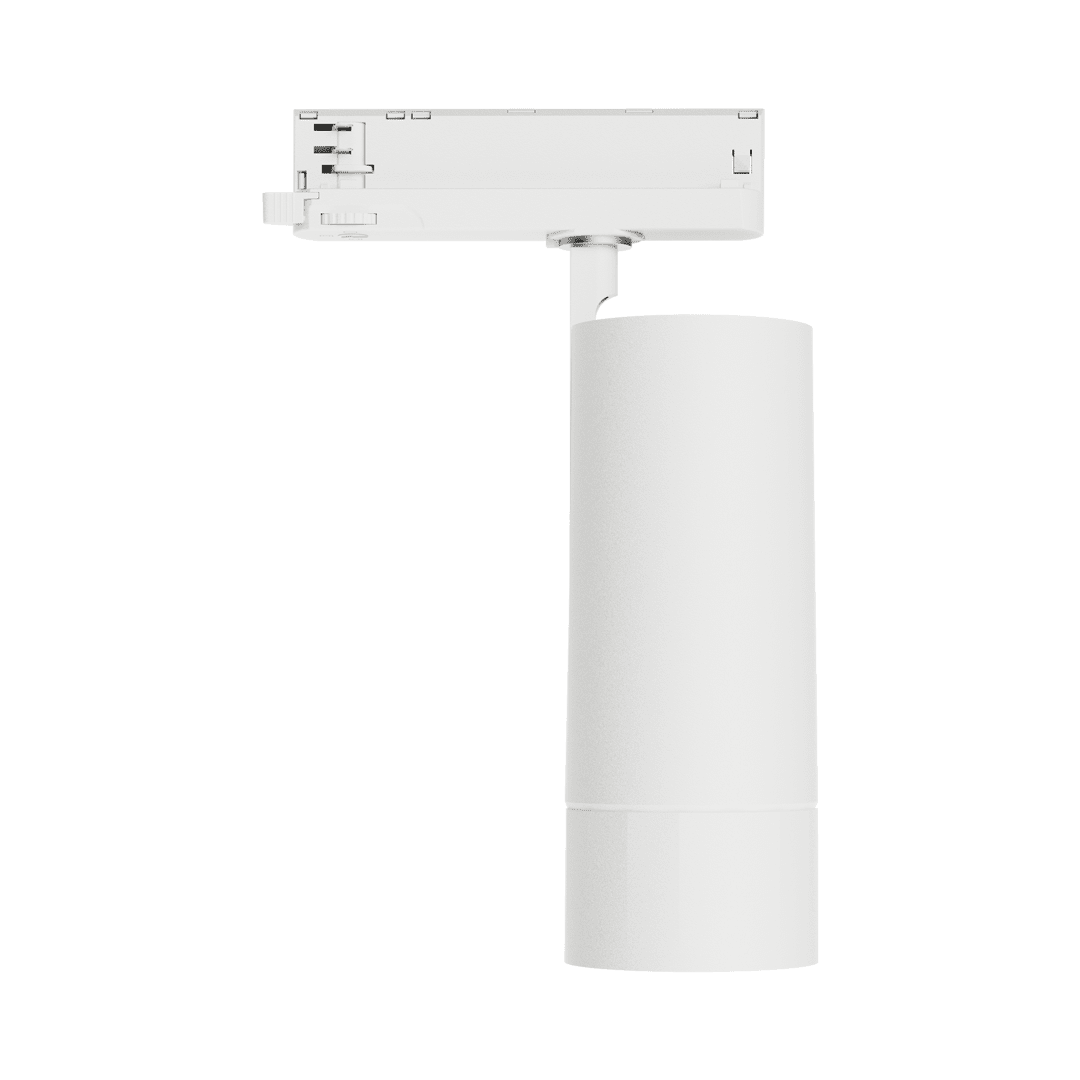

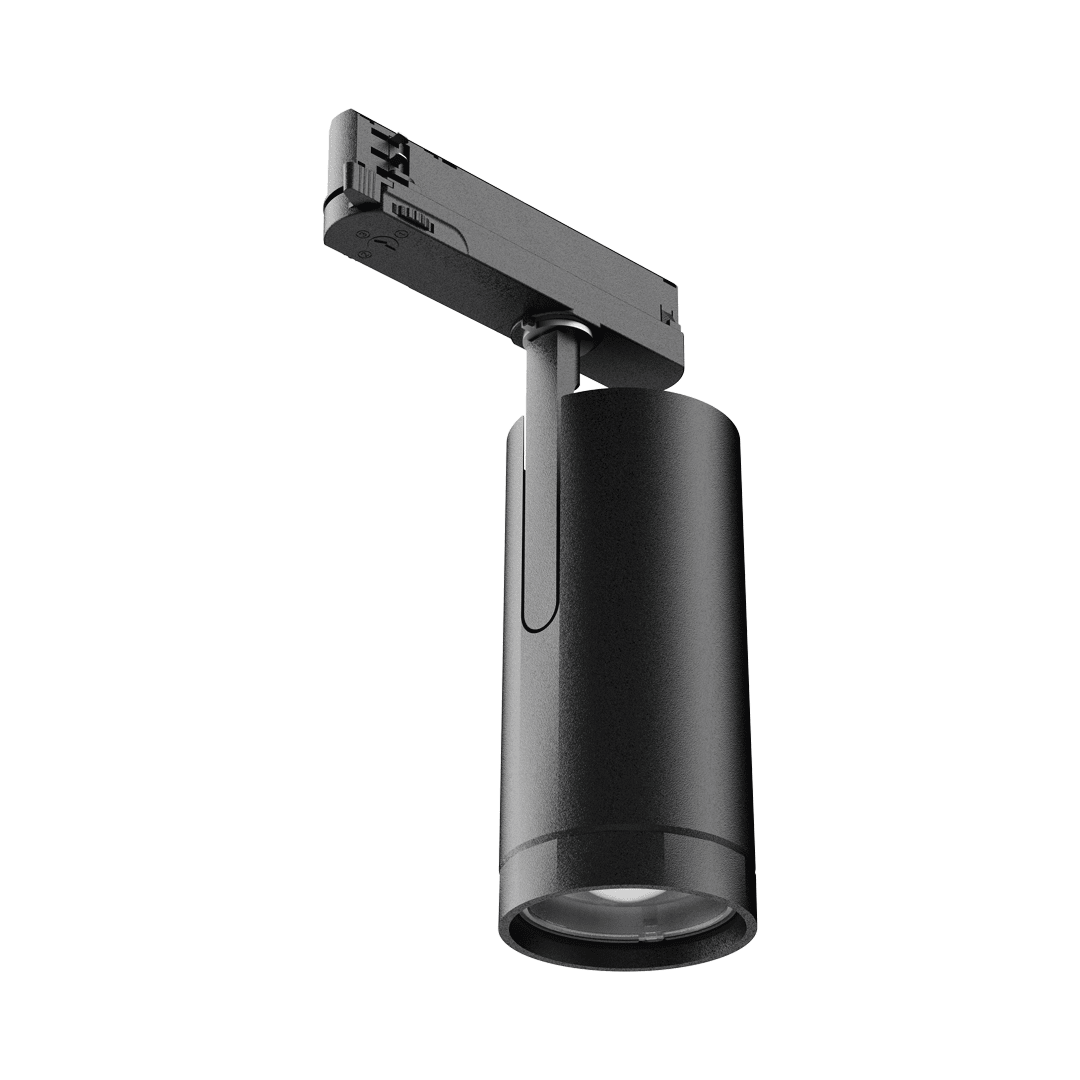

EXPO Modular is a projector luminaire developed from scratch, which opens up a range of new functionalities for the user. Low UGR glare effect, precise optics, high CRI, the possibility of expanding the luminaire's functionality or giving it an individual character through a wide range of accessories such as ecoPET screens or accessories such as unusual shades, screens and covers made with 3D printing. The luminaire's design ensures optimal thermal performance and allows for changing the lighting angles, as well as customising the colour of the ring and body. EXPO Modular is a high-quality aluminium projector with a COB LED light source. Universal application with a busbar system. No ultraviolet or infrared radiation, high colour rendering index, high luminous efficacy and high durability.

Application

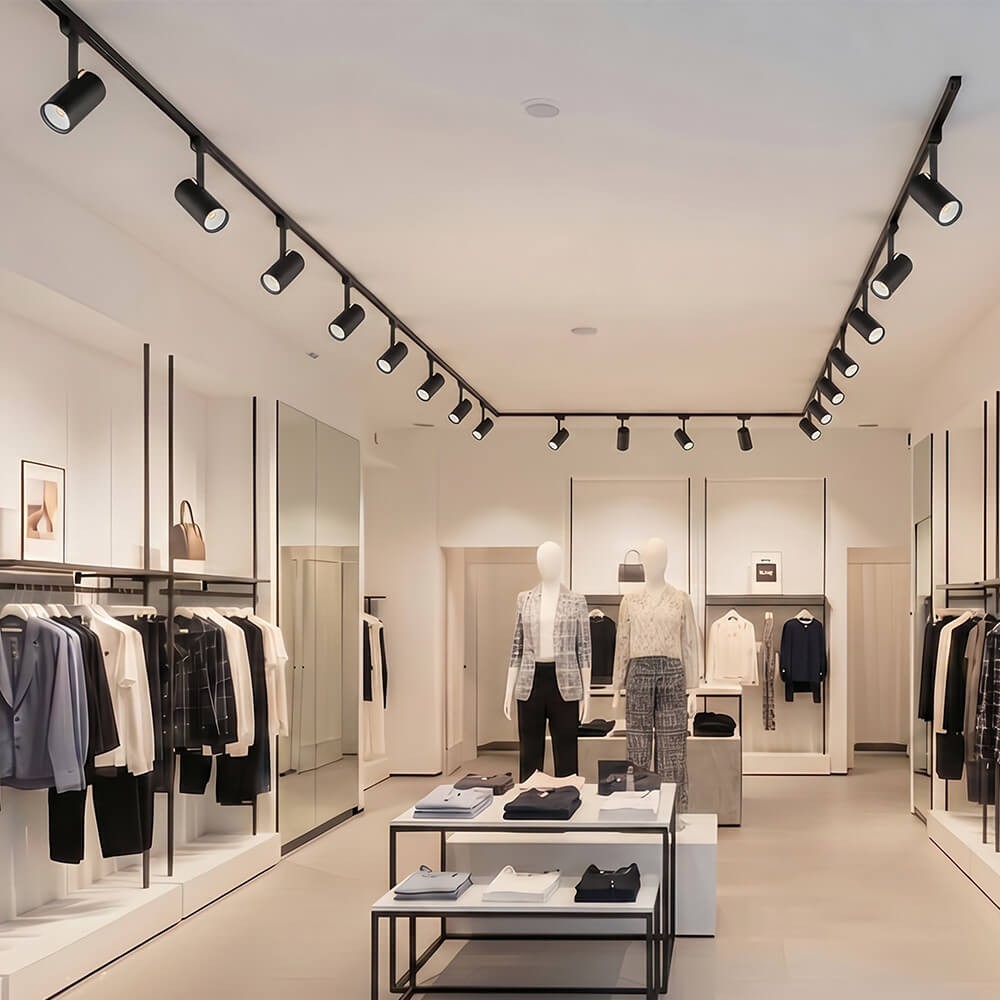

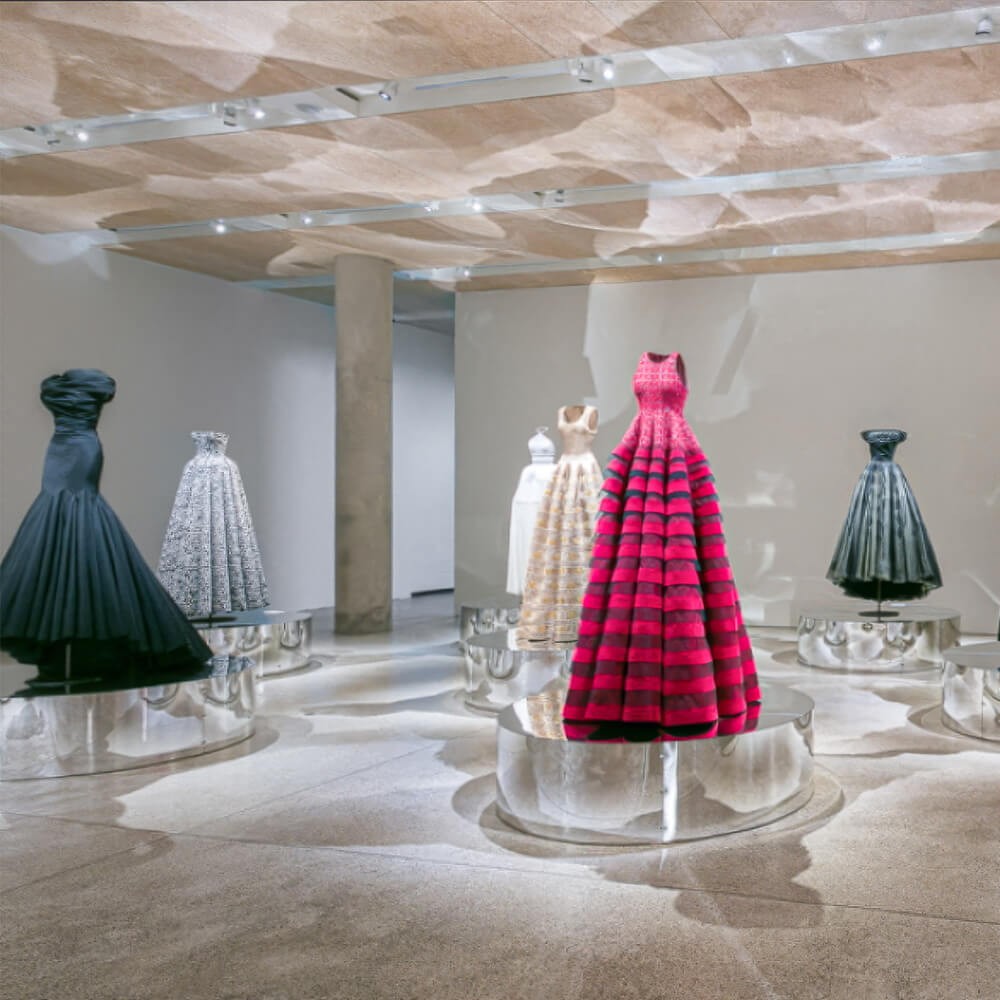

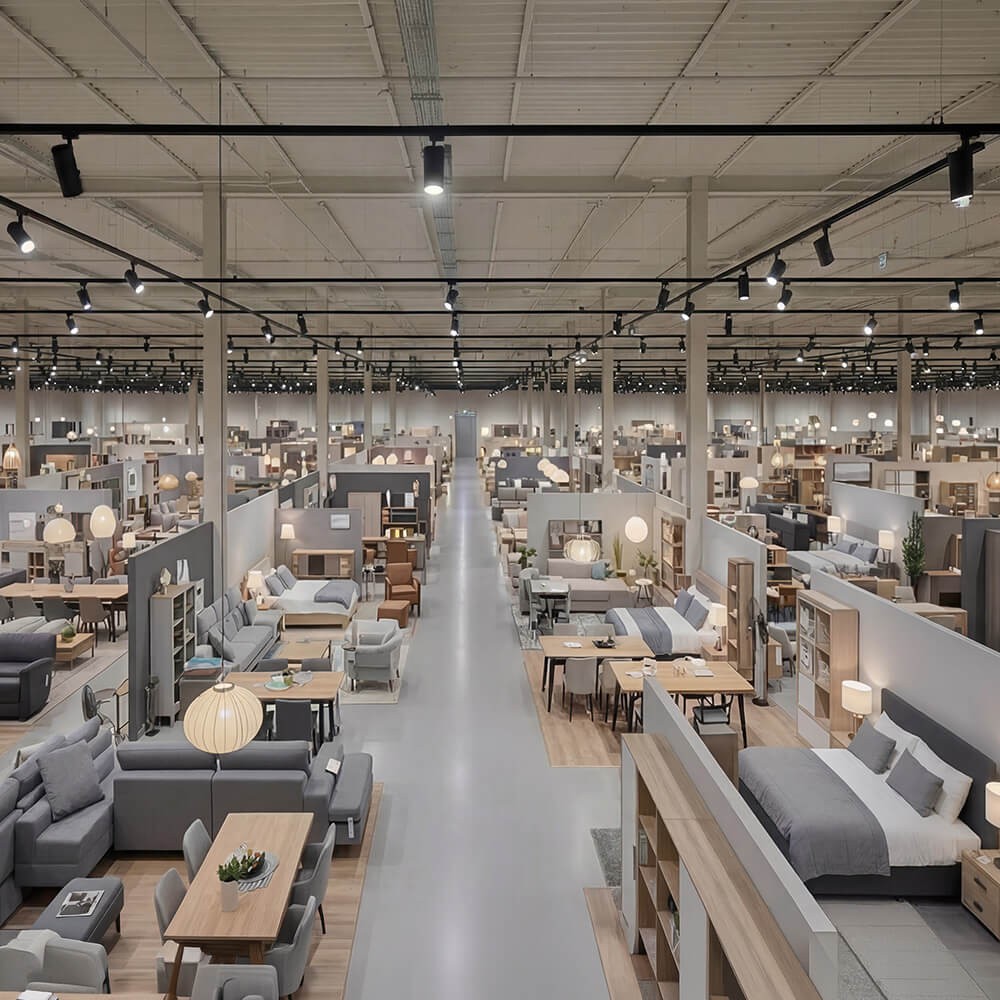

High quality aluminum projector with LED light source. Universal application with track system. Lack of ultraviolet emission or infrared radiation, high color rendering index, high luminous efficacy and durability.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Beam angle [°]	Colour of the body	DIMM DALI	Dimensions (H/W/T/S) [mm]	Mounting version	Index
26°
12	4000	1200	26	black	-	fi=80 L=215	track	235795
12	4000	1200	26	white	-	fi=80 L=215	track	235825
22	4000	2050	26	black	-	fi=80 L=215	track	235801
22	4000	2050	26	white	-	fi=80 L=215	track	235832
35	4000	3100	26	black	-	fi=80 L=215	track	235818
35	4000	3100	26	white	-	fi=80 L=215	track	235849
35	4000	3100	26	black	yes	fi=80 L=215	track	235887
35	4000	3100	26	white	yes	fi=80 L=215	track	235894
12	3000	1200	26	black	-	fi=80 L=215	track, surface	251221
12	3000	1200	26	white	-	fi=80 L=215	track, surface	251252
22	3000	2050	26	black	-	fi=80 L=215	track, surface	251238
22	3000	2050	26	white	-	fi=80 L=215	track, surface	251269
35	3000	3100	26	black	-	fi=80 L=215	track, surface	251245
35	3000	3100	26	white	-	fi=80 L=215	track, surface	251276
35	3000	3100	26	black	yes	fi=80 L=215	track, surface	251313
35	3000	3100	26	white	yes	fi=80 L=215	track, surface	251320
38°
12	3000	1200	38	black	-	fi=80 L=215	track	235917
12	3000	1200	38	white	-	fi=80 L=215	track	235948
22	3000	2050	38	black	-	fi=80 L=215	track	235924
22	3000	2050	38	white	-	fi=80 L=215	track	235955
35	3000	3100	38	black	-	fi=80 L=215	track	235931
35	3000	3100	38	white	-	fi=80 L=215	track	235962
35	3000	3100	38	black	yes	fi=80 L=215	track	236471
35	3000	3100	38	white	yes	fi=80 L=215	track	236488
12	4000	1200	38	black	-	fi=80 L=215	track, surface	251344
12	4000	1200	38	white	-	fi=80 L=215	track, surface	251375
22	4000	2050	38	black	-	fi=80 L=215	track, surface	251351
22	4000	2050	38	white	-	fi=80 L=215	track, surface	251382
35	4000	3100	38	black	-	fi=80 L=215	track, surface	251368
35	4000	3100	38	white	-	fi=80 L=215	track, surface	251399
35	4000	3100	38	black	yes	fi=80 L=215	track, surface	251436
35	4000	3100	38	white	yes	fi=80 L=215	track, surface	251443
50x50°
12	4000	1200	50x50	black	-	fi=80 L=215	track	235672
12	4000	1200	50x50	white	-	fi=80 L=215	track	235702
12	4000	2050	50x50	black	-	fi=80 L=215	track	235689
22	4000	2050	50x50	white	-	fi=80 L=215	track	235719
35	4000	3100	50x50	black	-	fi=80 L=215	track	235696
35	4000	3100	50x50	white	-	fi=80 L=215	track	235726
35	4000	3100	50x50	black	yes	fi=80 L=215	track	235764
35	4000	3100	50x50	white	yes	fi=80 L=215	track	235771
12	3000	1200	50x50	black	-	fi=80 L=215	track, surface	251108
12	3000	1200	50x50	white	-	fi=80 L=215	track, surface	251139
22	3000	2050	50x50	black	-	fi=80 L=215	track, surface	251115
22	3000	2050	50x50	white	-	fi=80 L=215	track, surface	251146
35	3000	3100	50x50	black	-	fi=80 L=215	track, surface	251122
35	3000	3100	50x50	white	-	fi=80 L=215	track, surface	251153
35	3000	3100	50x50	black	yes	fi=80 L=215	track, surface	251191
35	3000	3100	50x50	white	yes	fi=80 L=215	track, surface	251207
60°
12	3000	1200	60	black	-	fi=80 L=215	track	236525
12	3000	1200	60	white	-	fi=80 L=215	track	236556
22	3000	2050	60	black	-	fi=80 L=215	track	236532
22	3000	2050	60	white	-	fi=80 L=215	track	236563
35	3000	3100	60	black	-	fi=80 L=215	track	236549
35	3000	3100	60	white	-	fi=80 L=215	track	236570
35	3000	3100	60	black	yes	fi=80 L=215	track	236617
35	3000	3100	60	white	yes	fi=80 L=215	track	236624
12	4000	1200	60	black	-	fi=80 L=215	track, surface	251467
12	4000	1200	60	white	-	fi=80 L=215	track, surface	251498
22	4000	2050	60	black	-	fi=80 L=215	track, surface	251474
22	4000	2050	60	white	-	fi=80 L=215	track, surface	251504
35	4000	3100	60	black	-	fi=80 L=215	track, surface	251481
35	4000	3100	60	white	-	fi=80 L=215	track, surface	251511
35	4000	3100	60	black	yes	fi=80 L=215	track, surface	251559
35	4000	3100	60	white	yes	fi=80 L=215	track, surface	251566
