Dot CR LED

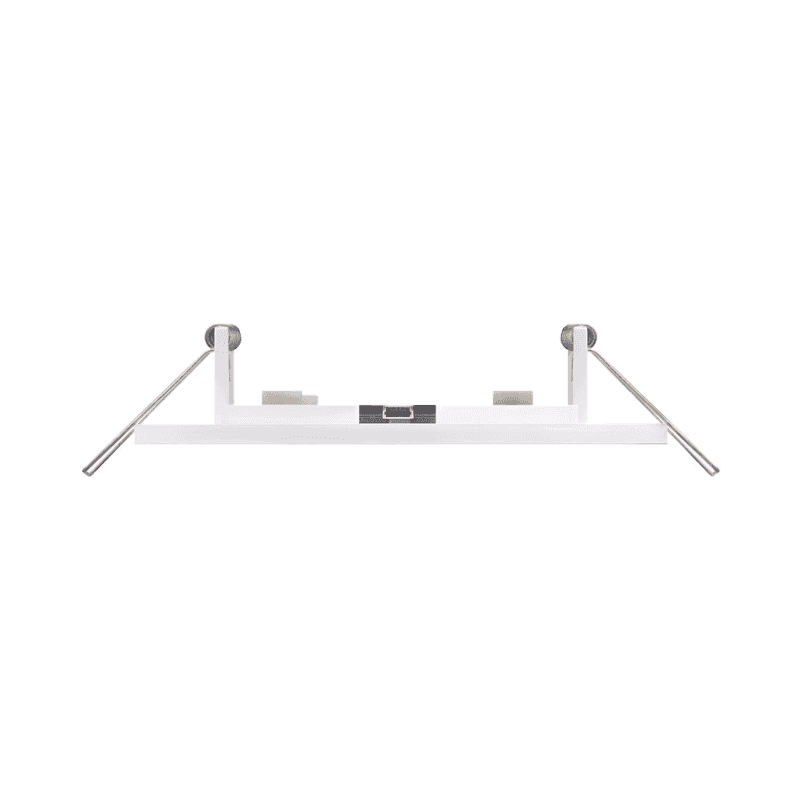

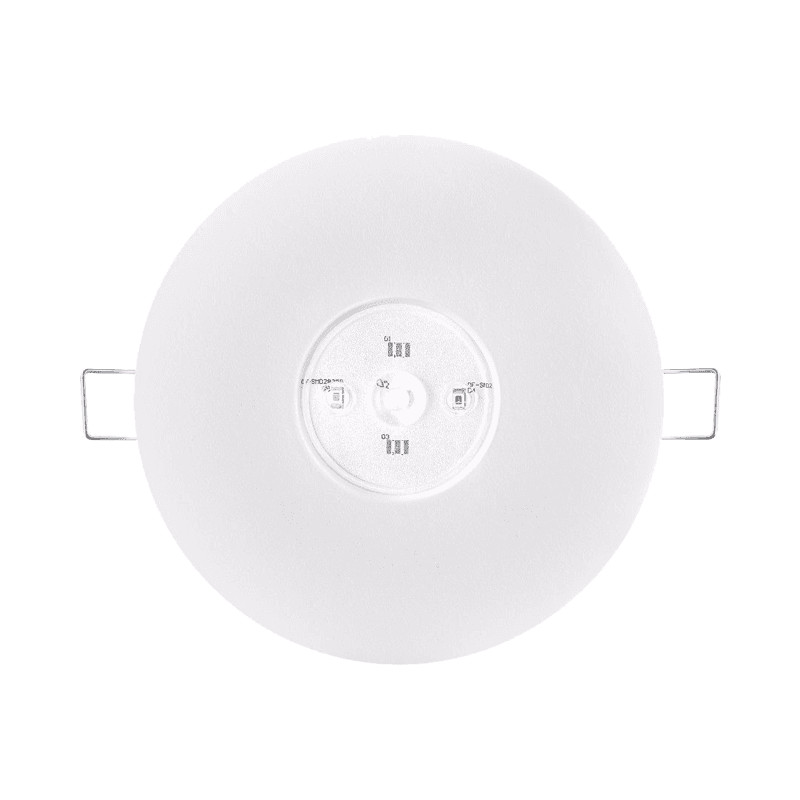

Recessed mounted autonomous emergency luminaire with integrated, energy-saving LED light module.

Technical specifications

Light source
LED
Colour temperature
5000K
Mounting version
recessed
Application
  • commercial
  • educational
  • HoReCa
  • medical
  • residential
  • industrial
  • sports
  • art and culture
  • office
LEDIIP20ip65CE

Specification

Recessed mounted autonomous emergency luminaire with integrated, energy-saving LED light module. Body made of polycarbonate (PC). Optical system available in 3 variants: basic, corridor, open space. Luminaire is fitted with batteries with 1h, 2h, or 3h emergency operation time. The luminaire is using a Ni-Mh or Ni-Cd battery with a voltage of 3.6V and 24 hours of full charge with a manual or automatic test function (AT).

Application

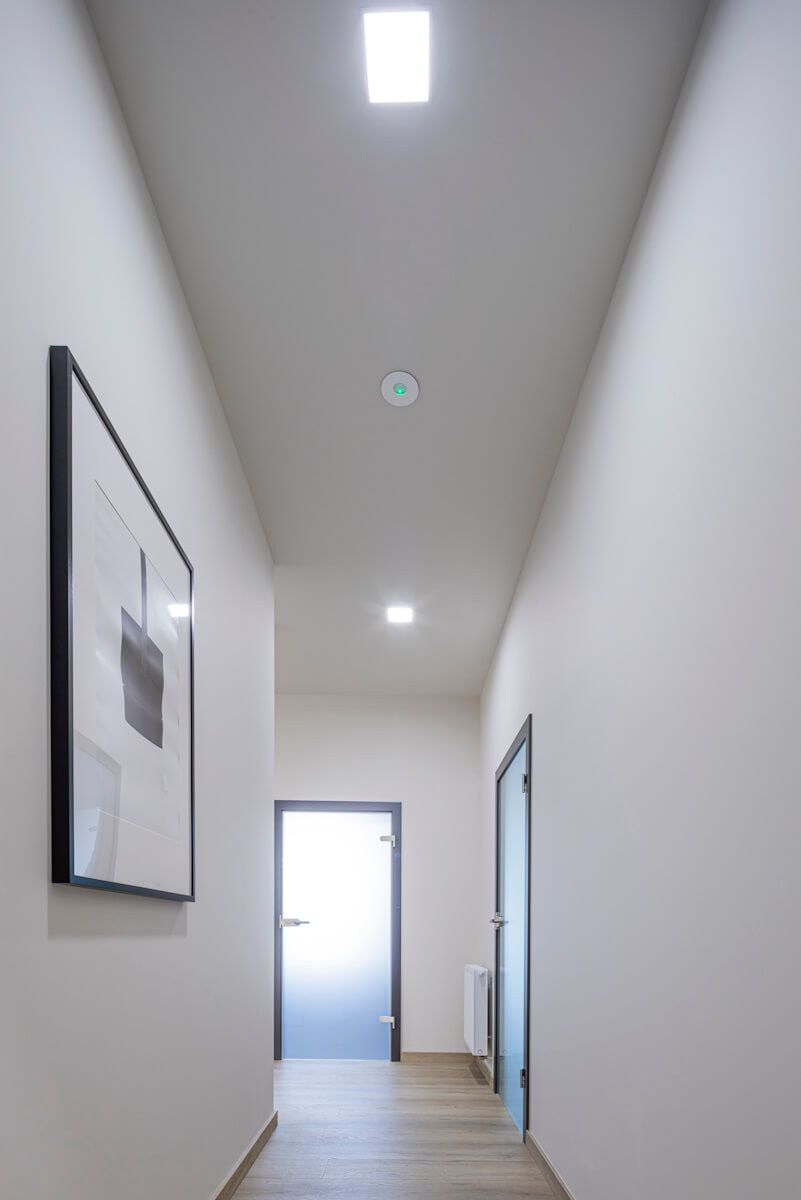

Emergency luminaire, used mainly for illumination of escape routes and fire protection devices after a power failure, i.e. in emergency lighting mode. Depending on the optical system used, the luminaire may illuminate: escape routes (in corridor light distribution mode) or be used as anti-panic lighting (in standard light distribution mode or open space light distribution mode). Open Space light distribution mode is dedicated to open office space of lesser height.

Versions:

M – Maintained

NM- Non-maintained

AT – Autotest

Options

Nominal
power [W]
Colour
temperature [K]
Luminous
flux [lm]
Emergency
lighting [h]
Operating
mode
Autotest
Index
DOT CR LED corridor
1 5000 140 1 NM - 550720
1 5000 140 1 NM yes 550744
1 5000 140 1 M - 550768
1 5000 140 2 NM - 550782
1 5000 140 2 NM yes 550805
1 5000 140 2 M - 550829
1 5000 140 3 NM - 550843
1 5000 140 3 NM yes 550867
1 5000 140 3 M - 550881
2 5000 260 1 NM - 550737
2 5000 260 1 NM yes 550751
2 5000 260 1 M - 550775
2 5000 260 2 NM - 550799
2 5000 260 2 NM yes 550812
2 5000 260 2 M - 550836
2 5000 260 3 NM - 550850
2 5000 260 3 NM yes 550874
2 5000 260 3 M - 550898
DOT CR LED general
1 5000 130 1 NM - 550546
1 5000 130 1 NM yes 550560
1 5000 130 1 M - 550584
1 5000 130 2 NM - 550607
1 5000 130 2 NM yes 550621
1 5000 130 2 M - 550645
1 5000 130 3 NM - 550669
1 5000 130 3 NM yes 550683
1 5000 130 3 M - 550706
2 5000 250 1 NM - 550553
2 5000 250 1 NM yes 550577
2 5000 250 1 M - 550591
2 5000 250 2 NM - 550614
2 5000 250 2 NM yes 550638
2 5000 250 2 M - 550652
2 5000 250 3 NM - 550676
2 5000 250 3 NM yes 550690
2 5000 250 3 M - 550713
DOT CR LED open space
1 5000 140 1 NM - 550904
1 5000 140 1 NM yes 550928
1 5000 140 1 M - 550942
1 5000 140 2 NM - 550966
1 5000 140 2 NM yes 550980
1 5000 140 2 M - 551000
1 5000 140 3 NM - 551024
1 5000 140 3 NM yes 551048
1 5000 140 3 M - 551062
2 5000 260 1 NM - 550911
2 5000 260 1 NM yes 550935
2 5000 260 1 M - 550959
2 5000 260 2 NM - 550973
2 5000 260 2 NM yes 550997
2 5000 260 2 M - 551017
2 5000 260 3 NM - 551031
2 5000 260 3 NM yes 551055
2 5000 260 3 M - 551079
