Specification

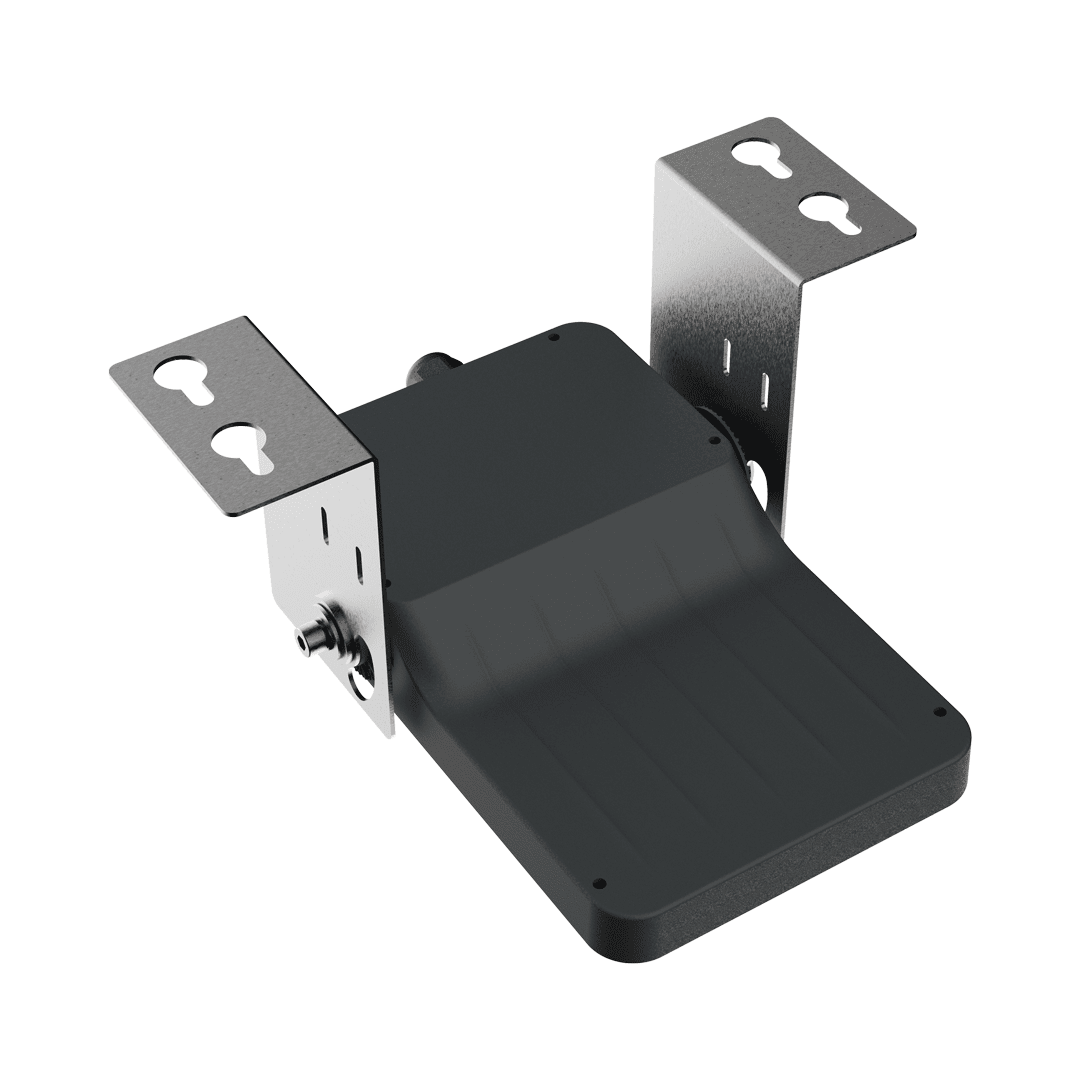

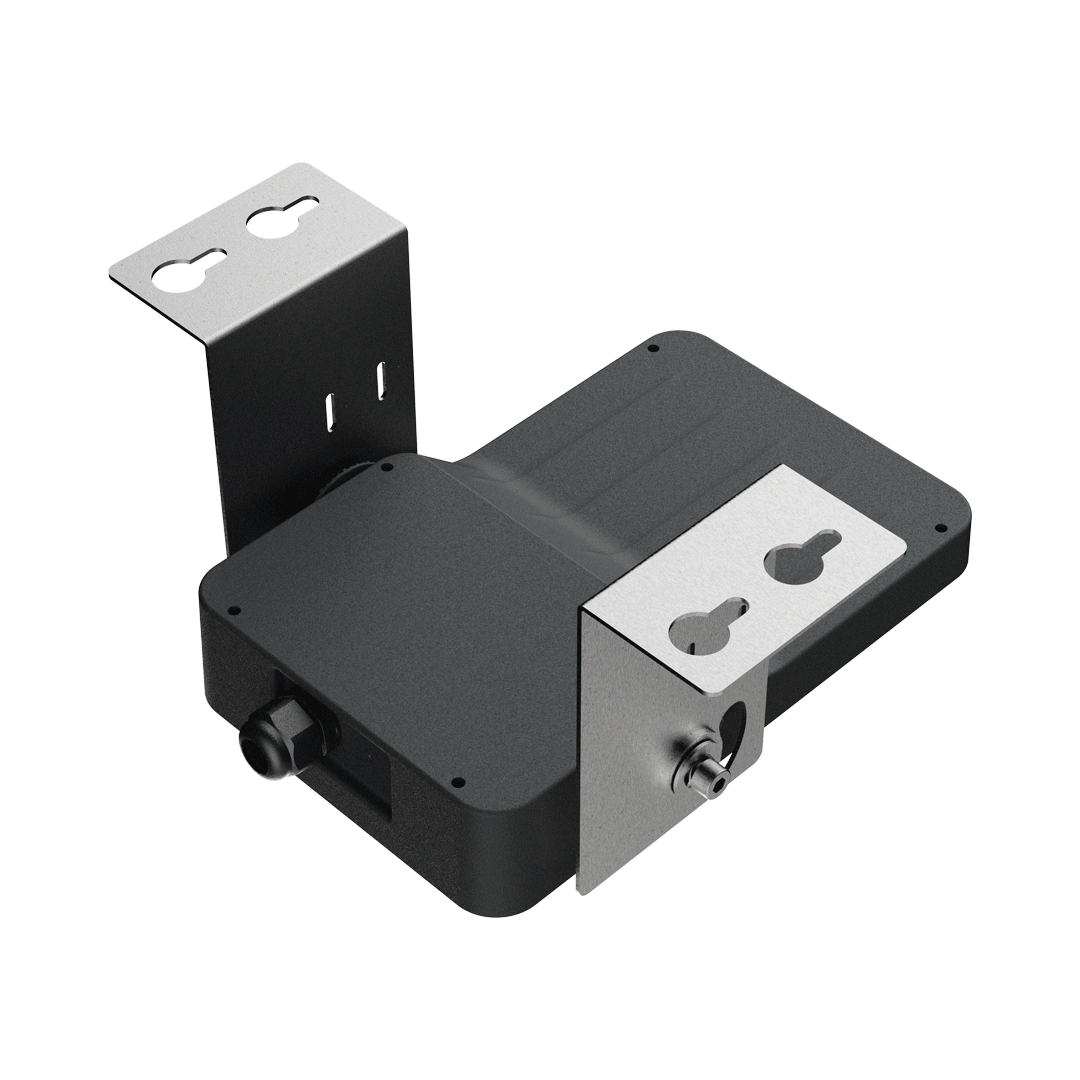

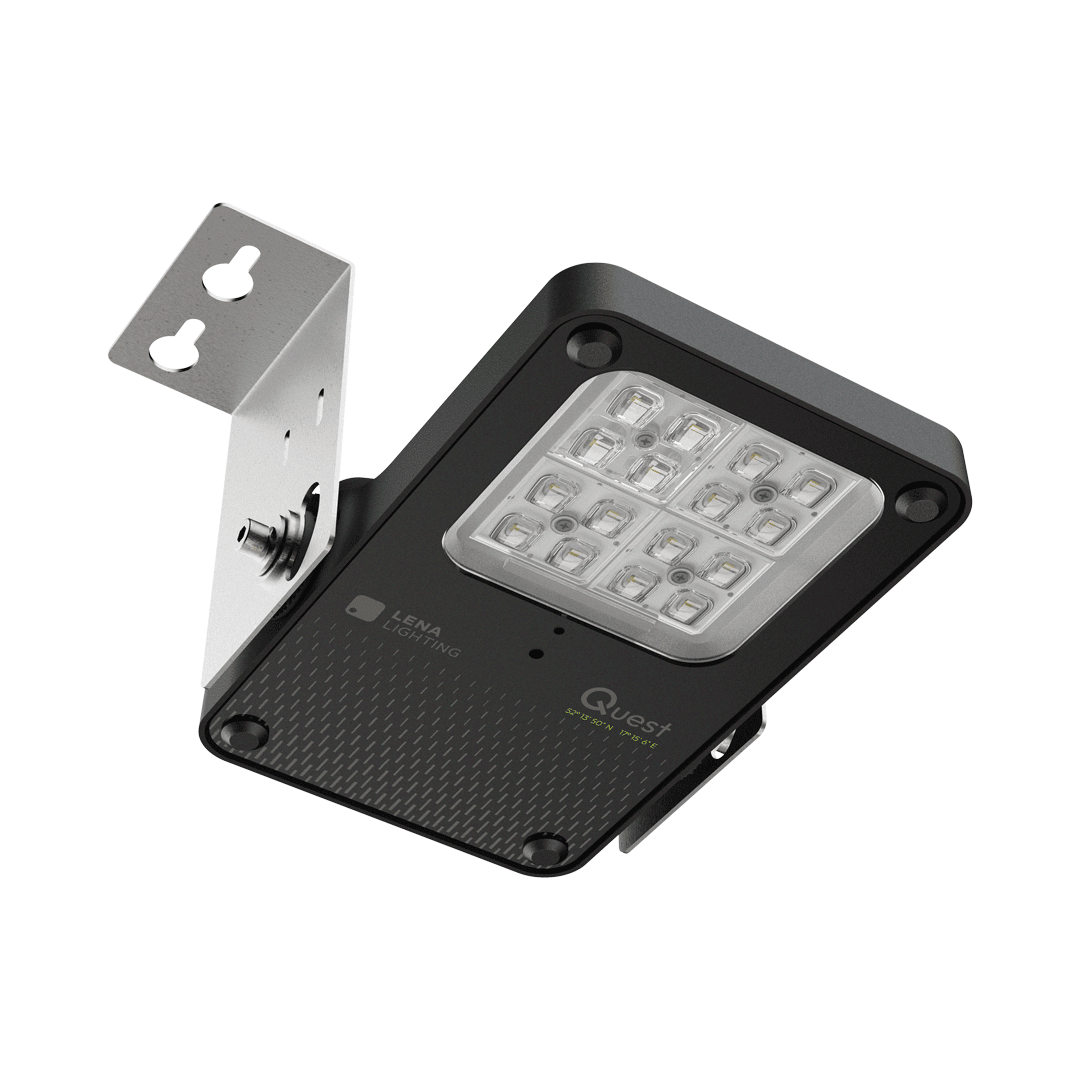

Quest LED Evo XS floodlights and their surface-mounted versions Quest LED Evo XS HB NT are compact, yet extremely efficient premium floodlights and HBs, manufactured in Poland. Their body is made of die-cast aluminium in corrosivity class C5, powder-coated, with no external heat sink or fins to make maintenance difficult. The diffuser is tempered glass, underneath which are LEDs with the highest efficiency. The different types of optics, particularly asymmetrical optics, provide great freedom of choice for a specific solution. Thanks to the highest level of protection on the market (IP67) and maximum impact resistance (IK10), the floodlights will prove their worth in all conditions - regardless of the weather and location. The new version of the well-established and proven QUEST model offers even better luminous performance, achieving an efficiency of more than 170 lm/W. The Quest LED Evo XS meets the requirements of the PN-EN 60598-2 part 5 standard, which allows it to be classified as an illuminating projector, enabling it to be installed in any position, with 360° rotation and resistance to strong wind. An additional advantage for contractors is the sealed quick-connect - an innovative solution that eliminates traditional, time-consuming connection methods. Thanks to an intuitive colour-coded ratchet system, fitting the connector becomes simple, fast and tool-free. The HB NT version is designed for surface mounting as a highbay using dedicated brackets. The accessory kit includes pole mounting brackets, a frame for flush-mounting (e.g. sheds), light pollution reduction shades and protective grids in two colours with varying degrees of light reduction (white RAL7016: 4%, body colour RAL7016: 8%). Models are also available with an integrated motion and twilight sensor (RCR on remote control) and in the ENDURA version, resistant to elevated ambient temperatures of up to 50°C. In addition, a version is available for RGB+W illumination and for suspended mounting as a highbay.
Application
Quest LED Evo XS floodlights and their surface-mounted versions Quest LED Evo XS HB NT are widely used in the illumination of educational and administrative buildings, halls, garages, passageways, warehouses, shops, as well as in the food industry and food-related retail and service facilities. They are ideal for illuminating buildings, small sports fields, open spaces and car parks. They can be mounted as a floodlight on poles and masts, on the facade of buildings, or as a surface-mounted highbay (HB NT version). Thanks to the flush-mount option, they are ideal for shelters. The HB version allows surface-mounted installation directly into a partition. Quest LED Evo XS and HB NT are the perfect choice for factories and production halls as well as large-scale warehouses.
