Quest LED Evo XS Endura

Downloads

Specification

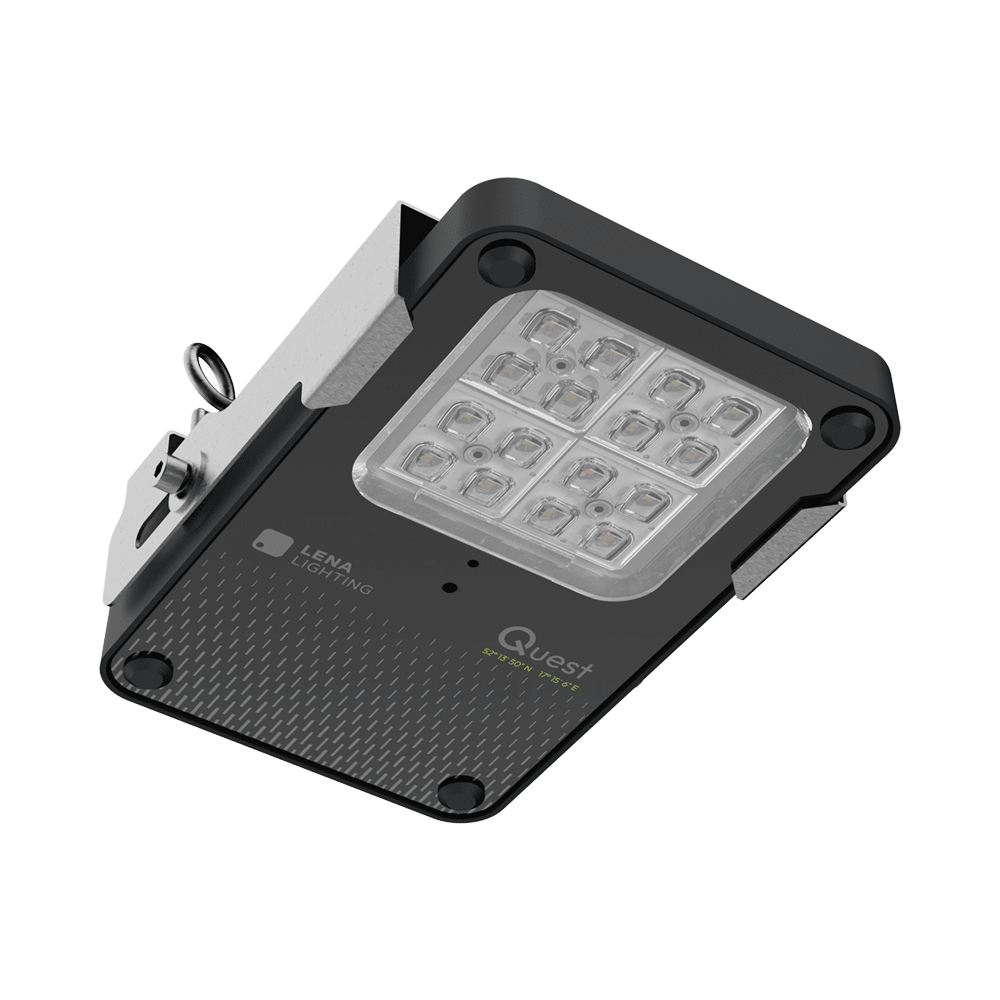

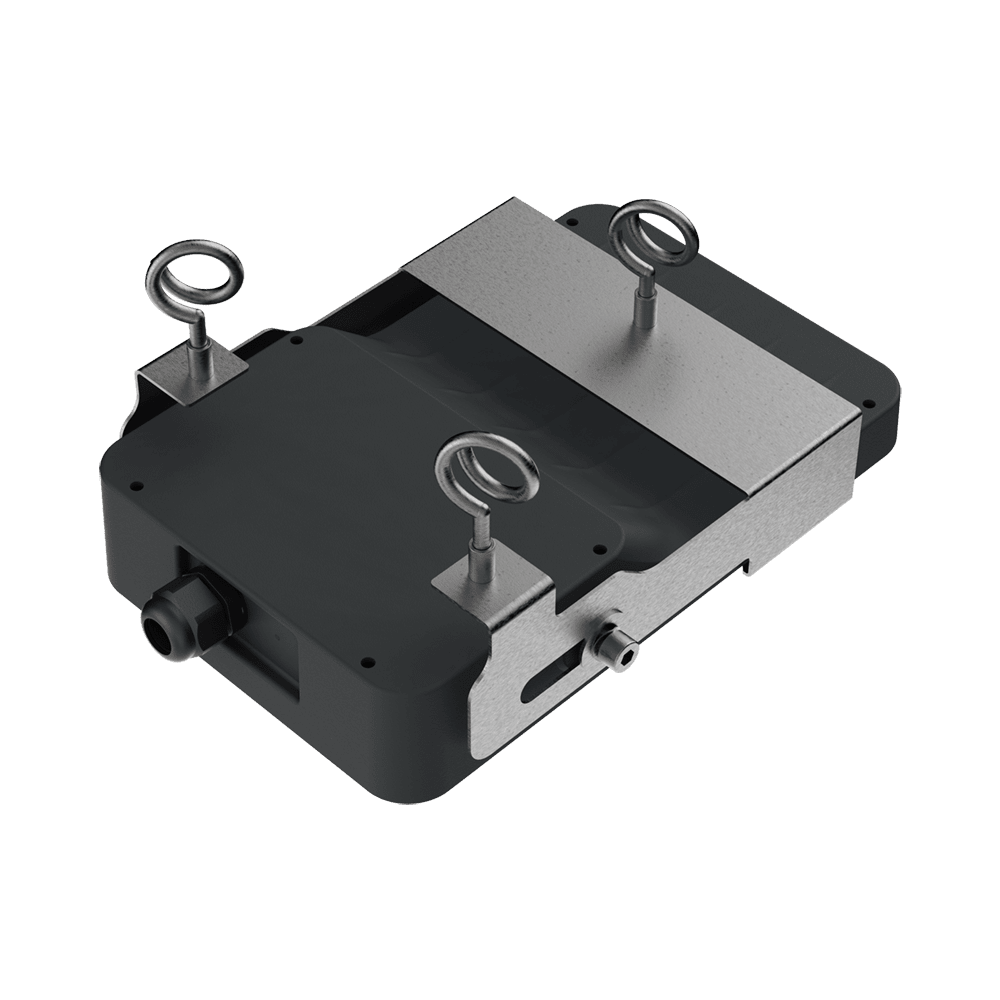

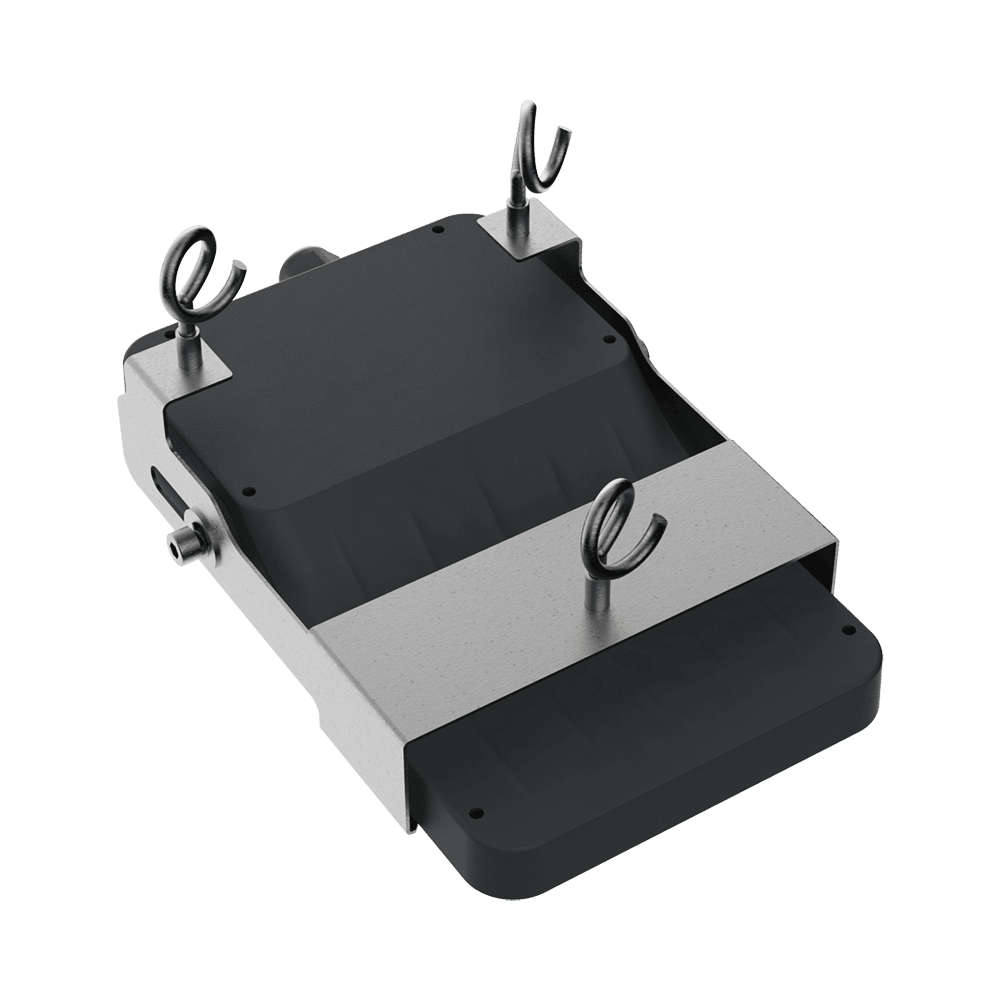

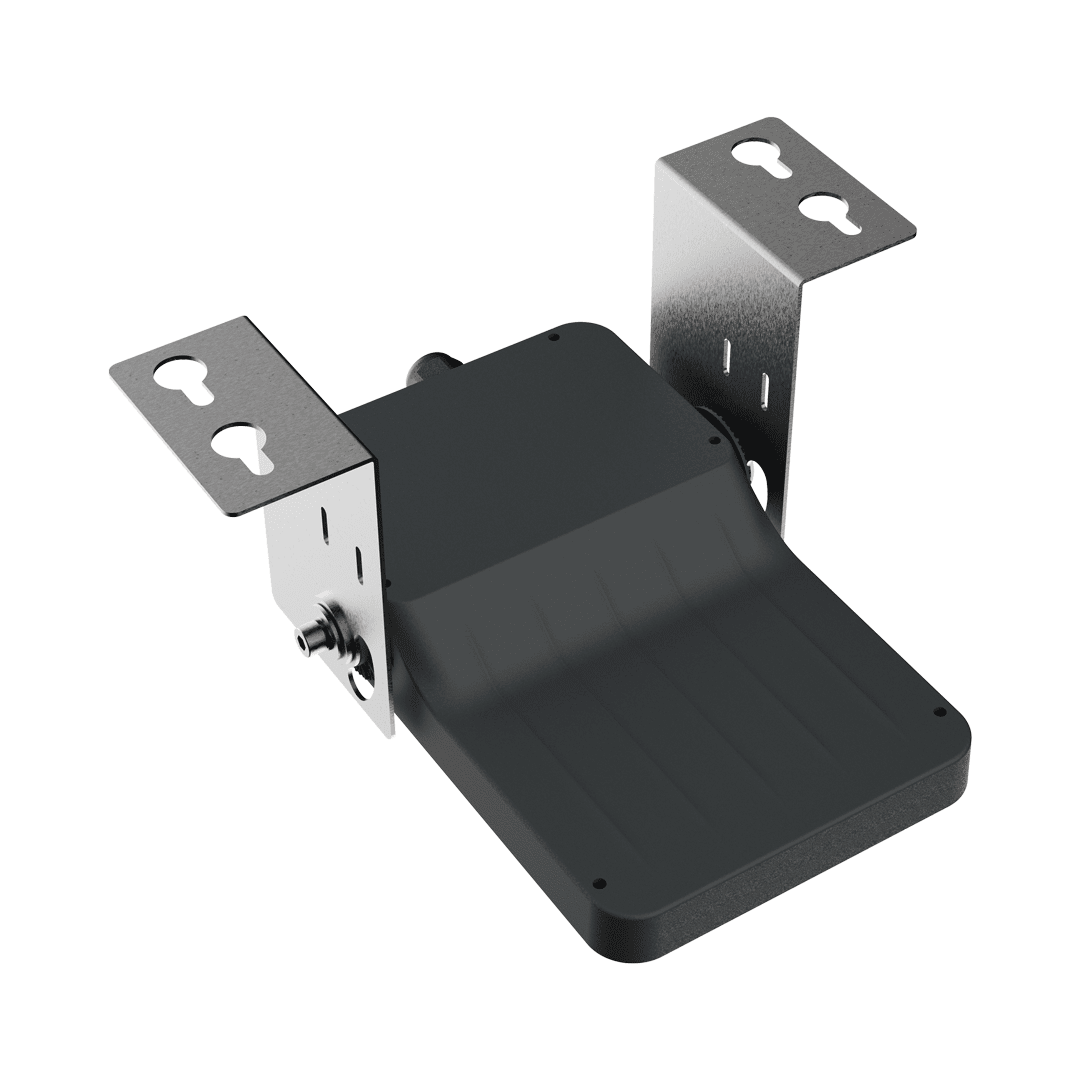

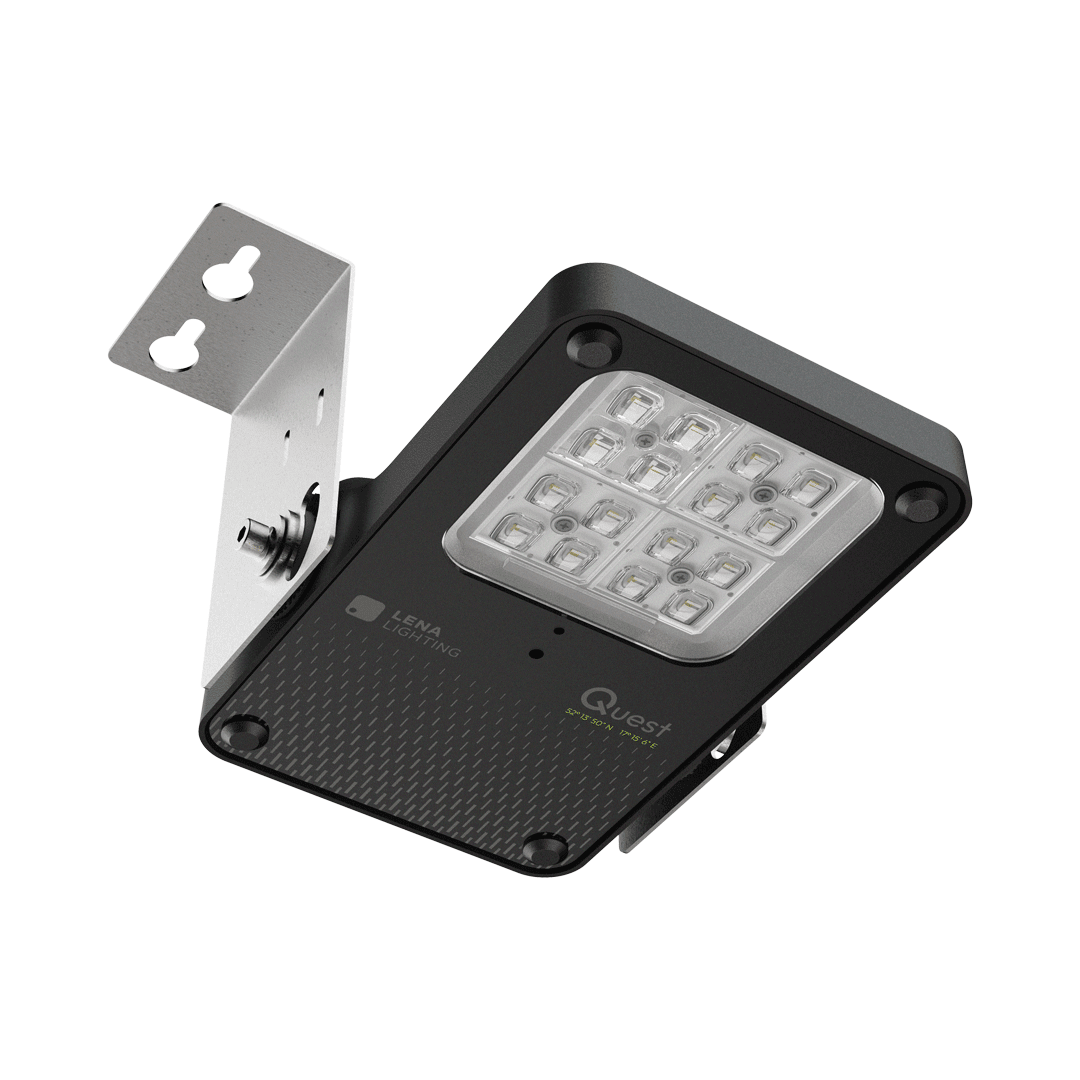

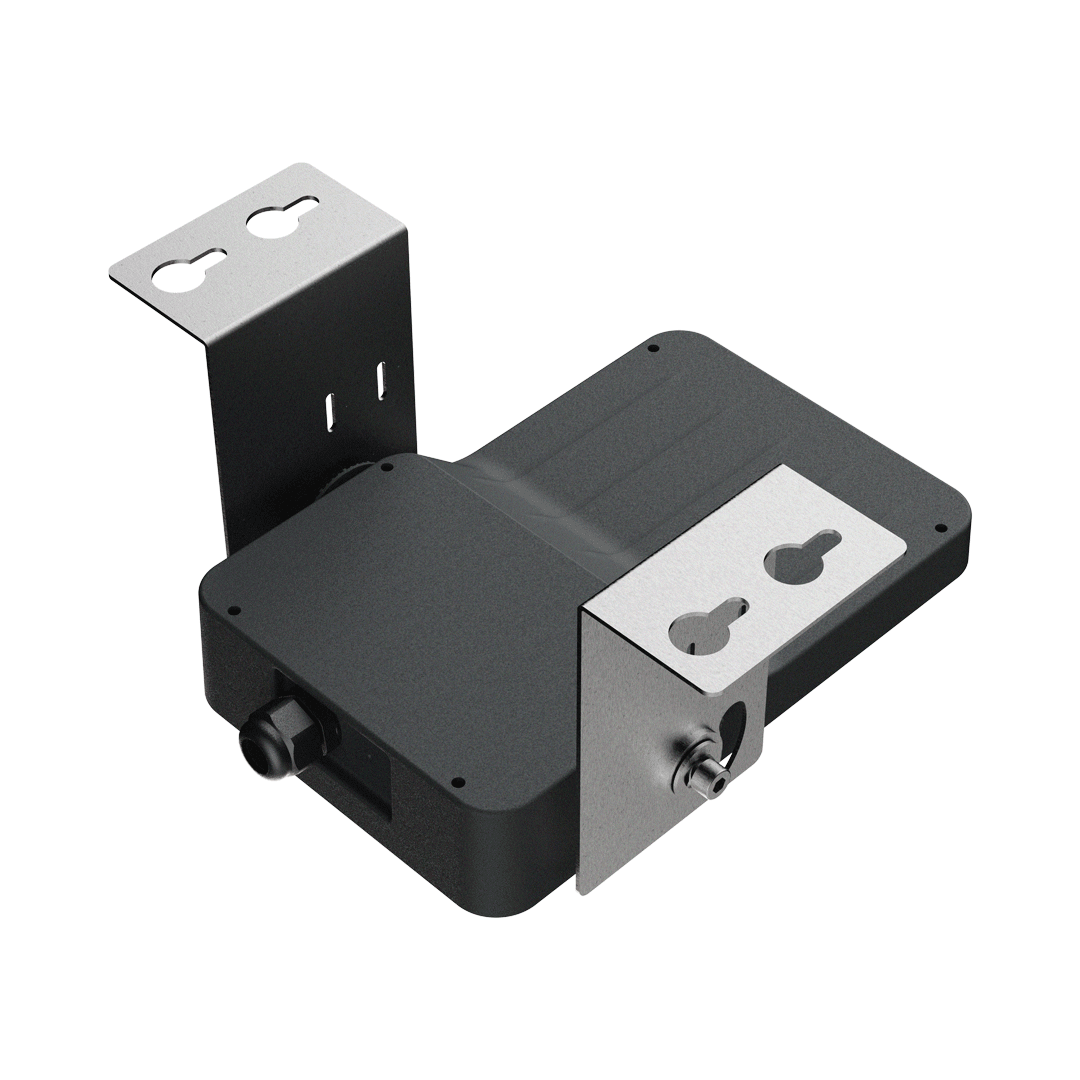

Quest LED Evo XS Endura and their surface-mounted versions Quest LED Evo XS Endura HB NT are compact yet extremely efficient premium floodlights, manufactured in Poland and suitable for high temperatures (up to 50 degrees C). The body is made of die-cast aluminium in corrosion class C5, powder-coated, with no external heat sink or fins to make maintenance difficult. The basic version has a steel arm with graduations every 7.5 degrees, while the highbay endura version (HB NT) comes in surface-mounted form. The diffuser is toughened glass, underneath which are the highest performance LEDs. The different types of optics, particularly asymmetrical optics, provide a great deal of freedom in the selection for a specific solution. Thanks to the market's highest level of protection (IP67) and maximum impact resistance (IK10), the luminaire will prove its worth in all conditions - regardless of the weather and location. The new version of the well-established and proven QUEST model in its smallest version offers even better light performance, achieving an efficacy of more than 170 lm/W. Quest LED Evo XS Endura and Quest LED Evo XS Endura HB NT meet the requirements of the PN-EN 60598-2 part 5 standard, which allows them to be classified as illuminating projectors. This means full freedom of installation in any position, with 360° rotation and resistance to strong wind - an advantage that other floodlights do not offer. An additional advantage for contractors is the sealed quick-release coupling - an innovative solution that eliminates traditional, time-consuming connection methods (with screws). Thanks to an intuitive colour-coded ratchet system, fitting the connector becomes simple, fast and tool-free. The accessory kit includes: pole mounting brackets (basic version); frame for flush-mounted installation, e.g. sheds (basic version); light reduction shades (basic version); protective grids in two colours with different levels of light reduction (white RAL7016: 4%, body colour RAL7016: 8%).

Application

Quest LED Evo XS Endura and Quest LED Evo XS Endura HB NT are used in: illumination of educational and administrative facilities, halls, garages, passageways, warehouses, shops, food industry and food-related retail and service facilities Illumination of buildings, small sports fields, open spaces and car parks, environments with increased ambient temperatures (up to 50 degrees C). Mounting options: as floodlight, on poles and masts, on building facades, as surface-mounted highbay (HB NT version), flush-mounted (e.g. sheds), , surface-mounted directly into a partition (HB version). The product is particularly suitable for use in plants and production halls as well as large warehouses, especially in areas exposed to high temperatures.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Light distribution type	DIMM DALI	Motion sensor	Version	Dimensions (H/W/T/S) [mm]	Index
QUEST LED EVO XS ENDURA HB surface
20	4000	2800	ASM	-	-	HB surface	280/240/55 (390/310/325)**	839351
20	4000	2800	ASW	-	-	HB surface	280/240/55 (390/310/325)**	839719
20	4000	3000	ASN	-	-	HB surface	280/240/55 (390/310/325)**	839535
20	4000	3000	RM20	-	-	HB surface	280/240/55 (390/310/325)**	839894
20	4000	3000	RW10	-	-	HB surface	280/240/55 (390/310/325)**	840173
20	4000	3000	RM10	-	-	HB surface	280/240/55 (390/310/325)**	840357
20	4000	3400	symmetric	yes	-	HB surface	280/240/55 (390/310/325)**	839146
20	4000	3400	symmetric	-	-	HB surface	280/240/55 (390/310/325)**	839177
34	4000	5800	symmetric	yes	-	HB surface	280/240/55 (390/310/325)**	839115
34	4000	5800	symmetric	-	-	HB surface	280/240/55 (390/310/325)**	839160
35	4000	2800	ASM	-	yes	HB surface	280/240/55 (390/310/325)**	839344
35	4000	4800	ASW	-	-	HB surface	280/240/55 (390/310/325)**	839702
35	4000	5000	RM20	-	-	HB surface	280/240/55 (390/310/325)**	839887
35	4000	5100	ASN	-	-	HB surface	280/240/55 (390/310/325)**	839528
35	4000	5100	RW10	-	-	HB surface	280/240/55 (390/310/325)**	840166
35	4000	5100	RM10	-	-	HB surface	280/240/55 (390/310/325)**	840340
40	4000	6800	symmetric	yes	-	HB surface	280/240/55 (390/310/325)**	839085
40	4000	6800	symmetric	-	-	HB surface	280/240/55 (390/310/325)**	839153
41	4000	5600	ASM	-	-	HB surface	280/240/55 (390/310/325)**	839337
41	4000	5600	ASW	-	-	HB surface	280/240/55 (390/310/325)**	839696
41	4000	5900	RM20	-	-	HB surface	280/240/55 (390/310/325)**	839870
41	4000	5900	RW10	-	-	HB surface	280/240/55 (390/310/325)**	840159
41	4000	5900	RM10	-	-	HB surface	280/240/55 (390/310/325)**	840333
41	4000	6000	ASN	-	-	HB surface	280/240/55 (390/310/325)**	839511
QUEST LED EVO XS ENDURA floodlight
20	4000	2800	ASM	-	-	floodlight	280/240/55 (355/222/380)**	865350
20	4000	2800	ASW	-	-	floodlight	280/240/55 (355/222/380)**	865718
20	4000	3000	ASN	-	-	floodlight	280/240/55 (355/222/380)**	865534
20	4000	3000	RM20	-	-	floodlight	280/240/55 (355/222/380)**	865893
20	4000	3000	RW10	-	-	floodlight	280/240/55 (355/222/380)**	881534
20	4000	3000	RM10	-	-	floodlight	280/240/55 (355/222/380)**	881718
20	4000	3400	symmetric	yes	-	floodlight	280/240/55 (355/222/380)**	865145
20	4000	3400	symmetric	-	-	floodlight	280/240/55 (355/222/380)**	865176
34	4000	5800	symmetric	yes	-	floodlight	280/240/55 (355/222/380)**	865114
34	4000	5800	symmetric	-	-	floodlight	280/240/55 (355/222/380)**	865169
35	4000	4800	ASM	-	-	floodlight	280/240/55 (355/222/380)**	865343
35	4000	4800	ASW	-	-	floodlight	280/240/55 (355/222/380)**	865701
35	4000	5000	RM20	-	-	floodlight	280/240/55 (355/222/380)**	865886
35	4000	5100	ASN	-	-	floodlight	280/240/55 (355/222/380)**	865527
35	4000	5100	RW10	-	-	floodlight	280/240/55 (355/222/380)**	881527
35	4000	5100	RM10	-	-	floodlight	280/240/55 (355/222/380)**	881701
40	4000	6800	symmetric	yes	-	floodlight	280/240/55 (355/222/380)**	865084
40	4000	6800	symmetric	-	-	floodlight	280/240/55 (355/222/380)**	865152
41	4000	5600	ASM	-	-	floodlight	280/240/55 (355/222/380)**	865336
41	4000	5600	ASW	-	-	floodlight	280/240/55 (355/222/380)**	865695
41	4000	5900	RM20	-	-	floodlight	280/240/55 (355/222/380)**	865879
41	4000	5900	RW10	-	-	floodlight	280/240/55 (355/222/380)**	881510
41	4000	5900	RM10	-	-	floodlight	280/240/55 (355/222/380)**	881695
41	4000	6000	ASN	-	-	floodlight	280/240/55 (355/222/380)**	865510

** Dimension taking into account the maximum deflection of the handle in each direction.

Show more Show less

Accessories

Hide accessories

Index	Accessory name
WSEL438	Remote control for motion sensor HD01R

Remote control for motion sensor HD01R (WSEL438)
