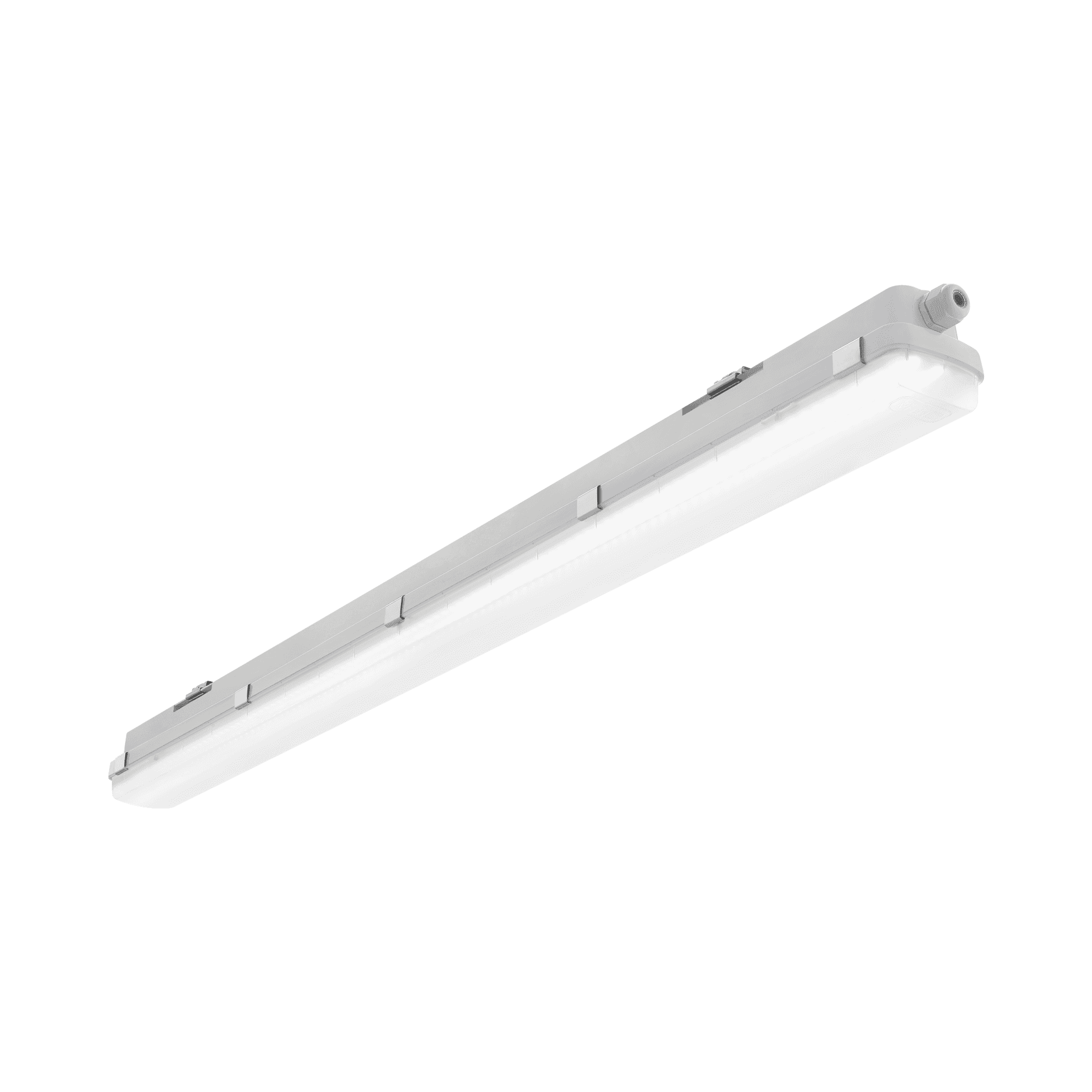

Titan 2 LED Hyper Multi

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Is a dedicated LED luminaire for the United States (US). The IP66 beam, thanks to the built-in microswitch, allows the selection of one of 3 power and luminous flux settings. The luminaire can be adapted to a dedicated space.

Light source	LED
Colour temperature	3000K 4000K 5000K 5700K
Diffuser type	OPAL transparent
Mounting version	surface or suspended
Dimensions [mm]	1152/85/80; 1432/85/80
Application	industrial

LEDIik09ip66RecyclingUL

Ask about this product

Options

Titan 2 LED Hyper Multi

Ask about this product

Options

Light source	LED
Colour temperature	3000K 4000K 5000K 5700K
Diffuser type	OPAL transparent
Mounting version	surface or suspended
Application	industrial

Downloads

Download All

Specification

Titan 2 LED Hyper Multi is a fitting from NEXT GEN line, which is a new generation of fittings in LED technology. The fitting, designed from scratch, allows new solutions improving the light distribution and temperature balance. Branded LED diodes and new LED modules have influence on a very high luminous efficacy. It guarantees the best required lighting level and energy saving up to 68%. The solution based on integration of the diffuser and LED module is applied in the fitting. The fitting has a lot of facilities making the mounting easier and faster: the system of diffuser suspension, adjustable mounting brackets ensuring the mounting tolerance +/-50mm. Standard equipment of the fitting: clips made of stainless steel (INOX). Motion sensor mounting height: up to 5 meters.

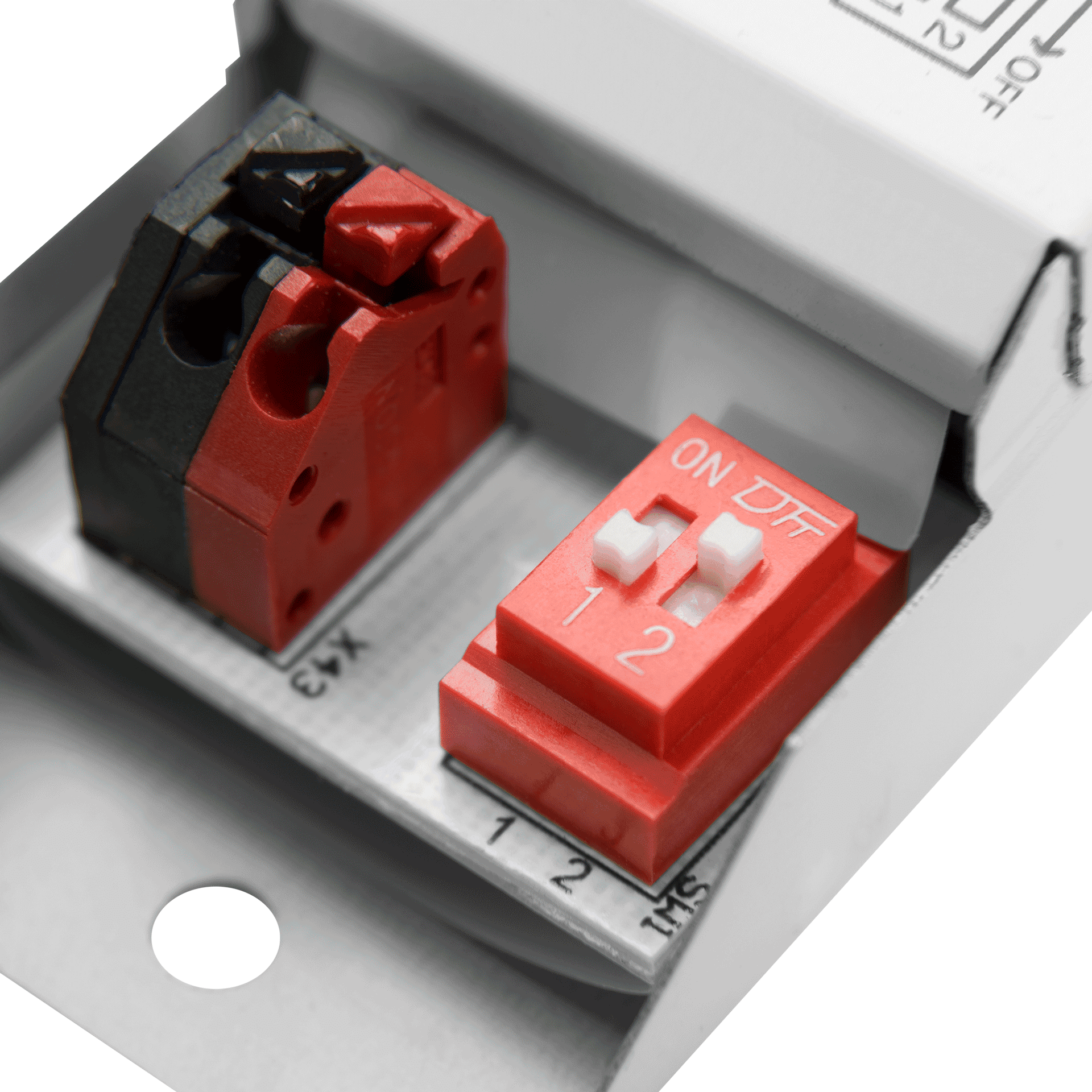

The MULTI luminaire version allows individual configuration: thanks to the built-in microswitch, it is possible to choose one of four settings (nominal power of the fitting [W] / luminous flux of the fitting [lm]).

Application

The multifunctional LED lamp is designed for use in areas with high requirements for dust and water resistance. Especially recommended for lighting public facilities, including hospitals, educational facilities, halls, garages, passages, warehouses, shops, food industry, commercial and industrial facilities (factories, laboratories), warehouses, parking lots (underground and multi-level) , sports stadiums, transport terminals and underground passages. The luminaire is ideal for new lighting applications as well as replacing traditional fluorescent luminaires with energy-saving LED solutions. Its design is adapted for surface and suspended mounting.

Options

Rated power [W] - range	Colour temperature [K]	Luminous flux of the luminaire [lm] - range	Diffuser type	DIMM 1-10V	Dimensions [inches]	Index
45.28
21/32/43	3000	3200/4800/6450	transparent	-	45.28	843259
21/32/43	3000	2950/4450/5850	OPAL	-	45.28	843242
21/32/43	4000	3300/5000/6700	transparent	-	45.28	843273
21/32/43	4000	3100/4600/6100	OPAL	-	45.28	843266
21/32/43	5000	3100/4600/6100	OPAL	-	45.28	843280
21/32/43	5000	3300/5000/6700	transparent	-	45.28	843297
21/32/43	5700	3200/4700/6250	OPAL	-	45.28	843303
21/32/43	5700	3400/5150/6850	transparent	-	45.28	843310
21/32/43	3000	2950/4450/5850	OPAL	yes	45.28	843563
21/32/43	5700	3200/4800/6450	transparent	yes	45.28	843570
21/32/43	4000	3100/4600/6100	OPAL	yes	45.28	843587
21/32/43	3000	3300/5000/6700	transparent	yes	45.28	843594
21/32/43	5000	3100/4600/6100	OPAL	yes	45.28	843600
21/32/43	4000	3300/5000/6700	transparent	yes	45.28	843617
21/32/43	5700	3200/4700/6250	OPAL	yes	45.28	843624
21/32/43	5000	3400/5150/6850	transparent	yes	45.28	843631
57.09
48/59/68	3000	6800/8150/9300	OPAL	-	57.09	901423
48/59/68	3000	6800/8150/9300	OPAL	-	57.09	901416
48/59/68	4000	7100/8500/9700	OPAL	-	57.09	901447
48/59/68	5000	7100/8500/9700	OPAL	-	57.09	901454
48/59/68	5000	7100/8500/9700	OPAL	-	57.09	901461
48/59/68	4000	7100/8500/9700	OPAL	-	57.09	901430
48/59/68	5700	7300/8700/9950	OPAL	-	57.09	901478
48/59/68	5700	7300/8700/9950	OPAL	-	57.09	901485
48/59/68	4000	7700/9200/10500	transparent	-	57.09	901607
48/59/68	5000	7700/9200/10500	transparent	-	57.09	901621
48/59/68	5000	7700/9200/10500	transparent	-	57.09	901614
48/59/68	5700	7900/9400/10750	transparent	-	57.09	901645
48/59/68	3000	7400/8850/10100	transparent	-	57.09	901577
48/59/68	3000	7400/8850/10100	transparent	-	57.09	901584
48/59/68	4000	7700/9200/10500	transparent	-	57.09	901591
48/59/68	5700	7900/9400/10750	transparent	-	57.09	901638

Show more ↓ Show less ↑

Accessories

Hide accessories

Index	Accessory name
908200	TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2)
907913	TYTAN LED. ATLAS LED - protective grid 1152mm
907920	TYTAN LED. ATLAS LED - protective grid 1432mm
16000507	Breathable gland gray M20*1.5 IP68
358937	TYTAN MULTI LED 1150mm 2500-4300lm 840 - lighting module
358944	TYTAN MULTI LED 1150mm 5000-8700lm 840 - lighting module
358951	TYTAN MULTI LED 1450mm 3150-5450lm 840 - lighting module
358968	TYTAN MULTI LED 1450mm 6300-10800lm 840 - lighting module
60000006	M16 stuffing box plug various PA black M-16 - BPM-21
80000378	Cable gland PG 13.5 Titanium PA 6.6 gray with nut

TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2) (908200)

TYTAN LED. ATLAS LED - protective grid 1152mm (907913)

TYTAN LED. ATLAS LED - protective grid 1432mm (907920)

Breathable gland gray M20*1.5 IP68 (16000507)

TYTAN MULTI LED 1150mm 2500-4300lm 840 - lighting module (358937)

TYTAN MULTI LED 1150mm 5000-8700lm 840 - lighting module (358944)

TYTAN MULTI LED 1450mm 3150-5450lm 840 - lighting module (358951)

TYTAN MULTI LED 1450mm 6300-10800lm 840 - lighting module (358968)

M16 stuffing box plug various PA black M-16 - BPM-21 (60000006)
