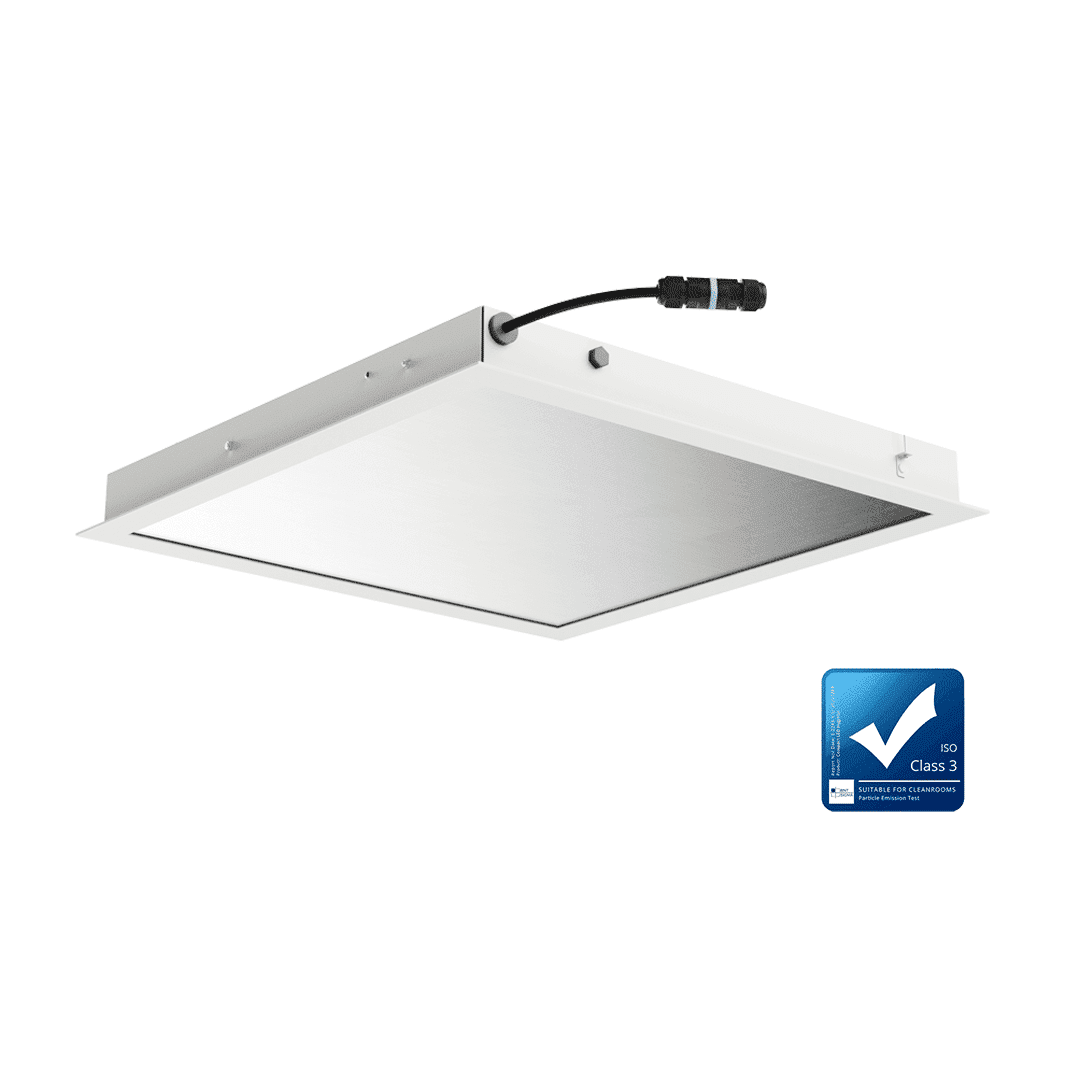

Lumedic SM

A specialist cleanroom luminaire designed for cleanrooms with an air cleanliness class of ISO 3–9, in accordance with ISO 14644-1:2015 Cleanroom, meeting heightened requirements for hygiene and sterility. The SM version is designed for installation in modular ceilings. The SM version is designed for installation in modular ceilings.

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	OPAL PRM
Mounting version	recessed
Dimensions [mm]	595/595/60
Application	medical

LED220-240vIik09ip65pzhenecCEEPD

Ask about this product

Options

Lumedic SM

Ask about this product

Options

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	OPAL PRM
Mounting version	recessed
Application	medical

Downloads

Download All

Specification

Lumedic SM this is a specialist cleanroom luminaire designed for cleanrooms with an air cleanliness class of ISO 3–9, in accordance with ISO 14644-1:2015 Cleanroom, and meeting stringent hygiene and sterility requirements. The design ensures ease of cleaning and high mechanical and environmental resistance. A robust steel housing with an IP65 rating on both the room side and the technical space side ensures complete airtightness in a sterile environment, whilst allowing free airflow above the suspended ceiling.

The luminaire front is made of aluminium and 4 mm thick tempered glass, resistant to impact (IK09 class) and chemical agents. The modular diffuser system (Glass / Opal / PRM) allows for the selection of the appropriate optical characteristics depending on the application requirements — from uniform, diffused light to precise directional light distribution. The SM version is designed for installation in modular ceilings.

Application

• laboratories (microbiological, pharmaceutical, chemical),
• hospitals (operating theatres, intensive care units, diagnostic laboratories),
• food and pharmaceutical industry,
• cleanrooms in electronics and semiconductor manufacturing.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Diffuser type	DIMM DALI	Index
83	3000	11125	Glass/Opal	yes	505591
83	3000	11125	Glass/Opal	-	505584
83	4000	11550	Glass/Opal	yes	505577
83	4000	11550	Glass/Opal	-	505560
83	3000	11675	Glass/PRM	yes	505676
83	3000	11675	Glass/PRM	-	505669
83	4000	12100	Glass/PRM	yes	505652
83	4000	12100	Glass/PRM	-	505645
47	3000	7100	Glass/Opal	yes	505553
47	3000	7100	Glass/Opal	-	505546
47	4000	7350	Glass/Opal	yes	505539
47	4000	7350	Glass/Opal	-	505522
47	3000	7425	Glass/PRM	yes	505638
47	3000	7425	Glass/PRM	-	505621
47	4000	7675	Glass/PRM	yes	505614
47	4000	7675	Glass/PRM	-	505607

Show more ↓ Show less ↑
