BARIS 52 LED Connectors GK

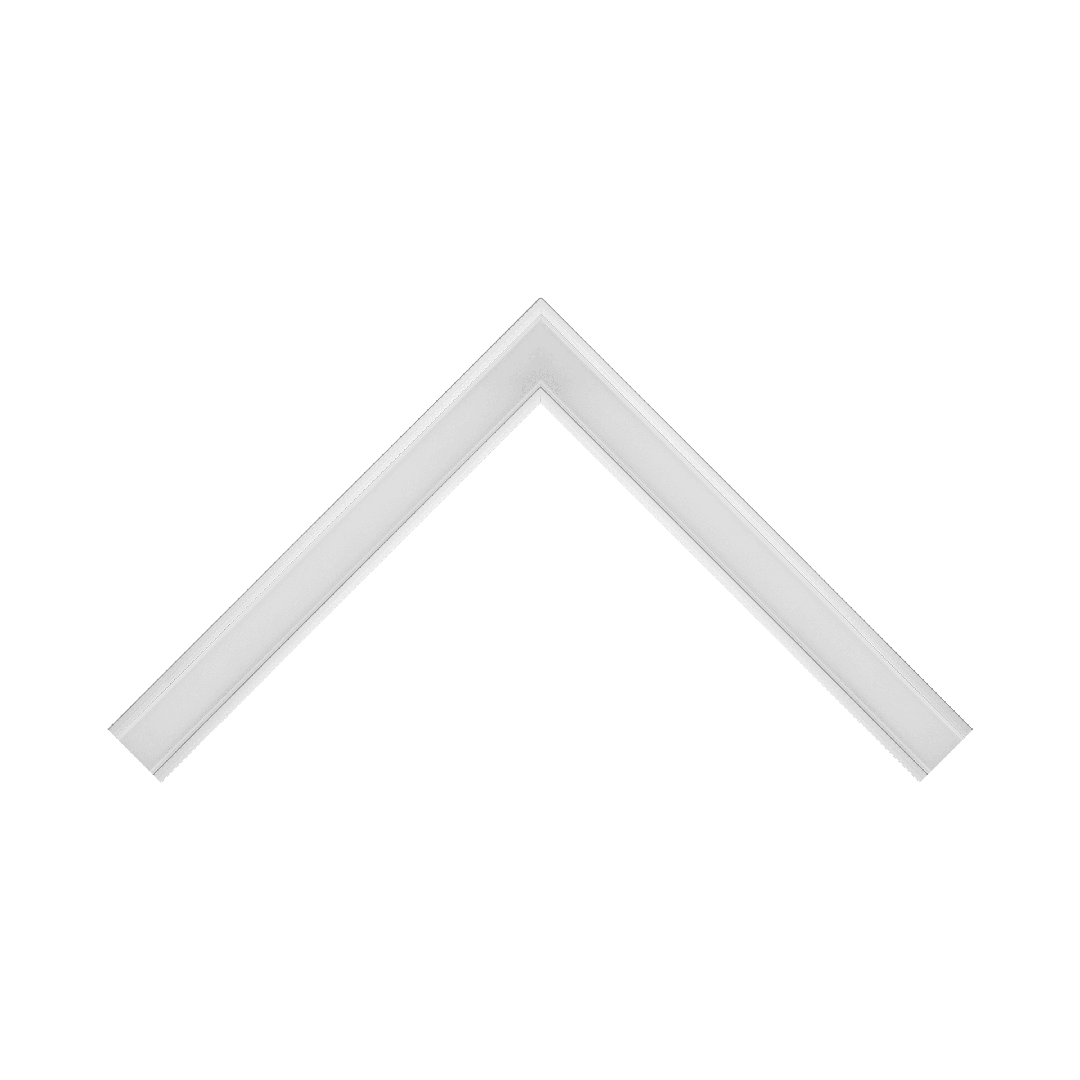

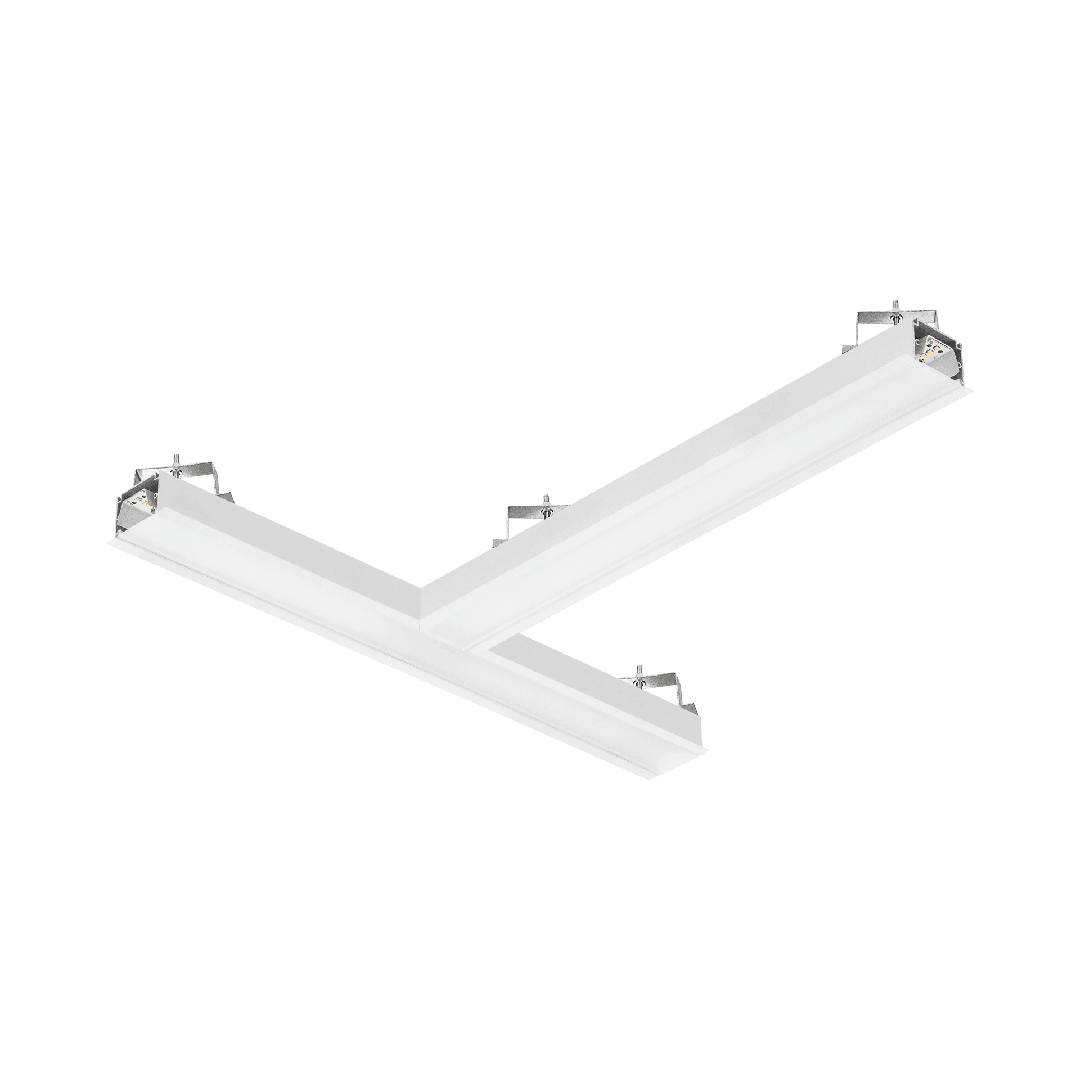

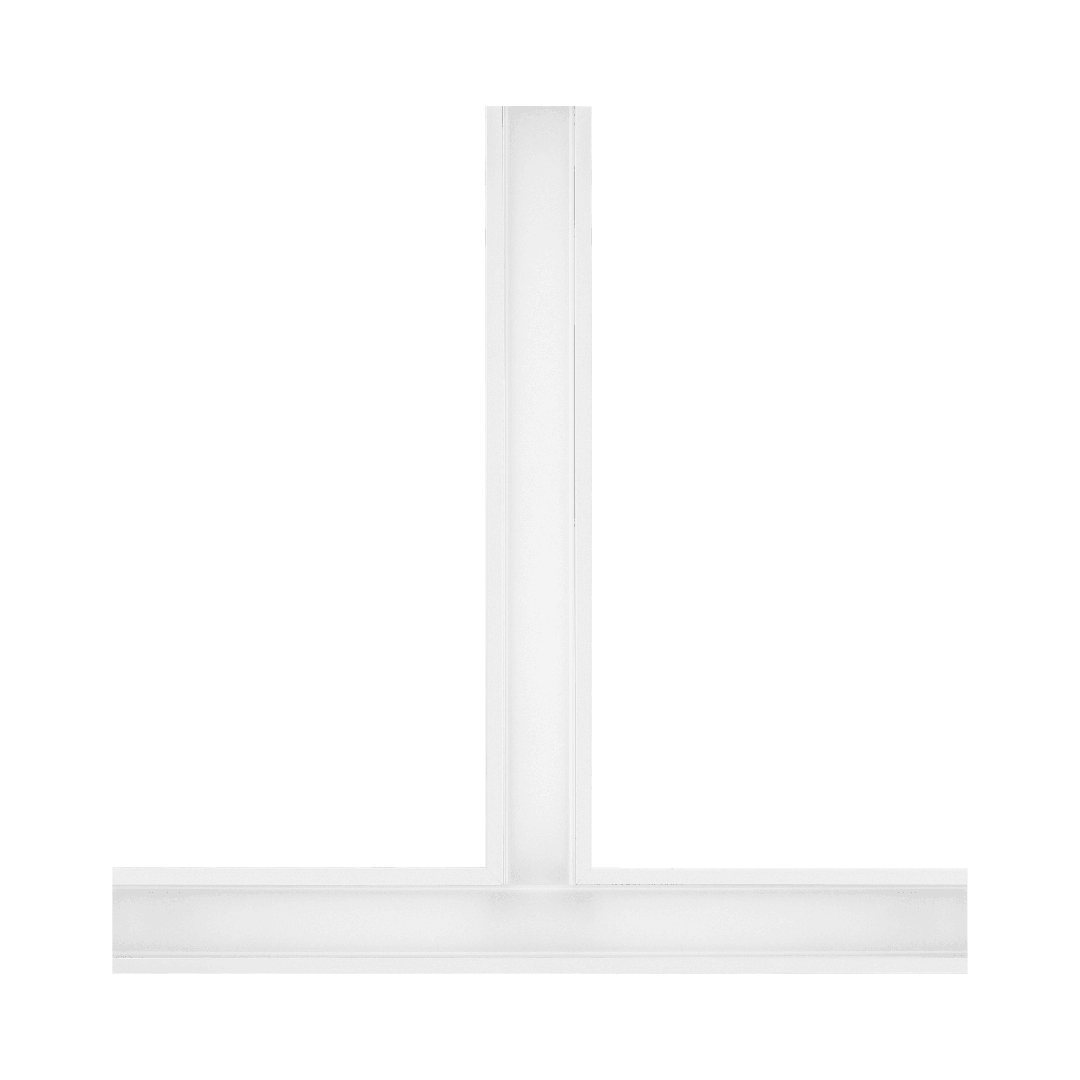

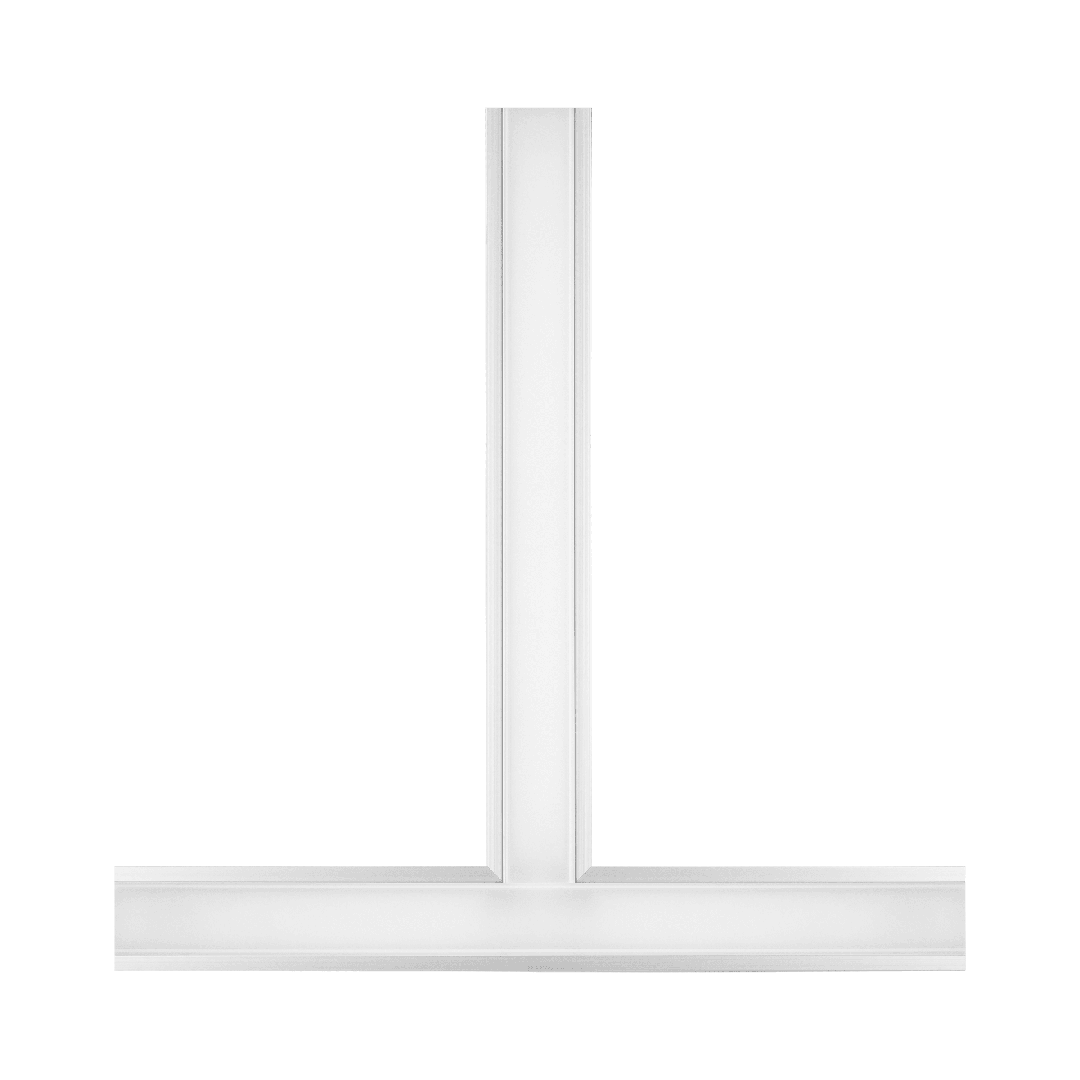

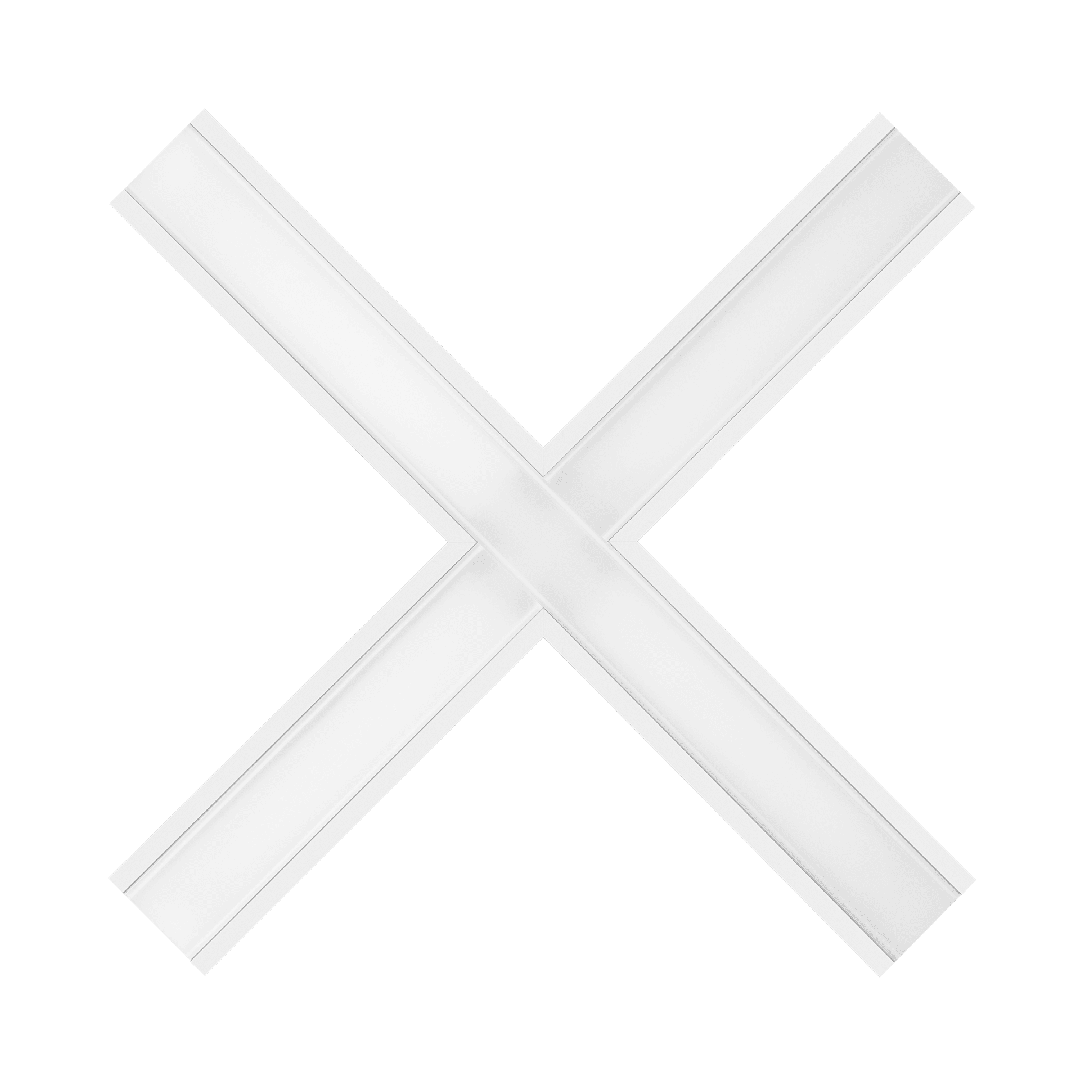

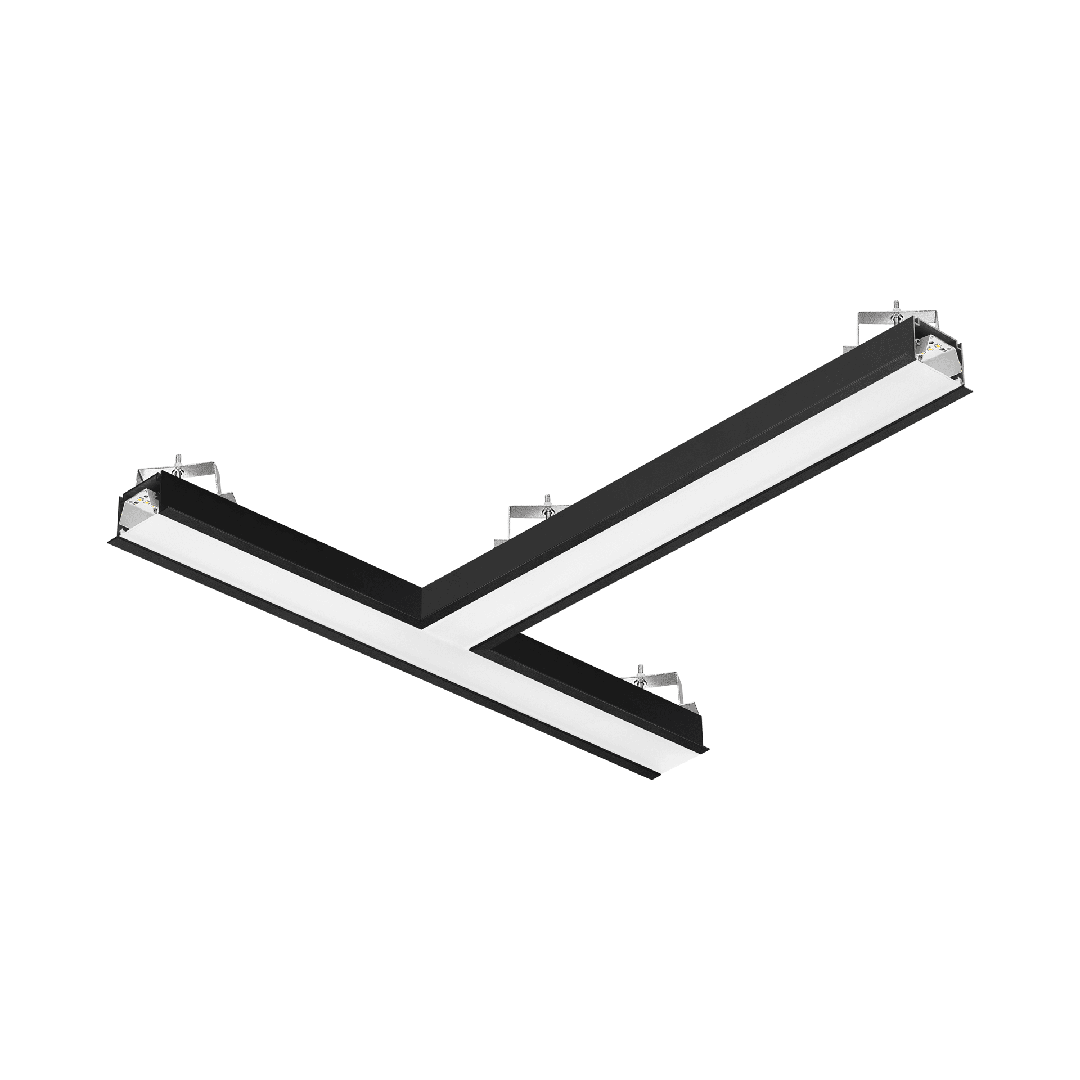

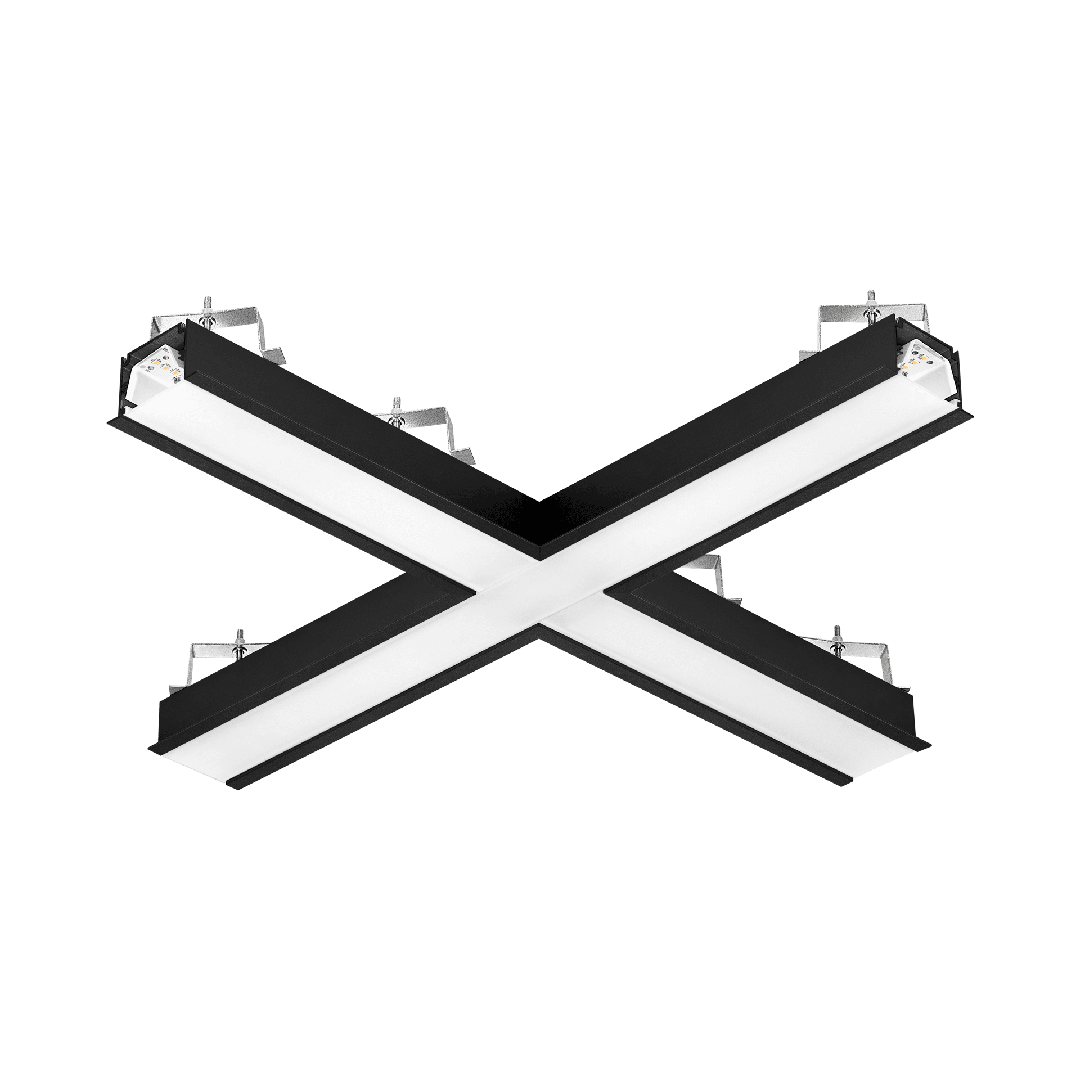

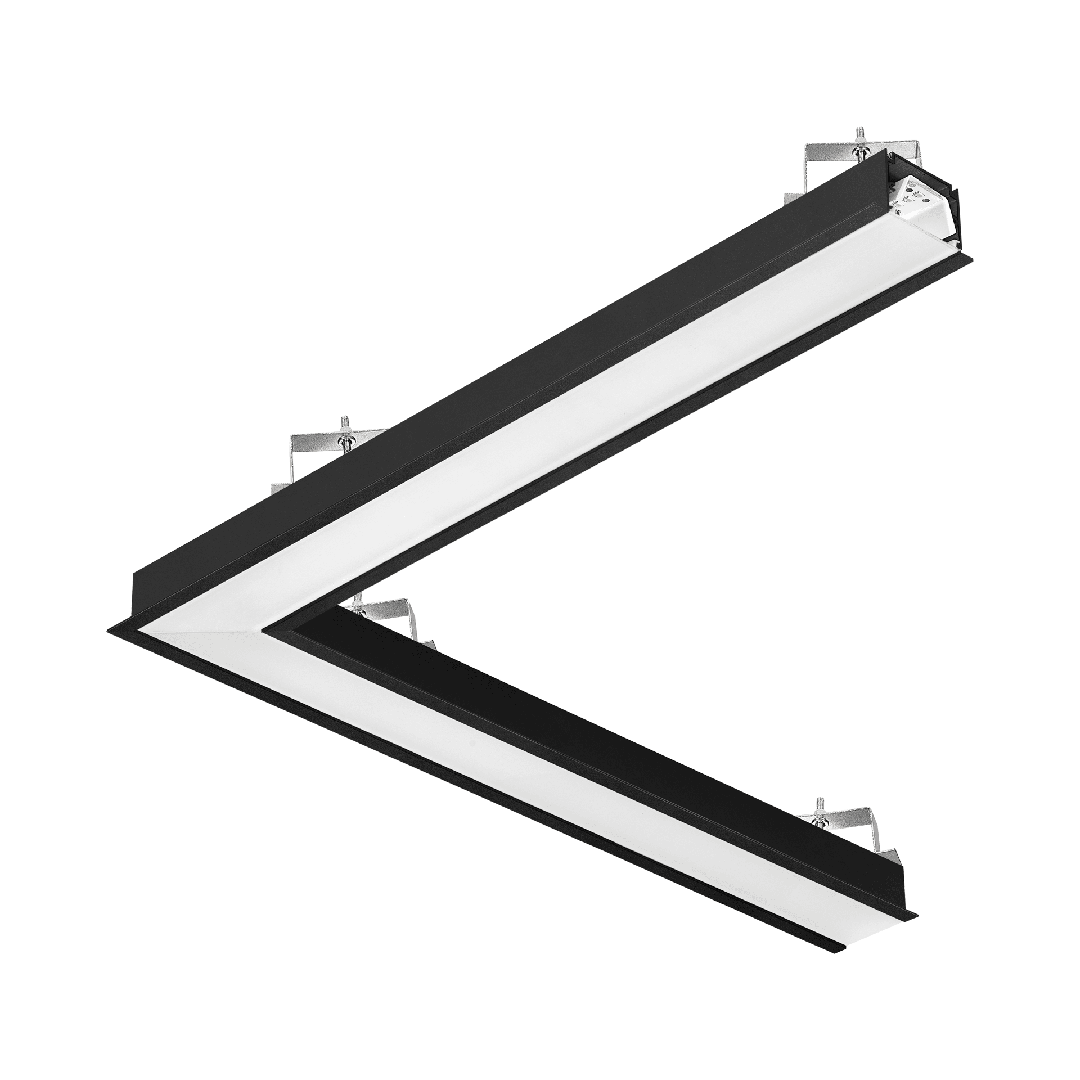

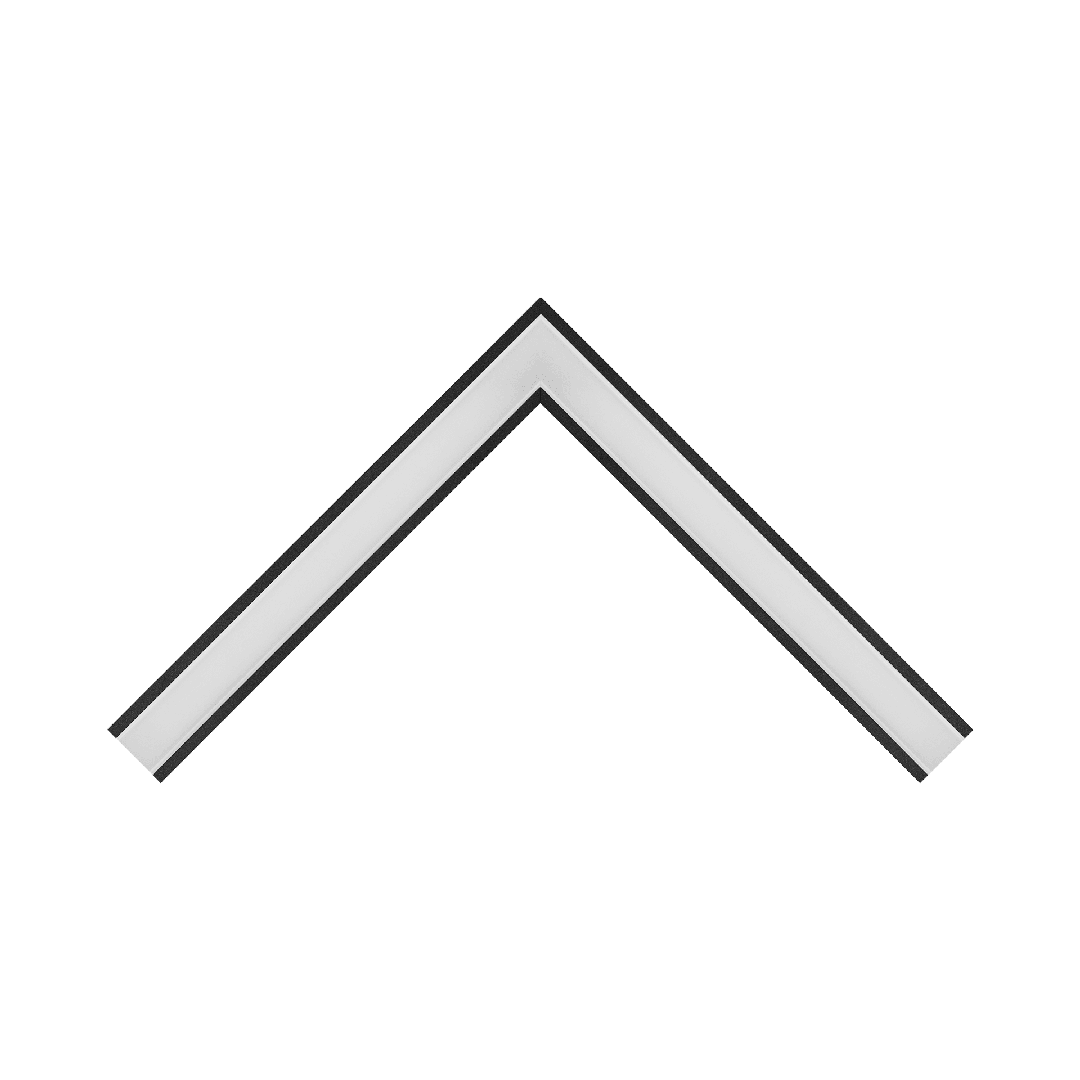

The key feature of L, T, X connectors is that they are equipped with integrated electronics and a diffuser, thanks to which the profile route bends remain illuminated along the entire length.

Technical specifications

Light source	LED
Colour temperature	4000K
Diffuser type	OPAL PRM
Mounting version	recessed
Application	architectural office

LEDIIP20CE

Ask about this product

Options

Downloads

CHARACTERISTICS The key feature of L, T, X connectors is that they are equipped with integrated electronics and a diffuser, thanks to which the profile route bends remain illuminated along the entire length. Body is made of anodized aluminium profile in grey or aluminium profile painted white or black (other colors available on request). The optical system is complemented by a dedicated, flexible opal cover that evenly illuminates the connector. There is no division into surface mounted and suspended versions, which make the solution more universal. Connectors (T, X, L) are supplied with an OPAL diffuser. Connectors T, X, L UGR, and PRM diffusers are available on request

Łączniki (T, X, L) wyposażone są w klosz OPAL.
Łączniki T, X, L z kloszami UGR i PRM dostępne są wyłącznie na zapytanie.

APPLICATION

BARIS 52 LED connectors in the shape of the letter L, T, X and straight connectors create extraordinary opportunities to configure the light line matched to the character and shape of the room, allowing you to create virtually unlimited straight sequences, figures and patterns.

See our film -> Baris 52 LED - linear lighting system with classic proportions and modern design

Lighting configurator

Use our lighting configurator and create your dream layout yourself with Baris 52 LED P GK luminaires. With X-, L-, T-shaped connectors, you can visualise your unique lighting composition.

Create a line of light

Options

Rated power of the luminaire [W]	Luminous flux [lm]	DIMM DALI	Diffuser type	Diffuser colour	Colour of the body	Index

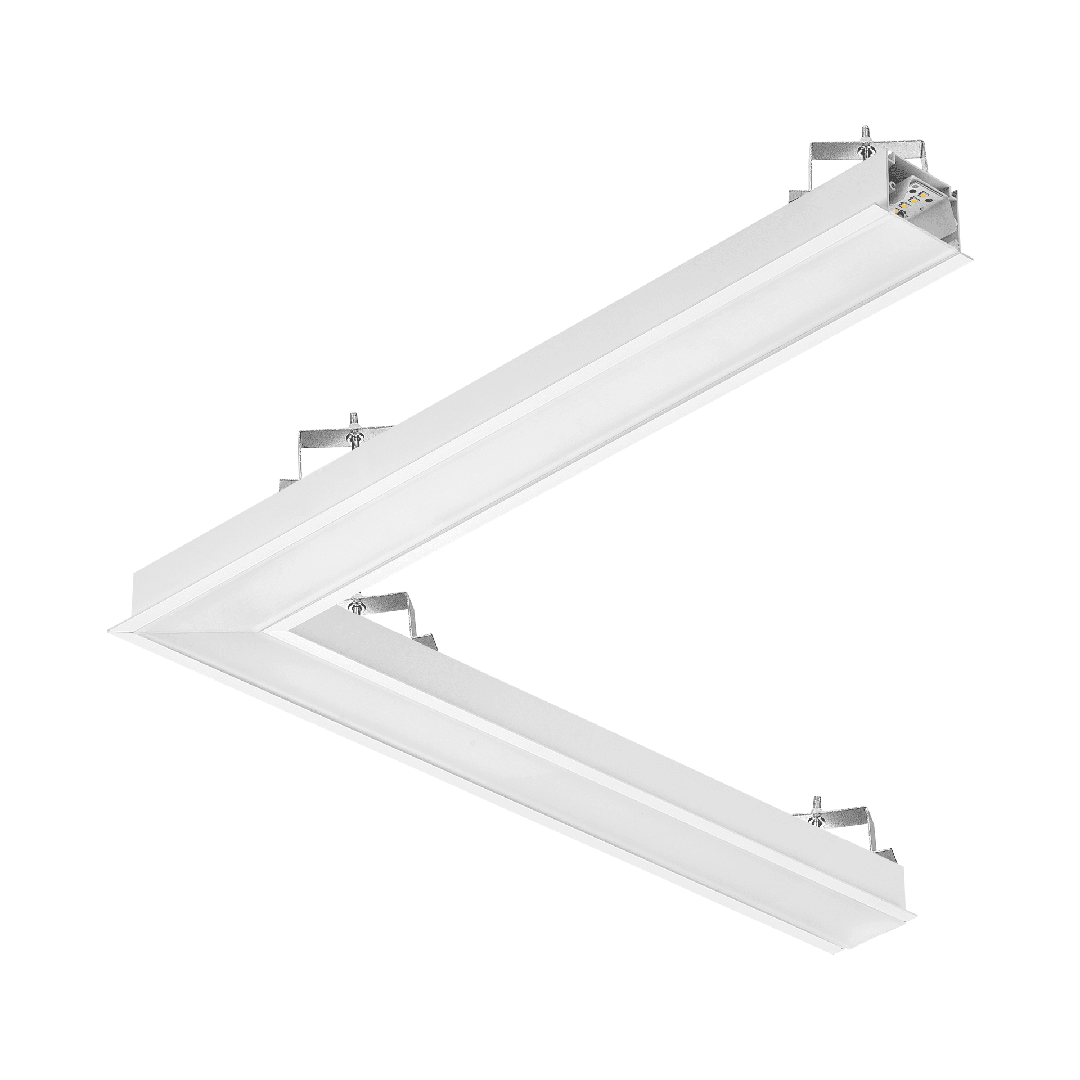

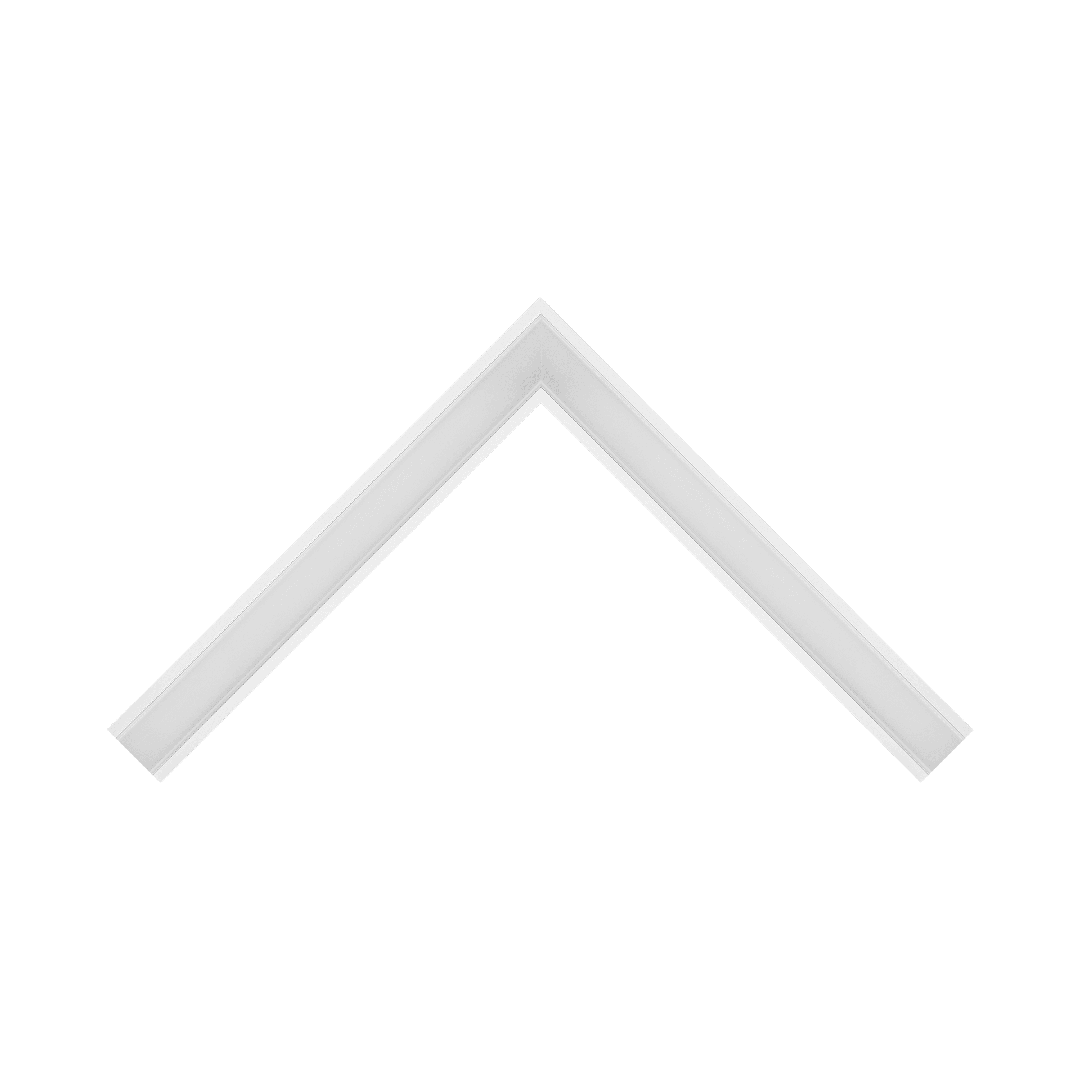

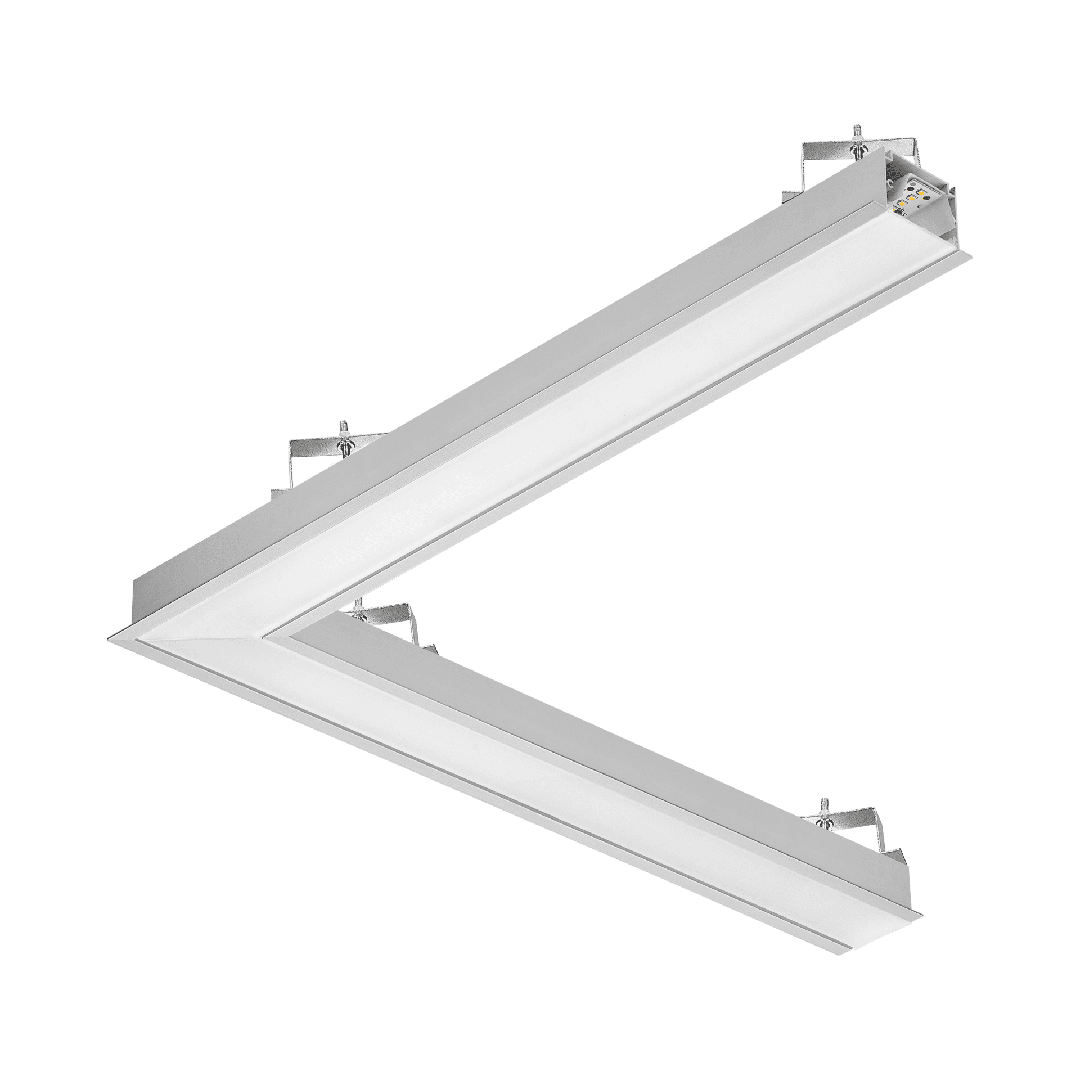

CONNECTORS GK L
17	2100	yes	OPAL	milky	grey	936098
17	2100	yes	OPAL	milky	white	936128
17	2100	yes	OPAL	milky	black	936159
17	2100	yes	PRM	transparent	grey	936272
17	2100	yes	PRM	transparent	white	936302
17	2100	yes	PRM	transparent	black	936333
17	2100	-	OPAL	milky	grey	936005
17	2100	-	OPAL	milky	white	936036
17	2100	-	OPAL	milky	black	936067
17	2100	-	PRM	transparent	grey	936180
17	2100	-	PRM	transparent	white	936210
17	2100	-	PRM	transparent	black	936241
30	3100	-	OPAL	milky	grey	936364
30	3100	-	OPAL	milky	white	936395
30	3100	-	OPAL	milky	black	936425
30	3100	-	PRM	transparent	grey	936456
30	3100	-	PRM	transparent	white	936487
30	3100	-	PRM	transparent	black	936517

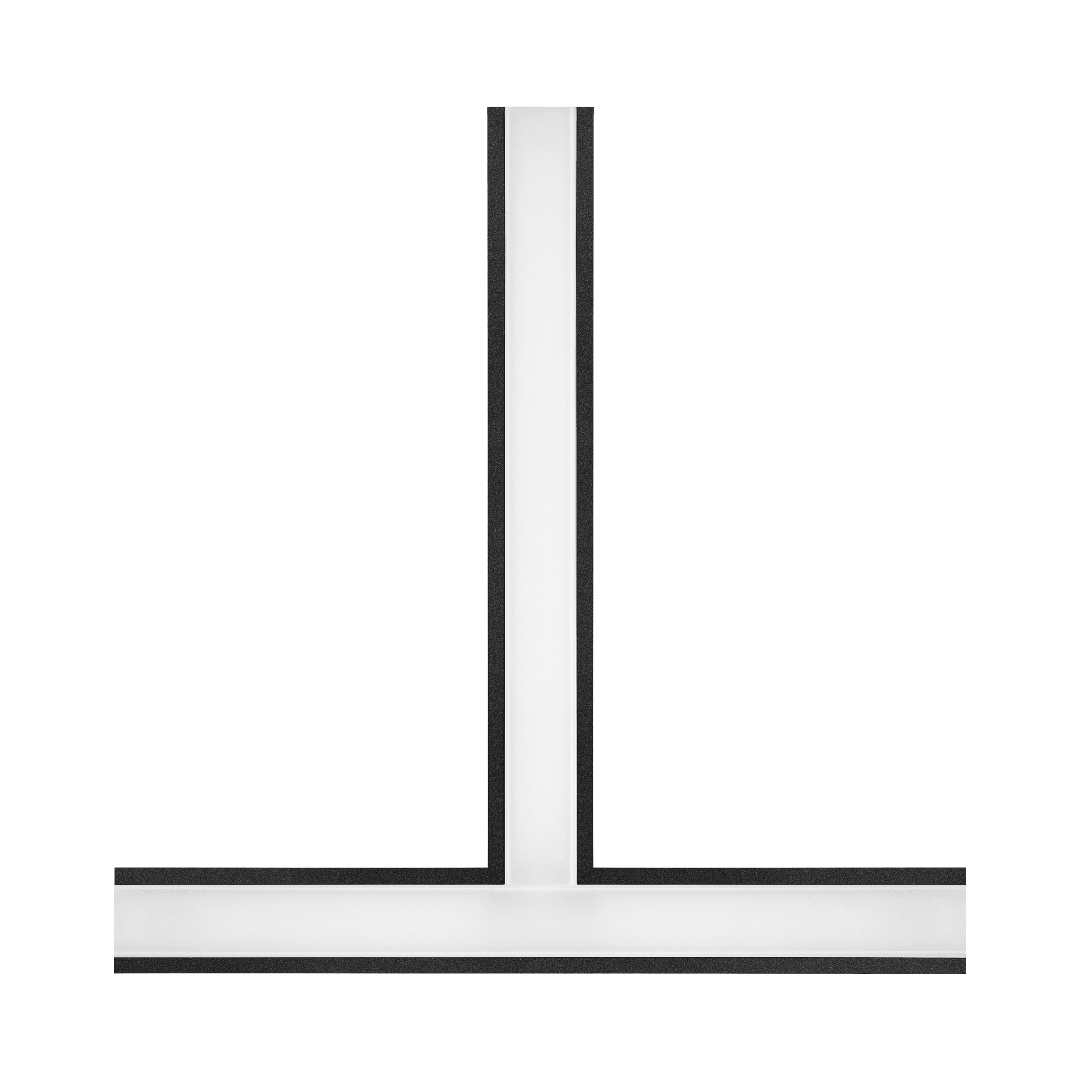

CONNECTORS GK T
17	2100	yes	OPAL	milky	grey	936104
17	2100	yes	OPAL	milky	white	936135
17	2100	yes	OPAL	milky	black	936166
17	2100	yes	PRM	transparent	grey	936289
17	2100	yes	PRM	transparent	white	936319
17	2100	yes	PRM	transparent	black	936340
17	2100	-	OPAL	milky	grey	936012
17	2100	-	OPAL	milky	white	936043
17	2100	-	OPAL	milky	black	936074
17	2100	-	PRM	transparent	grey	936197
17	2100	-	PRM	transparent	white	936227
17	2100	-	PRM	transparent	black	936258
30	3100	-	OPAL	milky	grey	936371
30	3100	-	OPAL	milky	white	936401
30	3100	-	OPAL	milky	black	936432
30	3100	-	PRM	transparent	grey	936463
30	3100	-	PRM	transparent	white	936494
30	3100	-	PRM	transparent	black	936524

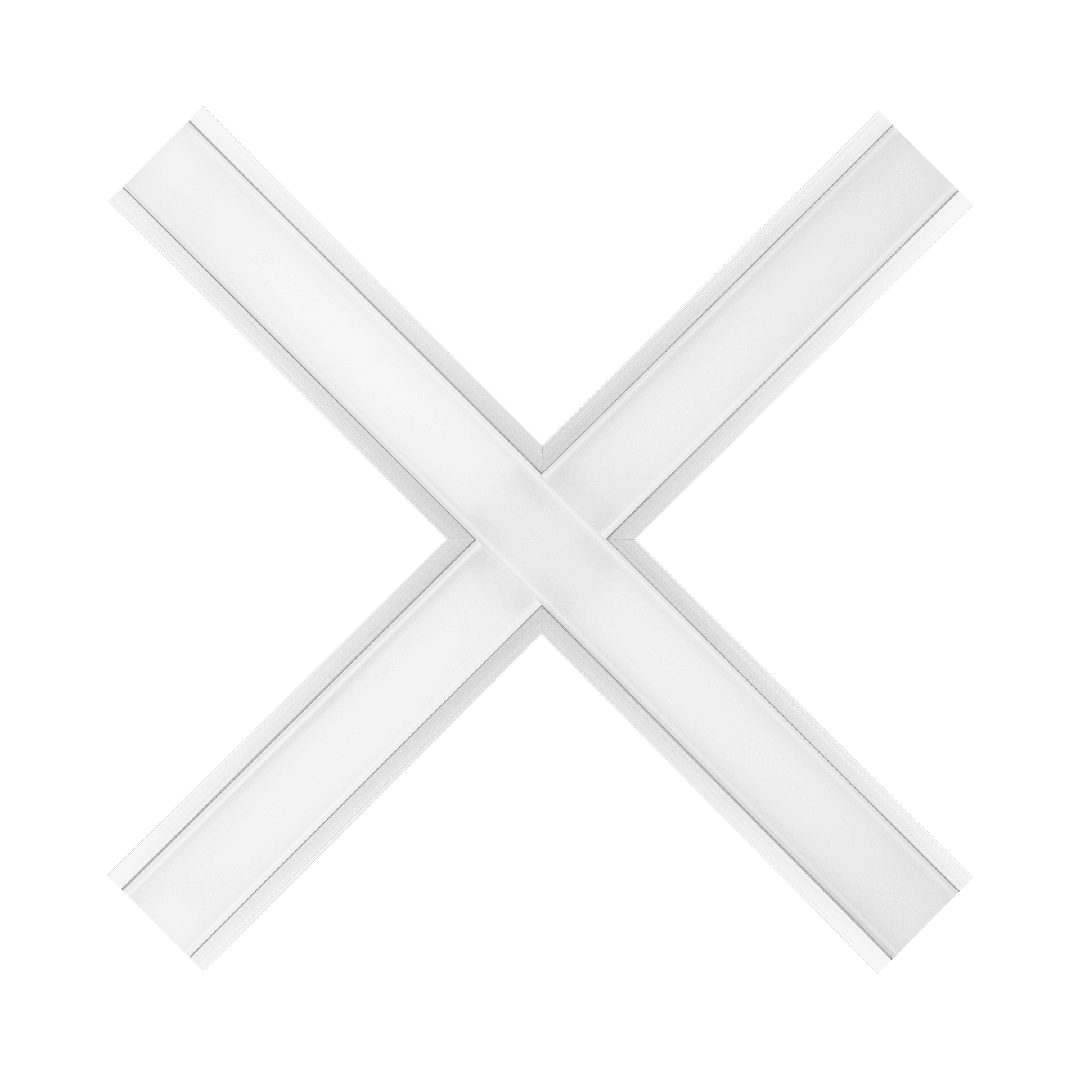

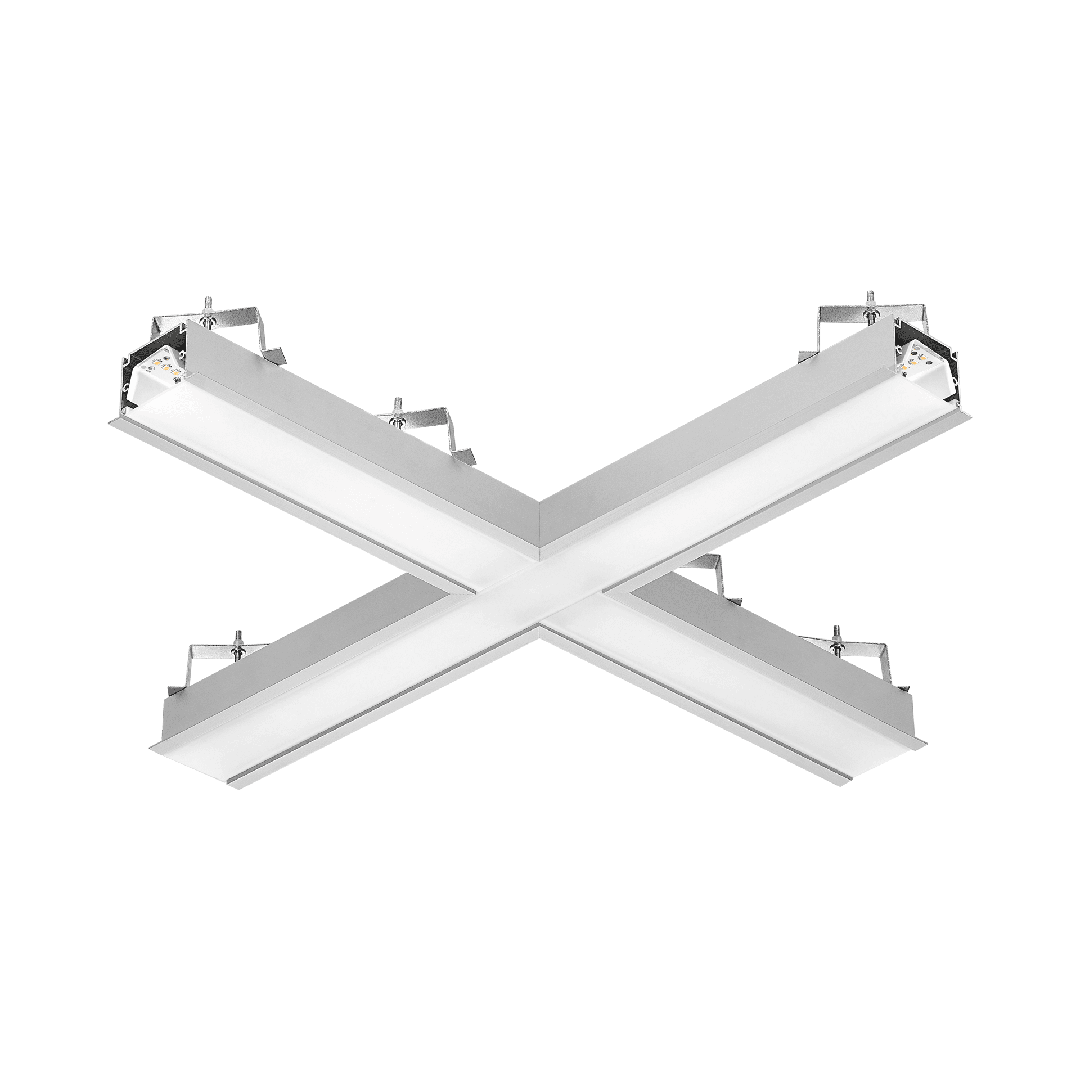

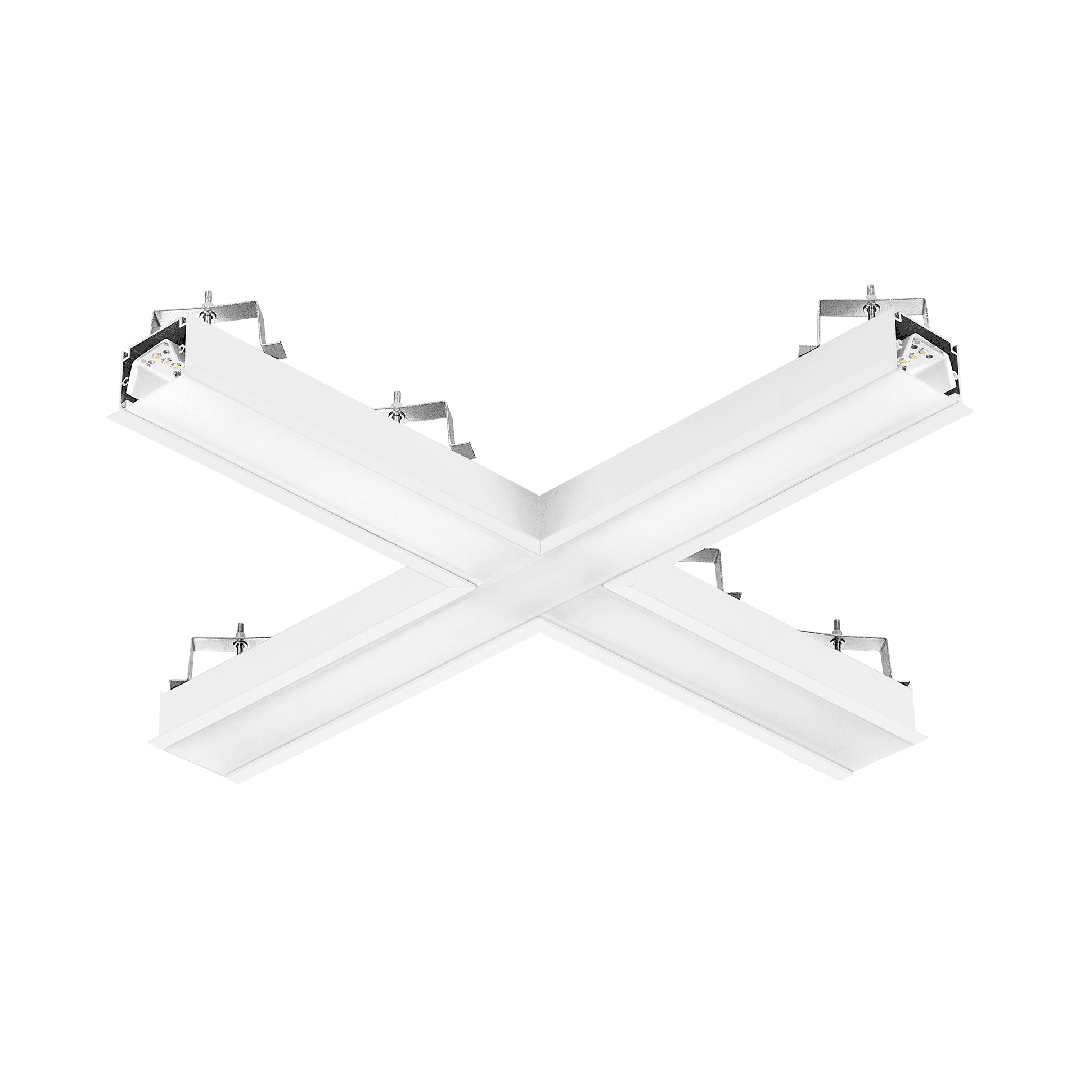

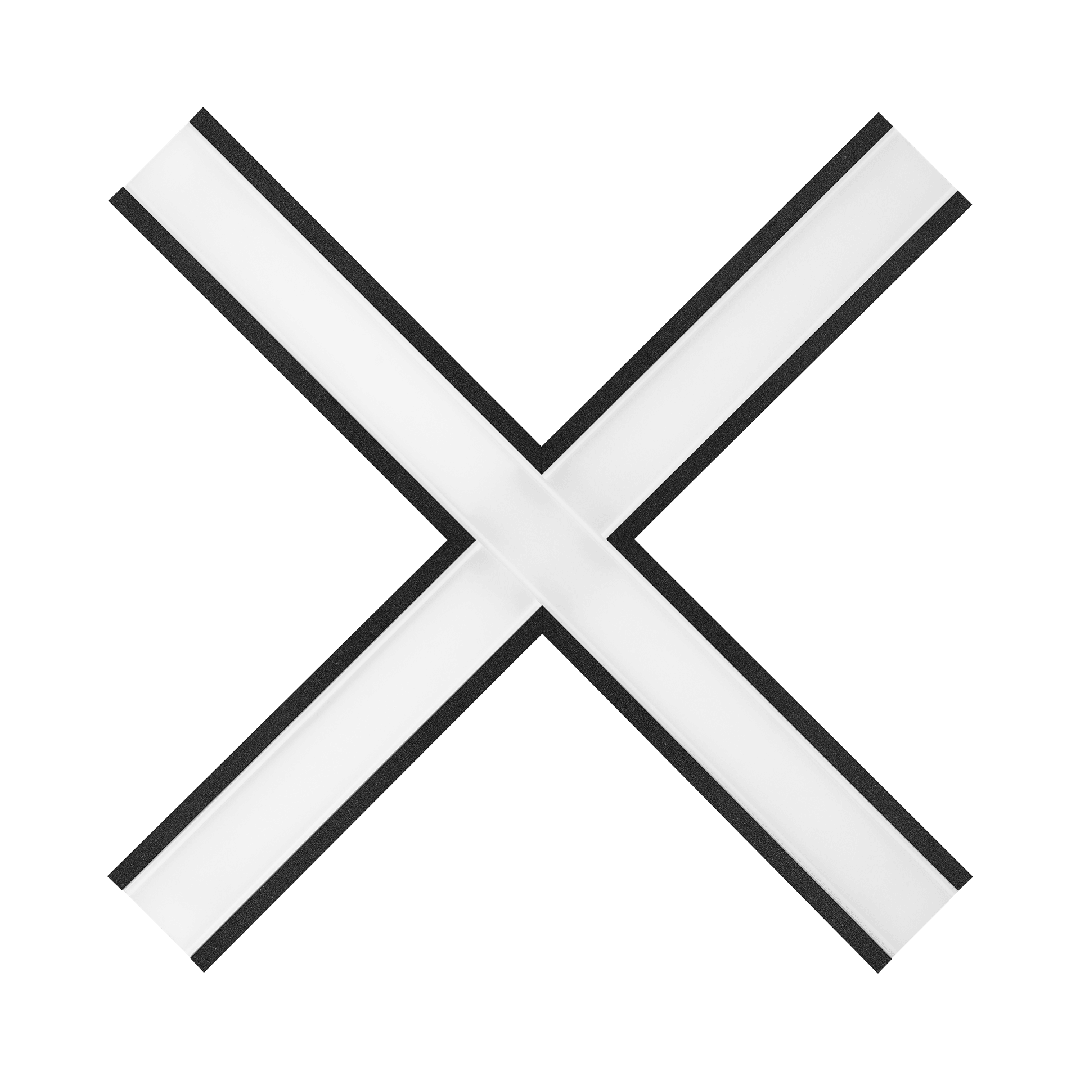

CONNECTORS GK X
17	2100	yes	OPAL	milky	grey	936111
17	2100	yes	OPAL	milky	white	936142
17	2100	yes	OPAL	milky	black	936173
17	2100	yes	PRM	transparent	grey	936296
17	2100	yes	PRM	transparent	white	936326
17	2100	yes	PRM	transparent	black	936357
17	2100	-	OPAL	milky	grey	936029
17	2100	-	OPAL	milky	white	936050
17	2100	-	OPAL	milky	black	936081
17	2100	-	PRM	transparent	grey	936203
17	2100	-	PRM	transparent	white	936234
17	2100	-	PRM	transparent	black	936265
30	3100	-	OPAL	milky	grey	936388
30	3100	-	OPAL	milky	white	936418
30	3100	-	OPAL	milky	black	936449
30	3100	-	PRM	transparent	grey	936470
30	3100	-	PRM	transparent	white	936500
30	3100	-	PRM	transparent	black	936531
