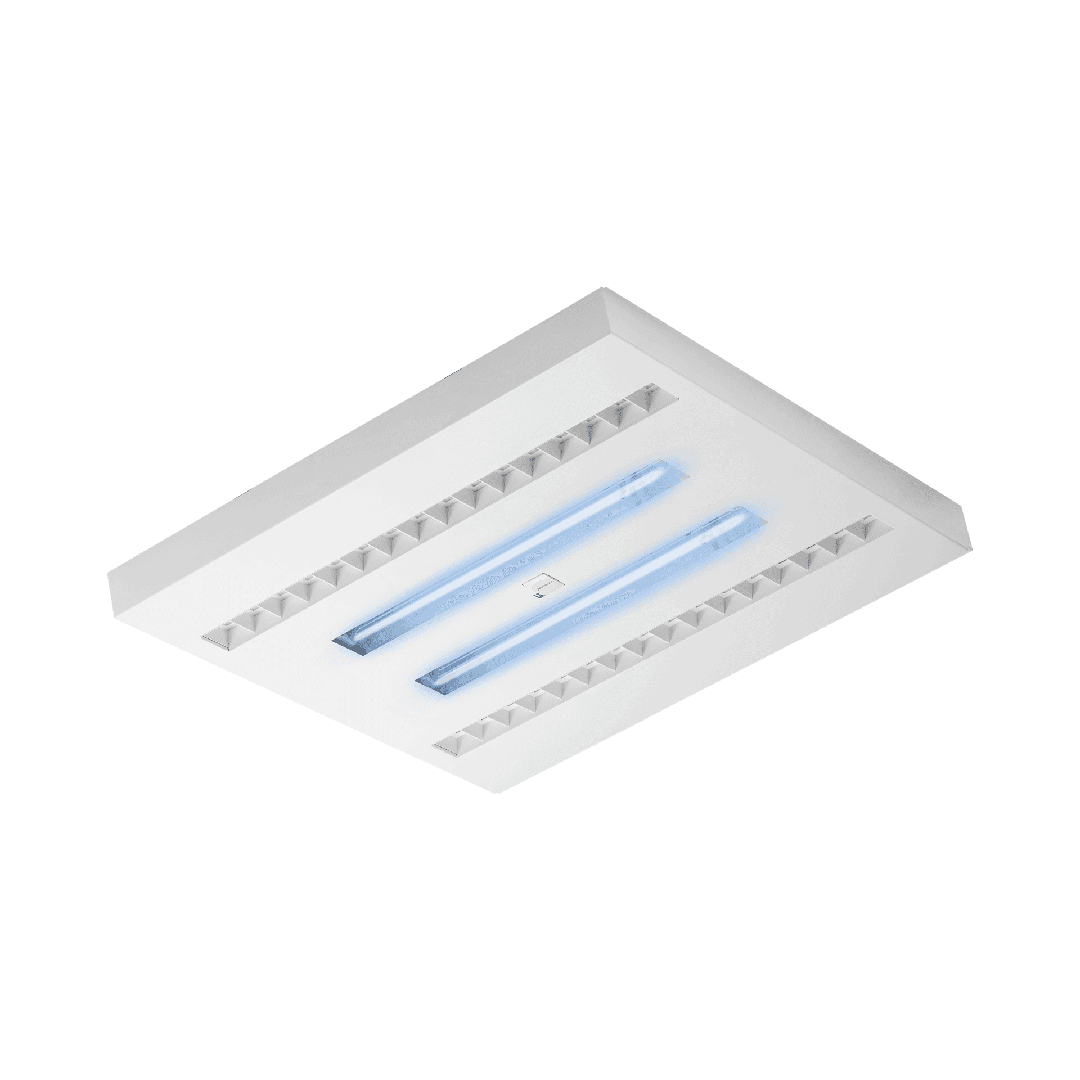

UV-C Sterilon Square

Downloads

Specification

Sterilon Square UV-C luminaires combine the functions of lighting and surface disinfection. Luminaires emitting ultraviolet (UV-C) light are one of the most effective devices capable of removing viruses, bacteria, mold from the surface or destroying the DNA or RNA of any exposed microorganisms.

Direct surface disinfection function with UV-C light
LED surface illumination function
Possibility of individual connection and control (ON-OFF) of LED and UV-C modules
Body colour: matt white
Light source lifespan (UV-C): 9000h
UV-C wavelength: 253.7 nm
Supply voltage: 220-240V
Ingress protection class: IP20
The function of protection against exposure to UV-C radiation (reversed RCR sensor)
Class of protection against electric shock: I
Mounting: surface, flush, suspended

Luminaires are recommended for use in service-providing facilities (hair and beauty salons), health care facilities, hotels, restaurants, public administration, educational and care facilities, as well as other spaces requiring general lighting and periodic disinfection.

Direct surface disinfection function

The luminaire is provided with built-in UV-C fluorescent lamps directed directly onto the surface, which enhances effective disinfection. However, it should be noted that UV-C light is harmful to the skin and eyes. When the luminaire is operating in this mode, you cannot stay in the range of the light beam, and before using it, you should read the instruction manual delivered with the product.

Surface illumination function

The luminaire is equipped with energy-saving LED modules characterised by a high luminous flux. The patented high-efficiency HE reflector guarantees high efficiency, while effectively reducing the glare effect (UGR <19). High lighting parameters make it a suitable main source of light, conducive to work requiring eyesight concentration.

The function of protection against exposure to UV-C radiation.

The task of the inverted RCR motion sensor is to protect people and animals against accidental intrusion into the zone of direct UV-C radiation of the lamp when it is switched on. When motion is detected (contrary to the standard application of the RCR sensor), the UV-C module is turned off. If there is no motion for a period of 10 minutes (in the specified coverage zone), the UV-C module is turned on again. Note: access to the UV-C switch should not be allowed for unauthorised persons!

Options

Nominal power [W]	Service life of the UV-C radiation source [h]	Colour of the body	Dimensions (H/W/T/S) [mm]	Mounting version	Supply voltage [V]	Motion sensor	Net weight of the luminaire [kg]	Index

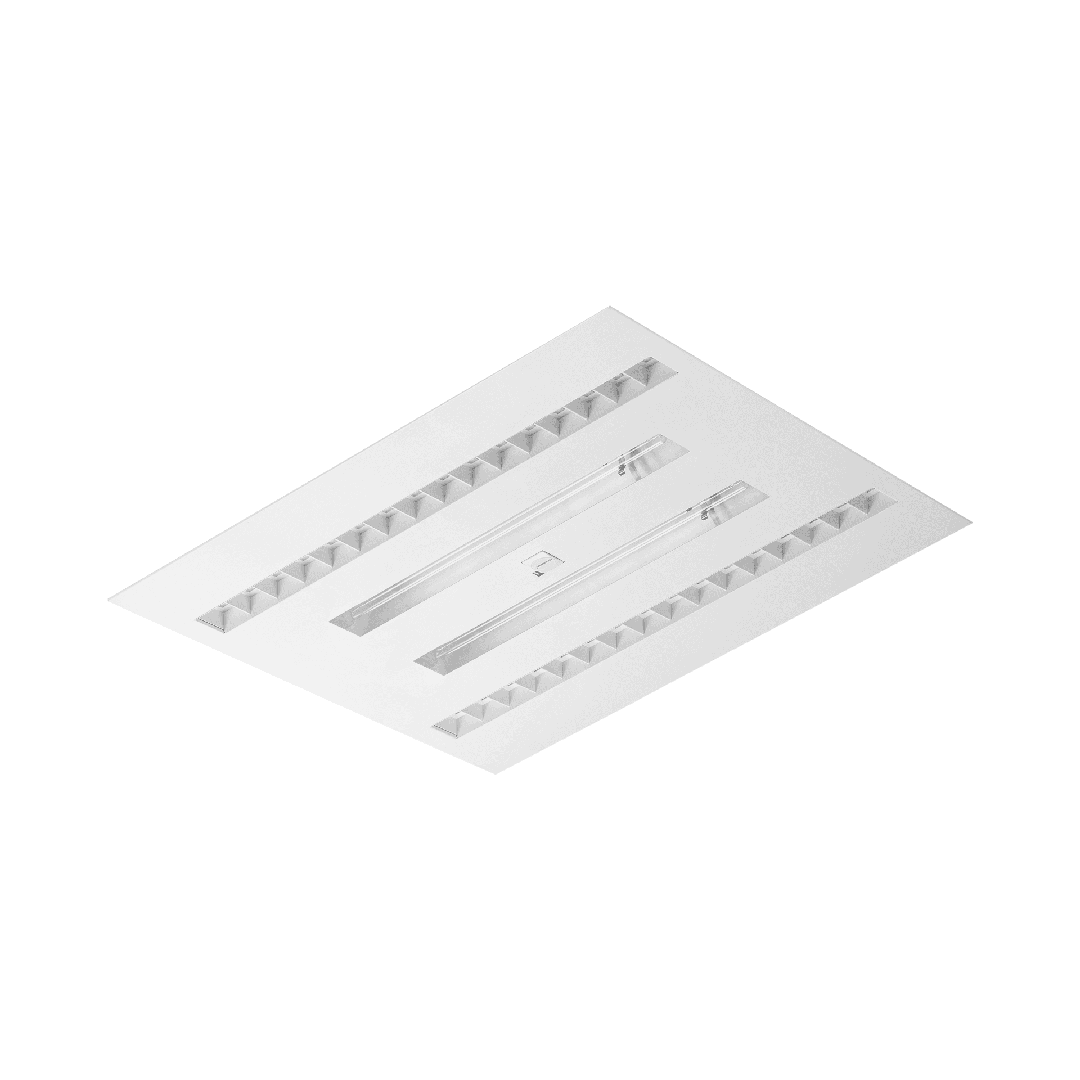

103	9000	white mat	595/595/47	recessed	220 - 240	yes	2.960	240232
103	9000	white gloss	595/595/47	recessed	220 - 240	yes	2.800	240225
108	9000	white mat	595/595/47	recessed	220 - 240	yes	2.800	240218
108	9000	white gloss	595/595/47	recessed	220 - 240	yes	2.920	240201

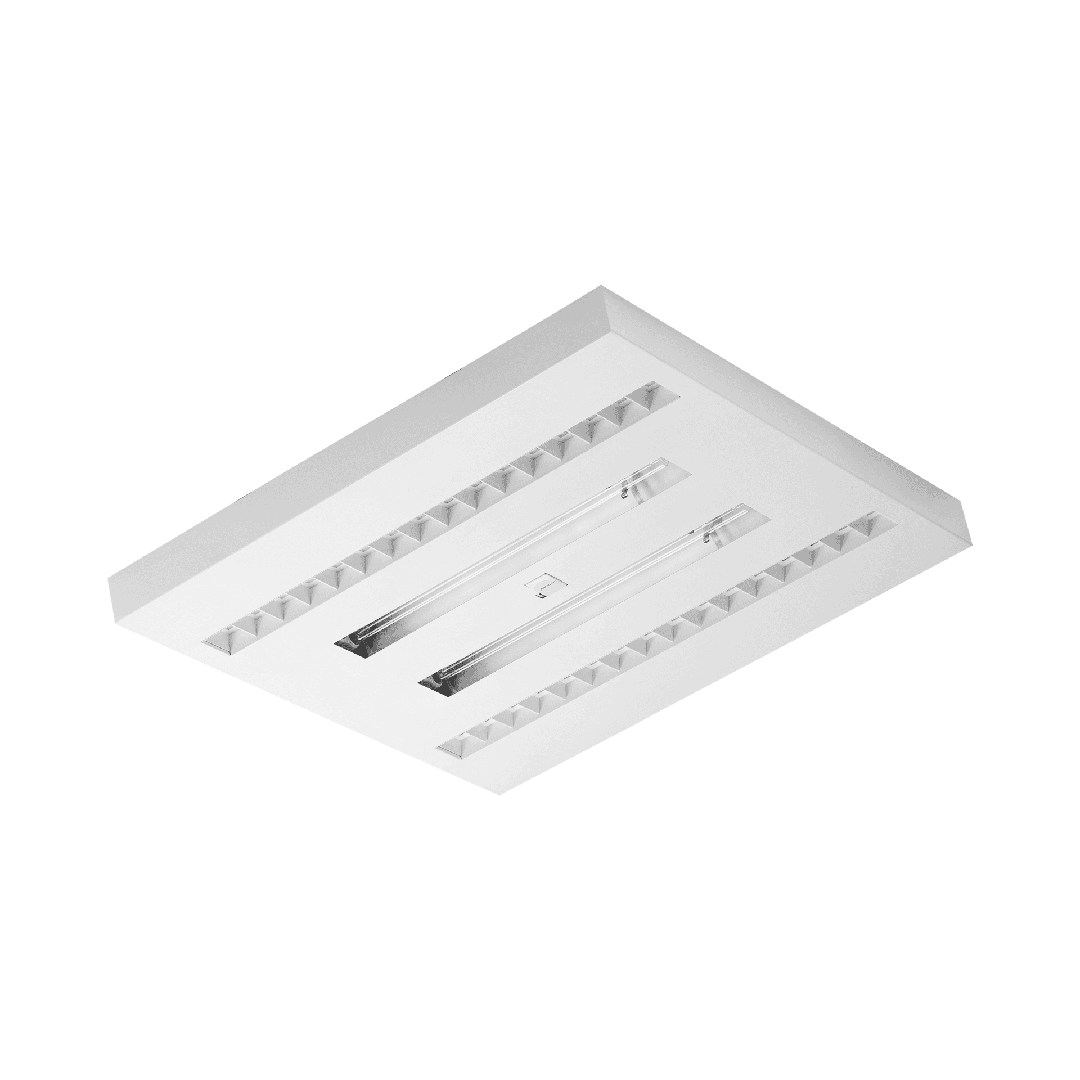

92	9000	white gloss	595/595/50	surface	220 - 240	yes	2.800	240300
92	9000	white mat	595/595/50	surface	220 - 240	yes	2.800	240317
103	9000	white gloss	595/595/50	surface	220 - 240	yes	2.800	240324
103	9000	white mat	595/595/50	surface	220 - 240	yes	2.800	240331
108	9000	white gloss	595/595/50	surface	220 - 240	yes	2.800	240348
108	9000	white mat	595/595/50	surface	220 - 240	yes	2.800	240355

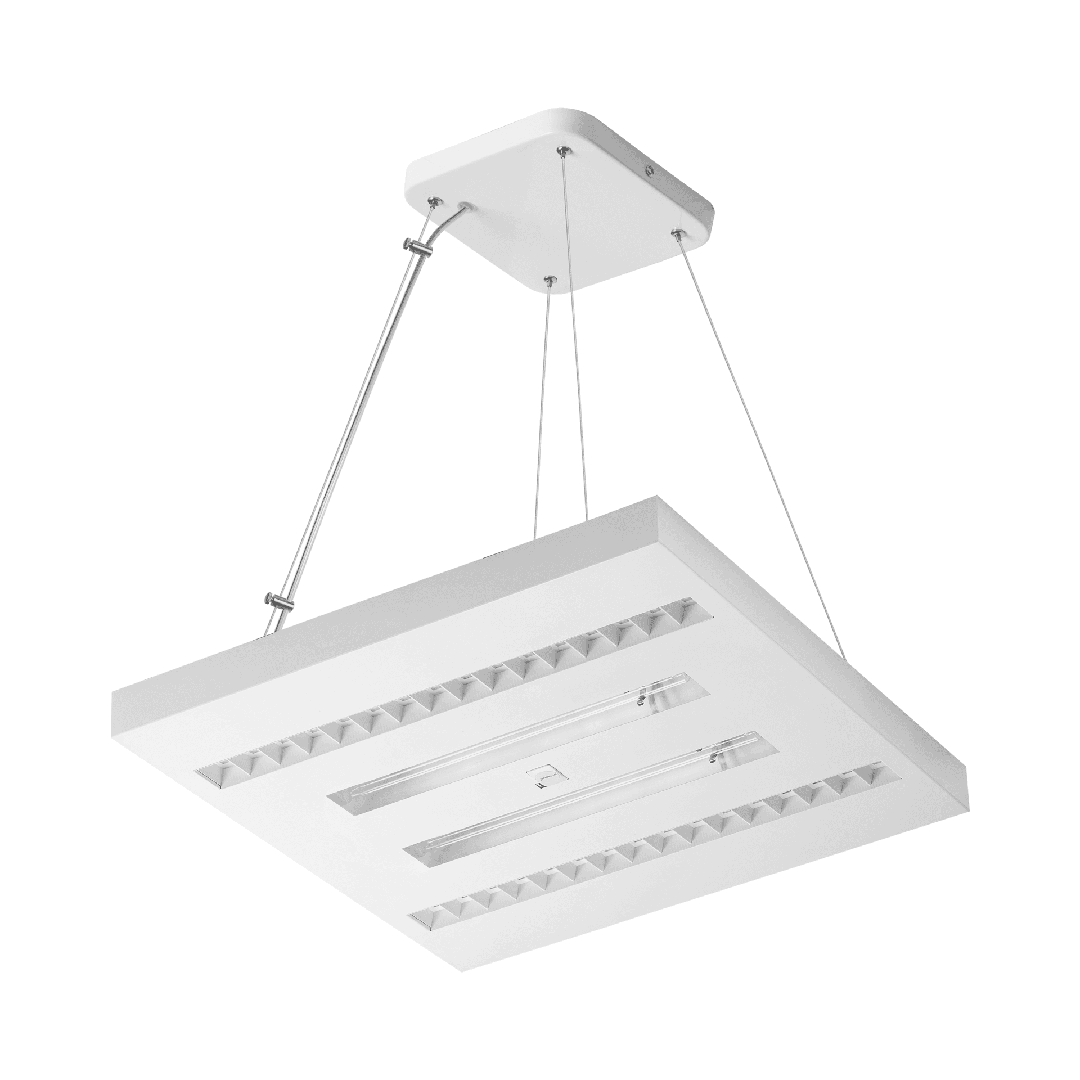

92	9000	white gloss	595/595/50	suspended	220 - 240	yes	4.500	240249
92	9000	white mat	595/595/50	suspended	220 - 240	yes	5.840	240256
103	9000	white gloss	595/595/50	suspended	220 - 240	yes	4.500	240263
103	9000	white mat	595/595/50	suspended	220 - 240	yes	4.500	240270
108	9000	white gloss	595/595/50	suspended	220 - 240	yes	4.500	240287
108	9000	white mat	595/595/50	suspended	220 - 240	yes	4.500	240294

Accessories

Hide accessories

Index	Accessory name
WL36500	PL-L UV-C 36W 2G11 OSR fluorescent lamp
243639	UV-C protective glasses

UV-C protective glasses (243639)
