Labo LED

Downloads

Specification

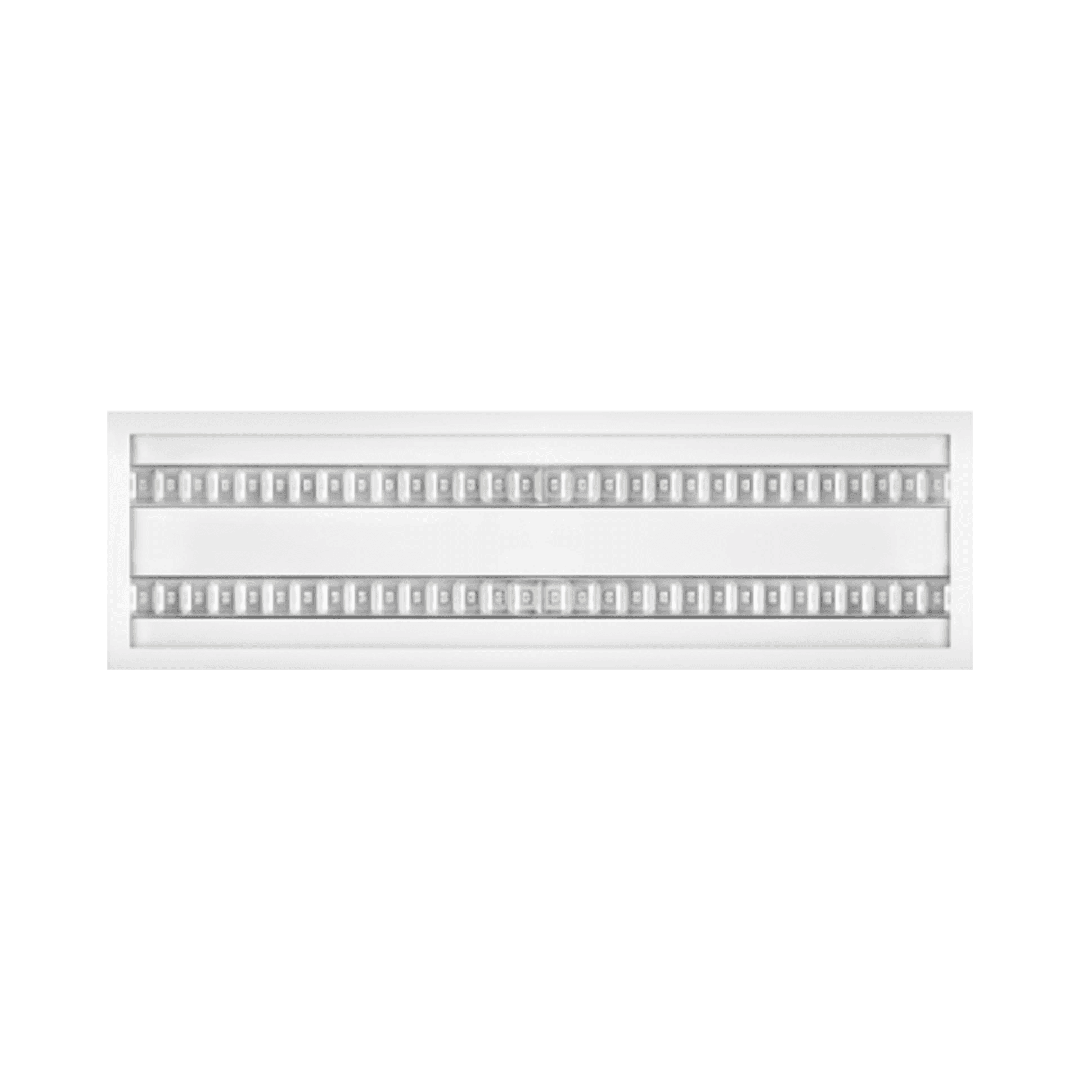

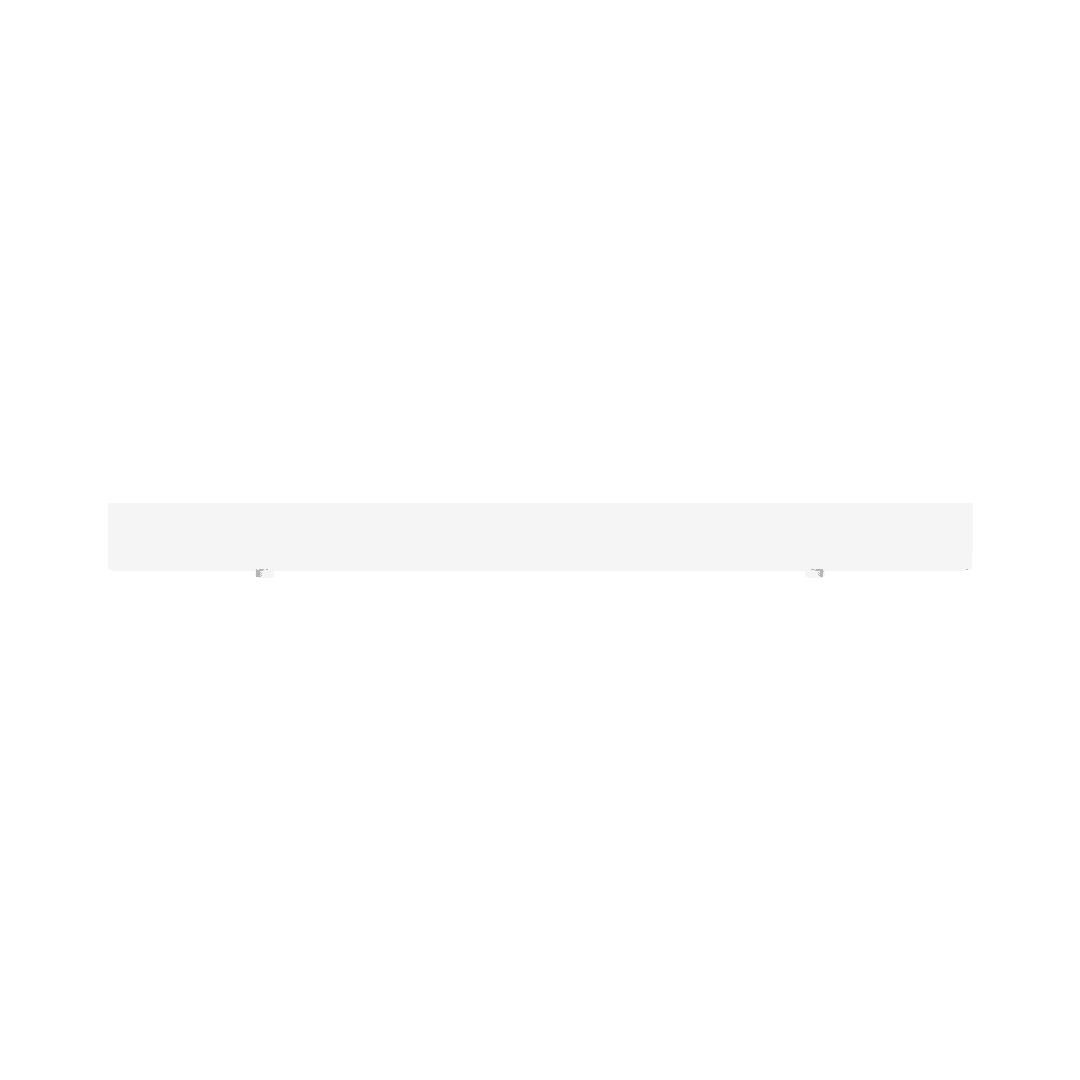

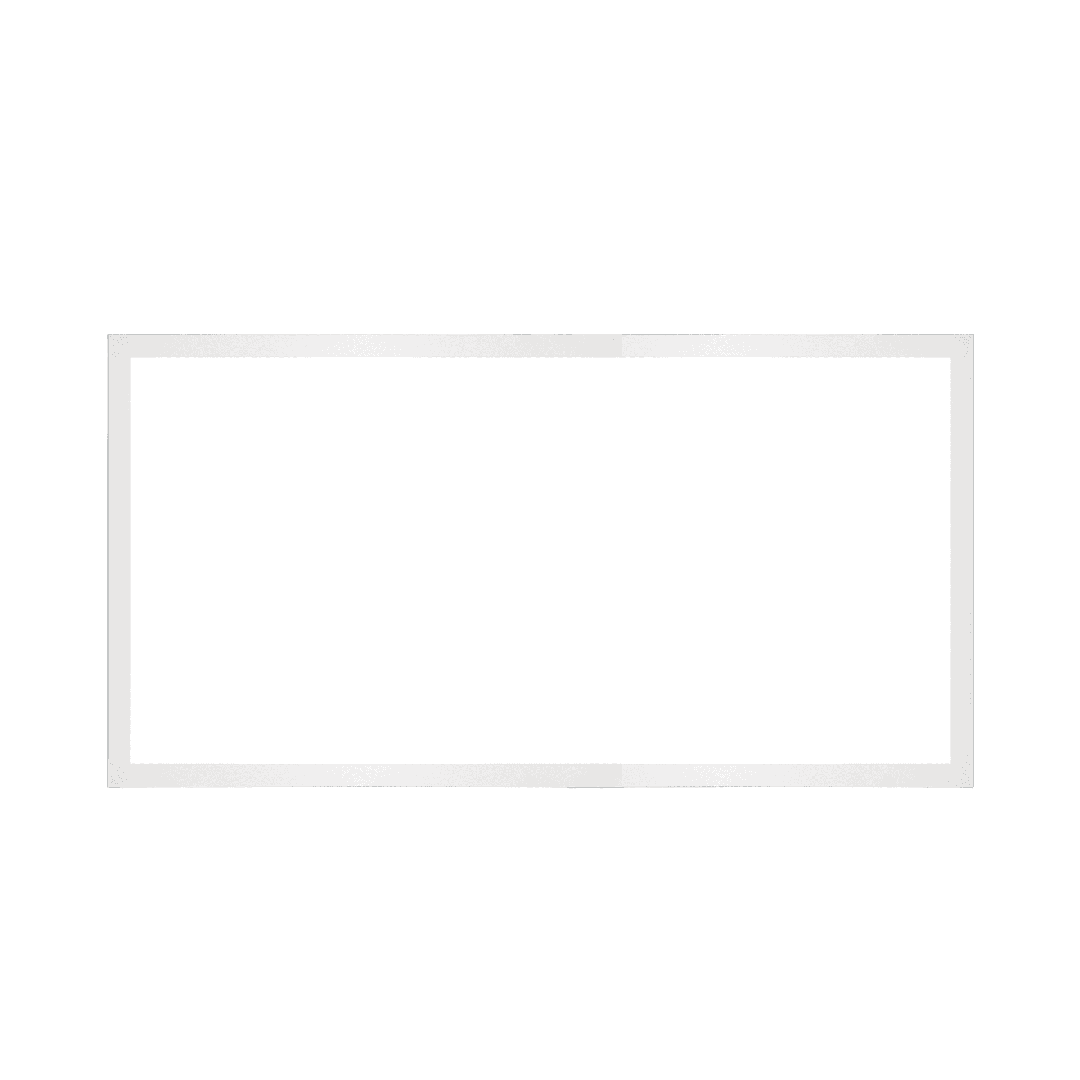

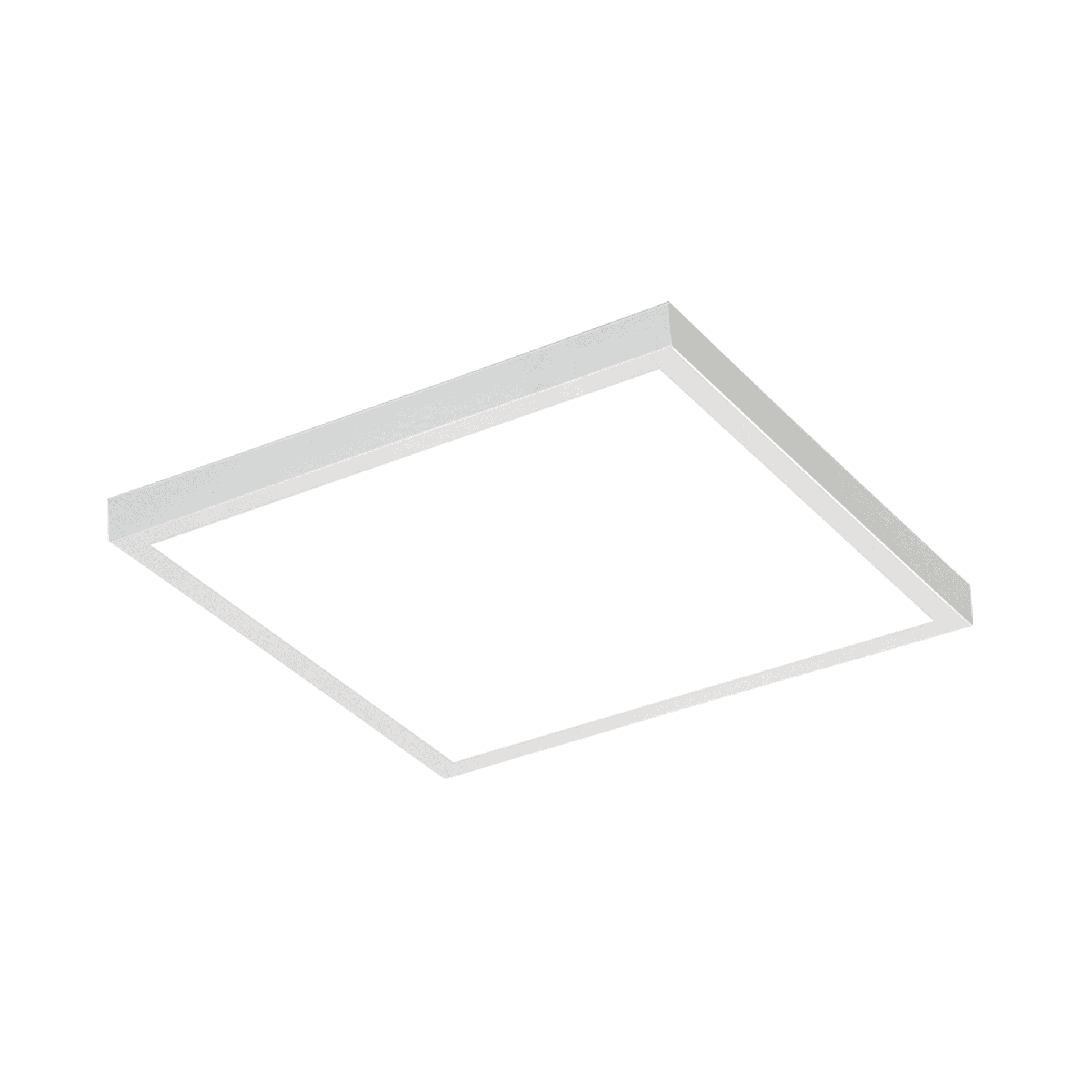

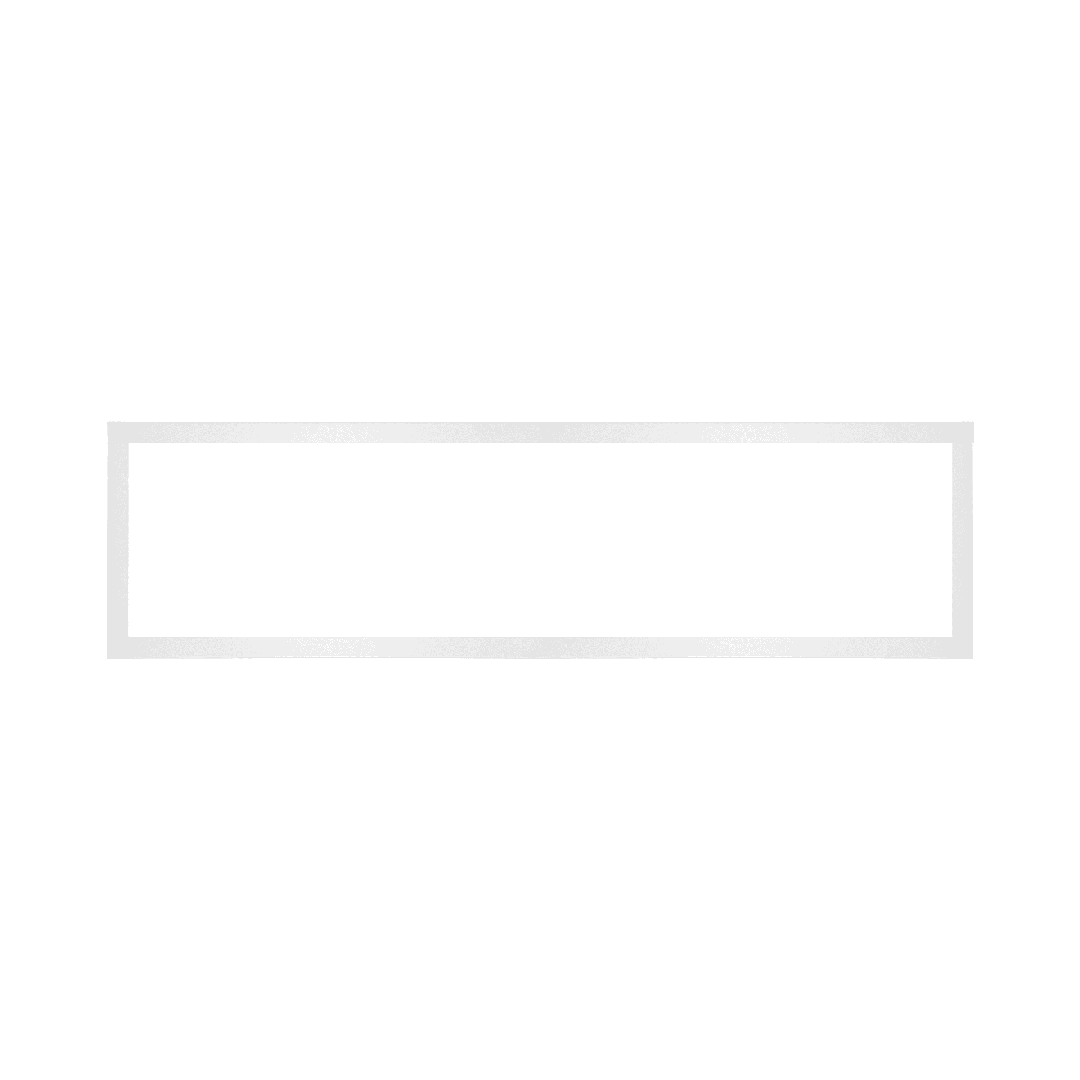

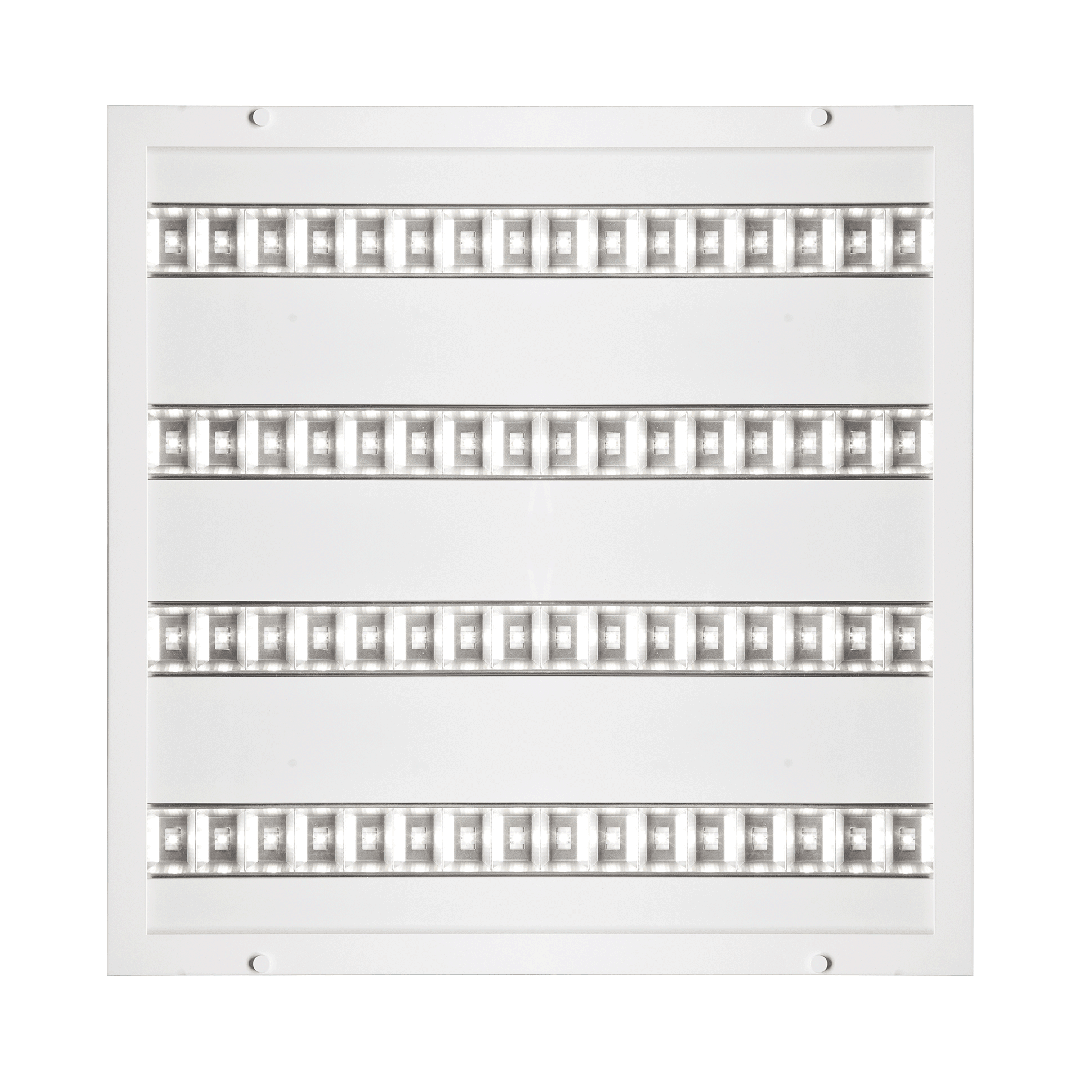

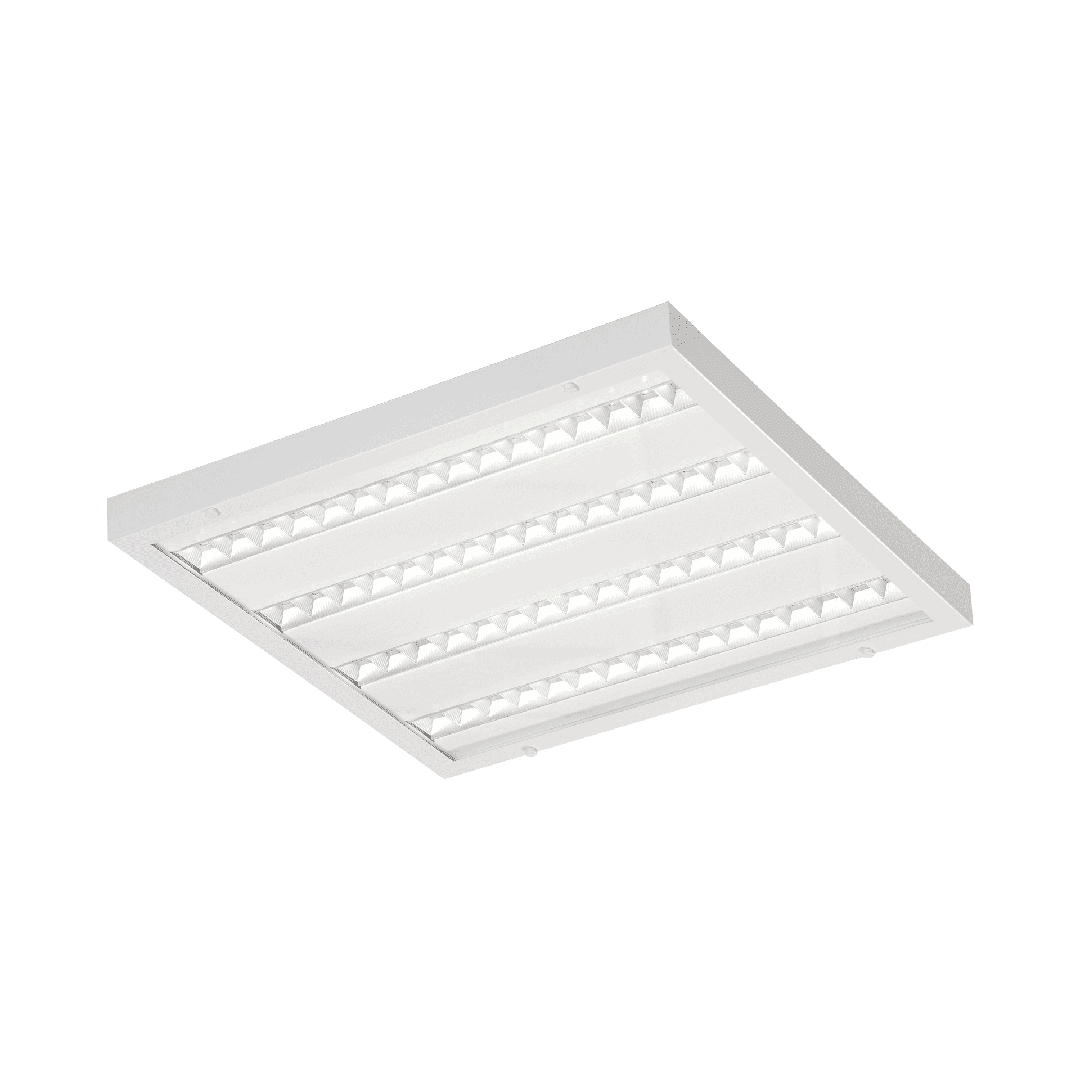

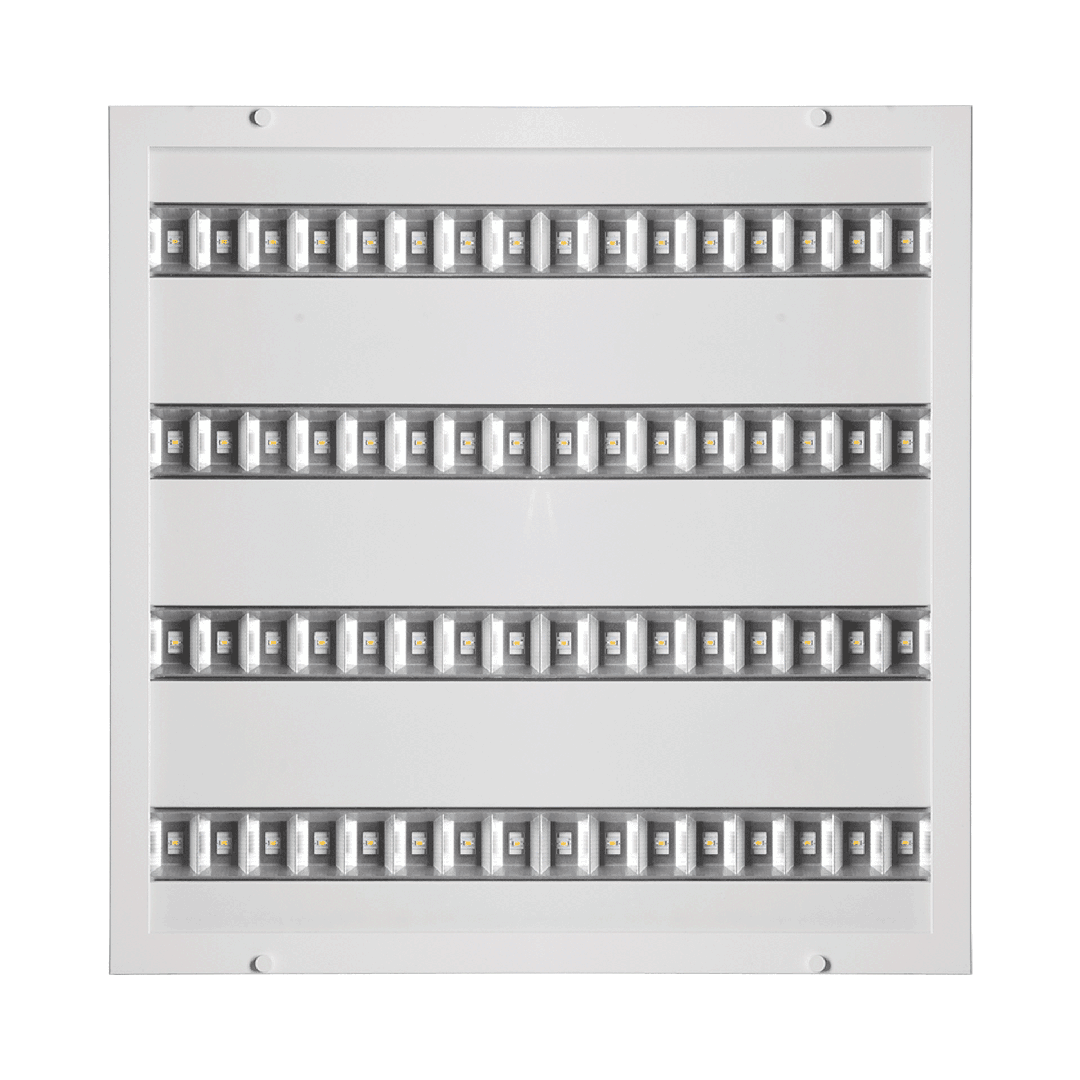

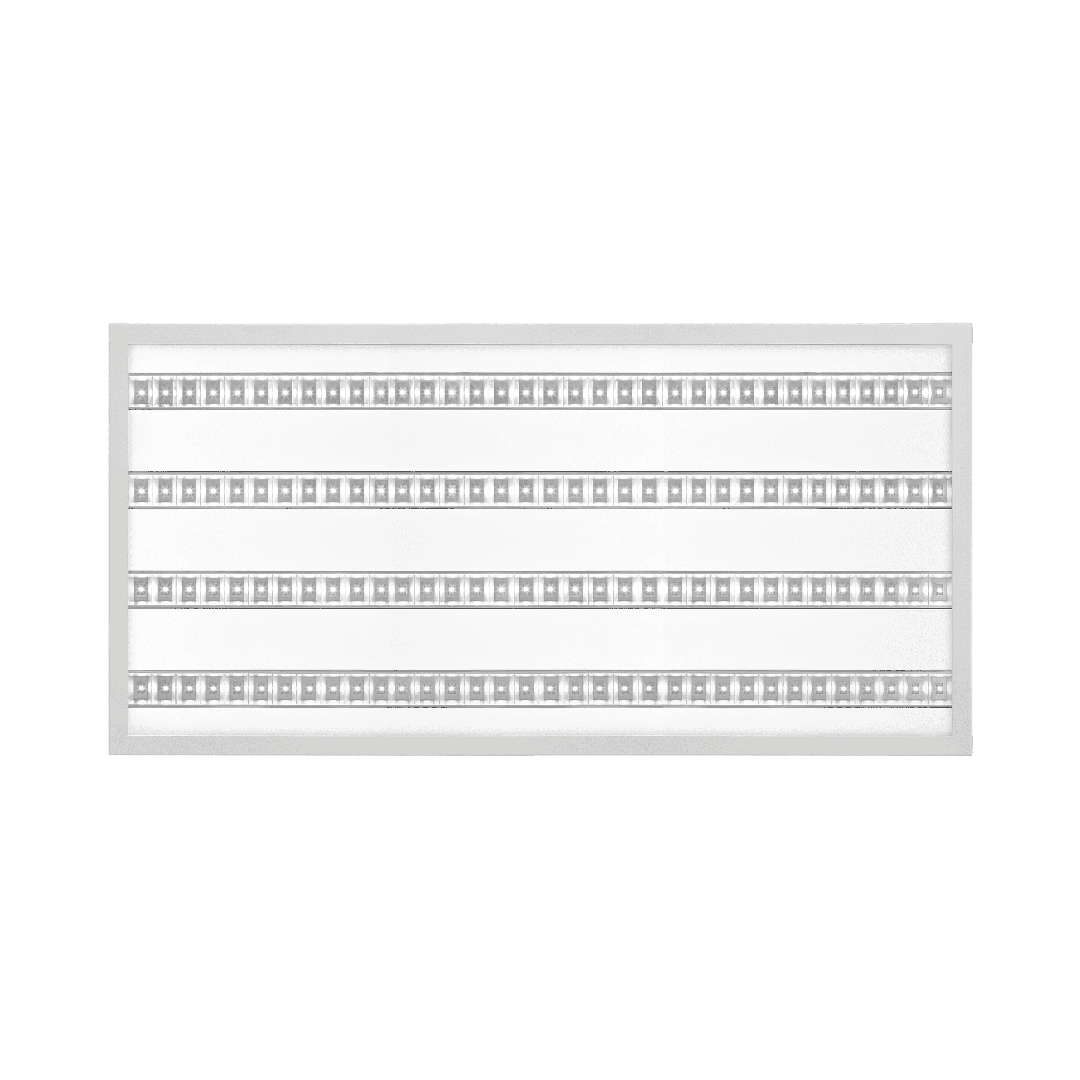

Fitting with high ingress protection class IP65, suitable for surface and flush mounting in modular ceilings. It is equipped with patented HE reflector which reduces the effect of glare. Available with prismatic or opal diffuser. Option with a color rendering index CRI (Ra)>90 available on request. Specification: color temperature 4000K; CRI>90; lifespan of LED modules: 50 000 hours (L70B50) ta = 25°C.

Application

Luminaire intended for indoor use in medical and laboratory rooms as well as in industrial facilities (especially in food, pharmaceuticals, cosmetics), where you need high ingress protection class and the highest lighting parameters.

CRI(Ra) >90 (on request)

CRI index (Ra) is a factor determining the degree of color rendering. The higher the value, the more natural the colors. Ra>90 means comfort for the eyes and greater ability to recognize colors and their shades. Fittings with such a high rate are used in rooms where high accuracy in color rendering is required (operating rooms, surgeries).

Options

Nominal power [W]	Colour temperature [K]	Luminous flux [lm]	Diffuser type	Optics	DIMM DALI	Dimensions [mm]	Electrical protection class	Index
surface
32	4000	2850	transparent	HE	-	1195/295/50	I	259166
48	4000	4400	OPAL	-	-	1195/295/70	II	259210
128	4000	10250	transparent	HE	-	1195/595/50	I	259197
96	4000	8800	OPAL	-	-	1195/595/70	I	259234
32	4000	2850	transparent	HE	-	595/595/50	I	259159
48	4000	4400	OPAL	-	-	595/595/70	II	259203
recessed
32	4000	2850	transparent	HE	-	1195/295/50	I	259012
48	4000	4400	OPAL	-	-	1195/295/70	I	259067
64	4000	5100	transparent	HE	-	1195/595/50	I	259036
128	4000	10250	transparent	HE	-	1195/595/50	I	259043
96	4000	8800	OPAL	-	-	1195/595/70	II	259081
32	4000	2850	transparent	HE	-	595/595/50	I	259005
48	4000	4400	OPAL	-	-	595/595/70	II	259050

Accessories

Hide accessories

Index	Accessory name
999543	Plasterboard recessing kit 630x630 white (steel version)

Plasterboard recessing kit 630x630 white (steel version) (999543)
