Specification

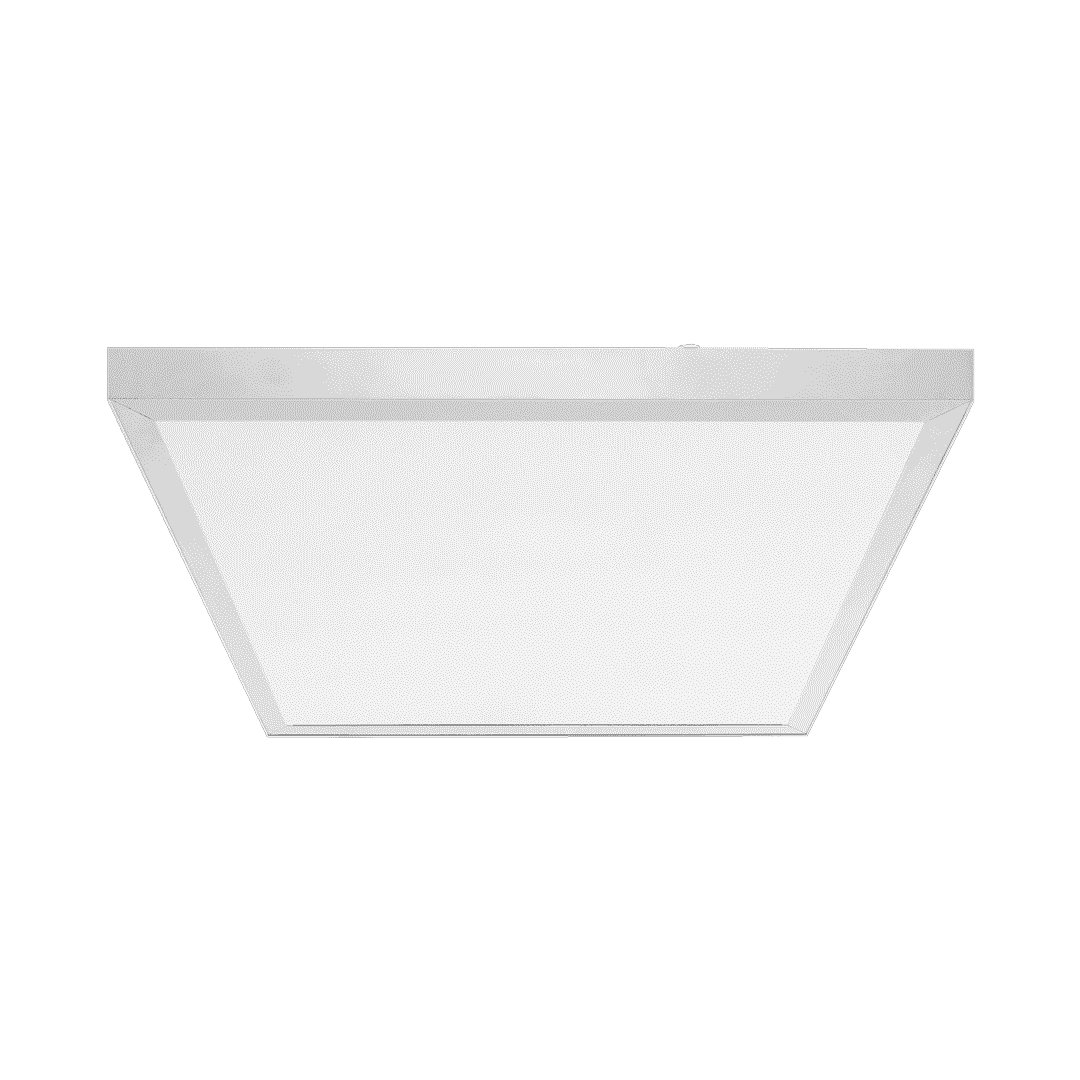

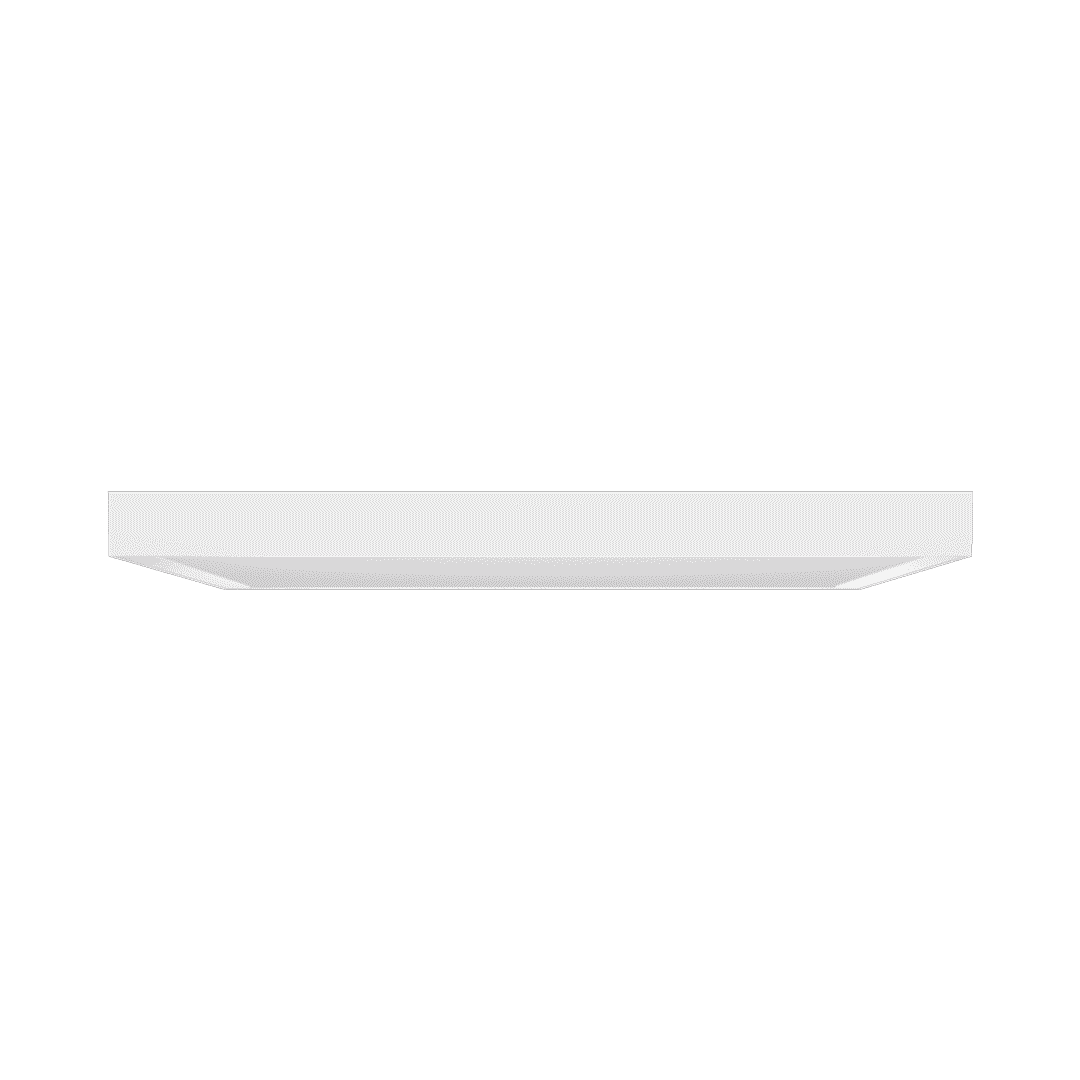

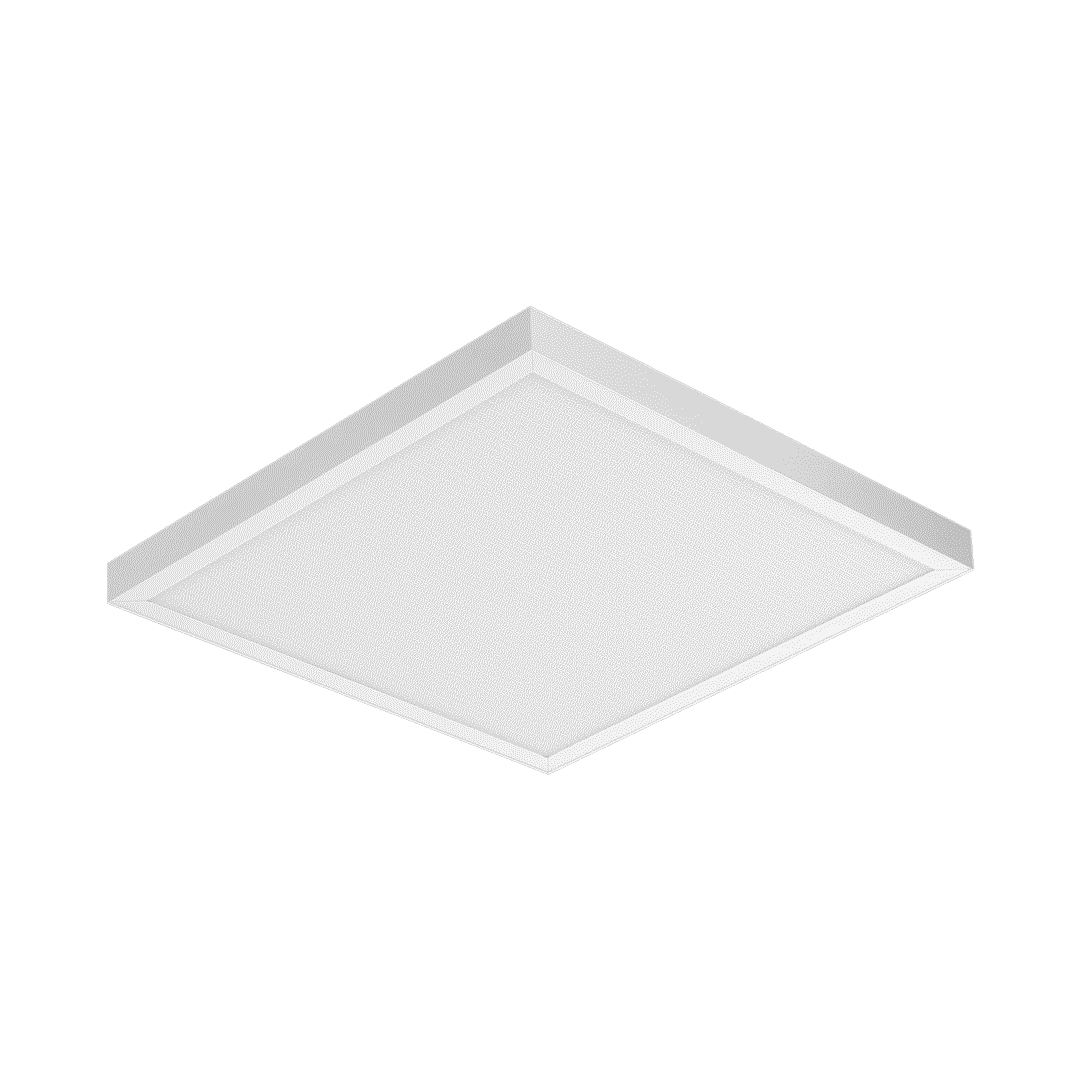

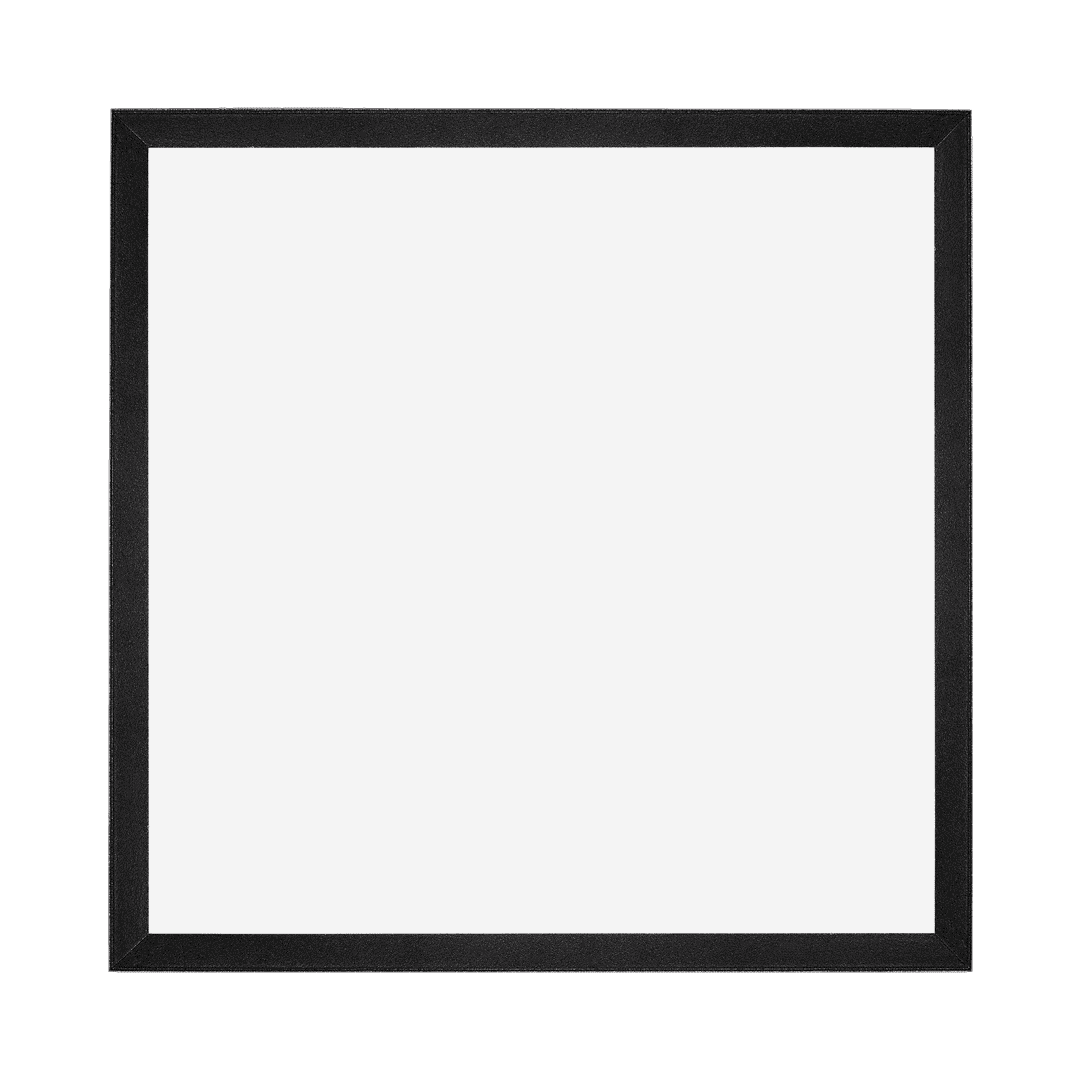

Sq 600 LED is a new line of square luminaires. The construction, designed from scratch, introduces new solutions ensuring excellent lighting parameters. The body is made of plastic, therefore it is characterized by low weight. The diffuser provides excellent light transmission. The integrated LED module guarantees low power consumption and all the advantages of modern LED light sources.

The luminaire is available in 2 versions:

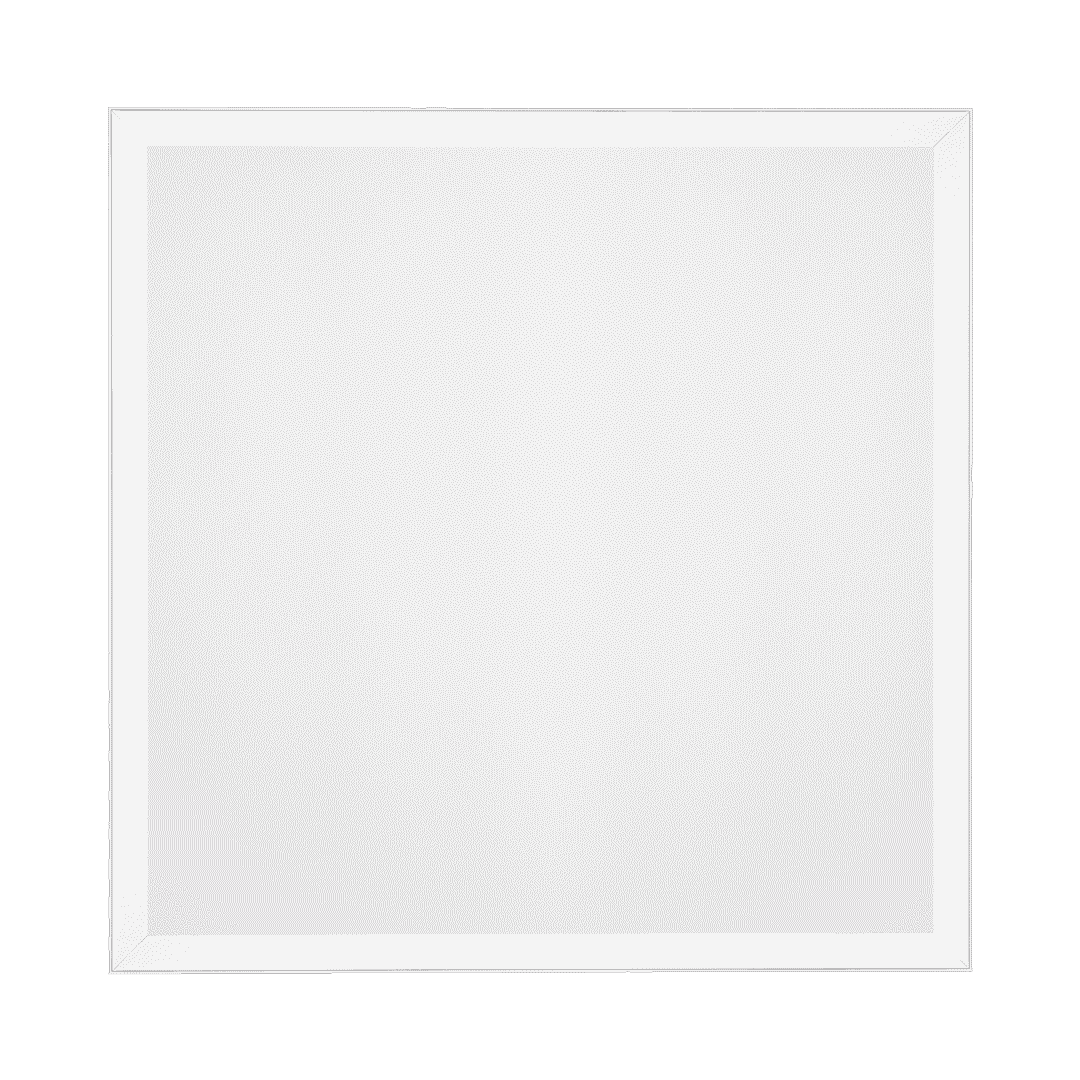

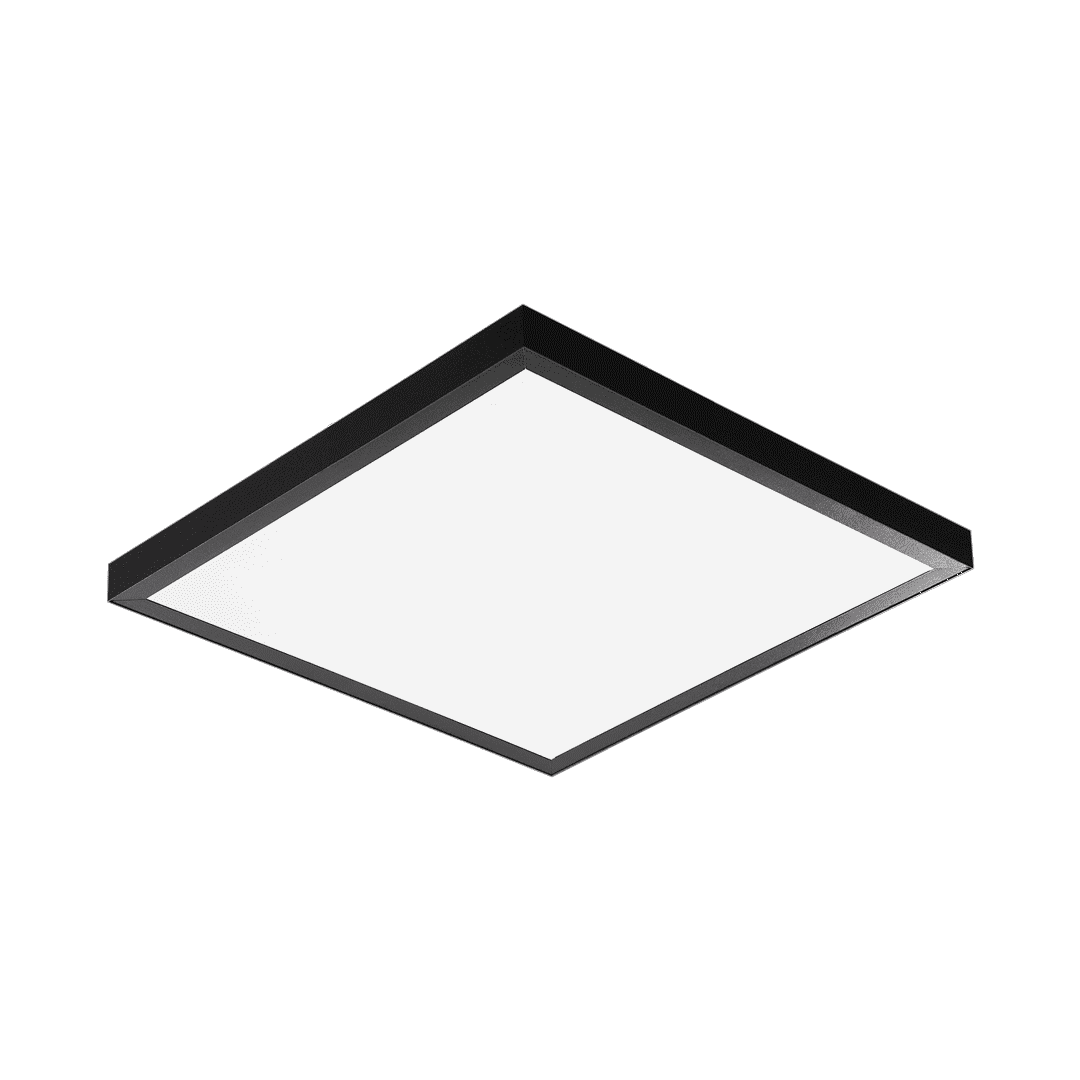

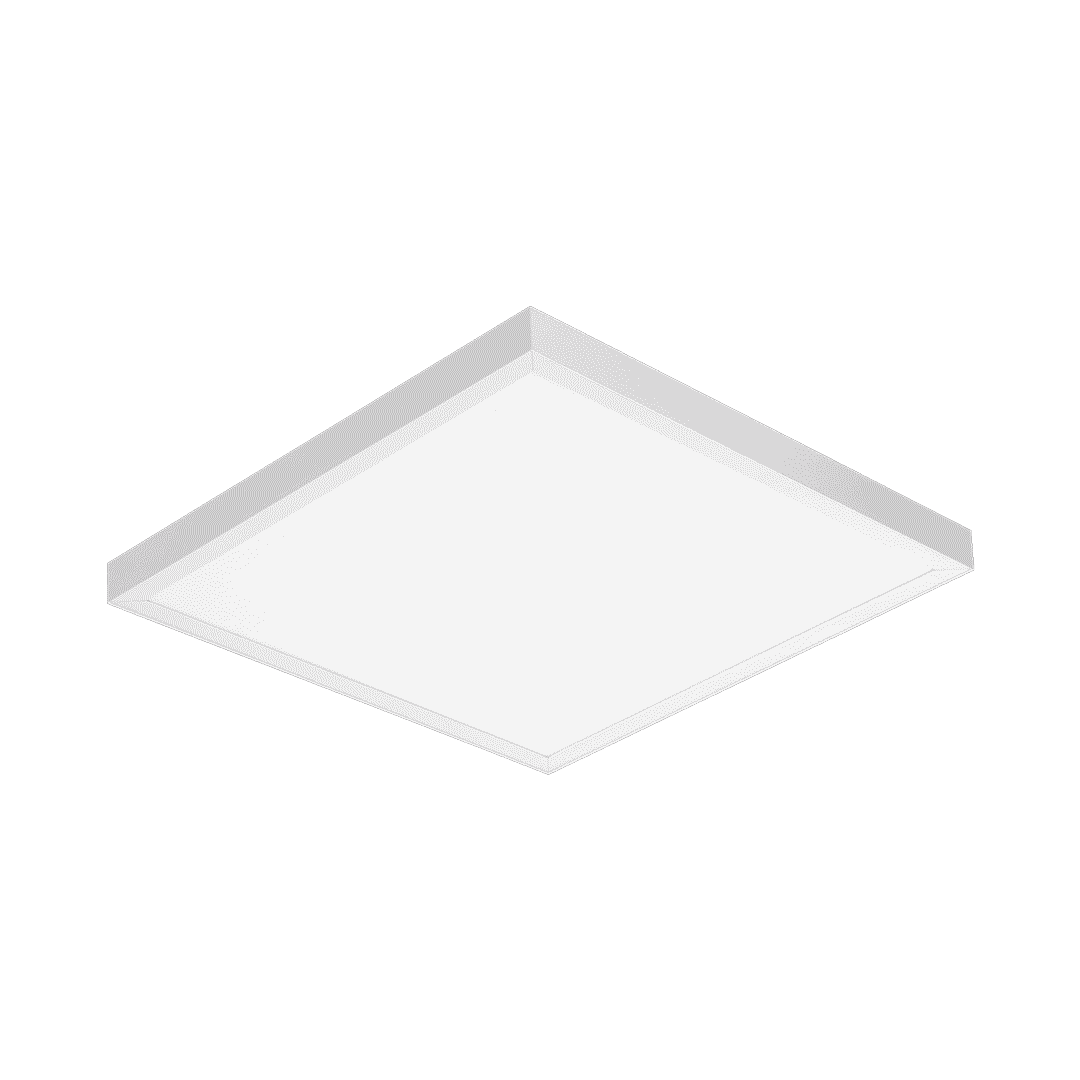

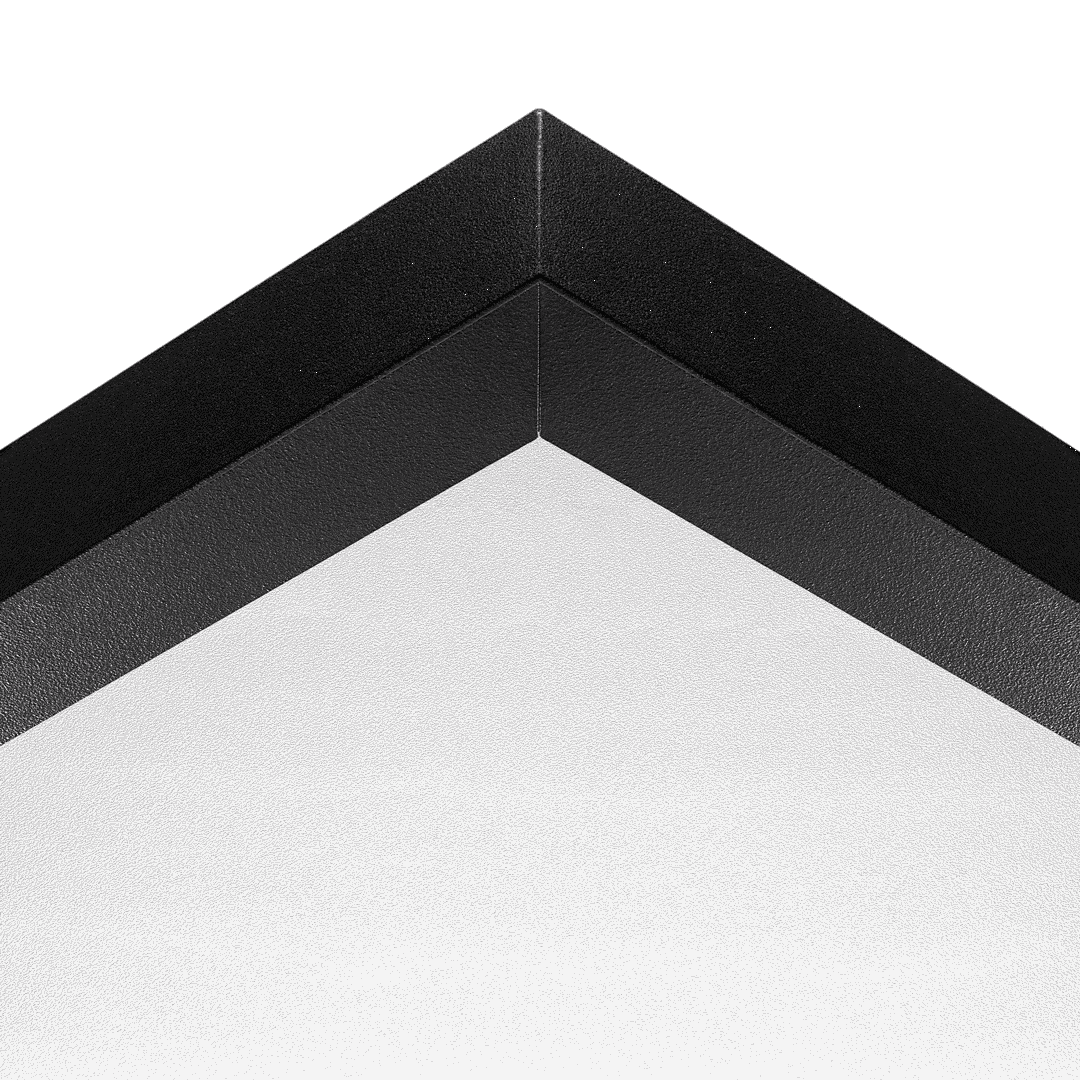

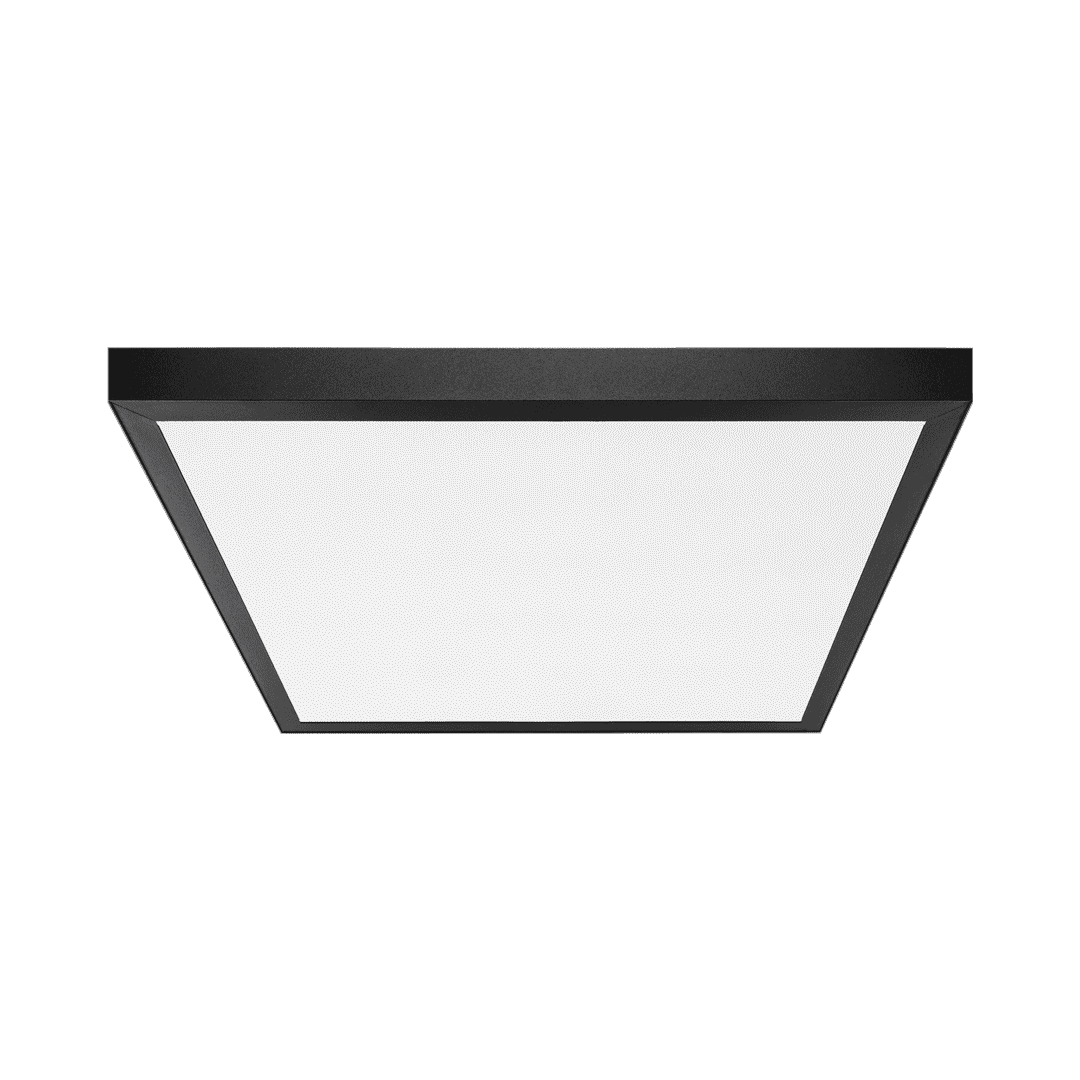

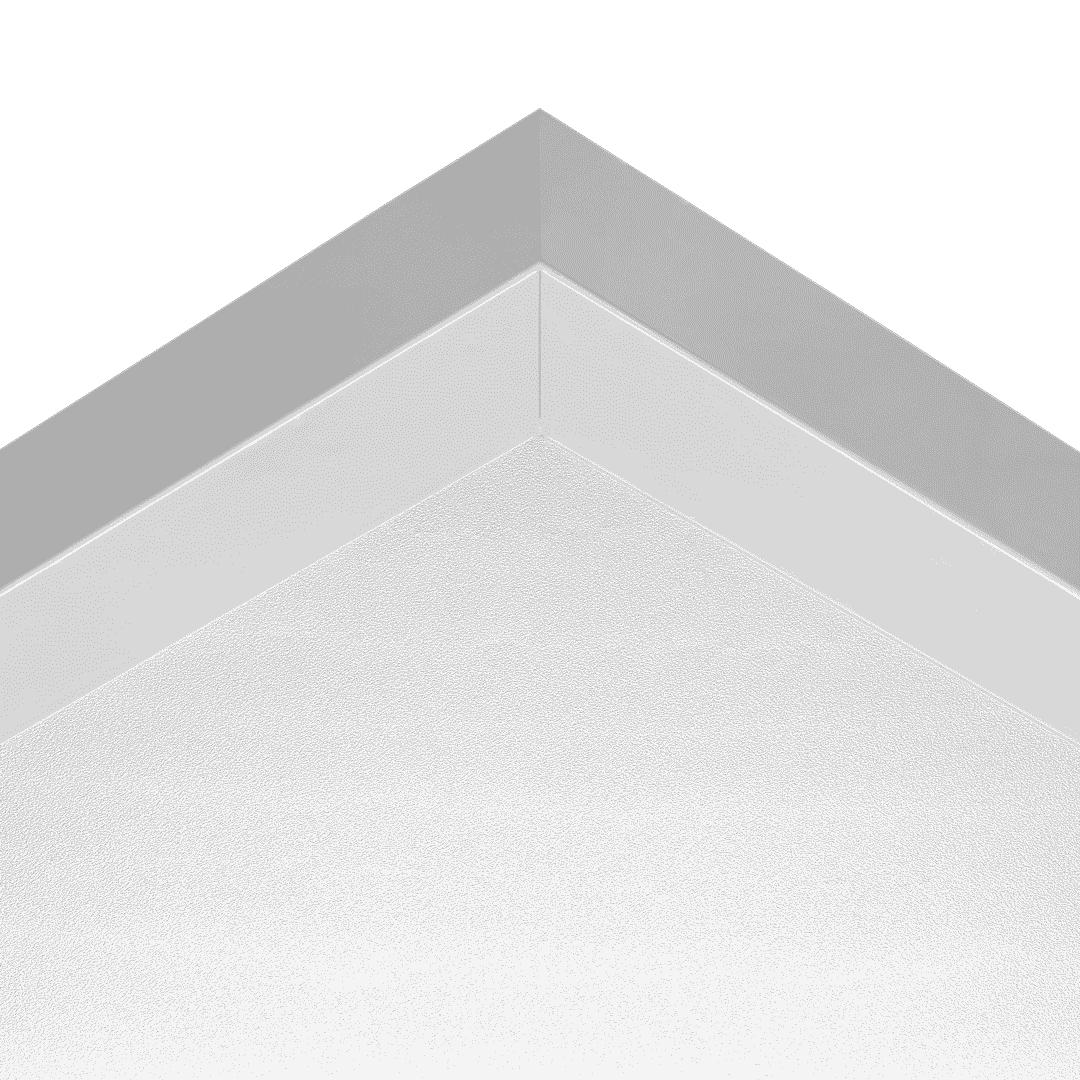

  • - with OPAL diffuser - providing soft light;

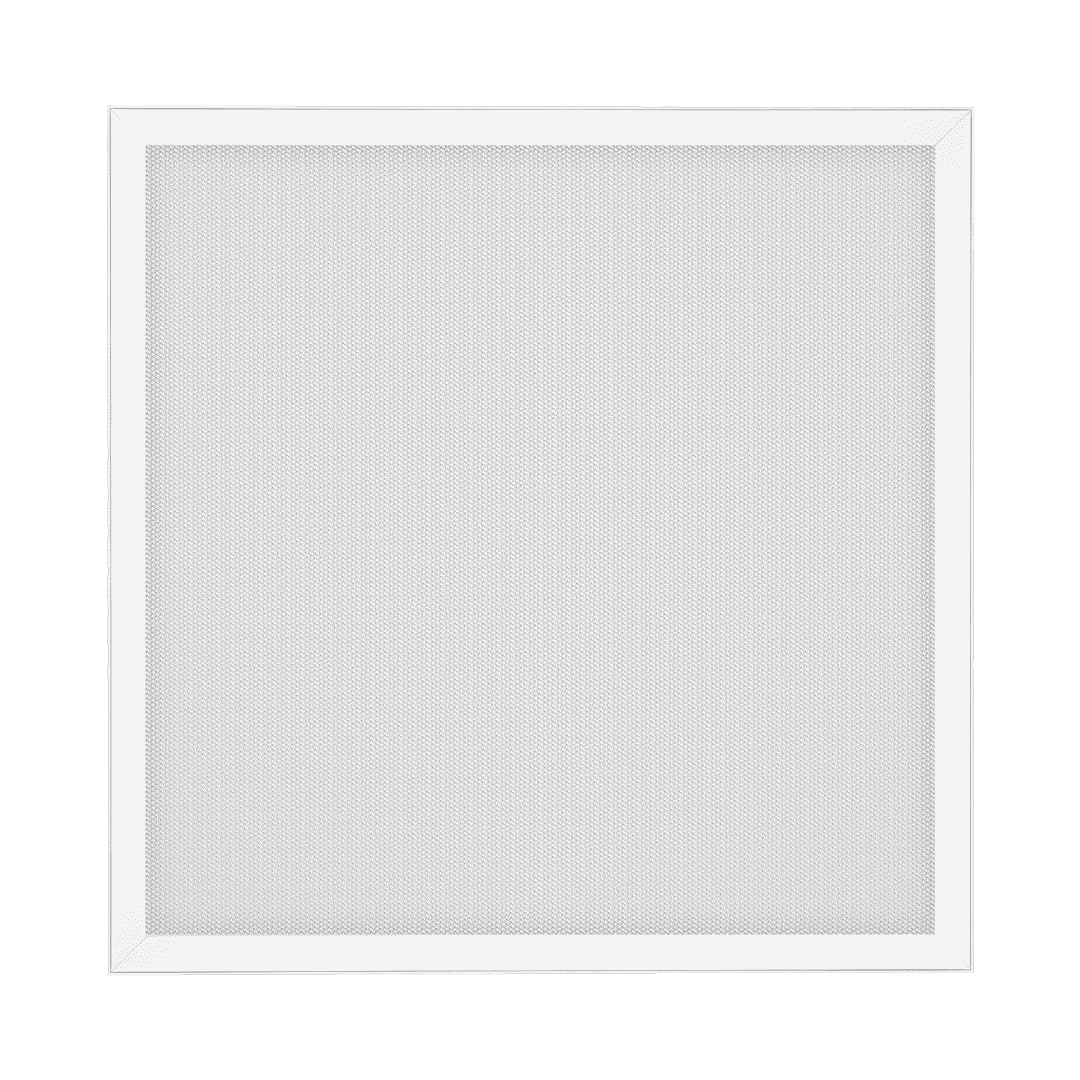

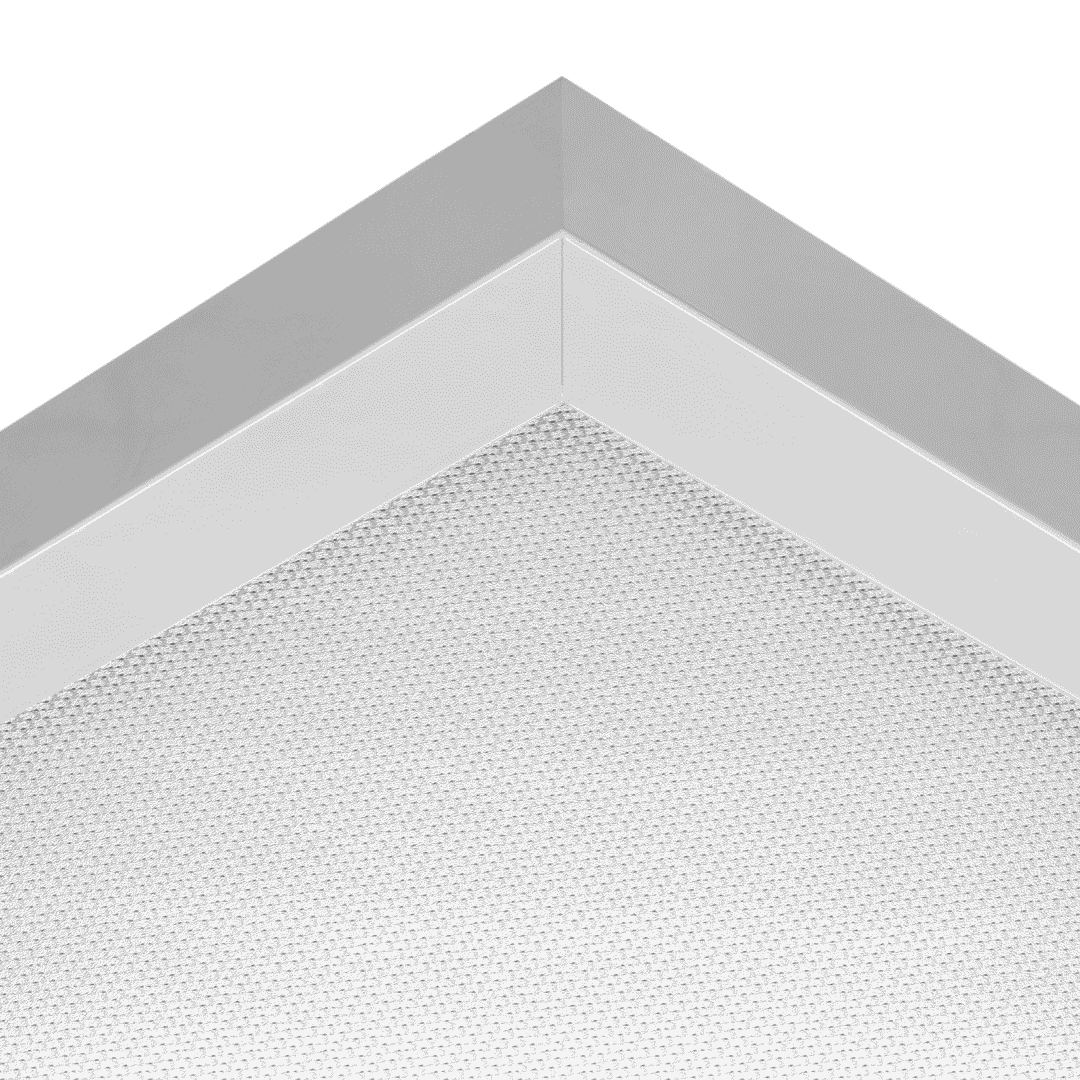

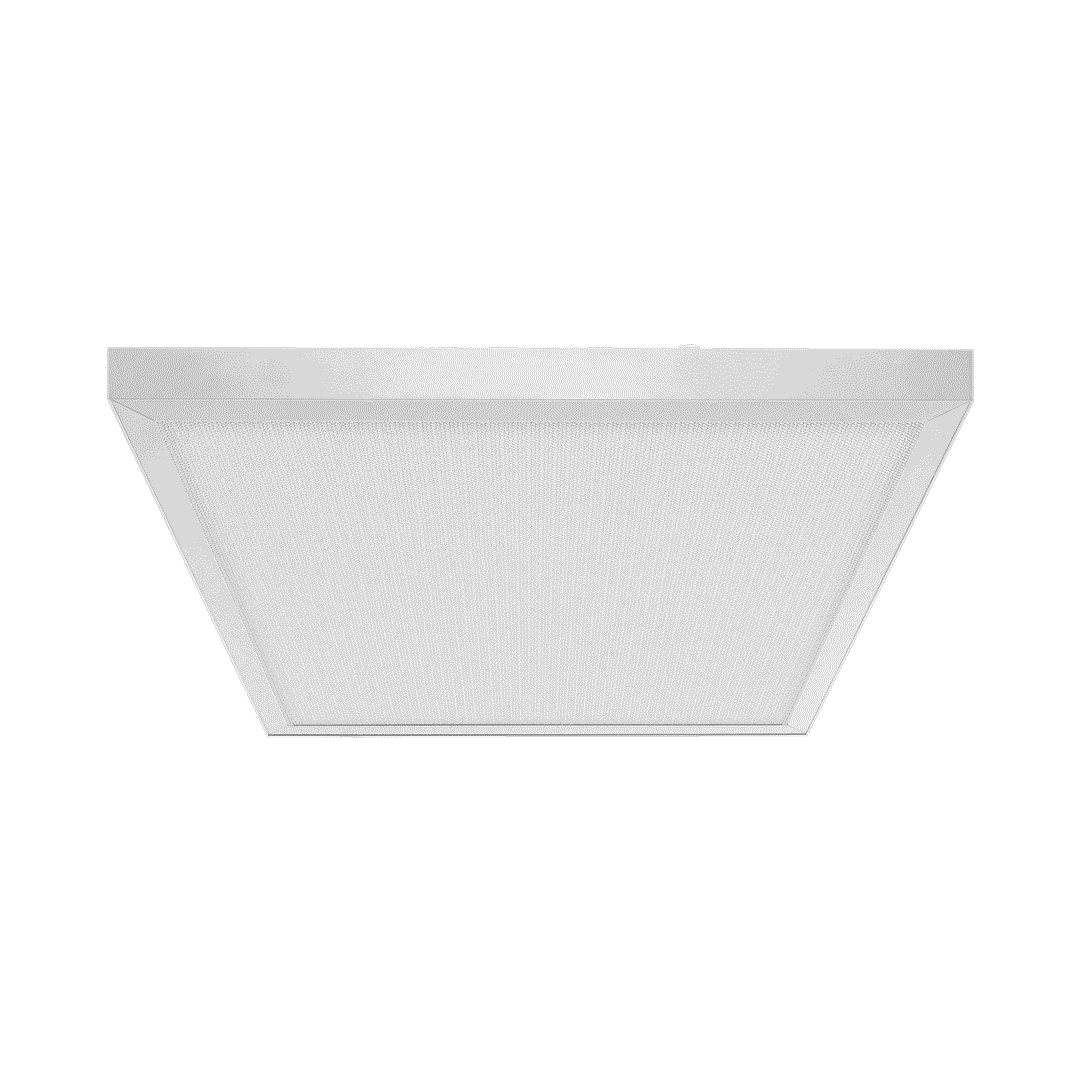

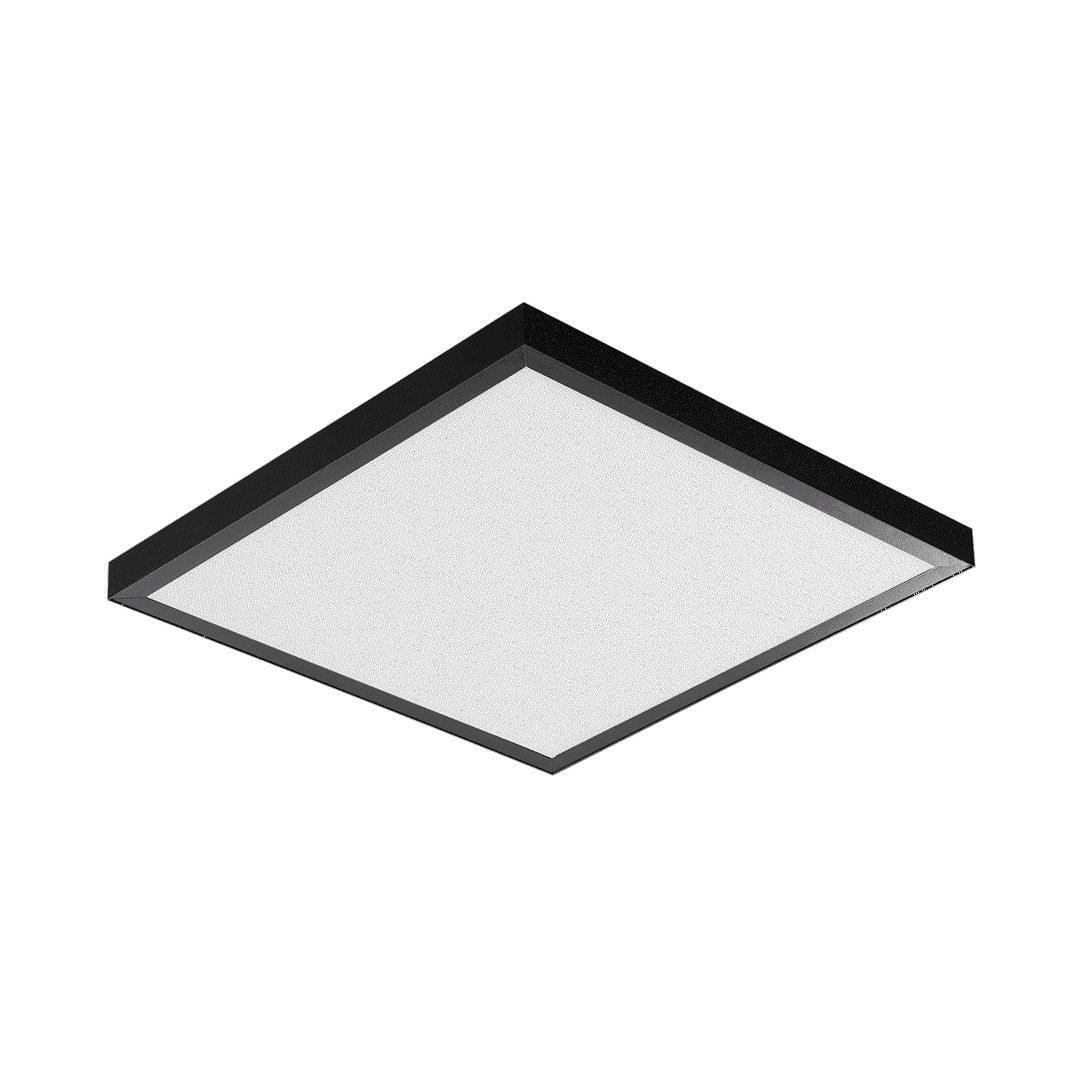

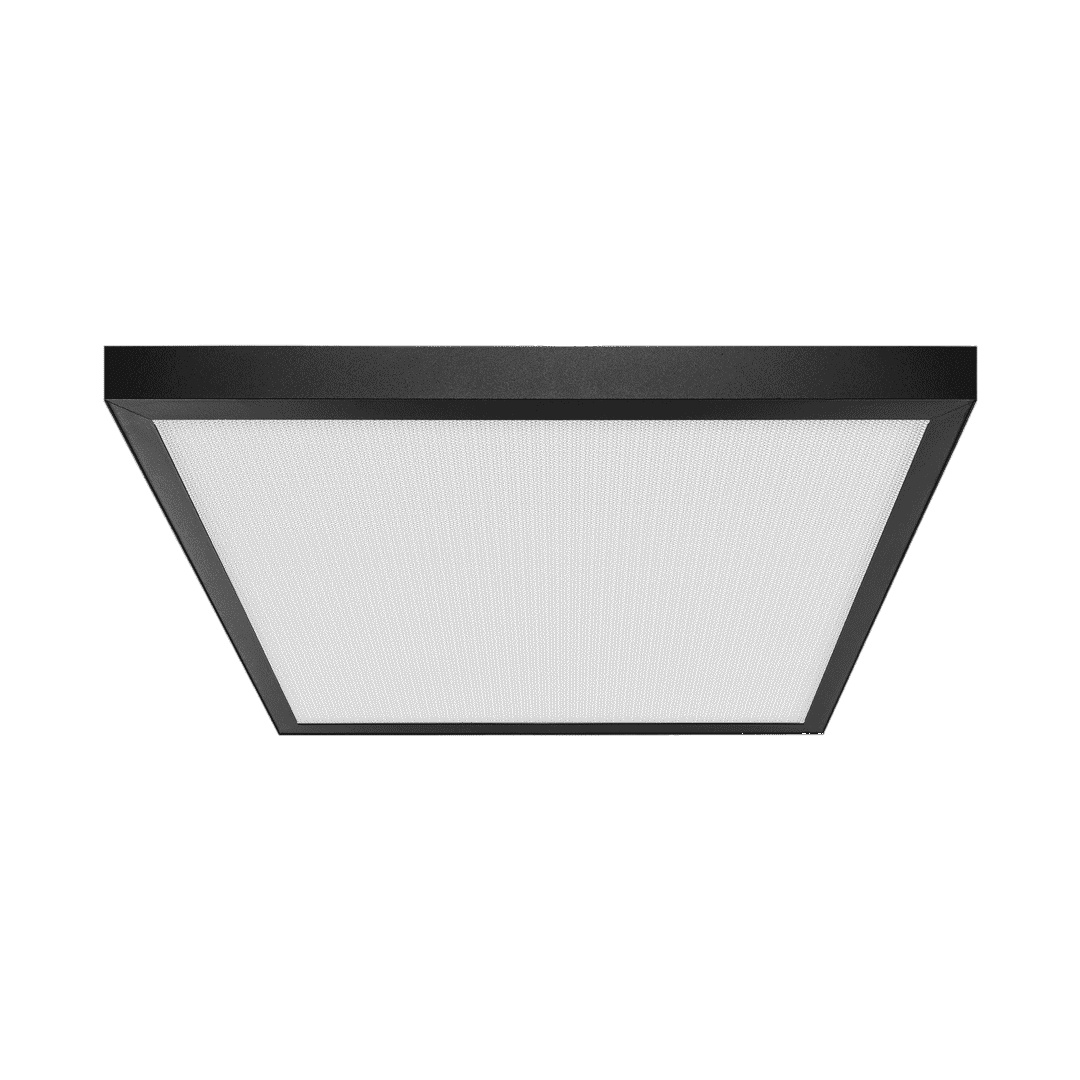

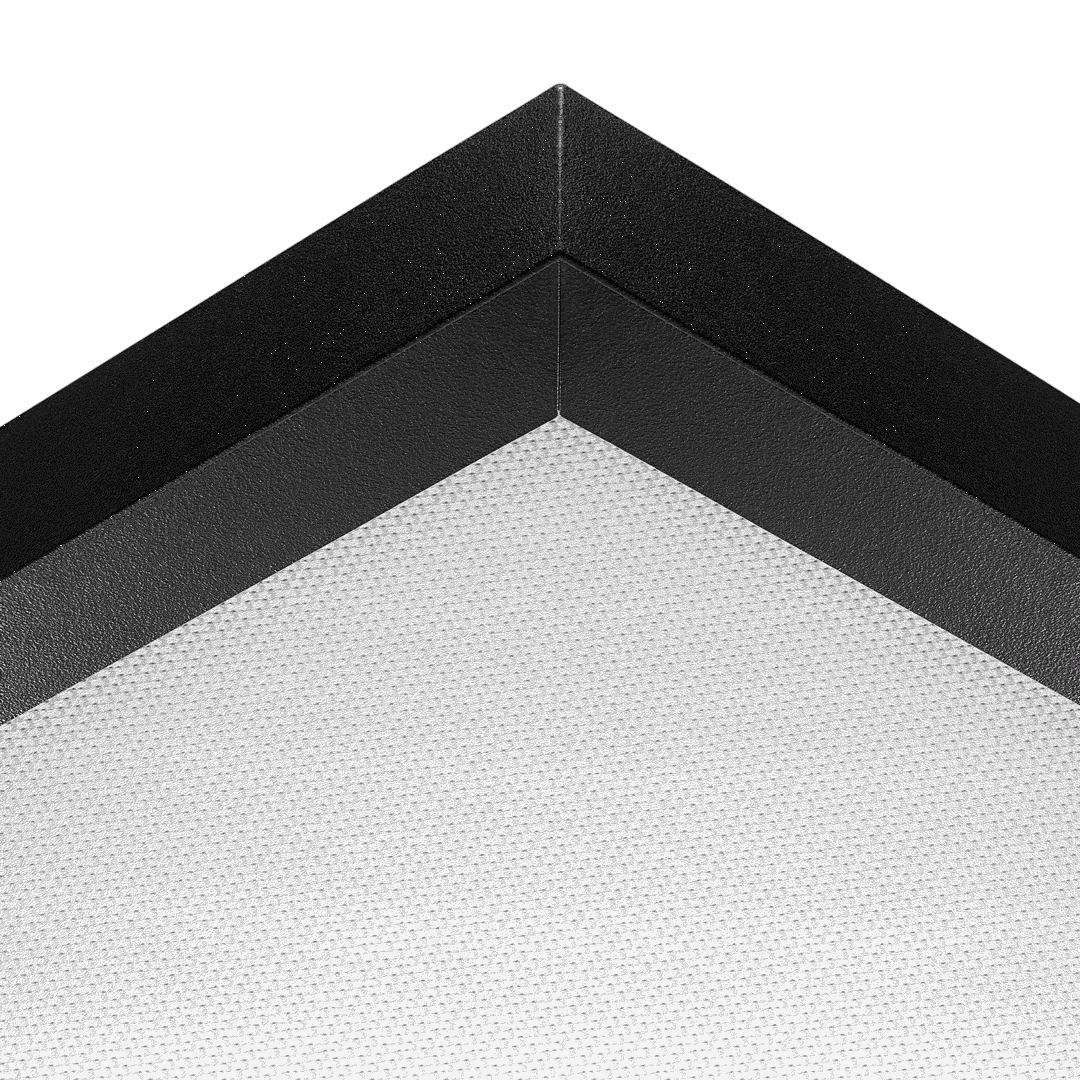

  • - with PRM diffuser - with higher luminous efficiency and low glare UGR <19 (18W, 24W, 32W versions).
  • Available options:

  • - RCR sensor - sensor used for motion detection, without twilight detection option; uses microwaves for detection (active sensor),
  • - control in the DALI standard,
  • - CORRIDOR corridor function (RCR + DALI).
  • The ingress protection- depends on the method of installation:

  • - surface mounted - IP20,
  • - flush-mounted - IP44/20.
  • Application

    Surface-mounted luminaire with the possibility of flush-mounting in modular ceilings and in plasterboard ceilings (using plasterboard recessing kit) is especially recommended for offices, spacious corridors, and public spaces.

    Other products from the Sq LED family

    See our luminaires on the BIMobject platform

    Options
    Nominal power [W]Colour temperature [K]Luminous flux [lm]Diffuser typeUGRMotion sensorDIMM DALICorridor functionEmergency lighting [h]Colour of the bodyIndex
    SQ 600 LED OPAL
    29 3000 2900 OPAL - - yes - - white 668036
    29 3000 2900 OPAL - - - - - white 668012
    29 3000 2900 OPAL - yes - - - white 668050
    29 4000 3100 OPAL - - yes - - white 668029
    29 4000 3100 OPAL - - - - - white 668005
    29 4000 3100 OPAL - yes - - - white 668043
    29 4000 3100 OPAL - yes yes yes - white 668067
    29 3000 2900 OPAL - - - - 3 white 669316
    29 4000 3100 OPAL - - - - 3 white 669309

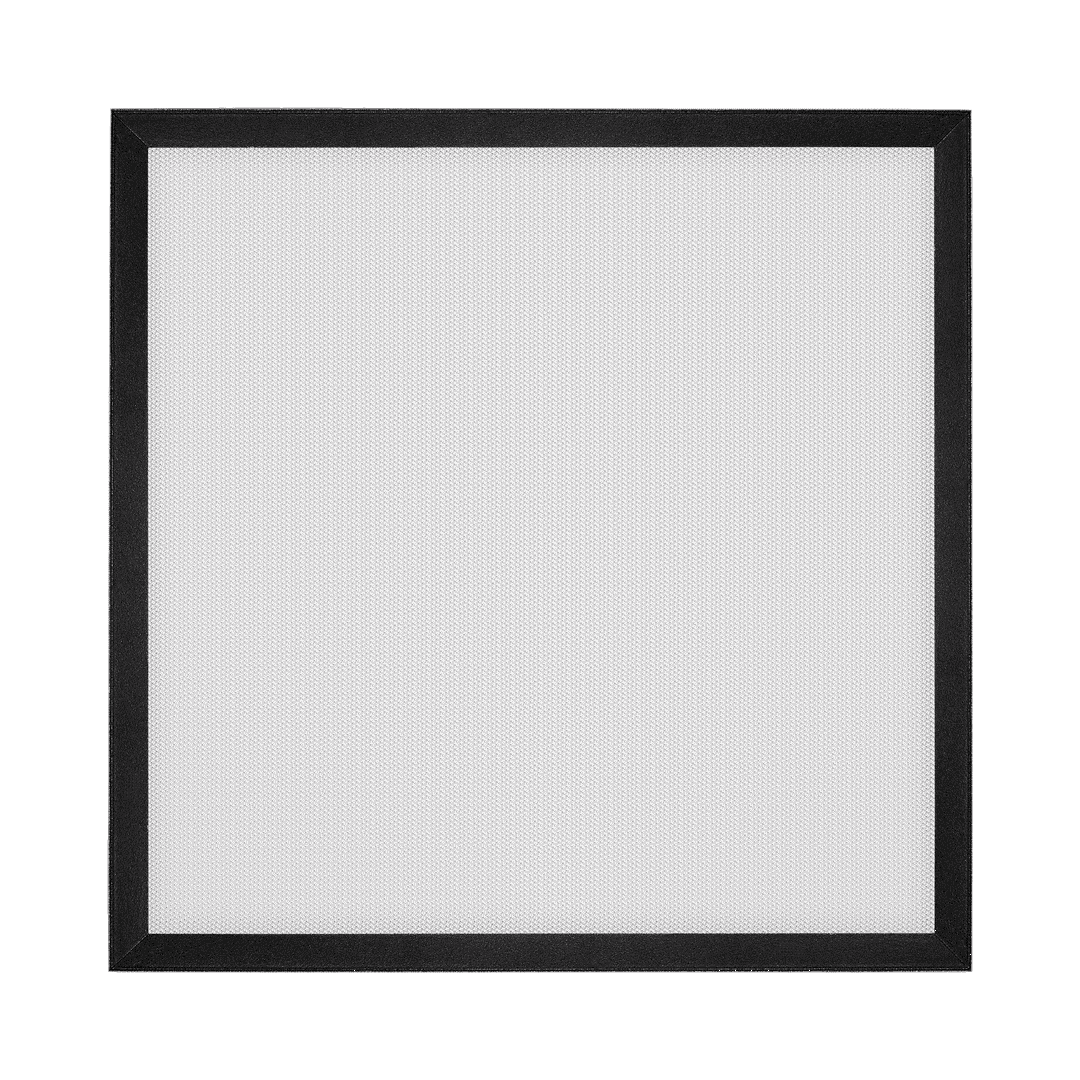

    29 3000 2900 OPAL - - yes - - black mat 668104
    29 3000 2900 OPAL - - - - - black mat 668081
    29 3000 2900 OPAL - yes - - - black mat 668128
    29 4000 3100 OPAL - - yes - - black mat 668098
    29 4000 3100 OPAL - - - - - black mat 668074
    29 4000 3100 OPAL - yes - - - black mat 668111
    29 3000 2900 OPAL - - - - 3 black mat 669330
    29 4000 3100 OPAL - - - - 3 black mat 669323
    37 3000 3500 OPAL - - yes - - white 668166
    37 3000 3500 OPAL - - - - - white 668142
    37 3000 3500 OPAL - yes - - - white 668180
    37 4000 3700 OPAL - - yes - - white 668159
    37 4000 3700 OPAL - - - - - white 668135
    37 4000 3700 OPAL - yes yes yes - white 668197
    37 4000 3700 OPAL - yes - - - white 668173
    37 3000 3500 OPAL - - - - 3 white 669354
    37 4000 3700 OPAL - - - - 3 white 669347
    37 3000 3500 OPAL - - yes - - black mat 668234
    37 3000 3500 OPAL - - - - - black mat 668210
    37 3000 3500 OPAL - yes - - - black mat 668258
    37 4000 3700 OPAL - - yes - - black mat 668227
    37 4000 3700 OPAL - - - - - black mat 668203
    37 4000 3700 OPAL - yes - - - black mat 668241
    37 3000 3500 OPAL - - - - 3 black mat 669378
    37 4000 3700 OPAL - - - - 3 black mat 669361
    45 3000 4100 OPAL - - yes - - white 668296
    45 3000 4100 OPAL - - - - - white 668272
    45 3000 4100 OPAL - yes - - - white 668319
    45 4000 4400 OPAL - - yes - - white 668289
    45 4000 4400 OPAL - - - - - white 668265
    45 4000 4400 OPAL - yes yes yes - white 668326
    45 4000 4400 OPAL - yes - - - white 668302
    45 3000 4100 OPAL - - - - 3 white 669392
    45 4000 4400 OPAL - - - - 3 white 669385
    45 3000 4100 OPAL - - yes - - black mat 668364
    45 3000 4100 OPAL - - - - - black mat 668340
    45 3000 4100 OPAL - yes - - - black mat 668388
    45 4000 4400 OPAL - - yes - - black mat 668357
    45 4000 4400 OPAL - - - - - black mat 668333
    45 4000 4400 OPAL - yes - - - black mat 668371
    45 3000 4100 OPAL - - - - 3 black mat 669415
    45 4000 4400 OPAL - - - - 3 black mat 669408
    SQ 600 LED PRM
    18 3000 2650 PRM <19 - yes - - white 668425
    18 3000 2650 PRM <19 - - - - white 668401
    18 3000 2650 PRM <19 yes - - - white 668449
    18 4000 2800 PRM <19 - yes - - white 668418
    18 4000 2800 PRM <19 - - - - white 668395
    18 4000 2800 PRM <19 yes - - - white 668432
    18 3000 2650 PRM - - - - 3 white 669439
    18 4000 2800 PRM - - - - 3 white 669422
    18 3000 2650 PRM <19 - yes - - black mat 668487
    18 3000 2650 PRM <19 - - - - black mat 668463
    18 3000 2650 PRM <19 yes - - - black mat 668500
    18 4000 2800 PRM <19 - yes - - black mat 668470
    18 4000 2800 PRM <19 - - - - black mat 668456
    18 4000 2800 PRM <19 yes - - - black mat 668494
    18 3000 2650 PRM - - - - 3 black mat 669453
    18 4000 2800 PRM - - - - 3 black mat 669446
    24 3000 3400 PRM <19 - yes - - white 668906
    24 3000 3400 PRM <19 - - - - white 668883
    24 3000 3400 PRM <19 yes - - - white 668920
    24 4000 3700 PRM <19 - yes - - white 668890
    24 4000 3700 PRM <19 - - - - white 668876
    24 4000 3700 PRM <19 yes - - - white 668913
    24 3000 3400 PRM - - - - 3 white 669477
    24 4000 3700 PRM - - - - 3 white 669460
    24 3000 3400 PRM <19 - yes - - black mat 668968
    24 3000 3400 PRM <19 - - - - black mat 668944
    24 3000 3400 PRM <19 yes - - - black mat 668982
    24 4000 3700 PRM <19 - yes - - black mat 668951
    24 4000 3700 PRM <19 - - - - black mat 668937
    24 4000 3700 PRM <19 yes - - - black mat 668975
    24 3000 3400 PRM - - - - 3 black mat 669491
    24 4000 3700 PRM - - - - 3 black mat 669484
    32 3000 4400 PRM <19 - yes - - white 668548
    32 3000 4400 PRM <19 - - - - white 668524
    32 3000 4400 PRM <19 yes - - - white 668562
    32 4000 4700 PRM <19 - yes - - white 668531
    32 4000 4700 PRM <19 - - - - white 668517
    32 4000 4700 PRM <19 yes - - - white 668555
    32 3000 4400 PRM - - - - 3 white 669514
    32 4000 4700 PRM - - - - 3 white 669507
    32 3000 4400 PRM <19 - yes - - black mat 668609
    32 3000 4400 PRM <19 - - - - black mat 668586
    32 3000 4400 PRM <19 yes - - - black mat 668623
    32 4000 4700 PRM <19 - yes - - black mat 668593
    32 4000 4700 PRM <19 - - - - black mat 668579
    32 4000 4700 PRM <19 yes - - - black mat 668616
    32 3000 4400 PRM - - - - 3 black mat 669538
    32 4000 4700 PRM - - - - 3 black mat 669521
    42 3000 5600 PRM - - yes - - white 668661
    42 3000 5600 PRM - - - - - white 668647
    42 3000 5600 PRM - yes - - - white 668685
    42 4000 6000 PRM - - yes - - white 668654
    42 4000 6000 PRM - - - - - white 668630
    42 4000 6000 PRM - yes - - - white 668678
    42 3000 5600 PRM - - - - 3 white 669552
    42 4000 6000 PRM - - - - 3 white 669545
    42 3000 5600 PRM - - yes - - black mat 668722
    42 3000 5600 PRM - - - - - black mat 668708
    42 3000 5600 PRM - yes - - - black mat 668746
    42 4000 6000 PRM - - yes - - black mat 668715
    42 4000 6000 PRM - - - - - black mat 668692
    42 4000 6000 PRM - yes - - - black mat 668739
    42 3000 5600 PRM - - - - 3 black mat 669576
    42 4000 6000 PRM - - - - 3 black mat 669569
    52 3000 6350 PRM - - yes - - white 669026
    52 3000 6350 PRM - - - - - white 669002
    52 3000 6350 PRM - yes - - - white 669040
    52 4000 6800 PRM - - yes - - white 669019
    52 4000 6800 PRM - - - - - white 668999
    52 4000 6800 PRM - yes - - - white 669033
    52 3000 6350 PRM - - - - 3 white 669590
    52 4000 6800 PRM - - - - 3 white 669583
    52 3000 6350 PRM - - yes - - black mat 669088
    52 3000 6350 PRM - - - - - black mat 669064
    52 3000 6350 PRM - yes - - - black mat 669101
    52 4000 6800 PRM - - yes - - black mat 669071
    52 4000 6800 PRM - - - - - black mat 669057
    52 4000 6800 PRM - yes - - - black mat 669095
    52 3000 6350 PRM - - - - 3 black mat 669613
    52 4000 6800 PRM - - - - 3 black mat 669606
    60 4000 8400 PRM - - yes - - white 668760
    60 4000 8400 PRM - - - - - white 668753
    60 4000 8400 PRM - yes - - - white 668777
    60 4000 8400 PRM - - - - 3 white 669620
    60 4000 8400 PRM - - yes - - black mat 668791
    60 4000 8400 PRM - - - - - black mat 668784
    60 4000 8400 PRM - yes - - - black mat 668807
    60 4000 8400 PRM - - - - 3 black mat 669637
    73 4000 10900 PRM - - yes - - white 668821
    73 4000 10900 PRM - - - - - white 668814
    73 4000 10900 PRM - yes - - - white 668838
    73 4000 10907 PRM - - - - 3 white 669644
    73 4000 10900 PRM - - yes - - black mat 668852
    73 4000 10900 PRM - - - - - black mat 668845
    73 4000 10900 PRM - yes - - - black mat 668869
    73 4000 10907 PRM - - - - 3 black mat 669651
     NameIndex
    plasterboard recessing kit 630x630 white 999543

    COMPACT LED EVO P Ramka adapter KG 630x630 mm
