Downloads

Specification

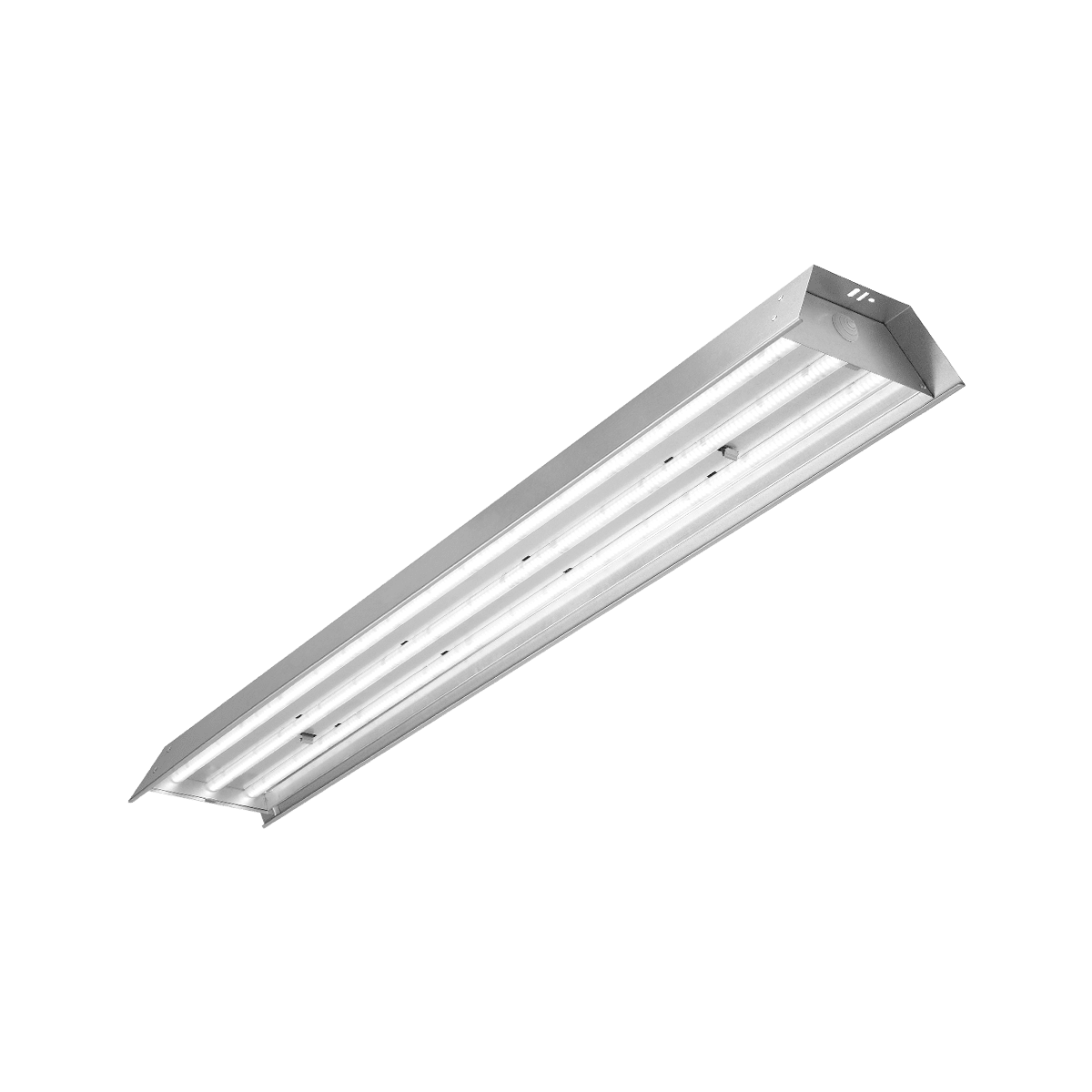

Galvanized steel sheet Industrial luminaire with IP23, with in-built energy-saving, LED modules. Thanks to line lenses, the following light distribution angles, are available: 90º, 60º, 45º. Colour temperature 4000K, CRI>80.Standard Deviation Colour Matching (SDCM): ≤3.

Application

Luminaire intended for warehouses, large stores, production halls, and sports facilities. Meant for new installations and replacement of traditional T8 & T5 luminaires with energy-saving LED sources.

Other products from the Industry LED

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Beam angle [°]	DIMM DALI	Through wiring	Dimensions (H/W/T/S) [mm]	Index
45W
45	4000	6800	45	yes	LS1	1210/137/70	672224
45	4000	6800	45	yes	LS2	1210/137/70	672231
45	4000	6800	45	-	LS1	1210/137/70	672200
45	4000	6800	45	-	LS2	1210/137/70	672217
45	4000	6950	60	yes	LS1	1210/137/70	672422
45	4000	6950	60	yes	LS2	1210/137/70	672439
45	4000	6950	60	-	LS1	1210/137/70	672408
45	4000	6950	60	-	LS2	1210/137/70	672415
45	4000	7000	90	yes	LS1	1210/137/70	672026
45	4000	7000	90	yes	LS2	1210/137/70	672033
45	4000	7000	90	-	LS1	1210/137/70	672002
45	4000	7000	90	-	LS2	1210/137/70	672019
61W
61	4000	8600	45	yes	LS1	1210/137/70	973437
61	4000	8600	45	yes	LS2	1210/137/70	973376
61	4000	8600	45	-	LS1	1210/137/70	973420
61	4000	8600	45	-	LS2	1210/137/70	973369
61	4000	8800	60	yes	LS1	1210/137/70	973413
61	4000	8800	60	yes	LS2	1210/137/70	973352
61	4000	8800	60	-	LS1	1210/137/70	973406
61	4000	8800	60	-	LS2	1210/137/70	973345
61	4000	8850	90	yes	LS1	1210/137/70	973390
61	4000	8850	90	yes	LS2	1210/137/70	973338
61	4000	8850	90	-	LS1	1210/137/70	973383
61	4000	8850	90	-	LS2	1210/137/70	973321
66W
66	4000	9750	45	yes	LS1	1490/137/70	672262
66	4000	9750	45	yes	LS2	1490/137/70	672279
66	4000	9750	45	-	LS1	1490/137/70	672248
66	4000	9750	45	-	LS2	1490/137/70	672255
66	4000	9900	60	yes	LS1	1490/137/70	672460
66	4000	9900	60	yes	LS2	1490/137/70	672477
66	4000	9900	60	-	LS1	1490/137/70	672446
66	4000	9900	60	-	LS2	1490/137/70	672453
66	4000	10000	90	yes	LS1	1490/137/70	672064
66	4000	10000	90	yes	LS2	1490/137/70	672071
66	4000	10000	90	-	LS1	1490/137/70	672040
66	4000	10000	90	-	LS2	1490/137/70	672057
76W
76	4000	10700	45	yes	LS1	1490/137/70	973550
76	4000	10700	45	yes	LS2	1490/137/70	973499
76	4000	10700	45	-	LS1	1490/137/70	973543
76	4000	10700	45	-	LS2	1490/137/70	973482
76	4000	10950	60	yes	LS1	1490/137/70	973536
76	4000	10950	60	yes	LS2	1490/137/70	973475
76	4000	10950	60	-	LS1	1490/137/70	973529
76	4000	10950	60	-	LS2	1490/137/70	973468
76	4000	11000	90	yes	LS1	1490/137/70	973512
76	4000	11000	90	yes	LS2	1490/137/70	973451
76	4000	11000	90	-	LS1	1490/137/70	973505
76	4000	11000	90	-	LS2	1490/137/70	973444
91W
91	4000	13350	45	yes	LS1	1490/137/70	672309
91	4000	13350	45	yes	LS2	1490/137/70	672316
91	4000	13350	45	-	LS1	1490/137/70	672286
91	4000	13350	45	-	LS2	1490/137/70	672293
91	4000	13550	60	yes	LS1	1490/137/70	672507
91	4000	13550	60	yes	LS2	1490/137/70	672514
91	4000	13550	60	-	LS1	1490/137/70	672484
91	4000	13550	60	-	LS2	1490/137/70	672491
91	4000	13700	90	yes	LS1	1490/137/70	672101
91	4000	13700	90	yes	LS2	1490/137/70	672118
91	4000	13700	90	-	LS1	1490/137/70	672088
91	4000	13700	90	-	LS2	1490/137/70	672095
106W
106	4000	15300	45	yes	LS1	1490/137/70	672347
106	4000	15300	45	yes	LS2	1490/137/70	672354
106	4000	15300	45	-	LS1	1490/137/70	672323
106	4000	15300	45	-	LS2	1490/137/70	672330
106	4000	15550	60	yes	LS1	1490/137/70	672545
106	4000	15550	60	yes	LS2	1490/137/70	672552
106	4000	15550	60	-	LS1	1490/137/70	672521
106	4000	15550	60	-	LS2	1490/137/70	672538
106	4000	15700	90	yes	LS1	1490/137/70	672149
106	4000	15700	90	yes	LS2	1490/137/70	672156
106	4000	15700	90	-	LS1	1490/137/70	672125
106	4000	15700	90	-	LS2	1490/137/70	672132
134W
134	4000	19650	45	yes	LS1	1490/190/70	672385
134	4000	19650	45	yes	LS2	1490/190/70	672392
134	4000	19650	45	-	LS1	1490/190/70	672361
134	4000	19650	45	-	LS2	1490/190/70	672378
134	4000	20000	60	yes	LS1	1490/190/70	672583
134	4000	20000	60	yes	LS2	1490/190/70	672590
134	4000	20000	60	-	LS1	1490/190/70	672569
134	4000	20000	60	-	LS2	1490/190/70	672576
134	4000	20200	90	yes	LS1	1490/190/70	672187
134	4000	20200	90	yes	LS2	1490/190/70	672194
134	4000	20200	90	-	LS1	1490/190/70	672163
134	4000	20200	90	-	LS2	1490/190/70	672170
147W
147	4000	22900	45	yes	LS1	1490/190/70	973314
147	4000	22900	45	yes	LS2	1490/190/70	973253
147	4000	22900	45	-	LS1	1490/190/70	973307
147	4000	22900	45	-	LS2	1490/190/70	973246
147	4000	23350	60	yes	LS1	1490/190/70	973291
147	4000	23350	60	yes	LS2	1490/190/70	973239
147	4000	23350	60	-	LS1	1490/190/70	973284
147	4000	23350	60	-	LS2	1490/190/70	973222
147	4000	23600	90	yes	LS1	1490/190/70	973277
147	4000	23600	90	yes	LS2	1490/190/70	973215
147	4000	23600	90	-	LS1	1490/190/70	973260
147	4000	23600	90	-	LS2	1490/190/70	973208

Show more Show less

Accessories

Hide accessories

Index	Accessory name
541247	INDUSTRY LED suspension cord for chain (pack of 2)
543944	INDUSTRY LED pendant hook on wire (pack of 2)
541254	INDUSTRY LED protective grid 1490mm (60/72/90/102W)
908200	TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2)
540011	INDUSTRY LED raster 1210mm
540004	INDUSTRY LED raster 1490mm (60/72/90/102W)
541599	INDUSTRY LED protective grid 1210mm
539992	INDUSTRY LED protective grid 1490mm x3 (for 153W version)

INDUSTRY LED suspension cord for chain (pack of 2) (541247)

INDUSTRY LED pendant hook on wire (pack of 2) (543944)

INDUSTRY LED protective grid 1490mm (60/72/90/102W) (541254)

TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2) (908200)

INDUSTRY LED raster 1210mm (540011)

INDUSTRY LED raster 1490mm (60/72/90/102W) (540004)

INDUSTRY LED protective grid 1210mm (541599)

INDUSTRY LED protective grid 1490mm x3 (for 153W version) (539992)
