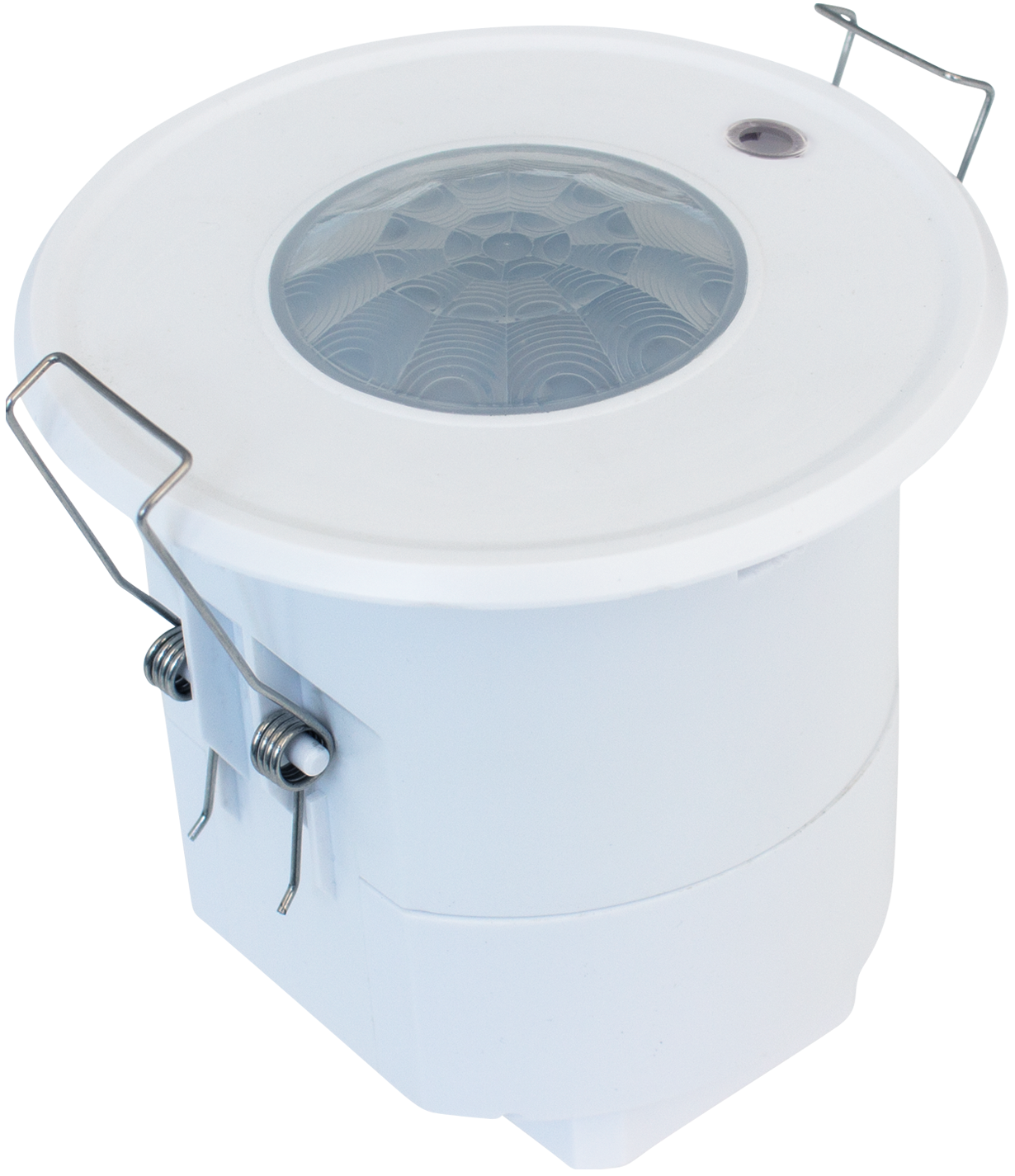

PIR motion sensors

In PIR sensors, motion detection is based on very precise temperature measurement. Any change in temperature, e.g. a gust of cold air into a heated room, or the entry of a person or animal, is treated as motion detection.

Technical specifications

Ask about this product

Options

Downloads

Specification

PIR sensors (Passive Infrared Sensors) in lighting control play an important role in automatically turning the light on and off depending on detected movement. PIR sensors are equipped with the ability to detect movement based on local temperature changes in the detection field. When the sensor detects movement, it initiates an appropriate response, such as turning on the light or selecting a scene. PIR technology offers very high sensitivity to rapid changes such as human movement. If the sensor is systemic, then when movement is detected, it sends a control signal to the lighting control system. Some PIR sensors allow for sensitivity adjustment, and special screens can limit the directionality of detection, which allows their operation to be adapted to specific conditions. PIR sensors also have the ability to set the time for which the lighting is kept on after movement is detected. Thanks to this, you can adjust how long the light remains on after the user leaves the sensor's detection field. Most PIR sensors from Lena Lighting S.A. offer It also has a daylight detection function, thanks to which the luminaires can automatically dim, maintaining a constant level of brightness in the room throughout the day.

Application

PIR (Passive Infrared) Sensors can be used in many places where motion-based lighting control is desired. Here are some examples of where PIR sensors can be used to control lighting:

Offices and Workplaces: In offices, manufacturing plants, or other workplaces, PIR sensors can control lighting based on employee presence. Lights will only turn on when movement is detected, which helps save energy.
Shops and Malls: In shops and shopping malls, PIR sensors can help provide the right lighting in the right places. They can respond to customer movement by turning on lights near shelves or sections where there is activity, and turning them off in less frequented areas.
Public Spaces: PIR sensors can be used in public spaces such as hallways in public buildings, stairwells, parking lots, and restrooms. By controlling lighting based on movement, they help ensure the right level of light while saving energy.
Outdoor lighting: PIR sensors are also used in outdoor lighting, such as in gardens, on terraces or around buildings. Motion detection allows the lights to be turned on automatically when someone approaches the building or walks through the yard.
Public toilets: In public toilets, PIR sensors can control the lights, turning them on only when a user is present. This is an effective solution that saves energy and ensures that the right lighting is provided when the toilet is used.

Options

Index	Name of part	System/communication	Dimming control	Maximum installation height for humans [m]	Ingress protection	CE declaration of conformity
624247	HB HEL DALI 322 IoT PIR sensor	DALI	yes	15	IP65	CE
624407	PIR RC HYT ON/OFF HIR28 IoT sensor	RC	no	6	IP20	CE
624476	PIR sensor BT HYT ON/OFF HBIR28/2CH IoT	Clue	no	6	IP20	CE
624483	PIR sensor BT HB HYT ON/OFF HBIR28/2CH/H IoT	Clue	no	12	IP20	CE
624704	PIR BT HYT DALI HBIR29/W IoT sensor	Clue	yes	6	IP20	CE
624759	PIR RC HB HYT ON/OFF HIR28/H IoT sensor	RC	no	12	IP20	CE
624780	PIR Sensor ZEN DALI-2 zc-5m-pir IoT	DALI-2	yes	2.7	IP20	CE
624797	PIR sensor HB ZEN DALI-2 zc-8m-pir IoT	DALI-2	yes	2.7	IP20	CE
624834	PIR sensor HYT DALI-2 HIR23/D2 IoT	DALI-2	yes	6	IP20	CE
624995	PIR sensor HYT DALI-2 HIR23/D2/W IoT	DALI-2	yes	6	IP20	CE
625268	HB HYT DALI-2 HIR23/D2/H IoT PIR sensor	DALI-2	yes	12	IP20	CE
625336	PIR sensor BT HYT DALI HBIR29/W in IP67 IoT box	Clue	yes	6	IP67	CE
625398	PIR RC HYT ON/OFF HIR28 RAL9005 IoT sensor	RC	no	6	IP20	CE
625404	BT HYT DALI HBIR29 PIR sensor in IP67 IoT box	Clue	yes	6	IP67	CE
625411	PIR sensor BT HYT ON/OFF HBIR28/H IoT	Clue	no	12	IP20	CE
625435	PIR sensor BT HYT DALI HBIR29 RAL9005 IoT	Clue	yes	6	IP20	CE
625442	PIR sensor BT HYT ON/OFF HBIR28 IoT	Clue	no	6	IP20	CE
625466	PIR sensor BT HYT ON/OFF HBIR28/W IoT	Clue	no	6	IP20	CE
625763	PIR sensor BT HB HYT DALI HBIR29/H in IP67 IoT box	Clue	yes	12	IP67	CE
IOT0033	PIR sensor BT HYT DALI busbar HBIR29/TK IoT	Clue	yes	6	IP20	CE
IOT0034	PIR sensor DALI-2 HYT busbar HIR61/TK IoT	DALI-2	yes	3	IP20	CE
IOT0047	PIR HEL DALI-2 320D2 IoT sensor	DALI-2	yes	2.5	IP30	CE
IOT0077	PIR NIK DALI-2 P46MR white IoT sensor	DALI-2	yes	3.5	IP20	CE
IOT0078	PIR NIK DALI-2 P46MR SnapFit white IoT sensor	DALI-2	yes	3.5	IP20	CE
IOT0079	PIR NIK DALI-2 P46MR sensor in IP54 box white IoT	DALI-2	yes	3.5	IP54	CE
IOT0080	PIR NIK DALI-2 P46LR white IoT sensor	DALI-2	yes	3.5	IP20	CE
IOT0081	PIR NIK DALI-2 P46LR SnapFit white IoT sensor	DALI-2	yes	3.5	IP20	CE
IOT0082	PIR NIK DALI-2 P46LR sensor in IP54 box white IoT	DALI-2	yes	3.5	IP54	CE
IOT0088	PIR sensor TRI ZHAGA SIDEREA PSensor SSI 31 2xPIR 8DP DG (28002642) IoT		yes	8	IP66	CE
IOT0095	PIR sensor HB HYT DALI-2 HIR23/D2/H IoT black RAL 9005	DALI-2	yes	12	IP20	CE
W02334	PIR HEL DALI-2 321 IoT sensor	DALI-2	yes	2.5	IP30	CE
WSE0010	PIR sensor BT HYT DALI HBIR29 IoT	Clue	yes	6	IP20	CE
WSE0015	PIR sensor BT HB HYT DALI HCD049/BT IoT	Clue	yes	12	IP65	CE
WSEL380	PIR RC HYT ON/OFF IP65 Sensor HC049S IoT	RC	no	12	IP65	CE
WSEL381	PIR RC HYT DALI IP65 HCD049 IoT sensor	RC	yes	12	IP65	CE
WSEL476	PIR sensor BT HB HYT DALI HBIR29/H IoT	Clue	yes	12	IP20	CE
IOT0050	PIR sensor BT HYT 1-10V HC049V_BT IoT	-	-	-		CE
W01162	PIR ON/OFF PRESCONTROL PRO (AL094-B) IoT sensor	-	no	3.5	IP20	CE

Show more Show less
