Control panels and cassettes

Control panels allow you to control the Lena Lighting Clue system from the wall.

Technical specifications

Downloads

Specification

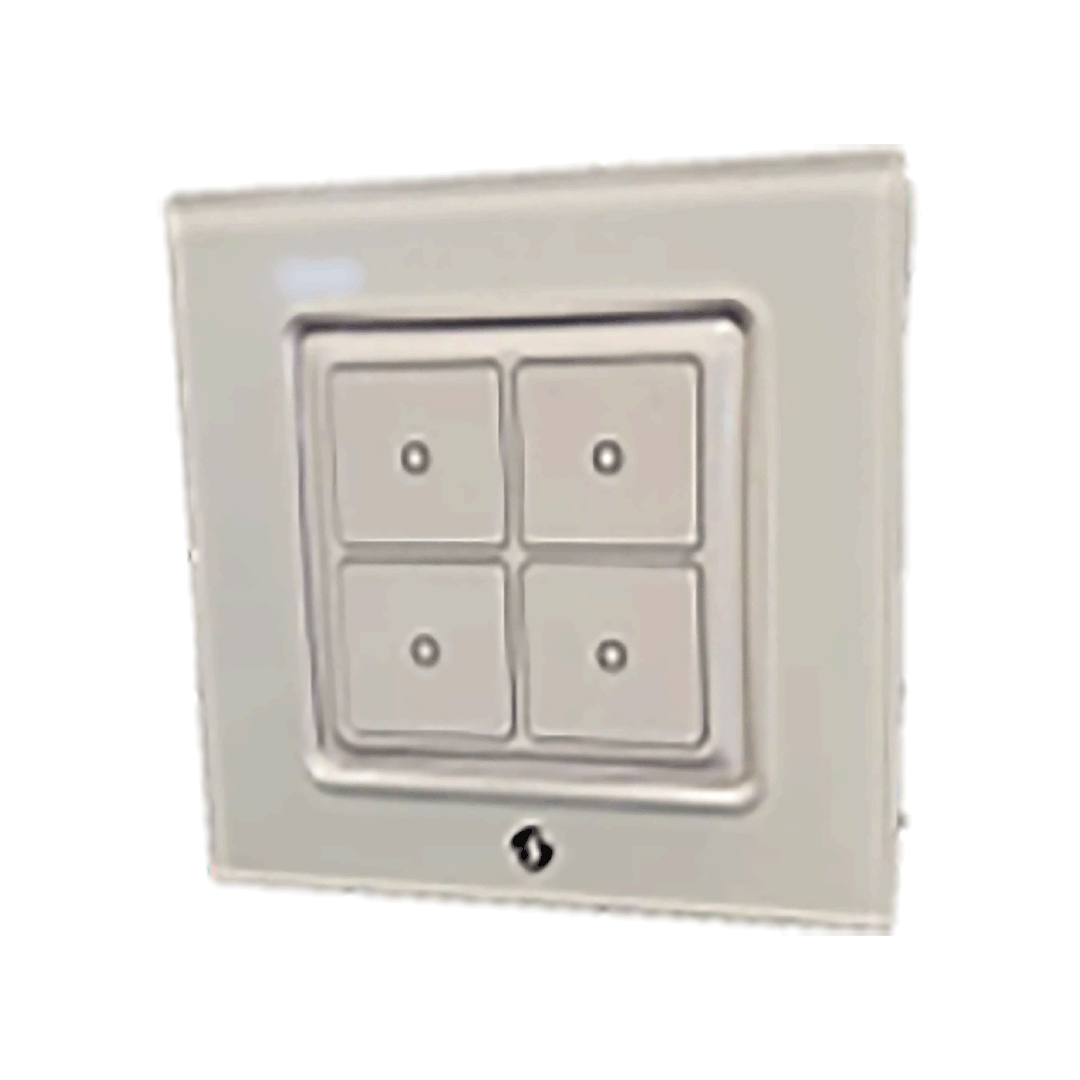

The control panel allows easy access to functions previously configured in the Lena Lighting Clue application. The user can set one of four scenes from the panel, as well as dim/brighten the luminaires connected to the panel and change their color temperature.

Push-button cassettes allow for the selection of four to twelve scenes, which, after prior configuration in the application, can turn on/off all lamps, change the intensity and color temperature of the light or activate the functions of motion/light sensors.

Application

Touch panels can be used in office spaces.

Push-button boxes will ideally meet the expectations of users in production and warehouse halls.

Options

Index	Name of part	System	Number of buttons	Ingress protection	CE declaration of conformity
11000488	DALI panel with potentiometer (controller) OSR 4062172224673 IoT	DALI	-	IP20	CE
624391	BT HYT CLUE IoT 2-button control box	Clue	2	IP67	CE
624414	BT HYT CLUE IoT 4-button control box	Clue	4	IP67	CE
624438	BT HYT CLUE IoT 6-button control box	Clue	6	IP67	CE
624469	BT HYT CLUE IoT 12-button control box	Clue	12	IP67	CE
624803	DALI-2 ZEN 4-Button Panel Without Frame (zc-sceneset-a4) IoT	DALI-2	4	IP20	CE
625367	SHE BT HYT 4-Button Panel Black IoT	Clue	4	IP20	CE
625534	DALI-2 IoT 4-button control box	DALI-2	4	IP67	CE
625541	DALI-2 IoT 12-button control box	DALI-2	12	IP67	CE
625589	6-button DALI-2 IoT control box	DALI-2	6	IP67	CE
IOT0085	SHE BT HYT 4-button panel white IoT	Clue	4	IP20	CE
W02998	DALI HEL ILLUSTRIS 191HW white IoT touch panel	DALI	6	IP30	CE
W02999	Touch panel DALI TW HEL ILLUSTRIS 192HW white IoT	DALI	6	IP30	CE
W03147	DALI TW HEL ILLUSTRIS 192PB Touch Panel Black IoT	DALI	6	IP30	CE
W03511	7-button panel DALI-2 HEL 135WD2 white IoT	DALI-2	7	IP30	CE
WSE0012	BT HYT HBP02 IoT Touch Panel	Clue	2	IP20	CE
WSE0026	BT HYT HBKS03/W 3-button panel white IoT	Clue	3	IP20	CE

Show more Show less
