Lumedic

Lumedic is a specialist Cleanroom luminaire designed for clean rooms with increased hygiene and sterility requirements.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	OPAL PRM
Mounting version	recessed
Dimensions [mm]	595/595/65
Application	medical

LED220-240vIik09IP65/50CE

Ask about this product

Options

Downloads

Specification

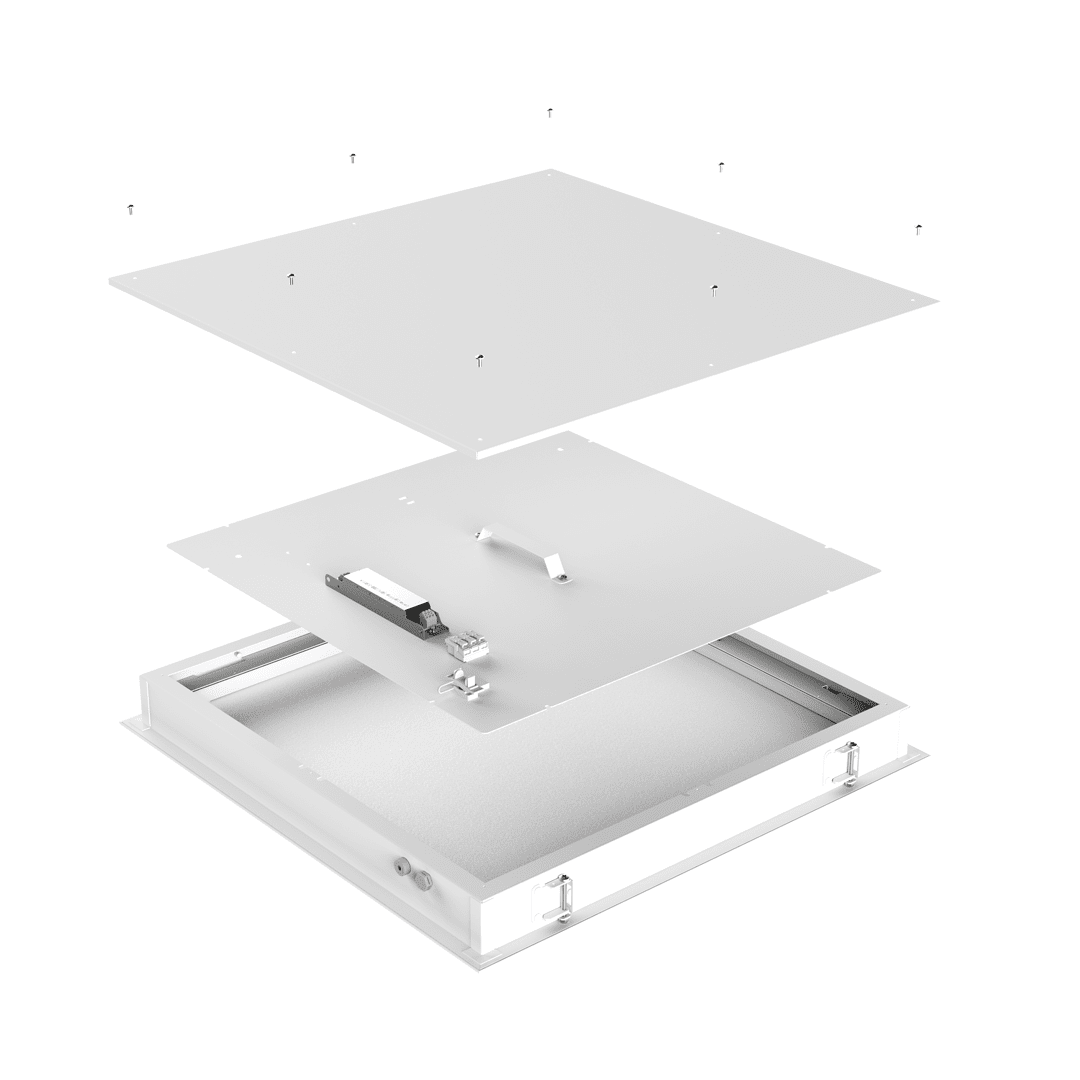

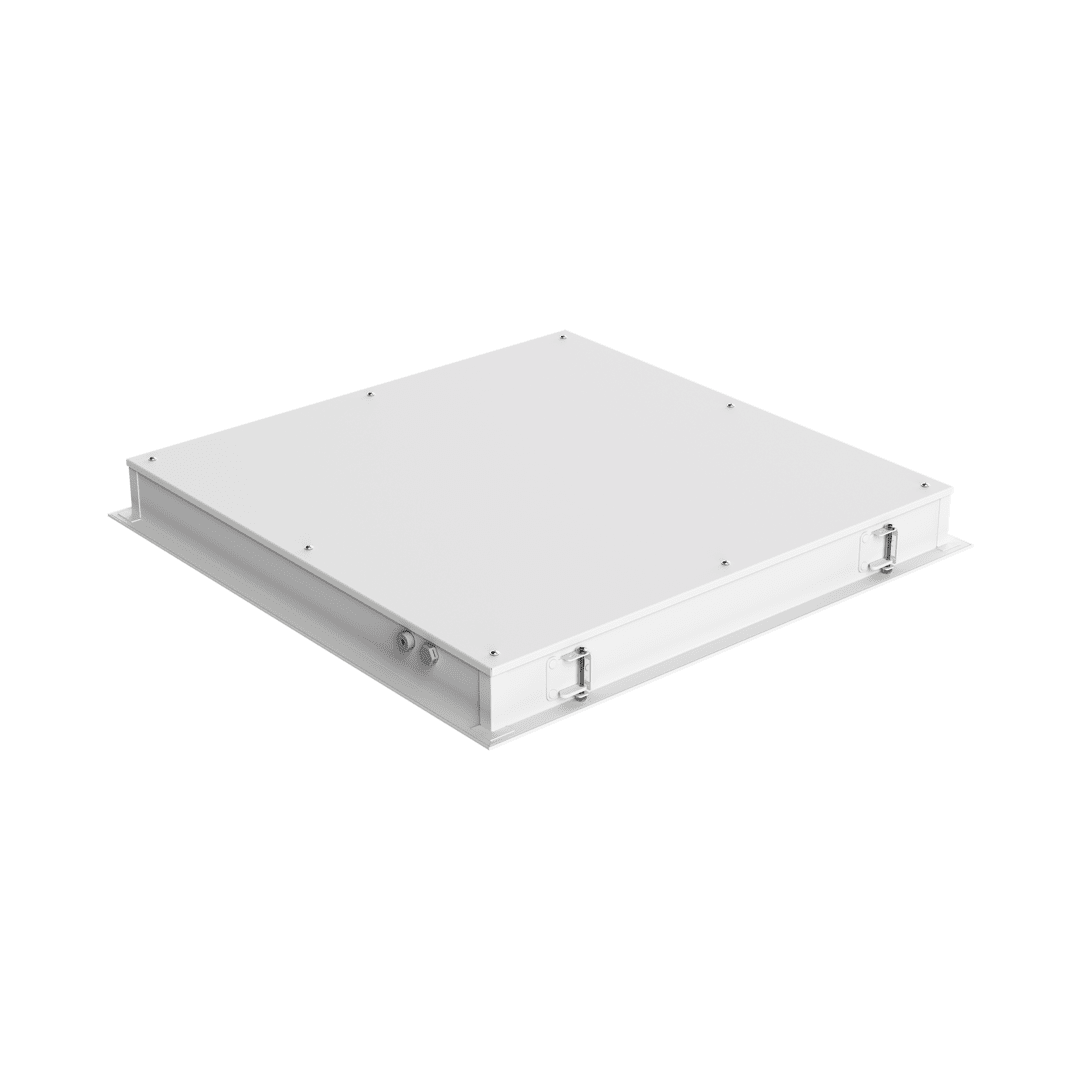

Lumedic is a specialist Cleanroom luminaire designed for clean rooms with increased hygiene and sterility requirements. Its design ensures ease of cleaning and high mechanical and environmental resistance. A robust steel housing with IP65 protection on the room side and IP50 on the technical side ensures complete tightness in a sterile environment, while allowing free air flow above the suspended ceiling. Service access is provided from the technical side (top inspection), allowing maintenance without interfering with the clean room.

The front of the luminaire is made of aluminium and 4 mm thick tempered glass, resistant to impact (IK09 class) and chemicals. The modular shutter system (Glass / Opal / PRM) allows you to select the appropriate optical characteristics depending on the application requirements — from uniform, diffused light to precise directional distribution.

Application

• laboratories (microbiological, pharmaceutical, chemical),
• hospitals (operating theatres, intensive care units, diagnostic laboratories),
• food and pharmaceutical industry,
• cleanrooms in electronics and semiconductor manufacturing.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	DIMM DALI	Index
49	3000	5600	-	783029
49	3000	5600	yes	783036
49	4000	5800	-	783005
49	4000	5800	yes	783012
86	3000	9200	-	783067
86	3000	9200	yes	783074
86	4000	9600	-	783043
86	4000	9600	yes	783050

Show more Show less
