Quest LED Evo XS RGBW

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Quest LED Evo XS RGBW are compact yet extremely efficient premium floodlights manufactured in Poland. The use of RGBW technology enables precise reproduction of the full colour palette.

Technical specifications

Light source	LED
Colour temperature	5500K
Diffuser type	transparent
Mounting version	surface suspended
Dimensions [mm]	280/240/55
Application	commercial educational HoReCa residential industrial sports art and culture architectural

LED220-240vIik10ip67CEEPD

Ask about this product

Options

Downloads

Specification

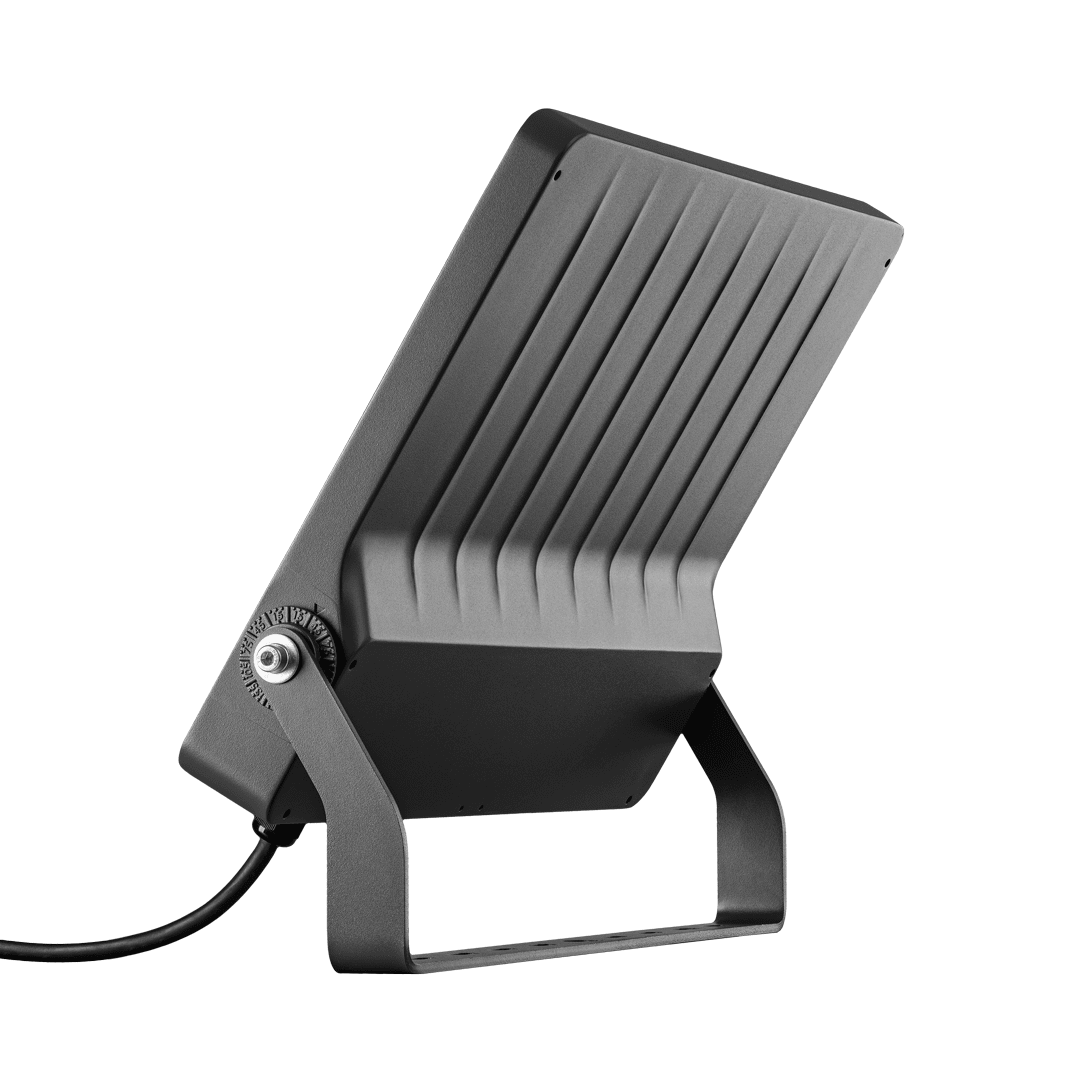

Quest LED Evo XS RGBW are compact yet extremely efficient premium floodlights manufactured in Poland. The body is made of powder-coated die-cast aluminium in corrosion class C5. The lack of an external heat sink and fins makes it easy to keep the luminaire clean. Tempered glass protects the high-performance LEDs, and a wide selection of optics allows the light beam to be perfectly matched to the needs of the project. The use of RGBW technology enables precise reproduction of the full colour palette, including natural white, ensuring the highest quality of lighting effects in architectural and decorative applications.

Thanks to their IP67 tightness and IK10 resistance, the floodlights perform well in all conditions, regardless of the weather and installation location. Quest LED Evo XS RGBW meets the requirements of PN-EN 60598-2 part 5, which allows them to be classified as illumination projectors with full freedom of installation (360° rotation) and resistance to strong winds.

The sealed quick connector significantly speeds up installation, eliminating the need for traditional connections. The intuitive system of coloured latches makes installation quick, easy and tool-free.

The accessory kit includes pole mounting brackets, a flush-mounting frame (e.g. for shelters), light pollution reduction screens and protective grilles in two colour versions (white RAL7016 – 4% reduction, body colour RAL7016 – 8%). A wide range of accessories ensures flexible configuration and easy adaptation to various design applications.

Watch our new video: Quest LED Evo - new generation of floodlight and high-bay. Discover the power of light that's breaking new ground. Click to watch on YouTube.

Application

Quest LED Evo XS RGBW floodlights are widely used in illumination, architectural and decorative lighting. They are perfect for illuminating building facades, historic buildings, monuments, bridges, viaducts, parks and urban spaces. Thanks to a wide selection of optics and the ability to precisely control the colour of light, they enable the creation of dynamic lighting scenes, impressive illumination of architectural details and atmospheric arrangements in commercial, cultural and religious buildings.

The luminaires are equipped with DMX control, which allows for full control of light parameters, synchronisation with other devices and the creation of advanced, programmable lighting effects.

This is a professional solution designed for projects where light is a key element in the arrangement of space and the creation of atmosphere.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Beam angle [°]	Index
52	5500	2300	15	840821
52	5500	2650	25	840791
52	5500	2650	35	840807
52	5500	2650	60	840814

Show more Show less

Accessories

Hide accessories

Index	Accessory name
840456	QUEST LED EVO XS recessed frame RAL7016
840425	QUEST LED EVO XS protective grid RAL7016
881732	QUEST LED EVO XS protective grid RAL9003
840395	QUEST LED EVO XS pole holder
840487	QUEST LED EVO XS cover RAL7016
WSEL438	Remote control for motion sensor HD01R

QUEST LED EVO XS recessed frame RAL7016 (840456)

QUEST LED EVO XS protective grid RAL7016 (840425)

QUEST LED EVO XS protective grid RAL9003 (881732)

QUEST LED EVO XS pole holder (840395)

QUEST LED EVO XS cover RAL7016 (840487)

Remote control for motion sensor HD01R (WSEL438)
