Specification

LED luminaire with high total luminous Flux. Made of powder-coated white steel sheet. The luminaire has a patented HE reflector installed, which ensures efficiency and effectively eliminates glare.

Available mounting versions: surface mounted, surface mounted on neodymium magnets (magnet ver. / N-MAG), flush-mounted in modular or KG ceilings (using an adapter), or suspended. In the surface-mounted version, solutions influencing the speed and safety of installation were used. In addition, the versions with neodymium magnets shorten the installation time of surface-mounted versions to an absolute minimum.

Application

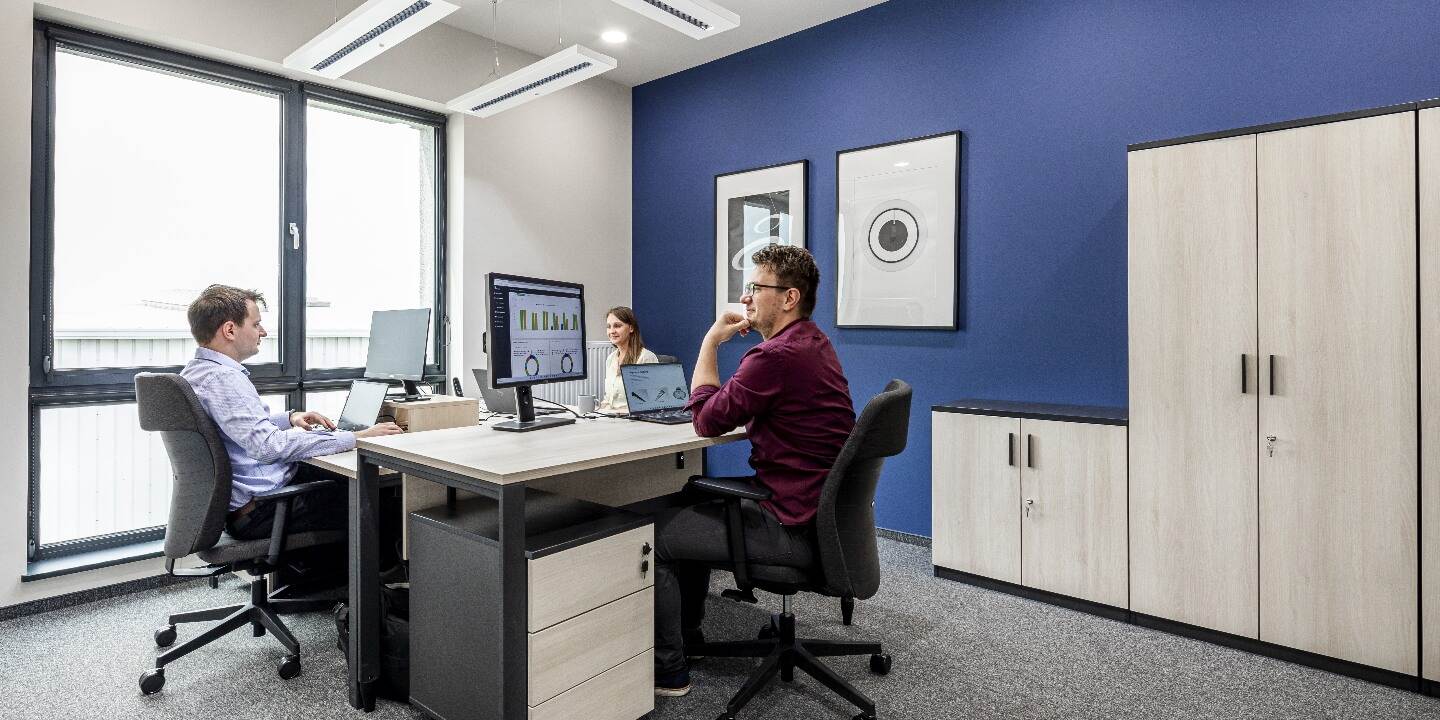

General-purpose surface-mounted luminaire for indoor application in offices or other utility rooms. Appropriate as the main light source even when the work requires eyesight concentration.

Other products from the Terra LED family

See our luminaires Terra 2 LED Long on the BIMobject platform

See our luminaires Terra 2 LED Long Black HE Optics on the BIMobject platform

Options
Nominal power [W]Colour temperature [K]Luminous flux [lm]OpticsVersionColour of the bodyDimensions (H/W/T/S) [mm]Index
surface
31 4000 3500 HE 2x1 white mat 1195/140/36 226366
31 4000 3500 HE 2x1 white gloss 1195/140/36 226373
31 4000 2550 black HE 2x1 white mat 1195/140/36 227028
36 4000 4200 HE 2x1 white mat 1195/140/36 226380
36 4000 4200 HE 2x1 white gloss 1195/140/36 226397
36 4000 3000 black HE 2x1 white mat 1195/140/36 227035
48 4000 5400 HE 2x1 white mat 1195/140/36 226403
48 4000 5400 HE 2x1 white gloss 1195/140/36 226410
48 4000 3900 black HE 2x1 white mat 1195/140/36 227042
62 4000 7000 HE 2x2 white mat 1195/170/36 226427
62 4000 7000 HE 2x2 white gloss 1195/170/36 226434
62 4000 5000 black HE 2x2 white mat 1195/170/36 227059
72 4000 8400 HE 2x2 white mat 1195/170/36 226441
72 4000 8400 HE 2x2 white gloss 1195/170/36 226458
20 3000 1800 black HE 2x1 black mat 1195/230/36 238284
20 4000 1900 black HE 2x1 black mat 1195/230/36 237829
20 3000 2400 HE 2x1 white mat 1195/230/36 238260
20 3000 2400 HE 2x1 white gloss 1195/230/36 238277
20 4000 2600 HE 2x1 white mat 1195/230/36 237805
20 4000 2600 HE 2x1 white gloss 1195/230/36 237812
31 3000 2400 black HE 2x1 black mat 1195/230/36 238314
31 4000 2550 black HE 2x1 black mat 1195/230/36 237850
31 3000 3300 HE 2x1 white mat 1195/230/36 238291
31 3000 3300 HE 2x1 white gloss 1195/230/36 238307
31 4000 3500 HE 2x1 white mat 1195/230/36 237836
31 4000 3500 HE 2x1 white gloss 1195/230/36 237843
36 3000 2800 black HE 2x1 black mat 1195/230/36 238345
36 4000 3000 black HE 2x1 black mat 1195/230/36 237881
36 3000 3950 HE 2x1 white mat 1195/230/36 238321
36 3000 3950 HE 2x1 white gloss 1195/230/36 238338
36 4000 4200 HE 2x1 white mat 1195/230/36 237867
36 4000 4200 HE 2x1 white gloss 1195/230/36 237874
41 3000 3200 black HE 2x1 black mat 1195/230/36 238376
41 4000 3450 black HE 2x1 black mat 1195/230/36 237911
41 3000 4450 HE 2x1 white mat 1195/230/36 238352
41 3000 4450 HE 2x1 white gloss 1195/230/36 238369
41 4000 4750 HE 2x1 white mat 1195/230/36 237898
41 4000 4750 HE 2x1 white gloss 1195/230/36 237904
48 3000 3700 black HE 2x1 black mat 1195/230/36 238406
48 4000 3900 black HE 2x1 black mat 1195/230/36 237942
48 3000 5050 HE 2x1 white mat 1195/230/36 238383
48 3000 5050 HE 2x1 white gloss 1195/230/36 238390
48 4000 5400 HE 2x1 white mat 1195/230/36 237928
48 4000 5400 HE 2x1 white gloss 1195/230/36 237935
20 3000 1900 black HE 2x1 black mat 595/300/36 237423
20 4000 1900 black HE 2x1 black mat 595/300/36 237027
20 3000 2400 HE 2x1 white mat 595/300/36 237409
20 3000 2400 HE 2x1 white gloss 595/300/36 237416
20 4000 2600 HE 2x1 white mat 595/300/36 237003
20 4000 2600 HE 2x1 white gloss 595/300/36 237010
31 3000 2400 black HE 2x1 black mat 595/300/36 237454
31 4000 2550 black HE 2x1 black mat 595/300/36 237058
31 3000 3300 HE 2x1 white mat 595/300/36 237430
31 3000 3300 HE 2x1 white gloss 595/300/36 237447
31 4000 3500 HE 2x1 white mat 595/300/36 237034
31 4000 3500 HE 2x1 white gloss 595/300/36 237041
36 3000 2800 black HE 2x1 black mat 595/300/36 237485
36 4000 3000 black HE 2x1 black mat 595/300/36 237089
36 3000 3950 HE 2x1 white mat 595/300/36 237461
36 3000 3950 HE 2x1 white gloss 595/300/36 237478
36 4000 4200 HE 2x1 white mat 595/300/36 237065
36 4000 4200 HE 2x1 white gloss 595/300/36 237072
41 3000 3200 black HE 2x1 black mat 595/300/36 237515
41 4000 3450 black HE 2x1 black mat 595/300/36 237119
41 3000 4450 HE 2x1 white mat 595/300/36 237492
41 3000 4450 HE 2x1 white gloss 595/300/36 237508
48 3000 3700 black HE 2x1 black mat 595/300/36 237546
48 4000 3900 black HE 2x1 black mat 595/300/36 237140
48 3000 5050 HE 2x1 white mat 595/300/36 237522
48 3000 5050 HE 2x1 white gloss 595/300/36 237539
48 4000 5400 HE 2x1 white mat 595/300/36 237126
48 4000 5400 HE 2x1 white gloss 595/300/36 237133
surface (magnet ver.)
31 4000 3500 HE 2x1 white mat 1195/140/36 990052
31 4000 3500 HE 2x1 white gloss 1195/140/36 990021
36 4000 4200 HE 2x1 white mat 1195/140/36 990069
36 4000 4200 HE 2x1 white gloss 1195/140/36 990038
48 4000 5400 HE 2x1 white mat 1195/140/36 990076
48 4000 5400 HE 2x1 white gloss 1195/140/36 990045
20 3000 1900 black HE 2x1 black mat 1195/230/36 990403
20 4000 1900 black HE 2x1 black mat 1195/230/36 990359
20 3000 2400 HE 2x1 white mat 1195/230/36 990199
20 3000 2400 HE 2x1 white gloss 1195/230/36 990304
20 4000 2600 HE 2x1 white mat 1195/230/36 990144
20 4000 2600 HE 2x1 white gloss 1195/230/36 990250
31 3000 2400 black HE 2x1 black mat 1195/230/36 990410
31 4000 2550 black HE 2x1 black mat 1195/230/36 990366
31 3000 3300 HE 2x1 white mat 1195/230/36 990205
31 3000 3300 HE 2x1 white gloss 1195/230/36 990311
31 4000 3500 HE 2x1 white mat 1195/230/36 990151
31 3000 3300 HE 2x1 white mat 1195/230/36 990243
31 4000 3500 HE 2x1 white gloss 1195/230/36 990267
36 3000 2800 black HE 2x1 black mat 1195/230/36 990427
36 4000 3000 black HE 2x1 black mat 1195/230/36 990373
36 3000 3950 HE 2x1 white mat 1195/230/36 990212
36 3000 3950 HE 2x1 white gloss 1195/230/36 990328
36 4000 4200 HE 2x1 white mat 1195/230/36 990168
36 4000 4200 HE 2x1 white gloss 1195/230/36 990274
41 3000 3200 black HE 2x1 black mat 1195/230/36 990434
41 4000 3450 black HE 2x1 black mat 1195/230/36 990380
41 3000 4450 HE 2x1 white mat 1195/230/36 990229
41 3000 4450 HE 2x1 white gloss 1195/230/36 990335
41 4000 4750 HE 2x1 white mat 1195/230/36 990175
41 4000 4750 HE 2x1 white gloss 1195/230/36 990281
48 3000 3700 black HE 2x1 black mat 1195/230/36 990441
48 4000 3900 black HE 2x1 black mat 1195/230/36 990397
48 3000 5050 HE 2x1 white mat 1195/230/36 990236
48 3000 5050 HE 2x1 white gloss 1195/230/36 990342
48 4000 5400 HE 2x1 white mat 1195/230/36 990182
48 4000 5400 HE 2x1 white gloss 1195/230/36 990298
20 3000 1900 black HE 2x1 black mat 595/300/36 990700
20 4000 1900 black HE 2x1 black mat 595/300/36 990656
20 3000 2400 HE 2x1 white mat 595/300/36 990502
20 3000 2400 HE 2x1 white gloss 595/300/36 990601
20 4000 2600 HE 2x1 white mat 595/300/36 990458
20 4000 2600 HE 2x1 white gloss 595/300/36 990557
31 3000 2400 black HE 2x1 black mat 595/300/36 990717
31 4000 2550 black HE 2x1 black mat 595/300/36 990663
31 3000 3300 HE 2x1 white mat 595/300/36 990519
31 3000 3300 HE 2x1 white gloss 595/300/36 990618
31 4000 3500 HE 2x1 white mat 595/300/36 990465
31 4000 3500 HE 2x1 white gloss 595/300/36 990564
36 3000 2800 black HE 2x1 black mat 595/300/36 990724
36 4000 3000 black HE 2x1 black mat 595/300/36 990670
36 3000 3950 HE 2x1 white mat 595/300/36 990526
36 3000 3950 HE 2x1 white gloss 595/300/36 990625
36 4000 4200 HE 2x1 white mat 595/300/36 990472
36 4000 4200 HE 2x1 white gloss 595/300/36 990571
41 3000 3200 black HE 2x1 black mat 595/300/36 990731
41 4000 3450 black HE 2x1 black mat 595/300/36 990687
41 3000 4450 HE 2x1 white mat 595/300/36 990533
41 3000 4450 HE 2x1 white gloss 595/300/36 990632
41 4000 4750 HE 2x1 white mat 595/300/36 990489
41 4000 4750 HE 2x1 white gloss 595/300/36 990588
48 3000 3700 black HE 2x1 black mat 595/300/36 990748
48 4000 3900 black HE 2x1 black mat 595/300/36 990694
48 3000 5050 HE 2x1 white mat 595/300/36 990540
48 3000 5050 HE 2x1 white gloss 595/300/36 990649
48 4000 5400 HE 2x1 white mat 595/300/36 990496
48 4000 5400 HE 2x1 white gloss 595/300/36 990595
recessed
20 3000 2400 HE 2x1 white mat 1195/300/32 238413
20 3000 2400 HE 2x1 white gloss 1195/300/32 238420
20 4000 2600 HE 2x1 white mat 1195/300/32 237959
20 4000 2600 HE 2x1 white gloss 1195/300/32 237966
31 3000 3300 HE 2x1 white mat 1195/300/32 238437
31 3000 3300 HE 2x1 white gloss 1195/300/32 238444
31 4000 3500 HE 2x1 white mat 1195/300/32 237973
31 4000 3500 HE 2x1 white gloss 1195/300/32 237980
36 3000 3950 HE 2x1 white mat 1195/300/32 238451
36 3000 3950 HE 2x1 white gloss 1195/300/32 238468
36 4000 4200 HE 2x1 white mat 1195/300/32 237997
36 4000 4200 HE 2x1 white gloss 1195/300/32 238000
41 3000 4450 HE 2x1 white mat 1195/300/32 238475
41 3000 4450 HE 2x1 white gloss 1195/300/32 238482
41 4000 4750 HE 2x1 white mat 1195/300/32 238017
41 4000 4750 HE 2x1 white gloss 1195/300/32 238024
41 4000 3450 black HE 2x1 white mat 1195/300/32 227066
48 3000 5050 HE 2x1 white mat 1195/300/32 238499
48 3000 5050 HE 2x1 white gloss 1195/300/32 238505
48 4000 5400 HE 2x1 white mat 1195/300/32 238031
48 4000 5400 HE 2x1 white gloss 1195/300/32 238048
62 3000 6000 HE 2x2 white mat 1195/300/32 238512
62 3000 6000 HE 2x2 white gloss 1195/300/32 238529
62 4000 7050 HE 2x2 white mat 1195/300/32 238055
62 4000 7050 HE 2x2 white gloss 1195/300/32 238062
72 3000 7200 HE 2x2 white mat 1195/300/32 238536
72 3000 7200 HE 2x2 white gloss 1195/300/32 238543
72 4000 8100 HE 2x2 white mat 1195/300/32 238079
72 4000 8100 HE 2x2 white gloss 1195/300/32 238086
20 3000 2400 HE 2x1 white mat 595/300/32 237553
20 3000 2400 HE 2x1 white gloss 595/300/32 237560
20 4000 2600 HE 2x1 white mat 595/300/32 237157
20 4000 2600 HE 2x1 white gloss 595/300/32 237164
31 3000 3300 HE 2x1 white mat 595/300/32 237577
31 3000 3300 HE 2x1 white gloss 595/300/32 237584
31 4000 3500 HE 2x1 white mat 595/300/32 237171
31 4000 3500 HE 2x1 white gloss 595/300/32 237188
36 3000 3950 HE 2x1 white mat 595/300/32 237591
36 3000 3950 HE 2x1 white gloss 595/300/32 237607
36 4000 4200 HE 2x1 white mat 595/300/32 237195
36 4000 4200 HE 2x1 white gloss 595/300/32 237201
41 3000 4450 HE 2x1 white mat 595/300/32 237614
41 3000 4450 HE 2x1 white gloss 595/300/32 237621
41 4000 4750 HE 2x1 white gloss 595/300/32 237225
48 3000 5050 HE 2x1 white mat 595/300/32 237638
48 3000 5050 HE 2x1 white gloss 595/300/32 237645
48 4000 5400 HE 2x1 white mat 595/300/32 237232
48 4000 5400 HE 2x1 white gloss 595/300/32 237249
31 3000 3300 HE 2x1 white mat 595/595/32 239274
31 3000 3300 HE 2x1 white gloss 595/595/32 239281
suspended
20 3000 1900 black HE 2x1 black mat 1195/230/38 238598
20 4000 1900 black HE 2x1 black mat 1195/230/38 238130
20 3000 2400 HE 2x1 white mat 1195/230/38 238574
20 3000 2400 HE 2x1 white gloss 1195/230/38 238581
20 4000 2600 HE 2x1 white mat 1195/230/38 238116
20 4000 2600 HE 2x1 white gloss 1195/230/38 238123
31 3000 2400 black HE 2x1 black mat 1195/230/38 238628
31 4000 2550 black HE 2x1 black mat 1195/230/38 238161
31 3000 3300 HE 2x1 white mat 1195/230/38 238604
31 3000 3300 HE 2x1 white gloss 1195/230/38 238611
31 4000 3500 HE 2x1 white mat 1195/230/38 238147
31 4000 3500 HE 2x1 white gloss 1195/230/38 238154
36 3000 2800 black HE 2x1 black mat 1195/230/38 238659
36 4000 3000 black HE 2x1 black mat 1195/230/38 238192
36 3000 3950 HE 2x1 white mat 1195/230/38 238635
36 3000 3950 HE 2x1 white gloss 1195/230/38 238642
36 4000 4200 HE 2x1 white mat 1195/230/38 238178
36 4000 4200 HE 2x1 white gloss 1195/230/38 238185
41 3000 3200 black HE 2x1 black mat 1195/230/38 238680
41 4000 3450 black HE 2x1 black mat 1195/230/38 238222
41 3000 4450 HE 2x1 white mat 1195/230/38 238666
41 3000 4450 HE 2x1 white gloss 1195/230/38 238673
41 4000 4750 HE 2x1 white mat 1195/230/38 238208
41 4000 4750 HE 2x1 white gloss 1195/230/38 238215
48 3000 3700 black HE 2x1 black mat 1195/230/38 238710
48 4000 3900 black HE 2x1 black mat 1195/230/38 238253
48 3000 5050 HE 2x1 white mat 1195/230/38 238697
48 3000 5050 HE 2x1 white gloss 1195/230/38 238703
48 4000 5400 HE 2x1 white mat 1195/230/38 238239
48 4000 5400 HE 2x1 white gloss 1195/230/38 238246
20 3000 1900 black HE 2x1 black mat 595/300/38 237676
20 4000 1900 black HE 2x1 black mat 595/300/38 237270
20 3000 2400 HE 2x1 white mat 595/300/38 237652
20 3000 2400 HE 2x1 white gloss 595/300/38 237669
20 4000 2600 HE 2x1 white mat 595/300/38 237256
20 4000 2600 HE 2x1 white gloss 595/300/38 237263
31 3000 2400 black HE 2x1 black mat 595/300/38 237706
31 4000 2550 black HE 2x1 black mat 595/300/38 237300
31 3000 3300 HE 2x1 white mat 595/300/38 237683
31 3000 3300 HE 2x1 white gloss 595/300/38 237690
31 4000 3500 HE 2x1 white mat 595/300/38 237287
31 4000 3500 HE 2x1 white gloss 595/300/38 237294
36 3000 2800 black HE 2x1 black mat 595/300/38 237737
36 4000 3000 black HE 2x1 black mat 595/300/38 237331
36 3000 3950 HE 2x1 white mat 595/300/38 237713
36 3000 3950 HE 2x1 white gloss 595/300/38 237720
36 4000 4200 HE 2x1 white mat 595/300/38 237317
36 4000 4200 HE 2x1 white gloss 595/300/38 237324
41 3000 3200 black HE 2x1 black mat 595/300/38 237768
41 4000 3450 black HE 2x1 black mat 595/300/38 237362
41 3000 4450 HE 2x1 white mat 595/300/38 237744
41 3000 4450 HE 2x1 white gloss 595/300/38 237751
41 4000 4750 HE 2x1 white mat 595/300/38 237348
41 4000 4750 HE 2x1 white gloss 595/300/38 237355
48 3000 3700 black HE 2x1 black mat 595/300/38 237799
48 4000 3900 black HE 2x1 black mat 595/300/38 237393
48 3000 5050 HE 2x1 white mat 595/300/38 237775
48 3000 5050 HE 2x1 white gloss 595/300/38 237782
48 4000 5400 HE 2x1 white mat 595/300/38 237379
48 4000 5400 HE 2x1 white gloss 595/300/38 237386

Please leave for us your contact information


Contact details

We are available from Monday to Friday 8:00-16:00


Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

All rights reserved © 2023 Lena Lighting S.A.
