Call Message

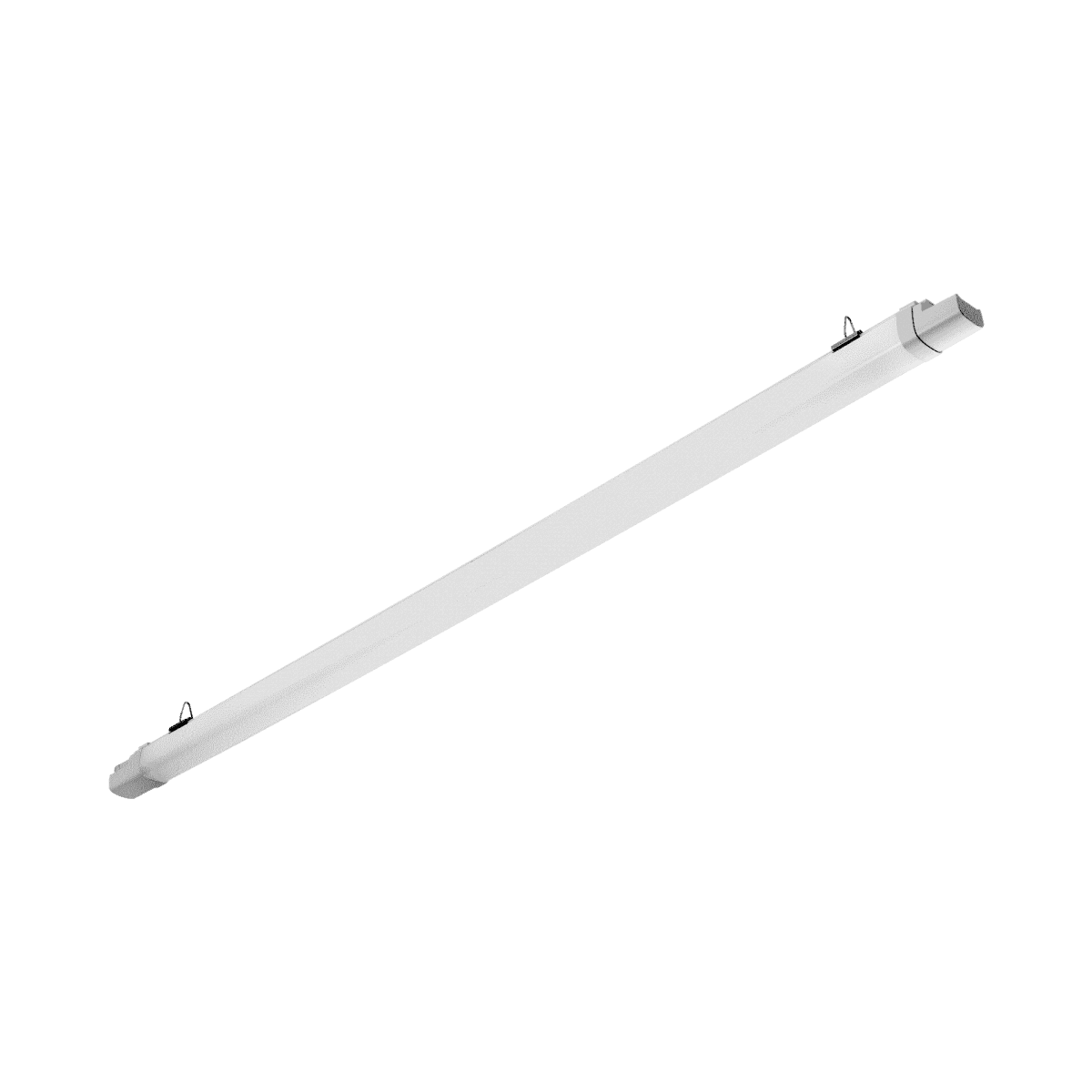

Mimo 2 LED

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Mimo 2 LED represents the new generation of hermetic LED luminaires with very high IP66 tightness.

Technical specifications

Light source	LED
Colour temperature	4000K
Diffuser type	MAT
Mounting version	surface surface or suspended suspended
Application	parkings and bicycle paths industrial sports

LEDIIik06ip66CEQuick installation

Ask about this product

Options

Downloads

Specification

Mimo 2 LED represents the new generation of hermetic LED luminaires with very high IP66 tightness. The luminaire uses modern concepts to improve light distribution and temperature balance. Its design involved both proven solutions that affect high efficiency and durability, as well as efficient LED modules offering the best lighting level required and energy savings of up to 66%. The multilayer shade has been made of UV-resistant polycarbonate. Branded LED diodes and new LED modules have an influence on a very high luminous efficacy: 150 lm/W. Optional: Through-Wiring series connection - LS2.

Application

The multifunctional LED luminaire is designed for use in areas with increased dust and humidity. It is particularly suitable for industrial conditions, car parks (underground and multi-story ones), sports stadiums, warehouses, transport terminals, and underground passages. The luminaire is used both in new applications, as well as in replacing traditional fluorescent luminaires with energy-saving LED solutions Its design is adapted for surface and suspended installation using standard equipment.

See our luminaires on the BIMobject platform

Lightweight and strong multipurpose beam

Light as a feather!

The luminaire weighs only 350 g. That's less than a small bottle of water. It is lightweight, easy to install, has effective light performance and allows for quick installation.

Linking in a light line

Thanks to the LS2 pass-through wiring, the luminaires can be easily connected linearly. Creating lines of light with MIMO 2 LED is quick and easy.

Movable handle

The mounting position of the luminaire can be easily adjusted by means of the mounting brackets, which can be moved along the entire length of the luminaire, which are included in the set.

Surface mounting

The fastening element is attached to the selected surface with a screw. The electrically connected luminaire is "plugged in" to the installed mounting element.

Fastest installation

The MIMO 2 LED gland is equipped with a tool-free, quick-release connector.

To connect the electrics, unscrew the cable gland and run the power cable through.

Pass the cable through the cable gland and connect the L and N supply wires.

Complete the process by capping the gland.

Options

Nominal power [W]	Colour temperature [K]	Luminous flux [lm]	Through wiring	Dimensions (H/W/T/S) [mm]	Index
1230/45/50
23	3000	3350	-	1230/45/50	100796
23	4000	3600	-	1230/45/50	100864
23	3000	3350	LS2	1230/45/50	100819
23	4000	3600	LS2	1230/45/50	100888
1510/45/50
30	3000	4650	-	1510/45/50	100802
30	4000	5000	-	1510/45/50	100871
30	3000	4650	LS2	1510/45/50	100826
30	4000	5000	LS2	1510/45/50	100895
670/45/50
13	3000	1900	-	670/45/50	100741
13	4000	2050	-	670/45/50	100727
13	3000	1900	LS2	670/45/50	100758
13	4000	2050	LS2	670/45/50	100734

Show more Show less

Accessories

Hide accessories

Index	Accessory name
100673	MIMO 2 LED - double handle (set)
800ML208	IP68 High-bay PA 6.6 connector black DL06-3A-2Y

MIMO 2 LED - double handle (set) (100673)

IP68 High-bay PA 6.6 connector black DL06-3A-2Y (800ML208)
