Specification

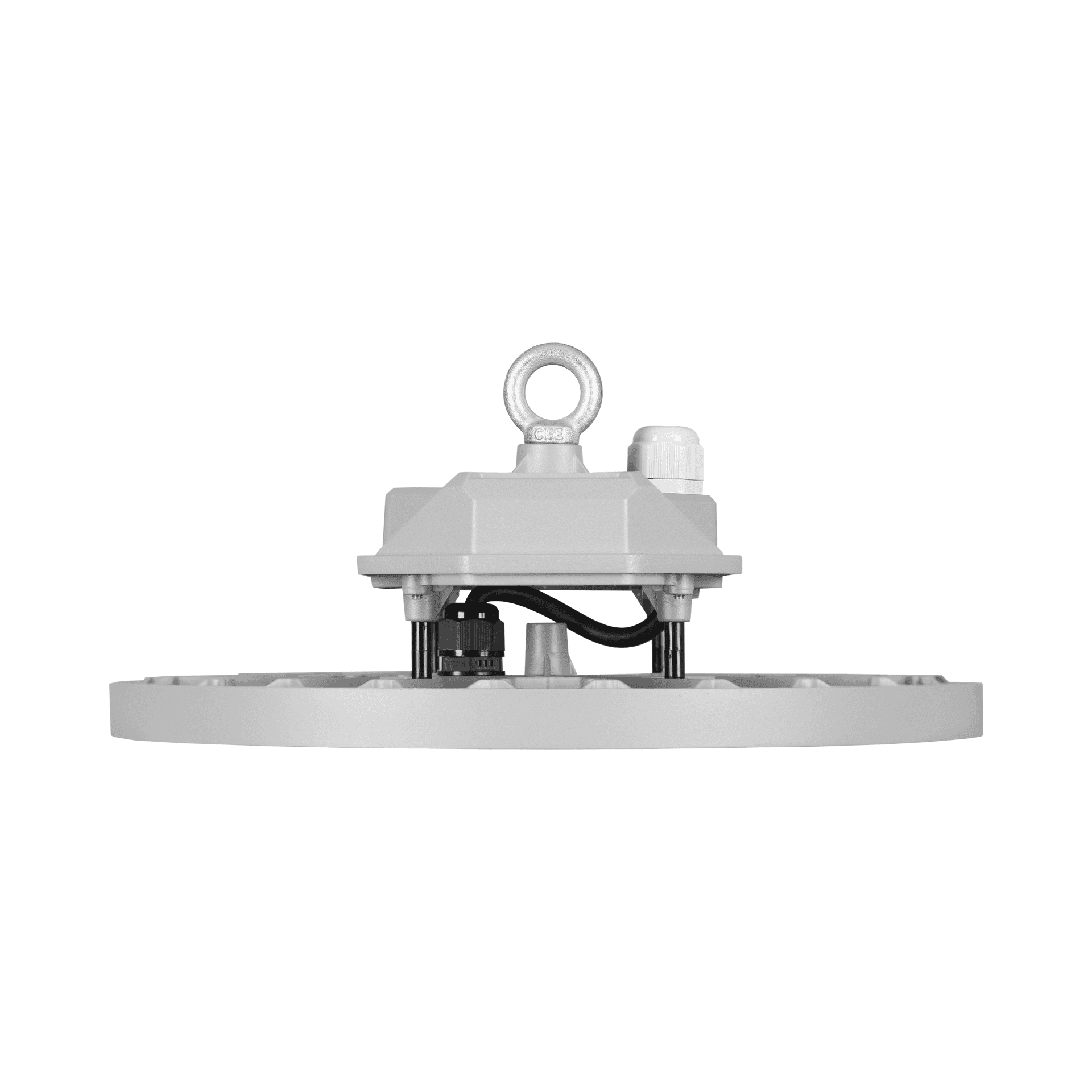

Oculus LED Mini is a HIGH-BAY luminaire from the NEXT GEN product line, constituting a new generation of luminaires dedicated to LED technology. The designed-from-scratch body – made of die-cast aluminium and powder-coated – uses natural conduction and convection processes, which have a positive effect on the luminaire’s heat management. The shape of the body with an integrated, effective heat sink and high-quality materials ensure maximum heat dissipation from the LED module. The driver’s external compartment, separated from the body, guarantees optimal thermal working conditions for the power supply system. This enables the luminaire to work at an ambient temperature of max 55°C.

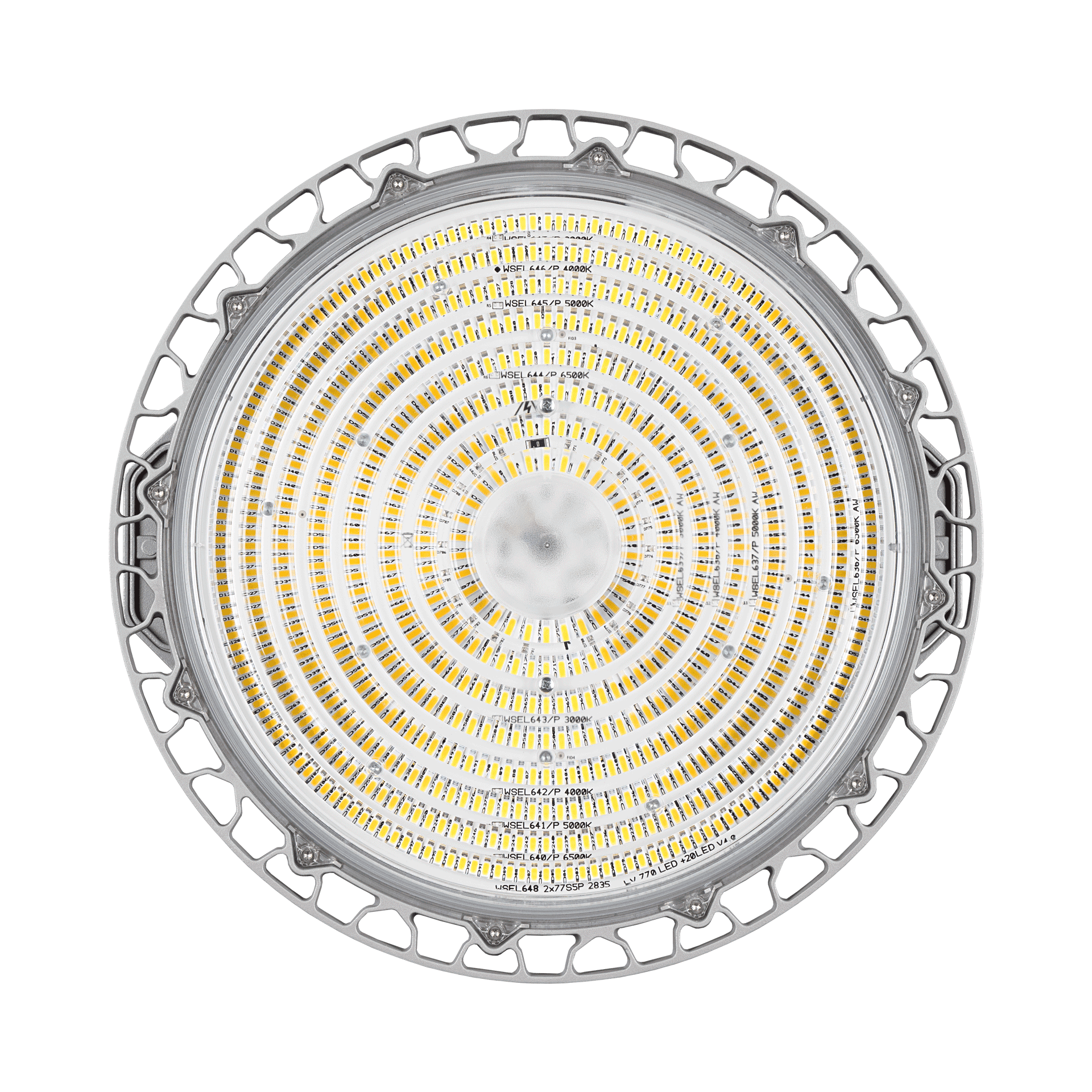

LEDs from a reputable manufacturer and new LED modules enable very high luminous efficiency. This guarantees that the required lighting level and significant energy savings are achieved. The diffuser and optical system are composed of precise linear lenses made of polycarbonate (PC). There are 3 dedicated ranges of light distribution available: 55°, 75°, 105°. GLASS version with tempered glass (without lenses) and 105° distribution is also available. Standard equipped with a 0.3 m long H07RN-F cable terminated with an additional male and female connector, which makes the assembly easier and more convenient. Its design is adapted for suspended mounting and surface mounting (ceiling and wall) requiring the use of additional accessories.

Application

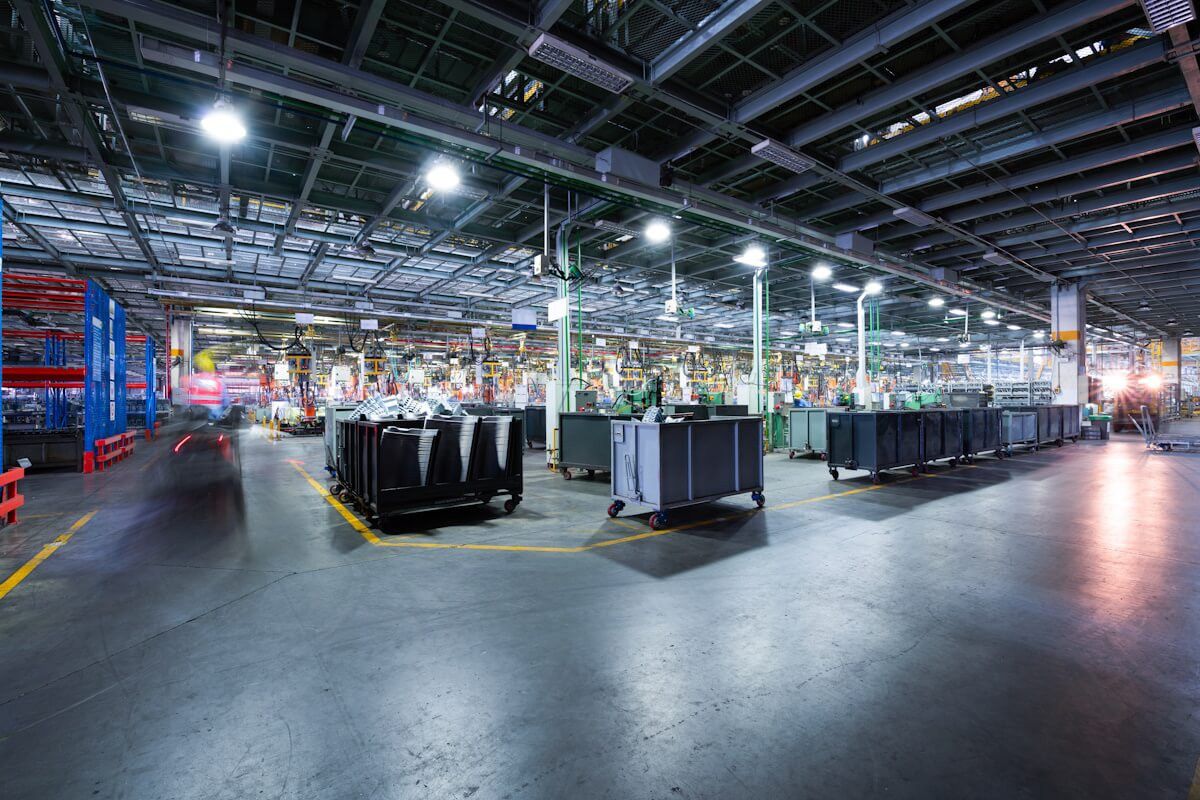

The luminaire is designed for suspended mounting using chains, ropes, etc. and with the use of additional accessories also surface-mounted (ceiling and wall) both indoors and outdoors. It works perfectly in factories and production halls as well as large-scale warehouses and logistics centers.

Other products from the Oculus LED



Options
Rated power of the luminaire [W]Colour temperature [K]Luminous flux [lm]Beam angle [°]Diffuser materialDIMM DALIEnergy efficiency classDimensions (H/W/T/S) [mm]Index
72.00
72 4000 11400 105 tempered glass - B 107/320 967757
72 4000 11400 105 tempered glass yes B 107/320 967405
72 4000 11700 55 PC - B 107/320 967726
72 4000 11700 55 PC yes B 107/320 967375
72 4000 11700 75 PC - B 107/320 967733
72 4000 11700 75 PC yes B 107/320 967382
72 4000 12100 105 PC - B 107/320 967740
72 4000 12100 105 PC yes B 107/320 967399
73.00
73 4000 11400 55 PC - C 107/320 967634
73 4000 11400 55 PC yes C 107/320 967481
73 4000 11400 75 PC - C 107/320 967641
73 4000 11400 75 PC yes C 107/320 967498
73 4000 11700 105 PC - B 107/320 967658
73 4000 11700 105 PC yes B 107/320 967504
103.00
103 4000 15400 55 PC - C 107/320 967665
103 4000 15400 55 PC yes C 107/320 967511
103 4000 15400 75 PC - C 107/320 967672
103 4000 15400 75 PC yes C 107/320 967528
103 4000 15900 105 PC - C 107/320 967689
103 4000 15900 105 PC yes C 107/320 967535
106.00
106 4000 16300 105 tempered glass - C 107/320 967825
106 4000 16300 105 tempered glass yes C 107/320 967603
106 4000 16600 55 PC - C 107/320 967795
106 4000 16600 55 PC yes C 107/320 967597
106 4000 16600 75 PC - C 107/320 967801
106 4000 16600 75 PC yes C 107/320 967580
106 4000 17200 105 PC - B 107/320 967818
106 4000 17200 105 PC yes B 107/320 967573
128.00
128 4000 19400 105 tempered glass - C 107/320 967894
128 4000 19400 105 tempered glass yes C 107/320 967443
128 4000 20700 55 PC - B 107/320 967863
128 4000 20700 55 PC yes B 107/320 967412
128 4000 20700 75 PC - B 107/320 967870
128 4000 20700 75 PC yes B 107/320 967429
128 4000 21400 105 PC - B 107/320 967887
128 4000 21400 105 PC yes B 107/320 967436
143.00
143 4000 20500 55 PC - C 107/320 967696
143 4000 20500 55 PC yes C 107/320 967542
143 4000 20500 75 PC - C 107/320 967702
143 4000 20500 75 PC yes C 107/320 967559
143 4000 21200 105 PC - C 107/320 967719
143 4000 21200 105 PC yes C 107/320 967566
148.00
148 4000 22600 105 tempered glass - C 107/320 967962
148 4000 23000 55 PC - C 107/320 967931
148 4000 23000 55 PC yes C 107/320 967450
148 4000 23000 75 PC - C 107/320 967948
148 4000 23000 75 PC yes C 107/320 967467
148 4000 23800 105 PC - B 107/320 967955
148 4000 23800 105 PC yes B 107/320 967474
Accessory nameIndex
OCULUS LED - universal handle 964886
OCULUS LED - surface mounting handle 964893

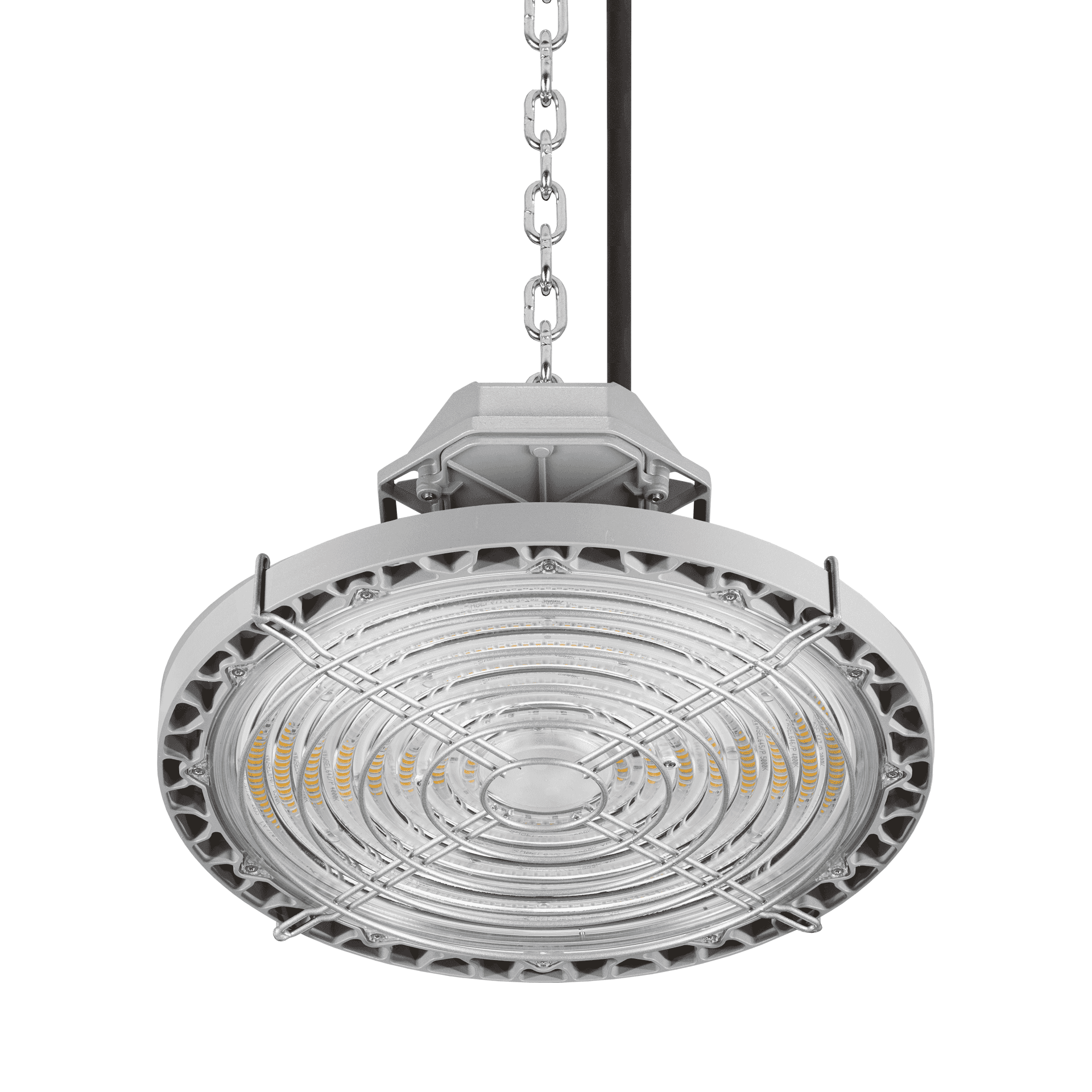

OCULUS LED MINI - protective grid 967030
WSEL438 HD01R Remote control for motion sensor WSEL438
WSEL415 Remote control for - PIR sensor WSEL415
OCULUS LED MINI- RCR sensor -complete 967054
OCULUS LED MINI- PIR / RCR DALI sensor complete 967047
OCULUS LED MINI- safety net kit 561399
OCULUS LED- safety net kit 561382
