Strado LED S 24V

STRADO LED 24V uses directional multi-lens arrays, made of PMMA, with each lens having the same optics, ensuring the light characteristics remain constant over time.

Technical specifications

Light source	LED
Colour temperature	4000K
Diffuser type	transparent
Mounting version	side entry or post top
Application	non-public estate roads roads, squares, internal and private areas lighting of construction sites

LED220-240vIIIik09ip66CEEPD

Ask about this product

Options

Downloads

Characteristics

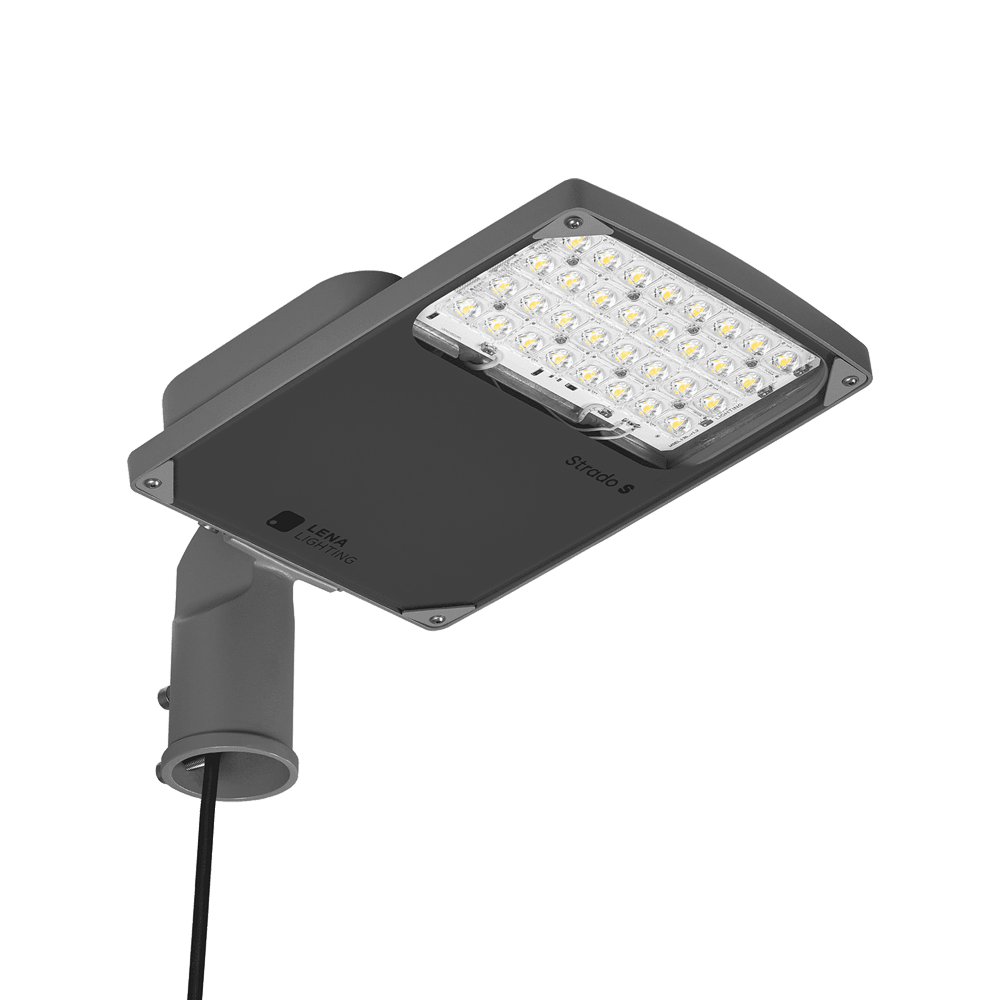

STRADO LED 24V uses directional multi-lens arrays, made of PMMA, with each lens having the same optics, ensuring the light characteristics remain constant over time. Components from renowned manufacturers and state-of-the-art LED panels contribute to the very high luminous efficacy achieved at the luminaire's output - reaching 165 lm/W. The upper part of the body has a separate electrical cavity in the body, which allows for efficient cooling of all components, independent of the light module. The lower surface of the luminaire is finished entirely with toughened glass, providing high aesthetic qualities. The luminaire has an outgoing cable, which enables fast, convenient and reliable installation without opening the luminaire. Using standard tools, it is possible to service the luminaire, allowing any component to be replaced without soldering. Body and fixture made of die-cast aluminium, powder-coated grey, IP66 tightness and IK09 mechanical impact resistance. Standard equipment: filter to prevent condensation; outgoing cable for connection to 24V DC power supply. Additional options: choice of optics with different light distribution, choice of different light colour, painting in any RAL colour. Certifications: CE, RoHS.

Application

The luminaire is suitable for use in low-voltage installations, including customer-supplied photovoltaic and hybrid systems. It is possible to illuminate objects such as: non-public estate roads, roads, squares and internal also private areas, construction site lighting.

View the film -> Strado LED - revolutionary road lighting with directional multi-lens matrices

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Luminous efficacy [lm/W]	Colour temperature [K]	Colour rendering index	Electrical protection class	Optics	Index
20	3300	165	4000	>70	III	RM7	408724
40	6225	156	4000	>70	III	RM7	408861
70	9900	141	4000	>70	III	RM7	408946

Accessories

Hide accessories

Index	Accessory name
314049	wall holder (galvanized)
314056	wall holder (grey)

wall holder (galvanized) (314049)

wall holder (grey) (314056)
