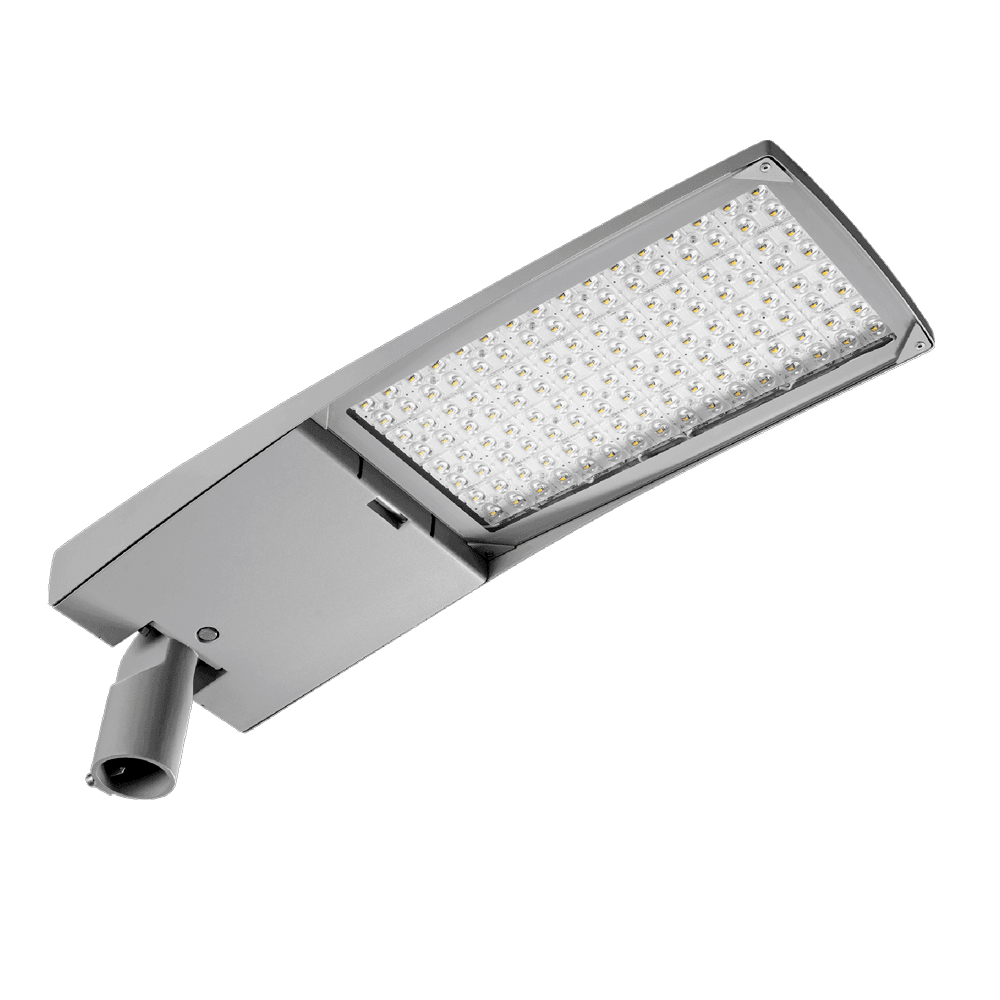

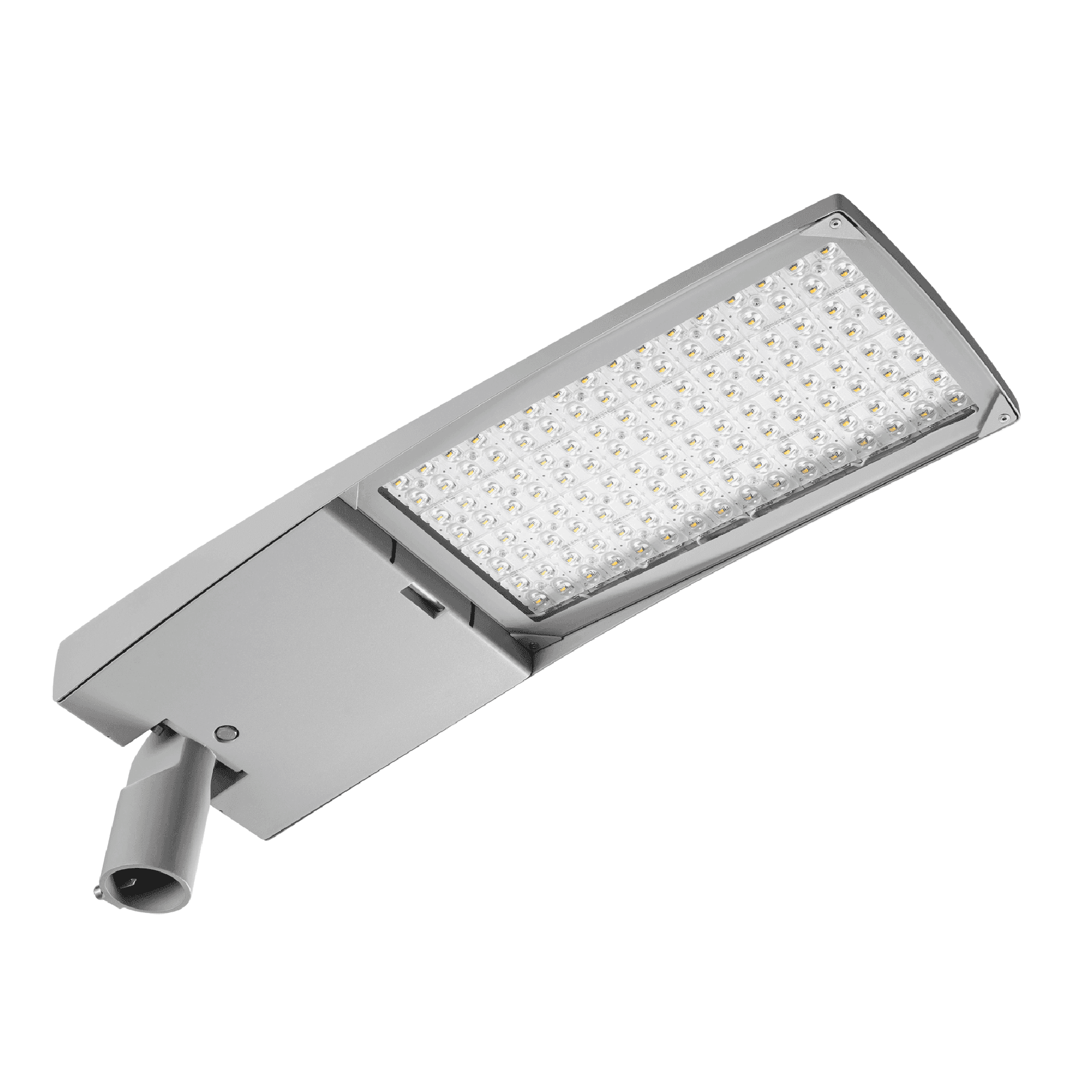

TIARA LED PRO

Zasilanie napięciem 220-240V LED  1 klasa ochronności przed porażeniem 2 klasa ochronności przed porażeniem  Stopień szczelności IP66  Stopień odporności na udary mechaniczne IK09  Zgodność z normą europejską CEENEC


Specification:

TIARA LED PRO is a new generation of road luminaires dedicated to LED technology. Designed from scratch, it introduces new solutions to improve light distribution and temperature balance, thus introducing new standards in road lighting. The luminaire uses directional lenticular matrices. Components of renowned manufacturers and new LED they have an effect on very high luminous efficiency - close to 160 lm / W. The luminaire uses a solution that integrates the diffuser with the LED module. The body and the grip are made of die cast aluminum. The whole has been powder coated in gray (RAL9006). The luminaire design allows for tool-free access to the electrical equipment compartment. The luminaire is characterized by a very high degree of protection IP66 and resistance to mechanical impacts IK09 (vandal resistance). The fitting has many improvements to facilitate and accelerate assembly: an independent body with an ergonomic suspension system of the light module; handle adjustable in increments: -5° to +15° (peak to pole); -15° to +5° (side to boom). Lamp compatible with modern control systems (additional NEMA and ZHAGA connectors).

Standard equipment: protection against accidental overheating - NTC; overvoltage protection up to 10kV; fully programmable DALI driver; hardened glass.

Application:
Streetlight fitting used in open spaces to lighten: streets, local roads, bicycle paths, alleys, pavements, car parks and squares. Installation and mounting: lateral side entry, post-top mounting. Mounting grip integrated with the fitting.


Download Brochure Other products from the TIARA LED Download brochure
Read more on this dedicated page

Clue City
Options
Rated power of the luminaire [W]Colour temperature [K]Luminous flux [lm]Light distribution typeVersionElectrical protection classWorking temperature [°C]Dimensions [mm]Energy efficiency classIndex
TIARA LED PRO L
35 4000 5200 RM3 L I from -40 to +50 870/122/262 A++ 962110
35 4000 5200 RM3 L II from -40 to +50 870/122/262 A++ 963087
35 4000 5450 RM3 L I from -40 to +50 870/122/262 A++ 962585
35 4000 5450 RM3 L II from -40 to +50 870/122/262 A++ 962837
35 3000 4850 RM3 L I from -40 to +50 870/122/262 A++ 923258
35 3000 4850 RM3 L II from -40 to +50 870/122/262 A+ 924002
35 3000 5050 RM3 L I from -40 to +50 870/122/262 A+ 923661
35 3000 5050 RM3 L II from -40 to +50 870/122/262 A+ 923890
35 4000 5300 RW2 L I from -40 to +50 870/122/262 A++ 961151
35 4000 5300 RW2 L II from -40 to +50 870/122/262 A++ 961380
35 4000 5550 RW2 L I from -40 to +50 870/122/262 A++ 961625
35 4000 5550 RW2 L II from -40 to +50 870/122/262 A++ 961878
35 3000 4950 RW2 L I from -40 to +50 870/122/262 A+ 922329
35 3000 4950 RW2 L II from -40 to +50 870/122/262 A++ 922558
35 3000 5200 RW2 L I from -40 to +50 870/122/262 A+ 922787
35 3000 5200 RW2 L II from -40 to +50 870/122/262 A+ 923012
51 4000 7750 RM3 L I from -40 to +50 870/122/262 A++ 962592
51 4000 7750 RM3 L II from -40 to +50 870/122/262 A++ 962844
51 3000 7200 RM3 L I from -40 to +50 870/122/262 A+ 923678
51 3000 7200 RM3 L II from -40 to +50 870/122/262 A+ 923906
51 4000 7900 RW2 L I from -40 to +50 870/122/262 A++ 961632
51 4000 7900 RW2 L II from -40 to +50 870/122/262 A++ 961885
51 3000 7350 RW2 L I from -40 to +50 870/122/262 A+ 922794
51 3000 7350 RW2 L II from -40 to +50 870/122/262 A+ 923029
53 4000 7350 RM3 L I from -40 to +50 870/122/262 A++ 963100
53 4000 7350 RM3 L II from -40 to +50 870/122/262 A++ 962356
53 3000 6850 RM3 L II from -40 to +50 870/122/262 A+ 923449
53 4000 7500 RW2 L I from -40 to +50 870/122/262 A++ 961168
53 4000 7500 RW2 L II from -40 to +50 870/122/262 A++ 961397
53 3000 7050 RW2 L I from -40 to +50 870/122/262 A+ 922336
53 3000 7050 RW2 L II from -40 to +50 870/122/262 A+ 922565
56 3000 6850 RM3 L I from -40 to +50 870/122/262 A+ 924026
67 4000 10400 RM3 L I from -40 to +50 870/122/262 A++ 962608
67 4000 10400 RM3 L II from -40 to +50 870/122/262 A++ 962851
67 3000 9650 RM3 L I from -40 to +50 870/122/262 A+ 923685
67 3000 9650 RM3 L II from -40 to +50 870/122/262 A+ 923913
67 4000 10600 RW2 L I from -40 to +50 870/122/262 A++ 961649
67 4000 10600 RW2 L II from -40 to +50 870/122/262 A++ 961892
67 3000 9850 RW2 L I from -40 to +50 870/122/262 A+ 922800
67 3000 9850 RW2 L II from -40 to +50 870/122/262 A+ 923036
70 4000 10000 RM3 L I from -40 to +50 870/122/262 A++ 963117
70 4000 10000 RM3 L II from -40 to +50 870/122/262 A++ 962363
70 3000 9300 RM3 L II from -40 to +50 870/122/262 A+ 923456
70 3000 9300 RM3 L I from -40 to +50 870/122/262 A+ 924033
70 4000 10200 RW2 L I from -40 to +50 870/122/262 A++ 961175
70 4000 10200 RW2 L II from -40 to +50 870/122/262 A++ 961403
70 3000 9500 RW2 L I from -40 to +50 870/122/262 A+ 922343
70 3000 9500 RW2 L II from -40 to +50 870/122/262 A+ 922572
77 4000 11800 RM3 L I from -40 to +50 870/122/262 A++ 962615
77 4000 11800 RM3 L II from -40 to +50 870/122/262 A++ 962868
77 3000 10900 RM3 L I from -40 to +50 870/122/262 A+ 923692
77 3000 11000 RM3 L II from -40 to +50 870/122/262 A+ 923920
77 4000 12000 RW2 L I from -40 to +50 870/122/262 A++ 961656
77 4000 12000 RW2 L II from -40 to +50 870/122/262 A++ 961908
77 3000 11150 RW2 L I from -40 to +50 870/122/262 A+ 922817
77 3000 11150 RW2 L II from -40 to +50 870/122/262 A+ 923043
81 4000 11300 RM3 L I from -40 to +50 870/122/262 A++ 962141
81 4000 11300 RM3 L II from -40 to +50 870/122/262 A++ 962370
81 3000 10500 RM3 L I from -40 to +50 870/122/262 A+ 923289
81 3000 10500 RM3 L II from -40 to +50 870/122/262 A+ 923463
81 4000 11500 RW2 L I from -40 to +50 870/122/262 A++ 961182
81 4000 11500 RW2 L II from -40 to +50 870/122/262 A++ 961410
81 3000 10700 RW2 L I from -40 to +50 870/122/262 A+ 922350
81 3000 10700 RW2 L II from -40 to +50 870/122/262 A+ 922589
97 4000 14500 RM3 L I from -40 to +50 870/122/262 A++ 962622
97 4000 14500 RM3 L II from -40 to +50 870/122/262 A++ 962875
97 3000 13500 RM3 L I from -40 to +50 870/122/262 A+ 923708
97 3000 13500 RM3 L II from -40 to +50 870/122/262 A+ 923937
97 4000 14800 RW2 L I from -40 to +50 870/122/262 A++ 961663
97 4000 14800 RW2 L II from -40 to +50 870/122/262 A++ 961915
97 3000 13900 RW2 L I from -40 to +50 870/122/262 A+ 922824
97 3000 13900 RW2 L II from -40 to +50 870/122/262 A+ 923050
102 4000 14000 RM3 L I from -40 to +50 870/122/262 A++ 962158
102 4000 14000 RM3 L II from -40 to +50 870/122/262 A++ 962387
102 3000 13000 RM3 L II from -40 to +50 870/122/262 A+ 923470
102 3000 13150 RM3 L I from -40 to +50 870/122/262 A+ 923265
102 4000 14300 RW2 L I from -40 to +50 870/122/262 A++ 961199
102 4000 14300 RW2 L II from -40 to +50 870/122/262 A++ 961427
102 3000 13300 RW2 L I from -40 to +50 870/122/262 A+ 922367
102 3000 13300 RW2 L II from -40 to +50 870/122/262 A+ 922596
103 4000 14900 RM3 L I from -40 to +50 870/122/262 A++ 962639
103 4000 14900 RM3 L II from -40 to +50 870/122/262 A++ 962882
103 3000 13850 RM3 L I from -40 to +50 870/122/262 A+ 923715
103 3000 13850 RM3 L II from -40 to +50 870/122/262 A+ 923944
103 4000 15200 RW2 L I from -40 to +50 870/122/262 A++ 961670
103 4000 15200 RW2 L II from -40 to +50 870/122/262 A++ 961922
103 3000 14300 RW2 L I from -40 to +50 870/122/262 A+ 922831
103 3000 14300 RW2 L II from -40 to +50 870/122/262 A+ 923067
110 4000 14200 RM3 L I from -40 to +50 870/122/262 A++ 962165
110 4000 14200 RM3 L II from -40 to +50 870/122/262 A++ 962394
110 3000 13200 RM3 L I from -40 to +50 870/122/262 A+ 923272
110 3000 13300 RM3 L II from -40 to +50 870/122/262 A+ 923487
110 4000 14450 RW2 L I from -40 to +50 870/122/262 A++ 961205
110 4000 14450 RW2 L II from -40 to +50 870/122/262 A++ 961434
110 3000 13450 RW2 L I from -40 to +50 870/122/262 A+ 922374
110 3000 13450 RW2 L II from -40 to +50 870/122/262 A+ 922602
117 4000 17100 RM3 L I from -40 to +50 870/122/262 A++ 962646
117 4000 17100 RM3 L II from -40 to +50 870/122/262 A++ 962899
117 3000 15900 RM3 L I from -40 to +50 870/122/262 A+ 923722
117 3000 15900 RM3 L II from -40 to +50 870/122/262 A+ 923951
117 4000 17450 RW2 L I from -40 to +50 870/122/262 A++ 961687
117 4000 17450 RW2 L II from -40 to +50 870/122/262 A++ 961939
117 3000 16400 RW2 L I from -40 to +50 870/122/262 A+ 922848
117 3000 16400 RW2 L II from -40 to +50 870/122/262 A+ 923074
123 4000 16500 RM3 L I from -40 to +50 870/122/262 A++ 962172
123 4000 16500 RM3 L II from -40 to +50 870/122/262 A++ 962400
123 3000 15350 RM3 L II from -40 to +50 870/122/262 A+ 923494
123 3000 15500 RM3 L I from -40 to +50 870/122/262 A+ 923296
123 4000 16850 RW2 L I from -40 to +50 870/122/262 A++ 961212
123 4000 16850 RW2 L II from -40 to +50 870/122/262 A++ 961441
123 3000 15650 RW2 L I from -40 to +50 870/122/262 A+ 922381
123 3000 15650 RW2 L II from -40 to +50 870/122/262 A+ 922619
137 4000 19900 RM3 L I from -40 to +50 870/122/262 A++ 962653
137 4000 19900 RM3 L II from -40 to +50 870/122/262 A++ 962905
137 3000 18500 RM3 L I from -40 to +50 870/122/262 A+ 923739
137 3000 18500 RM3 L II from -40 to +50 870/122/262 A+ 923968
137 4000 20300 RW2 L I from -40 to +50 870/122/262 A++ 961694
137 3000 19100 RW2 L II from -40 to +50 870/122/262 A+ 923081
137 3000 19100 RW2 L I from -40 to +50 870/122/262 A+ 922855
145 4000 18900 RM3 L I from -40 to +35 870/122/262 A++ 962189
145 4000 18900 RM3 L II from -40 to +35 870/122/262 A++ 962417
145 3000 17500 RM3 L II from -40 to +50 870/122/262 A+ 923500
145 3000 17750 RM3 L I from -40 to +50 870/122/262 A+ 923302
145 4000 19250 RW2 L I from -40 to +35 870/122/262 A++ 961229
145 4000 19250 RW2 L II from -40 to +35 870/122/262 A++ 961458
145 3000 18100 RW2 L I from -40 to +50 870/122/262 A+ 922398
145 3000 18100 RW2 L II from -40 to +50 870/122/262 A+ 922626
150 3000 20450 RW5 L II from -40 to +50 870/122/262 A+ 924095
TIARA LED PRO M
20 4000 3050 RM3 M I from -40 to +50 665/122/262 A++ 962424
20 4000 3050 RM3 M II from -40 to +50 665/122/262 A++ 962677
20 3000 2800 RM3 M II from -40 to +50 665/122/262 A+ 923746
20 3000 2850 RM3 M I from -40 to +50 665/122/262 A+ 923517
20 4000 3100 RW2 M I from -40 to +50 665/122/262 A++ 961465
20 4000 3100 RW2 M II from -40 to +50 665/122/262 A++ 961717
20 3000 2900 RW2 M I from -40 to +50 665/122/262 A+ 922633
20 3000 2900 RW2 M II from -40 to +50 665/122/262 A+ 922862
21 4000 2900 RM3 M I from -40 to +50 665/122/262 A++ 961960
21 4000 2900 RM3 M II from -40 to +50 665/122/262 A++ 962196
21 4000 2950 RM3 M I from -40 to +50 665/122/262 A++ 962431
21 4000 2950 RM3 M II from -40 to +50 665/122/262 A++ 962684
21 3000 2700 RM3 M I from -40 to +50 665/122/262 A+ 923104
21 3000 2700 RM3 M II from -40 to +50 665/122/262 A+ 923319
21 3000 2750 RM3 M I from -40 to +50 665/122/262 A+ 923524
21 3000 2750 RM3 M II from -40 to +50 665/122/262 A+ 923753
21 4000 2950 RW2 M I from -40 to +50 665/122/262 A++ 961007
21 4000 2950 RW2 M II from -40 to +50 665/122/262 A++ 961236
21 4000 3000 RW2 M I from -40 to +50 665/122/262 A++ 961472
21 4000 3000 RW2 M II from -40 to +50 665/122/262 A++ 961724
21 3000 2750 RW2 M I from -40 to +50 665/122/262 A+ 922190
21 3000 2750 RW2 M II from -40 to +50 665/122/262 A+ 922404
21 3000 2800 RW2 M I from -40 to +50 665/122/262 A+ 922640
21 3000 2800 RW2 M II from -40 to +50 665/122/262 A+ 922879
22 4000 2900 RM3 M I from -40 to +50 665/122/262 A++ 961977
22 4000 2900 RM3 M II from -40 to +50 665/122/262 A++ 962202
22 3000 2700 RM3 M I from -40 to +50 665/122/262 A+ 923111
22 3000 2700 RM3 M II from -40 to +50 665/122/262 A+ 923326
22 4000 2950 RW2 M I from -40 to +50 665/122/262 A++ 961014
22 4000 2950 RW2 M II from -40 to +50 665/122/262 A++ 961243
22 3000 2750 RW2 M I from -40 to +50 665/122/262 A+ 922206
22 3000 2750 RW2 M II from -40 to +50 665/122/262 A+ 922411
26 4000 3650 RM3 M I from -40 to +50 665/122/262 A++ 962448
26 4000 3650 RM3 M II from -40 to +50 665/122/262 A++ 962691
26 3000 3350 RM3 M II from -40 to +50 665/122/262 A+ 923760
26 3000 3400 RM3 M I from -40 to +50 665/122/262 A+ 923531
26 4000 3700 RW2 M I from -40 to +50 665/122/262 A++ 961489
26 4000 3700 RW2 M II from -40 to +50 665/122/262 A++ 961731
26 3000 3450 RW2 M I from -40 to +50 665/122/262 A+ 922657
26 3000 3450 RW2 M II from -40 to +50 665/122/262 A+ 922886
27 4000 3500 RM3 M I from -40 to +50 665/122/262 A++ 961984
27 4000 3500 RM3 M II from -40 to +50 665/122/262 A++ 962219
27 3000 3250 RM3 M I from -40 to +50 665/122/262 A+ 924156
27 3000 3250 RM3 M II from -40 to +50 665/122/262 A+ 923333
27 4000 3550 RW2 M I from -40 to +50 665/122/262 A++ 961021
27 4000 3550 RW2 M II from -40 to +50 665/122/262 A++ 961250
27 3000 3300 RW2 M I from -40 to +50 665/122/262 A+ 922213
27 3000 3300 RW2 M II from -40 to +50 665/122/262 A+ 922428
30 4000 4400 RM3 M I from -40 to +50 665/122/262 A++ 962455
30 4000 4400 RM3 M II from -40 to +50 665/122/262 A++ 962707
30 3000 4050 RM3 M I from -40 to +50 665/122/262 A+ 923548
30 3000 4100 RM3 M II from -40 to +50 665/122/262 A+ 923777
30 4000 4500 RW2 M I from -40 to +50 665/122/262 A++ 961496
30 4000 4500 RW2 M II from -40 to +50 665/122/262 A++ 961748
30 3000 4200 RW2 M I from -40 to +50 665/122/262 A+ 922664
30 3000 4200 RW2 M II from -40 to +50 665/122/262 A+ 922893
31 4000 4300 RM3 M I from -40 to +50 665/122/262 A++ 962462
31 4000 4300 RM3 M II from -40 to +50 665/122/262 A++ 962714
31 3000 4000 RM3 M I from -40 to +50 665/122/262 A+ 923555
31 3000 4000 RM3 M II from -40 to +50 665/122/262 A+ 923784
31 3000 4000 RM7 M II from -40 to +50 665/122/262 A+ 922008
31 4000 4400 RW2 M I from -40 to +50 665/122/262 A++ 961502
31 4000 4400 RW2 M II from -40 to +50 665/122/262 A++ 961755
31 3000 4100 RW2 M I from -40 to +50 665/122/262 A+ 922671
31 3000 4100 RW2 M II from -40 to +50 665/122/262 A+ 922909
32 4000 4100 RM3 M II from -40 to +50 665/122/262 A++ 963094
32 4000 4100 RM3 M I from -40 to +50 665/122/262 A++ 962004
32 4000 4200 RM3 M I from -40 to +50 665/122/262 A++ 961991
32 4000 4200 RM3 M II from -40 to +50 665/122/262 A++ 962226
32 4000 4850 RM3 M I from -40 to +50 665/122/262 A++ 962479
32 4000 4850 RM3 M II from -40 to +50 665/122/262 A++ 962721
32 3000 3800 RM3 M II from -40 to +50 665/122/262 A+ 924019
32 3000 3850 RM3 M I from -40 to +50 665/122/262 A+ 923142
32 3000 3900 RM3 M I from -40 to +50 665/122/262 A+ 924163
32 3000 3900 RM3 M II from -40 to +50 665/122/262 A+ 923340
32 3000 4500 RM3 M I from -40 to +50 665/122/262 A+ 923562
32 3000 4500 RM3 M II from -40 to +50 665/122/262 A+ 923791
32 4000 4200 RW2 M I from -40 to +50 665/122/262 A++ 961045
32 4000 4200 RW2 M II from -40 to +50 665/122/262 A++ 961274
32 4000 4300 RW2 M I from -40 to +50 665/122/262 A++ 961038
32 4000 4300 RW2 M II from -40 to +50 665/122/262 A++ 961267
32 4000 4950 RW2 M I from -40 to +50 665/122/262 A++ 961519
32 4000 4950 RW2 M II from -40 to +50 665/122/262 A++ 961762
32 3000 3900 RW2 M I from -40 to +50 665/122/262 A+ 924194
32 3000 3900 RW2 M II from -40 to +50 665/122/262 A+ 922442
32 3000 4000 RW2 M I from -40 to +50 665/122/262 A+ 922220
32 3000 4000 RW2 M II from -40 to +50 665/122/262 A+ 922435
32 3000 4500 RW2 M II from -40 to +50 665/122/262 A+ 922916
32 3000 4600 RW2 M I from -40 to +50 665/122/262 A+ 922688
33 4000 4600 RM3 M I from -40 to +50 665/122/262 A++ 962011
33 4000 4600 RM3 M II from -40 to +50 665/122/262 A++ 962240
33 3000 4300 RM3 M I from -40 to +50 665/122/262 A+ 923159
33 3000 4300 RM3 M II from -40 to +50 665/122/262 A+ 923357
33 4000 4700 RW2 M I from -40 to +50 665/122/262 A++ 961052
33 4000 4700 RW2 M II from -40 to +50 665/122/262 A++ 961281
33 3000 4400 RW2 M I from -40 to +50 665/122/262 A+ 922244
33 3000 4400 RW2 M II from -40 to +50 665/122/262 A+ 922459
34 4000 5000 RM3 M I from -40 to +50 665/122/262 A++ 962486
34 4000 5000 RM3 M II from -40 to +50 665/122/262 A++ 962738
34 3000 4650 RM3 M I from -40 to +50 665/122/262 A+ 923579
34 3000 4200 RM3 M II from -40 to +50 665/122/262 A+ 923807
34 4000 5100 RW2 M I from -40 to +50 665/122/262 A++ 961526
34 4000 5100 RW2 M II from -40 to +50 665/122/262 A++ 961779
34 3000 4800 RW2 M I from -40 to +50 665/122/262 A+ 922695
34 3000 4800 RW2 M II from -40 to +50 665/122/262 A+ 922923
35 4000 5250 RM3 M I from -40 to +50 665/122/262 A++ 962493
35 4000 5250 RM3 M II from -40 to +50 665/122/262 A++ 962745
35 3000 4850 RM3 M I from -40 to +50 665/122/262 A+ 923586
35 3000 4650 RM3 M II from -40 to +50 665/122/262 A+ 923814
35 3000 4900 RM7 M II from -40 to +50 665/122/262 A+ 924101
35 4000 5350 RW2 M I from -40 to +50 665/122/262 A++ 961533
35 4000 5350 RW2 M II from -40 to +50 665/122/262 A++ 961786
35 3000 5000 RW2 M I from -40 to +50 665/122/262 A+ 922701
35 3000 5000 RW2 M II from -40 to +50 665/122/262 A+ 922930
36 3000 4800 ASM2 M II from -40 to +50 665/122/262 A+ 922015
36 4000 4850 RM3 M I from -40 to +50 665/122/262 A++ 962028
36 4000 4850 RM3 M II from -40 to +50 665/122/262 A++ 962257
36 4000 5000 RM3 M I from -40 to +50 665/122/262 A++ 962035
36 4000 5000 RM3 M II from -40 to +50 665/122/262 A++ 962264
36 3000 4500 RM3 M II from -40 to +50 665/122/262 A+ 923364
36 3000 4550 RM3 M I from -40 to +50 665/122/262 A+ 923166
36 3000 4650 RM3 M II from -40 to +50 665/122/262 A+ 923371
36 3000 4700 RM3 M I from -40 to +50 665/122/262 A+ 923173
36 4000 4950 RW2 M I from -40 to +50 665/122/262 A++ 961069
36 4000 4950 RW2 M II from -40 to +50 665/122/262 A++ 961298
36 4000 5100 RW2 M I from -40 to +50 665/122/262 A++ 961076
36 4000 5100 RW2 M II from -40 to +50 665/122/262 A++ 961304
36 3000 4600 RW2 M I from -40 to +50 665/122/262 A+ 922251
36 3000 4600 RW2 M II from -40 to +50 665/122/262 A+ 922466
36 3000 4800 RW2 M I from -40 to +50 665/122/262 A+ 922268
36 3000 4800 RW2 M II from -40 to +50 665/122/262 A+ 922473
38 4000 4700 RM3 M I from -40 to +50 665/122/262 A++ 962042
38 4000 4700 RM3 M II from -40 to +50 665/122/262 A++ 963070
38 3000 4400 RM3 M I from -40 to +50 665/122/262 A+ 923180
38 3000 4400 RM3 M II from -40 to +50 665/122/262 A+ 923999
38 4000 4800 RW2 M I from -40 to +50 665/122/262 A++ 961083
38 4000 4800 RW2 M II from -40 to +50 665/122/262 A++ 961311
38 3000 4500 RW2 M I from -40 to +50 665/122/262 A+ 922275
38 3000 4500 RW2 M II from -40 to +50 665/122/262 A+ 922480
39 4000 5900 RM3 M I from -40 to +50 665/122/262 A++ 962516
39 4000 5900 RM3 M II from -40 to +50 665/122/262 A++ 962769
39 3000 5500 RM3 M II from -40 to +50 665/122/262 A+ 923821
39 3000 5550 RM3 M I from -40 to +50 665/122/262 A+ 923593
39 4000 6000 RW2 M I from -40 to +50 665/122/262 A++ 961557
39 4000 6000 RW2 M II from -40 to +50 665/122/262 A++ 961809
39 3000 5650 RW2 M I from -40 to +50 665/122/262 A+ 922718
39 3000 5650 RW2 M II from -40 to +50 665/122/262 A+ 922947
41 3000 5300 ASM2 M II from -40 to +50 665/122/262 A+ 922046
41 4000 5700 RM3 M I from -40 to +50 665/122/262 A++ 962059
41 4000 5700 RM3 M II from -40 to +50 665/122/262 A++ 962288
41 3000 5300 RM3 M I from -40 to +50 665/122/262 A+ 923197
41 3000 5300 RM3 M II from -40 to +50 665/122/262 A+ 923388
41 4000 5800 RW2 M I from -40 to +50 665/122/262 A++ 961090
41 4000 5800 RW2 M II from -40 to +50 665/122/262 A++ 961328
41 3000 5400 RW2 M I from -40 to +50 665/122/262 A+ 922282
41 3000 5400 RW2 M II from -40 to +50 665/122/262 A+ 922497
43 4000 6450 RM3 M I from -40 to +50 665/122/262 A++ 962523
43 4000 6450 RM3 M II from -40 to +50 665/122/262 A++ 962776
43 3000 6000 RM3 M I from -40 to +50 665/122/262 A+ 923609
43 3000 6000 RM3 M II from -40 to +50 665/122/262 A+ 923838
43 4000 6600 RW2 M I from -40 to +50 665/122/262 A++ 961564
43 4000 6600 RW2 M II from -40 to +50 665/122/262 A++ 961816
43 3000 6200 RW2 M I from -40 to +50 665/122/262 A+ 922725
43 3000 6200 RW2 M II from -40 to +50 665/122/262 A+ 922954
49 4000 7300 RM3 M I from -40 to +50 665/122/262 A++ 962530
49 4000 7300 RM3 M II from -40 to +50 665/122/262 A++ 962783
49 3000 6750 RM3 M I from -40 to +50 665/122/262 A+ 923616
49 3000 6800 RM3 M II from -40 to +50 665/122/262 A+ 923845
49 3000 6800 RM7 M II from -40 to +50 665/122/262 A+ 924064
49 3000 6800 RM7 M II from -40 to +50 665/122/262 A+ 924040
49 4000 7450 RW2 M I from -40 to +50 665/122/262 A++ 961571
49 4000 7450 RW2 M II from -40 to +50 665/122/262 A++ 961823
49 3000 7000 RW2 M I from -40 to +50 665/122/262 A+ 922732
49 3000 7000 RW2 M II from -40 to +50 665/122/262 A+ 922961
50 3000 6850 RW5 M II from -40 to +50 665/122/262 A+ 924118
52 4000 6900 RM3 M I from -40 to +50 665/122/262 A++ 962066
52 4000 6900 RM3 M II from -40 to +50 665/122/262 A++ 962295
52 3000 6400 RM3 M I from -40 to +50 665/122/262 A+ 923203
52 3000 6400 RM3 M II from -40 to +50 665/122/262 A+ 923395
52 4000 7050 RW2 M I from -40 to +50 665/122/262 A++ 961106
52 4000 7050 RW2 M II from -40 to +50 665/122/262 A++ 961335
52 3000 6550 RW2 M I from -40 to +50 665/122/262 A+ 922299
52 3000 6550 RW2 M II from -40 to +50 665/122/262 A+ 922503
53 3000 7300 RM3 M II from -40 to +50 665/122/262 A++ 956928
59 4000 8650 RM3 M I from -40 to +50 665/122/262 A++ 962547
59 4000 8650 RM3 M II from -40 to +50 665/122/262 A++ 962790
59 3000 8050 RM3 M I from -40 to +50 665/122/262 A+ 923623
59 3000 8050 RM3 M II from -40 to +50 665/122/262 A+ 923852
59 4000 8850 RW2 M I from -40 to +50 665/122/262 A++ 961588
59 4000 8850 RW2 M II from -40 to +50 665/122/262 A++ 961830
59 3000 8300 RW2 M I from -40 to +50 665/122/262 A+ 922749
59 3000 8300 RW2 M II from -40 to +50 665/122/262 A+ 922978
60 3000 7300 RM3 M II from -40 to +50 665/122/262 A+ 924071
63 4000 8250 RM3 M I from -40 to +50 665/122/262 A++ 962073
63 4000 8250 RM3 M II from -40 to +50 665/122/262 A++ 962301
63 3000 7700 RM3 M II from -40 to +50 665/122/262 A+ 923401
63 3000 7750 RM3 M I from -40 to +50 665/122/262 A+ 923210
63 4000 8400 RW2 M I from -40 to +50 665/122/262 A++ 961113
63 3000 8400 RW2 M II from -40 to +35 665/122/262 A++ 956935
63 4000 8400 RW2 M II from -40 to +50 665/122/262 A++ 961342
63 3000 7900 RW2 M I from -40 to +50 665/122/262 A+ 922305
63 3000 7900 RW2 M II from -40 to +50 665/122/262 A+ 922510
69 4000 10000 RM3 M I from -40 to +50 665/122/262 A++ 962554
69 4000 10000 RM3 M II from -40 to +50 665/122/262 A++ 962806
69 3000 9300 RM3 M II from -40 to +50 665/122/262 A+ 923869
69 3000 9300 RM3 M I from -40 to +50 665/122/262 A+ 923630
69 3000 8200 RM7 M II from -40 to +50 665/122/262 A+ 922039
69 4000 10200 RW2 M I from -40 to +50 665/122/262 A++ 961595
69 4000 10200 RW2 M II from -40 to +50 665/122/262 A++ 961847
69 3000 9500 RW2 M I from -40 to +50 665/122/262 A+ 922756
69 3000 9500 RW2 M II from -40 to +50 665/122/262 A+ 922985
70 3000 9750 RW5 M II from -40 to +50 665/122/262 A+ 924200
74 4000 9450 RM3 M I from -40 to +50 665/122/262 A++ 962080
74 4000 9450 RM3 M II from -40 to +50 665/122/262 A++ 962318
74 3000 8800 RM3 M I from -40 to +50 665/122/262 A+ 923227
74 3000 8800 RM3 M II from -40 to +50 665/122/262 A+ 923418
74 4000 9650 RW2 M I from -40 to +50 665/122/262 A++ 963056
74 4000 9650 RW2 M II from -40 to +50 665/122/262 A++ 961359
74 3000 9000 RW2 M I from -40 to +50 665/122/262 A+ 923975
74 3000 9050 RW2 M II from -40 to +50 665/122/262 A+ 922527
80 4000 11300 RM3 M I from -40 to +50 665/122/262 A++ 962561
80 4000 11300 RM3 M II from -40 to +50 665/122/262 A++ 962813
80 3000 10500 RM3 M I from -40 to +50 665/122/262 A+ 923647
80 3000 10500 RM3 M II from -40 to +50 665/122/262 A+ 923876
80 4000 11500 RW2 M I from -40 to +50 665/122/262 A++ 961601
80 4000 11500 RW2 M II from -40 to +50 665/122/262 A++ 961854
80 3000 10700 RW2 M I from -40 to +50 665/122/262 A+ 922763
80 3000 10700 RW2 M II from -40 to +50 665/122/262 A+ 922992
85 4000 10700 RM3 M I from -40 to +50 665/122/262 A++ 962092
85 4000 10700 RM3 M II from -40 to +50 665/122/262 A++ 962325
85 3000 10050 RM3 M I from -40 to +50 665/122/262 A+ 923234
85 3000 9950 RM3 M II from -40 to +50 665/122/262 A+ 923425
85 4000 10900 RW2 M I from -40 to +50 665/122/262 A++ 963063
85 4000 10900 RW2 M II from -40 to +50 665/122/262 A++ 961366
85 3000 10100 RW2 M I from -40 to +50 665/122/262 A+ 923982
85 3000 10250 RW2 M II from -40 to +50 665/122/262 A+ 922534
89 3000 12800 - M II from -40 to +50 665/122/262 A+ 924057
89 4000 12350 RM3 M I from -40 to +50 665/122/262 A++ 962578
89 4000 12350 RM3 M II from -40 to +50 665/122/262 A++ 962820
89 3000 11500 RM3 M I from -40 to +50 665/122/262 A+ 923654
89 3000 11500 RM3 M II from -40 to +50 665/122/262 A+ 923883
89 4000 12600 RW2 M I from -40 to +50 665/122/262 A++ 961618
89 4000 12600 RW2 M II from -40 to +50 665/122/262 A++ 961861
89 3000 11850 RW2 M I from -40 to +50 665/122/262 A+ 922770
89 3000 11850 RW2 M II from -40 to +50 665/122/262 A+ 923005
94 4000 11500 RM3 M I from -40 to +35 665/122/262 A++ 962103
94 4000 11500 RM3 M II from -40 to +35 665/122/262 A++ 962332
94 3000 10650 RM3 M II from -40 to +50 665/122/262 A+ 923432
94 3000 10700 RM3 M I from -40 to +50 665/122/262 A+ 923241
94 4000 11750 RW2 M I from -40 to +35 665/122/262 A++ 961144
94 4000 11750 RW2 M II from -40 to +35 665/122/262 A++ 961373
94 3000 11050 RW2 M I from -40 to +50 665/122/262 A+ 922312
94 3000 11050 RW2 M II from -40 to +50 665/122/262 A+ 922541
98 4000 12250 RM3 M I from -40 to +50 665/122/262 A+ 960208
98 4000 12250 RM3 M II from -40 to +50 665/122/262 A+ 960215
98 3000 11550 RM3 M I from -40 to +50 665/122/262 A+ 922053
98 3000 11550 RM3 M II from -40 to +50 665/122/262 A+ 922060
100 3000 13850 RM3 M II from -40 to +50 665/122/262 A+ 924088
108 4000 13450 RM3 M I from -40 to +35 665/122/262 A+ 960222
108 4000 13450 RM3 M II from -40 to +35 665/122/262 A+ 960239
108 3000 12500 RM3 M I from -40 to +50 665/122/262 A+ 922077
108 3000 12500 RM3 M II from -40 to +50 665/122/262 A+ 922084
118 4000 14650 RM3 M I from -40 to +35 665/122/262 A+ 960246
118 4000 14650 RM3 M II from -40 to +35 665/122/262 A+ 960253
118 3000 13550 RM3 M I from -40 to +50 665/122/262 A+ 922091
118 3000 13550 RM3 M II from -40 to +50 665/122/262 A+ 922107
126 4000 15850 RM3 M I from -40 to +35 665/122/262 A+ 960260
126 4000 15850 RM3 M II from -40 to +35 665/122/262 A+ 960277
126 3000 14500 RM3 M I from -40 to +50 665/122/262 A+ 922114
126 3000 14500 RM3 M II from -40 to +50 665/122/262 A+ 924170
140 4000 17050 RM3 M I from -40 to +35 665/122/262 A+ 960284
140 4000 17050 RM3 M II from -40 to +35 665/122/262 A+ 960291
140 3000 15900 RM3 M I from -40 to +50 665/122/262 A+ 924187
140 3000 15900 RM3 M II from -40 to +50 665/122/262 A+ 922145
157 4000 18600 RM3 M I from -40 to +35 665/122/262 A+ 960307
157 4000 18600 RM3 M II from -40 to +35 665/122/262 A+ 960314
157 3000 17300 RM3 M I from -40 to +50 665/122/262 A+ 922152
157 3000 17300 RM3 M II from -40 to +50 665/122/262 A+ 922169
167 3000 18250 ASM2 M II from -40 to +50 665/122/262 A+ 922022
167 4000 19600 RM3 M I from -40 to +35 665/122/262 A+ 960321
167 4000 19600 RM3 M II from -40 to +35 665/122/262 A+ 960338
167 3000 18250 RM3 M I from -40 to +50 665/122/262 A+ 922176
167 3000 18250 RM3 M II from -40 to +50 665/122/262 A+ 922183
Accessories
NameIndex
mounting grip 78 mm UL00184
Module CLUE CITY GATEWAY IP67 GSM 830UL109
UL00184 uchwyt montażowy 78mm

Please leave for us your contact information:

* fill the required fields

↓ Read the information clause on the protection of personal data



1. The legal basis for personal data processing is Article 6(1)(a) of the Regulation of the European Parliament and of the Council (EU) 2016/679 of 27 April 2016 on the protection of natural persons with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, hereinafter the “GDPR”.
2. The legal basis for sending information by electronic means is an Act of 18 July 2002 on provision of services by electronic means (Journal of Laws of 2017, item 1219, as amended).
3. Provision of data is voluntary, but necessary to reply to a question asked through contact form.
4. The Data Protection Officer in Lena Lighting S.A., with its head office at ul. Kórnicka 52, 63-000 Środa Wielkopolska, is Mr. Tomasz Surdyk (contact: iod@lenalighting.pl).
5. You have a right to:
• Access own personal data and receive a copy of personal data subject to processing;
• Rectify own invalid data;
• Request removal of data (right to be forgotten) in case of circumstances provided in Article 17 of GDPR
• Request restriction of data processing in cases indicated in Article 18 of GDPR;
• Object to the data processing in cases indicated in Article 21 of GDPR;
• Transfer the data provided, processed in automated manner.
6. Your personal data is not subject to profiling.
7. Personal data provided shall be stored for the period of 24 months from the moment of consent to processing thereof.
8. If, in your opinion, the personal data provided is processed unlawfully, you may submit complaint to the supervisory authority (UODO (PDPA), ul. Stawki 2, Warsaw)

↑ Hide
Call us:
+48 532 518 394

Write to us:
hello@lenalighting.pl

Address:
Lena Lighting S.A.
ul. Kórnicka 52
63-000 Środa Wielkopolska
Poland
  • Add to favourites
