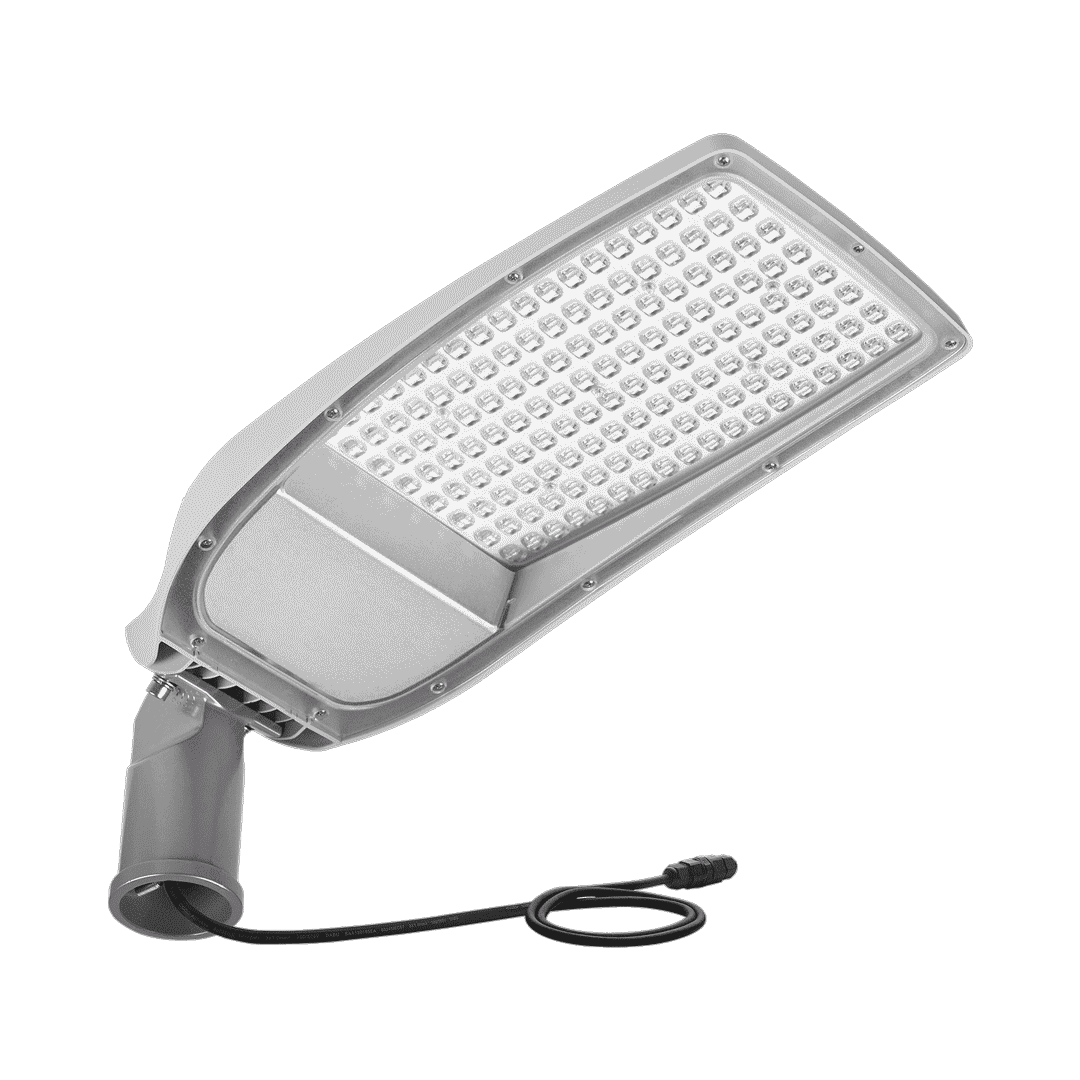

Astra LED

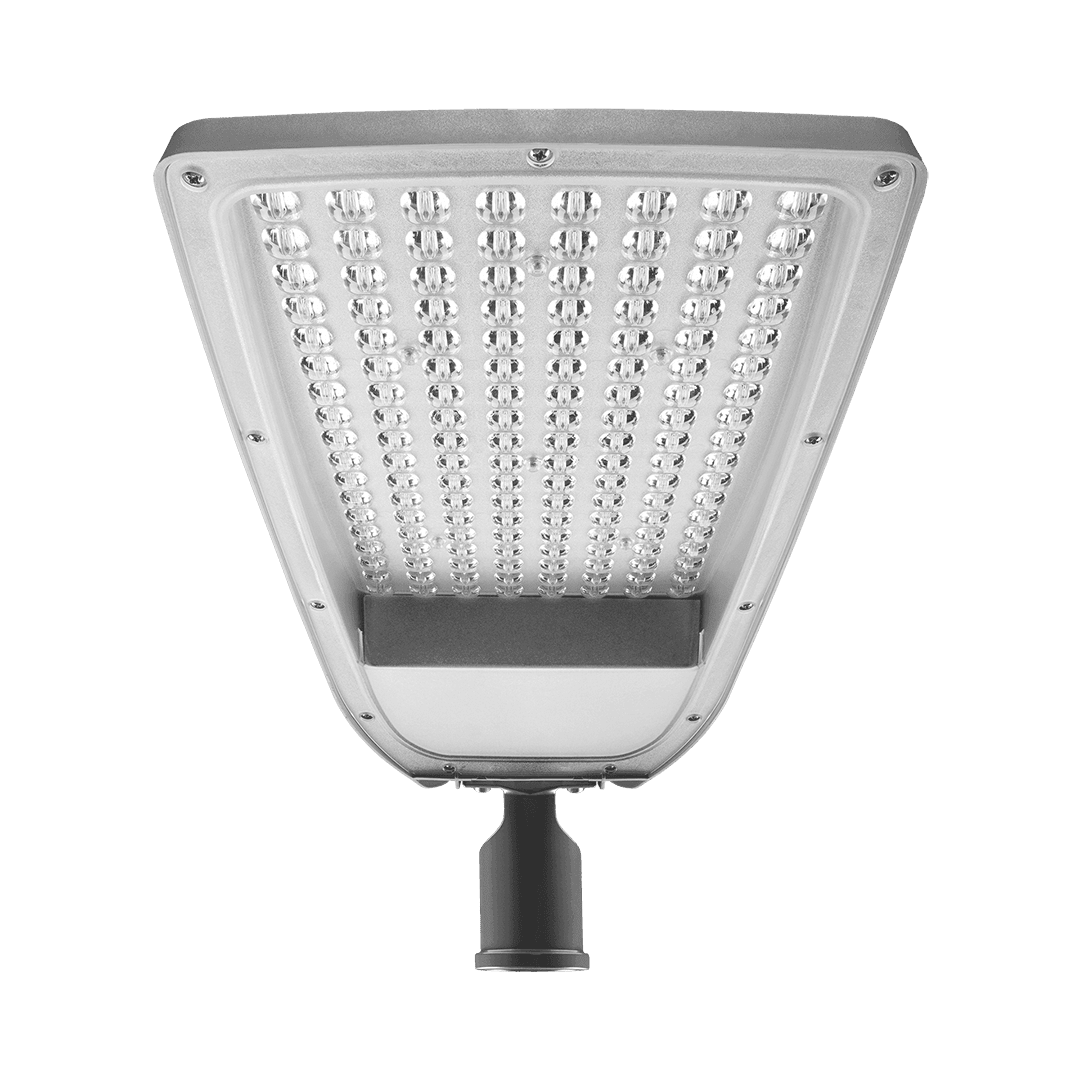

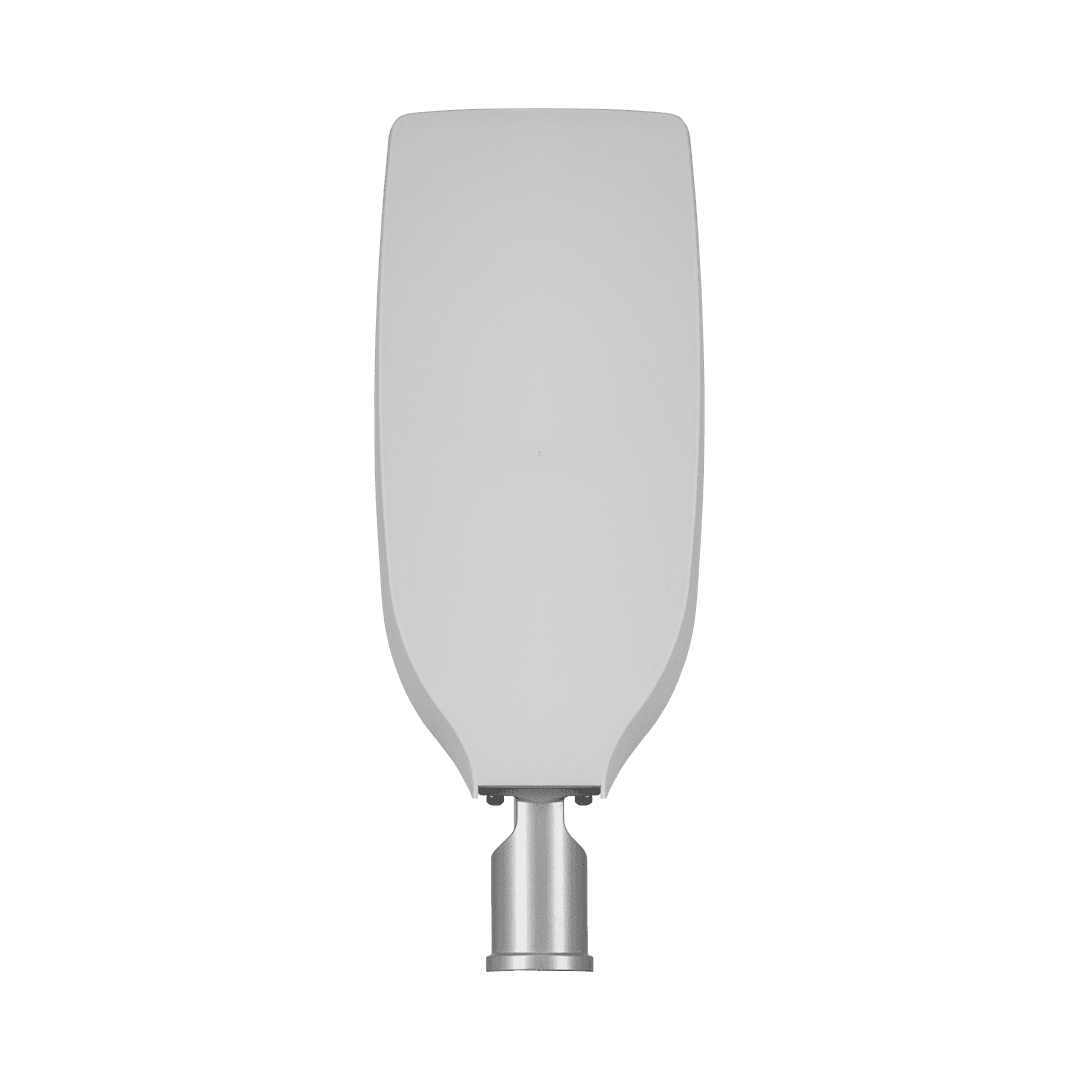

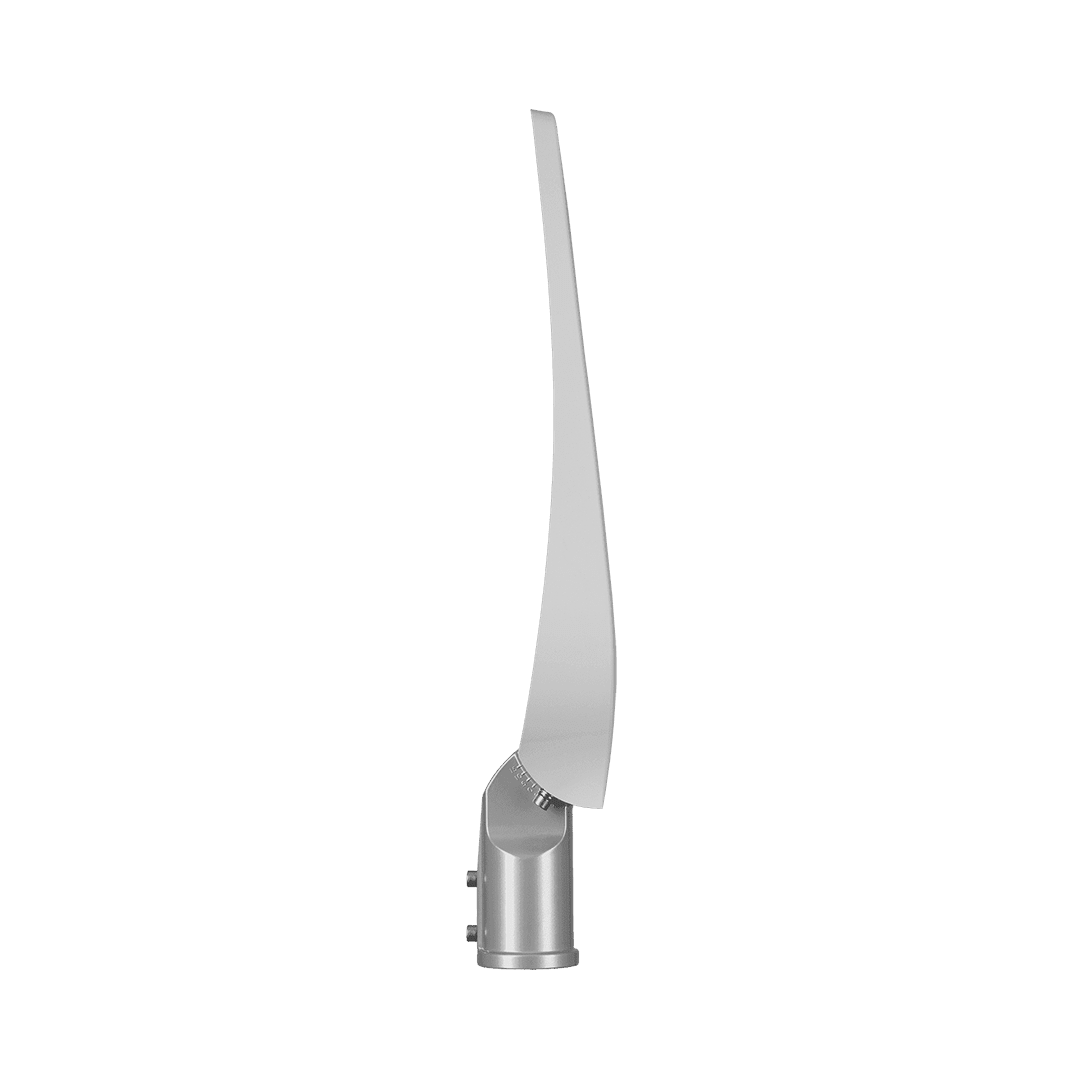

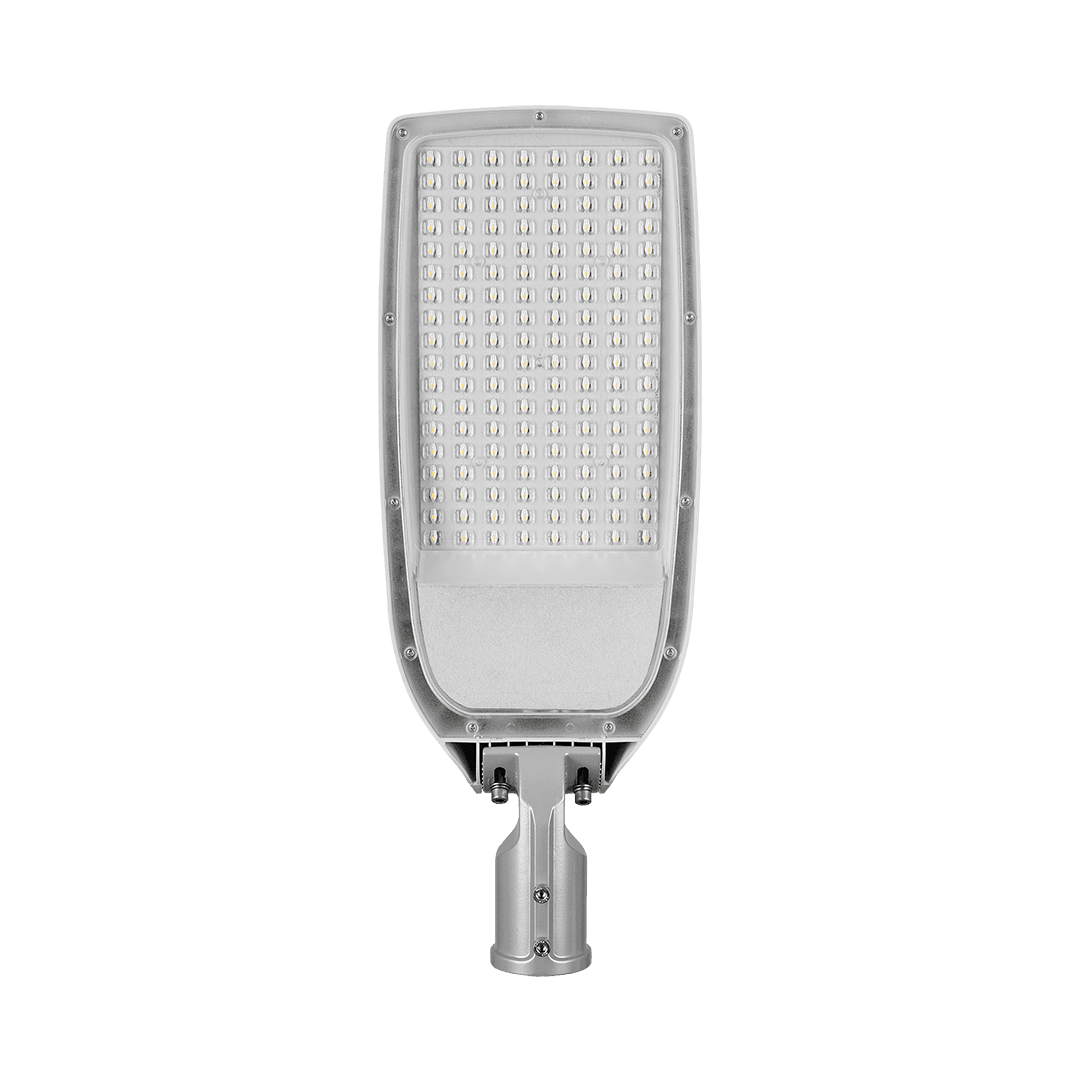

Streetlight LED fitting with high luminous flux (max 153 lm/W) and an integrated energy-saving LED module.

Technical specifications

Light source
LED
Colour temperature
  • 3000K
  • 4000K
  • 5700K
Mounting version
  • side entry
  • post top
Application
  • parkings and bicycle paths
  • streets and roads
LEDIIIik08ip66CE

Specification

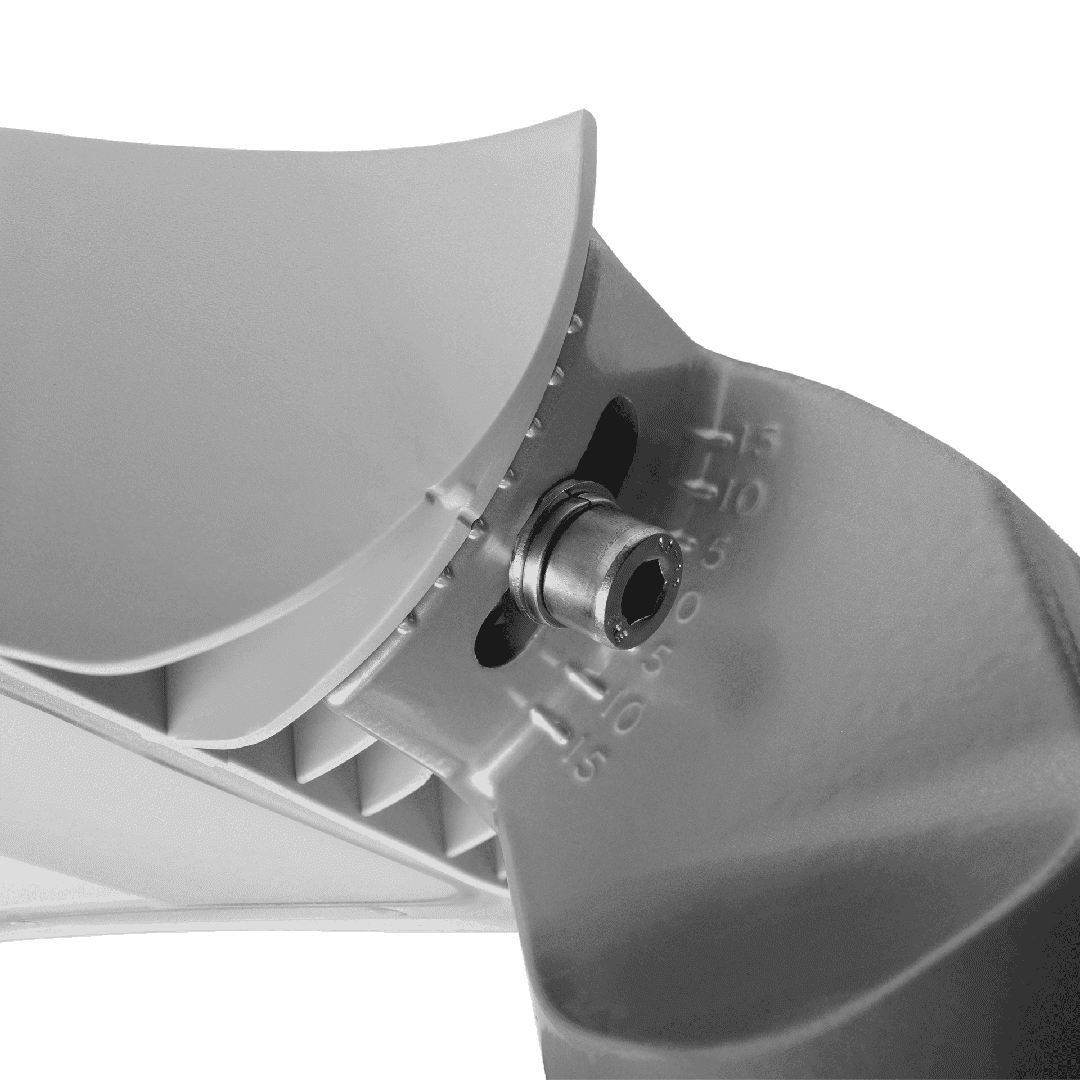

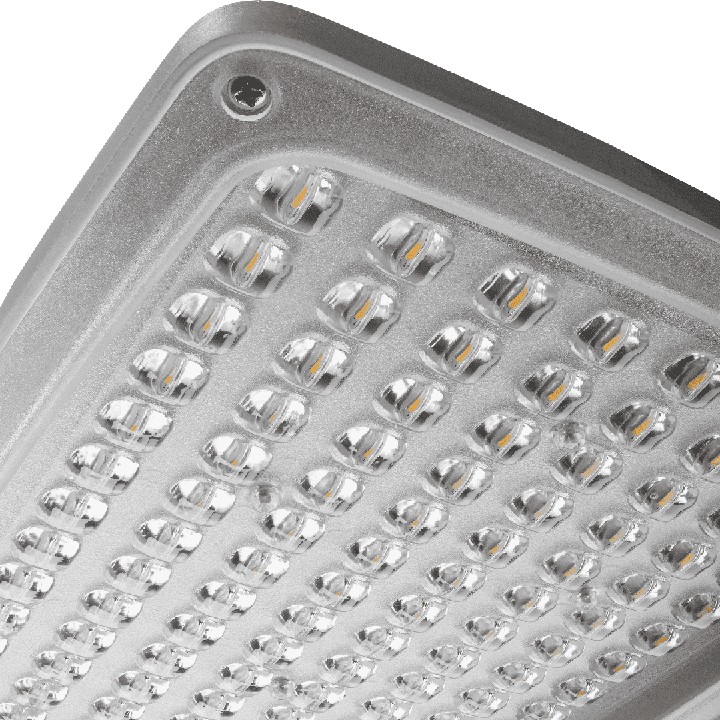

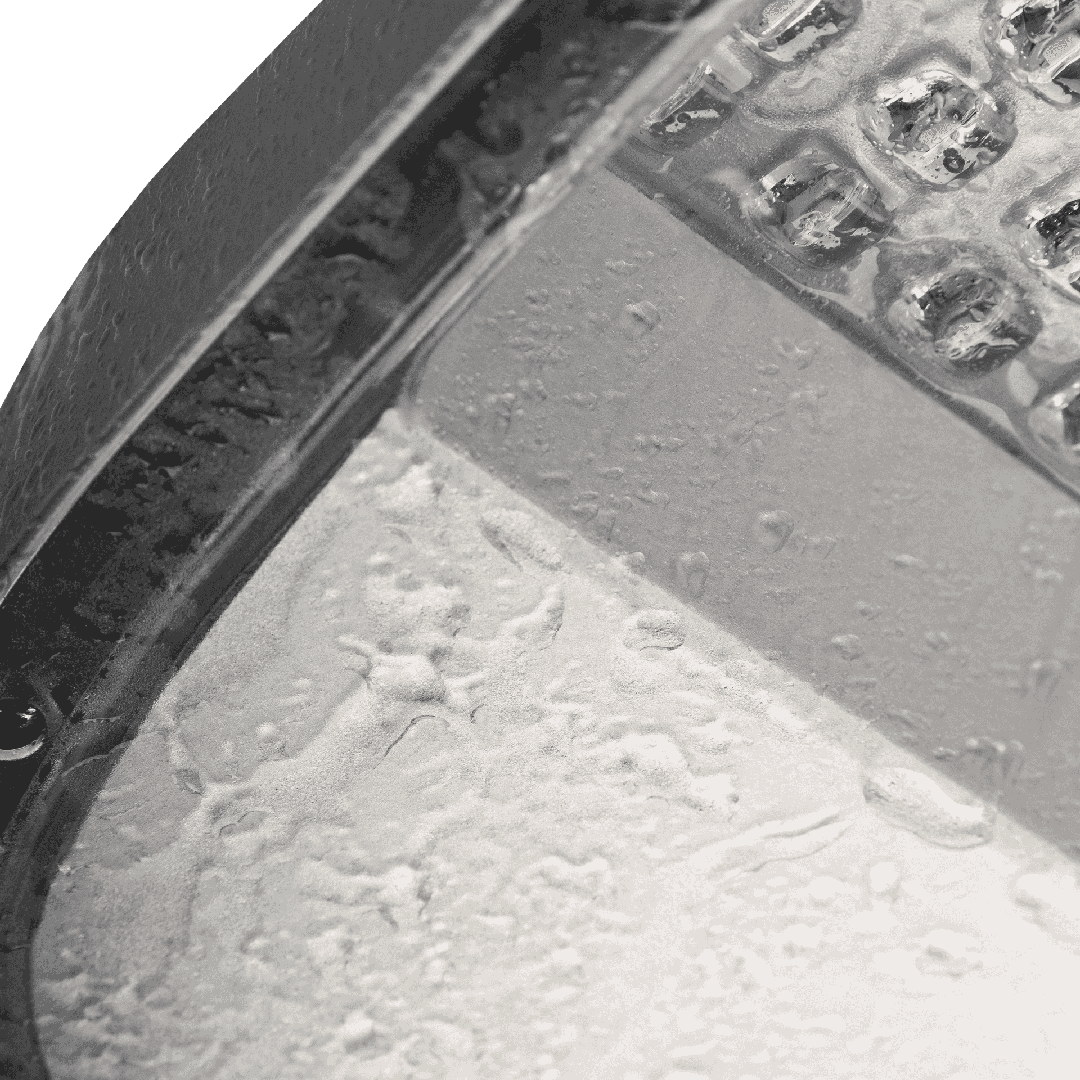

Streetlight LED fitting with high luminous flux (max 153 lm/W) and an integrated energy-saving LED module. The self-cleaning body is made of polypropylene (PP) with fiberglass (GF) and the grip is made of aluminium. Thanks to the directional lens (made of PC), the light distribution meets the requirements of PN–EN 13201 lighting class. IP66 ingress protection class and IK08 impact-rating features make this fitting extremely tight and shock-resistant (vandal-resistant). Integrated, step-regulated grip allows to set the fitting by 5 degrees in the range of -5° to +15° (peak to pole); -5° to +15° (side to boom). Options: any RAL color. Luminaires in protection class II may only be mounted on a metal pole.

Application

Luminaire is applicable to streets, local roads, bicycle paths, alleys, pavements, car parks, and squares. Installation and mounting: lateral side entry, post-top mounting. Mounting grip integrated with the fitting.

Other products from the Astra LED

Options
Rated power of the luminaire [W]Colour
temperature [K]
Luminous
flux [lm]
Motion sensorIndex
ASTRA LED 17W
17 3000 2100 - 663376
17 4000 2300 - 663369
17 5700 2300 - 663383
ASTRA LED 37W
37 3000 5350 - 663147
37 4000 5600 - 663000
37 4000 5600 yes 663314
37 5700 5600 - 663062
ASTRA LED 53W
53 3000 6950 - 663154
53 4000 7300 - 663017
53 4000 7300 yes 663321
53 5700 7300 - 663079
ASTRA LED 69W
69 3000 8650 - 663161
69 4000 9100 - 663024
69 4000 9100 yes 663338
69 5700 9100 - 663086
ASTRA LED 103W
103 3000 12200 - 664823
103 4000 12800 - 664816
103 5700 12800 - 664809
NameIndex
Wall holder (galvanized) 314049
Wall holder (grey) 314056
Mounting grip 78 mm UL00229

ASTRA LED CORONA 2 LED BASIC akcesoria EN
