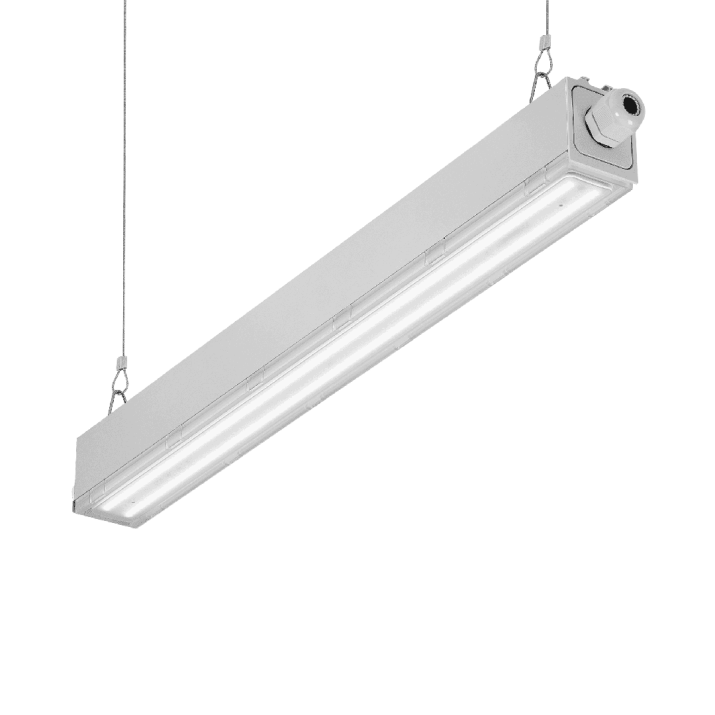

Tytan 2 LED IoT

IP66 beam ready for operation without an external control system. Integrated Bluetooth modules or an infrared receiver allow remote communication.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K 5000K
Diffuser type	MAT
Mounting version	surface surface or suspended suspended
Application	industrial

LED220-240vIik09ip65ip66iotenecCERecycling

Ask about this product

Options

Downloads

Characteristics

Tytan 2 LED IoT is a lamp that represents a new generation of lamps dedicated to LED technology. Designed from scratch, it introduces new solutions to improve light distribution and temperature balance. Diodes from a renowned manufacturer and new LED modules contribute to a very high luminous efficiency: 155 lm/W. This guarantees the achievement of the required level of illumination and energy savings of up to 68%. The lamp uses the solution of integrating the lampshade with the LED module. The IoT version of this lamp is ready to work independently without an external control system. Integrated Bluetooth modules or an infrared receiver allow remote communication and adjust the lamp's operation as desired. In addition, we offer a light and motion sensor which will further reduce lighting energy consumption. The lamp has a number of improvements to make installation easier and faster: a shade hanging system, adjustable brackets that provide a mounting tolerance of +/-50 mm. It comes standard with durable stainless steel (INOX) clips. The lamp body and lampshade are UV resistant. Warranty up to 5 years.

Characteristics IoT

Tytan 2 LED IoT - explanation of the different versions:

BT HYT DALI version has: a built-in BT HYT module that allows you to program functions in the Lena Lighting Clue app and control in real time, and a DALI driver that allows you to dim the light source.
BT PIR HYT DALI version has: a built-in BT HYT module that allows you to program functions in the Lena Lighting Clue app and control in real time; PIR motion and daylight sensor and DALI driver for dimming the light source.
RC PIR HYT version has: PIR motion and daylight sensor programmable by RC remote control and ON/OFF driver without dimming function of the light source.
RC PIR HYT DALI version has: PIR motion and daylight sensor programmable by the RC remote control and DALI driver driver enabling dimming of the light source.

Application

Multifunctional LED lamp is designed for use in areas with high requirements for dustproof and waterproof. Particularly recommended for illuminating public facilities including educational and educational hospital facilities, halls, garages, passageways, warehouses, stores, food industry and food commodity-related commercial and service facilities, industrial facilities (factories, laboratories), warehouses, parking lots (underground and multi-level), sports stadiums, transport terminals and underground passageways. TYTAN 2 LED IoT will work especially well in facilities with access to sunlight by reducing the energy required for lighting. Thanks to the built-in motion sensor, the lamp will also be ideal in places where the light can only burn when a person is present. The lamp is ideal for new lighting applications, as well as replacing traditional fluorescent fixtures with energy-efficient LED solutions. Its design is suitable for surface and pendant mounting.

Options

Nominal power [W]	Colour temperature [K]	Luminous flux [lm]	PIR	Motion sensor	DIMM DALI	Version	Dimensions (H/W/T/S) [mm]	Index
TYTAN 2 LED IoT 1152/85/80
16	3000	2450	-	-	yes	BT HYT DALI	1152/85/80	680212
16	4000	2650	-	-	yes	BT HYT DALI	1152/85/80	680229
16	5000	2650	-	-	yes	BT HYT DALI	1152/85/80	680236
28	3000	4150	-	-	yes	BT HYT DALI	1152/85/80	680243
28	4000	4550	-	-	yes	BT HYT DALI	1152/85/80	680250
28	5000	4550	-	-	yes	BT HYT DALI	1152/85/80	680267
47	3000	7300	-	-	yes	BT HYT DALI	1152/85/80	680335
47	4000	7850	-	-	yes	BT HYT DALI	1152/85/80	680342
47	5000	7850	-	-	yes	BT HYT DALI	1152/85/80	680359
55	3000	8400	-	-	yes	BT HYT DALI	1152/85/80	680366
55	4000	9050	-	-	yes	BT HYT DALI	1152/85/80	680373
55	5000	9050	-	-	yes	BT HYT DALI	1152/85/80	680380
TYTAN 2 LED IoT 1259/85/80
16	3000	2450	yes	-	yes	BT PIR HYT DALI	1259/85/80	508660
16	3000	2450	yes	-	yes	RC PIR HYT DALI	1259/85/80	680007
16	3000	2450	yes	-	-	RC PIR HYT	1259/85/80	680427
16	4000	2650	yes	-	yes	BT PIR HYT DALI	1259/85/80	508677
16	4000	2650	yes	-	yes	RC PIR HYT DALI	1259/85/80	680014
16	4000	2650	yes	-	-	RC PIR HYT	1259/85/80	680434
16	5000	2650	yes	-	yes	BT PIR HYT DALI	1259/85/80	508684
16	5000	2650	yes	-	yes	RC PIR HYT DALI	1259/85/80	680021
16	5000	2650	yes	-	-	RC PIR HYT	1259/85/80	680441
28	3000	4150	yes	-	yes	BT PIR HYT DALI	1259/85/80	508691
28	3000	4150	yes	-	yes	RC PIR HYT DALI	1259/85/80	680038
28	3000	4150	yes	-	-	RC PIR HYT	1259/85/80	680458
28	4000	4550	yes	-	yes	BT PIR HYT DALI	1259/85/80	508707
28	4000	4550	yes	-	yes	RC PIR HYT DALI	1259/85/80	680045
28	4000	4550	yes	-	-	RC PIR HYT	1259/85/80	680465
28	5000	4550	yes	-	yes	BT PIR HYT DALI	1259/85/80	508714
28	5000	4550	yes	-	yes	RC PIR HYT DALI	1259/85/80	680052
28	5000	4550	yes	-	-	RC PIR HYT	1259/85/80	680472
47	3000	7300	yes	-	yes	BT PIR HYT DALI	1259/85/80	508721
47	3000	7300	yes	-	yes	RC PIR HYT DALI	1259/85/80	680120
47	3000	7300	yes	-	-	RC PIR HYT	1259/85/80	680540
47	4000	7850	yes	-	yes	BT PIR HYT DALI	1259/85/80	508738
47	4000	7850	yes	-	yes	RC PIR HYT DALI	1259/85/80	680137
47	4000	7850	yes	-	-	RC PIR HYT	1259/85/80	680557
47	5000	7850	yes	-	yes	BT PIR HYT DALI	1259/85/80	508745
47	5000	7850	yes	-	yes	RC PIR HYT DALI	1259/85/80	680144
47	5000	7850	yes	-	-	RC PIR HYT	1259/85/80	680564
55	3000	8400	yes	-	yes	BT PIR HYT DALI	1259/85/80	508752
55	3000	8400	yes	-	yes	RC PIR HYT DALI	1259/85/80	680151
55	3000	8400	yes	-	-	RC PIR HYT	1259/85/80	680571
55	4000	9050	yes	-	yes	BT PIR HYT DALI	1259/85/80	508769
55	4000	9050	yes	-	yes	RC PIR HYT DALI	1259/85/80	680168
55	4000	9050	yes	-	-	RC PIR HYT	1259/85/80	680588
55	5000	9050	yes	-	yes	BT PIR HYT DALI	1259/85/80	508776
55	5000	9050	yes	-	yes	RC PIR HYT DALI	1259/85/80	680175
55	5000	9050	yes	-	-	RC PIR HYT	1259/85/80	680595
TYTAN 2 LED IoT 1432/85/80
35	3000	5250	-	-	yes	BT HYT DALI	1432/85/80	680274
35	4000	5650	-	-	yes	BT HYT DALI	1432/85/80	680281
35	5000	5650	-	-	yes	BT HYT DALI	1432/85/80	680298
42	3000	6550	-	-	yes	BT HYT DALI	1432/85/80	680304
42	4000	7050	-	-	yes	BT HYT DALI	1432/85/80	680311
42	5000	7050	-	-	yes	BT HYT DALI	1432/85/80	680328
69	3000	10500	-	-	yes	BT HYT DALI	1432/85/80	680397
69	4000	11300	-	-	yes	BT HYT DALI	1432/85/80	680403
69	5000	11300	-	-	yes	BT HYT DALI	1432/85/80	680410
TYTAN 2 LED IoT 1539/85/80
35	3000	5250	yes	-	yes	BT PIR HYT DALI	1539/85/80	508813
35	3000	5250	yes	-	yes	RC PIR HYT DALI	1539/85/80	680069
35	3000	5250	yes	-	-	RC PIR HYT	1539/85/80	680489
35	4000	5650	yes	-	yes	BT PIR HYT DALI	1539/85/80	508820
35	4000	5650	yes	-	yes	RC PIR HYT DALI	1539/85/80	680076
35	4000	5650	yes	-	-	RC PIR HYT	1539/85/80	680496
35	5000	5650	yes	-	yes	BT PIR HYT DALI	1539/85/80	508837
35	5000	5650	yes	-	yes	RC PIR HYT DALI	1539/85/80	680083
35	5000	5650	yes	-	-	RC PIR HYT	1539/85/80	680502
42	3000	6550	yes	-	yes	BT PIR HYT DALI	1539/85/80	508844
42	3000	6550	yes	-	yes	RC PIR HYT DALI	1539/85/80	680090
42	3000	6550	yes	-	-	RC PIR HYT	1539/85/80	680519
42	4000	7050	yes	-	yes	BT PIR HYT DALI	1539/85/80	508851
42	4000	7050	yes	-	yes	RC PIR HYT DALI	1539/85/80	680106
42	4000	7050	yes	-	-	RC PIR HYT	1539/85/80	680526
42	5000	7050	yes	-	yes	BT PIR HYT DALI	1539/85/80	508868
42	5000	7050	yes	-	yes	RC PIR HYT DALI	1539/85/80	680113
42	5000	7050	yes	-	-	RC PIR HYT	1539/85/80	680533
69	3000	10500	yes	-	yes	BT PIR HYT DALI	1539/85/80	508783
69	3000	10500	yes	-	yes	RC PIR HYT DALI	1539/85/80	680182
69	3000	10500	yes	-	-	RC PIR HYT	1539/85/80	680601
69	4000	11300	yes	-	yes	BT PIR HYT DALI	1539/85/80	508790
69	4000	11300	yes	-	yes	RC PIR HYT DALI	1539/85/80	680199
69	4000	11300	yes	-	-	RC PIR HYT	1539/85/80	680618
69	5000	11300	yes	-	yes	BT PIR HYT DALI	1539/85/80	508806
69	5000	11300	yes	-	yes	RC PIR HYT DALI	1539/85/80	680205
69	5000	11300	yes	-	-	RC PIR HYT	1539/85/80	680625
