Skver LED S (R MF)

Downloads

Characteristics

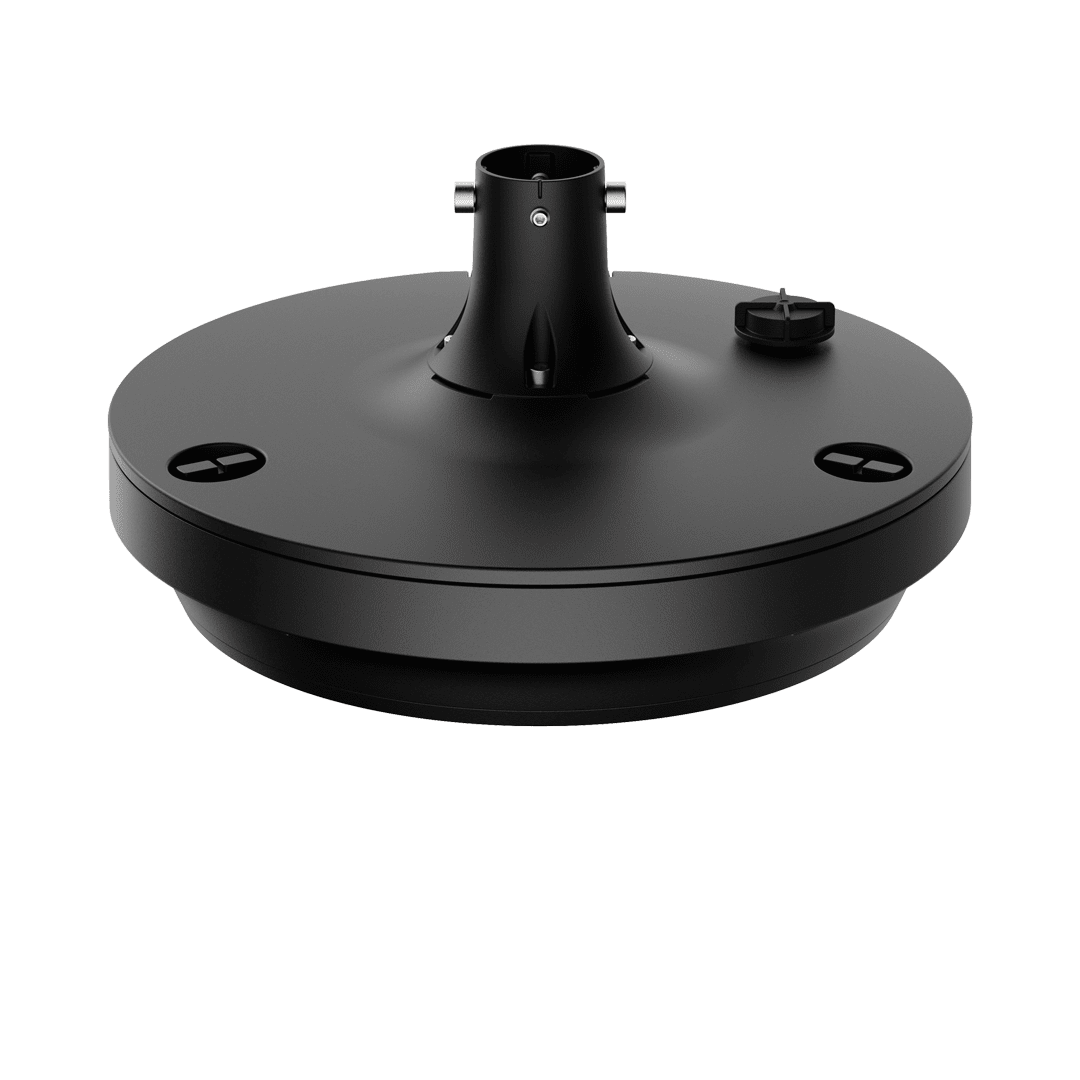

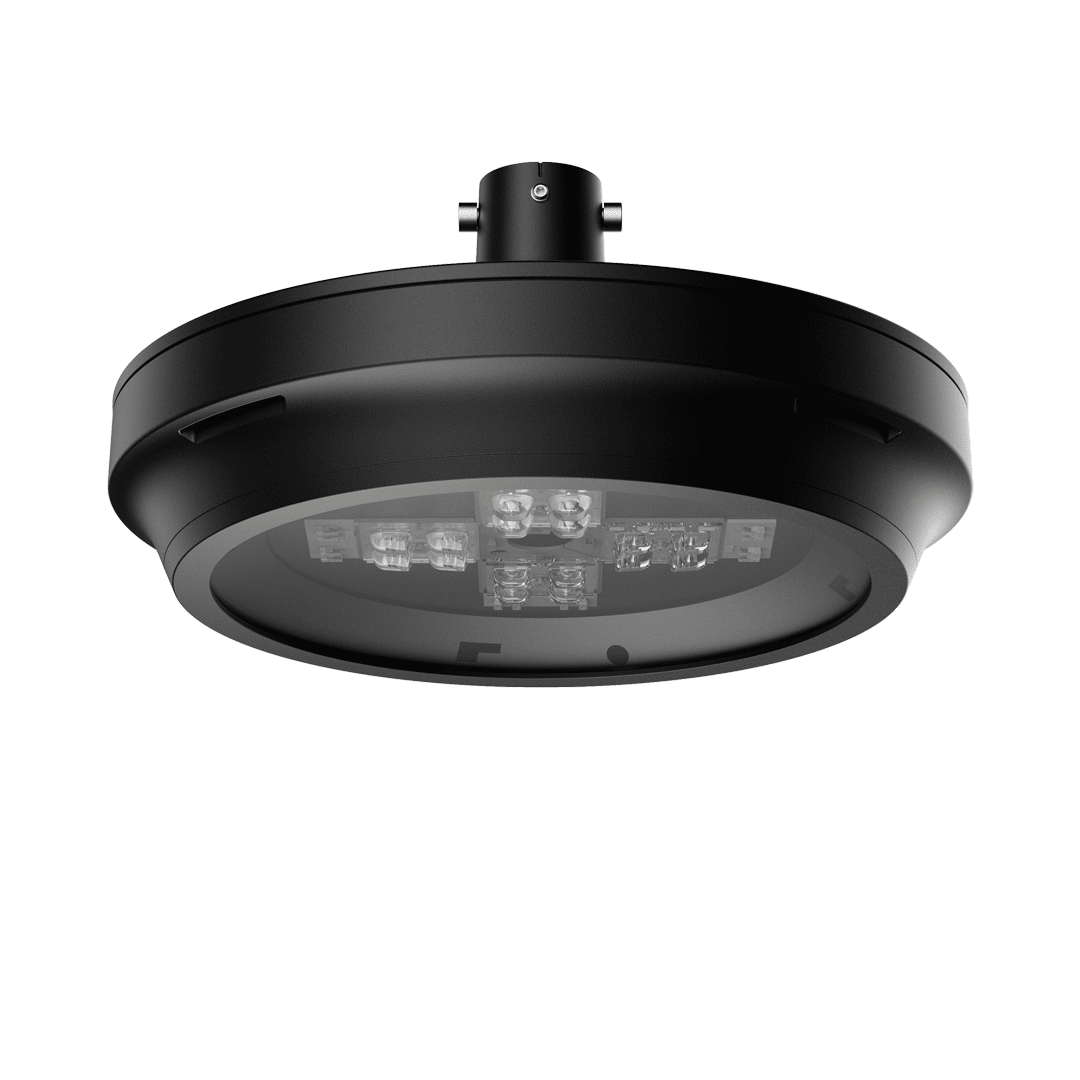

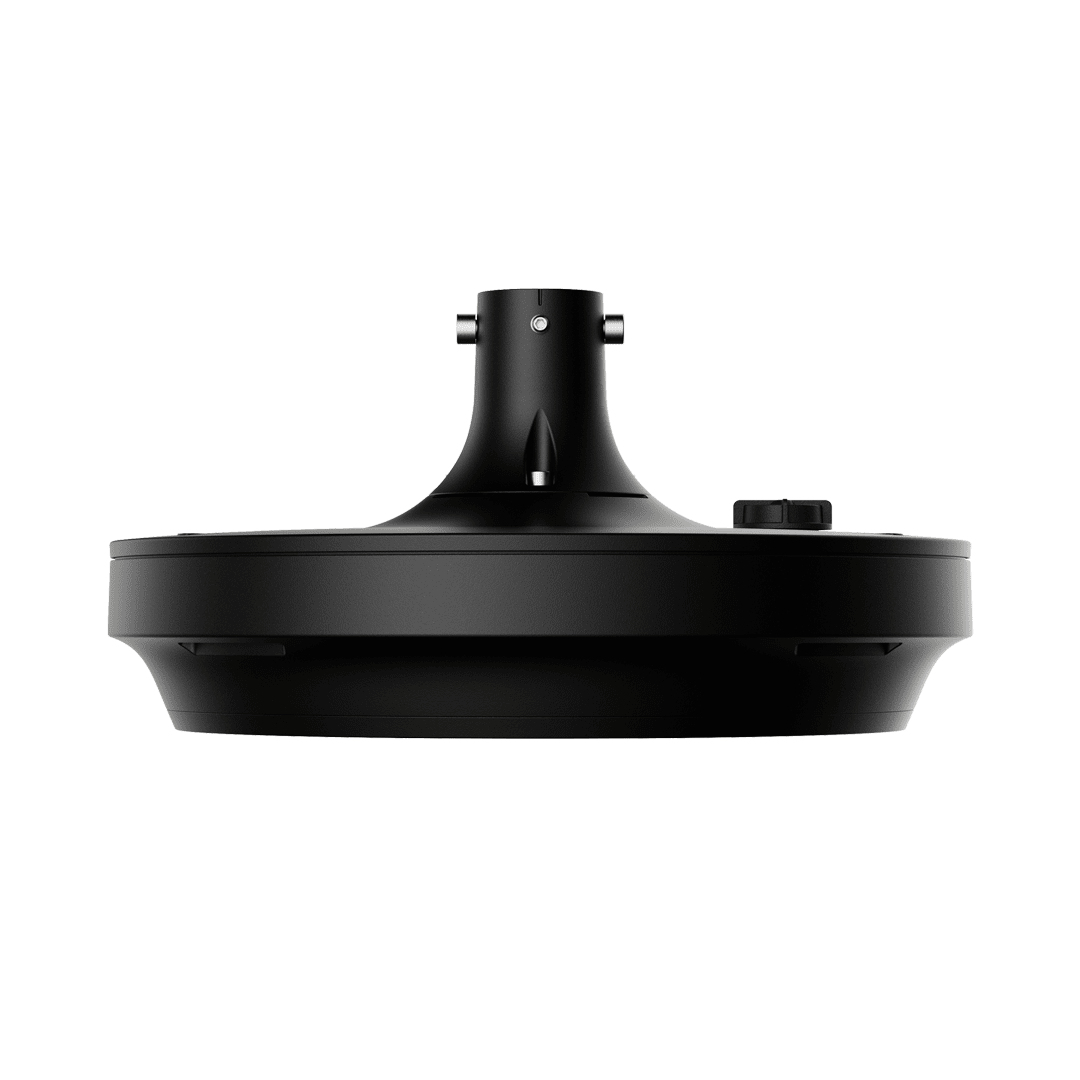

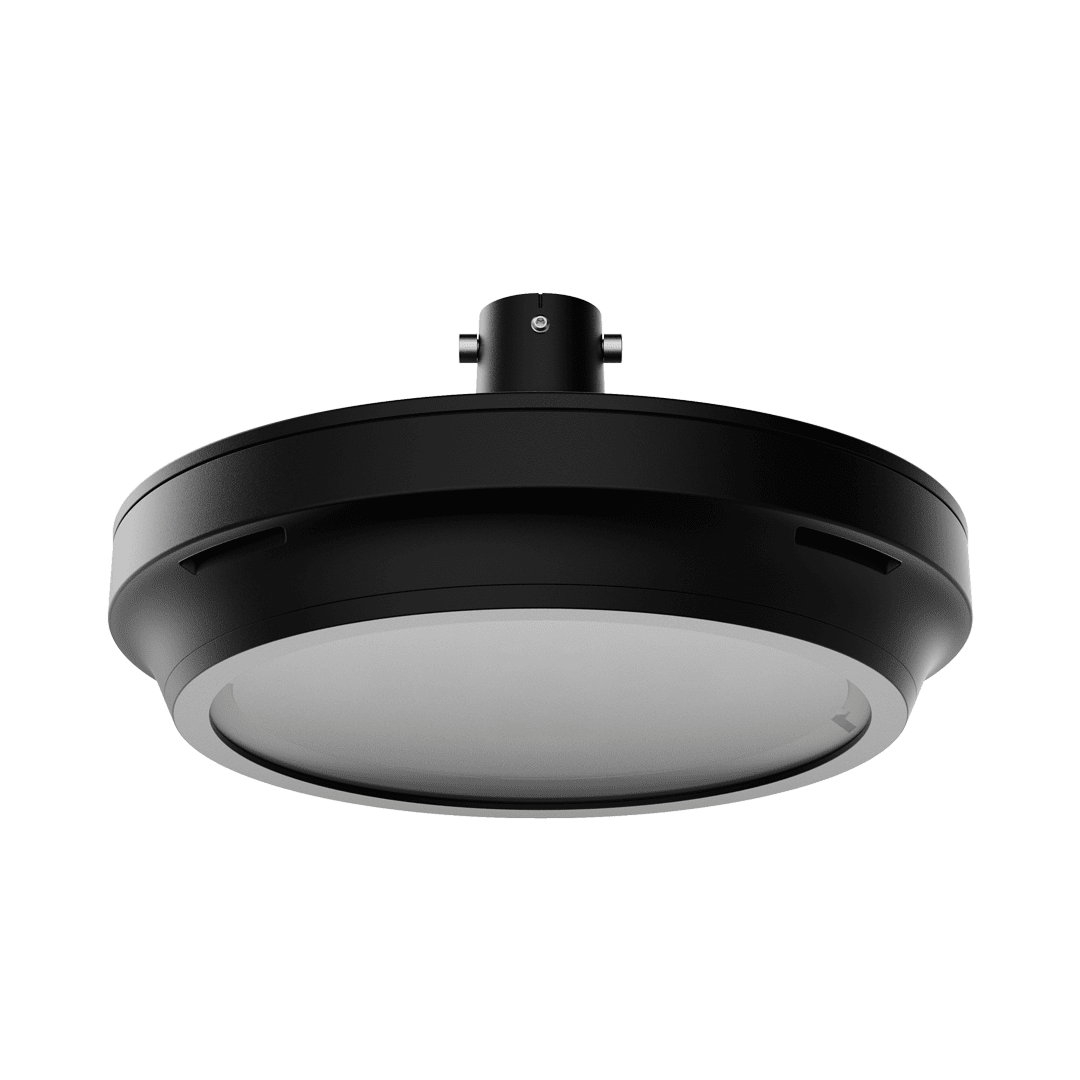

Skver LED S (R MF) modular pendant innovative park-and-ride LED luminaire with tool-free access to the fixture compartment, equipped with a tool-free service plate compliant with the ZhagaBook 13 and 15 standard. Made of die-formed aluminium, equipped with a flat glass diffuser, characterised by ULR = 0, maximum resistance to mechanical impact and increased colour rendering index. The luminaire is available in both omnidirectional and directed modes. The luminaire allows the use of dedicated functional accessories to customise the luminaire, both in terms of mounting, mode of illumination and design.

Distinguishing features:

omnidirectional and directed light distribution
available variants in standard (CRI70) and increased color rendering index (CRI80)
architectural quality of workmanship
the highest degree of resistance IK10
tool-free access to the equipment chamber
possibility of equipping with a dedicated accessory in the form of a screen limiting disturbing glare
possibility of equipping with dedicated accessories: ULR canopy < 1, city roof
possibility of equipping the luminaire with a Zhaga connector compliant with ZD4ili>
various mounting options (universal template, male and female gas sockets)li>
certified highest utility and environmental quality: ENEC, ENEC+, ZD4i, EPD environmental declarationli>
tool-free service plate, compliant with ZhagaBook13 and ZhagaBook15 standards
knife connector cutting off voltage during service work
luminaire with ULR = 0

Application

Biologically active space with a special role for the protection of dark skies; parks; squares; urban green islands; urban interiors according to photometric design; pedestrian routes; estate roads; car parks; garden arrangements.
Various hanging standards.

The R MF variant, due to its ULR = 0 parameter, protects the urban ecosystem from excessive light emission into the upper atmosphere, thus restoring dark night skies over our cities.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Luminous efficacy [lm/W]	Colour temperature [K]	Colour rendering index	Electrical protection class	Optics	DIMM DALI	Index
SKVER LED S (R MF) MLS
19	2200	116	3000	>80	II	MLS	yes	768255
19	2200	116	3000	>80	II	MLS	yes	768491
19	2400	126	4000	>80	II	MLS	yes	768316
19	2400	126	4000	>80	II	MLS	yes	768552
26	3000	115	3000	>80	II	MLS	yes	768262
26	3000	115	3000	>80	II	MLS	yes	768507
26	3300	127	4000	>80	II	MLS	yes	768323
26	3300	127	4000	>80	II	MLS	yes	768569
33	3700	112	3000	>80	II	MLS	yes	768279
33	3700	112	3000	>80	II	MLS	yes	768514
33	4100	124	4000	>80	II	MLS	yes	768330
33	4100	124	4000	>80	II	MLS	yes	768576
39	4400	113	3000	>80	II	MLS	yes	768286
39	4400	113	3000	>80	II	MLS	yes	768521
39	4800	123	4000	>80	II	MLS	yes	768347
39	4800	123	4000	>80	II	MLS	yes	768583
44	4900	111	3000	>80	II	MLS	yes	768293
44	4900	111	3000	>80	II	MLS	yes	768538
44	5400	123	4000	>80	II	MLS	yes	768354
44	5400	123	4000	>80	II	MLS	yes	768590
50	5600	112	3000	>80	II	MLS	yes	768309
50	5600	112	3000	>80	II	MLS	yes	768545
50	6100	122	4000	>80	II	MLS	yes	768361
50	6100	122	4000	>80	II	MLS	yes	768606
SKVER LED S (R MF) RM7
19	2400	126	3000	>80	II	RM7	yes	768378
19	2400	126	3000	>80	II	RM7	yes	768613
19	2500	132	4000	>80	II	RM7	yes	768439
19	2500	132	4000	>80	II	RM7	yes	768675
19	2600	137	3000	>70	II	RM7	yes	768736
19	2600	137	3000	>70	II	RM7	yes	768859
19	2700	142	4000	>70	II	RM7	yes	768798
19	2700	142	4000	>70	II	RM7	yes	768910
26	3300	127	3000	>80	II	RM7	yes	768385
26	3300	127	3000	>80	II	RM7	yes	768620
26	3500	135	4000	>80	II	RM7	yes	768446
26	3500	135	4000	>80	II	RM7	yes	768682
26	3600	138	3000	>70	II	RM7	yes	768743
26	3600	138	3000	>70	II	RM7	yes	768866
26	3800	146	4000	>70	II	RM7	yes	768804
26	3800	146	4000	>70	II	RM7	yes	768927
33	4200	127	3000	>80	II	RM7	yes	768392
33	4200	127	3000	>80	II	RM7	yes	768637
33	4400	133	4000	>80	II	RM7	yes	768453
33	4400	133	4000	>80	II	RM7	yes	768699
33	4500	136	3000	>70	II	RM7	yes	768750
33	4500	136	3000	>70	II	RM7	yes	768873
33	4700	142	4000	>70	II	RM7	yes	768811
33	4700	142	4000	>70	II	RM7	yes	768934
39	4800	123	3000	>80	II	RM7	yes	768408
39	4800	123	3000	>80	II	RM7	yes	768644
39	5000	128	4000	>80	II	RM7	yes	768460
39	5000	128	4000	>80	II	RM7	yes	768705
39	5200	133	3000	>70	II	RM7	yes	768767
39	5200	133	3000	>70	II	RM7	yes	768880
39	5400	138	4000	>70	II	RM7	yes	768828
39	5400	138	4000	>70	II	RM7	yes	768941
44	5300	120	3000	>80	II	RM7	yes	768415
44	5300	120	3000	>80	II	RM7	yes	768651
44	5600	127	4000	>80	II	RM7	yes	768477
44	5600	127	4000	>80	II	RM7	yes	768712
44	5700	130	3000	>70	II	RM7	yes	768774
44	5700	130	3000	>70	II	RM7	yes	768897
44	6000	136	4000	>70	II	RM7	yes	768835
44	6000	136	4000	>70	II	RM7	yes	768958
50	6000	120	3000	>80	II	RM7	yes	768422
50	6000	120	3000	>80	II	RM7	yes	768668
50	6300	126	4000	>80	II	RM7	yes	768484
50	6300	126	4000	>80	II	RM7	yes	768729
50	6400	128	3000	>70	II	RM7	yes	768781
50	6400	128	3000	>70	II	RM7	yes	768903
50	6700	134	4000	>70	II	RM7	yes	768842
50	6700	134	4000	>70	II	RM7	yes	768965

Show more Show less

Accessories

Hide accessories

Index	Accessory name
449017	Drilling pattern
804427	SKVER R male adapter thread M20x40 (pitch 2.5)
804328	SKVER R male adapter thread ¾ inch x 40 (gas)
804434	SKVER R male adapter thread 1 inch x40 (gas)
804335	SKVER R female adapter thread ¾ inch x 40 (gas)
804441	SKVER R female adapter thread 1 inch x40 (gas)

Drilling pattern (449017)

SKVER R male adapter thread M20x40 (pitch 2.5) (804427)

SKVER R male adapter thread ¾ inch x 40 (gas) (804328)

SKVER R male adapter thread 1 inch x40 (gas) (804434)

SKVER R female adapter thread ¾ inch x 40 (gas) (804335)

SKVER R female adapter thread 1 inch x40 (gas) (804441)
