UV-C Sterilon Hepa black-gold

Downloads

Specification

UV-C Sterilon Hepa flow luminaires emitting ultraviolet (UV-C) light are one of the most effective (99.9%) devices capable of safely removing viruses, bacteria, and mold from the environment in the presence of people and animals. Luminaires are recommended for use in service-providing facilities (hair and beauty salons), health care facilities, hotels, restaurants, public administration, educational and care facilities.

Air-flow disinfection function
Type of light: UV-C ultraviolet
Colour: white matt body, silver galvanised front or black matt body, golden galvanised front
The body is made of powder-coated carbon steel
The front of the luminaire is made of perforated and galvanized carbon sheet
Natural zinc front in the silver-white version
In the golden black version, the front is additionally coated with car paint (Subaru 87)
All paint coatings are resistant to the full range of UV radiation (A, B, C)
Smooth air-flow adjustment: from 70m3/h to 200m3/h
The recommended size of the disinfected room: from 20m2 (60m3) to 100m2 (300m3)
HEPA H13 filter + carbon filter
Light source lifespan: 9000h
UV-C wavelength: 253.7nm
Supply voltage: 220-240V
Class of protection against electric shock: I
Ingress protection class: IP20
Power cord: 3m
ON/OFF switch

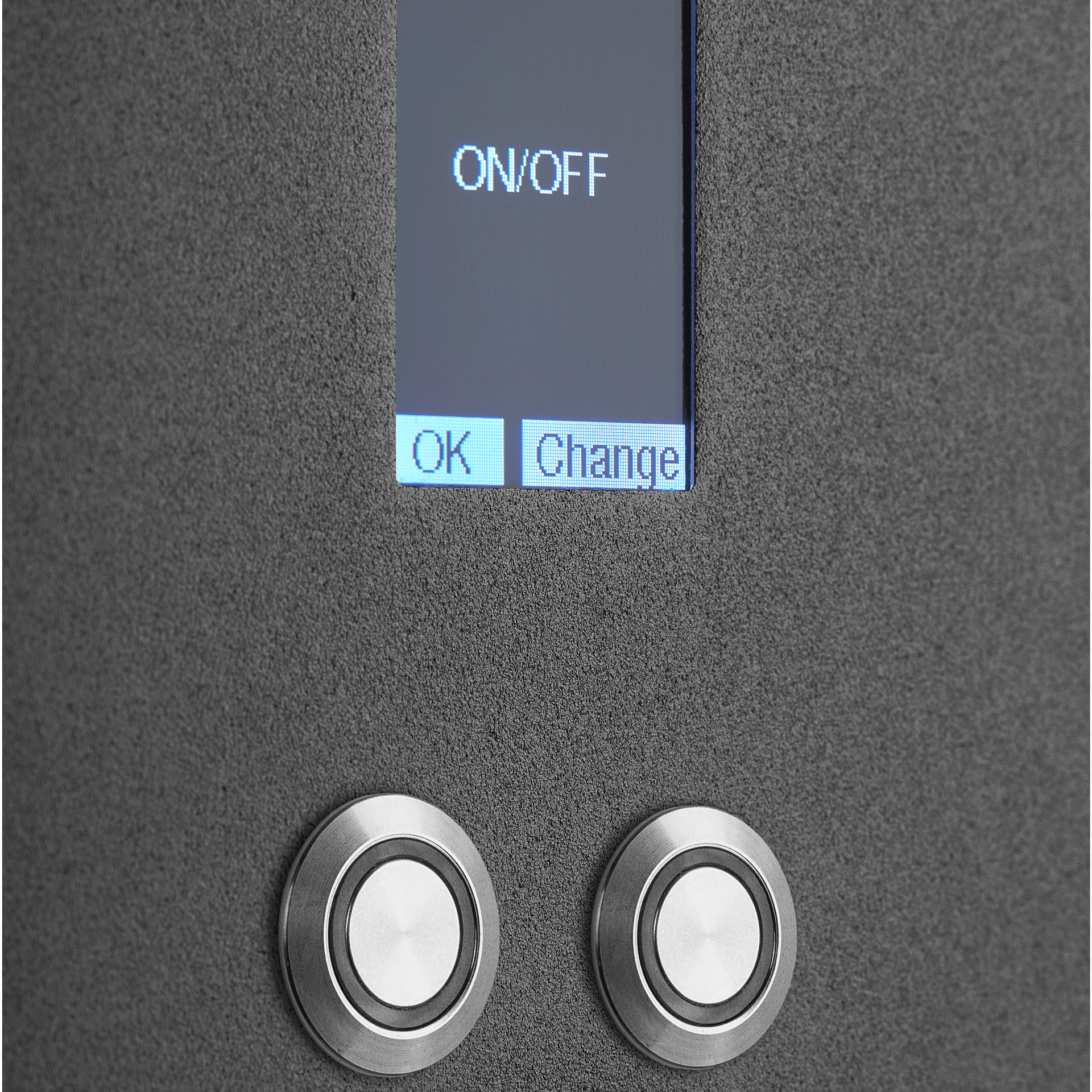

LCD panel with control buttons
Dimensions of the luminaire: 710 x 260 x 260mm

Air-flow disinfection function
Thanks to stimulated circulation, the air passes through the inside of the luminaire, where it is exposed to the light and disinfected, and then pushed out. The shielded UV-C light does not escape to the outside of the luminaire, so it can be used in rooms where it is necessary to safely and effectively disinfect the air in the presence of people.

Air-flow adjustment (noise level):

25% fan power = ~70 m3/h (~38dB)
50% fan power = ~90 m3/h (~44dB)
75% fan power = ~110 m3/h (~48dB)
100% fan power = ~200 m3/h (~51,5dB)

Operating modes controllable from the LCD panel:

“UVC ON-OFF” mode with fan power step adjustment: 25%, 50%, 75%, 100%
“Fan without UVC” mode with fan power step adjustment: 25%, 50%, 75%, 100%
“Delay ON” mode with the option to activate disinfection after the time set by the user (every 15min; max. 24h)
“Delay OFF” mode with the option to stop disinfection after the time set by the user (every 15min; max. 24h)
“System info” – checking the service life of fluorescent lamps

The luminaire is also equipped with a system checking the efficiency of all UV-C lamps. If one of them is inoperative, the fan power is reduced. If the next one is inoperative, the device turns off. All possible failures are signaled on the display.

Options

Nominal power [W]	Service life of the UV-C radiation source [h]	Colour of the body	Plug type	Cable length [m]	Air-flow [m3 / h]	ECO mode adjustment	Working time counter	HEPA filter holder	Index
216	9000	white matt, silver	UNI-SCHUKO	3	200	4-stage regulation of the device operation (25%, 50%, 75%, 100%)	yes	yes	245985
216	9000	black mat, gold	UNI-SCHUKO	3	200	4-stage regulation of the device operation (25%, 50%, 75%, 100%)	yes	yes	245992

Accessories

Hide accessories

Index	Accessory name
WL36500	PL-L UV-C 36W 2G11 OSR fluorescent lamp
244315	HEPA H13 + CARBON filter
