Baris 52 LED P GK

Name: Lenalighting
Address: ul. Kórnicka 52, Środa Wielkopolska, Wielkopolskie, 63-000, Polska
Telephone: 61 28 60 300

Flush-mounted linear luminaire for joining lines and shapes, for installation in plasterboard ceilings, profile width 52mm.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	OPAL PRM UGR
Mounting version	recessed
Application	architectural office

LEDik03IP44/20iotpzhCEUkraine

Ask about this product

Options

Downloads

Specification

Recessed lighting luminaire of classic proportions and modern design intended for installation in plaster-cardboard ceilings. Luminaire construction allows for installation in ceilings with two-level cross grid without breaching main (top) profiles. It is possible due to appropriately selected height of the lamp profile, reduced to 37mm and separate box for the power supply, which can be placed next to the luminaire. The luminaire is offered in four lengths with the possibility to combine into a line with a constant flux ratio from the meter (system available on request). Luminaire body is made of anodized aluminum profile in grey or aluminum profile painted white or black (other colors available on request). The optical system is in the form of a dedicated, flexible opal diffuser uniformly illuminating the luminaire, with a PRM prismatic diffuser or with a louver meeting the stringent requirements regarding glare UGR<19. The luminaire comes with a complete mounting system for a quick and easy installation in plasterboard ceilings.

Application

The luminaire is dedicated for indoor use. It is applied as the source of the main light and conducive to office work requiring concentration of eyesight. Classic design, energy-saving LED modules and the possibility of cooperation with external lighting control systems in the DALI standard dedicate the lamp to be used in modern office buildings of the A+ class, with particular consideration of representative rooms, conference halls, passageways and everywhere, where a low glare and/or high IP44 sealing from below is required.

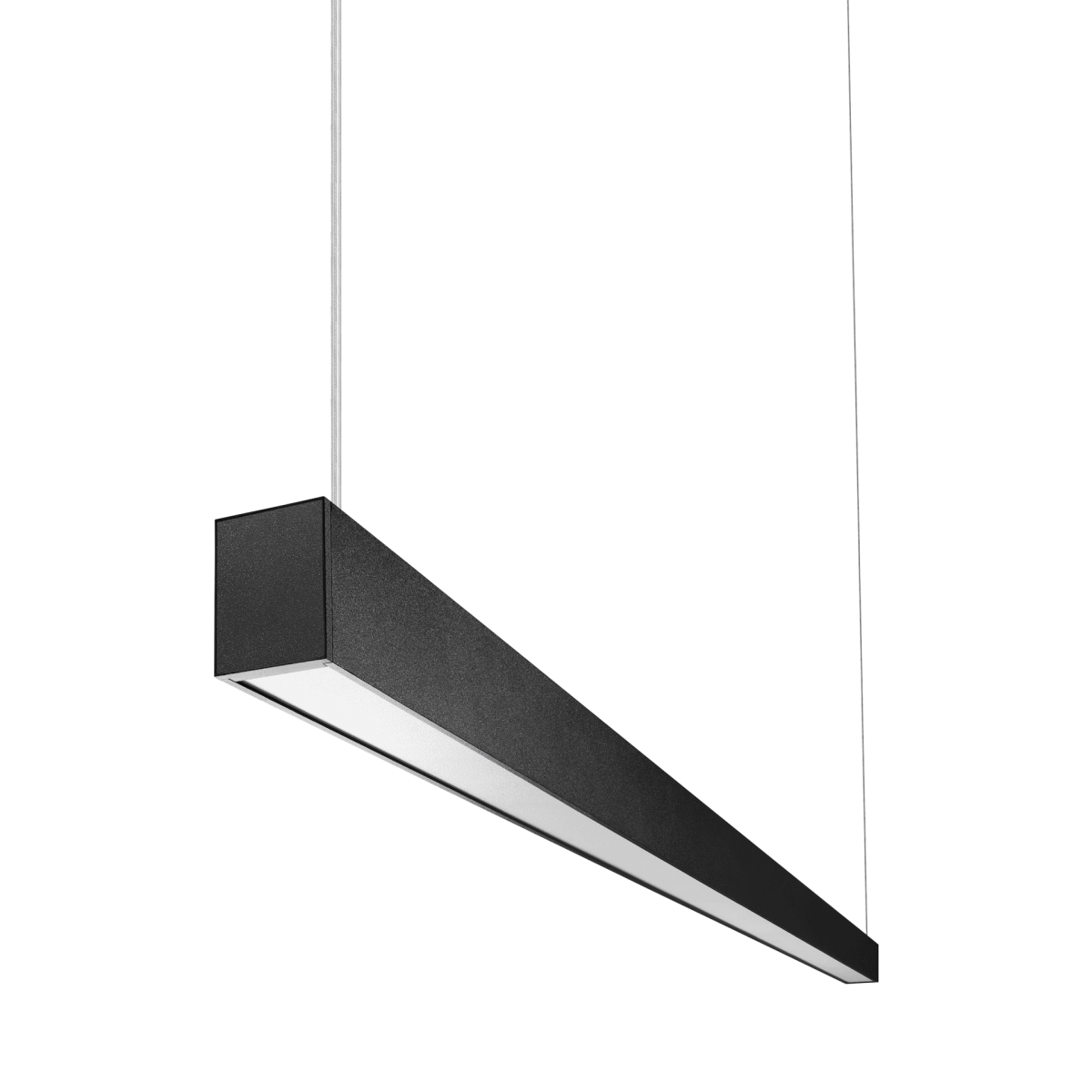

Other products from the Baris LED family

See our luminaires on the BIMobject platform

See our film -> Baris 52 LED - linear lighting system with classic proportions and modern design

Lighting configurator

Use our lighting configurator and create your dream layout yourself with Baris 52 LED P GK luminaires. With X-, L-, T-shaped connectors, you can visualise your unique lighting composition.

Create a line of light

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Diffuser type	DIMM DALI	Colour of the body	Dimensions (H/W/T/S) [mm]	Index
37/69/1145
15	4000	1400	UGR	-	grey	37/69/1145	927270
15	4000	1400	UGR	-	white	37/69/1145	927317
15	4000	1400	UGR	-	black	37/69/1145	927355
16	4000	1700	OPAL	-	grey	37/69/1145	927010
16	4000	1700	OPAL	-	white	37/69/1145	927058
16	4000	1700	OPAL	-	black	37/69/1145	927096
16	4000	1700	PRM	-	grey	37/69/1145	927140
16	4000	1700	PRM	-	white	37/69/1145	927188
16	4000	1700	PRM	-	black	37/69/1145	927225
16	4000	1737	PRM	yes	grey	37/69/1145	927744
16	4000	1737	OPAL	yes	black	37/69/1145	927867
16	3000	1600	OPAL	-	white	37/69/1145	927959
29	4000	2900	UGR	-	grey	37/69/1145	927638
29	4000	2900	UGR	-	white	37/69/1145	927676
29	4000	2900	UGR	-	black	37/69/1145	927713
32	4000	3400	OPAL	-	grey	37/69/1145	927393
32	4000	3400	OPAL	-	white	37/69/1145	927430
32	4000	3400	OPAL	-	black	37/69/1145	927478
32	4000	3400	PRM	-	grey	37/69/1145	927515
32	4000	3400	PRM	-	white	37/69/1145	927553
32	4000	3400	PRM	-	black	37/69/1145	927591
32	4000	3474	OPAL	yes	white	37/69/1145	927904
32	4000	3474	OPAL	yes	black	37/69/1145	927836
32	3000	3150	OPAL	-	white	37/69/1145	927966
37/69/1425
19	4000	1900	UGR	-	grey	37/69/1425	927287
19	4000	1900	UGR	-	white	37/69/1425	927324
19	4000	1900	UGR	-	black	37/69/1425	927362
21	4000	2200	OPAL	-	grey	37/69/1425	927027
21	4000	2200	OPAL	-	white	37/69/1425	927065
21	4000	2200	OPAL	-	black	37/69/1425	927102
21	4000	2200	PRM	-	grey	37/69/1425	927157
21	4000	2200	PRM	-	white	37/69/1425	927195
21	4000	2200	PRM	-	black	37/69/1425	927249
21	4000	2220	OPAL	yes	black	37/69/1425	927843
21	4000	2220	OPAL	yes	grey	37/69/1425	927829
39	4000	3700	UGR	-	grey	37/69/1425	927645
39	4000	3700	UGR	-	white	37/69/1425	927683
39	4000	3700	UGR	-	black	37/69/1425	927720
42	4000	4400	OPAL	-	grey	37/69/1425	927409
42	4000	4400	OPAL	-	white	37/69/1425	927447
42	4000	4400	OPAL	-	black	37/69/1425	927485
42	4000	4400	PRM	-	grey	37/69/1425	927522
42	4000	4400	PRM	-	white	37/69/1425	927560
42	4000	4400	PRM	-	black	37/69/1425	927607
42	4000	4440	OPAL	yes	black	37/69/1425	927850
42	3000	4100	OPAL	-	white	37/69/1425	927782
42	3000	4100	PRM	-	white	37/69/1425	927935
37/69/2265
29	4000	2900	UGR	-	grey	37/69/2265	927294
29	4000	2900	UGR	-	white	37/69/2265	927331
29	4000	2900	UGR	-	black	37/69/2265	927379
32	4000	3400	OPAL	-	grey	37/69/2265	927034
32	4000	3400	OPAL	-	white	37/69/2265	927072
32	4000	3400	OPAL	-	black	37/69/2265	927119
32	4000	3400	PRM	-	grey	37/69/2265	927164
32	4000	3400	PRM	-	white	37/69/2265	927201
32	4000	3400	PRM	-	black	37/69/2265	927256
32	4000	3474	PRM	yes	black	37/69/2265	936555
59	4000	5800	UGR	-	grey	37/69/2265	927652
59	4000	5800	UGR	-	white	37/69/2265	927690
59	4000	5800	UGR	-	black	37/69/2265	927737
64	4000	6900	OPAL	-	grey	37/69/2265	927416
64	4000	6900	OPAL	-	white	37/69/2265	927454
64	4000	6900	OPAL	-	black	37/69/2265	927492
64	4000	6900	PRM	-	grey	37/69/2265	927539
64	4000	6900	PRM	-	white	37/69/2265	927577
64	4000	6900	PRM	-	black	37/69/2265	927614
64	4000	6948	OPAL	yes	black	37/69/2265	927874
64	4000	6948	PRM	yes	black	37/69/2265	936548
64	3000	6400	OPAL	-	white	37/69/2265	927799
64	3000	6400	PRM	-	white	37/69/2265	927942
37/69/586
9	4000	700	UGR	-	grey	37/69/586	927263
9	4000	700	UGR	-	white	37/69/586	927300
9	4000	700	UGR	-	black	37/69/586	927348
9	4000	800	OPAL	-	grey	37/69/586	927003
9	4000	800	OPAL	-	white	37/69/586	927041
9	4000	800	OPAL	-	black	37/69/586	927089
9	4000	800	PRM	-	grey	37/69/586	927133
9	4000	800	PRM	-	white	37/69/586	927171
9	4000	800	PRM	-	black	37/69/586	927218
17	4000	1400	UGR	-	grey	37/69/586	927621
17	4000	1400	UGR	-	white	37/69/586	927669
17	4000	1400	UGR	-	black	37/69/586	927706
17	4000	1700	OPAL	-	grey	37/69/586	927386
17	4000	1700	OPAL	-	white	37/69/586	927423
17	4000	1700	OPAL	-	black	37/69/586	927461
17	4000	1700	PRM	-	grey	37/69/586	927508
17	4000	1700	PRM	-	white	37/69/586	927546
17	4000	1700	PRM	-	black	37/69/586	927584
17	3000	1600	OPAL	-	white	37/69/586	927805
