Specification

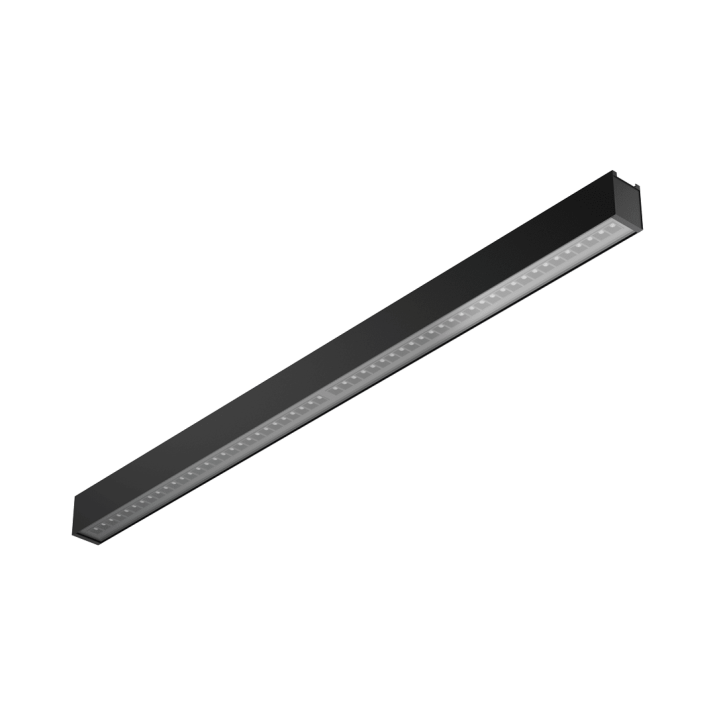

Suspended luminaire with classic proportions and modern design. The body of the luminaire is made of anodised aluminium profile in grey or aluminium profile painted white or black (other colours available on request). The optical system is in the form of a prismatic diffuser (PRM) to ensure low UGR and OPAL (PLX) glare, illuminating the luminaire evenly. Indirect lighting, regardless of version, is always provided by the OPAL (PLX) diffuser. The modularity and demountability of the luminaire allow for the replacement of electronic components such as the LED strip, power supply, and diffuser by qualified personnel. Versions equipped with sensors that work with smart IoT modules additionally allow the level and amount of light provided by the luminaire to be optimised. Depending on the solution chosen, control can be either automatic or manual via the CLUE IN system and an app on the phone or a physical wall button. Manual adjustment of light intensity is possible via a physical button on the front of the luminaire (in endcap) for versions equipped with an on/off switch.

The direct/indirect versions allow part of the light to be directed upwards, illuminating the ceiling, increasing the volume of light, and eliminating the unpleasant contrast between the directly illuminated surface (e.g. desktop, floor) and the ceiling. The luminaire has a unique suspension system, making it easy to install the luminaire and adjust the suspension.

All Baris 52 LED DIR/IND Single pendant luminaires to include a 1.2m pendant cable with junction box included (except for the version with plug*) and are fitted with diffusers.

*Optionally the version with a plug can be ordered without a junction box - direct connection to a mains socket.

Application

The luminaire is dedicated to indoor use. It is used as a source of light for offices requiring focussed eyesight where low UGR and illumination of dark areas (e.g. ceilings) are required. The unique design, energy-efficient LED modules, and the possibility of cooperation with external lighting control systems in the DALI standard dedicate the luminaire to be used in modern office buildings of A+ class, with particular consideration for offices, representative rooms, conference halls, and passageways.

Baris 52 LED DIR/IND Single, as the name suggests, is a single luminaire with a pre-determined length. To create a line of length up to 6 meters without joining the profile and up to 25 meters without joining the diffuser allows version BARIS 52 LED.

Options
Rated power of the luminaire [W]Colour temperature [K]Luminous flux [lm]Diffuser typeColour of the bodyDIMM DALISwitchVersionDimensions (H/W/T/S) [mm]Index
1143/69/52
44 4000 4950 PRM black - - - 1143/69/52 932724
44 4000 4950 PRM black yes - - 1143/69/52 932731
1423/69/52
58 3000 5950 OPAL black yes - - 1423/69/52 932533
58 3000 5950 OPAL white yes yes - 1423/69/52 932588
58 3000 5950 OPAL white yes - - 1423/69/52 932571
58 3000 5950 OPAL black yes yes - 1423/69/52 932502
58 3000 5950 OPAL black - - - 1423/69/52 932496
58 3000 5950 OPAL black yes - sensor with switch 1423/69/52 932540
58 3000 5950 OPAL white - - - 1423/69/52 932618
58 3000 5950 OPAL white yes - sensor with switch 1423/69/52 932625
58 3000 5950 OPAL grey - - - 1423/69/52 932656
58 3000 5950 OPAL grey yes yes - 1423/69/52 932663
58 3000 5950 OPAL grey yes - - 1423/69/52 932694
58 3000 5950 OPAL grey yes - sensor with switch 1423/69/52 932700
58 3000 6100 PRM black yes - - 1423/69/52 932298
58 3000 6100 PRM white yes yes - 1423/69/52 932342
58 3000 6100 PRM white yes - - 1423/69/52 932335
58 3000 6100 PRM black yes yes - 1423/69/52 932267
58 3000 6100 PRM black - - - 1423/69/52 932250
58 3000 6100 PRM black yes - sensor with switch 1423/69/52 932304
58 3000 6100 PRM white - - - 1423/69/52 932373
58 3000 6100 PRM white yes - sensor with switch 1423/69/52 932380
58 3000 6100 PRM grey - - - 1423/69/52 932410
58 3000 6100 PRM grey yes yes - 1423/69/52 932434
58 3000 6100 PRM grey yes - - 1423/69/52 932458
58 3000 6100 PRM grey yes - sensor with switch 1423/69/52 932472
58 4000 6200 OPAL black yes - - 1423/69/52 932526
58 4000 6200 OPAL white yes yes - 1423/69/52 932595
58 4000 6200 OPAL black - - - 1423/69/52 932489
58 4000 6200 OPAL white yes - - 1423/69/52 932564
58 4000 6200 OPAL black yes yes - 1423/69/52 932519
58 4000 6200 OPAL white - - - 1423/69/52 932601
58 4000 6200 OPAL black yes - sensor with switch 1423/69/52 932557
58 4000 6200 OPAL white yes - sensor with switch 1423/69/52 932632
58 4000 6200 OPAL grey - - - 1423/69/52 932649
58 4000 6200 OPAL grey yes yes - 1423/69/52 932670
58 4000 6200 OPAL grey yes - - 1423/69/52 932687
58 4000 6200 OPAL grey yes - sensor with switch 1423/69/52 932717
58 4000 6600 PRM black yes - - 1423/69/52 932281
58 4000 6600 PRM white yes yes - 1423/69/52 932359
58 4000 6600 PRM black - - - 1423/69/52 932243
58 4000 6600 PRM white yes - - 1423/69/52 932328
58 4000 6600 PRM black yes yes - 1423/69/52 932274
58 4000 6600 PRM white - - - 1423/69/52 932366
58 4000 6600 PRM black yes - sensor with switch 1423/69/52 932311
58 4000 6600 PRM white yes - sensor with switch 1423/69/52 932397
58 4000 6600 PRM grey - - - 1423/69/52 932403
58 4000 6600 PRM grey yes yes - 1423/69/52 932427
58 4000 6600 PRM grey yes - - 1423/69/52 932441
58 4000 6600 PRM grey yes - sensor with switch 1423/69/52 932465
2263/69/52
88 4000 9900 PRM black - - - 2263/69/52 932748
88 4000 9900 PRM black yes - - 2263/69/52 932755
