Baris 52 LED Connectors

The key feature of L, T, X, V connectors is that they are equipped with integrated electronics and a diffuser, thanks to which the profile route bends remain illuminated along the entire length.

Technical specifications

Light source	LED
Colour temperature	3000K 4000K
Diffuser type	OPAL
Mounting version	surface surface or suspended suspended
Application	architectural office

LEDIik06IP20iotenecCE

Ask about this product

Options

Downloads

Specification

The key feature of L, T, X, V connectors is that they are equipped with integrated electronics and a diffuser, thanks to which the profile route bends remain illuminated along the entire length. Body is made of anodized aluminium profile in grey or aluminium profile painted white or black (other colors available on request). The optical system is complemented by a dedicated, flexible opal cover that evenly illuminates the connector. There is no division into surface mounted and suspended versions, which make the solution more universal.

Connectors (T, X, L, V) are supplied with an OPAL diffuser.
Connectors T, X, L, V UGR, and PRM diffusers are available on request.

Application

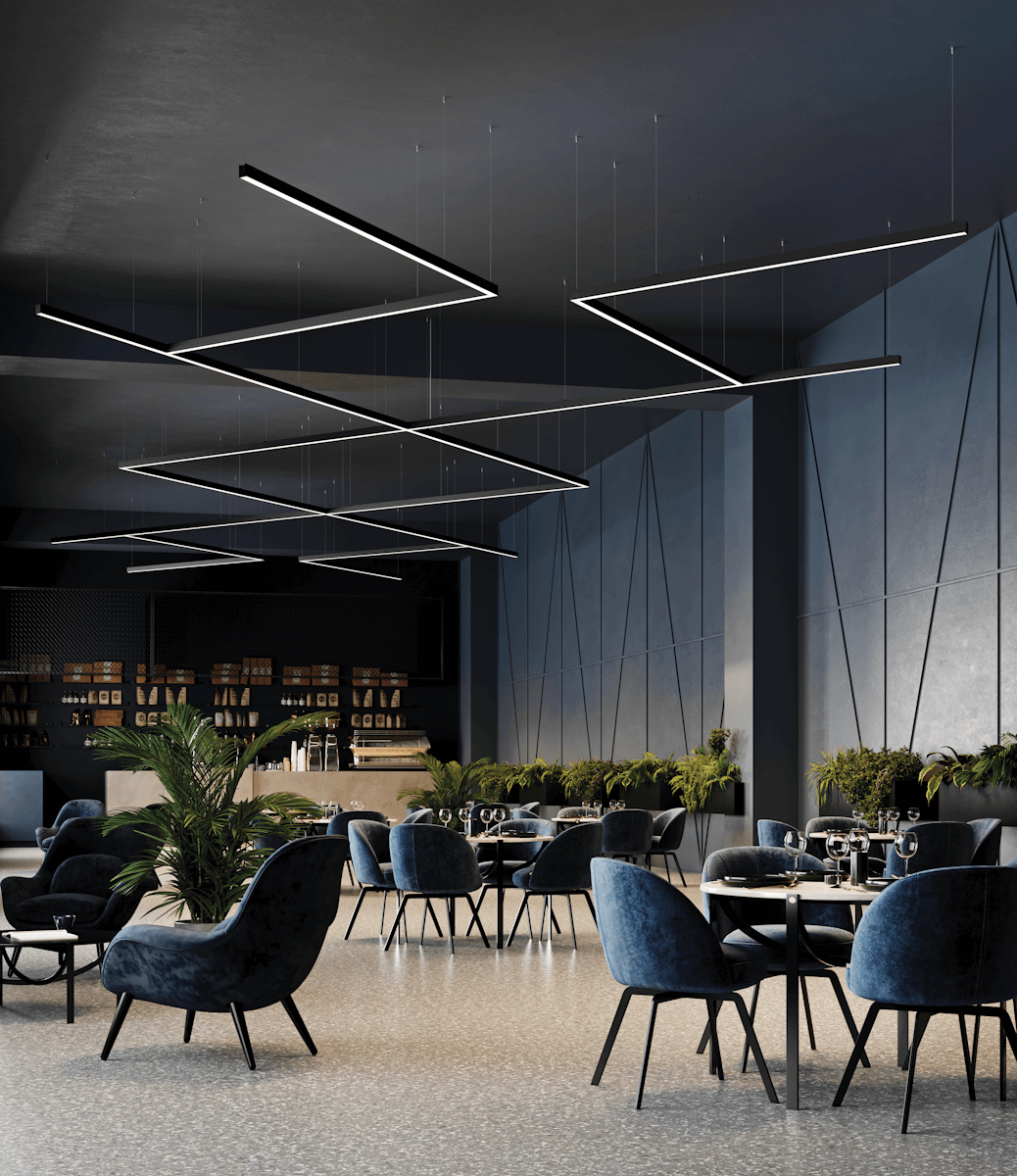

Baris 52 LED connectors in the shape of the letter L, T, X, V and straight connectors create extraordinary opportunities to configure the light line matched to the character and shape of the room, allowing you to create virtually unlimited straight sequences, figures and patterns.

Other products from the Baris LED family

See our film -> Baris 52 LED - linear lighting system with classic proportions and modern design

Lighting configurator

Use our lighting configurator and create your dream layout yourself with Baris 52 LED luminaires. With X-, L-, T- or V-shaped connectors and lines of up to 6 metres in length, you can visualise your unique and inimitable lighting composition.

Create a line of light

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Colour temperature [K]	Colour temperature [K] - range	Colour of the body	DIMM DALI	Dimensions (H/W/T/S) [mm]	Index
L
16	1450	-	2700-6500	white	yes	560/560/52	470547
17	2100	4000	-	grey	-	560/560/52	317712
17	2100	4000	-	white	-	560/560/52	317743
17	2100	4000	-	black	-	560/560/52	317774
17	2100	6500	-	white	-	560/560/52	675935
17	2100	4000	-	grey	yes	560/560/52	317804
17	2100	4000	-	white	yes	560/560/52	317835
17	2100	4000	-	black	yes	560/560/52	317866

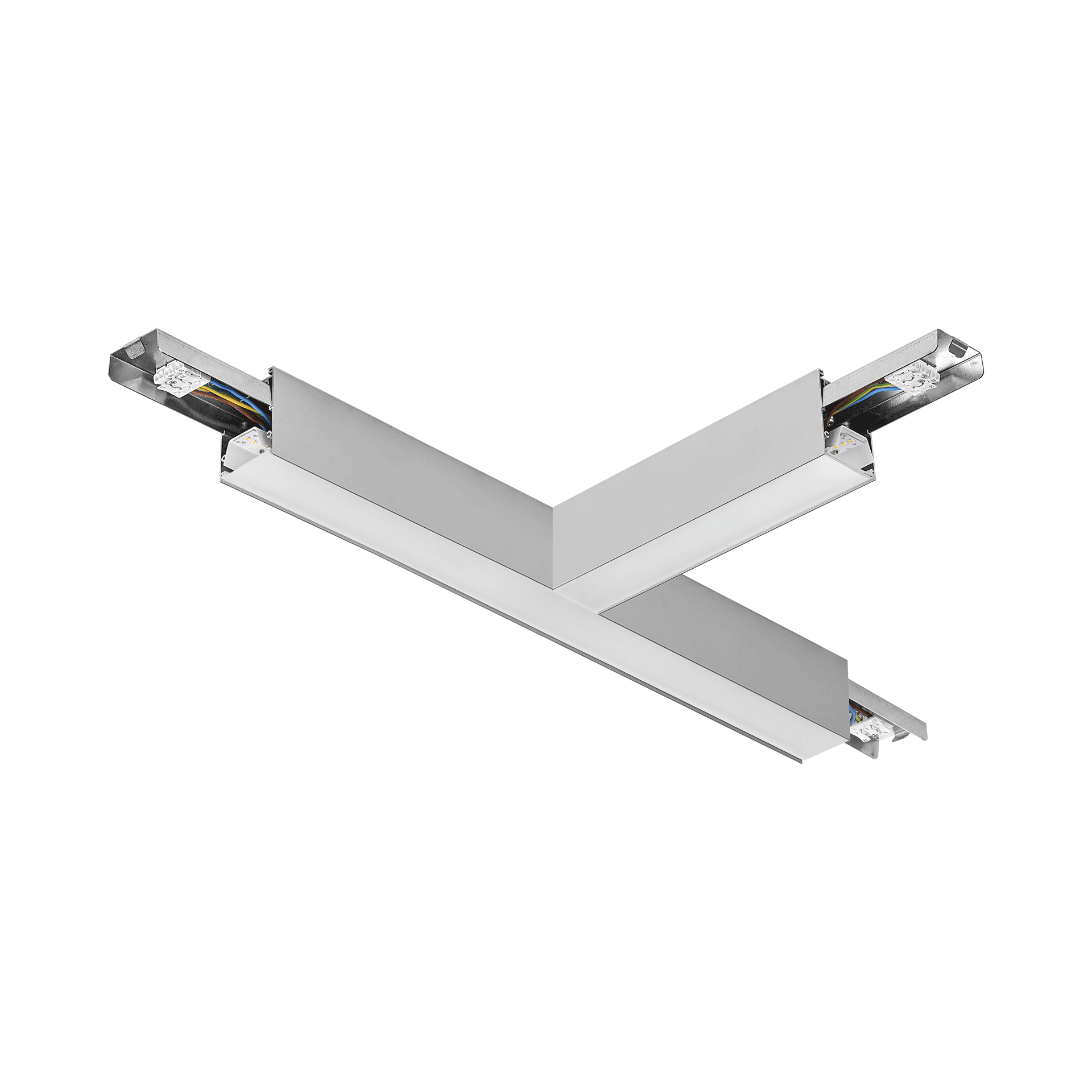

T
17	2100	4000	-	grey	-	560/560/52	317729
17	2100	4000	-	white	-	560/560/52	317750
17	2100	4000	-	black	-	560/560/52	317781
17	1950	3000	-	grey	-	560/560/52	927973
17	2100	4000	-	grey	yes	560/560/52	317811
17	2100	4000	-	white	yes	560/560/52	317842
17	2100	4000	-	black	yes	560/560/52	317873
17	1950	3000	-	black	yes	560/560/52	320064
V 115°
17	2100	4000	-	Anoda	-	823/546/52	677274
17	2100	4000	-	white	-	823/546/52	677281
17	2100	4000	-	black	-	823/546/52	677298
V 125°
17	2100	4000	-	Anoda	-	903/500/52	677304
17	2100	4000	-	white	-	903/500/52	677311
17	2100	4000	-	black	-	903/500/52	677328
V 145°
17	2100	4000	-	Anoda	-	1031/367/52	677335
17	2100	4000	-	white	-	1031/367/52	677342
17	2100	4000	-	black	-	1031/367/52	677359
V 150°
17	2100	4000	-	Anoda	-	1054/327/52	677366
17	2100	4000	-	white	-	1054/327/52	677373
17	2100	4000	-	black	-	1054/327/52	677380
V 160°
17	2100	4000	-	Anoda	-	1090/240/52	677397
17	2100	4000	-	white	-	1090/240/52	677403
17	2100	4000	-	black	-	1090/240/52	677410
V 165°
17	2100	4000	-	Anoda	-	1101/194/52	677427
17	2100	4000	-	white	-	1101/194/52	677434
17	2100	4000	-	black	-	1101/194/52	677441

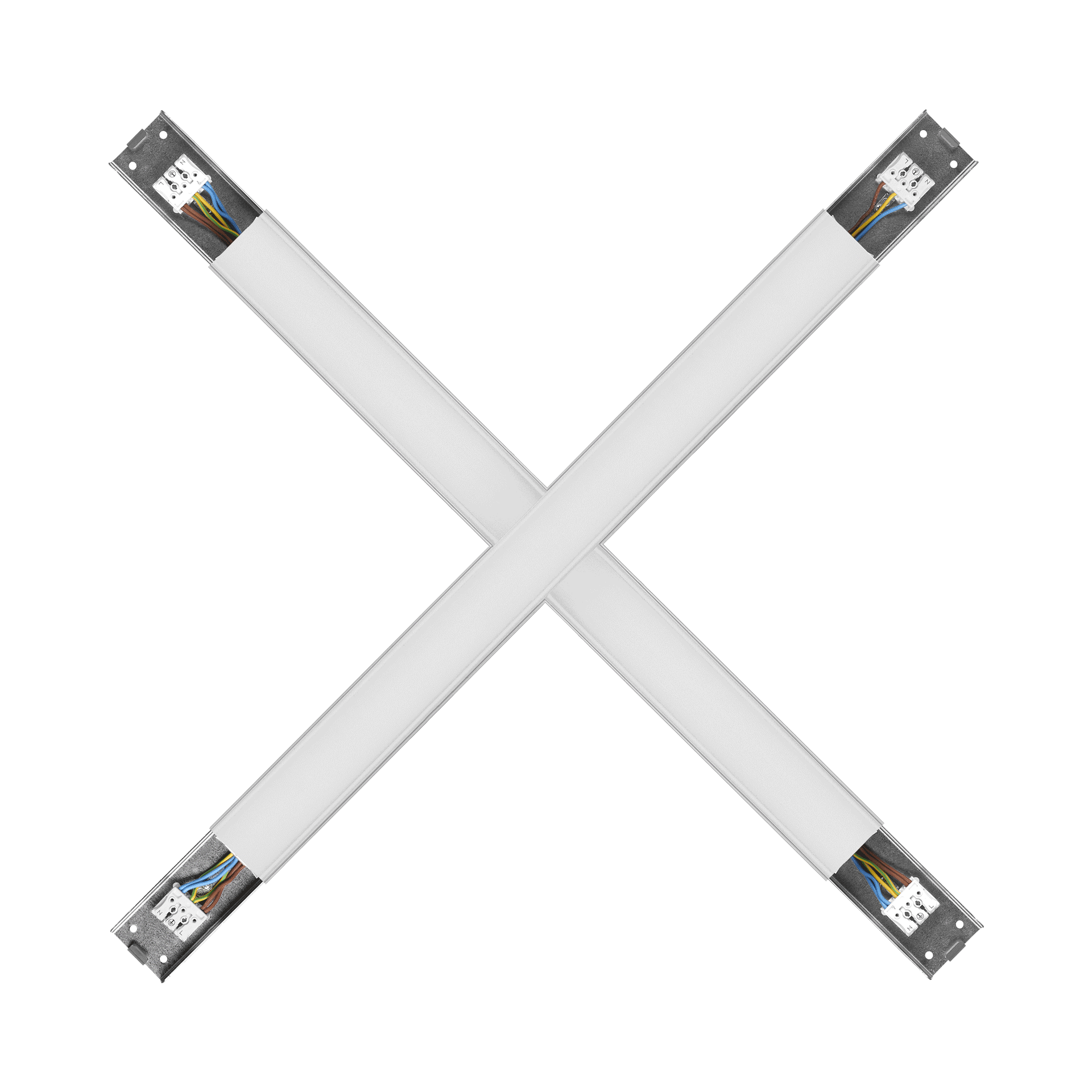

X
17	2100	4000	-	grey	-	560/560/52	317736
17	2100	4000	-	white	-	560/560/52	317767
17	2100	4000	-	black	-	560/560/52	317798
17	2100	4000	-	grey	yes	560/560/52	317828
17	2100	4000	-	white	yes	560/560/52	317859
17	2100	4000	-	black	yes	560/560/52	317880
17	1950	3000	-	black	yes	560/560/52	320071

Accessories

Hide accessories

Index	Accessory name
318023	Baris 52 - linear connector. straight

Baris 52 - linear connector. straight (318023)
