Vector 3 LED

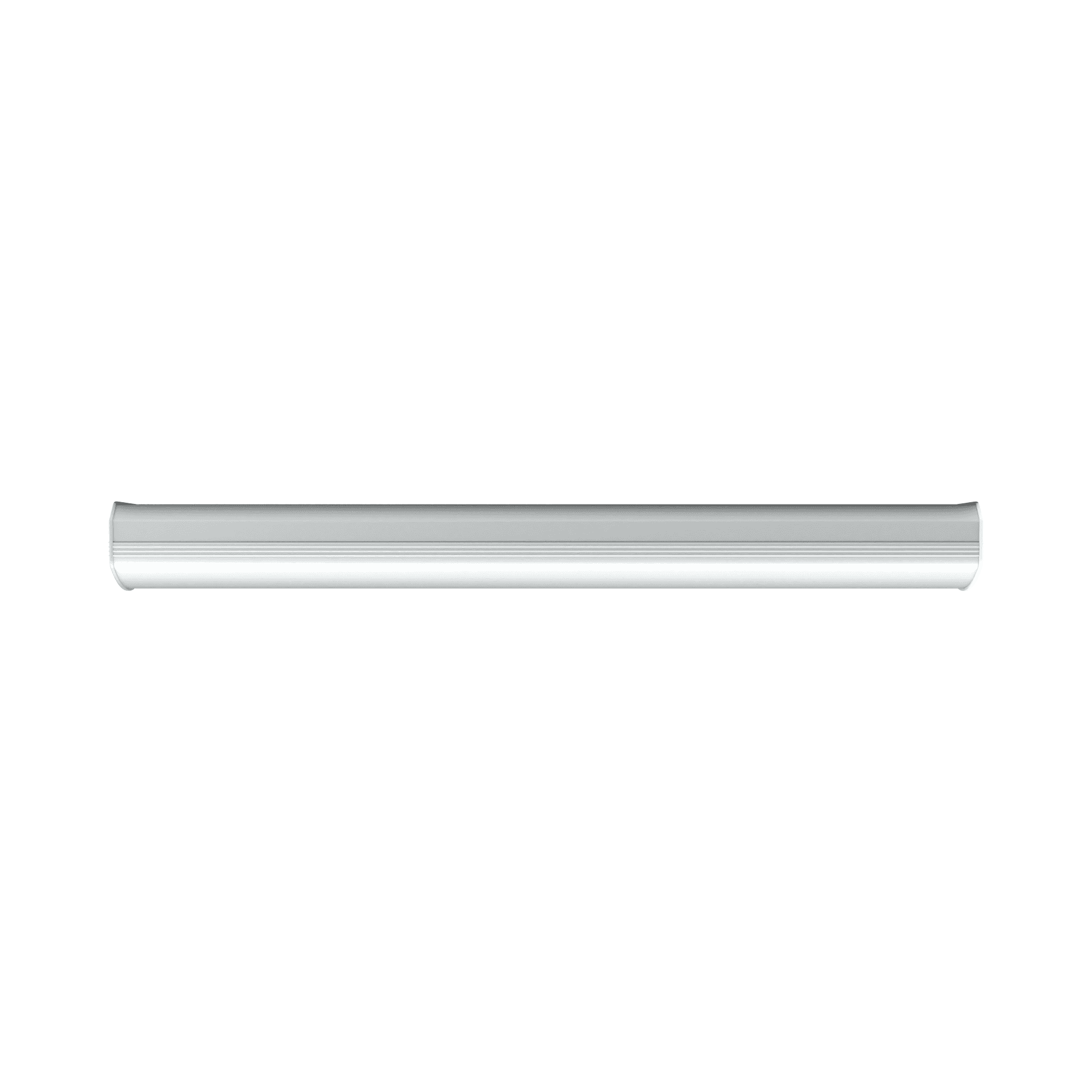

Surface mounted luminaire made of powder coated white steel with prismatic or prismatic mat PC diffuser providing soft & uniform light.

Technical specifications

Light source
LED
Colour temperature
  • 3000K
  • 4000K
Diffuser type
PRM MAT
Mounting version
surface
Application
  • commercial
  • public areas
LEDIik07ip40pzhCE

Specification

Surface-mounted luminaire made of powder-coated white steel with prismatic or prismatic mat PC diffuser providing soft & uniform light. Equipped with LED modules with high luminous efficacy and SDCM <3. The luminaire in the standard version has a 5 pole terminal block, that enables quick through-wiring, and strain relief.

Application

Multi-purpose LED luminaire designed for indoor application. Especially recommended for public rooms and corridors (administration buildings, schools, universities, and health care buildings).

Other products from the Vector 3 LED family

Options

Nominal power [W]Colour temperature [K]Luminous flux [lm]Diffuser typeMotion sensorCorridor functionDIMM DALIThrough wiringEmergency lighting [h]Dimensions [mm]Index
16W
16 3000 1950 PRM MAT - - - - - 601/61/125 661228
16 4000 2100 PRM MAT - - - - - 601/61/125 661211
16 3000 1950 PRM MAT yes - - - - 601/61/125 661389
16 4000 2100 PRM MAT yes - - - - 601/61/125 661372
16 3000 1950 PRM MAT - - yes - - 601/61/125 661501
16 4000 2100 PRM MAT - - yes - - 601/61/125 661495
16 3000 1950 PRM MAT yes yes yes - - 601/61/125 661624
16 4000 2100 PRM MAT yes yes yes - - 601/61/125 661617
24W
24 3000 2600 PRM MAT - - - - - 601/61/125 661266
24 4000 2750 PRM MAT - - - - - 601/61/125 661259
24 3000 2600 PRM MAT yes - - - - 601/61/125 661402
24 4000 2750 PRM MAT yes - - - - 601/61/125 661396
24 3000 2600 PRM MAT - - yes - - 601/61/125 661525
24 4000 2750 PRM MAT - - yes - - 601/61/125 661518
24 3000 2600 PRM MAT yes yes yes - - 601/61/125 661648
24 4000 2750 PRM MAT yes yes yes - - 601/61/125 661631
32W
32 3000 3850 PRM MAT - - - - - 1161/61/125 661242
32 4000 4150 PRM MAT - - - - - 1161/61/125 661235
32 3000 3850 PRM MAT - - - - 3 1161/61/125 661747
32 4000 4150 PRM MAT - - - - 3 1161/61/125 661730
32 3000 3850 PRM MAT - - - LS2 - 1161/61/125 661822
32 4000 4150 PRM MAT - - - LS2 - 1161/61/125 661815
32 3000 3850 PRM MAT yes - - - - 1161/61/125 661426
32 4000 4150 PRM MAT yes - - - - 1161/61/125 661419
32 3000 3850 PRM MAT - - yes - - 1161/61/125 661549
32 4000 4150 PRM MAT - - yes - - 1161/61/125 661532
32 3000 3850 PRM MAT yes yes yes - - 1161/61/125 661662
32 4000 4150 PRM MAT yes yes yes - - 1161/61/125 661655
40W
40 3000 4700 PRM MAT - - - - - 1441/126/60 661365
40 4000 5100 PRM MAT - - - - - 1441/126/60 661358
40 3000 4700 PRM MAT - - - - 3 1441/126/60 661785
40 4000 5100 PRM MAT - - - - 3 1441/126/60 661778
40 3000 4700 PRM MAT - - - LS2 - 1441/126/60 661860
40 4000 5100 PRM MAT - - - LS2 - 1441/126/60 661853
40 3000 4700 PRM MAT yes - - - - 1441/126/60 661464
40 4000 5100 PRM MAT yes - - - - 1441/126/60 661457
40 3000 4700 PRM MAT - - yes - - 1441/126/60 661587
40 4000 5100 PRM MAT - - yes - - 1441/126/60 661570
40 3000 4700 PRM MAT yes yes yes - - 1441/126/60 661709
40 4000 5100 PRM MAT yes yes yes - - 1441/126/60 661693
48W
48 3000 5300 PRM MAT - - - - - 1161/61/125 661280
48 3000 5300 PRM MAT - - - - 3 1161/61/125 661761
48 4000 5700 PRM MAT - - - - 3 1161/61/125 661754
48 3000 5300 PRM MAT - - - LS2 - 1161/61/125 661846
48 4000 5700 PRM MAT - - - LS2 - 1161/61/125 661839
48 3000 5300 PRM MAT yes - - - - 1161/61/125 661440
48 4000 5700 PRM MAT yes - - - - 1161/61/125 661433
48 3000 5300 PRM MAT - - yes - - 1161/61/125 661563
48 4000 5700 PRM MAT - - yes - - 1161/61/125 661556
48 4000 5700 PRM MAT - - - - - 1161/61/125 661273
48 3000 5300 PRM MAT yes yes yes - - 1161/61/125 661686
48 4000 5700 PRM MAT yes yes yes - - 1161/61/125 661679
60W
60 3000 6400 PRM MAT - - - - - 1441/126/60 661341
60 4000 6900 PRM MAT - - - - - 1441/126/60 661334
60 3000 6400 PRM MAT - - - - 3 1441/126/60 661808
60 4000 6900 PRM MAT - - - - 3 1441/126/60 661792
60 3000 6400 PRM MAT - - - LS2 - 1441/126/60 661884
60 4000 6900 PRM MAT - - - LS2 - 1441/126/60 661877
60 3000 6400 PRM MAT yes - - - - 1441/126/60 661488
60 4000 6900 PRM MAT yes - - - - 1441/126/60 661471
60 3000 6400 PRM MAT - - yes - - 1441/126/60 661600
60 4000 6900 PRM MAT - - yes - - 1441/126/60 661594
60 3000 6400 PRM MAT yes yes yes - - 1441/126/60 661723
60 4000 6900 PRM MAT yes yes yes - - 1441/126/60 661716
