Characteristics

LINEA S LED is a surface-mounted and suspended light line system, representing a new generation of lamps dedicated to LED technology. The innovative connection system and loop-through cabling enables lamps to be quickly connected to form a light line and allows flexible replacement of light modules to suit current needs. The design used allows for easy assembly and power connection. The steel body, designed from the ground up, ensures the lamp's strength and robustness, while the narrow side profile allows installation in hard-to-reach areas. Diodes from a renowned manufacturer and new LED modules contribute to the very high luminous efficiency.

UGR<19
Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare.

Application

A versatile led lamp designed for indoor use, especially recommended for lighting large-scale commercial, manufacturing and warehouse facilities. A lamp for use in both new applications and replacing traditional T8 and T5 fixtures with energy-efficient LED solutions.

Linea S LED IP40 has been equipped with new light distributions:

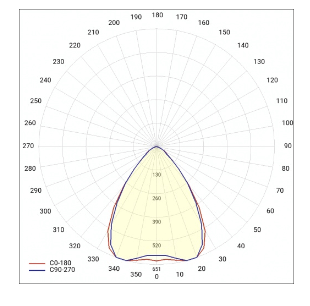

SW - a standard wide lens (80D conventional angle)

SW - a standard wide lens (80D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to its low glare index UGR<19 - in office areas of the building. It provides high luminous efficacy and helps meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-8m.

MW - medium wide lens (90D conventional angle)

MW - medium wide lens (90D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to the low glare UGR<19 - in office areas of the building. It provides high luminous efficacy and helps to meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-6m.

VW - very wide lens (105D conventional angle)

VW - very wide lens (105D conventional angle) with wide application in open spaces and low warehouses. It provides high luminous efficacy and helps meet the most stringent requirements of EN 12464-1 in terms of glare index (UGR<22, UGR<25), illuminance and high uniformity when the system is installed in low spaces. Particularly recommended for rooms where luminaires are mounted at a height of 2.5-5m.

SN - standard narrow lens (standard narrow, conventional angle 65D)

SN - standard narrow lens (standard narrow, conventional angle 65D) for general lighting in open areas in industrial and storage halls, workshops and even - due to the low glare index UGR<19 recommended for rooms where luminaires are mounted at a height of 8-12m.

VN - very narrow lens (very narrow, conventional angle 30D)

VN - very narrow lens (very narrow, conventional angle 30D) for illuminating open spaces in facilities where the luminaire mounting height exceeds 13m. Particularly recommended for premises where luminaires are mounted at heights of 13-20m.

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D)

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D) for communication lighting in industrial halls and shelf aisles in high storage warehouses. Particularly suitable for rooms where luminaires are mounted at a height of 7-12m.

DAN - butterfly lens, double asymmetric narrow

DAN - butterfly lens, double asymmetric narrow, for shelf lighting in retail facilities where it is essential to direct light onto the goods on display. Particularly recommended for premises where luminaires are mounted at heights of 3-4.5m.

SA-L - Single asymmetric lens (single asymmetric, left - supply side view)

SA-L - Single asymmetric lens (single asymmetric, left - supply side view) for single-sided illumination of shelf areas in retail spaces, signs, advertising surfaces on building walls, illumination of work surfaces in conditions where it is not possible to position luminaires directly above them. Particularly suitable for rooms where luminaires are mounted at heights of 3-4.5m.

SA-R - single asymmetric lens, right - view from the supply side

SA-R - single asymmetric lens, right - view from the supply side, for single-sided illumination of shelf areas in retail spaces, signs, advertising surfaces on the walls of a building, illumination of working areas in conditions where it is not possible to position luminaires directly above them. Particularly suitable for spaces where luminaires are mounted at heights of 3-4.5m.

The most effective industrial luminaire

Linea S is the latest achievement in the field of industrial lighting, offering unprecedented efficiency. Thanks to innovative technology, it reaches an impressive 181 lm/W (for the 47 W version with a length of 1764 mm 8500 lm), which puts it at the top of our offer in terms of efficiency.

Highest energy efficiency class

For directional lamps powered by mains voltage, Linea S means the highest energy efficiency class - A. This means that it is not only the best choice in terms of efficiency, but also energy savings.

Linea S Led Modul Swietlny w hali magazynowej

Innovative technology for measuring efficiency

We perform our measurements after the parameters have stabilized, which guarantees precise results. It is worth noting that even right after lighting, the efficiency of our quick assembly line is even higher, which proves its unrivaled quality.

Breakthrough industrial technology

Our light line not only meets, but exceeds the requirements of the new energy efficiency class A. This class, introduced in 2021, was initially reserved for future technologies, but Linea S has proven that the future is already here. Thanks to this, we can be sure that our lighting systems are not only effective, but also comply with the highest standards of efficiency and energy savings.

For industrial, warehouse and commercial areas

Clicked-in light module

Light modules are clicked into spots placed on the supporting profile, chosen by the installer.

Various lengths

Three lengths of light modules and three lengths of supporting profiles give the possibility of creating many variants of lines and flexibility in adjusting the lighting to area specificity.

Tool-free access

The design of the luminaire allows the installer to access the clicked-in luminaire interior quickly and without any tools.

Many options

The luminaire is available in many options of optics with four light distribution variants (120°, 105°, 40/30° i 46/117°), enabling the illumination of objects from a height of up to 20 m.

Quick installation

Connecting individual modules is extremely simple and requires no tools. The speed of installing the lines brings the investor time and money savings.

The installation process is extremely intuitive. It starts with connecting the supporting profiles and mounting them to the ceiling. (they can be surface mounted or suspended). You can move the mounting brackets along the entire length of the profile, so there is no need to mark the exact location of the mounting holes.

The profiles are connected by clicking in the connecting mechanism. It requires no strength, no tools and takes a second. Then, it is enough to connect the power supply to the mounted supporting profiles and connect the light modules.

Luminaire ideal for commercial properties

With emergency lighting

Linea S LED luminaires are not only standard lighting modules providing general lighting. They are also modules with emergency lighting available. So there is no need to la another electrical circuit to ensure safe evacuation

With projectors

The constructor has provided compatibility of Linea S LED with a module offering accent lighting which can be clicked into it. This element of the line can spot-illuminate the details that the investor or user of the facility would like to expose.

With motion sensor

Function modules with DALI motion sensors are available. They bring energy savings in places where no light is required at a given moment.

Extended possibilities

The supporting profiles have 11-core wiring – this allows for clicking various control systems and intelligent lighting solutions into the luminaire.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	Light distribution type	DIMM DALI	Ingress protection	Dimensions (H/W/T/S) [mm]	Index
15W
15	2700	35/67	CN	-	IP40	1176/53/26	855023
15	2700	35/67	CN	yes	IP40	1176/53/26	855269
15	2550	butterfly	DAN	-	IP40	1176/53/26	850387
15	2550	butterfly	DAN	yes	IP40	1176/53/26	850622
15	2700	90	MW	-	IP40	1176/53/26	975455
15	2700	90	MW	yes	IP40	1176/53/26	983580
15	2600	asymmetric left	SA-L	-	IP40	1176/53/26	848063
15	2600	asymmetric left	SA-L	yes	IP40	1176/53/26	848308
15	2600	asymmetric right	SA-R	-	IP40	1176/53/26	858222
15	2600	asymmetric right	SA-R	yes	IP40	1176/53/26	858468
15	2700	65	SN	-	IP40	1176/53/26	857348
15	2700	65	SN	yes	IP40	1176/53/26	857584
15	2700	80	SW	-	IP40	1176/53/26	975233
15	2700	80	SW	yes	IP40	1176/53/26	981975
15	2700	30	VN	-	IP40	1176/53/26	852701
15	2700	30	VN	yes	IP40	1176/53/26	852947
15	2700	105	VW	-	IP40	1176/53/26	975677
15	2700	105	VW	yes	IP40	1176/53/26	975899
19W
19	3400	35/67	CN	-	IP40	1176/53/26	855016
19	3400	35/67	CN	yes	IP40	1176/53/26	855252
19	3250	butterfly	DAN	-	IP40	1176/53/26	850370
19	3250	butterfly	DAN	yes	IP40	1176/53/26	850615
19	3400	90	MW	-	IP40	1176/53/26	975448
19	3400	90	MW	yes	IP40	1176/53/26	983573
19	3300	asymmetric left	SA-L	-	IP40	1176/53/26	848056
19	3300	asymmetric left	SA-L	yes	IP40	1176/53/26	848292
19	3300	asymmetric right	SA-R	-	IP40	1176/53/26	858215
19	3300	asymmetric right	SA-R	yes	IP40	1176/53/26	858451
19	3400	65	SN	-	IP40	1176/53/26	857331
19	3400	65	SN	yes	IP40	1176/53/26	857577
19	3400	80	SW	-	IP40	1176/53/26	975226
19	3400	80	SW	yes	IP40	1176/53/26	981968
19	3400	30	VN	-	IP40	1176/53/26	852695
19	3400	30	VN	yes	IP40	1176/53/26	852930
19	3400	105	VW	-	IP40	1176/53/26	975660
19	3400	105	VW	yes	IP40	1176/53/26	975882
20W
20	3600	35/67	CN	-	IP40	1764/53/26	855139
20	3600	35/67	CN	yes	IP40	1764/53/26	855351
20	3400	butterfly	DAN	-	IP40	1764/53/26	850493
20	3400	butterfly	DAN	yes	IP40	1764/53/26	850714
20	3600	90	MW	-	IP40	1764/53/26	975561
20	3600	90	MW	yes	IP40	1764/53/26	983672
20	3500	asymmetric left	SA-L	-	IP40	1764/53/26	848179
20	3500	asymmetric left	SA-L	yes	IP40	1764/53/26	848391
20	3500	asymmetric right	SA-R	-	IP40	1764/53/26	858338
20	3500	asymmetric right	SA-R	yes	IP40	1764/53/26	858550
20	3600	65	SN	-	IP40	1764/53/26	857454
20	3600	65	SN	yes	IP40	1764/53/26	857676
20	3600	80	SW	-	IP40	1764/53/26	975349
20	3600	80	SW	yes	IP40	1764/53/26	983696
20	3600	30	VN	-	IP40	1764/53/26	852817
20	3600	30	VN	yes	IP40	1764/53/26	853036
20	3600	105	VW	-	IP40	1764/53/26	975783
20	3600	105	VW	yes	IP40	1764/53/26	975981
23W
23	4150	35/67	CN	-	IP40	1176/53/26	855009
23	4150	35/67	CN	yes	IP40	1176/53/26	855146
23	3950	butterfly	DAN	-	IP40	1176/53/26	850363
23	3950	butterfly	DAN	yes	IP40	1176/53/26	850509
23	4150	90	MW	-	IP40	1176/53/26	975431
23	4150	90	MW	yes	IP40	1176/53/26	981838
23	4000	asymmetric left	SA-L	-	IP40	1176/53/26	848049
23	4000	asymmetric left	SA-L	yes	IP40	1176/53/26	848186
23	4000	asymmetric right	SA-R	-	IP40	1176/53/26	858208
23	4000	asymmetric right	SA-R	yes	IP40	1176/53/26	858345
23	4150	65	SN	-	IP40	1176/53/26	857324
23	4150	65	SN	yes	IP40	1176/53/26	857461
23	4150	80	SW	-	IP40	1176/53/26	975219
23	4150	80	SW	yes	IP40	1176/53/26	981722
23	4150	30	VN	-	IP40	1176/53/26	852688
23	4150	30	VN	yes	IP40	1176/53/26	852824
23	4150	105	VW	-	IP40	1176/53/26	975653
23	4150	105	VW	yes	IP40	1176/53/26	975875
29W
29	5200	35/67	CN	-	IP40	1176/53/26	854996
29	5200	35/67	CN	yes	IP40	1176/53/26	855245
29	5200	35/67	CN	-	IP40	1764/53/26	855122
29	5200	35/67	CN	yes	IP40	1764/53/26	855344
29	4950	butterfly	DAN	-	IP40	1176/53/26	850356
29	4950	butterfly	DAN	yes	IP40	1176/53/26	850608
29	4950	butterfly	DAN	-	IP40	1764/53/26	850486
29	4950	butterfly	DAN	yes	IP40	1764/53/26	850707
29	5200	90	MW	-	IP40	1176/53/26	975424
29	5200	90	MW	-	IP40	1764/53/26	975554
29	5200	90	MW	yes	IP40	1176/53/26	983566
29	5200	90	MW	yes	IP40	1764/53/26	983665
29	5000	asymmetric left	SA-L	-	IP40	1176/53/26	848032
29	5000	asymmetric left	SA-L	yes	IP40	1176/53/26	848285
29	5000	asymmetric left	SA-L	-	IP40	1764/53/26	848162
29	5000	asymmetric left	SA-L	yes	IP40	1764/53/26	848384
29	5000	asymmetric right	SA-R	-	IP40	1176/53/26	858192
29	5000	asymmetric right	SA-R	yes	IP40	1176/53/26	858444
29	5000	asymmetric right	SA-R	-	IP40	1764/53/26	858321
29	5000	asymmetric right	SA-R	yes	IP40	1764/53/26	858543
29	5200	65	SN	-	IP40	1176/53/26	857317
29	5200	65	SN	yes	IP40	1176/53/26	857560
29	5200	65	SN	-	IP40	1764/53/26	857447
29	5200	65	SN	yes	IP40	1764/53/26	857669
29	5200	80	SW	-	IP40	1176/53/26	975202
29	5200	80	SW	-	IP40	1764/67/50	975332
29	5200	80	SW	yes	IP40	1176/53/26	981746
29	5200	80	SW	yes	IP40	1764/53/26	981760
29	5200	30	VN	-	IP40	1176/53/26	852671
29	5200	30	VN	yes	IP40	1176/53/26	852923
29	5200	30	VN	-	IP40	1764/53/26	852800
29	5200	30	VN	yes	IP40	1764/53/26	853029
29	5200	105	VW	-	IP40	1176/53/26	975646
29	5200	105	VW	-	IP40	1764/53/26	975776
29	5200	105	VW	yes	IP40	1176/53/26	975868
29	5200	105	VW	yes	IP40	1764/53/26	981876
33W
33	5100	46x117	corridor	-	IP40	1176/53/26	980350
33	5100	46x117	corridor	yes	IP40	1176/53/26	980756
33	5450	120	symmetric	-	IP40	1176/53/26	980343
33	5450	120	symmetric	yes	IP40	1176/53/26	980749
33	5050	105	symmetric	-	IP40	1176/53/26	980336
33	5050	105	symmetric	yes	IP40	1176/53/26	980732
35W
35	6200	35/67	CN	-	IP40	1764/53/26	855115
35	6200	35/67	CN	yes	IP40	1764/53/26	855337
35	5900	butterfly	DAN	-	IP40	1764/53/26	850479
35	5900	butterfly	DAN	yes	IP40	1764/53/26	850691
35	6200	90	MW	-	IP40	1764/53/26	975547
35	6200	90	MW	yes	IP40	1764/53/26	983658
35	6000	asymmetric left	SA-L	-	IP40	1764/53/26	848155
35	6000	asymmetric left	SA-L	yes	IP40	1764/53/26	848377
35	6000	asymmetric right	SA-R	-	IP40	1764/53/26	858314
35	6000	asymmetric right	SA-R	yes	IP40	1764/53/26	858536
35	6200	65	SN	-	IP40	1764/53/26	857430
35	6200	65	SN	yes	IP40	1764/53/26	857652
35	6200	80	SW	-	IP40	1764/67/50	975325
35	6200	80	SW	yes	IP40	1764/53/26	981777
35	6200	30	VN	-	IP40	1764/53/26	852794
35	6200	30	VN	yes	IP40	1764/53/26	853012
35	6200	105	VW	-	IP40	1764/53/26	975769
35	6200	105	VW	yes	IP40	1764/53/26	975974
43W
43	7700	35/67	CN	-	IP40	1176/53/26	854989
43	7700	35/67	CN	yes	IP40	1176/53/26	855238
43	7300	butterfly	DAN	-	IP40	1176/53/26	850349
43	7300	butterfly	DAN	yes	IP40	1176/53/26	850592
43	7700	90	MW	-	IP40	1176/53/26	975417
43	7700	90	MW	yes	IP40	1176/53/26	983559
43	7400	asymmetric left	SA-L	-	IP40	1176/53/26	848025
43	7400	asymmetric left	SA-L	yes	IP40	1176/53/26	848278
43	7400	asymmetric right	SA-R	-	IP40	1176/53/26	858185
43	7400	asymmetric right	SA-R	yes	IP40	1176/53/26	858437
43	7700	65	SN	-	IP40	1176/53/26	857300
43	7700	65	SN	yes	IP40	1176/53/26	857553
43	7700	80	SW	-	IP40	1176/53/26	975196
43	7700	80	SW	yes	IP40	1176/53/26	981739
43	7700	30	VN	-	IP40	1176/53/26	852664
43	7700	30	VN	yes	IP40	1176/53/26	852916
43	7700	105	VW	-	IP40	1176/53/26	975639
43	7700	105	VW	yes	IP40	1176/53/26	975851
44W
44	8600	35/67	CN	-	IP40	1764/53/26	855108
44	8600	35/67	CN	yes	IP40	1764/53/26	855320
44	8200	butterfly	DAN	-	IP40	1764/53/26	850462
44	8200	butterfly	DAN	yes	IP40	1764/53/26	850684
44	8600	90	MW	-	IP40	1764/53/26	975530
44	8600	90	MW	yes	IP40	1764/53/26	983641
44	8300	asymmetric left	SA-L	-	IP40	1764/53/26	848148
44	8300	asymmetric left	SA-L	yes	IP40	1764/53/26	848360
44	8300	asymmetric right	SA-R	-	IP40	1764/53/26	858307
44	8300	asymmetric right	SA-R	yes	IP40	1764/53/26	858529
44	8600	65	SN	-	IP40	1764/53/26	857423
44	8600	65	SN	yes	IP40	1764/53/26	857645
44	8600	80	SW	-	IP40	1764/67/50	975318
44	8600	80	SW	yes	IP40	1764/53/26	981791
44	8600	30	VN	-	IP40	1764/53/26	852787
44	8600	30	VN	yes	IP40	1764/53/26	853005
44	8600	105	VW	-	IP40	1764/53/26	975752
44	8600	105	VW	yes	IP40	1764/53/26	981883
46W
46	7100	46x117	corridor	-	IP40	1176/53/26	980398
46	7100	46x117	corridor	yes	IP40	1176/53/26	980794
46	7600	120	symmetric	-	IP40	1176/53/26	980381
46	7600	120	symmetric	yes	IP40	1176/53/26	980787
46	7050	105	symmetric	-	IP40	1176/53/26	980374
46	7050	105	symmetric	yes	IP40	1176/53/26	980770
48W
48	9300	35/67	CN	-	IP40	1176/53/26	854972
48	9300	35/67	CN	yes	IP40	1176/53/26	855153
48	8900	butterfly	DAN	-	IP40	1176/53/26	850332
48	8900	butterfly	DAN	yes	IP40	1176/53/26	850516
48	7500	46x117	corridor	-	IP40	1764/53/26	980169
48	7500	46x117	corridor	yes	IP40	1764/53/26	980558
48	9300	90	MW	-	IP40	1176/53/26	975400
48	9300	90	MW	yes	IP40	1176/53/26	981845
48	9000	asymmetric left	SA-L	-	IP40	1176/53/26	848018
48	9000	asymmetric left	SA-L	yes	IP40	1176/53/26	848193
48	9000	asymmetric right	SA-R	-	IP40	1176/53/26	858178
48	9000	asymmetric right	SA-R	yes	IP40	1176/53/26	858352
48	9300	65	SN	-	IP40	1176/53/26	857294
48	9300	65	SN	yes	IP40	1176/53/26	857478
48	9300	80	SW	-	IP40	1176/53/26	975189
48	9300	80	SW	yes	IP40	1176/53/26	981951
48	8000	120	symmetric	-	IP40	1764/53/26	980152
48	8000	120	symmetric	yes	IP40	1764/53/26	980541
48	7400	105	symmetric	-	IP40	1764/53/26	980145
48	7400	105	symmetric	yes	IP40	1764/53/26	980534
48	9300	30	VN	-	IP40	1176/53/26	852657
48	9300	30	VN	yes	IP40	1176/53/26	852831
48	9300	105	VW	-	IP40	1176/53/26	975622
48	9300	105	VW	yes	IP40	1176/53/26	975844
58W
58	11100	35/67	CN	-	IP40	1176/53/26	854965
58	11100	35/67	CN	yes	IP40	1176/53/26	855221
58	10600	butterfly	DAN	-	IP40	1176/53/26	850325
58	10600	butterfly	DAN	yes	IP40	1176/53/26	850585
58	11100	90	MW	-	IP40	1176/53/26	975394
58	11100	90	MW	yes	IP40	1176/53/26	983542
58	10700	asymmetric left	SA-L	-	IP40	1176/53/26	848001
58	10700	asymmetric left	SA-L	yes	IP40	1176/53/26	848261
58	10700	asymmetric right	SA-R	-	IP40	1176/53/26	858161
58	10700	asymmetric right	SA-R	yes	IP40	1176/53/26	858420
58	11100	65	SN	-	IP40	1176/53/26	857287
58	11100	65	SN	yes	IP40	1176/53/26	857546
58	11100	80	SW	-	IP40	1176/53/26	975172
58	11100	80	SW	yes	IP40	1176/53/26	981944
58	11100	30	VN	-	IP40	1176/53/26	852640
58	11100	30	VN	yes	IP40	1176/53/26	852909
58	11100	105	VW	-	IP40	1176/53/26	975615
58	11100	105	VW	yes	IP40	1176/53/26	975837
63W
63	12000	35/67	CN	-	IP40	1176/53/26	854958
63	12000	35/67	CN	yes	IP40	1176/53/26	855214
63	11400	butterfly	DAN	-	IP40	1176/53/26	850318
63	11400	butterfly	DAN	yes	IP40	1176/53/26	850578
63	12000	90	MW	-	IP40	1176/53/26	975387
63	12000	90	MW	yes	IP40	1176/53/26	983535
63	11600	asymmetric left	SA-L	-	IP40	1176/53/26	847998
63	11600	asymmetric left	SA-L	yes	IP40	1176/53/26	848254
63	11600	asymmetric right	SA-R	-	IP40	1176/53/26	858154
63	11600	asymmetric right	SA-R	yes	IP40	1176/53/26	858413
63	12000	65	SN	-	IP40	1176/53/26	857270
63	12000	65	SN	yes	IP40	1176/53/26	857539
63	12000	80	SW	-	IP40	1176/53/26	975165
63	12000	80	SW	yes	IP40	1176/53/26	981753
63	12000	30	VN	-	IP40	1176/53/26	852633
63	12000	30	VN	yes	IP40	1176/53/26	852893
63	12000	105	VW	-	IP40	1176/53/26	975608
63	12000	105	VW	yes	IP40	1176/53/26	975820
65W
65	9600	46x117	corridor	-	IP40	1764/53/26	980206
65	9600	46x117	corridor	yes	IP40	1764/53/26	980596
65	10200	120	symmetric	-	IP40	1764/53/26	980190
65	10200	120	symmetric	yes	IP40	1764/53/26	980589
65	9500	105	symmetric	-	IP40	1764/53/26	980183
65	9500	105	symmetric	yes	IP40	1764/53/26	980572
66W
66	12300	35/67	CN	-	IP40	1764/53/26	855092
66	12300	35/67	CN	yes	IP40	1764/53/26	855313
66	11800	butterfly	DAN	-	IP40	1764/53/26	850455
66	11800	butterfly	DAN	yes	IP40	1764/53/26	850677
66	12400	90	MW	-	IP40	1764/53/26	975523
66	12400	90	MW	yes	IP40	1764/53/26	983634
66	12000	asymmetric left	SA-L	-	IP40	1764/53/26	848131
66	12000	asymmetric left	SA-L	yes	IP40	1764/53/26	848353
66	12000	asymmetric right	SA-R	-	IP40	1764/53/26	858291
66	12000	asymmetric right	SA-R	yes	IP40	1764/53/26	858512
66	12300	65	SN	-	IP40	1764/53/26	857416
66	12300	65	SN	yes	IP40	1764/53/26	857638
66	12400	80	SW	-	IP40	1764/67/50	975301
66	12400	80	SW	yes	IP40	1764/53/26	981784
66	12300	30	VN	-	IP40	1764/53/26	852770
66	12300	30	VN	yes	IP40	1764/53/26	852992
66	12400	105	VW	-	IP40	1764/53/26	975745
66	12400	105	VW	yes	IP40	1764/53/26	975967
67W
67	10400	46x117	corridor	-	IP40	1176/53/26	980510
67	10400	46x117	corridor	yes	IP40	1176/53/26	980831
67	11100	120	symmetric	-	IP40	1176/53/26	980503
67	11100	120	symmetric	yes	IP40	1176/53/26	980824
67	10300	105	symmetric	-	IP40	1176/53/26	980497
67	10300	105	symmetric	yes	IP40	1176/53/26	980817
70W
70	13800	35/67	CN	-	IP40	1764/53/26	855085
70	13800	35/67	CN	yes	IP40	1764/53/26	855160
70	13200	butterfly	DAN	-	IP40	1764/53/26	850448
70	13200	butterfly	DAN	yes	IP40	1764/53/26	850523
70	13900	90	MW	-	IP40	1764/53/26	975516
70	13900	90	MW	yes	IP40	1764/53/26	981852
70	13400	asymmetric left	SA-L	-	IP40	1764/53/26	848124
70	13400	asymmetric left	SA-L	yes	IP40	1764/53/26	848209
70	13400	asymmetric right	SA-R	-	IP40	1764/53/26	858284
70	13400	asymmetric right	SA-R	yes	IP40	1764/53/26	858369
70	13800	65	SN	-	IP40	1764/53/26	857409
70	13800	65	SN	yes	IP40	1764/53/26	857485
70	13900	80	SW	-	IP40	1764/67/50	975295
70	13900	80	SW	yes	IP40	1764/53/26	981807
70	13800	30	VN	-	IP40	1764/53/26	852763
70	13800	30	VN	yes	IP40	1764/53/26	852848
70	13900	105	VW	-	IP40	1764/53/26	975738
70	13900	105	VW	yes	IP40	1764/53/26	975950
73W
73	13600	35/67	CN	-	IP40	1176/53/26	854941
73	13600	35/67	CN	yes	IP40	1176/53/26	855207
73	13000	butterfly	DAN	-	IP40	1176/53/26	850301
73	13000	butterfly	DAN	yes	IP40	1176/53/26	850561
73	10800	46x117	corridor	-	IP40	1176/53/26	980435
73	10800	46x117	corridor	yes	IP40	1176/53/26	980879
73	13700	90	MW	-	IP40	1176/53/26	975370
73	13700	90	MW	yes	IP40	1176/53/26	983528
73	13200	asymmetric left	SA-L	-	IP40	1176/53/26	847981
73	13200	asymmetric left	SA-L	yes	IP40	1176/53/26	848247
73	13200	asymmetric right	SA-R	-	IP40	1176/53/26	858147
73	13200	asymmetric right	SA-R	yes	IP40	1176/53/26	858406
73	13600	65	SN	-	IP40	1176/53/26	857263
73	13600	65	SN	yes	IP40	1176/53/26	857522
73	13700	80	SW	-	IP40	1176/53/26	975158
73	13700	80	SW	yes	IP40	1176/53/26	981937
73	11500	120	symmetric	-	IP40	1176/53/26	980312
73	11500	120	symmetric	yes	IP40	1176/53/26	980862
73	10700	105	symmetric	-	IP40	1176/53/26	980411
73	10700	105	symmetric	yes	IP40	1176/53/26	980855
73	13600	30	VN	-	IP40	1176/53/26	852626
73	13600	30	VN	yes	IP40	1176/53/26	852886
73	13700	105	VW	-	IP40	1176/53/26	975592
73	13700	105	VW	yes	IP40	1176/53/26	975813
77W
77	11700	46x117	corridor	-	IP40	1176/53/26	980046
77	11700	46x117	corridor	yes	IP40	1176/53/26	980916
77	12500	120	symmetric	-	IP40	1176/53/26	980466
77	12500	120	symmetric	yes	IP40	1176/53/26	980909
77	11600	105	symmetric	-	IP40	1176/53/26	980459
77	11600	105	symmetric	yes	IP40	1176/53/26	980893
80W
80	14800	35/67	CN	-	IP40	1176/53/26	854934
80	14800	35/67	CN	yes	IP40	1176/53/26	855191
80	14200	butterfly	DAN	-	IP40	1176/53/26	850295
80	14200	butterfly	DAN	yes	IP40	1176/53/26	850554
80	14900	90	MW	-	IP40	1176/53/26	975363
80	14900	90	MW	yes	IP40	1176/53/26	983511
80	14300	asymmetric left	SA-L	-	IP40	1176/53/26	847974
80	14300	asymmetric left	SA-L	yes	IP40	1176/53/26	848230
80	14300	asymmetric right	SA-R	-	IP40	1176/53/26	858130
80	14300	asymmetric right	SA-R	yes	IP40	1176/53/26	858390
80	14800	65	SN	-	IP40	1176/53/26	857256
80	14800	65	SN	yes	IP40	1176/53/26	857515
80	14900	80	SW	-	IP40	1176/53/26	975141
80	14900	80	SW	yes	IP40	1176/53/26	981920
80	14800	30	VN	-	IP40	1176/53/26	852619
80	14800	30	VN	yes	IP40	1176/53/26	852879
80	14900	105	VW	-	IP40	1176/53/26	975585
80	14900	105	VW	yes	IP40	1176/53/26	975806
82W
82	15700	35/67	CN	-	IP40	1764/53/26	855078
82	15700	35/67	CN	yes	IP40	1764/53/26	855177
82	15000	butterfly	DAN	-	IP40	1764/53/26	850431
82	15000	butterfly	DAN	yes	IP40	1764/53/26	850530
82	15800	90	MW	-	IP40	1764/53/26	975509
82	15800	90	MW	yes	IP40	1764/53/26	981869
82	15200	asymmetric left	SA-L	-	IP40	1764/53/26	848117
82	15200	asymmetric left	SA-L	yes	IP40	1764/53/26	848216
82	15200	asymmetric right	SA-R	-	IP40	1764/53/26	858277
82	15200	asymmetric right	SA-R	yes	IP40	1764/53/26	858376
82	15700	65	SN	-	IP40	1764/53/26	857393
82	15700	65	SN	yes	IP40	1764/53/26	857492
82	15800	80	SW	-	IP40	1764/53/26	975288
82	15800	80	SW	yes	IP40	1764/53/26	981814
82	15700	30	VN	-	IP40	1764/53/26	852756
82	15700	30	VN	yes	IP40	1764/53/26	852855
82	15800	105	VW	-	IP40	1764/53/26	975721
82	15800	105	VW	yes	IP40	1764/53/26	975943
88W
88	16900	35/67	CN	-	IP40	1764/53/26	855061
88	16900	35/67	CN	yes	IP40	1764/53/26	855306
88	16200	butterfly	DAN	-	IP40	1764/53/26	850424
88	16200	butterfly	DAN	yes	IP40	1764/53/26	850660
88	17000	90	MW	-	IP40	1764/53/26	975493
88	17000	90	MW	yes	IP40	1764/53/26	983627
88	16400	asymmetric left	SA-L	-	IP40	1764/53/26	848100
88	16400	asymmetric left	SA-L	yes	IP40	1764/53/26	848346
88	16400	asymmetric right	SA-R	-	IP40	1764/53/26	858260
88	16400	asymmetric right	SA-R	yes	IP40	1764/53/26	858505
88	16900	65	SN	-	IP40	1764/53/26	857386
88	16900	65	SN	yes	IP40	1764/53/26	857621
88	17000	80	SW	-	IP40	1764/53/26	975271
88	17000	80	SW	yes	IP40	1764/53/26	981821
88	16900	30	VN	-	IP40	1764/53/26	852749
88	16900	30	VN	yes	IP40	1764/53/26	852985
88	17000	105	VW	-	IP40	1764/53/26	975714
88	17000	105	VW	yes	IP40	1764/53/26	975936
92W
92	16700	35/67	CN	-	IP40	1176/53/26	854927
92	16700	35/67	CN	yes	IP40	1176/53/26	855184
92	16000	butterfly	DAN	-	IP40	1176/53/26	850288
92	16000	butterfly	DAN	yes	IP40	1176/53/26	850547
92	14000	46x117	corridor	-	IP40	1176/53/26	981043
92	14000	46x117	corridor	yes	IP40	1176/53/26	981128
92	16800	90	MW	-	IP40	1176/53/26	975356
92	16800	90	MW	yes	IP40	1176/53/26	983504
92	16200	asymmetric left	SA-L	-	IP40	1176/53/26	847967
92	16200	asymmetric left	SA-L	yes	IP40	1176/53/26	848223
92	16200	asymmetric right	SA-R	-	IP40	1176/53/26	858123
92	16200	asymmetric right	SA-R	yes	IP40	1176/53/26	858383
92	16700	65	SN	-	IP40	1176/53/26	857249
92	16700	65	SN	yes	IP40	1176/53/26	857508
92	16800	80	SW	-	IP40	1176/53/26	975134
92	16800	80	SW	yes	IP40	1176/53/26	981913
92	14900	120	symmetric	-	IP40	1176/53/26	981005
92	14900	120	symmetric	yes	IP40	1176/53/26	981081
92	13800	105	symmetric	-	IP40	1176/53/26	980053
92	13800	105	symmetric	yes	IP40	1176/53/26	981104
92	16700	30	VN	-	IP40	1176/53/26	852602
92	16700	30	VN	yes	IP40	1176/53/26	852862
92	16800	105	VW	-	IP40	1176/53/26	975578
92	16800	105	VW	yes	IP40	1176/53/26	975790
94W
94	14500	46x117	corridor	-	IP40	1176/53/26	981050
94	14500	46x117	corridor	yes	IP40	1176/53/26	981135
94	15500	120	symmetric	-	IP40	1176/53/26	981012
94	15500	120	symmetric	yes	IP40	1176/53/26	981098
94	14400	105	symmetric	-	IP40	1176/53/26	981036
94	14400	105	symmetric	yes	IP40	1176/53/26	981111
96W
96	14000	46x117	corridor	-	IP40	1764/53/26	980244
96	14000	46x117	corridor	yes	IP40	1764/53/26	980633
96	15000	120	symmetric	-	IP40	1764/53/26	980237
96	15000	120	symmetric	yes	IP40	1764/53/26	980626
96	13900	105	symmetric	-	IP40	1764/53/26	980220
96	13900	105	symmetric	yes	IP40	1764/53/26	980619
100W
100	18800	35/67	CN	-	IP40	1764/53/26	855054
100	18800	35/67	CN	yes	IP40	1764/53/26	855290
100	18000	butterfly	DAN	-	IP40	1764/53/26	850417
100	18000	butterfly	DAN	yes	IP40	1764/53/26	850653
100	18900	90	MW	-	IP40	1764/53/26	975486
100	18900	90	MW	yes	IP40	1764/53/26	983610
100	18200	asymmetric left	SA-L	-	IP40	1764/53/26	848094
100	18200	asymmetric left	SA-L	yes	IP40	1764/53/26	848339
100	18200	asymmetric right	SA-R	-	IP40	1764/53/26	858253
100	18200	asymmetric right	SA-R	yes	IP40	1764/53/26	858499
100	18800	65	SN	-	IP40	1764/53/26	857379
100	18800	65	SN	yes	IP40	1764/53/26	857614
100	18900	80	SW	-	IP40	1764/53/26	975264
100	18900	80	SW	yes	IP40	1764/53/26	983689
100	18800	30	VN	-	IP40	1764/53/26	852732
100	18800	30	VN	yes	IP40	1764/53/26	852978
100	18900	105	VW	-	IP40	1764/53/26	975707
100	18900	105	VW	yes	IP40	1764/53/26	975929
109W
109	16400	46x117	corridor	-	IP40	1764/53/26	980282
109	16400	46x117	corridor	yes	IP40	1764/53/26	980671
109	17500	120	symmetric	-	IP40	1764/53/26	980275
109	17500	120	symmetric	yes	IP40	1764/53/26	980664
109	16200	105	symmetric	-	IP40	1764/53/26	980268
109	16200	105	symmetric	yes	IP40	1764/53/26	980657
117W
117	21700	35/67	CN	-	IP40	1764/53/26	855047
117	21700	35/67	CN	yes	IP40	1764/53/26	855283
117	20800	butterfly	DAN	-	IP40	1764/53/26	850400
117	20800	butterfly	DAN	yes	IP40	1764/53/26	850646
117	21800	90	MW	-	IP40	1764/53/26	975479
117	21800	90	MW	yes	IP40	1764/53/26	983603
117	21000	asymmetric left	SA-L	-	IP40	1764/53/26	848087
117	21000	asymmetric left	SA-L	yes	IP40	1764/53/26	848322
117	21000	asymmetric right	SA-R	-	IP40	1764/53/26	858246
117	21000	asymmetric right	SA-R	yes	IP40	1764/53/26	858482
117	21700	65	SN	-	IP40	1764/53/26	857362
117	21700	65	SN	yes	IP40	1764/53/26	857607
117	21800	80	SW	-	IP40	1764/53/26	975257
117	21800	80	SW	yes	IP40	1764/53/26	981999
117	21700	30	VN	-	IP40	1764/53/26	852725
117	21700	30	VN	yes	IP40	1764/53/26	852961
117	21800	105	VW	-	IP40	1764/53/26	975691
117	21800	105	VW	yes	IP40	1764/53/26	975912
135W
135	24900	35/67	CN	-	IP40	1764/53/26	855030
135	24900	35/67	CN	yes	IP40	1764/53/26	855276
135	23800	butterfly	DAN	-	IP40	1764/53/26	850394
135	23800	butterfly	DAN	yes	IP40	1764/53/26	850639
135	25000	90	MW	-	IP40	1764/53/26	975462
135	25000	90	MW	yes	IP40	1764/53/26	983597
135	24100	asymmetric left	SA-L	-	IP40	1764/53/26	848070
135	24100	asymmetric left	SA-L	yes	IP40	1764/53/26	848315
135	24100	asymmetric right	SA-R	-	IP40	1764/53/26	858239
135	24100	asymmetric right	SA-R	yes	IP40	1764/53/26	858475
135	24900	65	SN	-	IP40	1764/53/26	857355
135	24900	65	SN	yes	IP40	1764/53/26	857591
135	25000	80	SW	-	IP40	1764/53/26	975240
135	25000	80	SW	yes	IP40	1764/53/26	981982
135	24900	30	VN	-	IP40	1764/53/26	852718
135	24900	30	VN	yes	IP40	1764/53/26	852954
135	25000	105	VW	-	IP40	1764/53/26	975684
135	25000	105	VW	yes	IP40	1764/53/26	975905
146W
146	21600	46x117	corridor	-	IP40	1764/53/26	980473
146	21600	46x117	corridor	yes	IP40	1764/53/26	980718
146	23100	120	symmetric	-	IP40	1764/53/26	980428
146	23100	120	symmetric	yes	IP40	1764/53/26	980701
146	21400	105	symmetric	-	IP40	1764/53/26	980305
146	21400	105	symmetric	yes	IP40	1764/53/26	980695

Show more Show less

Accessories

Hide accessories

Index	Accessory name
981173	LINEA S LED hang 1.5m
980077	LINEA S LED hang 3m
981418	LINEA S LED pendant sm 1.5
980961	LINEA S LED pendant sm 3m
981425	LINEA S LED chain pendant
980954	Linea S LED surface mount bracket
981258	LINEA S LED 588mm universal module 4P
981401	LINEA S LED IP40 connection bezel
980985	LINEA S LED metal grille 588mm
980947	LINEA S LED metal grille 1176mm
980039	LINEA S LED masking 1764mm
980992	LINEA S LED - PVC grille 588mm
980930	LINEA S LED PVC bezel 1176mm
981159	LINEA S LED - PVC grille 1764mm
981906	LINEA S LED 588mm module IoT BT HTR PIR DIMM 12(15)m
981715	LINEA S LED 1176mm module IoT BT HTR PIR DIMM 8(12)m
981234	LINEA S LED 588mm AW DOT CSC 2W 1h NM AT
981227	LINEA S LED 588mm AW DOT CS 2W 1h NM AT
981241	LINEA S LED 588mm AW DOT CSO 2W 1h NM AT
981265	LINEA S LED 588mm - 1xEXPO ADJUST 2050lm zoom 22-55st. WHITE 840 20W
981272	LINEA S LED 588mm - 1xEXPO ADJUST 2050lm DALI zoom 22-55st.WHITE 840 20W
981289	LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm zoom 22-55st. WHITE 840 20W
981296	LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm DALI zoom 22-55st. WHITE 840 20W
980060	LINEA S LED – end cap IP40 push-in
981166	LINEA S LED – end cap IP40 for screws
980084	LINEA S LED power set 5P
980978	Linea S LED power set 7P
981388	LINEA S LED power set 11P

LINEA S LED hang 1.5m (981173)

LINEA S LED chain pendant (981425)

Linea S LED surface mount bracket (980954)

LINEA S LED metal grille 588mm (980985)

LINEA S LED metal grille 1176mm (980947)

LINEA S LED masking 1764mm (980039)

LINEA S LED - PVC grille 588mm (980992)

LINEA S LED PVC bezel 1176mm (980930)

LINEA S LED - PVC grille 1764mm (981159)

LINEA S LED 588mm AW DOT CSC 2W 1h NM AT (981234)

LINEA S LED 588mm AW DOT CS 2W 1h NM AT (981227)

LINEA S LED 588mm AW DOT CSO 2W 1h NM AT (981241)

LINEA S LED 588mm - 1xEXPO ADJUST 2050lm zoom 22-55st. WHITE 840 20W (981265)

LINEA S LED 588mm - 1xEXPO ADJUST 2050lm DALI zoom 22-55st.WHITE 840 20W (981272)

LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm zoom 22-55st. WHITE 840 20W (981289)

LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm DALI zoom 22-55st. WHITE 840 20W (981296)

LINEA S LED – end cap IP40 push-in (980060)

LINEA S LED power set 5P (980084)

Linea S LED power set 7P (980978)

LINEA S LED power set 11P (981388)

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Light source	LED
Colour temperature	4000K
Mounting version	surface suspended

Linea S LED IP40 light module

Technical specifications

Downloads

Linea S LED IP40 has been equipped with new light distributions:

The most effective industrial luminaire

Highest energy efficiency class

Innovative technology for measuring efficiency

Breakthrough industrial technology

For industrial, warehouse and commercial areas

Clicked-in light module

Various lengths

Tool-free access

Many options

Quick installation

Luminaire ideal for commercial properties

With emergency lighting

With projectors

With motion sensor

Extended possibilities

Related products

Linea S LED Eco

Linea S LED IP54 light module

Linea S LED IP54 trunking system

Linea 2 LED

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
