CORIA LED

CORIA LED Z
Download:
Power supply 230V LED  Electrical protection class 1  Ingress protection IP20  Ingress protection IP40 Ingress protection IP44  Impact resistance IK07 Declaration of conformity CE


Specification:
A round LED luminaire with a big diameter and an integrated energy-saving light source guarantees high luminous flux and even light distribution. Its body is made of white powder-coated steel, and the diffuser is made of opal PMMA. It works perfectly while designing new applications as well as replacing traditional luminaires with energy-saving LED solutions. Specification: colour temperature 3000K, 4000K; CRI>80; lifespan of LED modules 50 000 hours (L70B50) ta = 25°C. A suspended version is also available. Suspension and electrical cords are not included (available as accessories).

Application:
Luminaire is dedicated to indoor use. Due to the good lighting of the surface and even light distribution, it is particularly well-suited to be used as the main light source in representative rooms and passageways. The fitting’s design is suitable for surface or recessed mounting in plasterboard ceilings.

See our luminaires on the BIMobject platform
Options
Nominal power [W]Colour temperature [K]Luminous flux [lm]Diffuser typeDIMM DALIEmergency lighting [h]VersionColour of the bodyIngress protectionDimensions [mm]Index
CORIA LED surface
22 3000 1750 OPAL - - - white matt IP44 ø400/86 555022
22 3000 1750 OPAL - - - black mat IP44 ø400/86 555381
22 3000 1750 OPAL yes - - white matt IP44 ø400/86 555084
22 3000 1750 OPAL yes - - black mat IP44 ø400/86 555442
22 4000 1900 OPAL - - - white matt IP44 ø400/86 555206
22 4000 1900 OPAL - - - black mat IP44 ø400/86 555565
22 4000 1900 OPAL yes - - white matt IP44 ø400/86 555268
22 4000 1900 OPAL yes - - black mat IP44 ø400/86 555626
30 3000 2850 OPAL - - - white matt IP40 ø400/65 472671
30 4000 3000 OPAL - - - white matt IP40 ø400/65 472664
32 4000 2100 OPAL - - EDGE white matt IP20 ø400/70 472183
50 3000 4700 OPAL - - - white matt IP44 ø600/86 555015
50 3000 4700 OPAL - - - black mat IP44 ø600/86 555374
50 3000 4700 OPAL yes - - white matt IP44 ø600/86 555077
50 3000 4700 OPAL yes - - black mat IP44 ø600/86 555435
50 4000 5050 OPAL - - - white matt IP44 ø600/86 555190
50 4000 5050 OPAL - - - black mat IP44 ø600/86 555558
50 4000 5050 OPAL yes - - white matt IP44 ø600/86 555251
50 4000 5050 OPAL yes - - black mat IP44 ø600/86 555619
100 3000 10300 OPAL - - - white matt IP44 ø900/86 555008
100 3000 10300 OPAL - - - black mat IP44 ø900/86 555367
100 3000 10300 OPAL yes - - white matt IP44 ø900/86 555060
100 3000 10300 OPAL yes - - black mat IP44 ø900/86 555428
100 4000 11050 OPAL - - - white matt IP44 ø900/86 555183
100 4000 11050 OPAL - - - black mat IP44 ø900/86 555541
100 4000 11050 OPAL yes - - white matt IP44 ø900/86 555244
100 4000 11050 OPAL yes - - black mat IP44 ø900/86 555602
CORIA LED recessed
30 3000 2850 OPAL - - - white matt IP40 ø400/65 472695
30 4000 3000 OPAL - - - white matt IP40 ø400/65 472688
32 4000 2100 OPAL - - EDGE white matt IP20 ø440/70 472176
32 4000 2100 OPAL yes - EDGE white matt IP20 ø440/70 472152

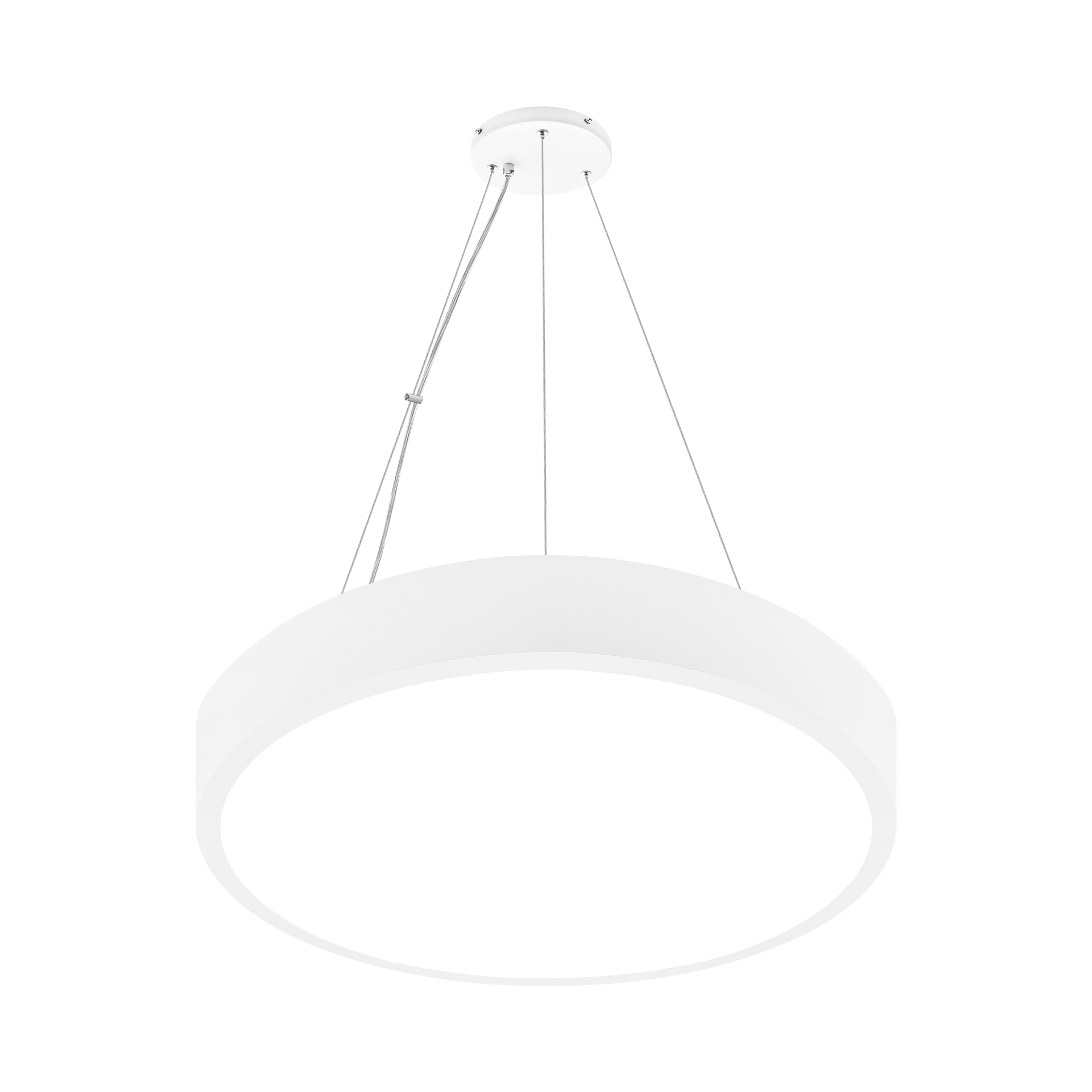

CORIA LED suspended
22 3000 1750 OPAL - - - white matt IP20 ø400/86 555114
22 3000 1750 OPAL - - - black mat IP20 ø400/86 555473
22 3000 1750 OPAL yes - - white matt IP20 ø400/86 555176
22 3000 1750 OPAL yes - - black mat IP20 ø400/86 555534
22 4000 1900 OPAL - - - white matt IP20 ø400/86 555299
22 4000 1900 OPAL - - - black mat IP20 ø400/86 555657
22 4000 1900 OPAL yes - - white matt IP20 ø400/86 555350
22 4000 1900 OPAL yes - - black mat IP20 ø400/86 555718
50 3000 4700 OPAL - - - white matt IP20 ø600/86 555107
50 3000 4700 OPAL - - - black mat IP20 ø600/86 555466
50 3000 4700 OPAL yes - - white matt IP20 ø600/86 555169
50 3000 4700 OPAL yes - - black mat IP20 ø600/86 555527
50 4000 5050 OPAL - - - white matt IP20 ø600/86 555282
50 4000 5050 OPAL - - - black mat IP20 ø600/86 555640
50 4000 5050 OPAL yes - - white matt IP20 ø600/86 555343
50 4000 5050 OPAL yes - - black mat IP20 ø600/86 555701
100 3000 10300 OPAL - - - white matt IP20 ø900/86 555091
100 3000 10300 OPAL - - - black mat IP20 ø900/86 555459
100 3000 10300 OPAL yes - - white matt IP20 ø900/86 555152
100 3000 10300 OPAL yes - - black mat IP20 ø900/86 555510
100 4000 11050 OPAL - - - white matt IP20 ø900/86 555275
100 4000 11050 OPAL - - - black mat IP20 ø900/86 555633
100 4000 11050 OPAL yes - - white matt IP20 ø900/86 555336
100 4000 11050 OPAL yes - - black mat IP20 ø900/86 555695
Accessories
NameIndex
Coria Hang set 1 fi 100 white 556647
Coria Hang set 1 fi 100 white dali 556661
Coria Hang set 1 fi 100 black 556654
Coria Hang set 1 fi 100 black dali 556678
Coria Hang set 2 fi 100 white 556685
Coria Hang set 2 fi 100 white dali 556708
Coria Hang set 2 fi 100 black 556692
Coria Hang set 2 fi 100 black dali 556715
Coria Hang set 3 fi 150 white 556722
Coria Hang set 3 fi 150 white dali 556746
Coria Hang set 3 fi 150 black 556739
Coria Hang set 3 fi 150 black dali 556753
ø100mm: white (556647), white DALI (556661), black (556654), black DALI (556678)
CORIA EN1

ø100mm: white (556685), white DALI (556708), black (556692), black DALI (556715)
CORIA EN2

ø150: white (556722), white DALI (556746), black (556739), black DALI (556753)
CORIA EN3
