Terra 2 LED

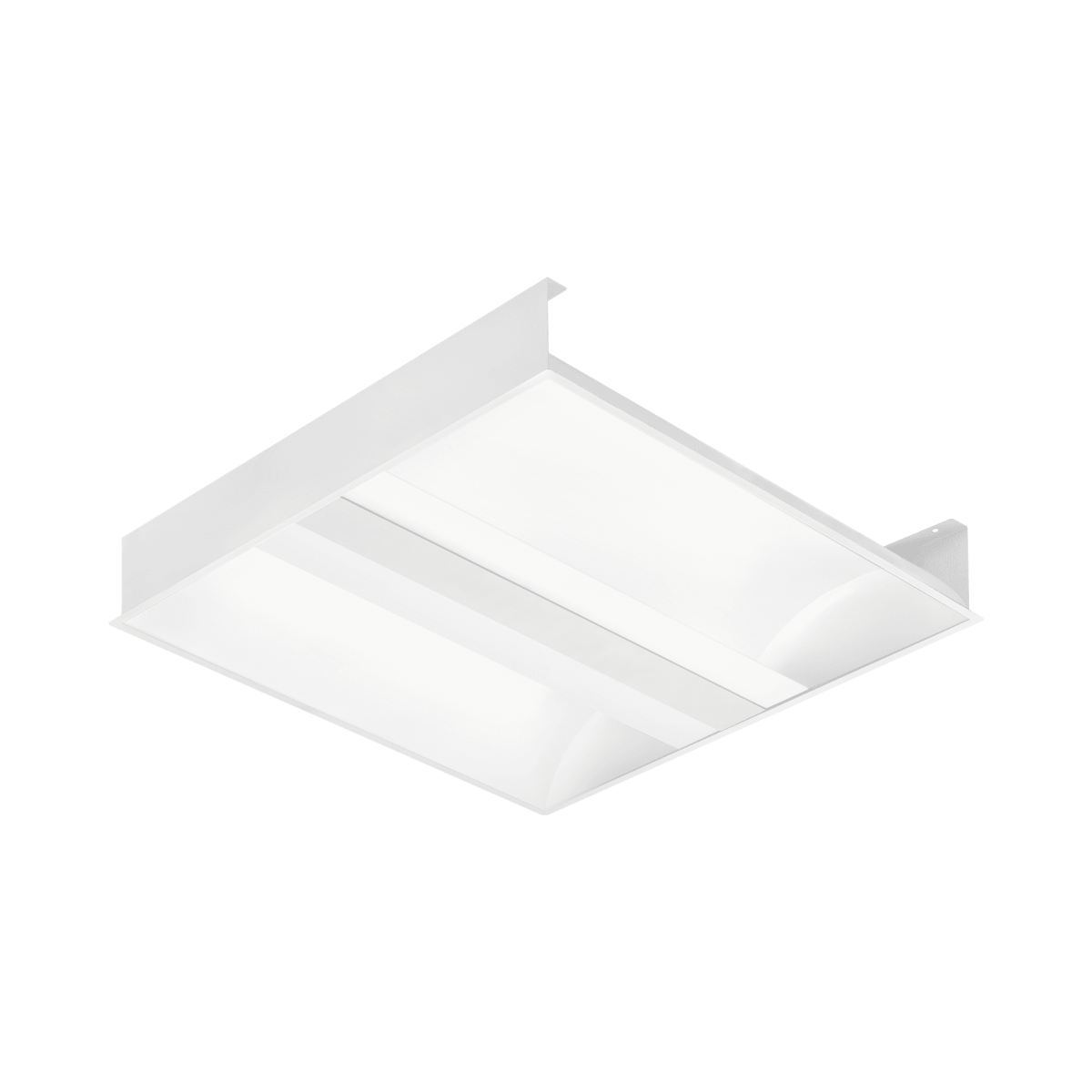

Recessed square LED luminaire with high total luminous Flux.

Technical specifications

Light source
LED
Colour temperature
  • 3000K
  • 4000K
Mounting version
  • recessed
  • surface
  • surface or suspended
  • suspended
Application
office
LEDIIIP20iotCE

Specification

Recessed square LED luminaire with high total luminous Flux. Made of powder-coated white steel sheet. The luminaire has a patented HE reflector installed, which ensures efficiency and effectively eliminates glare.

Available mounting versions: surface mounted, surface mounted on neodymium magnets (magnet ver. / N-MAG), flush-mounted in modular or KG ceilings (using an adapter), or suspended. In the surface-mounted version, solutions influencing the speed and safety of installation were used. In addition, the versions with neodymium magnets shorten the installation time of surface-mounted versions to an absolute minimum.

UGR <19

Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare. In the case of luminaires designed for office spaces, UGR <19, among, others improves the comfort of work, reduces errors and fatigue. The UGR value also depends on many factors characterizing the room and the location of the observer. Special computer programs should be used to precisely determine the degree of glare for specific conditions.

Application

General-purpose recessed luminaire for indoor application in offices or other utility rooms. Appropriate as the main light source even when the work requires eyesight concentration.

Other products from the Terra LED family

See our luminaires Terra 2 LED on the BIMobject platform

See our luminaires Terra 2 LED Black HE Optics on the BIMobject platform

Options
Nominal power [W]Colour temperature [K]Luminous flux [lm]OpticsColour of the bodyVersionDimensions (H/W/T/S) [mm]Index
surface
20 3000 1900 black HE black mat 2x1 595/595/36 239120
20 4000 1900 black HE black mat 2x1 595/595/36 238741
20 3000 2400 HE white mat 2x1 595/595/36 239106
20 3000 2400 HE white gloss 2x1 595/595/36 239113
20 4000 2600 HE white mat 2x1 595/595/36 238727
20 4000 2600 HE white gloss 2x1 595/595/36 238734
20 4000 1900 black HE white mat 2x1 595/595/36 227073
31 3000 2400 black HE black mat 2x1 595/595/36 239151
31 4000 2550 black HE black mat 2x1 595/595/36 238772
31 3000 3300 HE white mat 2x1 595/595/36 239137
31 3000 3300 HE white gloss 2x1 595/595/36 239144
31 4000 3500 HE white mat 2x1 595/595/36 238758
31 4000 3500 HE white gloss 2x1 595/595/36 238765
36 3000 2800 black HE black mat 2x1 595/595/36 239182
36 4000 3000 black HE black mat 2x1 595/595/36 238802
36 3000 3950 HE white mat 2x1 595/595/36 239168
36 3000 3950 HE white gloss 2x1 595/595/36 239175
36 4000 4200 HE white mat 2x1 595/595/36 238789
36 4000 4200 HE white gloss 2x1 595/595/36 238796
41 4000 4750 HE white mat 2x1 595/300/36 237096
41 4000 4750 HE white gloss 2x1 595/300/36 237102
41 4000 3450 black HE white gloss 2x1 595/300/36 227080
41 3000 3200 black HE black mat 2x1 595/595/36 239212
41 4000 3450 black HE black mat 2x1 595/595/36 238833
41 3000 4450 HE white mat 2x1 595/595/36 239199
41 3000 4450 HE white gloss 2x1 595/595/36 239205
41 4000 4750 HE white mat 2x1 595/595/36 238819
41 4000 4750 HE white gloss 2x1 595/595/36 238826
48 3000 3700 black HE black mat 2x1 595/595/36 239243
48 4000 3900 black HE black mat 2x1 595/595/36 238864
48 3000 5050 HE white mat 2x1 595/595/36 239229
48 3000 5050 HE white gloss 2x1 595/595/36 239236
48 4000 5400 HE white mat 2x1 595/595/36 238840
48 4000 5400 HE white gloss 2x1 595/595/36 238857
62 3000 4800 black HE black mat 4x1 595/595/36 239762
62 4000 5100 black HE black mat 4x1 595/595/36 239526
62 3000 6600 HE white mat 4x1 595/595/36 239748
62 3000 6600 HE white gloss 4x1 595/595/36 239755
62 4000 7050 HE white mat 4x1 595/595/36 239502
62 4000 7050 HE white gloss 4x1 595/595/36 239519
72 3000 5500 black HE black mat 4x1 595/595/36 239793
72 4000 5900 black HE black mat 4x1 595/595/36 239557
72 3000 7600 HE white mat 4x1 595/595/36 239779
72 3000 7600 HE white gloss 4x1 595/595/36 239786
72 4000 8100 HE white mat 4x1 595/595/36 239533
72 4000 8100 HE white gloss 4x1 595/595/36 239540
surface (magnet ver.)
20 3000 1900 black HE black mat 2x1 595/595/36 991011
20 4000 1900 black HE white mat 2x1 595/595/36 990960
20 4000 1900 HE black mat 2x1 595/595/36 990809
20 3000 2400 HE white mat 2x1 595/595/36 990915
20 3000 2400 black HE white gloss 2x1 595/595/36 991028
20 4000 2600 HE white mat 2x1 595/595/36 990861
20 4000 2600 black HE white gloss 2x1 595/595/36 991035
31 3000 2400 black HE black mat 2x1 595/595/36 990977
31 4000 2550 HE black mat 2x1 595/595/36 990755
31 3000 3300 HE white mat 2x1 595/595/36 990922
31 3000 3300 black HE white gloss 2x1 595/595/36 990991
31 4000 3500 HE white mat 2x1 595/595/36 990854
31 4000 3500 HE white gloss 2x1 595/595/36 990878
36 3000 2800 black HE black mat 2x1 595/595/36 990984
36 4000 3000 black HE black mat 2x1 595/595/36 991042
36 3000 3950 HE white mat 2x1 595/595/36 990823
36 3000 3950 HE white gloss 2x1 595/595/36 990939
36 4000 4200 HE white mat 2x1 595/595/36 990779
36 4000 4200 HE white gloss 2x1 595/595/36 990885
41 3000 3200 HE black mat 2x1 595/595/36 990816
41 4000 3450 HE black mat 2x1 595/595/36 990762
41 3000 4450 HE white mat 2x1 595/595/36 990830
41 3000 4450 HE white gloss 2x1 595/595/36 990946
41 4000 4750 HE white mat 2x1 595/595/36 990786
41 4000 4750 HE white gloss 2x1 595/595/36 990892
48 3000 3700 black HE black mat 2x1 595/595/36 991059
48 4000 3900 black HE black mat 2x1 595/595/36 991004
48 3000 5050 HE white mat 2x1 595/595/36 990847
48 3000 5050 HE white gloss 2x1 595/595/36 990953
48 4000 5400 HE white mat 2x1 595/595/36 990793
48 4000 5400 HE white gloss 2x1 595/595/36 990908
62 3000 4800 black HE black mat 4x1 595/595/36 991257
62 4000 5100 black HE black mat 4x1 595/595/36 991226
62 3000 6600 HE white mat 4x1 595/595/36 991097
62 3000 6600 HE white gloss 4x1 595/595/36 991172
62 4000 7050 HE white mat 4x1 595/595/36 991066
62 4000 7050 HE white gloss 4x1 595/595/36 991141
72 3000 5500 black HE black mat 4x1 595/595/36 991264
72 4000 5900 black HE black mat 4x1 595/595/36 991233
72 3000 7600 HE white mat 4x1 595/595/36 991103
72 3000 7600 HE white gloss 4x1 595/595/36 991189
72 4000 8100 HE white mat 4x1 595/595/36 991073
72 4000 8100 HE white gloss 4x1 595/595/36 991158
recessed
20 3000 2400 HE white mat 2x1 595/595/32 239250
20 3000 2400 HE white gloss 2x1 595/595/32 239267
20 4000 2600 HE white mat 2x1 595/595/32 238871
20 4000 2600 HE white gloss 2x1 595/595/32 238888
31 4000 3500 HE white mat 2x1 595/595/32 238895
31 4000 3500 HE white gloss 2x1 595/595/32 238901
31 4000 2550 black HE white mat 2x1 595/595/32 227097
36 4000 4200 HE white mat 2x1 595/595/32 226304
36 4000 4200 HE white gloss 2x1 595/595/32 226311
36 3000 3950 HE white mat 2x1 595/595/32 239298
36 3000 3950 HE white gloss 2x1 595/595/32 239304
36 4000 3000 black HE white mat 2x1 595/595/32 227103
41 4000 3450 black HE white mat 2x1 595/300/32 237218
41 3000 4450 HE white mat 2x1 595/595/32 239311
41 3000 4450 HE white gloss 2x1 595/595/32 239328
41 4000 4750 HE white mat 2x1 595/595/32 238918
41 4000 4750 HE white gloss 2x1 595/595/32 238925
48 3000 5050 HE white mat 2x1 595/595/32 239335
48 3000 5050 HE white gloss 2x1 595/595/32 239342
48 4000 5400 HE white mat 2x1 595/595/32 238932
48 4000 5400 HE white gloss 2x1 595/595/32 238949
62 3000 6600 HE white mat 4x1 595/595/32 239830
62 3000 6600 HE white gloss 4x1 595/595/32 239847
62 4000 7050 HE white mat 4x1 595/595/32 239595
62 4000 7050 HE white gloss 4x1 595/595/32 239601
72 3000 7600 HE white mat 4x1 595/595/32 239854
72 3000 7600 HE white gloss 4x1 595/595/32 239861
72 4000 8100 HE white mat 4x1 595/595/32 239618
72 4000 8100 HE white gloss 4x1 595/595/32 239625
suspended
20 3000 1900 black HE black mat 2x1 595/595/38 239373
20 4000 1900 black HE black mat 2x1 595/595/38 238970
20 3000 2400 HE white mat 2x1 595/595/38 239359
20 3000 2400 HE white gloss 2x1 595/595/38 239366
20 4000 2600 HE white mat 2x1 595/595/38 238956
20 4000 2600 HE white gloss 2x1 595/595/38 238963
31 3000 2400 black HE black mat 2x1 595/595/38 239403
31 4000 2550 black HE black mat 2x1 595/595/38 239007
31 3000 3300 HE white mat 2x1 595/595/38 239380
31 3000 3300 HE white gloss 2x1 595/595/38 239397
31 4000 3500 HE white mat 2x1 595/595/38 238987
31 4000 3500 HE white gloss 2x1 595/595/38 238994
36 3000 2800 black HE black mat 2x1 595/595/38 239434
36 4000 3000 black HE black mat 2x1 595/595/38 239038
36 3000 3950 HE white mat 2x1 595/595/38 239410
36 3000 3950 HE white gloss 2x1 595/595/38 239427
36 4000 4200 HE white mat 2x1 595/595/38 239014
36 4000 4200 HE white gloss 2x1 595/595/38 239021
41 3000 3200 black HE black mat 2x1 595/595/38 239465
41 4000 3450 black HE black mat 2x1 595/595/38 239069
41 3000 4450 HE white mat 2x1 595/595/38 239441
41 3000 4450 HE white gloss 2x1 595/595/38 239458
41 4000 4750 HE white mat 2x1 595/595/38 239045
41 4000 4750 HE white gloss 2x1 595/595/38 239052
48 3000 3700 black HE black mat 2x1 595/595/38 239496
48 4000 3900 black HE black mat 2x1 595/595/38 239090
48 3000 5050 HE white mat 2x1 595/595/38 239472
48 3000 5050 HE white gloss 2x1 595/595/38 239489
48 4000 5400 HE white mat 2x1 595/595/38 239076
48 4000 5400 HE white gloss 2x1 595/595/38 239083
62 3000 4800 black HE black mat 4x1 595/595/38 239915
62 4000 5100 black HE black mat 4x1 595/595/38 239670
62 3000 6600 HE white mat 4x1 595/595/38 239892
62 3000 6600 HE white gloss 4x1 595/595/38 239908
62 4000 7050 HE white mat 4x1 595/595/38 239656
62 4000 7050 HE white gloss 4x1 595/595/38 239663
72 3000 5500 black HE black mat 4x1 595/595/38 239946
72 4000 5900 black HE black mat 4x1 595/595/38 239700
72 3000 7600 HE white mat 4x1 595/595/38 239922
72 3000 7600 HE white gloss 4x1 595/595/38 239939
72 4000 8100 HE white mat 4x1 595/595/38 239687
72 4000 8100 HE white gloss 4x1 595/595/38 239694
NameIndex
plasterboard recessing kit 630x630 white 999543

COMPACT LED EVO P Ramka adapter KG 630x630 mm
