Oculus LED Endura

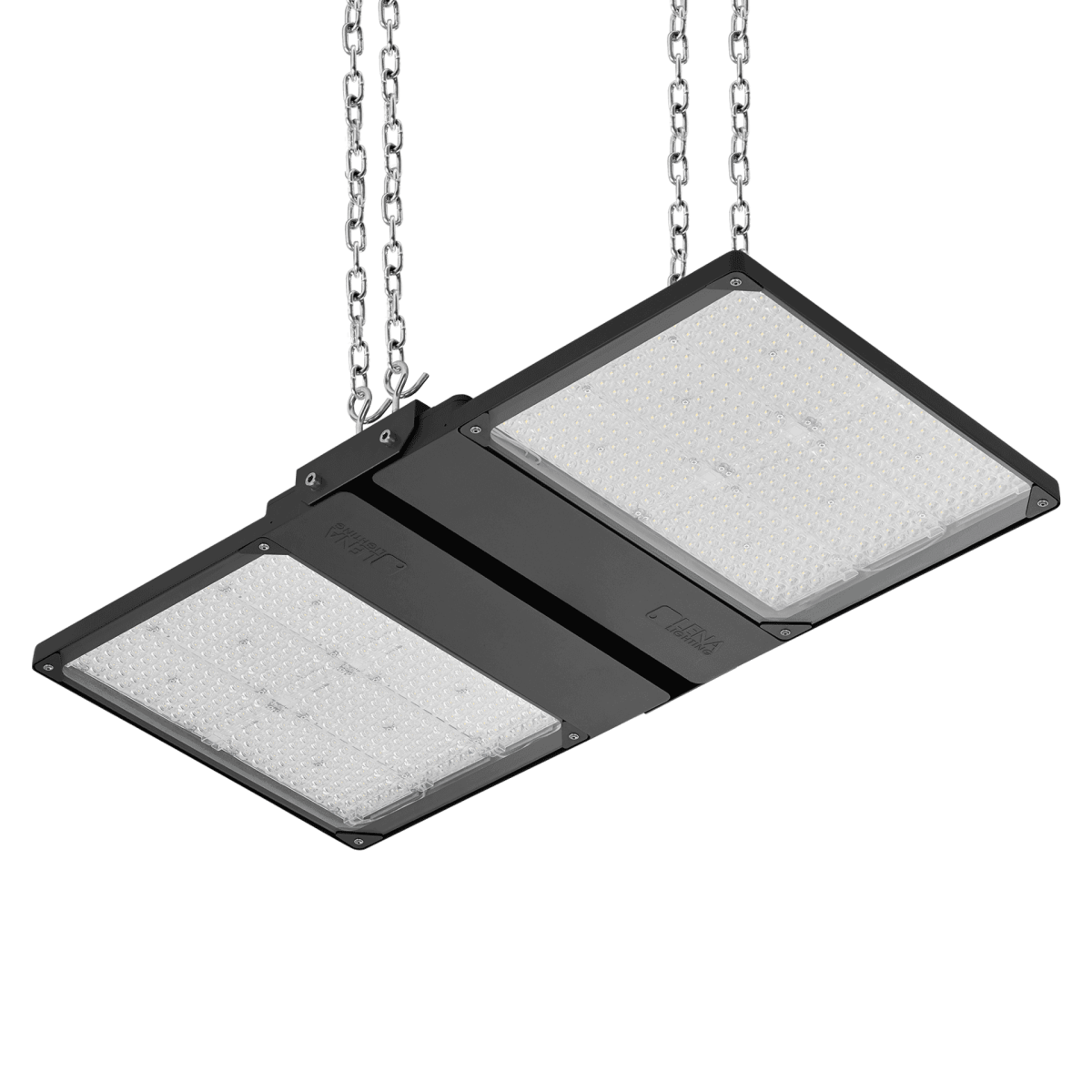

Oculus LED Endura is a HIGH-BAY luminaire from the NEXT GEN product line, constituting a new generation of luminaires dedicated to LED technology.

Technical specifications

Light source
LED
Colour temperature
4000K
Diffuser type
transparent
Mounting version
suspended
Application
industrial
LEDIik09ip66iotpzhCE

Specification

Oculus LED Endura is a HIGH-BAY luminaire from the NEXT GEN product line, constituting a new generation of luminaires dedicated to LED technology. The designed-from-scratch body – made of die-cast aluminium and powder-coated – uses natural conduction and convection processes, which have a positive effect on the luminaire’s heat management. The shape of the body with an integrated, effective heat sink and high-quality materials ensure maximum heat dissipation from the LED module. The external driver compartment, separated from the body, connected to the lamp with a 10-meter cable guarantees optimal thermal conditions for the power supply system. This makes it possible to work the lamp at an ambient temperature of max + 75°C, and the driver + 45°C.

LEDs from a reputable manufacturer and new LED modules enable high luminous efficiency: max 140 lm/W. This guarantees that the required lighting level and significant energy savings are achieved. The diffuser and optical system are composed of precise linear lenses made of polycarbonate (PC). There are 3 dedicated ranges of light distribution available: 55°, 75°, 105°. Standard equipped with an H07RN-F cable terminated with an additional male and female connector, which makes the assembly easier and more convenient. Its design is adapted for suspended mounting.

Application

The luminaire is intended for suspended mounting (using chains, wires, etc.) both indoors and outdoors. It will prove perfect for manufacturing plants and halls as well as large-format warehouses and logistics centers.

Other products from the Oculus LED



Options
Nominal power [W]Colour temperature [K]Luminous flux [lm]Diffuser materialBeam angle [°]Index
203 4000 27000 PC 55 964282
203 4000 27000 PC 75 964275
203 4000 28300 PC 105 964268
203 4000 26600 tempered glass 105 963506
AccessoryIndex
OCULUS LED - universal handle 964886
OCULUS LED - surface mounting handle 964893
OCULUS LED - protective grid 964862
