Industry Slim LED

Downloads

Specification

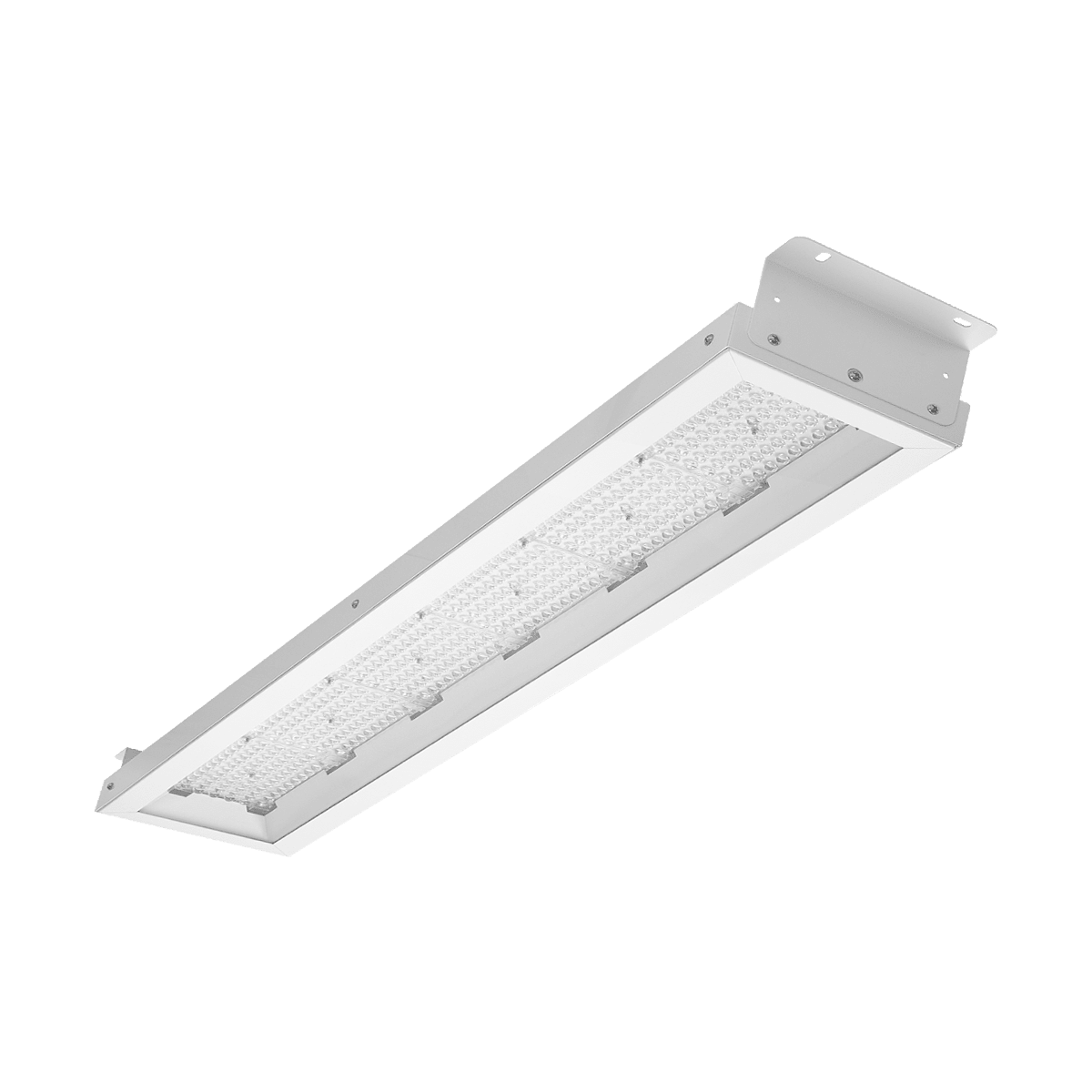

Industry Slim Led - A completely new industrial luminaire, has a high luminous flux and a very high luminous efficiency of> 160 lm / W, which makes this luminaire highly energy-saving and ecological. It is distinguished by a very high IP66 tightness. It owes this tightness to its well-thought-out design. The polycarbonate diffuser is permanently attached to the housing with a durable silicone gasket. This means that in addition to the tightness obtained in this way, the light module is protected against uncontrolled interference and access to the LEDs. The tightness of the lamp is ensured by a gland, which tightens the gasket and prevents the ingress of dust, moisture, and water.

Industry Slim Led allows for suspended or surface mounting.

The luminaire has been fitted with new luminous distributions:

SW - a standard wide lens (80D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to its low glare index UGR<19 - in office areas of the building. It provides high luminous efficacy and helps meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-8m.

MW - medium wide lens (90D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to the low glare UGR<19 - in office areas of the building. It provides high luminous efficacy and helps to meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-6m.

VW - very wide lens (105D conventional angle) with wide application in open spaces and low warehouses. It provides high luminous efficacy and helps meet the most stringent requirements of EN 12464-1 in terms of glare index (UGR<22, UGR<25), illuminance and high uniformity when the system is installed in low spaces. Particularly recommended for rooms where luminaires are mounted at a height of 2.5-5m.

Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare.

Application

The luminaire is designed to illuminate industrial and warehouse facilities, due to its minimal dimensions, also in hard-to-reach places. The Industry Slim Led luminaire is available in various versions: with different optics, wide, narrow, and dedicated to high-bay light distribution, and five types of diffuser, including an anti-glare diffuser.

Industry Slim LED - tight, aluminum luminaire with compact dimensions.
Brand new industrial luminaire.

Industry Slim LED is a completely new proposition for the industry on the Polish market. Extremely short (590 mm), the luminaire is characterized by a high value of luminous flux and very high luminous efficacy over 160 lm / W, which makes this fitting very energy-saving and environmentally friendly.

It is distinguished by a very high tightness IP66. Thanks to a well-thought-out design. The polycarbonate cover is permanently attached to the housing with a durable silicone gasket. This means that the light module is protected against uncontrolled interference and access to the LEDs. It makes it impossible to damage or reduce the efficiency of the light source.

The tightness of the fitting is increased by the use of an air-permeable gland with a membrane preventing condensation of water vapor (which takes place in the case of frequent changes in the ambient temperature). Screwing it tightens the gasket, which prevents the ingress of dust, moisture, and water. On the other hand, after unscrewing it unseals the housing and allows you to remove the plug. After taking it out, the installer gains easy access to the board with the electric cube and the controller. After connecting the power supply, just screw on the gland, and the fitting close tightly again thanks to a self-sealing plug.

The impact-resistant ( IK09 ) housing of Industry Slim LED is made of aluminum, which dissipates heat well. The weight of the luminaire is small, thanks to which it does not burden the ceiling structure and facilitates and speeds up the assembly process.

Installation of the luminaire is quick and easy not only because of its weight. Thanks to the possibility of arranging the mounting brackets along the entire length of the luminaire - the suspension points or anchors in the ceiling can be adapted to the already existing mounting holes (in the case of replacement of lighting). This significantly speeds up the assembly and lowers its costs. Thanks to the possibility of efficiently connecting the luminaires in a line, the investor also saves on the amount of used cabling. Industry Slim LED is a suspended or surface-mounted version.

The luminaire is designed to illuminate industrial and warehouse facilities, also in hard-to-reach places due to its minimum dimensions. Smaller sizes bring additional financial benefits. Logistics costs for luminaires that are larger on a pallet or take up less volume during transport are reduced. Here, once again, their low weight is significant. Smaller sizes also mean less packaging and less material consumption. It's for economics and ecology.

Adjusting Industry Slim LED to the purpose of the facility and different lighting expectations, the constructor designed versions of the lamp: with different optics, wide, narrow, and dedicated to high-bay warehouses, and with five types of a diffuser, including an anti-glare diffuser.

Linea S Led Modul Swietlny w hali magazynowej

Compact length

Smaller sizes bring additional savings resulting from logistics and warehouse issues. Suspended or surface mounting possible.

Aluminium body

A robust luminaire body made of aluminium, which allows for good heat dissipation and significant weight reduction.

Fast mounting

Thanks to the well-thought-out design, the installer can easily access the board with the connection cube and the driver. This significantly improves the installation process.

5 types of light distribution

In order to be able to adjust the luminaire to the purpose of a given object and different needs for lighting, the designer designed several types of light distributions.

Options

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Beam angle [°]	Light distribution type	DIMM DALI	Through wiring	Dimensions (H/W/T/S) [mm]	Index
INDUSTRY SLIM LED 105
14	4000	2100	105	VW	-	-	1177/50/75	838125
14	4000	2100	105	VW	yes	-	1177/50/75	973802
18	4000	2700	105	VW	-	-	1177/50/76	838132
18	4000	2700	105	VW	yes	-	1177/50/76	973819
23	4000	2950	105	symmetric	-	-	621/50/75	933004
23	4000	2950	105	symmetric	yes	-	621/50/75	933011
23	4000	2950	105	symmetric	-	LS2	651/50/75	933035
23	4000	2950	105	symmetric	-	LS2	651/50/75	933028
23	5000	2950	105	symmetric	-	-	621/50/75	933486
23	5000	2950	105	symmetric	yes	-	621/50/75	933493
23	5000	2950	105	symmetric	-	LS2	651/50/75	933516
23	5000	2950	105	symmetric	-	LS2	651/50/75	933509
26	4000	4100	105	VW	-	-	1177/50/77	838149
26	4000	4100	105	VW	yes	-	1177/50/77	973826
28	4000	4200	105	symmetric	-	-	621/50/75	934247
28	4000	4200	105	symmetric	yes	-	621/50/75	934254
28	4000	4200	105	symmetric	-	LS2	651/50/75	934278
28	4000	4200	105	symmetric	-	LS2	651/50/75	934261
28	5000	4200	105	symmetric	-	-	621/50/75	935008
28	5000	4200	105	symmetric	yes	-	621/50/75	935015
28	5000	4200	105	symmetric	-	LS2	651/50/75	935039
28	5000	4200	105	symmetric	-	LS2	651/50/75	935022
30	3000	3900	105	symmetric	-	-	1177/50/75	945724
31	4000	5000	105	VW	-	-	1177/50/78	838156
31	4000	5000	105	VW	yes	-	1177/50/78	973833
33	4000	4450	105	symmetric	-	-	621/50/75	933165
33	4000	4450	105	symmetric	yes	-	621/50/75	933172
33	4000	4450	105	symmetric	-	LS2	651/50/75	933196
33	4000	4450	105	symmetric	-	LS2	651/50/75	933189
33	5000	4450	105	symmetric	-	-	621/50/75	933646
33	5000	4450	105	symmetric	yes	-	621/50/75	933653
33	5000	4450	105	symmetric	-	LS2	651/50/75	933677
33	5000	4450	105	symmetric	-	LS2	651/50/75	933660
40	4000	6400	105	VW	-	-	1177/50/79	838163
40	4000	6400	105	VW	yes	-	1177/50/79	973840
47	4000	7000	105	symmetric	-	-	621/50/75	934445
47	4000	7000	105	symmetric	yes	-	621/50/75	934452
47	4000	7000	105	symmetric	-	LS2	651/50/75	934476
47	4000	7000	105	symmetric	-	LS2	651/50/75	934469
47	5000	7000	105	symmetric	-	-	621/50/75	935206
47	5000	7000	105	symmetric	yes	-	621/50/75	935213
47	5000	7000	105	symmetric	-	LS2	651/50/75	935237
47	5000	7000	105	symmetric	-	LS2	651/50/75	935220
47	4000	8000	105	VW	-	-	1177/50/80	838170
47	4000	8000	105	VW	yes	-	1177/50/80	973857
55	4000	8400	105	symmetric	-	-	1177/50/75	945281
55	4000	8400	105	symmetric	yes	-	1177/50/75	945298
55	4000	8400	105	symmetric	-	LS2,5	1177/50/75	945311
55	4000	8400	105	symmetric	-	LS2	1177/50/75	945304
56	4000	7500	105	symmetric	-	-	621/50/75	933325
56	4000	7500	105	symmetric	yes	-	621/50/75	933332
56	4000	7500	105	symmetric	-	LS2	651/50/75	933356
56	4000	7500	105	symmetric	-	LS2	651/50/75	933349
56	5000	7500	105	symmetric	-	-	621/50/75	933806
56	5000	7500	105	symmetric	yes	-	621/50/75	933813
56	5000	7500	105	symmetric	-	LS2	651/50/75	933837
56	5000	7500	105	symmetric	-	LS2	651/50/75	933820
57	4000	9500	105	VW	-	-	1177/50/81	838187
57	4000	9500	105	VW	yes	-	1177/50/81	973864
59	4000	8600	105	symmetric	-	-	621/50/75	934643
59	4000	8600	105	symmetric	yes	-	621/50/75	934650
59	4000	8600	105	symmetric	-	LS2	651/50/75	934674
59	4000	8600	105	symmetric	-	LS2	651/50/75	934667
59	5000	8600	105	symmetric	-	-	621/50/75	935404
59	5000	8600	105	symmetric	yes	-	621/50/75	935411
59	5000	8600	105	symmetric	-	LS2	651/50/75	935435
59	5000	8600	105	symmetric	-	LS2	651/50/75	935428
67	4000	10300	105	VW	-	-	1177/50/82	838194
67	4000	10300	105	VW	yes	-	1177/50/82	973871
71	4000	11800	105	VW	-	-	1177/50/83	838200
71	4000	11800	105	VW	yes	-	1177/50/83	973888
80	4000	13300	105	VW	-	-	1177/50/84	838217
80	4000	13300	105	VW	yes	-	1177/50/84	973895
81	4000	12100	105	symmetric	-	-	1177/50/75	944765
81	4000	12100	105	symmetric	yes	-	1177/50/75	944772
81	4000	12100	105	symmetric	-	LS2,5	1177/50/75	944796
81	4000	12100	105	symmetric	-	LS2	1177/50/75	944789
84	4000	12300	105	symmetric	-	-	1177/50/75	944444
84	4000	12300	105	symmetric	yes	-	1177/50/75	944451
84	4000	12300	105	symmetric	-	LS2,5	1177/50/75	944475
84	4000	12300	105	symmetric	-	LS2	1177/50/75	944468
91	4000	14900	105	VW	-	-	1177/50/85	838224
91	4000	14900	105	VW	yes	-	1177/50/85	973901
94	4000	14100	105	symmetric	-	-	1177/50/75	944604
94	4000	14100	105	symmetric	yes	-	1177/50/75	944611
94	4000	14100	105	symmetric	-	LS2,5	1177/50/75	944635
94	4000	14100	105	symmetric	-	LS2	1177/50/75	944628
117	4000	16200	105	symmetric	-	-	1177/50/75	944284
117	4000	16200	105	symmetric	yes	-	1177/50/75	944291
117	4000	16200	105	symmetric	-	LS2	1177/50/75	944307
117	4000	16200	105	symmetric	-	LS2,5	1177/50/75	944314
INDUSTRY SLIM LED 120
23	4000	3200	120	symmetric	-	-	621/50/75	934001
23	4000	3200	120	symmetric	yes	-	621/50/75	934018
23	4000	3200	120	symmetric	-	LS2	651/50/75	934032
23	4000	3200	120	symmetric	-	LS2	651/50/75	934025
23	5000	3200	120	symmetric	-	-	621/50/75	934124
23	5000	3200	120	symmetric	yes	-	621/50/75	934131
23	5000	3200	120	symmetric	-	LS2	651/50/75	934155
23	5000	3200	120	symmetric	-	LS2	651/50/75	934148
28	4000	4550	120	symmetric	-	-	621/50/75	934285
28	4000	4550	120	symmetric	yes	-	621/50/75	934292
28	4000	4550	120	symmetric	-	LS2	651/50/75	934315
28	4000	4550	120	symmetric	-	LS2	651/50/75	934308
28	5000	4550	120	symmetric	-	-	621/50/75	935046
28	5000	4550	120	symmetric	yes	-	621/50/75	935053
28	5000	4550	120	symmetric	-	LS2	651/50/75	935077
28	5000	4550	120	symmetric	-	LS2	651/50/75	935060
33	4000	4800	120	symmetric	-	-	621/50/75	934049
33	4000	4800	120	symmetric	yes	-	621/50/75	934056
33	4000	4800	120	symmetric	-	LS2	651/50/75	934063
33	4000	4800	120	symmetric	-	LS2	651/50/75	934070
33	5000	4800	120	symmetric	-	-	621/50/75	934162
33	5000	4800	120	symmetric	yes	-	621/50/75	934179
33	5000	4800	120	symmetric	-	LS2	651/50/75	934186
33	5000	4800	120	symmetric	-	LS2	651/50/75	934193
47	4000	7550	120	symmetric	-	-	621/50/75	934483
47	4000	7550	120	symmetric	yes	-	621/50/75	934490
47	4000	7550	120	symmetric	-	LS2	651/50/75	934513
47	4000	7550	120	symmetric	-	LS2	651/50/75	934506
47	5000	7550	120	symmetric	-	-	621/50/75	935244
47	5000	7550	120	symmetric	yes	-	621/50/75	935251
47	5000	7550	120	symmetric	-	LS2	651/50/75	935275
47	5000	7550	120	symmetric	-	LS2	651/50/75	935268
55	4000	9000	120	symmetric	-	-	1177/50/75	945243
55	4000	9000	120	symmetric	yes	-	1177/50/75	945250
55	4000	9000	120	symmetric	-	LS2,5	1177/50/75	945274
55	4000	9000	120	symmetric	-	LS2	1177/50/75	945267
56	4000	8100	120	symmetric	-	-	621/50/75	934087
56	4000	8100	120	symmetric	yes	-	621/50/75	934094
56	4000	8100	120	symmetric	-	LS2	651/50/75	934100
56	4000	8100	120	symmetric	-	LS2	651/50/75	934117
56	5000	8100	120	symmetric	-	-	621/50/75	934209
56	5000	8100	120	symmetric	yes	-	621/50/75	934216
56	5000	8100	120	symmetric	-	LS2	651/50/75	934223
56	5000	8100	120	symmetric	-	LS2	651/50/75	934230
59	4000	9250	120	symmetric	-	-	621/50/75	934681
59	4000	9250	120	symmetric	yes	-	621/50/75	934698
59	4000	9250	120	symmetric	-	LS2	651/50/75	934711
59	4000	9250	120	symmetric	-	LS2	651/50/75	934704
59	5000	9250	120	symmetric	-	-	621/50/75	935442
59	5000	9250	120	symmetric	yes	-	621/50/75	935459
59	5000	9250	120	symmetric	-	LS2	651/50/75	935473
59	5000	9250	120	symmetric	-	LS2	651/50/75	935466
81	4000	13000	120	symmetric	-	-	1177/50/75	944727
81	4000	13000	120	symmetric	yes	-	1177/50/75	944734
81	4000	13000	120	symmetric	-	LS2,5	1177/50/75	944758
81	4000	13000	120	symmetric	-	LS2	1177/50/75	944741
84	4000	13300	120	symmetric	-	-	1177/50/75	944406
84	4000	13300	120	symmetric	yes	-	1177/50/75	944413
84	4000	13300	120	symmetric	-	LS2,5	1177/50/75	944437
84	4000	13300	120	symmetric	-	LS2	1177/50/75	944420
94	4000	15300	120	symmetric	-	-	1177/50/75	944567
94	4000	15300	120	symmetric	yes	-	1177/50/75	944574
94	4000	15300	120	symmetric	-	LS2,5	1177/50/75	944598
94	4000	15300	120	symmetric	-	LS2	1177/50/75	944581
117	4000	17500	120	symmetric	-	-	1177/50/75	944246
117	4000	17500	120	symmetric	yes	-	1177/50/75	944253
117	4000	17500	120	symmetric	-	LS2	1177/50/75	944260
117	4000	17500	120	symmetric	-	LS2,5	1177/50/75	944277
INDUSTRY SLIM LED 46/117
23	4000	2950	46/117	corridor	-	-	621/50/75	933042
23	4000	2950	46/117	corridor	yes	-	621/50/75	933059
23	4000	2950	46/117	corridor	-	LS2	651/50/75	933073
23	4000	2950	46/117	corridor	-	LS2	651/50/75	933066
23	5000	2950	46/117	corridor	-	-	621/50/75	933523
23	5000	2950	46/117	corridor	yes	-	621/50/75	933530
23	5000	2950	46/117	corridor	-	LS2	651/50/75	933554
23	5000	2950	46/117	corridor	-	LS2	651/50/75	933547
28	4000	4250	46/117	corridor	-	-	621/50/75	934322
28	4000	4250	46/117	corridor	yes	-	621/50/75	934339
28	4000	4250	46/117	corridor	-	LS2	651/50/75	934353
28	4000	4250	46/117	corridor	-	LS2	651/50/75	934346
28	5000	4250	46/117	corridor	-	-	621/50/75	935084
28	5000	4250	46/117	corridor	yes	-	621/50/75	935091
28	5000	4250	46/117	corridor	-	LS2	651/50/75	935114
28	5000	4250	46/117	corridor	-	LS2	651/50/75	935107
33	4000	4500	46/117	corridor	-	-	621/50/75	933202
33	4000	4500	46/117	corridor	yes	-	621/50/75	933219
33	4000	4500	46/117	corridor	-	LS2	651/50/75	933233
33	4000	4500	46/117	corridor	-	LS2	651/50/75	933226
33	5000	4500	46/117	corridor	-	-	621/50/75	933684
33	5000	4500	46/117	corridor	yes	-	621/50/75	933691
33	5000	4500	46/117	corridor	-	LS2	651/50/75	933714
33	5000	4500	46/117	corridor	-	LS2	651/50/75	933707
47	4000	7100	46/117	corridor	-	-	621/50/75	934520
47	4000	7100	46/117	corridor	yes	-	621/50/75	934537
47	4000	7100	46/117	corridor	-	LS2	651/50/75	934551
47	4000	7100	46/117	corridor	-	LS2	651/50/75	934544
47	5000	7100	46/117	corridor	-	-	621/50/75	935282
47	5000	7100	46/117	corridor	yes	-	621/50/75	935299
47	5000	7100	46/117	corridor	-	LS2	651/50/75	935312
47	5000	7100	46/117	corridor	-	LS2	651/50/75	935305
55	4000	8500	46/117	corridor	-	-	1177/50/75	945328
55	4000	8500	46/117	corridor	yes	-	1177/50/75	945335
55	4000	8500	46/117	corridor	-	LS2,5	1177/50/75	945359
55	4000	8500	46/117	corridor	-	LS2	1177/50/75	945342
56	4000	7600	46/117	corridor	-	-	621/50/75	933363
56	4000	7600	46/117	corridor	yes	-	621/50/75	933370
56	4000	7600	46/117	corridor	-	LS2	651/50/75	933394
56	4000	7600	46/117	corridor	-	LS2	651/50/75	933387
56	5000	7600	46/117	corridor	-	-	621/50/75	933844
56	5000	7600	46/117	corridor	yes	-	621/50/75	933851
56	5000	7600	46/117	corridor	-	LS2	651/50/75	933875
56	5000	7600	46/117	corridor	-	LS2	651/50/75	933868
59	4000	8700	46/117	corridor	-	-	621/50/75	934728
59	4000	8700	46/117	corridor	yes	-	621/50/75	934735
59	4000	8700	46/117	corridor	-	LS2	651/50/75	934759
59	4000	8700	46/117	corridor	-	LS2	651/50/75	934742
59	5000	8700	46/117	corridor	-	-	621/50/75	935480
59	5000	8700	46/117	corridor	yes	-	621/50/75	935497
59	5000	8700	46/117	corridor	-	LS2	651/50/75	935510
59	5000	8700	46/117	corridor	-	LS2	651/50/75	935503
81	4000	12300	46/117	corridor	-	-	1177/50/75	944802
81	4000	12300	46/117	corridor	yes	-	1177/50/75	944819
81	4000	12300	46/117	corridor	-	LS2,5	1177/50/75	944833
81	4000	12300	46/117	corridor	-	LS2	1177/50/75	944826
84	4000	12450	46/117	corridor	-	-	1177/50/75	944482
84	4000	12450	46/117	corridor	yes	-	1177/50/75	944499
84	4000	12450	46/117	corridor	-	LS2,5	1177/50/75	944512
84	4000	12450	46/117	corridor	-	LS2	1177/50/75	944505
94	4000	14400	46/117	corridor	-	-	1177/50/75	944642
94	4000	14400	46/117	corridor	yes	-	1177/50/75	944659
94	4000	14400	46/117	corridor	-	LS2,5	1177/50/75	944673
94	4000	14400	46/117	corridor	-	LS2	1177/50/75	944666
117	4000	16350	46/117	corridor	-	-	1177/50/75	944321
117	4000	16350	46/117	corridor	yes	-	1177/50/75	944338
117	4000	16350	46/117	corridor	-	LS2	1177/50/75	944345
117	4000	16350	46/117	corridor	-	LS2,5	1177/50/75	944352
INDUSTRY SLIM LED 80
14	4000	2100	80	SW	-	-	1177/50/75	838033
14	4000	2100	80	SW	yes	-	1177/50/75	973703
18	4000	2700	80	SW	-	-	1177/50/76	672989
18	4000	2700	80	SW	yes	-	1177/50/76	973710
26	4000	4100	80	SW	-	-	1177/50/77	672996
26	4000	4100	80	SW	yes	-	1177/50/77	973727
31	4000	5000	80	SW	-	-	1177/50/78	838040
31	4000	5000	80	SW	yes	-	1177/50/78	973734
40	4000	6400	80	SW	-	-	1177/50/79	838057
40	4000	6400	80	SW	yes	-	1177/50/79	973741
47	4000	8000	80	SW	-	-	1177/50/80	838064
47	4000	8000	80	SW	yes	-	1177/50/80	973758
57	4000	9500	80	SW	-	-	1177/50/81	838071
57	4000	9500	80	SW	yes	-	1177/50/81	973765
61	4000	10300	80	SW	-	-	1177/50/82	838088
61	4000	10300	80	SW	yes	-	1177/50/82	973772
71	4000	11800	80	SW	-	-	1177/50/83	838095
71	4000	11800	80	SW	yes	-	1177/50/83	973789
80	4000	13300	80	SW	-	-	1177/50/84	838101
80	4000	13300	80	SW	yes	-	1177/50/84	944987
91	4000	14900	80	SW	-	-	1177/50/85	838118
91	4000	14900	80	SW	yes	-	1177/50/85	973796
INDUSTRY SLIM LED 90
14	4000	2100	90	MW	-	-	1177/50/75	838231
14	4000	2100	90	MW	yes	-	1177/50/75	973918
18	4000	2700	90	MW	-	-	1177/50/76	838248
18	4000	2700	90	MW	yes	-	1177/50/76	973925
26	4000	4100	90	MW	-	-	1177/50/77	838255
26	4000	4100	90	MW	yes	-	1177/50/77	973932
31	4000	5000	90	MW	-	-	1177/50/78	838262
31	4000	5000	90	MW	yes	-	1177/50/78	973949
40	4000	6400	90	MW	-	-	1177/50/79	838279
40	4000	6400	90	MW	yes	-	1177/50/79	973956
47	4000	8000	90	MW	-	-	1177/50/80	944925
47	4000	8000	90	MW	yes	-	1177/50/80	973963
57	4000	9500	90	MW	-	-	1177/50/81	838286
57	4000	9500	90	MW	yes	-	1177/50/81	973970
67	4000	10300	90	MW	-	-	1177/50/82	838293
67	4000	10300	90	MW	yes	-	1177/50/82	973987
71	4000	11800	90	MW	-	-	1177/50/83	838309
71	4000	11800	90	MW	yes	-	1177/50/83	973994
80	4000	13300	90	MW	-	-	1177/50/84	838316
80	4000	13300	90	MW	yes	-	1177/50/84	838019
91	4000	14900	90	MW	-	-	1177/50/85	944970
91	4000	14900	90	MW	yes	-	1177/50/85	838026

Accessories

Hide accessories

Index	Accessory name
908200	TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2)
60000006	M16 stuffing box plug various PA black M-16 - BPM-21

TYTAN LED. ATLAS LED. INDUSTRY LED - adjustable handle (set of 2) (908200)

M16 stuffing box plug various PA black M-16 - BPM-21 (60000006)

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Light source	LED
Colour temperature	4000K 5000K
Diffuser type	OPAL
Mounting version	surface surface or suspended suspended
Application	industrial

Technical specifications

Downloads

Compact length

Aluminium body

Fast mounting

5 types of light distribution

Related products

Industry IP66 LED

Tores LED PC

Oculus LED F

Tytan 2 LED 24-48V

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
