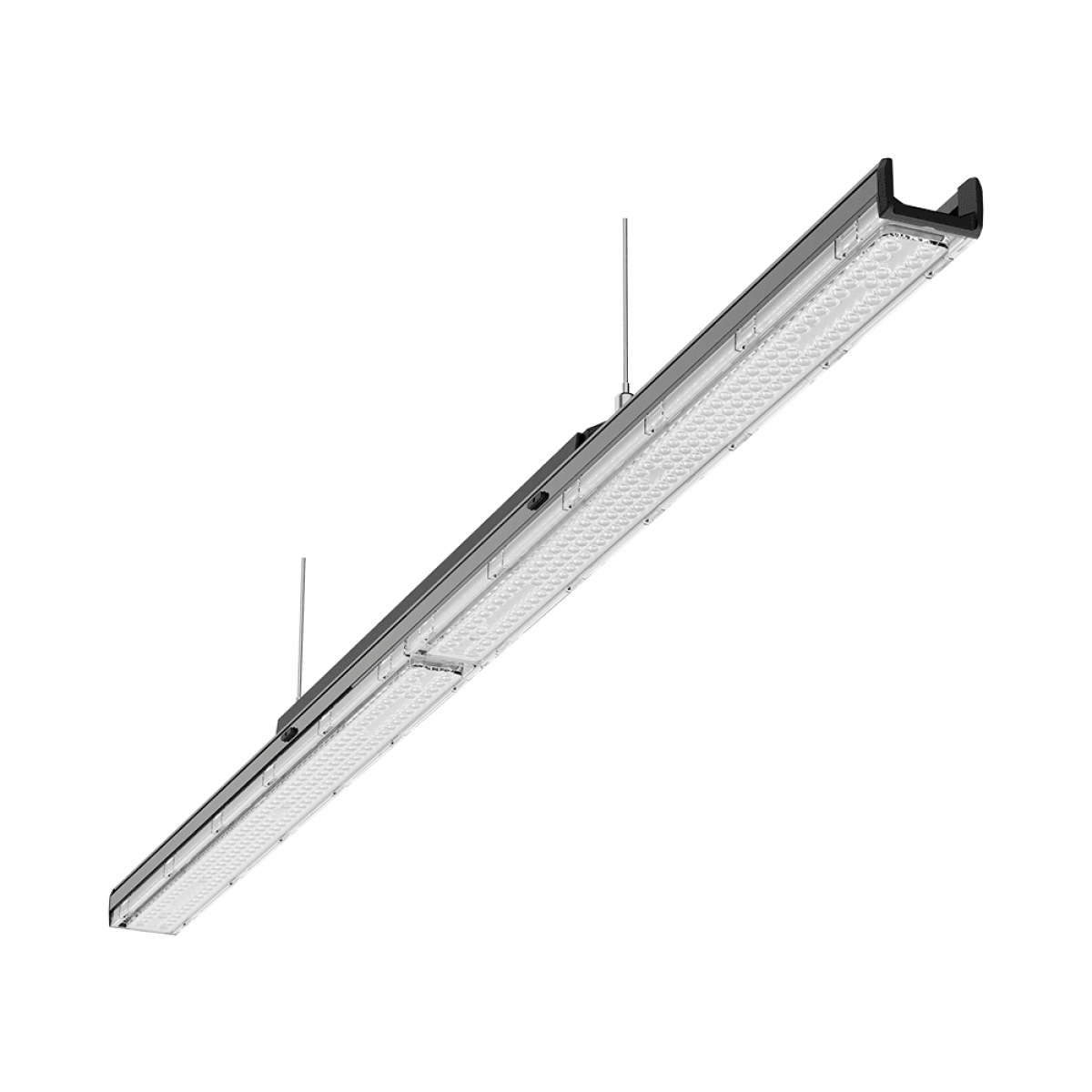

Linea S LED Single IP54

A single version of the linear luminaire taken from the quick-mount system, with increased IP54 protection class.

Technical specifications

Light source	LED
Colour temperature	4000K
Diffuser type
Mounting version	surface suspended
Application	commercial industrial

LED220-240vIik03ip54enecHACCPCEQuick installation

Ask about this product

Options

Downloads

Characteristics

Linea S LED Single is a surface-mounted and pendant version of a single lamp in LED technology created on the basis of the LINEA S LED light line, from which it draws the latest technologies used in industrial lighting. The design used makes it possible to replace light modules and power supplies. The body, made of coated steel, provides the lamp with strength and robustness, while the narrow side profile allows installation in hard-to-reach places. The high IP54 sealing rating allows the lamps to be installed in environments with increased humidity and dust. Diodes from a renowned manufacturer and new LED modules contribute to the very high luminous efficacy. Versions with through-wiring available.

UGR<19
Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare.

Attention!
The suspension should be selected separately, as an accessory, depending on the intended installation method. Each fixture includes 2 surface-mounted brackets with a triangular element for installing the selected pendant. Surface mounting does not require the selection of mounting accessories.

Application

A versatile LED lamp for indoor use, particularly suitable for lighting large-scale commercial, manufacturing and warehouse facilities. A lamp for use in both new applications and replacing traditional T8 and T5 luminaires with energy-efficient LED solutions.

Linea S LED Single is equipped with new professional light distributions:

SW - a standard wide lens (80D conventional angle)

SW - a standard wide lens (80D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to its low glare index UGR<19 - in office areas of the building. It provides high luminous efficacy and helps meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-8m.

MW - medium wide lens (90D conventional angle)

MW - medium wide lens (90D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to the low glare UGR<19 - in office areas of the building. It provides high luminous efficacy and helps to meet the stringent requirements of EN 12464-1 for glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-6m.

VW - very wide lens (105D conventional angle)

VW - very wide lens (105D conventional angle) with wide application in open spaces and low warehouses. It provides high luminous efficacy and helps meet the most stringent requirements of EN 12464-1 in terms of glare index (UGR<22, UGR<25), illuminance and high uniformity when the system is installed in low spaces. Particularly recommended for rooms where luminaires are mounted at a height of 2.5-5m.

SN - standard narrow lens (standard narrow, conventional angle 65D)

SN - standard narrow lens (standard narrow, conventional angle 65D) for general lighting in open areas in industrial and storage halls, workshops and even - due to the low glare index UGR<19 recommended for rooms where luminaires are mounted at a height of 8-12m.

VN - very narrow lens (very narrow, conventional angle 30D)

VN - very narrow lens (very narrow, conventional angle 30D) for illuminating open spaces in facilities where the luminaire mounting height exceeds 13m. Particularly recommended for premises where luminaires are mounted at heights of 13-20m.

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D)

CN - corridor narrow lens (corridor narrow, conventional angle 35/67D) for communication lighting in industrial halls and shelf aisles in high storage warehouses. Particularly suitable for rooms where luminaires are mounted at a height of 7-12m.

DAN - butterfly lens, double asymmetric narrow

DAN - butterfly lens, double asymmetric narrow, for shelf lighting in retail facilities where it is essential to direct light onto the goods on display. Particularly recommended for premises where luminaires are mounted at heights of 3-4.5m.

SA - single asymmetric lens

SA - single asymmetric lens for one-sided lighting of shelf surfaces in retail spaces, boards, advertising surfaces located on building walls, lighting of work surfaces in conditions where it is not possible to place fixtures directly above them. Particularly recommended for rooms where lighting fixtures are mounted at a height of 3-4.5 m.

Designed for years

This is a professional LED linear luminaire designed for demanding working environments. With an IP54 rating, modular design and high luminous efficiency, it provides durability, safety and ease of servicing. Each lens meets the stringent EN 12464-1 standards for intensity and uniformity of surface illumination, ensuring comfort and compliance with European workplace lighting standards. Ideal for industrial, logistics and commercial applications where reliability and precision lighting is important.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Ingress protection	Beam angle [°]	Light distribution type	DIMM DALI	Through wiring	Dimensions (H/W/T/S) [mm]	Index
588/60/50
22	3200	IP54	105	symmetric	yes	-	588/60/50	587375
22	3200	IP54	105	symmetric	-	-	588/60/50	587337
22	3550	IP54	120	symmetric	yes	-	588/60/50	587047
22	3550	IP54	120	symmetric	-	-	588/60/50	587009
22	3500	IP54	90	MW	yes	-	588/60/50	587214
22	3500	IP54	90	MW	-	-	588/60/50	587177
22	3500	IP54	80	SW	yes	-	588/60/50	587139
22	3500	IP54	80	SW	-	-	588/60/50	587092
22	3500	IP54	105	VW	yes	-	588/60/50	587290
22	3500	IP54	105	VW	-	-	588/60/50	587252
22	3300	IP54	butterfly	DAN	-	-	588/60/50	849206
22	3300	IP54	butterfly	DAN	yes	-	588/60/50	849244
22	3350	IP54	asymmetric	SA	-	-	588/60/50	846809
22	3350	IP54	asymmetric	SA	yes	-	588/60/50	846847
22	3400	IP54	35/67	CN	-	-	588/60/50	853845
22	3400	IP54	35/67	CN	yes	-	588/60/50	853883
22	3400	IP54	65	SN	-	-	588/60/50	856167
22	3400	IP54	65	SN	yes	-	588/60/50	856204
22	3400	IP54	30	VN	-	-	588/60/50	851520
22	3400	IP54	30	VN	yes	-	588/60/50	851568
27	3900	IP54	105	symmetric	yes	-	588/60/50	587382
27	3900	IP54	105	symmetric	-	-	588/60/50	587344
27	4300	IP54	120	symmetric	yes	-	588/60/50	587054
27	4300	IP54	120	symmetric	-	-	588/60/50	587016
27	4250	IP54	90	MW	yes	-	588/60/50	587221
27	4250	IP54	90	MW	-	-	588/60/50	587184
27	4250	IP54	80	SW	yes	-	588/60/50	587146
27	4250	IP54	80	SW	-	-	588/60/50	587108
27	4250	IP54	105	VW	yes	-	588/60/50	587306
27	4250	IP54	105	VW	-	-	588/60/50	587269
27	4000	IP54	butterfly	DAN	-	-	588/60/50	849213
27	4000	IP54	butterfly	DAN	yes	-	588/60/50	849251
27	4100	IP54	asymmetric	SA	-	-	588/60/50	846816
27	4100	IP54	asymmetric	SA	yes	-	588/60/50	846854
27	4150	IP54	35/67	CN	-	-	588/60/50	853852
27	4150	IP54	35/67	CN	yes	-	588/60/50	853890
27	4150	IP54	65	SN	-	-	588/60/50	856174
27	4150	IP54	65	SN	yes	-	588/60/50	856211
27	4150	IP54	30	VN	-	-	588/60/50	851537
27	4150	IP54	30	VN	yes	-	588/60/50	851575
32	4750	IP54	105	symmetric	yes	-	588/60/50	587399
32	4750	IP54	105	symmetric	-	-	588/60/50	587351
32	5200	IP54	120	symmetric	yes	-	588/60/50	587061
32	5200	IP54	120	symmetric	-	-	588/60/50	587023
32	5150	IP54	90	MW	yes	-	588/60/50	587238
32	5150	IP54	90	MW	-	-	588/60/50	587191
32	5150	IP54	80	SW	yes	-	588/60/50	587153
32	5150	IP54	80	SW	-	-	588/60/50	587115
32	5150	IP54	105	VW	yes	-	588/60/50	587313
32	5150	IP54	105	VW	-	-	588/60/50	587276
32	4850	IP54	butterfly	DAN	-	-	588/60/50	849220
32	4850	IP54	butterfly	DAN	yes	-	588/60/50	849268
32	4950	IP54	asymmetric	SA	-	-	588/60/50	846823
32	4950	IP54	asymmetric	SA	yes	-	588/60/50	846861
32	5050	IP54	35/67	CN	-	-	588/60/50	853869
32	5050	IP54	35/67	CN	yes	-	588/60/50	853906
32	5050	IP54	65	SN	-	-	588/60/50	856181
32	5050	IP54	65	SN	yes	-	588/60/50	856228
32	5050	IP54	30	VN	-	-	588/60/50	851544
32	5050	IP54	30	VN	yes	-	588/60/50	851582
36	5300	IP54	105	symmetric	yes	-	588/60/50	587405
36	5300	IP54	105	symmetric	-	-	588/60/50	587368
36	5800	IP54	120	symmetric	yes	-	588/60/50	587078
36	5800	IP54	120	symmetric	-	-	588/60/50	587030
36	5750	IP54	90	MW	yes	-	588/60/50	587245
36	5750	IP54	90	MW	-	-	588/60/50	587207
36	5750	IP54	80	SW	yes	-	588/60/50	587160
36	5750	IP54	80	SW	-	-	588/60/50	587122
36	5750	IP54	105	VW	yes	-	588/60/50	587320
36	5750	IP54	105	VW	-	-	588/60/50	587283
36	5450	IP54	butterfly	DAN	-	-	588/60/50	849237
36	5450	IP54	butterfly	DAN	yes	-	588/60/50	849275
36	5500	IP54	asymmetric	SA	-	-	588/60/50	846830
36	5500	IP54	asymmetric	SA	yes	-	588/60/50	846878
36	5650	IP54	35/67	CN	-	-	588/60/50	853876
36	5650	IP54	35/67	CN	yes	-	588/60/50	853913
36	5650	IP54	65	SN	-	-	588/60/50	856198
36	5650	IP54	65	SN	yes	-	588/60/50	856235
36	5650	IP54	30	VN	-	-	588/60/50	851551
36	5650	IP54	30	VN	yes	-	588/60/50	851599
1181/60/50
35	5350	IP54	105	symmetric	yes	-	1181/60/50	585906
35	5350	IP54	105	symmetric	yes	LS2	1181/60/50	586903
35	5350	IP54	105	symmetric	-	-	1181/60/50	585807
35	5350	IP54	105	symmetric	-	LS2	1181/60/50	586804
35	5850	IP54	120	symmetric	yes	-	1181/60/50	585104
35	5850	IP54	120	symmetric	yes	LS2	1181/60/50	586101
35	5850	IP54	120	symmetric	-	-	1181/60/50	585005
35	5850	IP54	120	symmetric	-	LS2	1181/60/50	586002
35	5800	IP54	90	MW	yes	-	1181/60/50	585500
35	5800	IP54	90	MW	yes	LS2	1181/60/50	586507
35	5800	IP54	90	MW	-	-	1181/60/50	585401
35	5800	IP54	90	MW	-	LS2	1181/60/50	586408
35	5800	IP54	80	SW	yes	-	1181/60/50	585302
35	5800	IP54	80	SW	yes	LS2	1181/60/50	586309
35	5800	IP54	80	SW	-	-	1181/60/50	585203
35	5800	IP54	80	SW	-	LS2	1181/60/50	586200
35	5800	IP54	105	VW	yes	-	1181/60/50	585708
35	5800	IP54	105	VW	yes	LS2	1181/60/50	586705
35	5800	IP54	105	VW	-	-	1181/60/50	585609
35	5800	IP54	105	VW	-	LS2	1181/60/50	586606
35	5500	IP54	butterfly	DAN	-	-	1181/60/50	848841
35	5500	IP54	butterfly	DAN	yes	-	1181/60/50	848933
35	5500	IP54	butterfly	DAN	-	LS2	1181/60/50	849022
35	5500	IP54	butterfly	DAN	yes	LS2	1181/60/50	849114
35	5550	IP54	asymmetric	SA	-	-	1181/60/50	846441
35	5550	IP54	asymmetric	SA	yes	-	1181/60/50	846533
35	5550	IP54	asymmetric	SA	-	LS2	1181/60/50	846625
35	5550	IP54	asymmetric	SA	yes	LS2	1181/60/50	846717
35	5700	IP54	35/67	CN	-	-	1181/60/50	853487
35	5700	IP54	35/67	CN	yes	-	1181/60/50	853579
35	5700	IP54	65	SN	-	-	1181/60/50	855801
35	5700	IP54	65	SN	yes	-	1181/60/50	855894
35	5700	IP54	30	VN	-	-	1181/60/50	851162
35	5700	IP54	30	VN	yes	-	1181/60/50	851254
35	5700	IP54	35/67	CN	-	LS2	1181/60/50	853661
35	5700	IP54	35/67	CN	yes	LS2	1181/60/50	853753
35	5700	IP54	65	SN	-	LS2	1181/60/50	855986
35	5700	IP54	65	SN	yes	LS2	1181/60/50	856075
35	5700	IP54	30	VN	-	LS2	1181/60/50	851346
35	5700	IP54	30	VN	yes	LS2	1181/60/50	851438
41	6400	IP54	105	symmetric	yes	-	1181/60/50	007590
41	6400	IP54	105	symmetric	yes	LS2	1181/60/50	007606
41	6400	IP54	105	symmetric	-	-	1181/60/50	007576
41	6400	IP54	105	symmetric	-	LS2	1181/60/50	007583
41	7000	IP54	120	symmetric	yes	-	1181/60/50	007156
41	7000	IP54	120	symmetric	yes	LS2	1181/60/50	007163
41	7000	IP54	120	symmetric	-	-	1181/60/50	007132
41	7000	IP54	120	symmetric	-	LS2	1181/60/50	007149
41	6900	IP54	90	MW	yes	-	1181/60/50	003196
41	6900	IP54	90	MW	yes	LS2	1181/60/50	003202
41	6900	IP54	90	MW	-	-	1181/60/50	003172
41	6900	IP54	90	MW	-	LS2	1181/60/50	003189
41	6900	IP54	80	SW	yes	-	1181/60/50	005534
41	6900	IP54	80	SW	yes	LS2	1181/60/50	005541
41	6900	IP54	80	SW	-	-	1181/60/50	005510
41	6900	IP54	80	SW	-	LS2	1181/60/50	005527
41	6900	IP54	105	VW	yes	-	1181/60/50	003639
41	6900	IP54	105	VW	yes	LS2	1181/60/50	003646
41	6900	IP54	105	VW	-	-	1181/60/50	003615
41	6900	IP54	105	VW	-	LS2	1181/60/50	003622
41	6550	IP54	butterfly	DAN	-	-	1181/60/50	848520
41	6550	IP54	butterfly	DAN	yes	-	1181/60/50	848544
41	6550	IP54	butterfly	DAN	-	LS2	1181/60/50	848537
41	6550	IP54	butterfly	DAN	yes	LS2	1181/60/50	848551
41	6650	IP54	asymmetric	SA	-	-	1181/60/50	846120
41	6650	IP54	asymmetric	SA	yes	-	1181/60/50	846144
41	6650	IP54	asymmetric	SA	-	LS2	1181/60/50	846137
41	6650	IP54	asymmetric	SA	yes	LS2	1181/60/50	846151
41	6750	IP54	35/67	CN	-	-	1181/60/50	853166
41	6750	IP54	35/67	CN	yes	-	1181/60/50	853180
41	6750	IP54	65	SN	-	-	1181/60/50	855481
41	6750	IP54	65	SN	yes	-	1181/60/50	855504
41	6750	IP54	30	VN	-	-	1181/60/50	850844
41	6750	IP54	30	VN	yes	-	1181/60/50	850868
41	6750	IP54	35/67	CN	-	LS2	1181/60/50	853173
41	6750	IP54	35/67	CN	yes	LS2	1181/60/50	853197
41	6750	IP54	65	SN	-	LS2	1181/60/50	855498
41	6750	IP54	65	SN	yes	LS2	1181/60/50	855511
41	6750	IP54	30	VN	-	LS2	1181/60/50	850851
41	6750	IP54	30	VN	yes	LS2	1181/60/50	850875
49	7550	IP54	105	symmetric	yes	-	1181/60/50	585920
49	7550	IP54	105	symmetric	yes	LS2	1181/60/50	586927
49	7550	IP54	105	symmetric	-	-	1181/60/50	585814
49	7550	IP54	105	symmetric	-	LS2	1181/60/50	586811
49	8250	IP54	120	symmetric	yes	-	1181/60/50	585128
49	8250	IP54	120	symmetric	yes	LS2	1181/60/50	586125
49	8250	IP54	120	symmetric	-	-	1181/60/50	585012
49	8250	IP54	120	symmetric	-	LS2	1181/60/50	586019
49	8200	IP54	90	MW	yes	-	1181/60/50	585524
49	8200	IP54	90	MW	yes	LS2	1181/60/50	586521
49	8200	IP54	90	MW	-	-	1181/60/50	585418
49	8200	IP54	90	MW	-	LS2	1181/60/50	586415
49	8200	IP54	80	SW	yes	-	1181/60/50	585326
49	8200	IP54	80	SW	yes	LS2	1181/60/50	586323
49	8200	IP54	80	SW	-	-	1181/60/50	585210
49	8200	IP54	80	SW	-	LS2	1181/60/50	586217
49	8200	IP54	105	VW	yes	-	1181/60/50	585722
49	8200	IP54	105	VW	yes	LS2	1181/60/50	586729
49	8200	IP54	105	VW	-	-	1181/60/50	585616
49	8200	IP54	105	VW	-	LS2	1181/60/50	586613
49	7750	IP54	butterfly	DAN	-	-	1181/60/50	848858
49	7750	IP54	butterfly	DAN	yes	-	1181/60/50	848940
49	7750	IP54	butterfly	DAN	-	LS2	1181/60/50	849039
49	7750	IP54	butterfly	DAN	yes	LS2	1181/60/50	849121
49	7900	IP54	asymmetric	SA	-	-	1181/60/50	846458
49	7900	IP54	asymmetric	SA	yes	-	1181/60/50	846540
49	7900	IP54	asymmetric	SA	-	LS2	1181/60/50	846632
49	7900	IP54	asymmetric	SA	yes	LS2	1181/60/50	846724
49	8050	IP54	35/67	CN	-	-	1181/60/50	853494
49	8050	IP54	35/67	CN	yes	-	1181/60/50	853586
49	8050	IP54	65	SN	-	-	1181/60/50	855818
49	8050	IP54	65	SN	yes	-	1181/60/50	855900
49	8050	IP54	30	VN	-	-	1181/60/50	851179
49	8050	IP54	30	VN	yes	-	1181/60/50	851261
49	8050	IP54	35/67	CN	-	LS2	1181/60/50	853678
49	8050	IP54	35/67	CN	yes	LS2	1181/60/50	853760
49	8050	IP54	65	SN	-	LS2	1181/60/50	855993
49	8050	IP54	65	SN	yes	LS2	1181/60/50	856082
49	8050	IP54	30	VN	-	LS2	1181/60/50	851353
49	8050	IP54	30	VN	yes	LS2	1181/60/50	851445
55	8400	IP54	105	symmetric	yes	-	1181/60/50	007637
55	8400	IP54	105	symmetric	yes	LS2	1181/60/50	007644
55	8400	IP54	105	symmetric	-	-	1181/60/50	007613
55	8400	IP54	105	symmetric	-	LS2	1181/60/50	007620
55	9300	IP54	120	symmetric	yes	-	1181/60/50	007194
55	9300	IP54	120	symmetric	yes	LS2	1181/60/50	007200
55	9300	IP54	120	symmetric	-	-	1181/60/50	007170
55	9300	IP54	120	symmetric	-	LS2	1181/60/50	007187
55	9200	IP54	90	MW	yes	-	1181/60/50	003233
55	9200	IP54	90	MW	yes	LS2	1181/60/50	003240
55	9200	IP54	90	MW	-	-	1181/60/50	003219
55	9200	IP54	90	MW	-	LS2	1181/60/50	003226
55	9200	IP54	80	SW	yes	-	1181/60/50	005572
55	9200	IP54	80	SW	yes	LS2	1181/60/50	005589
55	9200	IP54	80	SW	-	-	1181/60/50	005558
55	9200	IP54	80	SW	-	LS2	1181/60/50	005565
55	9200	IP54	105	VW	yes	-	1181/60/50	003677
55	9200	IP54	105	VW	yes	LS2	1181/60/50	003684
55	9200	IP54	105	VW	-	-	1181/60/50	003653
55	9200	IP54	105	VW	-	LS2	1181/60/50	003660
55	8700	IP54	butterfly	DAN	-	-	1181/60/50	848568
55	8700	IP54	butterfly	DAN	yes	-	1181/60/50	848582
55	8700	IP54	butterfly	DAN	-	LS2	1181/60/50	848575
55	8700	IP54	butterfly	DAN	yes	LS2	1181/60/50	848599
55	8850	IP54	asymmetric	SA	-	-	1181/60/50	846168
55	8850	IP54	asymmetric	SA	yes	-	1181/60/50	846182
55	8850	IP54	asymmetric	SA	-	LS2	1181/60/50	846175
55	8850	IP54	asymmetric	SA	yes	LS2	1181/60/50	846199
55	9050	IP54	35/67	CN	-	-	1181/60/50	853203
55	9050	IP54	35/67	CN	yes	-	1181/60/50	853227
55	9050	IP54	65	SN	-	-	1181/60/50	855528
55	9050	IP54	65	SN	yes	-	1181/60/50	855542
55	9050	IP54	30	VN	-	-	1181/60/50	850882
55	9050	IP54	30	VN	yes	-	1181/60/50	850905
55	9050	IP54	35/67	CN	-	LS2	1181/60/50	853210
55	9050	IP54	35/67	CN	yes	LS2	1181/60/50	853234
55	9050	IP54	65	SN	-	LS2	1181/60/50	855535
55	9050	IP54	65	SN	yes	LS2	1181/60/50	855559
55	9050	IP54	30	VN	-	LS2	1181/60/50	850899
55	9050	IP54	30	VN	yes	LS2	1181/60/50	850912
62	9500	IP54	105	symmetric	yes	-	1181/60/50	007477
62	9500	IP54	105	symmetric	yes	LS2	1181/60/50	007484
62	9500	IP54	105	symmetric	-	-	1181/60/50	007453
62	9500	IP54	105	symmetric	-	LS2	1181/60/50	007460
62	10400	IP54	120	symmetric	yes	-	1181/60/50	007033
62	10400	IP54	120	symmetric	yes	LS2	1181/60/50	007040
62	10400	IP54	120	symmetric	-	-	1181/60/50	007019
62	10400	IP54	120	symmetric	-	LS2	1181/60/50	007026
62	10300	IP54	90	MW	yes	-	1181/60/50	003073
62	10300	IP54	90	MW	yes	LS2	1181/60/50	003080
62	10300	IP54	90	MW	-	-	1181/60/50	003059
62	10300	IP54	90	MW	-	LS2	1181/60/50	003066
62	10300	IP54	80	SW	yes	-	1181/60/50	983290
62	10300	IP54	80	SW	yes	LS2	1181/60/50	983306
62	10300	IP54	80	SW	-	-	1181/60/50	983276
62	10300	IP54	80	SW	-	LS2	1181/60/50	983283
62	10300	IP54	105	VW	yes	-	1181/60/50	003516
62	10300	IP54	105	VW	yes	LS2	1181/60/50	003523
62	10300	IP54	105	VW	-	-	1181/60/50	003493
62	10300	IP54	105	VW	-	LS2	1181/60/50	003509
62	10100	IP54	35/67	CN	-	-	1181/60/50	853043
62	10100	IP54	35/67	CN	yes	-	1181/60/50	853067
62	10100	IP54	65	SN	-	-	1181/60/50	855368
62	10100	IP54	65	SN	yes	-	1181/60/50	855382
62	10100	IP54	30	VN	-	-	1181/60/50	850721
62	10100	IP54	30	VN	yes	-	1181/60/50	850745
62	10100	IP54	35/67	CN	-	LS2	1181/60/50	853050
62	10100	IP54	35/67	CN	yes	LS2	1181/60/50	853074
62	10100	IP54	65	SN	-	LS2	1181/60/50	855375
62	10100	IP54	65	SN	yes	LS2	1181/60/50	855399
62	10100	IP54	30	VN	-	LS2	1181/60/50	850738
62	10100	IP54	30	VN	yes	LS2	1181/60/50	850752
62	9750	IP54	butterfly	DAN	-	-	1181/60/50	848407
62	9750	IP54	butterfly	DAN	yes	-	1181/60/50	848421
62	9750	IP54	butterfly	DAN	-	LS2	1181/60/50	848414
62	9750	IP54	butterfly	DAN	yes	LS2	1181/60/50	848438
62	9900	IP54	asymmetric	SA	-	-	1181/60/50	846007
62	9900	IP54	asymmetric	SA	yes	-	1181/60/50	846021
62	9900	IP54	asymmetric	SA	-	LS2	1181/60/50	846014
62	9900	IP54	asymmetric	SA	yes	LS2	1181/60/50	846038
74	11100	IP54	105	symmetric	yes	-	1181/60/50	007675
74	11100	IP54	105	symmetric	yes	LS2	1181/60/50	007682
74	11100	IP54	105	symmetric	-	-	1181/60/50	007651
74	11100	IP54	105	symmetric	-	LS2	1181/60/50	007668
74	12200	IP54	120	symmetric	yes	-	1181/60/50	007231
74	12200	IP54	120	symmetric	yes	LS2	1181/60/50	007248
74	12200	IP54	120	symmetric	-	-	1181/60/50	007217
74	12200	IP54	120	symmetric	-	LS2	1181/60/50	007224
74	12100	IP54	90	MW	yes	-	1181/60/50	003271
74	12100	IP54	90	MW	yes	LS2	1181/60/50	003288
74	12100	IP54	90	MW	-	-	1181/60/50	003257
74	12100	IP54	90	MW	-	LS2	1181/60/50	003264
74	12100	IP54	80	SW	yes	-	1181/60/50	005619
74	12100	IP54	80	SW	yes	LS2	1181/60/50	005626
74	12100	IP54	80	SW	-	-	1181/60/50	005596
74	12100	IP54	80	SW	-	LS2	1181/60/50	005602
74	12100	IP54	105	VW	yes	-	1181/60/50	003714
74	12100	IP54	105	VW	yes	LS2	1181/60/50	003721
74	12100	IP54	105	VW	-	-	1181/60/50	003691
74	12100	IP54	105	VW	-	LS2	1181/60/50	003707
74	11450	IP54	butterfly	DAN	-	-	1181/60/50	848605
74	11450	IP54	butterfly	DAN	yes	-	1181/60/50	848629
74	11450	IP54	butterfly	DAN	-	LS2	1181/60/50	848612
74	11450	IP54	butterfly	DAN	yes	LS2	1181/60/50	848636
74	11650	IP54	asymmetric	SA	-	-	1181/60/50	846205
74	11650	IP54	asymmetric	SA	yes	-	1181/60/50	846229
74	11650	IP54	asymmetric	SA	-	LS2	1181/60/50	846212
74	11650	IP54	asymmetric	SA	yes	LS2	1181/60/50	846236
74	11900	IP54	35/67	CN	-	-	1181/60/50	853241
74	11900	IP54	35/67	CN	yes	-	1181/60/50	853265
74	11900	IP54	65	SN	-	-	1181/60/50	855566
74	11900	IP54	65	SN	yes	-	1181/60/50	855580
74	11900	IP54	30	VN	-	-	1181/60/50	850929
74	11900	IP54	30	VN	yes	-	1181/60/50	850943
74	11900	IP54	35/67	CN	-	LS2	1181/60/50	853258
74	11900	IP54	35/67	CN	yes	LS2	1181/60/50	853272
74	11900	IP54	65	SN	-	LS2	1181/60/50	855573
74	11900	IP54	65	SN	yes	LS2	1181/60/50	855597
74	11900	IP54	30	VN	-	LS2	1181/60/50	850936
74	11900	IP54	30	VN	yes	LS2	1181/60/50	850950
88	13000	IP54	105	symmetric	yes	-	1181/60/50	007712
88	13000	IP54	105	symmetric	yes	LS2	1181/60/50	007729
88	13000	IP54	105	symmetric	-	-	1181/60/50	007699
88	13000	IP54	105	symmetric	-	LS2	1181/60/50	007705
88	14300	IP54	120	symmetric	yes	-	1181/60/50	007279
88	14300	IP54	120	symmetric	yes	LS2	1181/60/50	007286
88	14300	IP54	120	symmetric	-	-	1181/60/50	007255
88	14300	IP54	120	symmetric	-	LS2	1181/60/50	007262
88	14100	IP54	90	MW	yes	-	1181/60/50	003318
88	14100	IP54	90	MW	yes	LS2	1181/60/50	003325
88	14100	IP54	90	MW	-	-	1181/60/50	003295
88	14100	IP54	90	MW	-	LS2	1181/60/50	003301
88	14100	IP54	80	SW	yes	-	1181/60/50	005657
88	14100	IP54	80	SW	yes	LS2	1181/60/50	005664
88	14100	IP54	80	SW	-	-	1181/60/50	005633
88	14100	IP54	80	SW	-	LS2	1181/60/50	005640
88	14100	IP54	105	VW	yes	-	1181/60/50	003752
88	14100	IP54	105	VW	yes	LS2	1181/60/50	003769
88	14100	IP54	105	VW	-	-	1181/60/50	003738
88	14100	IP54	105	VW	-	LS2	1181/60/50	003745
88	13350	IP54	butterfly	DAN	-	-	1181/60/50	848643
88	13350	IP54	butterfly	DAN	yes	-	1181/60/50	848667
88	13350	IP54	butterfly	DAN	-	LS2	1181/60/50	848650
88	13350	IP54	butterfly	DAN	yes	LS2	1181/60/50	848674
88	13600	IP54	asymmetric	SA	-	-	1181/60/50	846243
88	13600	IP54	asymmetric	SA	yes	-	1181/60/50	846267
88	13600	IP54	asymmetric	SA	-	LS2	1181/60/50	846250
88	13600	IP54	asymmetric	SA	yes	LS2	1181/60/50	846274
88	13850	IP54	35/67	CN	-	-	1181/60/50	853289
88	13850	IP54	35/67	CN	yes	-	1181/60/50	853302
88	13850	IP54	65	SN	-	-	1181/60/50	855603
88	13850	IP54	65	SN	yes	-	1181/60/50	855627
88	13850	IP54	30	VN	-	-	1181/60/50	850967
88	13850	IP54	30	VN	yes	-	1181/60/50	850981
88	13850	IP54	35/67	CN	-	LS2	1181/60/50	853296
88	13850	IP54	35/67	CN	yes	LS2	1181/60/50	853319
88	13850	IP54	65	SN	-	LS2	1181/60/50	855610
88	13850	IP54	65	SN	yes	LS2	1181/60/50	855634
88	13850	IP54	30	VN	-	LS2	1181/60/50	850974
88	13850	IP54	30	VN	yes	LS2	1181/60/50	850998
92	13700	IP54	105	symmetric	yes	-	1181/60/50	585937
92	13700	IP54	105	symmetric	yes	LS2	1181/60/50	586934
92	13700	IP54	105	symmetric	-	-	1181/60/50	585821
92	13700	IP54	105	symmetric	-	LS2	1181/60/50	586828
92	15100	IP54	120	symmetric	yes	-	1181/60/50	585135
92	15100	IP54	120	symmetric	yes	LS2	1181/60/50	586132
92	15100	IP54	120	symmetric	-	-	1181/60/50	585029
92	15100	IP54	120	symmetric	-	LS2	1181/60/50	586026
92	14900	IP54	90	MW	yes	-	1181/60/50	585531
92	14900	IP54	90	MW	yes	LS2	1181/60/50	586538
92	14900	IP54	90	MW	-	-	1181/60/50	585425
92	14900	IP54	90	MW	-	LS2	1181/60/50	586422
92	14900	IP54	80	SW	yes	-	1181/60/50	585333
92	14900	IP54	80	SW	yes	LS2	1181/60/50	586330
92	14900	IP54	80	SW	-	-	1181/60/50	585227
92	14900	IP54	80	SW	-	LS2	1181/60/50	586224
92	14900	IP54	105	VW	yes	-	1181/60/50	585739
92	14900	IP54	105	VW	yes	LS2	1181/60/50	586736
92	14900	IP54	105	VW	-	-	1181/60/50	585623
92	14900	IP54	105	VW	-	LS2	1181/60/50	586620
92	14150	IP54	butterfly	DAN	-	-	1181/60/50	848865
92	14150	IP54	butterfly	DAN	yes	-	1181/60/50	848957
92	14150	IP54	butterfly	DAN	-	LS2	1181/60/50	849046
92	14150	IP54	butterfly	DAN	yes	LS2	1181/60/50	849138
92	14350	IP54	asymmetric	SA	-	-	1181/60/50	846465
92	14350	IP54	asymmetric	SA	yes	-	1181/60/50	846557
92	14350	IP54	asymmetric	SA	-	LS2	1181/60/50	846649
92	14350	IP54	asymmetric	SA	yes	LS2	1181/60/50	846731
92	14650	IP54	35/67	CN	-	-	1181/60/50	853500
92	14650	IP54	35/67	CN	yes	-	1181/60/50	853593
92	14650	IP54	65	SN	-	-	1181/60/50	855825
92	14650	IP54	65	SN	yes	-	1181/60/50	855917
92	14650	IP54	30	VN	-	-	1181/60/50	851186
92	14650	IP54	30	VN	yes	-	1181/60/50	851278
92	14650	IP54	35/67	CN	-	LS2	1181/60/50	853685
92	14650	IP54	35/67	CN	yes	LS2	1181/60/50	853777
92	14650	IP54	65	SN	-	LS2	1181/60/50	856006
92	14650	IP54	65	SN	yes	LS2	1181/60/50	856099
92	14650	IP54	30	VN	-	LS2	1181/60/50	851360
92	14650	IP54	30	VN	yes	LS2	1181/60/50	851452
1495/60/50
35	5350	IP54	105	symmetric	yes	-	1495/60/50	585944
35	5350	IP54	105	symmetric	yes	LS2	1495/60/50	586941
35	5350	IP54	105	symmetric	-	-	1495/60/50	585838
35	5350	IP54	105	symmetric	-	LS2	1495/60/50	586835
35	5850	IP54	120	symmetric	yes	-	1495/60/50	585142
35	5850	IP54	120	symmetric	yes	LS2	1495/60/50	586149
35	5850	IP54	120	symmetric	-	-	1495/60/50	585036
35	5850	IP54	120	symmetric	-	LS2	1495/60/50	586033
35	5800	IP54	90	MW	yes	-	1495/60/50	585548
35	5800	IP54	90	MW	yes	LS2	1495/60/50	586545
35	5800	IP54	90	MW	-	-	1495/60/50	585432
35	5800	IP54	90	MW	-	LS2	1495/60/50	586439
35	5800	IP54	80	SW	yes	-	1495/60/50	585340
35	5800	IP54	80	SW	yes	LS2	1495/60/50	586347
35	5800	IP54	80	SW	-	-	1495/60/50	585234
35	5800	IP54	80	SW	-	LS2	1495/60/50	586231
35	5800	IP54	105	VW	yes	-	1495/60/50	585746
35	5800	IP54	105	VW	yes	LS2	1495/60/50	586743
35	5800	IP54	105	VW	-	-	1495/60/50	585630
35	5800	IP54	105	VW	-	LS2	1495/60/50	586637
35	5500	IP54	butterfly	DAN	-	-	1495/60/50	848872
35	5500	IP54	butterfly	DAN	yes	-	1495/60/50	848964
35	5500	IP54	butterfly	DAN	-	LS2	1495/60/50	849053
35	5500	IP54	butterfly	DAN	yes	LS2	1495/60/50	849145
35	5550	IP54	asymmetric	SA	-	-	1495/60/50	846472
35	5550	IP54	asymmetric	SA	yes	-	1495/60/50	846564
35	5550	IP54	asymmetric	SA	-	LS2	1495/60/50	846656
35	5550	IP54	asymmetric	SA	yes	LS2	1495/60/50	846748
35	5700	IP54	35/67	CN	-	-	1495/60/50	853517
35	5700	IP54	35/67	CN	yes	-	1495/60/50	853609
35	5700	IP54	65	SN	-	-	1495/60/50	855832
35	5700	IP54	65	SN	yes	-	1495/60/50	855924
35	5700	IP54	30	VN	-	-	1495/60/50	851193
35	5700	IP54	30	VN	yes	-	1495/60/50	851285
35	5700	IP54	35/67	CN	-	LS2	1495/60/50	853692
35	5700	IP54	35/67	CN	yes	LS2	1495/60/50	853784
35	5700	IP54	65	SN	-	LS2	1495/60/50	856013
35	5700	IP54	65	SN	yes	LS2	1495/60/50	856105
35	5700	IP54	30	VN	-	LS2	1495/60/50	851377
35	5700	IP54	30	VN	yes	LS2	1495/60/50	851469
41	6400	IP54	105	symmetric	yes	-	1495/60/50	007750
41	6400	IP54	105	symmetric	yes	LS2	1495/60/50	007767
41	6400	IP54	105	symmetric	-	-	1495/60/50	007736
41	6400	IP54	105	symmetric	-	LS2	1495/60/50	007743
41	7000	IP54	120	symmetric	yes	-	1495/60/50	007316
41	7000	IP54	120	symmetric	yes	LS2	1495/60/50	007323
41	7000	IP54	120	symmetric	-	-	1495/60/50	007293
41	7000	IP54	120	symmetric	-	LS2	1495/60/50	007309
41	6900	IP54	90	MW	yes	-	1495/60/50	003356
41	6900	IP54	90	MW	yes	LS2	1495/60/50	003363
41	6900	IP54	90	MW	-	-	1495/60/50	003332
41	6900	IP54	90	MW	-	LS2	1495/60/50	003349
41	6900	IP54	80	SW	yes	-	1495/60/50	005695
41	6900	IP54	80	SW	yes	LS2	1495/60/50	005701
41	6900	IP54	80	SW	-	-	1495/60/50	005671
41	6900	IP54	80	SW	-	LS2	1495/60/50	005688
41	6900	IP54	105	VW	yes	-	1495/60/50	003790
41	6900	IP54	105	VW	yes	LS2	1495/60/50	003806
41	6900	IP54	105	VW	-	-	1495/60/50	003776
41	6900	IP54	105	VW	-	LS2	1495/60/50	003783
41	6550	IP54	butterfly	DAN	-	-	1495/60/50	848681
41	6550	IP54	butterfly	DAN	yes	-	1495/60/50	848704
41	6550	IP54	butterfly	DAN	-	LS2	1495/60/50	848698
41	6550	IP54	butterfly	DAN	yes	LS2	1495/60/50	848711
41	6650	IP54	asymmetric	SA	-	-	1495/60/50	846281
41	6650	IP54	asymmetric	SA	yes	-	1495/60/50	846304
41	6650	IP54	asymmetric	SA	-	LS2	1495/60/50	846298
41	6650	IP54	asymmetric	SA	yes	LS2	1495/60/50	846311
41	6750	IP54	35/67	CN	-	-	1495/60/50	853326
41	6750	IP54	35/67	CN	yes	-	1495/60/50	853340
41	6750	IP54	65	SN	-	-	1495/60/50	855641
41	6750	IP54	65	SN	yes	-	1495/60/50	855665
41	6750	IP54	30	VN	-	-	1495/60/50	851001
41	6750	IP54	30	VN	yes	-	1495/60/50	851025
41	6750	IP54	35/67	CN	-	LS2	1495/60/50	853333
41	6750	IP54	35/67	CN	yes	LS2	1495/60/50	853357
41	6750	IP54	65	SN	-	LS2	1495/60/50	855658
41	6750	IP54	65	SN	yes	LS2	1495/60/50	855672
41	6750	IP54	30	VN	-	LS2	1495/60/50	851018
41	6750	IP54	30	VN	yes	LS2	1495/60/50	851032
49	7550	IP54	105	symmetric	yes	-	1495/60/50	585951
49	7550	IP54	105	symmetric	yes	LS2	1495/60/50	586958
49	7550	IP54	105	symmetric	-	-	1495/60/50	585845
49	7550	IP54	105	symmetric	-	LS2	1495/60/50	586842
49	8250	IP54	120	symmetric	yes	-	1495/60/50	585159
49	8250	IP54	120	symmetric	yes	LS2	1495/60/50	586156
49	8250	IP54	120	symmetric	-	-	1495/60/50	585043
49	8250	IP54	120	symmetric	-	LS2	1495/60/50	586040
49	8200	IP54	90	MW	yes	-	1495/60/50	585555
49	8200	IP54	90	MW	yes	LS2	1495/60/50	586552
49	8200	IP54	90	MW	-	-	1495/60/50	585449
49	8200	IP54	90	MW	-	LS2	1495/60/50	586446
49	8200	IP54	80	SW	yes	-	1495/60/50	585357
49	8200	IP54	80	SW	yes	LS2	1495/60/50	586354
49	8200	IP54	80	SW	-	-	1495/60/50	585241
49	8200	IP54	80	SW	-	LS2	1495/60/50	586248
49	8200	IP54	105	VW	yes	-	1495/60/50	585753
49	8200	IP54	105	VW	yes	LS2	1495/60/50	586750
49	8200	IP54	105	VW	-	-	1495/60/50	585647
49	8200	IP54	105	VW	-	LS2	1495/60/50	586644
49	7750	IP54	butterfly	DAN	-	-	1495/60/50	848889
49	7750	IP54	butterfly	DAN	yes	-	1495/60/50	848971
49	7750	IP54	butterfly	DAN	-	LS2	1495/60/50	849060
49	7750	IP54	butterfly	DAN	yes	LS2	1495/60/50	849152
49	7900	IP54	asymmetric	SA	-	-	1495/60/50	846489
49	7900	IP54	asymmetric	SA	yes	-	1495/60/50	846571
49	7900	IP54	asymmetric	SA	-	LS2	1495/60/50	846663
49	7900	IP54	asymmetric	SA	yes	LS2	1495/60/50	846755
49	8050	IP54	35/67	CN	-	-	1495/60/50	853524
49	8050	IP54	35/67	CN	yes	-	1495/60/50	853616
49	8050	IP54	65	SN	-	-	1495/60/50	855849
49	8050	IP54	65	SN	yes	-	1495/60/50	855931
49	8050	IP54	30	VN	-	-	1495/60/50	851209
49	8050	IP54	30	VN	yes	-	1495/60/50	851292
49	8050	IP54	35/67	CN	-	LS2	1495/60/50	853708
49	8050	IP54	35/67	CN	yes	LS2	1495/60/50	853791
49	8050	IP54	65	SN	-	LS2	1495/60/50	856020
49	8050	IP54	65	SN	yes	LS2	1495/60/50	856112
49	8050	IP54	30	VN	-	LS2	1495/60/50	851384
49	8050	IP54	30	VN	yes	LS2	1495/60/50	851476
55	8400	IP54	105	symmetric	yes	-	1495/60/50	007798
55	8400	IP54	105	symmetric	yes	LS2	1495/60/50	007804
55	8400	IP54	105	symmetric	-	-	1495/60/50	007774
55	8400	IP54	105	symmetric	-	LS2	1495/60/50	007781
55	9300	IP54	120	symmetric	yes	-	1495/60/50	007354
55	9300	IP54	120	symmetric	yes	LS2	1495/60/50	007361
55	9300	IP54	120	symmetric	-	-	1495/60/50	007330
55	9300	IP54	120	symmetric	-	LS2	1495/60/50	007347
55	9200	IP54	90	MW	yes	-	1495/60/50	003394
55	9200	IP54	90	MW	yes	LS2	1495/60/50	003400
55	9200	IP54	90	MW	-	-	1495/60/50	003370
55	9200	IP54	90	MW	-	LS2	1495/60/50	003387
55	9200	IP54	80	SW	yes	-	1495/60/50	005732
55	9200	IP54	80	SW	yes	LS2	1495/60/50	005749
55	9200	IP54	80	SW	-	-	1495/60/50	005718
55	9200	IP54	80	SW	-	LS2	1495/60/50	005725
55	9200	IP54	105	VW	yes	-	1495/60/50	003837
55	9200	IP54	105	VW	yes	LS2	1495/60/50	003844
55	9200	IP54	105	VW	-	-	1495/60/50	003813
55	9200	IP54	105	VW	-	LS2	1495/60/50	003820
55	8700	IP54	butterfly	DAN	-	-	1495/60/50	848728
55	8700	IP54	butterfly	DAN	yes	-	1495/60/50	848742
55	8700	IP54	butterfly	DAN	-	LS2	1495/60/50	848735
55	8700	IP54	butterfly	DAN	yes	LS2	1495/60/50	848759
55	8850	IP54	asymmetric	SA	-	-	1495/60/50	846328
55	8850	IP54	asymmetric	SA	yes	-	1495/60/50	846342
55	8850	IP54	asymmetric	SA	-	LS2	1495/60/50	846335
55	8850	IP54	asymmetric	SA	yes	LS2	1495/60/50	846359
55	9050	IP54	35/67	CN	-	-	1495/60/50	853364
55	9050	IP54	35/67	CN	yes	-	1495/60/50	853388
55	9050	IP54	65	SN	-	-	1495/60/50	855689
55	9050	IP54	65	SN	yes	-	1495/60/50	855702
55	9050	IP54	30	VN	-	-	1495/60/50	851049
55	9050	IP54	30	VN	yes	-	1495/60/50	851063
55	9050	IP54	35/67	CN	-	LS2	1495/60/50	853371
55	9050	IP54	35/67	CN	yes	LS2	1495/60/50	853395
55	9050	IP54	65	SN	-	LS2	1495/60/50	855696
55	9050	IP54	65	SN	yes	LS2	1495/60/50	855719
55	9050	IP54	30	VN	-	LS2	1495/60/50	851056
55	9050	IP54	30	VN	yes	LS2	1495/60/50	851070
62	9500	IP54	105	symmetric	yes	-	1495/60/50	007514
62	9500	IP54	105	symmetric	yes	LS2	1495/60/50	007521
62	9500	IP54	105	symmetric	-	-	1495/60/50	007491
62	9500	IP54	105	symmetric	-	LS2	1495/60/50	007507
62	10400	IP54	120	symmetric	yes	-	1495/60/50	007071
62	10400	IP54	120	symmetric	yes	LS2	1495/60/50	007088
62	10400	IP54	120	symmetric	-	-	1495/60/50	007057
62	10400	IP54	120	symmetric	-	LS2	1495/60/50	007064
62	10300	IP54	90	MW	yes	-	1495/60/50	003110
62	10300	IP54	90	MW	yes	LS2	1495/60/50	003127
62	10300	IP54	90	MW	-	-	1495/60/50	003097
62	10300	IP54	90	MW	-	LS2	1495/60/50	003103
62	10300	IP54	80	SW	yes	-	1495/60/50	983337
62	10300	IP54	80	SW	yes	LS2	1495/60/50	983344
62	10300	IP54	80	SW	-	-	1495/60/50	983313
62	10300	IP54	80	SW	-	LS2	1495/60/50	983320
62	10300	IP54	105	VW	yes	-	1495/60/50	003554
62	10300	IP54	105	VW	yes	LS2	1495/60/50	003561
62	10300	IP54	105	VW	-	-	1495/60/50	003530
62	10300	IP54	105	VW	-	LS2	1495/60/50	003547
62	10100	IP54	35/67	CN	-	-	1495/60/50	853081
62	10100	IP54	35/67	CN	yes	-	1495/60/50	853104
62	10100	IP54	65	SN	-	-	1495/60/50	855405
62	10100	IP54	65	SN	yes	-	1495/60/50	855429
62	10100	IP54	30	VN	-	-	1495/60/50	850769
62	10100	IP54	30	VN	yes	-	1495/60/50	850783
62	10100	IP54	35/67	CN	-	LS2	1495/60/50	853098
62	10100	IP54	35/67	CN	yes	LS2	1495/60/50	853111
62	10100	IP54	65	SN	-	LS2	1495/60/50	855412
62	10100	IP54	65	SN	yes	LS2	1495/60/50	855436
62	10100	IP54	30	VN	-	LS2	1495/60/50	850776
62	10100	IP54	30	VN	yes	LS2	1495/60/50	850790
62	9750	IP54	butterfly	DAN	-	-	1495/60/50	848445
62	9750	IP54	butterfly	DAN	yes	-	1495/60/50	848469
62	9750	IP54	butterfly	DAN	-	LS2	1495/60/50	848452
62	9750	IP54	butterfly	DAN	yes	LS2	1495/60/50	848476
62	9900	IP54	asymmetric	SA	-	-	1495/60/50	846045
62	9900	IP54	asymmetric	SA	yes	-	1495/60/50	846069
62	9900	IP54	asymmetric	SA	-	LS2	1495/60/50	846052
62	9900	IP54	asymmetric	SA	yes	LS2	1495/60/50	846076
74	11100	IP54	105	symmetric	yes	-	1495/60/50	007835
74	11100	IP54	105	symmetric	yes	LS2	1495/60/50	007842
74	11100	IP54	105	symmetric	-	-	1495/60/50	007811
74	11100	IP54	105	symmetric	-	LS2	1495/60/50	007828
74	12200	IP54	120	symmetric	yes	-	1495/60/50	007392
74	12200	IP54	120	symmetric	yes	LS2	1495/60/50	007408
74	12200	IP54	120	symmetric	-	-	1495/60/50	007378
74	12200	IP54	120	symmetric	-	LS2	1495/60/50	007385
74	12100	IP54	90	MW	yes	-	1495/60/50	003431
74	12100	IP54	90	MW	yes	LS2	1495/60/50	003448
74	12100	IP54	90	MW	-	-	1495/60/50	003417
74	12100	IP54	90	MW	-	LS2	1495/60/50	003424
74	12100	IP54	80	SW	yes	-	1495/60/50	005770
74	12100	IP54	80	SW	yes	LS2	1495/60/50	005787
74	12100	IP54	80	SW	-	-	1495/60/50	005756
74	12100	IP54	80	SW	-	LS2	1495/60/50	005763
74	12100	IP54	105	VW	yes	-	1495/60/50	003875
74	12100	IP54	105	VW	yes	LS2	1495/60/50	003882
74	12100	IP54	105	VW	-	-	1495/60/50	003851
74	12100	IP54	105	VW	-	LS2	1495/60/50	003868
74	11450	IP54	butterfly	DAN	-	-	1495/60/50	848766
74	11450	IP54	butterfly	DAN	yes	-	1495/60/50	848780
74	11450	IP54	butterfly	DAN	-	LS2	1495/60/50	848773
74	11450	IP54	butterfly	DAN	yes	LS2	1495/60/50	848797
74	11650	IP54	asymmetric	SA	-	-	1495/60/50	846366
74	11650	IP54	asymmetric	SA	yes	-	1495/60/50	846380
74	11650	IP54	asymmetric	SA	-	LS2	1495/60/50	846373
74	11650	IP54	asymmetric	SA	yes	LS2	1495/60/50	846397
74	11900	IP54	35/67	CN	-	-	1495/60/50	853401
74	11900	IP54	35/67	CN	yes	-	1495/60/50	853425
74	11900	IP54	65	SN	-	-	1495/60/50	855726
74	11900	IP54	65	SN	yes	-	1495/60/50	855740
74	11900	IP54	30	VN	-	-	1495/60/50	851087
74	11900	IP54	30	VN	yes	-	1495/60/50	851100
74	11900	IP54	35/67	CN	-	LS2	1495/60/50	853418
74	11900	IP54	35/67	CN	yes	LS2	1495/60/50	853432
74	11900	IP54	65	SN	-	LS2	1495/60/50	855733
74	11900	IP54	65	SN	yes	LS2	1495/60/50	855757
74	11900	IP54	30	VN	-	LS2	1495/60/50	851094
74	11900	IP54	30	VN	yes	LS2	1495/60/50	851117
88	13000	IP54	105	symmetric	yes	-	1495/60/50	007873
88	13000	IP54	105	symmetric	yes	LS2	1495/60/50	007880
88	13000	IP54	105	symmetric	-	-	1495/60/50	007859
88	13000	IP54	105	symmetric	-	LS2	1495/60/50	007866
88	14300	IP54	120	symmetric	yes	-	1495/60/50	007439
88	14300	IP54	120	symmetric	yes	LS2	1495/60/50	007446
88	14300	IP54	120	symmetric	-	-	1495/60/50	007415
88	14300	IP54	120	symmetric	-	LS2	1495/60/50	007422
88	14100	IP54	90	MW	yes	-	1495/60/50	003479
88	14100	IP54	90	MW	yes	LS2	1495/60/50	003486
88	14100	IP54	90	MW	-	-	1495/60/50	003455
88	14100	IP54	90	MW	-	LS2	1495/60/50	003462
88	14100	IP54	80	SW	yes	-	1495/60/50	005817
88	14100	IP54	80	SW	yes	LS2	1495/60/50	005824
88	14100	IP54	80	SW	-	-	1495/60/50	005794
88	14100	IP54	80	SW	-	LS2	1495/60/50	005800
88	14100	IP54	105	VW	yes	-	1495/60/50	003981
88	14100	IP54	105	VW	yes	LS2	1495/60/50	003998
88	14100	IP54	105	VW	-	-	1495/60/50	003967
88	14100	IP54	105	VW	-	LS2	1495/60/50	003974
88	13350	IP54	butterfly	DAN	-	-	1495/60/50	848803
88	13350	IP54	butterfly	DAN	yes	-	1495/60/50	848827
88	13350	IP54	butterfly	DAN	-	LS2	1495/60/50	848810
88	13350	IP54	butterfly	DAN	yes	LS2	1495/60/50	848834
88	13600	IP54	asymmetric	SA	-	-	1495/60/50	846403
88	13600	IP54	asymmetric	SA	yes	-	1495/60/50	846427
88	13600	IP54	asymmetric	SA	-	LS2	1495/60/50	846410
88	13600	IP54	asymmetric	SA	yes	LS2	1495/60/50	846434
88	13850	IP54	35/67	CN	-	-	1495/60/50	853449
88	13850	IP54	35/67	CN	yes	-	1495/60/50	853463
88	13850	IP54	65	SN	-	-	1495/60/50	855764
88	13850	IP54	65	SN	yes	-	1495/60/50	855788
88	13850	IP54	30	VN	-	-	1495/60/50	851124
88	13850	IP54	30	VN	yes	-	1495/60/50	851148
88	13850	IP54	35/67	CN	-	LS2	1495/60/50	853456
88	13850	IP54	35/67	CN	yes	LS2	1495/60/50	853470
88	13850	IP54	65	SN	-	LS2	1495/60/50	855771
88	13850	IP54	65	SN	yes	LS2	1495/60/50	855795
88	13850	IP54	30	VN	-	LS2	1495/60/50	851131
88	13850	IP54	30	VN	yes	LS2	1495/60/50	851155
92	13700	IP54	105	symmetric	yes	-	1495/60/50	585968
92	13700	IP54	105	symmetric	yes	LS2	1495/60/50	586965
92	13700	IP54	105	symmetric	-	-	1495/60/50	585852
92	13700	IP54	105	symmetric	-	LS2	1495/60/50	586859
92	15100	IP54	120	symmetric	yes	-	1495/60/50	585166
92	15100	IP54	120	symmetric	yes	LS2	1495/60/50	586163
92	15100	IP54	120	symmetric	-	-	1495/60/50	585050
92	15100	IP54	120	symmetric	-	LS2	1495/60/50	586057
92	14900	IP54	90	MW	yes	-	1495/60/50	585562
92	14900	IP54	90	MW	yes	LS2	1495/60/50	586569
92	14900	IP54	90	MW	-	-	1495/60/50	585456
92	14900	IP54	90	MW	-	LS2	1495/60/50	586453
92	14900	IP54	80	SW	yes	-	1495/60/50	585364
92	14900	IP54	80	SW	yes	LS2	1495/60/50	586361
92	14900	IP54	80	SW	-	-	1495/60/50	585258
92	14900	IP54	80	SW	-	LS2	1495/60/50	586255
92	14900	IP54	105	VW	yes	-	1495/60/50	585760
92	14900	IP54	105	VW	yes	LS2	1495/60/50	586767
92	14900	IP54	105	VW	-	-	1495/60/50	585654
92	14900	IP54	105	VW	-	LS2	1495/60/50	586651
92	14150	IP54	butterfly	DAN	-	-	1495/60/50	848896
92	14150	IP54	butterfly	DAN	yes	-	1495/60/50	848988
92	14150	IP54	butterfly	DAN	-	LS2	1495/60/50	849077
92	14150	IP54	butterfly	DAN	yes	LS2	1495/60/50	849169
92	14350	IP54	asymmetric	SA	-	-	1495/60/50	846496
92	14350	IP54	asymmetric	SA	yes	-	1495/60/50	846588
92	14350	IP54	asymmetric	SA	-	LS2	1495/60/50	846670
92	14350	IP54	asymmetric	SA	yes	LS2	1495/60/50	846762
92	14650	IP54	35/67	CN	-	-	1495/60/50	853531
92	14650	IP54	35/67	CN	yes	-	1495/60/50	853623
92	14650	IP54	65	SN	-	-	1495/60/50	855856
92	14650	IP54	65	SN	yes	-	1495/60/50	855948
92	14650	IP54	30	VN	-	-	1495/60/50	851216
92	14650	IP54	30	VN	yes	-	1495/60/50	851308
92	14650	IP54	35/67	CN	-	LS2	1495/60/50	853715
92	14650	IP54	35/67	CN	yes	LS2	1495/60/50	853807
92	14650	IP54	65	SN	-	LS2	1495/60/50	856037
92	14650	IP54	65	SN	yes	LS2	1495/60/50	856129
92	14650	IP54	30	VN	-	LS2	1495/60/50	851391
92	14650	IP54	30	VN	yes	LS2	1495/60/50	851483
1769/60/50
53	8250	IP54	105	symmetric	yes	-	1769/60/50	585975
53	8250	IP54	105	symmetric	yes	LS2	1769/60/50	586972
53	8250	IP54	105	symmetric	-	-	1769/60/50	585869
53	8250	IP54	105	symmetric	-	LS2	1769/60/50	586866
53	9100	IP54	120	symmetric	yes	-	1769/60/50	585173
53	9100	IP54	120	symmetric	yes	LS2	1769/60/50	586170
53	9100	IP54	120	symmetric	-	-	1769/60/50	585067
53	9100	IP54	120	symmetric	-	LS2	1769/60/50	586064
53	9000	IP54	90	MW	yes	-	1769/60/50	585579
53	9000	IP54	90	MW	yes	LS2	1769/60/50	586576
53	9000	IP54	90	MW	-	-	1769/60/50	585463
53	9000	IP54	90	MW	-	LS2	1769/60/50	586460
53	9000	IP54	80	SW	yes	-	1769/60/50	585371
53	9000	IP54	80	SW	yes	LS2	1769/60/50	586378
53	9000	IP54	80	SW	-	-	1769/60/50	585265
53	9000	IP54	80	SW	-	LS2	1769/60/50	586262
53	9000	IP54	105	VW	yes	-	1769/60/50	585777
53	9000	IP54	105	VW	yes	LS2	1769/60/50	586774
53	9000	IP54	105	VW	-	-	1769/60/50	585661
53	9000	IP54	105	VW	-	LS2	1769/60/50	586668
53	8550	IP54	butterfly	DAN	-	-	1769/60/50	848902
53	8550	IP54	butterfly	DAN	yes	-	1769/60/50	848995
53	8550	IP54	butterfly	DAN	-	LS2	1769/60/50	849084
53	8550	IP54	butterfly	DAN	yes	LS2	1769/60/50	849176
53	8650	IP54	asymmetric	SA	-	-	1769/60/50	846502
53	8650	IP54	asymmetric	SA	yes	-	1769/60/50	846595
53	8650	IP54	asymmetric	SA	-	LS2	1769/60/50	846687
53	8650	IP54	asymmetric	SA	yes	LS2	1769/60/50	846779
53	8850	IP54	35/67	CN	-	-	1769/60/50	853548
53	8850	IP54	35/67	CN	yes	-	1769/60/50	853630
53	8850	IP54	65	SN	-	-	1769/60/50	855863
53	8850	IP54	65	SN	yes	-	1769/60/50	855955
53	8850	IP54	30	VN	-	-	1769/60/50	851223
53	8850	IP54	30	VN	yes	-	1769/60/50	851315
53	8850	IP54	35/67	CN	-	LS2	1769/60/50	853722
53	8850	IP54	35/67	CN	yes	LS2	1769/60/50	853814
53	8850	IP54	65	SN	-	LS2	1769/60/50	856044
53	8850	IP54	65	SN	yes	LS2	1769/60/50	856136
53	8850	IP54	30	VN	-	LS2	1769/60/50	851407
53	8850	IP54	30	VN	yes	LS2	1769/60/50	851490
77	12000	IP54	105	symmetric	yes	-	1769/60/50	585982
77	12000	IP54	105	symmetric	yes	LS2	1769/60/50	586989
77	12000	IP54	105	symmetric	-	-	1769/60/50	585876
77	12000	IP54	105	symmetric	-	LS2	1769/60/50	586873
77	13200	IP54	120	symmetric	yes	-	1769/60/50	585180
77	13200	IP54	120	symmetric	yes	LS2	1769/60/50	586187
77	13200	IP54	120	symmetric	-	-	1769/60/50	585074
77	13200	IP54	120	symmetric	-	LS2	1769/60/50	586071
77	13000	IP54	90	MW	yes	-	1769/60/50	585586
77	13000	IP54	90	MW	yes	LS2	1769/60/50	586583
77	13000	IP54	90	MW	-	-	1769/60/50	585470
77	13000	IP54	90	MW	-	LS2	1769/60/50	586477
77	13000	IP54	80	SW	yes	-	1769/60/50	585388
77	13000	IP54	80	SW	yes	LS2	1769/60/50	586385
77	13000	IP54	80	SW	-	-	1769/60/50	585272
77	13000	IP54	80	SW	-	LS2	1769/60/50	586279
77	13000	IP54	105	VW	yes	-	1769/60/50	585784
77	13000	IP54	105	VW	yes	LS2	1769/60/50	586781
77	13000	IP54	105	VW	-	-	1769/60/50	585678
77	13000	IP54	105	VW	-	LS2	1769/60/50	586675
77	12350	IP54	butterfly	DAN	-	-	1769/60/50	848919
77	12350	IP54	butterfly	DAN	yes	-	1769/60/50	849008
77	12350	IP54	butterfly	DAN	-	LS2	1769/60/50	849091
77	12350	IP54	butterfly	DAN	yes	LS2	1769/60/50	849183
77	12500	IP54	asymmetric	SA	-	-	1769/60/50	846519
77	12500	IP54	asymmetric	SA	yes	-	1769/60/50	846601
77	12500	IP54	asymmetric	SA	-	LS2	1769/60/50	846694
77	12500	IP54	asymmetric	SA	yes	LS2	1769/60/50	846786
77	12800	IP54	35/67	CN	-	-	1769/60/50	853555
77	12800	IP54	35/67	CN	yes	-	1769/60/50	853647
77	12800	IP54	65	SN	-	-	1769/60/50	855870
77	12800	IP54	65	SN	yes	-	1769/60/50	855962
77	12800	IP54	30	VN	-	-	1769/60/50	851230
77	12800	IP54	30	VN	yes	-	1769/60/50	851322
77	12800	IP54	35/67	CN	-	LS2	1769/60/50	853739
77	12800	IP54	35/67	CN	yes	LS2	1769/60/50	853821
77	12800	IP54	65	SN	-	LS2	1769/60/50	856051
77	12800	IP54	65	SN	yes	LS2	1769/60/50	856143
77	12800	IP54	30	VN	-	LS2	1769/60/50	851414
77	12800	IP54	30	VN	yes	LS2	1769/60/50	851506
102	15600	IP54	105	symmetric	yes	-	1769/60/50	585999
102	15600	IP54	105	symmetric	yes	LS2	1769/60/50	586996
102	15600	IP54	105	symmetric	-	-	1769/60/50	585883
102	15600	IP54	105	symmetric	-	LS2	1769/60/50	586880
102	17100	IP54	120	symmetric	yes	-	1769/60/50	585197
102	17100	IP54	120	symmetric	yes	LS2	1769/60/50	586194
102	17100	IP54	120	symmetric	-	-	1769/60/50	585081
102	17100	IP54	120	symmetric	-	LS2	1769/60/50	586088
102	16900	IP54	90	MW	yes	-	1769/60/50	585593
102	16900	IP54	90	MW	yes	LS2	1769/60/50	586590
102	16900	IP54	90	MW	-	-	1769/60/50	585487
102	16900	IP54	90	MW	-	LS2	1769/60/50	586484
102	16900	IP54	80	SW	yes	-	1769/60/50	585395
102	16900	IP54	80	SW	yes	LS2	1769/60/50	586392
102	16900	IP54	80	SW	-	-	1769/60/50	585289
102	16900	IP54	80	SW	-	LS2	1769/60/50	586286
102	16900	IP54	105	VW	yes	-	1769/60/50	585791
102	16900	IP54	105	VW	yes	LS2	1769/60/50	586798
102	16900	IP54	105	VW	-	-	1769/60/50	585685
102	16900	IP54	105	VW	-	LS2	1769/60/50	586682
102	16050	IP54	butterfly	DAN	-	-	1769/60/50	848926
102	16050	IP54	butterfly	DAN	yes	-	1769/60/50	849015
102	16050	IP54	butterfly	DAN	-	LS2	1769/60/50	849107
102	16050	IP54	butterfly	DAN	yes	LS2	1769/60/50	849190
102	16300	IP54	asymmetric	SA	-	-	1769/60/50	846526
102	16300	IP54	asymmetric	SA	yes	-	1769/60/50	846618
102	16300	IP54	asymmetric	SA	-	LS2	1769/60/50	846700
102	16300	IP54	asymmetric	SA	yes	LS2	1769/60/50	846793
102	16600	IP54	35/67	CN	-	-	1769/60/50	853562
102	16600	IP54	35/67	CN	yes	-	1769/60/50	853654
102	16600	IP54	65	SN	-	-	1769/60/50	855887
102	16600	IP54	65	SN	yes	-	1769/60/50	855979
102	16600	IP54	30	VN	-	-	1769/60/50	851247
102	16600	IP54	30	VN	yes	-	1769/60/50	851339
102	16600	IP54	35/67	CN	-	LS2	1769/60/50	853746
102	16600	IP54	35/67	CN	yes	LS2	1769/60/50	853838
102	16600	IP54	65	SN	-	LS2	1769/60/50	856068
102	16600	IP54	65	SN	yes	LS2	1769/60/50	856150
102	16600	IP54	30	VN	-	LS2	1769/60/50	851421
102	16600	IP54	30	VN	yes	LS2	1769/60/50	851513
142	21300	IP54	105	symmetric	yes	-	1769/60/50	007552
142	21300	IP54	105	symmetric	yes	LS2	1769/60/50	007569
142	21300	IP54	105	symmetric	-	-	1769/60/50	007538
142	21300	IP54	105	symmetric	-	LS2	1769/60/50	007545
142	23400	IP54	120	symmetric	yes	-	1769/60/50	007118
142	23400	IP54	120	symmetric	yes	LS2	1769/60/50	007125
142	23400	IP54	120	symmetric	-	-	1769/60/50	007095
142	23400	IP54	120	symmetric	-	LS2	1769/60/50	007101
142	23100	IP54	90	MW	yes	-	1769/60/50	003158
142	23100	IP54	90	MW	yes	LS2	1769/60/50	003165
142	23100	IP54	90	MW	-	-	1769/60/50	003134
142	23100	IP54	90	MW	-	LS2	1769/60/50	003141
142	23100	IP54	80	SW	yes	-	1769/60/50	983375
142	23100	IP54	80	SW	yes	LS2	1769/60/50	983382
142	23100	IP54	80	SW	-	-	1769/60/50	983351
142	23100	IP54	80	SW	-	LS2	1769/60/50	983368
142	23100	IP54	105	VW	yes	-	1769/60/50	003592
142	23100	IP54	105	VW	yes	LS2	1769/60/50	003608
142	23100	IP54	105	VW	-	-	1769/60/50	003578
142	23100	IP54	105	VW	-	LS2	1769/60/50	003585
142	21900	IP54	butterfly	DAN	-	-	1769/60/50	848483
142	21900	IP54	butterfly	DAN	yes	-	1769/60/50	848506
142	21900	IP54	butterfly	DAN	-	LS2	1769/60/50	848490
142	21900	IP54	butterfly	DAN	yes	LS2	1769/60/50	848513
142	22250	IP54	asymmetric	SA	-	-	1769/60/50	846083
142	22250	IP54	asymmetric	SA	yes	-	1769/60/50	846106
142	22250	IP54	asymmetric	SA	-	LS2	1769/60/50	846090
142	22250	IP54	asymmetric	SA	yes	LS2	1769/60/50	846113
142	22750	IP54	35/67	CN	-	-	1769/60/50	853128
142	22750	IP54	35/67	CN	yes	-	1769/60/50	853142
142	22750	IP54	65	SN	-	-	1769/60/50	855443
142	22750	IP54	65	SN	yes	-	1769/60/50	855467
142	22750	IP54	30	VN	-	-	1769/60/50	850806
142	22750	IP54	30	VN	yes	-	1769/60/50	850820
142	22750	IP54	35/67	CN	-	LS2	1769/60/50	853135
142	22750	IP54	35/67	CN	yes	LS2	1769/60/50	853159
142	22750	IP54	65	SN	-	LS2	1769/60/50	855450
142	22750	IP54	65	SN	yes	LS2	1769/60/50	855474
142	22750	IP54	30	VN	-	LS2	1769/60/50	850813
142	22750	IP54	30	VN	yes	LS2	1769/60/50	850837

Show more Show less

Accessories

Hide accessories

Index	Accessory name
981173	LINEA S LED hang 1.5m
980077	LINEA S LED hang 3m
981418	LINEA S LED pendant sm 1.5
980961	LINEA S LED pendant sm 3m
981425	LINEA S LED chain pendant

LINEA S LED hang 1.5m (981173)

LINEA S LED chain pendant (981425)

Other products

Linea S LED Single is a professional, modular LED linear luminaire designed for surface or suspended mounting. Its key feature is its high IP54 rating, which guarantees protection against dust and water. This makes it ideal for harsh environmental conditions, such as production halls, warehouses and logistics centres, where there is high humidity and dust. The luminaire is based on Linea S LED quick-mount technology.

2. What light distribution options does Linea S LED Single offer?

The Linea S LED Single luminaire is available in many optical variants, allowing for precise adjustment of light distribution to the specific needs of the space. Available options include Standard Wide (80°), Medium Wide (90°), Very Wide (105°), Standard Narrow (65°), Very Narrow (30°), Corridor Narrow (35/67° – ideal for corridors), Double Asymmetric Narrow (Butterfly) and Single Asymmetric (for one-sided illumination of aisles or shelves). This diversity makes the luminaire suitable for both work areas and representative or technical spaces.

3. Does Linea S LED Single IP54 comply with workplace lighting standards?

Yes, Linea S LED Single IP54 has been designed to comply with the requirements of EN 12464-1, which specifies the parameters for workplace lighting, such as luminous intensity, uniformity and glare limitation (UGR<19). This makes it an excellent choice for lighting workplaces in industry, logistics and large commercial facilities, ensuring comfort and visual safety.

4. In which applications does Linea S LED Single perform best?

The Linea S LED Single luminaire is particularly recommended for lighting industrial and production halls, large warehouses and logistics centres, as well as shopping arcades and corridors. It is also an ideal solution for upgrading existing lighting from traditional T8 and T5 fluorescent luminaires to energy-efficient LEDs, and for interiors with increased humidity and dust requirements.

5. What are the available mounting methods for the Linea S LED Single luminaire?

The Linea S LED Single luminaire can be installed in two ways: surface-mounted or suspended. For surface mounting, the necessary brackets (2 brackets with a triangle) are included in the set. For suspended mounting, it is necessary to purchase appropriate slings, which are available as accessories (e.g. slings with a length of 1.5 m, 3 m or chain slings). The modular design of the luminaire allows for easy maintenance, including replacement of the power supply or light module.

6. Is Linea S LED Single an energy-efficient solution?

Yes. Linea S LED Single is highly energy-efficient thanks to the use of modern LEDs from reputable manufacturers and high luminous efficacy. Compared to traditional light sources (T8, T5), it provides significant energy savings, making it an ideal solution for companies seeking to reduce operating costs while maintaining high-quality lighting.

7. Is Linea S LED Single IP54 suitable for upgrading existing lighting?

Yes, Linea S LED Single has been designed for easy and effective modernisation. It can be a direct replacement for existing industrial and commercial lighting, including linear fluorescent lamps. This allows you to modernise your lighting installation without having to completely rebuild the entire system.

8. What certifications and standards does Linea S LED Single meet?

The Linea S LED Single product has a number of certificates confirming its compliance with international standards. These include CE and ENEC certificates. In addition, the luminaire is HACCP certified, which allows it to be used in hygiene-controlled areas, such as the food industry. It also meets the requirements of EN 12464-1, confirming its suitability for workplace lighting. The high quality of the components and construction translates into a long service life, low failure rate and limited need for servicing.

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail:

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: .
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: .
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Linea S LED Single IP54

Technical specifications

Downloads

Linea S LED Single is equipped with new professional light distributions:

Designed for years

Other products

Mimo 2 LED Basic

Tytan 2 LED Endura

Industry IP66 LED

Quest LED Evo M HB

Frequently asked questions (FAQ) — Linea S LED Single IP54:

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
