Astra LED Basic

Downloads

Specification

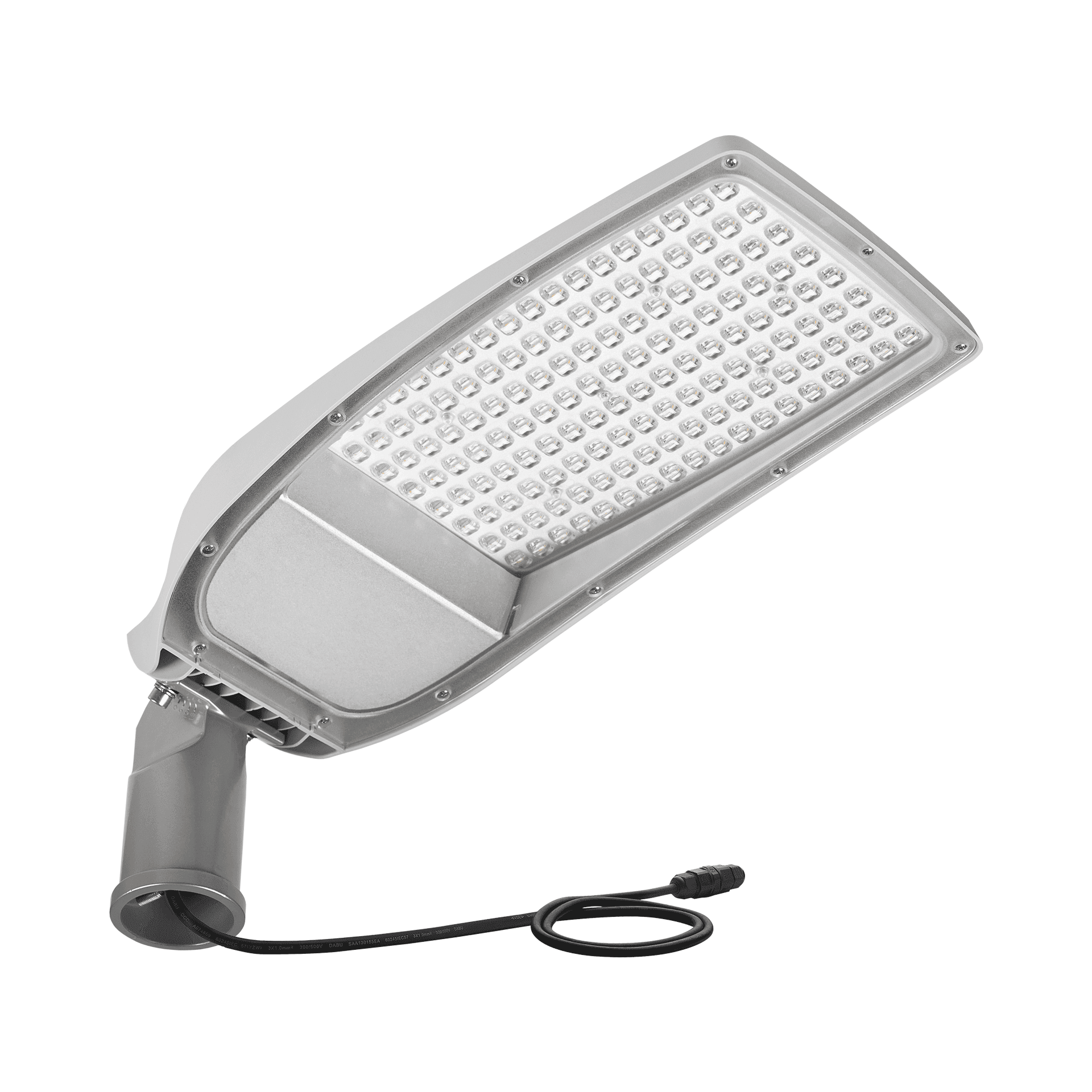

Streetlight LED fitting with high luminous flux (max 173 lm/W) and an integrated energy-saving LED module. The self-cleaning body is made of polypropylene (PP) with fibreglass (GF) and the grip is made of aluminium. Thanks to the directional lens (made of PC), the light distribution meets the requirements of PN–EN 13201 lighting class. IP66 ingress protection class and IK08 impact-rating features make this fitting extremely tight and shock-resistant (vandal-resistant). Integrated, step-regulated grip allows to set the fitting by 5 degrees in the range of -5° to +15° (peak to pole); -15° to +5° (side to boom).

Application

Streetlight fitting is used in open spaces to lighten: streets, local roads, bicycle paths, alleys, pavements, car parks, and squares. Installation and Mounting: lateral side entry, post-top mounting. Mounting grip integrated with the fitting.

Other products from the Astra LED

Rated power of the luminaire [W]	Colour temperature [K]	Luminous flux [lm]	Diffuser type	Energy efficiency class	Index
ASTRA LED BASIC 32W
32	3000	4100	matrix led	D	664595
32	4000	4400	matrix led	C	664670
32	5700	4400	matrix led	C	664687
ASTRA LED BASIC 51W
51	3000	6100	matrix led	D	664618
51	4000	6500	matrix led	D	664717
51	5700	6500	matrix led	D	664724
ASTRA LED BASIC 64W
64	3000	7300	matrix led	E	664632
64	4000	7800	matrix led	D	664762
64	5700	7800	matrix led	D	664748

Index	Accessory name
UL00229	mounting grip 78 mm
