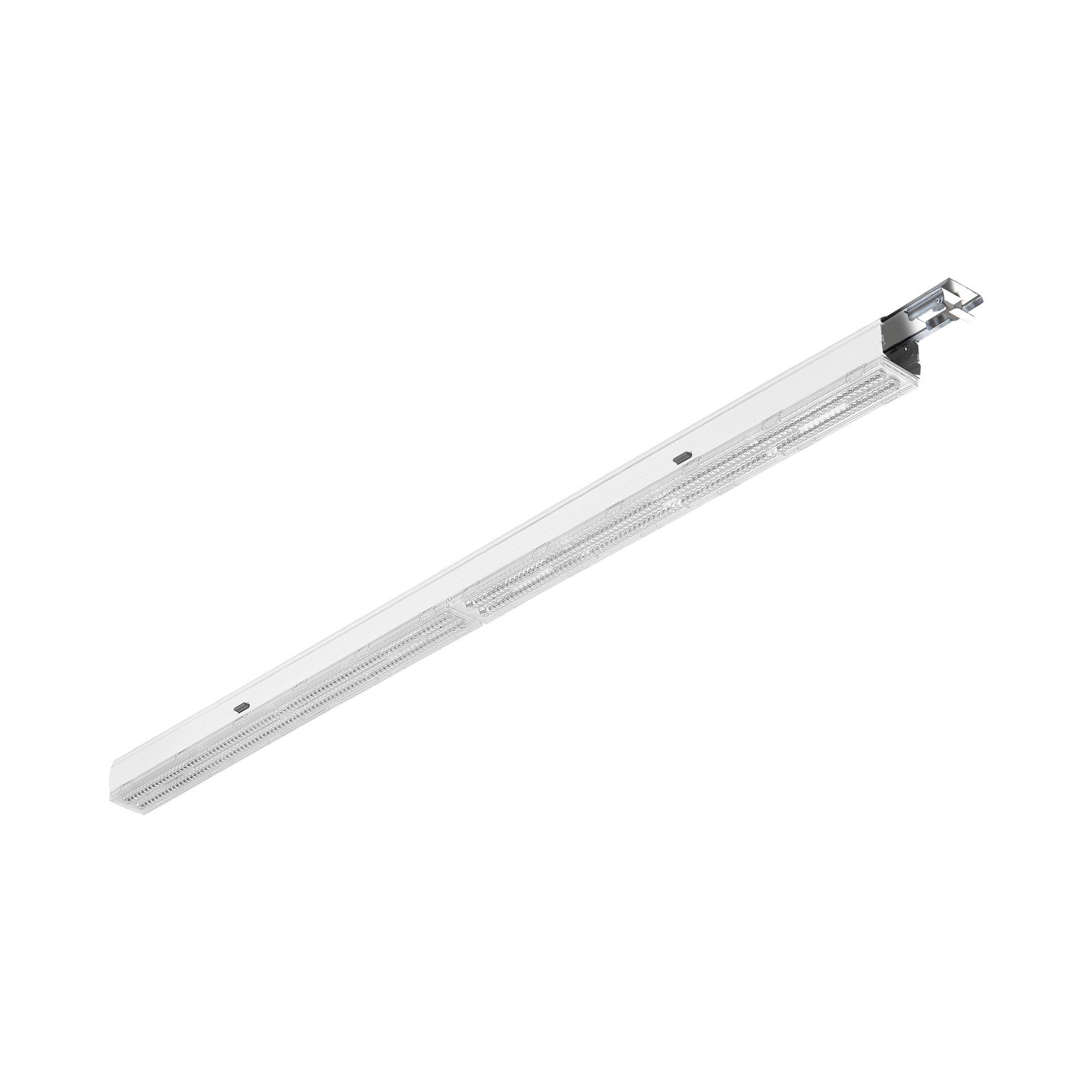

Linea S LED light module

Downloads

Characteristics

LINEA S LED is a surface-mounted and pendant light line system, representing a new generation of lamps dedicated to LED technology. The innovative connection system and pass-through wiring allow the lamps to be quickly combined into a light line, and allows for flexible replacement of light modules to suit current needs. The design used allows for easy installation and power connection. Designed from scratch, the body is made of steel and anodized, providing the lamp with strength and robustness, while the narrow side profile allows installation in hard-to-reach places. Diodes from a reputable manufacturer and new LED modules contribute to a very high luminous efficiency.

The Linea S LED has been equipped with new light distributions:

SW - a standard wide lens (80D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to its low glare index UGR<19 - in office areas of the building. It provides high visual impact and helps to meet the most stringent requirements of EN 12464-1 in terms of glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for spaces where luminaires are mounted at heights of 3-8m.

MW - medium wide lens (90D conventional angle) with a wide range of applications in commercial buildings, industrial halls and even - due to the low glare UGR<19 - in office areas of the building. It provides high visual impact and helps to meet the most stringent requirements of EN 12464-1 in terms of glare index, illuminance and high uniformity on aisle and shelf surfaces. Particularly recommended for rooms where luminaires are mounted at heights of 3-6m.

VW - a very wide lens (105D conventional angle) with wide application in open spaces and low warehouses. It provides high effectivity and helps meet the most stringent requirements of EN 12464-1 in terms of glare index (UGR<22, UGR<25), illuminance and high uniformity when the system is installed in low spaces. Particularly recommended for rooms where luminaires are mounted at a height of 2.5-5m.

UGR <19
Unified Glare Rating is an indicator characterizing glare. The lower the Unified Lighting Rating Index (UGR), the lower the glare.

Application

A versatile led lamp designed for indoor use, especially recommended for lighting large-scale commercial, manufacturing and warehouse facilities. A lamp for use in both new applications and replacing traditional T8 and T5 fixtures with energy-efficient LED solutions.

For industrial, warehouse and commercial areas

Clicked-in light module

Light modules are clicked into spots placed on the supporting profile, chosen by the installer.

Various lengths

Three lengths of light modules and three lengths of supporting profiles give the possibility of creating many variants of lines and flexibility in adjusting the lighting to area specificity.

Tool-free access

The design of the luminaire allows the installer to access the clicked-in luminaire interior quickly and without any tools.

Many options

The luminaire is available in many options of optics with four light distribution variants (120°, 105°, 40/30° i 46/117°), enabling the illumination of objects from a height of up to 20 m.

Quick installation

Connecting individual modules is extremely simple and requires no tools. The speed of installing the lines brings the investor time and money savings.

The installation process is extremely intuitive. It starts with connecting the supporting profiles and mounting them to the ceiling. (they can be surface mounted or suspended). You can move the mounting brackets along the entire length of the profile, so there is no need to mark the exact location of the mounting holes.

The profiles are connected by clicking in the connecting mechanism. It requires no strength, no tools and takes a second. Then, it is enough to connect the power supply to the mounted supporting profiles and connect the light modules.

Luminaire ideal for commercial properties

With emergency lighting

Linea S LED luminaires are not only standard lighting modules providing general lighting. They are also modules with emergency lighting available. So there is no need to la another electrical circuit to ensure safe evacuation

With projectors

The constructor has provided compatibility of Linea S LED with a module offering accent lighting which can be clicked into it. This element of the line can spot-illuminate the details that the investor or user of the facility would like to expose.

With motion sensor

Function modules with DALI motion sensors are available. They bring energy savings in places where no light is required at a given moment.

Extended possibilities

The supporting profiles have 11-core wiring – this allows for clicking various control systems and intelligent lighting solutions into the luminaire.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	Light distribution type	DIMM DALI	Dimensions (H/W/T/S) [mm]	Index
Linea S LED light module 14W
14	2100	90	MW	-	1176/67/50	975455
14	2100	90	MW	yes	1176/67/50	983580
14	2100	80	SW	-	1176/67/50	975233
14	2100	80	SW	yes	1176/67/50	981975
14	2100	105	VW	-	1176/67/50	975677
14	2100	105	VW	yes	1176/67/50	975899
Linea S LED light module 18W
18	2700	90	MW	-	1176/67/50	975448
18	2700	90	MW	yes	1176/67/50	983573
18	2700	80	SW	-	1176/67/50	975226
18	2700	80	SW	yes	1176/67/50	981968
18	2700	105	VW	-	1176/67/50	975660
18	2700	105	VW	yes	1176/67/50	975882
Linea S LED light module 19W
19	2900	90	MW	-	1764/67/50	975561
19	2900	90	MW	yes	1764/67/50	983672
19	2900	80	SW	-	1764/67/50	975349
19	2900	80	SW	yes	1764/67/50	983696
19	2900	105	VW	-	1764/67/50	975783
19	2900	105	VW	yes	1764/67/50	975981
Linea S LED light module 26W
26	4100	90	MW	-	1176/67/50	975431
26	4100	90	MW	yes	1176/67/50	981838
26	4100	80	SW	-	1176/67/50	975219
26	4100	80	SW	yes	1176/67/50	981722
26	4100	105	VW	-	1176/67/50	975653
26	4100	105	VW	yes	1176/67/50	975875
Linea S LED light module 27W
27	4100	90	MW	-	1764/67/50	975554
27	4100	90	MW	yes	1764/67/50	983665
27	4100	80	SW	-	1764/67/50	975332
27	4100	80	SW	yes	1764/67/50	981760
27	4100	105	VW	-	1764/67/50	975776
27	4100	105	VW	yes	1764/67/50	981876
Linea S LED light module 31W
31	5000	90	MW	-	1176/67/50	975424
31	5000	90	MW	yes	1176/67/50	983566
31	5000	80	SW	-	1176/67/50	975202
31	5000	80	SW	yes	1176/67/50	981746
31	5000	105	VW	-	1176/67/50	975646
31	5000	105	VW	yes	1176/67/50	975868
Linea S LED light module 33W
33	5050	105	symmetric	-	1176/53/26	980336
33	5050	105	symmetric	yes	1176/53/26	980732
33	5100	46x117	corridor	-	1176/53/26	980350
33	5100	46x117	corridor	yes	1176/53/26	980756
33	5100	40x30	narrow	-	1176/53/26	980367
33	5100	40x30	narrow	yes	1176/53/26	980763
33	5450	120	symmetric	-	1176/53/26	980343
33	5450	120	symmetric	yes	1176/53/26	980749
Linea S LED light module 34W
34	5600	90	MW	-	1764/67/50	975547
34	5600	90	MW	yes	1764/67/50	983658
34	5600	80	SW	-	1764/67/50	975325
34	5600	80	SW	yes	1764/67/50	981777
34	5600	105	VW	-	1764/67/50	975769
34	5600	105	VW	yes	1764/67/50	975974
Linea S LED light module 40W
40	6400	90	MW	-	1176/67/50	975417
40	6400	90	MW	yes	1176/67/50	983559
40	6400	80	SW	-	1176/67/50	975196
40	6400	80	SW	yes	1176/67/50	981739
40	6400	105	VW	-	1176/67/50	975639
40	6400	105	VW	yes	1176/67/50	975851
Linea S LED light module 45W
45	7300	90	MW	-	1764/67/50	975530
45	7300	90	MW	yes	1764/67/50	983641
45	7300	80	SW	-	1764/67/50	975318
45	7300	80	SW	yes	1764/67/50	981791
45	7300	105	VW	-	1764/67/50	975752
45	7300	105	VW	yes	1764/67/50	981883
Linea S LED light module 46W
46	7050	105	symmetric	-	1176/53/26	980374
46	7050	105	symmetric	yes	1176/53/26	980770
46	7100	46x117	corridor	-	1176/53/26	980398
46	7100	46x117	corridor	yes	1176/53/26	980794
46	7100	40x30	narrow	-	1176/53/26	980404
46	7100	40x30	narrow	yes	1176/53/26	980800
46	7600	120	symmetric	-	1176/53/26	980381
46	7600	120	symmetric	yes	1176/53/26	980787
Linea S LED light module 47W
47	8000	90	MW	-	1176/67/50	975400
47	8000	90	MW	yes	1176/67/50	981845
47	8000	80	SW	-	1176/67/50	975189
47	8000	80	SW	yes	1176/67/50	981951
47	8000	105	VW	-	1176/67/50	975622
47	8000	105	VW	yes	1176/67/50	975844
Linea S LED light module 48W
48	7400	105	symmetric	-	1764/53/26	980145
48	7400	105	symmetric	yes	1764/53/26	980534
48	7500	46x117	corridor	-	1764/53/26	980169
48	7500	46x117	corridor	yes	1764/53/26	980558
48	7500	40x30	narrow	-	1764/53/26	980176
48	7500	40x30	narrow	yes	1764/53/26	980565
48	8000	120	symmetric	-	1764/53/26	980152
48	8000	120	symmetric	yes	1764/53/26	980541
Linea S LED light module 57W
57	9500	90	MW	-	1176/67/50	975394
57	9500	90	MW	yes	1176/67/50	983542
57	9500	80	SW	-	1176/67/50	975172
57	9500	80	SW	yes	1176/67/50	981944
57	9500	105	VW	-	1176/67/50	975615
57	9500	105	VW	yes	1176/67/50	975837
Linea S LED light module 61W
61	10300	90	MW	-	1176/67/50	975387
61	10300	90	MW	yes	1176/67/50	983535
61	10300	80	SW	-	1176/67/50	975165
61	10300	80	SW	yes	1176/67/50	981753
61	10300	105	VW	-	1176/67/50	975608
61	10300	105	VW	yes	1176/67/50	975820
Linea S LED light module 63W
63	10100	90	MW	-	1764/67/50	975523
63	10100	90	MW	yes	1764/67/50	983634
63	10100	80	SW	-	1764/67/50	975301
63	10100	80	SW	yes	1764/67/50	981784
63	10100	105	VW	-	1764/67/50	975745
63	10100	105	VW	yes	1764/67/50	975967
Linea S LED light module 65W
65	9500	105	symmetric	-	1764/53/26	980183
65	9500	105	symmetric	yes	1764/53/26	980572
65	9600	46x117	corridor	-	1764/53/26	980206
65	9600	46x117	corridor	yes	1764/53/26	980596
65	9600	40x30	narrow	-	1764/53/26	980213
65	9600	40x30	narrow	yes	1764/53/26	980602
65	10200	120	symmetric	-	1764/53/26	980190
65	10200	120	symmetric	yes	1764/53/26	980589
Linea S LED light module 67W
67	10300	105	symmetric	-	1176/53/26	980497
67	10300	105	symmetric	yes	1176/53/26	980817
67	10400	46x117	corridor	-	1176/53/26	980510
67	10400	46x117	corridor	yes	1176/53/26	980831
67	10400	40x30	narrow	-	1176/53/26	980527
67	10400	40x30	narrow	yes	1176/53/26	980848
67	11100	120	symmetric	-	1176/53/26	980503
67	11100	120	symmetric	yes	1176/53/26	980824
Linea S LED light module 70W
70	12100	90	MW	-	1764/67/50	975516
70	12100	90	MW	yes	1764/67/50	981852
70	12100	80	SW	-	1764/67/50	975295
70	12100	80	SW	yes	1764/67/50	981807
70	12100	105	VW	-	1764/67/50	975738
70	12100	105	VW	yes	1764/67/50	975950
Linea S LED light module 71W
71	11800	90	MW	-	1176/67/50	975370
71	11800	90	MW	yes	1176/67/50	983528
71	11800	80	SW	-	1176/67/50	975158
71	11800	80	SW	yes	1176/67/50	981937
71	11800	105	VW	-	1176/67/50	975592
71	11800	105	VW	yes	1176/67/50	975813
Linea S LED light module 73W
73	10700	105	symmetric	-	1176/53/26	980411
73	10700	105	symmetric	yes	1176/53/26	980855
73	10800	46x117	corridor	-	1176/53/26	980435
73	10800	46x117	corridor	yes	1176/53/26	980879
73	10800	40x30	narrow	-	1176/53/26	980442
73	10800	40x30	narrow	yes	1176/53/26	980886
73	11500	120	symmetric	-	1176/53/26	980312
73	11500	120	symmetric	yes	1176/53/26	980862
Linea S LED light module 77W
77	11600	105	symmetric	-	1176/53/26	980459
77	11600	105	symmetric	yes	1176/53/26	980893
77	11700	46x117	corridor	-	1176/53/26	980046
77	11700	46x117	corridor	yes	1176/53/26	980916
77	11700	40x30	narrow	-	1176/53/26	980480
77	11700	40x30	narrow	yes	1176/53/26	980923
77	12500	120	symmetric	-	1176/53/26	980466
77	12500	120	symmetric	yes	1176/53/26	980909
Linea S LED light module 80W
80	13300	90	MW	-	1176/67/50	975363
80	13300	90	MW	yes	1176/67/50	983511
80	13300	80	SW	-	1176/67/50	975141
80	13300	80	SW	yes	1176/67/50	981920
80	13300	105	VW	-	1176/67/50	975585
80	13300	105	VW	yes	1176/67/50	975806
Linea S LED light module 82W
82	13900	90	MW	-	1764/67/50	975509
82	13900	90	MW	yes	1764/67/50	981869
82	13900	80	SW	-	1764/67/50	975288
82	13900	80	SW	yes	1764/67/50	981814
82	13900	105	VW	-	1764/67/50	975721
82	13900	105	VW	yes	1764/67/50	975943
Linea S LED light module 88W
88	14800	90	MW	-	1764/67/50	975493
88	14800	90	MW	yes	1764/67/50	983627
88	14800	80	SW	-	1764/67/50	975271
88	14800	80	SW	yes	1764/67/50	981821
88	14800	105	VW	-	1764/67/50	975714
88	14800	105	VW	yes	1764/67/50	975936
Linea S LED light module 91W
91	14900	90	MW	-	1176/67/50	975356
91	14900	90	MW	yes	1176/67/50	983504
91	14900	80	SW	-	1176/67/50	975134
91	14900	80	SW	yes	1176/67/50	981913
91	14900	105	VW	-	1176/67/50	975578
91	14900	105	VW	yes	1176/67/50	975790
Linea S LED light module 92W
92	13800	105	symmetric	-	1176/53/26	980053
92	13800	105	symmetric	yes	1176/53/26	981104
92	14000	46x117	corridor	-	1176/53/26	981043
92	14000	46x117	corridor	yes	1176/53/26	981128
92	14000	40x30	narrow	-	1176/53/26	981067
92	14000	40x30	narrow	yes	1176/53/26	981142
92	14900	120	symmetric	-	1176/53/26	981005
92	14900	120	symmetric	yes	1176/53/26	981081
Linea S LED light module 94W
94	14400	105	symmetric	-	1176/53/26	981036
94	14400	105	symmetric	yes	1176/53/26	981111
94	14500	46x117	corridor	-	1176/53/26	981050
94	14500	46x117	corridor	yes	1176/53/26	981135
94	14500	40x30	narrow	-	1176/53/26	981074
94	14500	40x30	narrow	yes	1176/53/26	980329
94	15500	120	symmetric	-	1176/53/26	981012
94	15500	120	symmetric	yes	1176/53/26	981098
Linea S LED light module 96W
96	13900	105	symmetric	-	1764/53/26	980220
96	13900	105	symmetric	yes	1764/53/26	980619
96	14000	46x117	corridor	-	1764/53/26	980244
96	14000	46x117	corridor	yes	1764/53/26	980633
96	14000	40x30	narrow	-	1764/53/26	980251
96	14000	40x30	narrow	yes	1764/53/26	980640
96	15000	120	symmetric	-	1764/53/26	980237
96	15000	120	symmetric	yes	1764/53/26	980626
Linea S LED light module 107W
107	17700	90	MW	-	1764/67/50	975486
107	17700	90	MW	yes	1764/67/50	983610
107	17700	80	SW	-	1764/67/50	975264
107	17700	80	SW	yes	1764/67/50	983689
107	17700	105	VW	-	1764/67/50	975707
107	17700	105	VW	yes	1764/67/50	975929
Linea S LED light module 109W
109	16200	105	symmetric	-	1764/53/26	980268
109	16200	105	symmetric	yes	1764/53/26	980657
109	16400	46x117	corridor	-	1764/53/26	980282
109	16400	46x117	corridor	yes	1764/53/26	980671
109	16400	40x30	narrow	-	1764/53/26	980299
109	16400	40x30	narrow	yes	1764/53/26	980688
109	17500	120	symmetric	-	1764/53/26	980275
109	17500	120	symmetric	yes	1764/53/26	980664
Linea S LED light module 122W
122	20000	90	MW	-	1764/67/50	975479
122	20000	90	MW	yes	1764/67/50	983603
122	20000	80	SW	-	1764/67/50	975257
122	20000	80	SW	yes	1764/67/50	981999
122	20000	105	VW	-	1764/67/50	975691
122	20000	105	VW	yes	1764/67/50	975912
Linea S LED light module 139W
139	22500	90	MW	-	1764/67/50	975462
139	22500	90	MW	yes	1764/67/50	983597
139	22500	80	SW	-	1764/67/50	975240
139	22500	80	SW	yes	1764/67/50	981982
139	22500	105	VW	-	1764/67/50	975684
139	22500	105	VW	yes	1764/67/50	975905
Linea S LED light module 146W
146	21400	105	symmetric	-	1764/53/26	980305
146	21400	105	symmetric	yes	1764/53/26	980695
146	21600	46x117	corridor	-	1764/53/26	980473
146	21600	40x30	narrow	-	1764/53/26	981029
146	21600	46x117	corridor	yes	1764/53/26	980718
146	21600	40x30	narrow	yes	1764/53/26	980725
146	23100	120	symmetric	-	1764/53/26	980428
146	23100	120	symmetric	yes	1764/53/26	980701

Accessories

Hide accessories

Accessory name	Index
LINEA S LED masking 1764mm	980039
LINEA S LED termination IP40	980060
LINEA S LED hang 3m	980077
LINEA S LED power set 5P	980084
LINEA S LED PVC bezel 1176mm	980930
LINEA S LED PVC grille 588mm	981159
LINEA S LED power set 11P	981388
LINEA S LED - end cap IP44	981166
LINEA S LED 588mm universal module 4P	981258
LINEA S LED metal grille 1176mm	980947
LINEA S LED metal grille 588mm	980985
LINEA S LED hang 1.5m	981173
Linea S LED surface mount bracket	980954
LINEA S LED pendant sm 1.5	981418
LINEA S LED chain pendant	981425
Linea S LED power set 7P	980978
LINEA S LED pendant sm 3m	980961
LINEA S LED IP40 connection bezel	981401
LINEA S LED 1176mm module IoT BT HTR PIR DIMM 8(12)m	981715
LINEA S LED 588mm module IoT BT HTR PIR DIMM 12(15)m	981906
LINEA S LED 588mm AW DOT CS 2W 1h NM AT	981227
LINEA S LED 588mm AW DOT CSC 2W 1h NM AT	981234
LINEA S LED 588mm AW DOT CSO 2W 1h NM AT	981241
LINEA S LED 588mm - 1xEXPO ADJUST 2050lm zoom 22-55st. BIAŁY 840 20W	981265
LINEA S LED 588mm - 1xEXPO ADJUST 2050lm DALI zoom 22-55st. BIAŁY 840 20W	981272
LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm zoom 22-55st. BIAŁY 840 20W	981289
LINEA S LED 1176mm - 2xEXPO ADJUST 2050lm DALI zoom 22-55st. BIAŁY 840 20W	981296

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Colour temperature	4000K
Mounting version	recessed surface
Application	commercial industrial

Technical specifications

Downloads

For industrial, warehouse and commercial areas

Clicked-in light module

Various lengths

Tool-free access

Many options

Quick installation

Luminaire ideal for commercial properties

With emergency lighting

With projectors

With motion sensor

Extended possibilities

Related products

Messaggio standing

Linea S LED trunking system

Hulk LED Evo

Altezzo L 150 K

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
