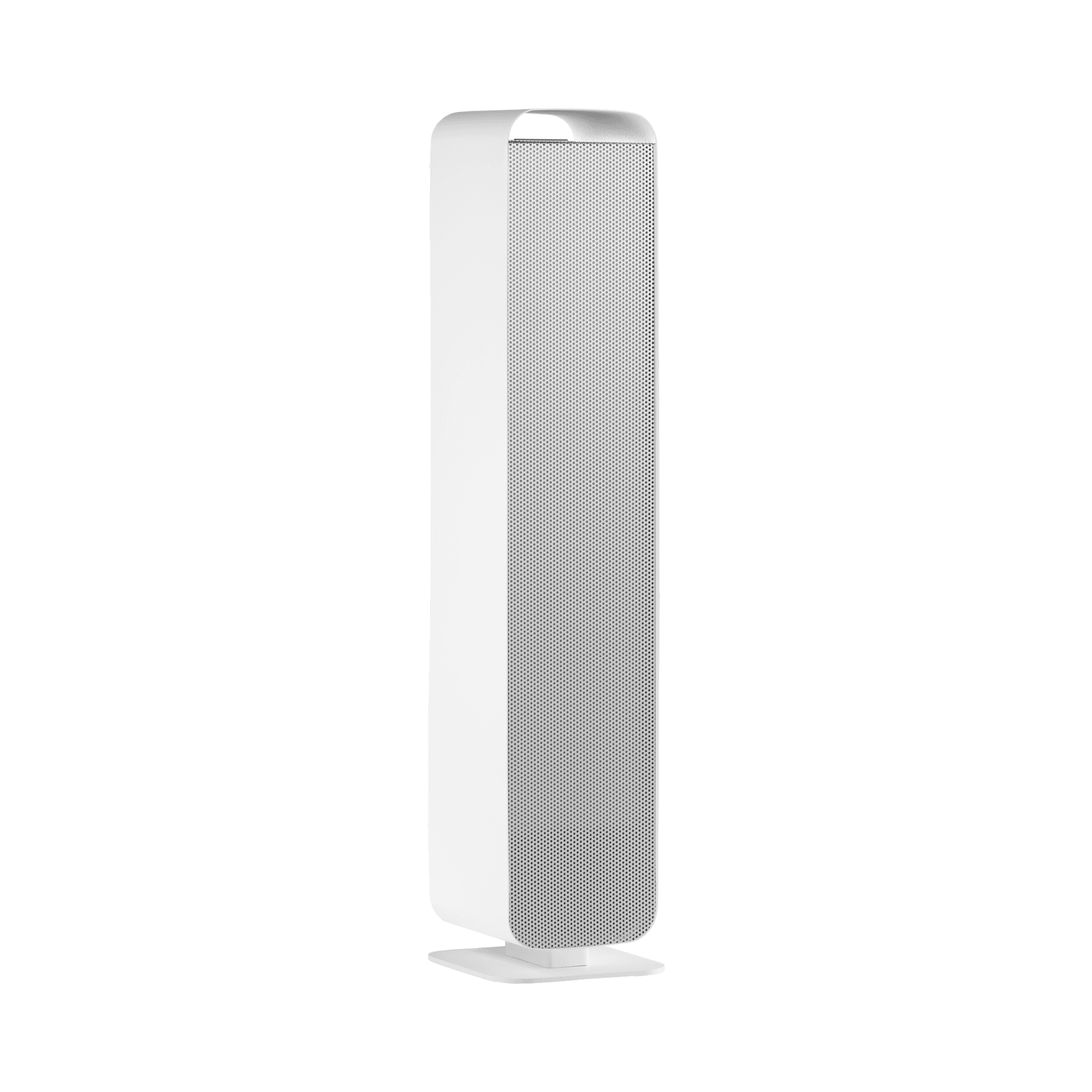

UV-C Sterilon Flow 144W Premium

Downloads

Specification

UV-C Sterilon Flow 144W Premium luminaires emitting ultraviolet (UV-C) light are one of the most effective devices capable of removing viruses, bacteria, fungi from the surface or destroying the DNA or RNA of any exposed microorganisms. It is available as dual-function products. The luminaire is equipped with the ECO mode, which makes it quieter.

Luminaires are recommended for use in service-providing facilities (hair and beauty salons), health care facilities, hotels, restaurants, public administration, educational and care facilities.

Air-flow disinfection function
Direct surface disinfection function
Type of light: UV-C ultraviolet
Colour: white matt body, galvanised silver front
Air-flow: 200 m3/h; 110m3/h (ECO)
Dust filter
Light source lifespan: 9000h
The maximum volume (cubature) of the disinfected room during air-flow disinfection is about 40 m2 (~120 m3)
Noise level: 38-44 dB
The irradiation area for direct disinfection from a distance of 1m is 7 m2 (one direction) or 2 x 7 m2 (two directions)
UV-C Wavelength: 253.7 nm
Supply voltage: 220-240V
Total power consumption: 155W
Class of protection against electric shock: I
Ingress protection class: IP20
Power cord: 3m
ON/OFF switch
Compartment for a HEPA filter
The luminaire is equipped with a working time counter to indicate the consumption of UV-C fluorescent tubes. After the programmed number of hours (9000), the tubes should be replaced and the counter reset. Depending on the lamp version, the sensor is mounted on the front or side of the device.
Accessories: guide wheels, wall mount bracket, HEPA filter, UV-C protective glasses, UV-C fluorescent lamps, dust filter

Air-flow disinfection function
Thanks to forced circulation, the air passes through the interior of the lamp, where it is exposed and disinfected, and then pushed out. Shielded UV-C light does not escape from the lamp, so it can be used in rooms where it is necessary to safely and effectively disinfect the air in the presence of people.

ECO MODE
The ECO mode allows you to adjust the fan operation, which reduces the air-flow in the luminaire to 110 m3/h, thanks to which it works quieter. It should be remembered that in order to obtain a sufficiently high efficiency of disinfection in this mode, the luminaire must work for at least two hours longer.

Direct surface disinfection function
After opening the light source’s cover, the lamp should be directed at the surface for a specified time to effectively disinfect it. However, it should be remembered that UV-C light is harmful to the skin and eyes. When using the lamp in this form, no one should be in the range of the light beam. A careful reading of the user manual is required before use.

Options

Nominal power [W]:	Service life of the UV- C radiation source [h]	Air- flow [m3 / h]	Max volume of the disinfected room [m3]	ECO mode	Working time counter	Protection against opening	HEPA filter holder	Index
144	9000	200	120	yes	yes	yes	yes	240409
144	9000	200	120	yes	yes	yes	yes	240966

Accessories

Hide accessories

Index	Accessory name
WL36500	PL-L UV-C 36W 2G11 OSR fluorescent lamp
240492	Wall bracket STERILON FLOW 144W
243660	Set of guide wheels Sterilon Flow 144W white matt
243677	HEPA H10 filter - set of 5 only for the Flow model
WSAW347	WSAW347 - SterilOn fan dust filter 115x115 PPM 30 1pkg=3pcs
243639	UV-C protective glasses

Set of guide wheels Sterilon Flow 144W white matt (243660)

HEPA H10 filter - set of 5 only for the Flow model (243677)

UV-C protective glasses (243639)
