UV-C Sterilon Air 72W/Z1

Downloads

Specification

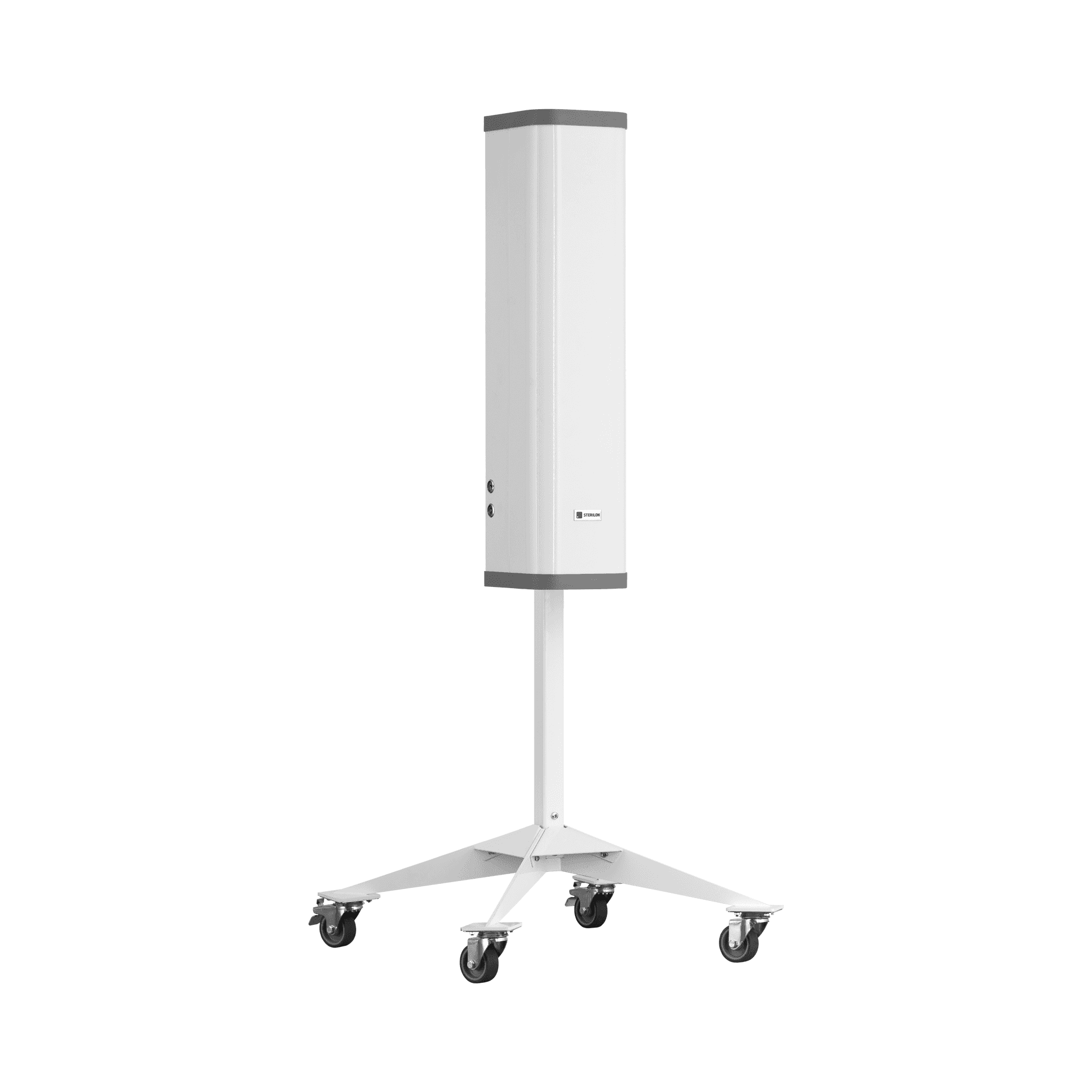

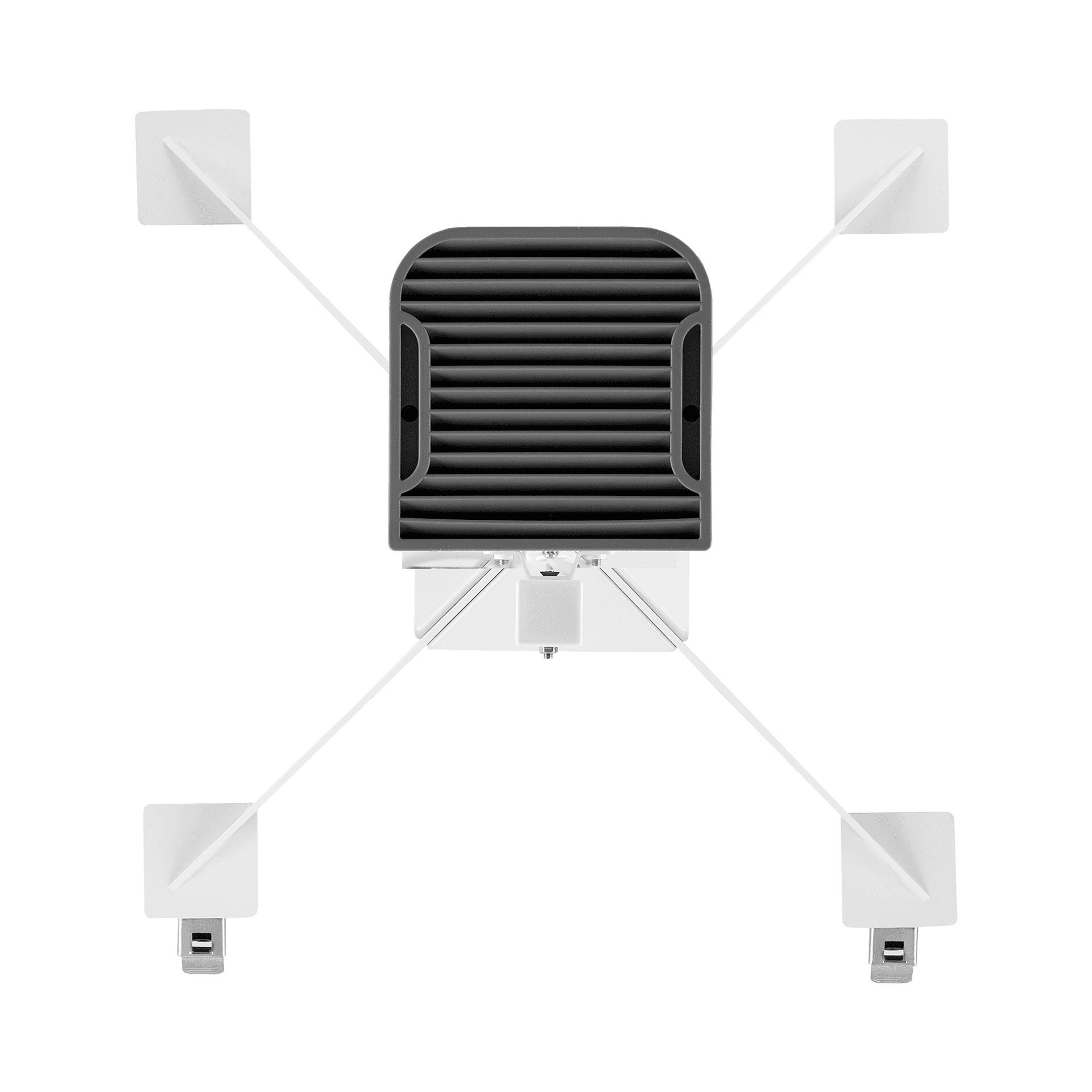

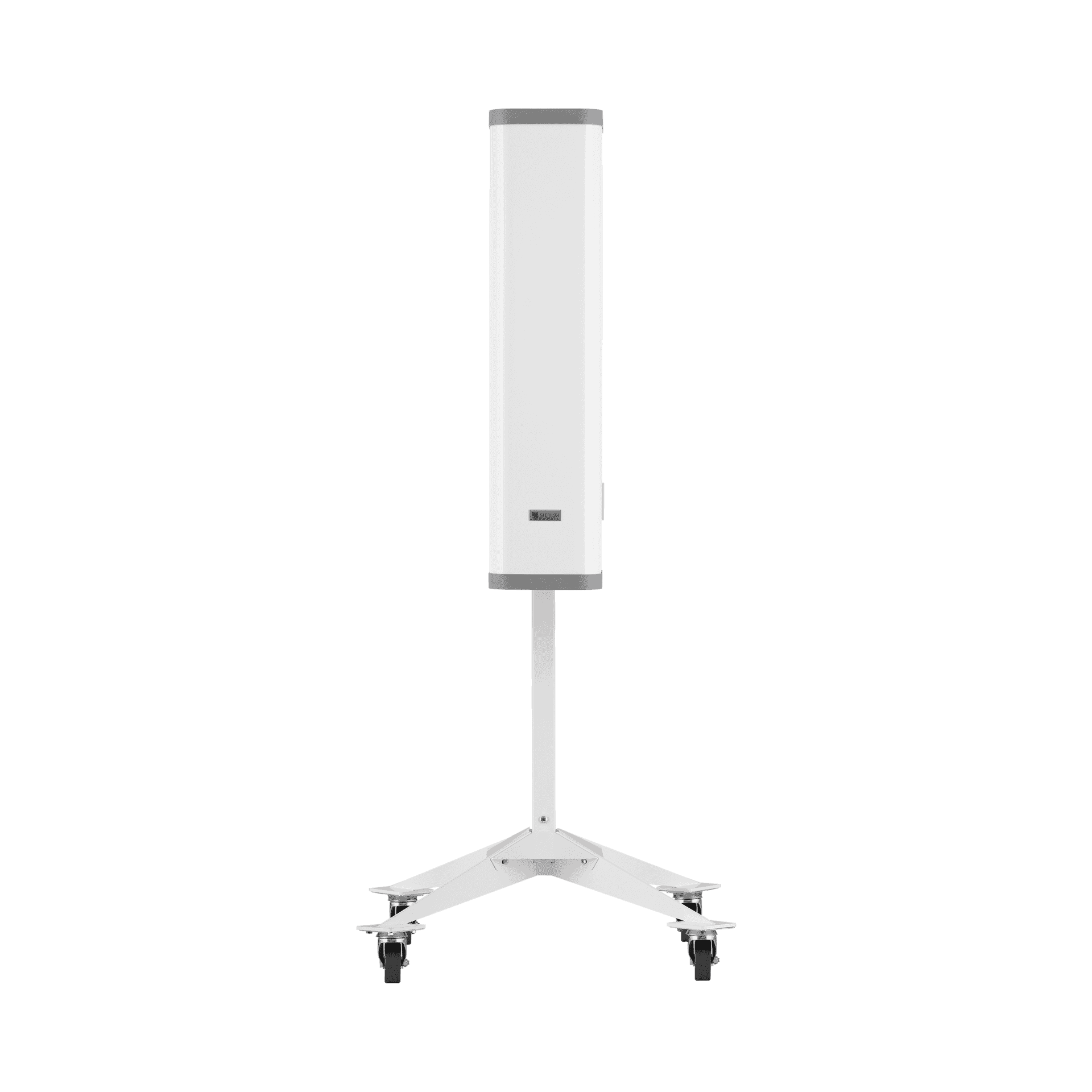

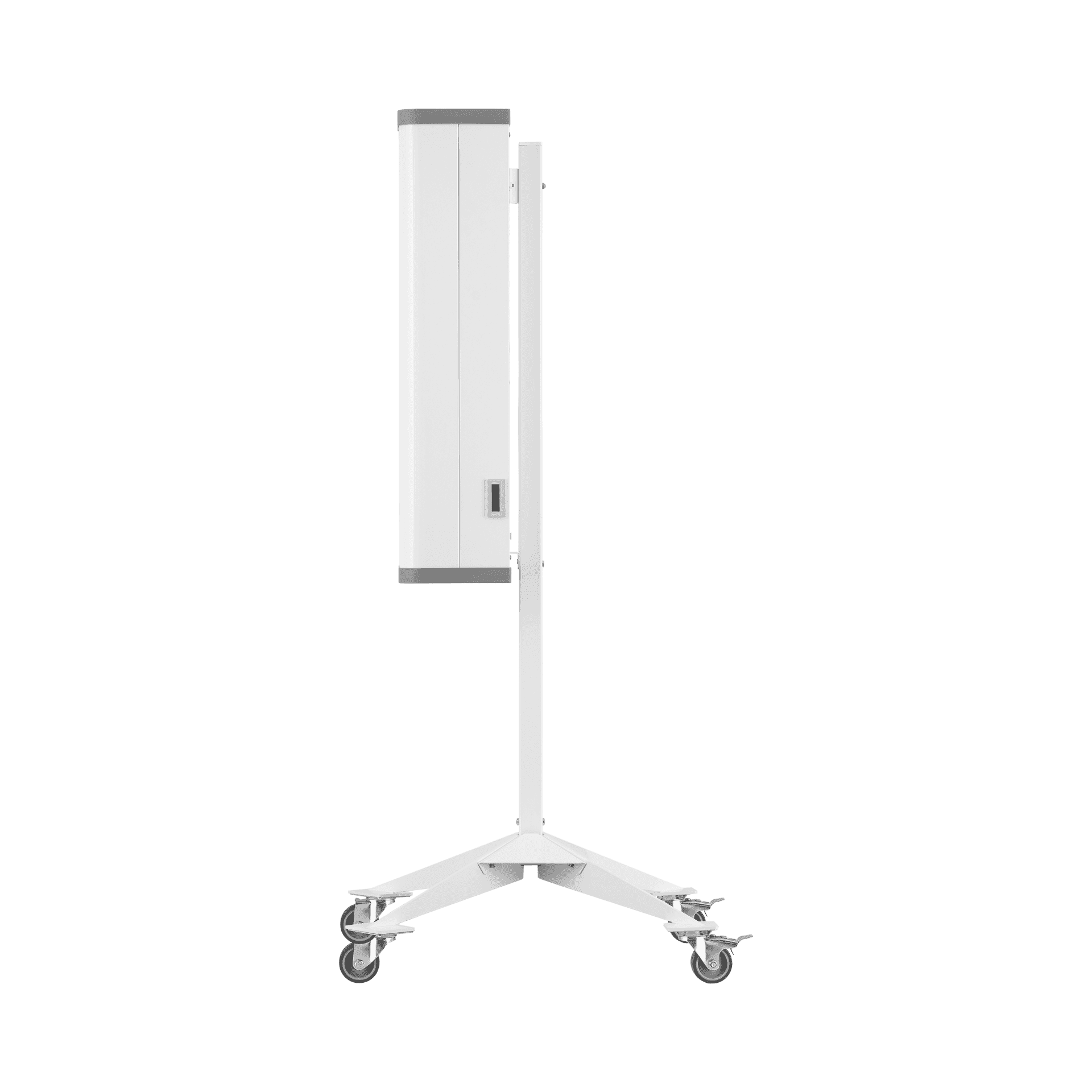

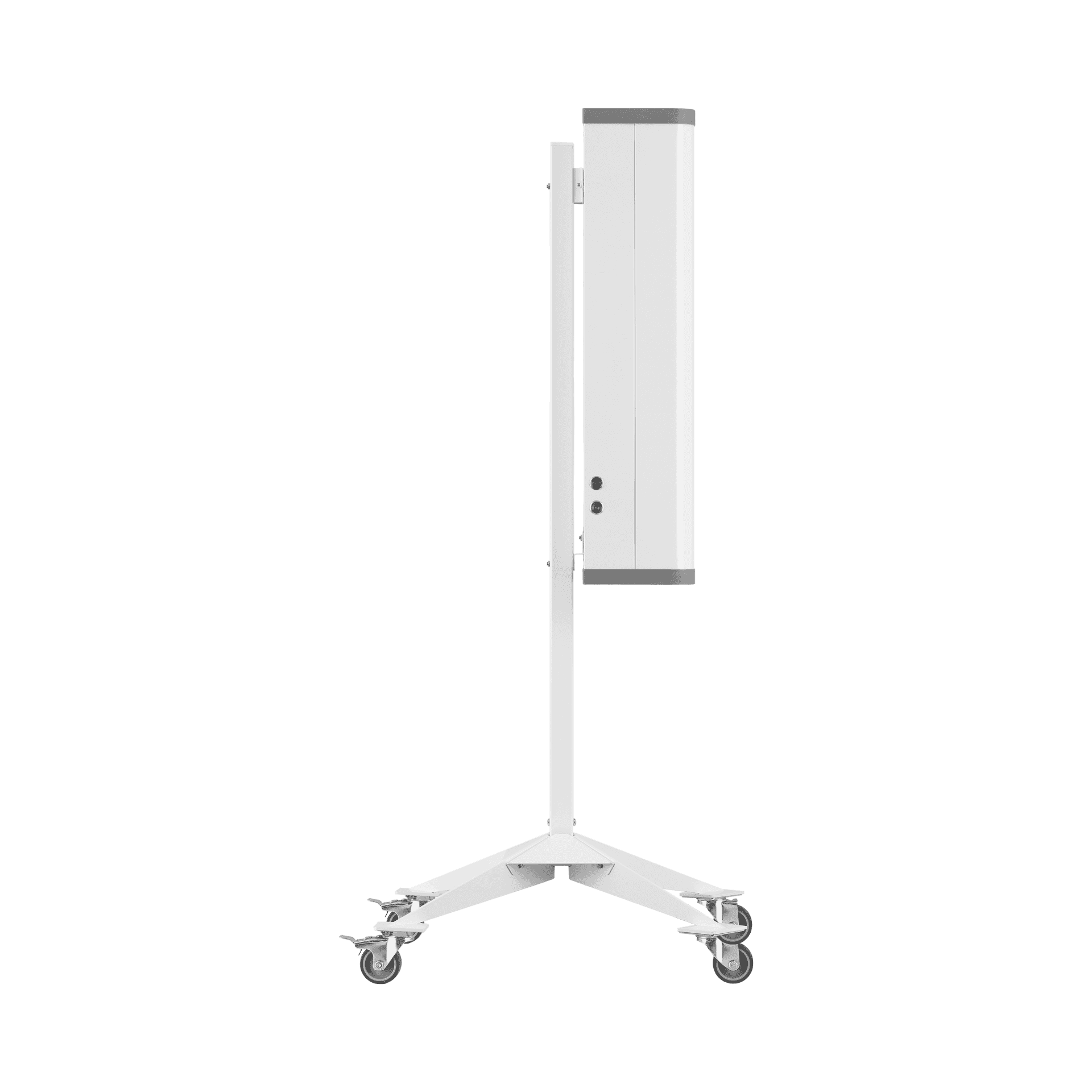

UV-C Sterilon Air 72W/Z1 flow luminaires emitting ultraviolet (UV-C) light are one of the most effective devices capable of removing viruses, bacteria, mold from the surface or destroying the DNA or RNA of any exposed microorganisms. Thanks to the movable base fitted as standard, the luminaire is easy to move. Selected versions are equipped with a 3-meter power cord and a switch. The luminaire is equipped with ECO mode, which makes its operation quieter.

Luminaires are recommended for use in service-providing facilities (hair and beauty salons), healthcare facilities, hotels, restaurants, public administration, educational and care facilities, gyms.

Air-flow disinfection function
Type of light: UV-C ultraviolet
DC fan with ECO mode
Steel body, powder-coated in white
Low weight: ~ 9kg
Air-flow:
- 220 m3/h and 110 m3/h in the mode ECO (version 144W/Z1);
- 160 m3/h and 110 m3/h in the mode ECO (version 72W/Z1)
Dust filter
Light source lifespan: 9000h
The maximum area (cubic capacity) of a room to be flow disinfected is approx.:
- 72W/Z1: approx. 30 m2 (~90 m3)
- 144W/Z1: approx. 50 m2 (~150 m3);
Noise level: 41-43 dB
UV-C wavelength: 253.7 nm
Supply voltage: 220-240V
Total power consumption:
- 142W (144W/Z1);
- 73W (72W/Z1)
Class of protection against electric shock: I
Ingress protection class: IP20
Version with a power cord (3m)
ON/OFF switch
Luminaire equipped with an operating time counter to indicate the consumption of UV-C lamps. After the programmed number of UV-C fluorescent lamps’ lifetime hours (9000) has elapsed, the lamps should be replaced and the counter reset.
Accessories: UV-C lamps

Air-flow disinfection function
Thanks to stimulated circulation, the air passes through the inside of the luminaire where it is exposed to the light and disinfected, and then pushed out. The shielded UV-C light does not escape to the outside of the luminaire, so it can be used in rooms where it is necessary to safely and effectively disinfect the air in the presence of people.

Efficiency and safety of use is a priority
The construction of the interior of the luminaire provides perfect air-flow and the highest disinfection efficiency. The UV-C Sterilon Air luminaire is equipped with protection against the opening. Removing the top cover requires an allen key.

ECO mode
In ECO mode, the adjustable fan allows the air-flow to be reduced to 110 m3/h, which makes the luminaire’s operation quieter. Please note that in order to get high enough disinfection efficiency in this mode, the luminaire must work at least two hours longer than min standard mode.

Options

Nominal power [W]	Service life of the UV-C radiation source [h]	Plug type	Cable length [m]	Electrical protection class	Supply voltage [V]	Air - flow in ECO mode [m3 / h]	Air - flow [m3 / h]	ECO mode	Working time counter	Index
72	9000	UNI-SCHUKO	3	I	220 - 240	110	160	yes	yes	243691

Accessories

Hide accessories

Index	Accessory name
WL36500	PL-L UV-C 36W 2G11 OSR fluorescent lamp
244339	Set of 5 x Sterilon AIR G1 3x127x135mm pre-filter
