Baris 40 LED VD

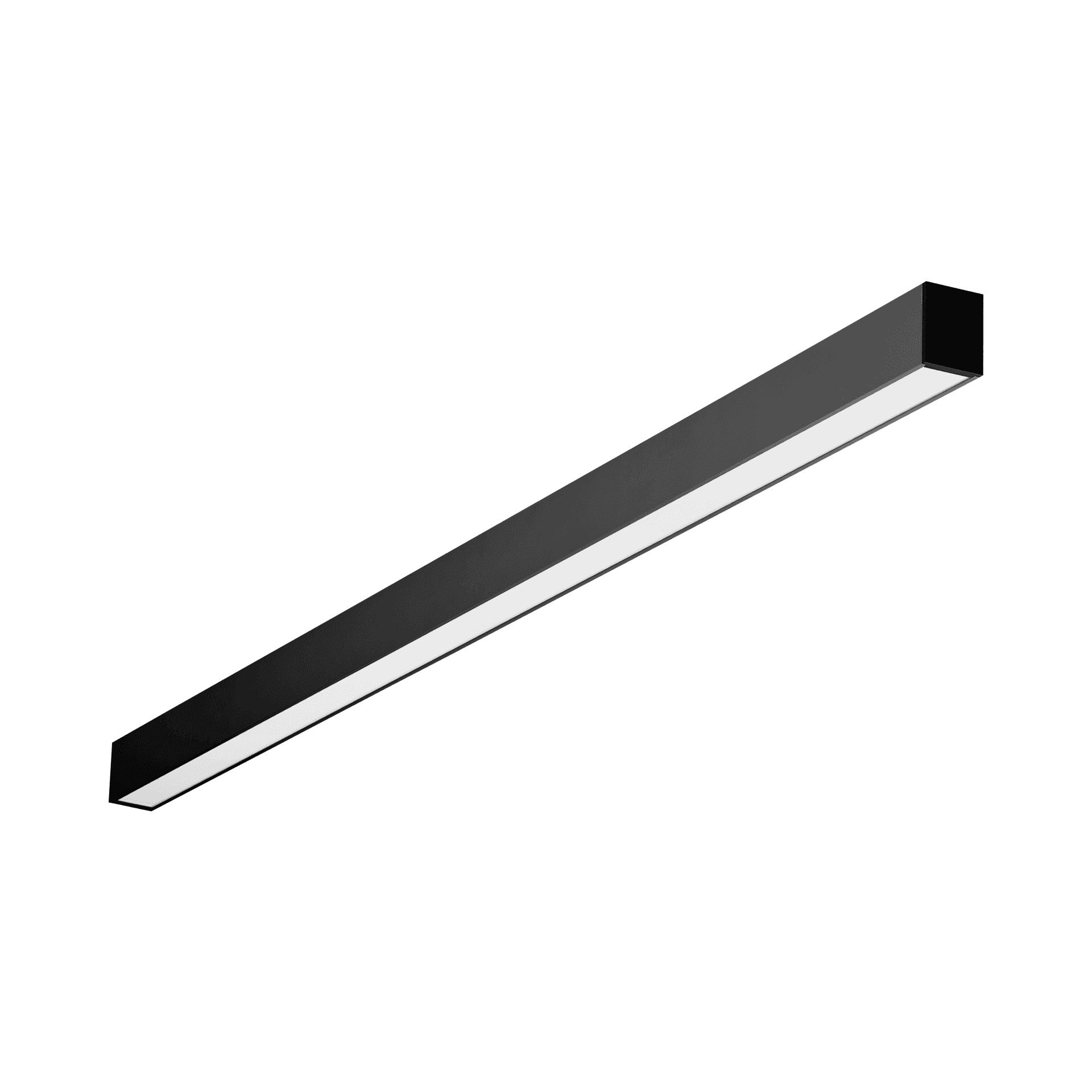

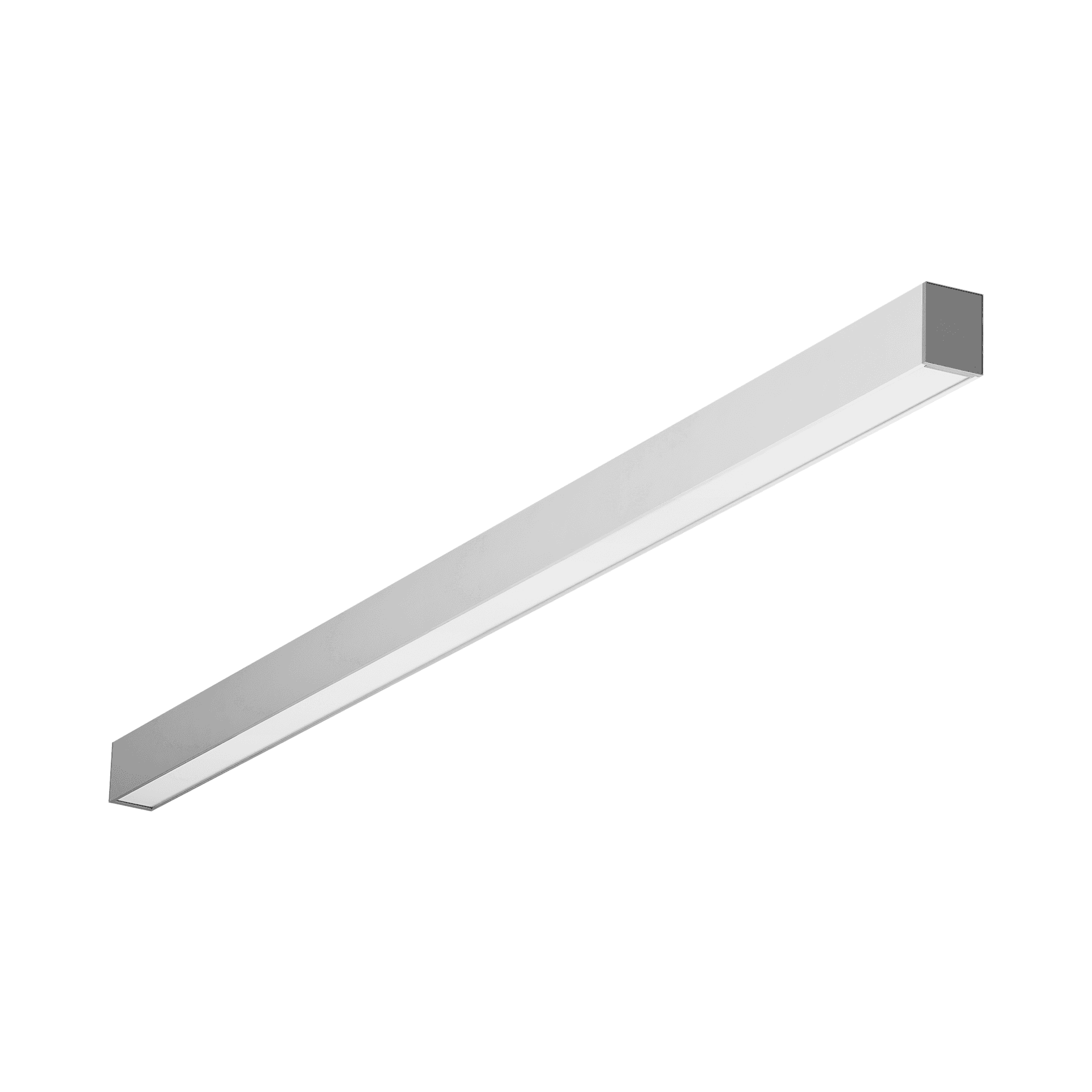

Suspended or surface-mounted luminaire with a very narrow cross-section.

Technical specifications

Light source
LED
Colour temperature
4000K
Diffuser type
OPAL
Mounting version
  • surface
  • surface or suspended
  • suspended
Application
  • architectural
  • office
LEDIik03IP20iotpzhenecCE

The product is available on request.

Specification

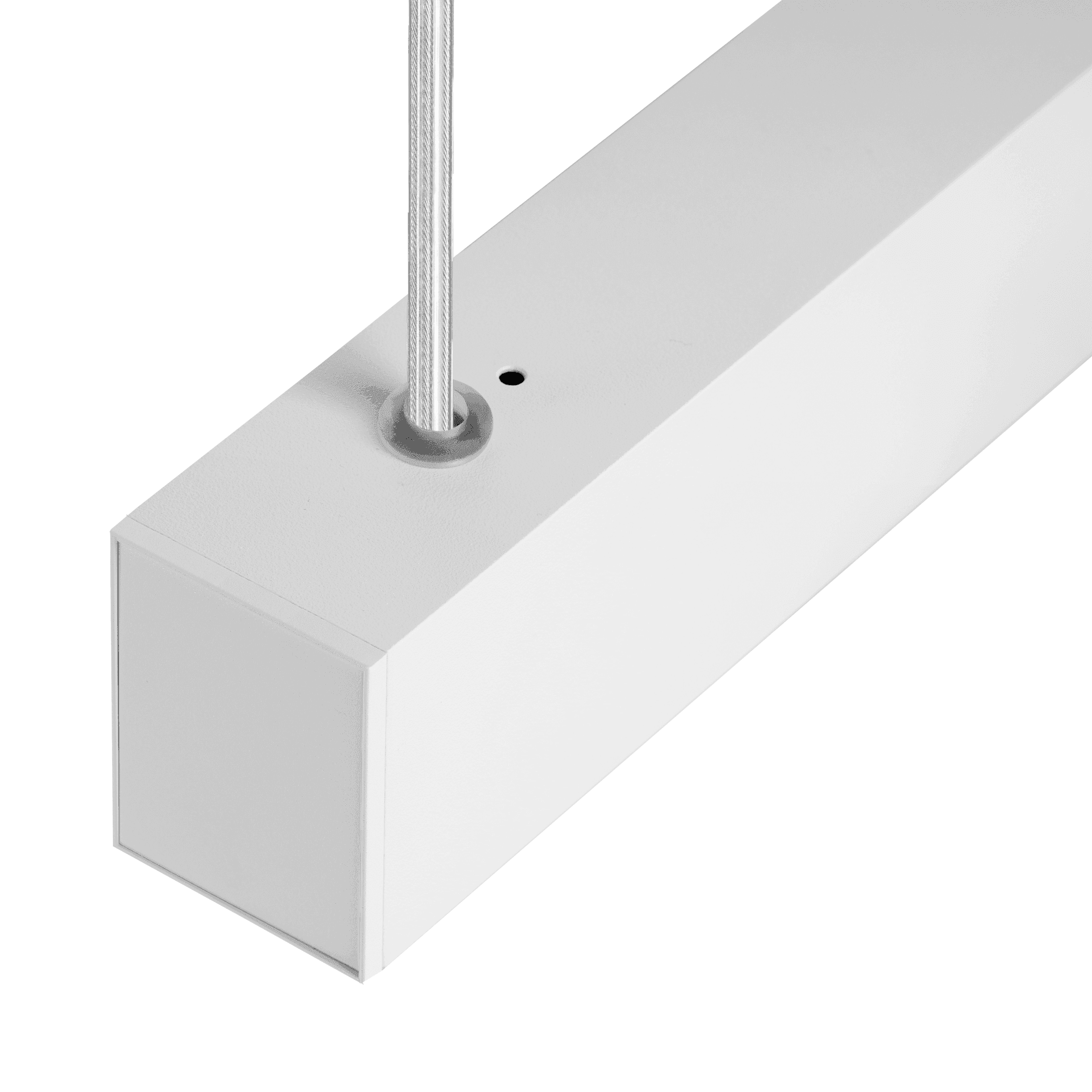

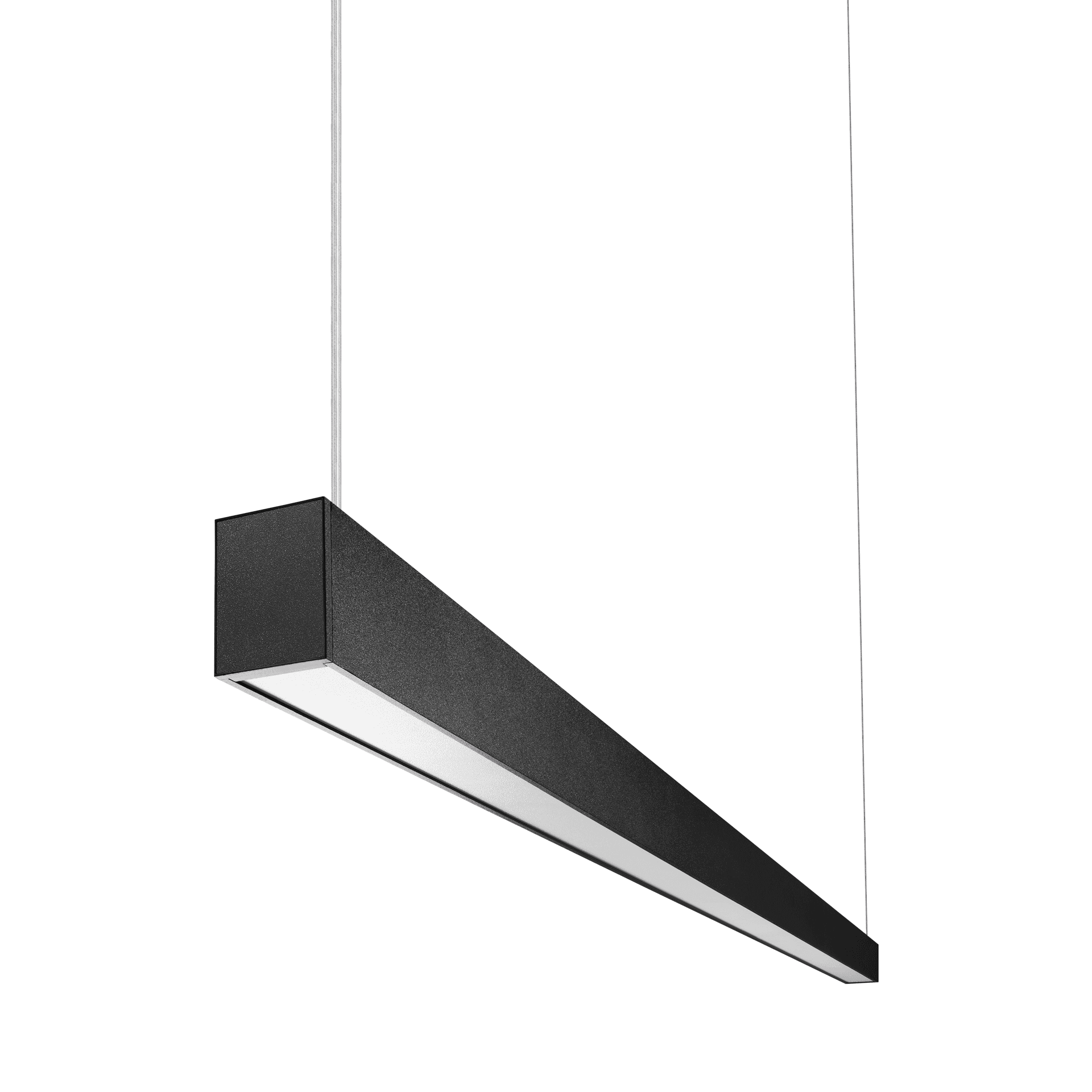

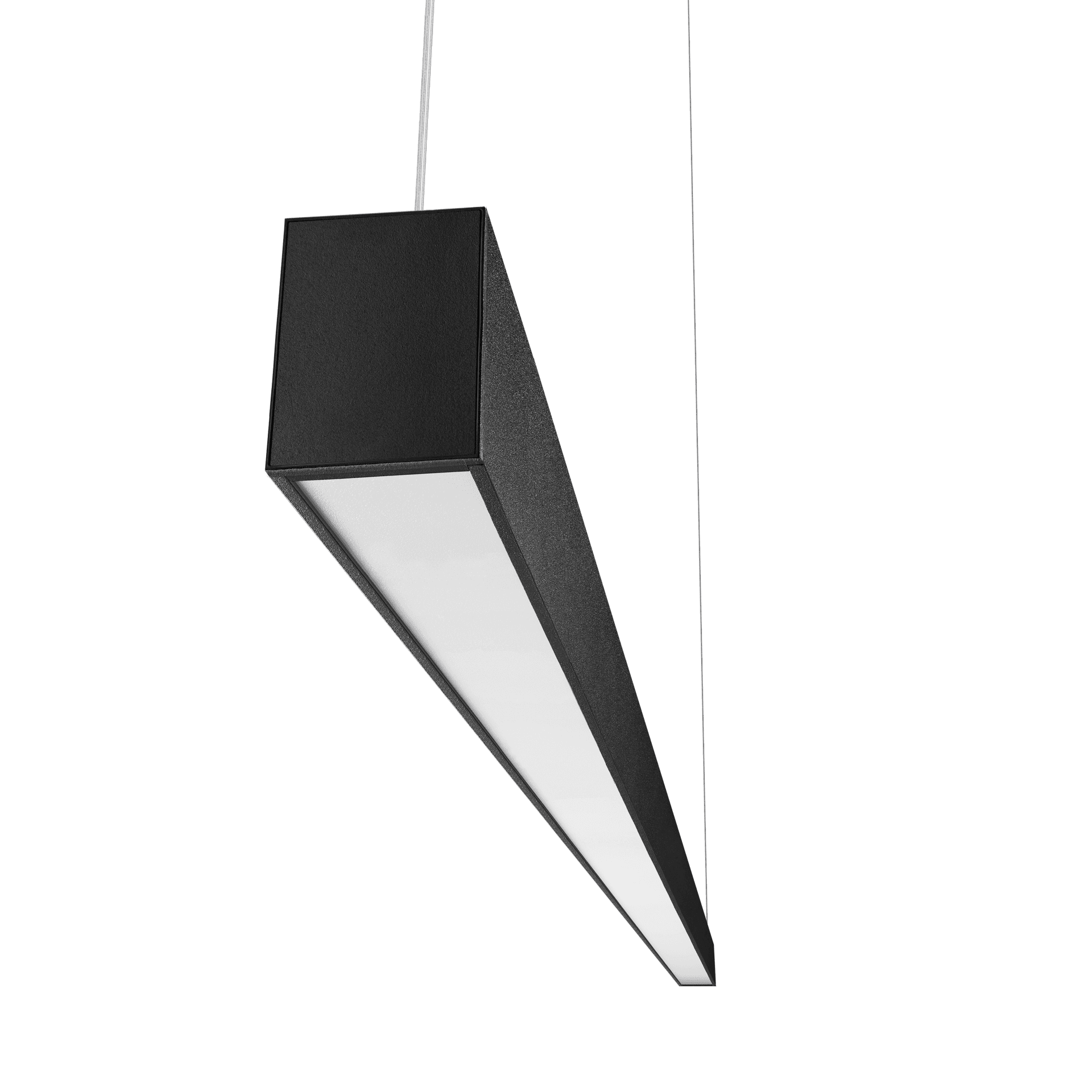

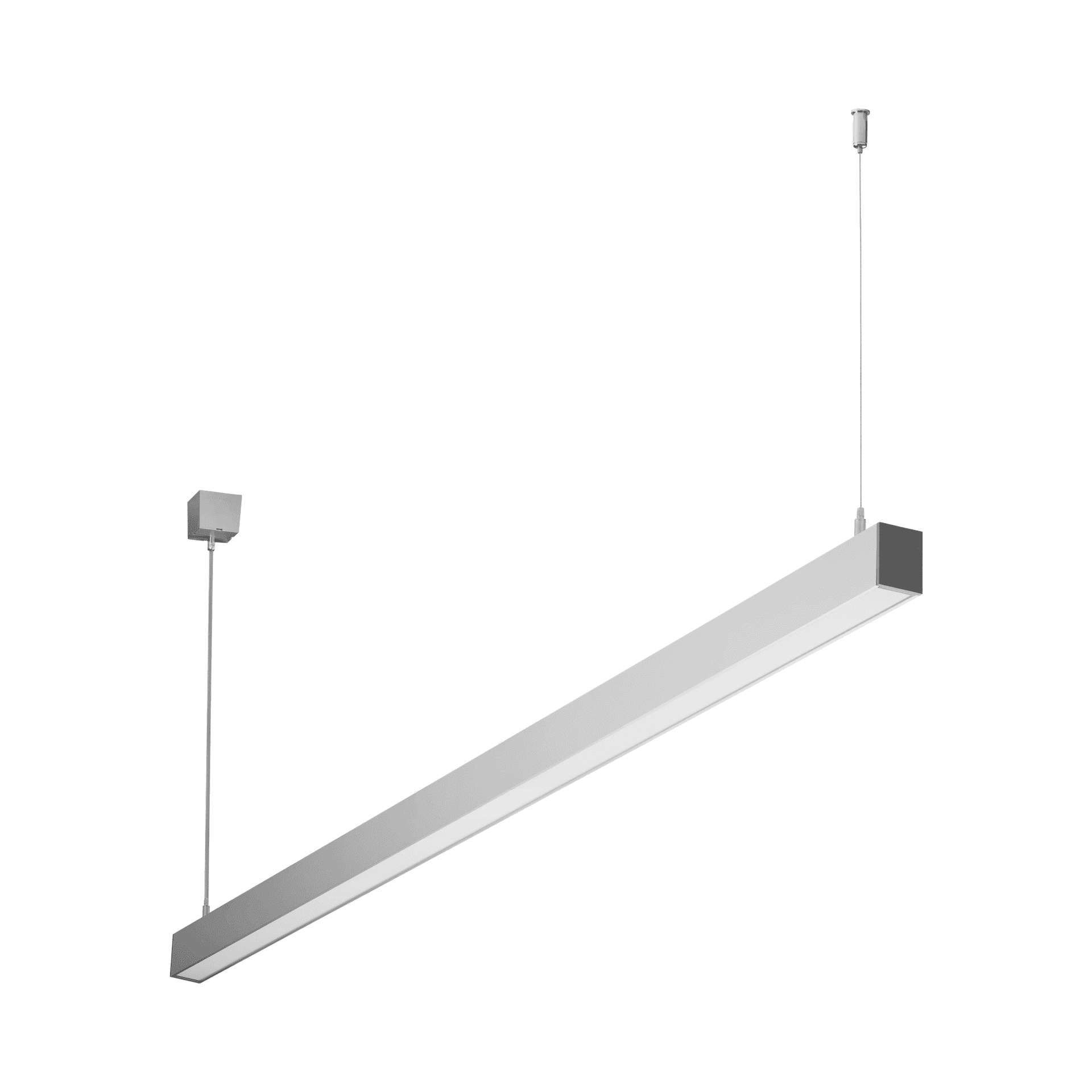

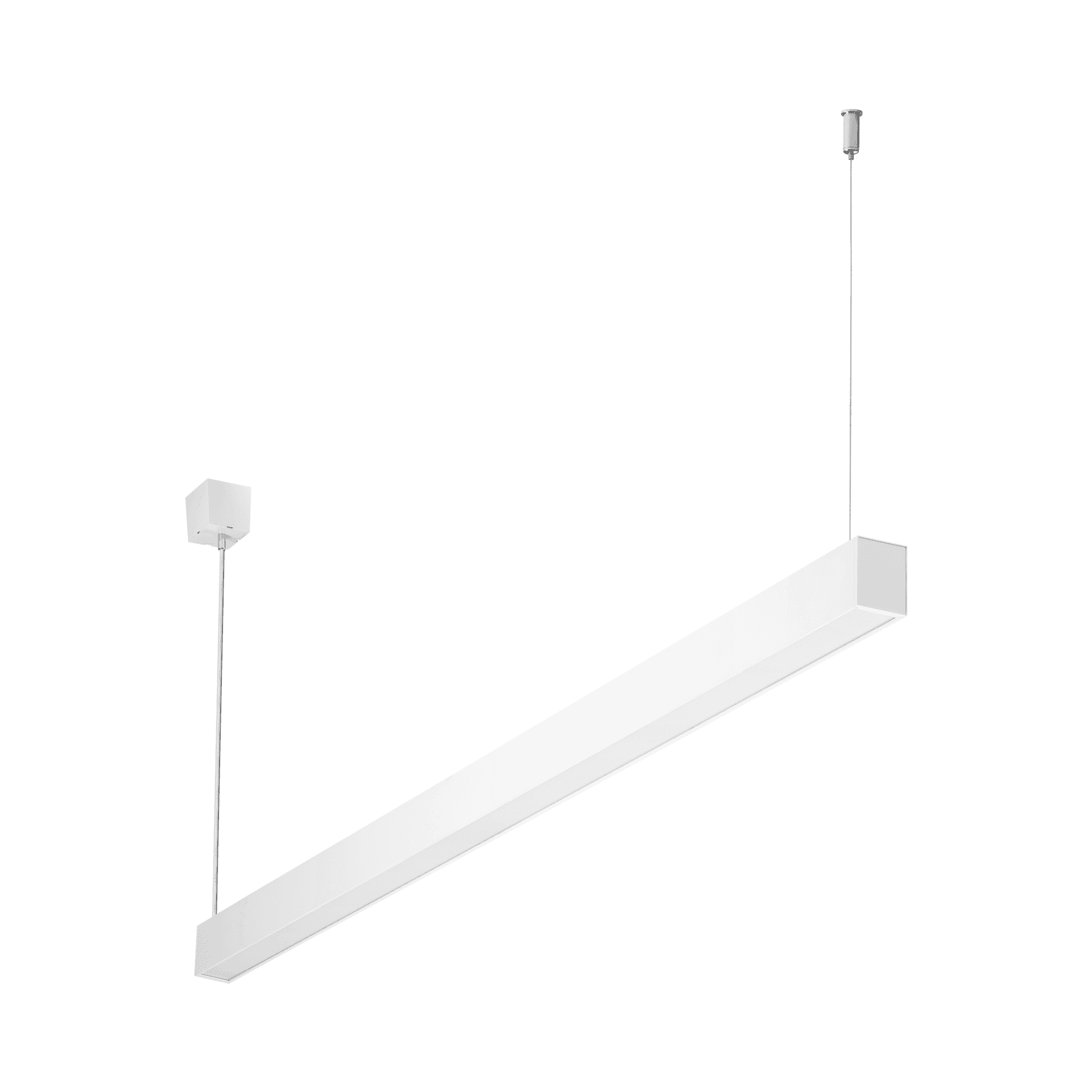

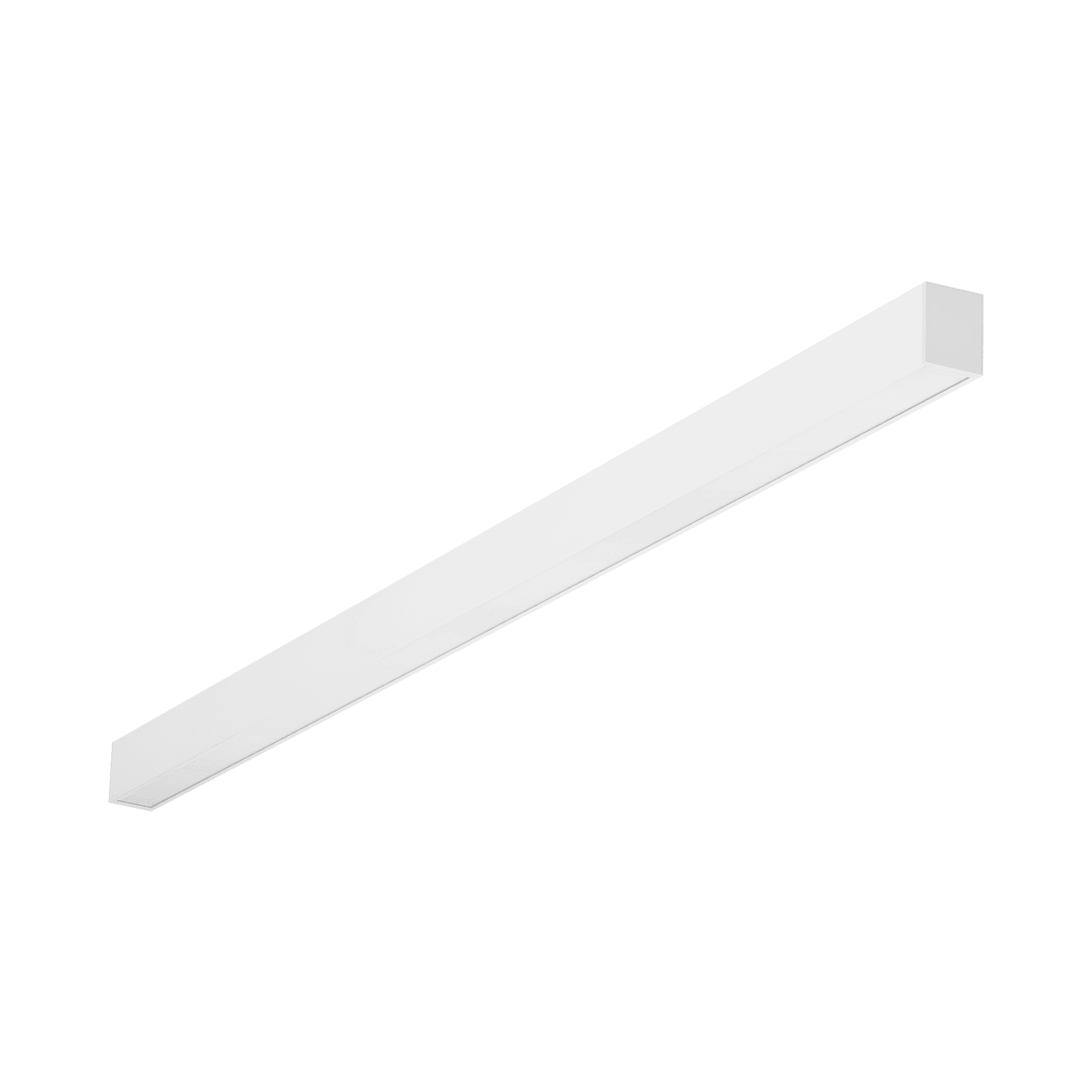

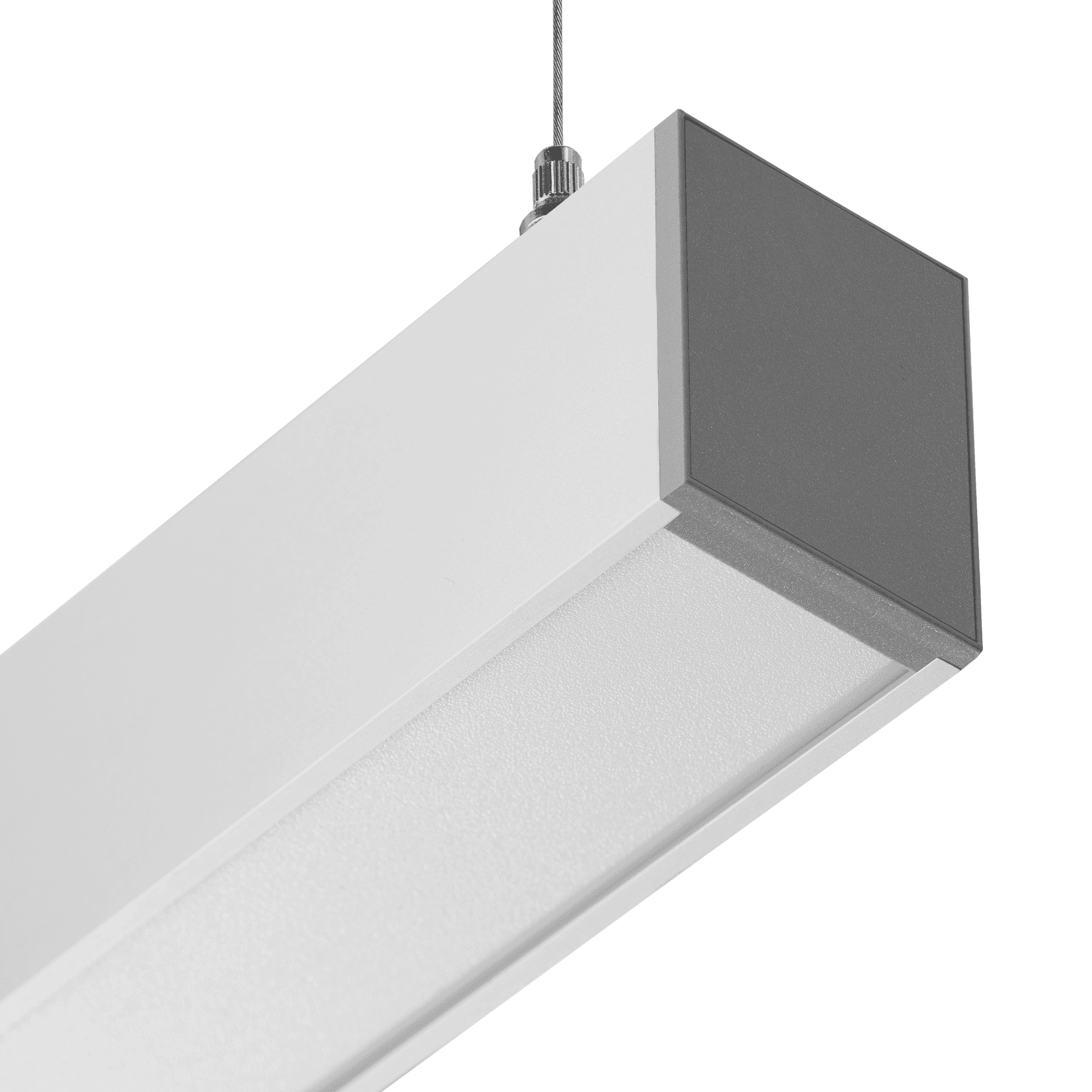

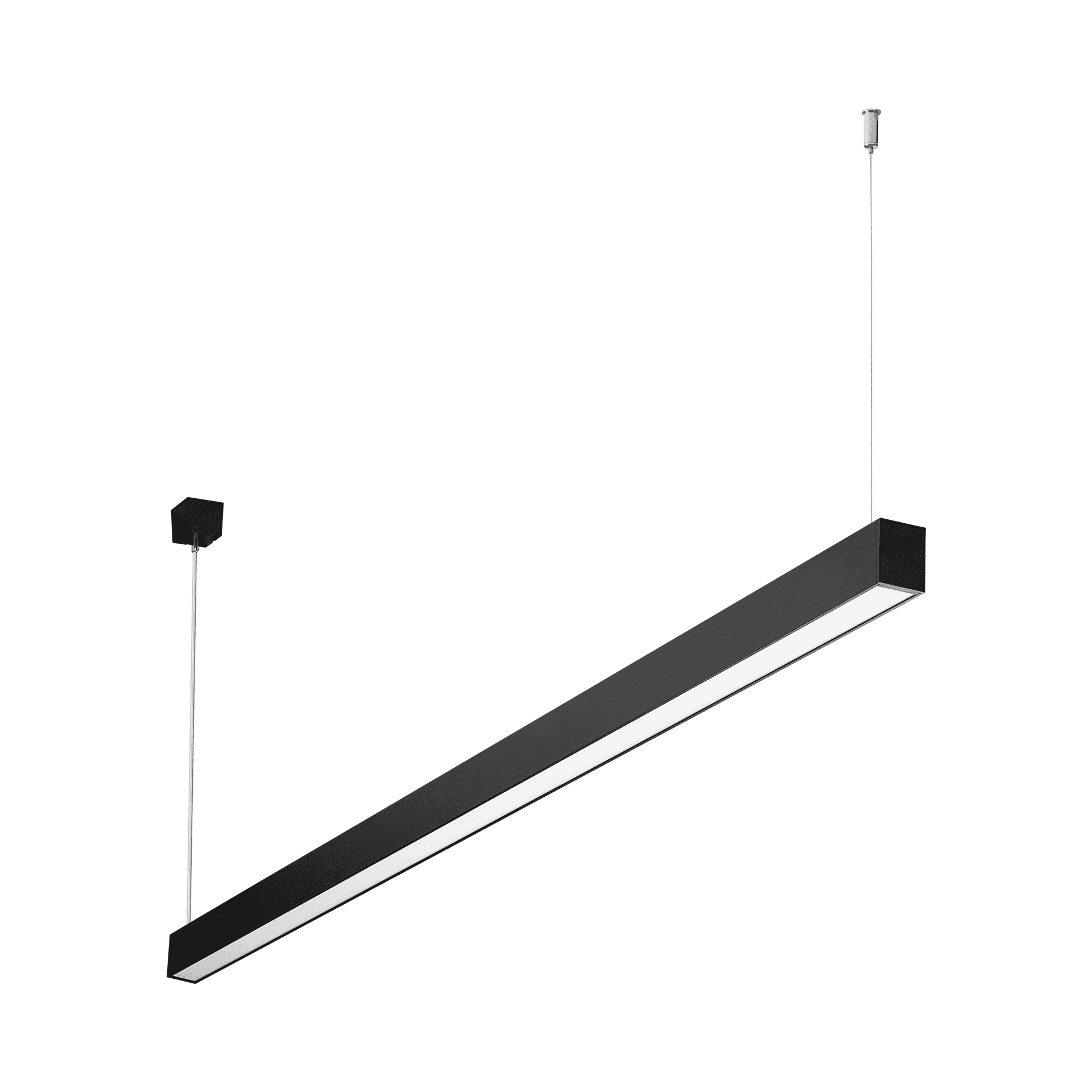

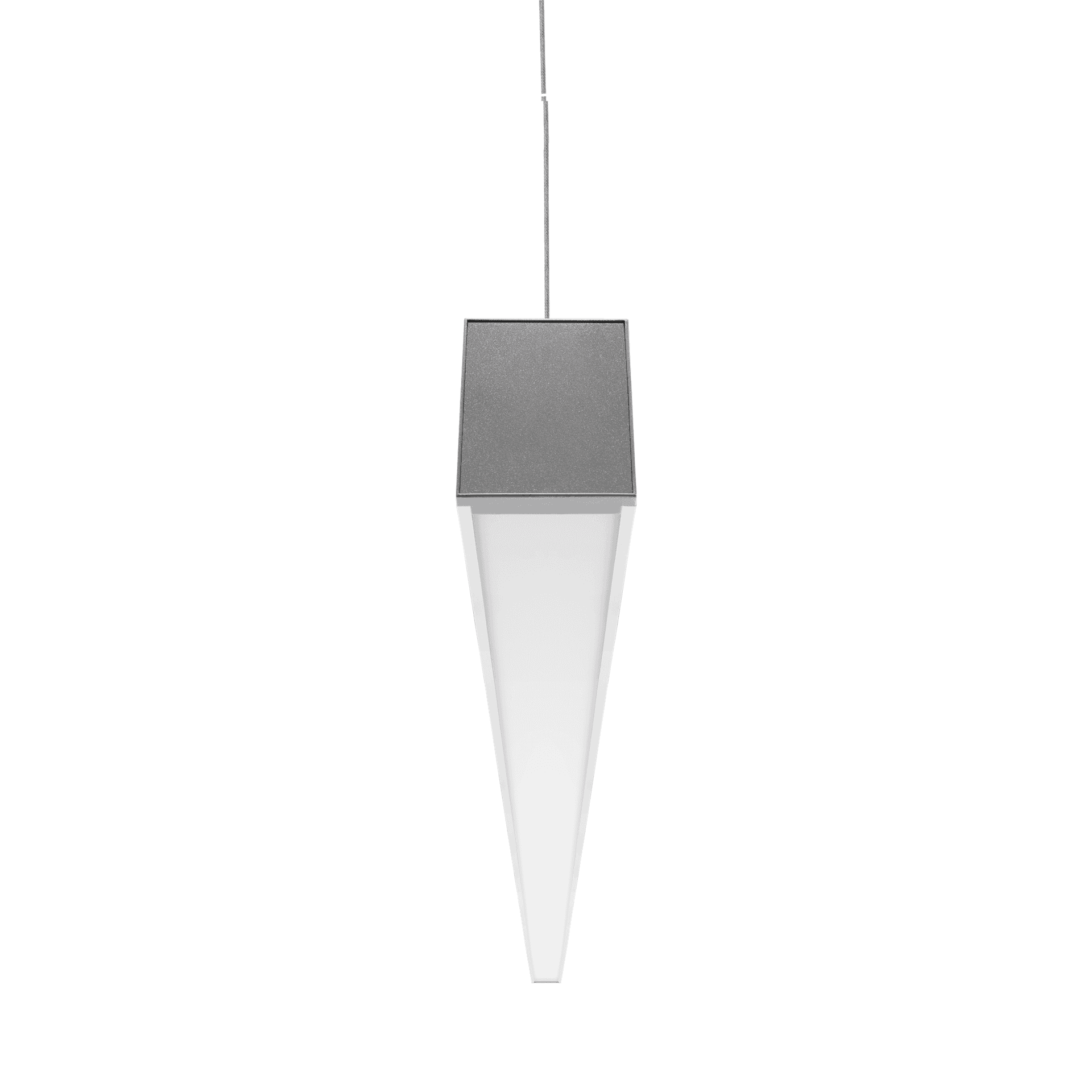

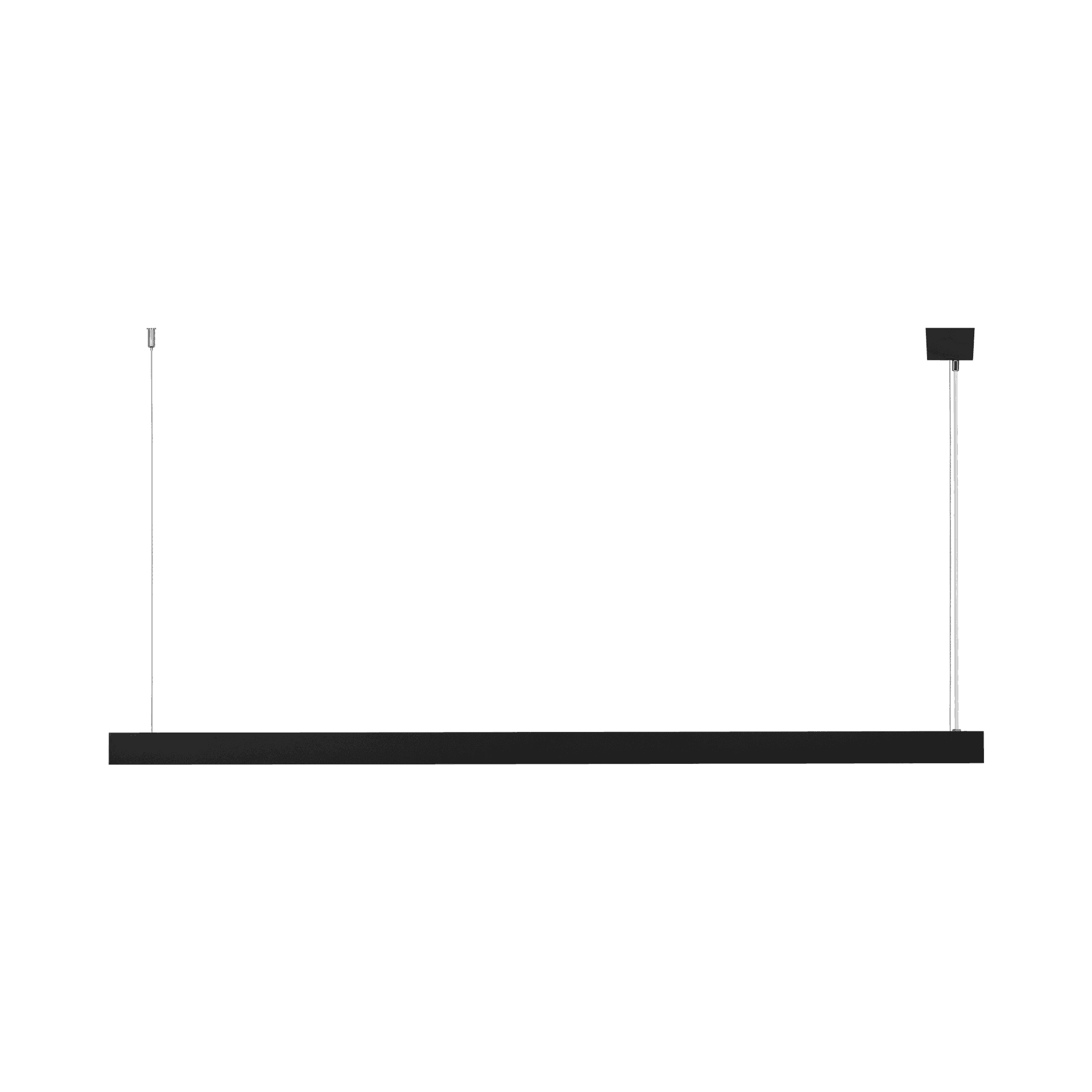

Suspended or surface-mounted luminaire with a very narrow cross-section. The bodies are available as an anodised aluminium profile in grey or as an aluminium profile painted in white or black (other colours available on request). The optical system is in the form of an opal cover. The luminaire is equipped with a unique suspension system that facilitates mounting and adjustment of the suspension length. All suspended luminaires have slings with a box included in the set.

Application

The luminaire is intended for indoor use. Unique design, energy-saving LED modules, and possible integration with external lighting control systems in the DALI standard make this luminaire suitable for use in modern office buildings, with particular emphasis on representative rooms.

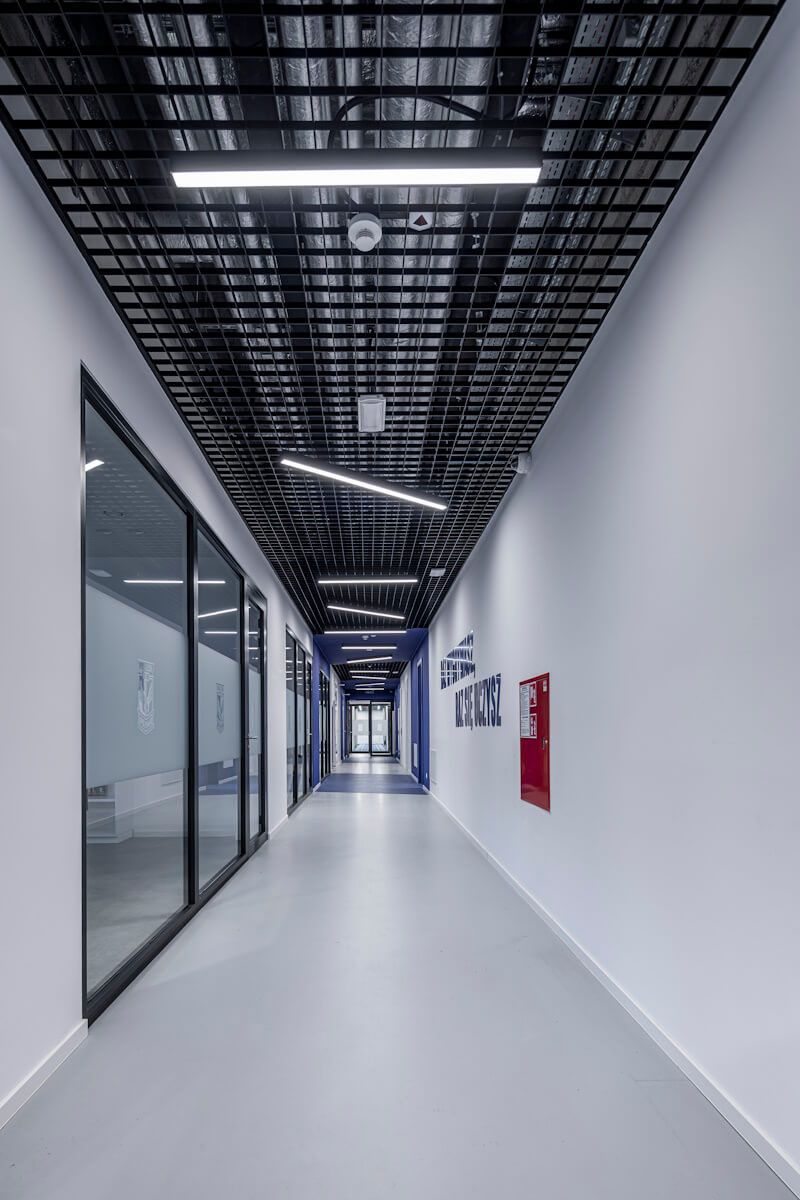

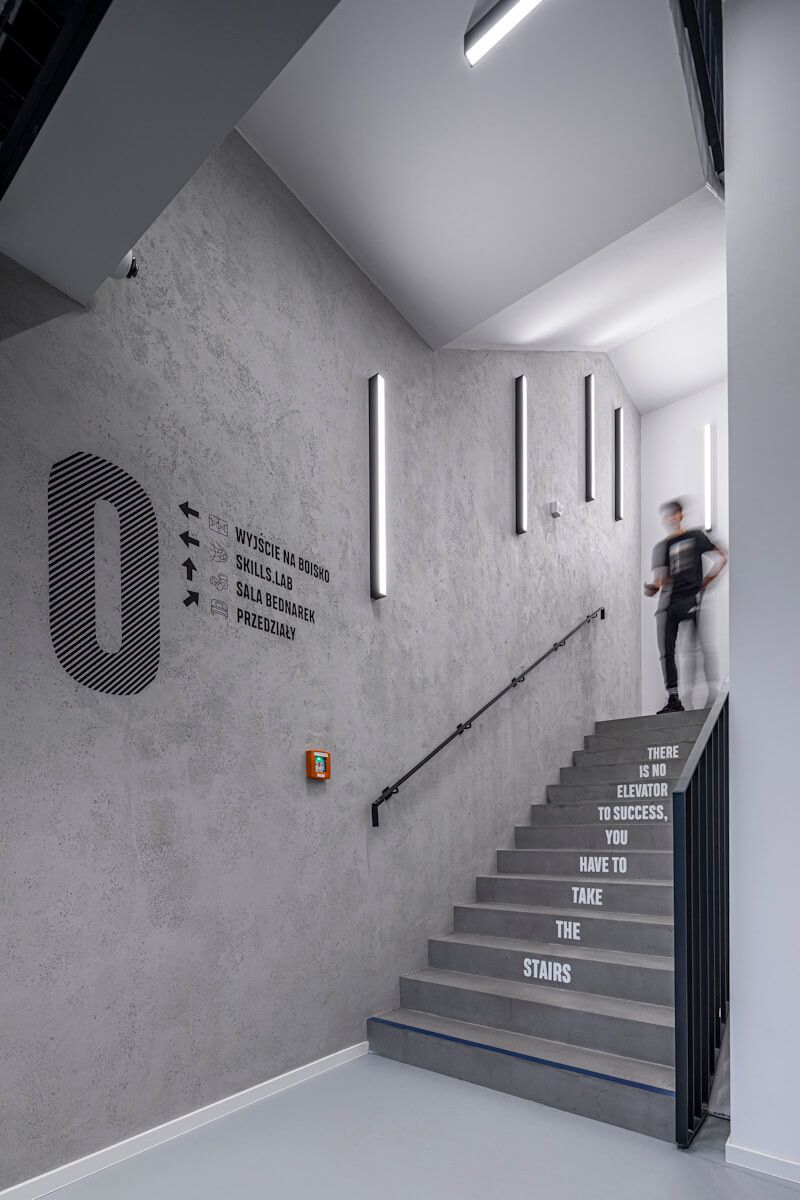

Versions marked "VD" are only intended for use in traffic zones and corridors inside buildings included in Table 5.1 of EN12464.

Other products from the Baris LED family

Options
Rated power of the luminaire [W]Colour temperature [K]Luminous flux [lm]Diffuser typeColour of the bodyDimensions [mm]Ingress protectionMounting versionIndex
BARIS 40 LED VD surface
15 4000 1100 OPAL grey 53/40/579 IP20 surface 319228
15 4000 1100 OPAL white 53/40/579 IP20 surface 319242
15 4000 1100 OPAL black 53/40/579 IP20 surface 319266
15 4000 1350 PRM grey 53/40/579 IP20 surface 455384
15 4000 1350 PRM white 53/40/579 IP20 surface 455391
15 4000 1350 PRM black 53/40/579 IP20 surface 455407
32 4000 2500 OPAL grey 53/40/1140 IP20 surface 319402
32 4000 2500 OPAL white 53/40/1140 IP20 surface 319426
32 4000 2500 OPAL black 53/40/1140 IP20 surface 319440
32 4000 3100 PRM grey 53/40/1140 IP20 surface 455599
32 4000 3100 PRM white 53/40/1140 IP20 surface 455605
32 4000 3100 PRM black 53/40/1140 IP20 surface 455612
39 4000 2700 OPAL grey 53/40/1421 IP20 surface 319761
39 4000 2700 OPAL white 53/40/1421 IP20 surface 319785
39 4000 2700 OPAL black 53/40/1421 IP20 surface 319808
39 4000 3300 PRM grey 53/40/1421 IP20 surface 455650
39 4000 3300 PRM white 53/40/1421 IP20 surface 455667
39 4000 3300 PRM black 53/40/1421 IP20 surface 455674
BARIS 40 LED VD suspended
32 4000 2500 OPAL grey 53/40/1140 IP20 suspended 318689
32 4000 2500 OPAL white 53/40/1140 IP20 suspended 318702
32 4000 2500 OPAL black 53/40/1140 IP20 suspended 318726
32 4000 3100 PRM grey 53/40/1140 IP20 suspended 455568
32 4000 3100 PRM white 53/40/1140 IP20 suspended 455575
32 4000 3100 PRM black 53/40/1140 IP20 suspended 455582
39 4000 2700 OPAL grey 53/40/1421 IP20 suspended 318863
39 4000 2700 OPAL white 53/40/1421 IP20 suspended 318887
39 4000 2700 OPAL black 53/40/1421 IP20 suspended 318900
39 4000 3300 PRM grey 53/40/1421 IP20 suspended 455629
39 4000 3300 PRM white 53/40/1421 IP20 suspended 455636
39 4000 3300 PRM black 53/40/1421 IP20 suspended 455643
