Industrial lighting Factor LED

Downloads

Specification

Factor Led is a latest-generation floodlight with a high power output and an impressive luminous flux. It is characterized not only by very high luminous efficiency but also by the highest IP 66 tightness and IK09 impact resistance. These parameters have been achieved thanks to the branded components used, robust housing made of cast aluminum, and the use of a passive cooling system for the lamp, which allows the excess heat generated to be dissipated during lamp operation. The Factor Led has the advantage of very fast and easy installation. The lightweight steel arm is attached to the supporting structure (wall, pole), and then the light modules are plugged in. On a single bracket, the installer can plug in a lamp containing from 1 to 4 such modules.

Metal peszel - protecting wires from birds and rodents. Contact your sales representative for a quote on a suitable luminaire model. Examples of 4 models in the variants table.

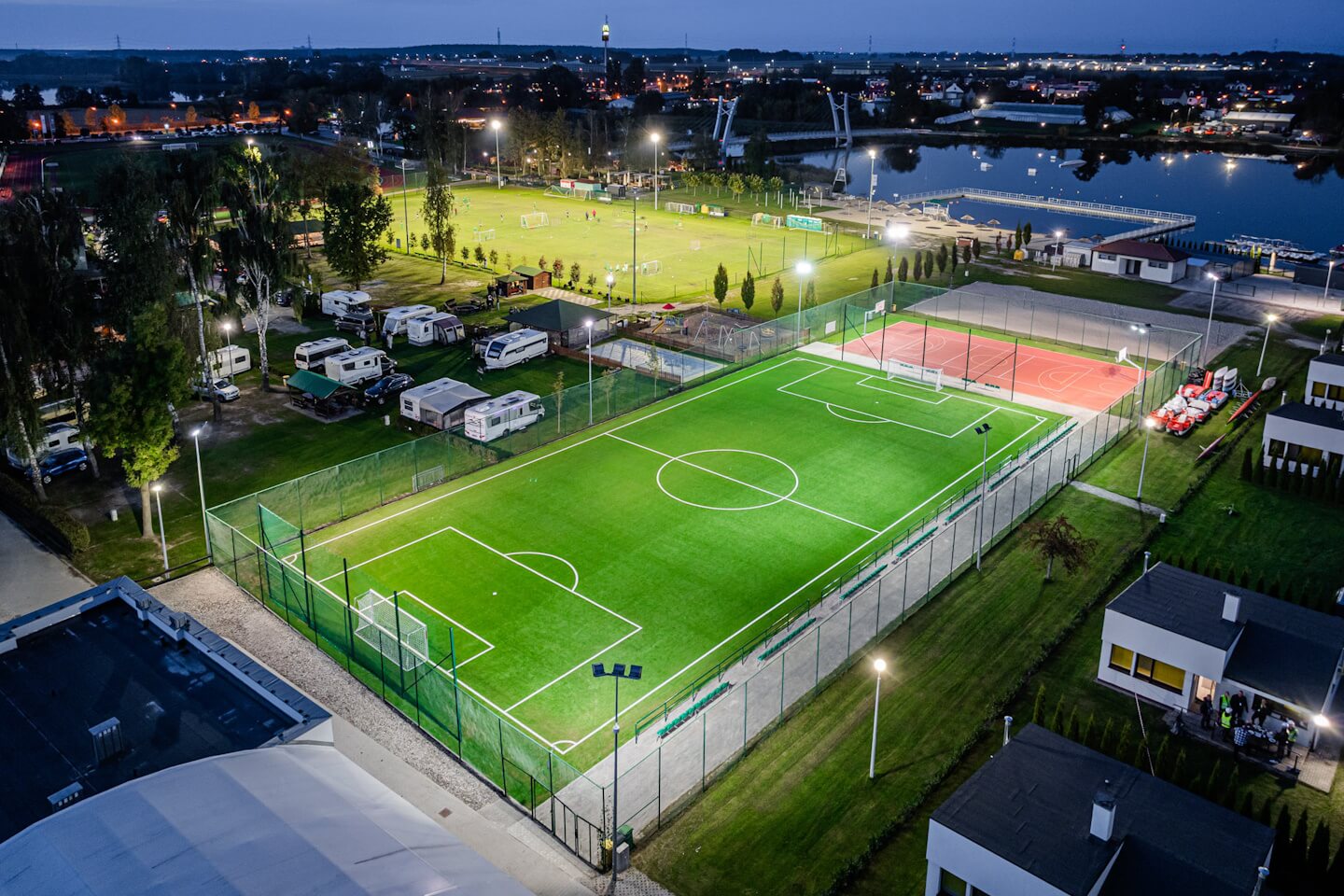

Application

Very good sealing and impact resistance parameters, the ability to work in elevated temperatures - up to 45˚ C as standard, and an extensive range of spreads predisposes Factor Led lamps to work in harsh weather conditions. It will find application and perform well both inside industrial halls, warehouses, sports halls, logistics centers, and outdoors - on sports fields, airports, parking lots, and maneuvering areas. It can also illuminate the facades of buildings and elements of external architecture.

Features of Factor LED:

Multiple light distributions

The use of dedicated lenses, Factor LED floodlights are available in variants with multiple light distributions: 15˚, 30˚, 45˚, 60˚, 90˚, 120˚, RM7, RM3, PP1.

Easy and quick installation

The clever design allows the arm itself to be attached to the pole and, once installed, the lamp itself to be conveniently and quickly attached.

Easy and quick mounting

Tilt adjustment in as many as two places significantly increases the number of light angle settings available.

Modular design

The modularity of the lamp allows 1-4 modules to be mounted on a single bracket. Optimise the choice of power and luminous flux for your application.

Options

Rated power of the luminaire [W]	Luminous flux [lm]	Beam angle [°]	Diffuser material	Colour rendering index	DIMM DALI	Accessories included	Dimensions (H/W/T/S) [mm]	Index
FACTOR LED 1 module
101	14800	15	PC	>80	-	-	191/425/217	987212
101	14600	30	PC	>80	-	-	191/425/217	987229
101	15000	45	PC	>80	-	-	191/425/217	987236
101	15000	60	PC	>80	-	-	191/425/217	987243
101	16000	90	PC	>80	-	-	191/425/217	987250
120	17000	RM7	tempered glass	>70	-	-	191/425/217	987823
120	17600	PP1	tempered glass	>70	-	-	191/425/217	987854
120	17200	RM3	tempered glass	>70	-	-	191/425/217	987885
120	16600	120	tempered glass	>70	-	-	191/425/217	993695
163	22400	15	PC	>80	-	-	191/425/217	987410
163	22100	30	PC	>80	-	-	191/425/217	987427
163	22800	45	PC	>80	-	-	191/425/217	987434
163	22600	60	PC	>80	-	-	191/425/217	987441
163	23200	90	PC	>80	-	-	191/425/217	987458
194	25800	RM7	tempered glass	>70	-	-	191/425/217	987816
194	26300	PP1	tempered glass	>70	-	-	191/425/217	987847
194	25800	RM3	tempered glass	>70	-	-	191/425/217	987878
194	28100	120	tempered glass	>70	-	-	191/425/217	993688
217	28500	15	PC	>80	-	-	191/425/217	987618
217	28000	30	PC	>80	-	-	191/425/217	987625
217	29000	45	PC	>80	-	-	191/425/217	987632
217	28800	60	PC	>80	-	-	191/425/217	987649
217	29400	90	PC	>80	-	-	191/425/217	987656
217	28500	15	PC	>80	yes	-	191/425/217	993329
217	28000	30	PC	>80	yes	-	191/425/217	993336
217	29000	45	PC	>80	yes	-	191/425/217	993343
217	28800	60	PC	>80	yes	-	191/425/217	993350
217	29400	90	PC	>80	yes	-	191/425/217	993367
233	29600	RM7	tempered glass	>70	-	-	191/425/217	987205
233	29700	PP1	tempered glass	>70	-	-	191/425/217	987830
233	29600	RM3	tempered glass	>70	-	-	191/425/217	987861
233	28900	lambert	tempered glass	>70	-	-	191/425/217	987892
233	29600	RM7	tempered glass	>70	yes	-	191/425/217	993527
233	29700	PP1	tempered glass	>70	yes	-	191/425/217	993534
233	29600	RM3	tempered glass	>70	yes	-	191/425/217	993541
233	29000	120	tempered glass	>70	yes	-	191/425/217	993794
281	36500	15	PC	>80	-	-	191/425/217	987007
281	35900	30	PC	>80	-	-	191/425/217	987014
281	37100	45	PC	>80	-	-	191/425/217	987021
281	36900	60	PC	>80	-	-	191/425/217	987038
281	37700	90	PC	>80	-	-	191/425/217	987045
281	35900	30	PC	>80	-	Metal peszel	191/425/217	684272
FACTOR LED 2 modules
202	29600	15	PC	>80	-	-	385/425/340	987267
202	29200	30	PC	>80	-	-	385/425/340	987274
202	30000	45	PC	>80	-	-	385/425/340	987281
202	30000	60	PC	>80	-	-	385/425/340	987298
202	32000	90	PC	>80	-	-	385/425/340	987304
240	34000	RM7	tempered glass	>70	-	-	385/425/340	993022
240	35200	PP1	tempered glass	>70	-	-	385/425/340	993053
240	34400	RM3	tempered glass	>70	-	-	385/425/340	993084
240	33200	120	tempered glass	>70	-	-	385/425/340	993725
326	44800	15	PC	>80	-	-	385/425/340	987465
326	44200	30	PC	>80	-	-	385/425/340	987472
326	45600	45	PC	>80	-	-	385/425/340	987489
326	45200	60	PC	>80	-	-	385/425/340	987496
326	46400	90	PC	>80	-	-	385/425/340	987502
388	51600	RM7	tempered glass	>70	-	-	385/425/340	993015
388	52600	PP1	tempered glass	>70	-	-	385/425/340	993046
388	51600	RM3	tempered glass	>70	-	-	385/425/340	993077
388	50600	120	tempered glass	>70	-	-	385/425/340	993718
434	57000	15	PC	>80	-	-	385/425/340	987663
434	56000	30	PC	>80	-	-	385/425/340	987670
434	58000	45	PC	>80	-	-	385/425/340	987687
434	57600	60	PC	>80	-	-	385/425/340	987694
434	58800	90	PC	>80	-	-	385/425/340	987700
434	57000	15	PC	>80	yes	-	385/425/340	993374
434	56000	30	PC	>80	yes	-	385/425/340	993381
434	58000	45	PC	>80	yes	-	385/425/340	993398
434	57600	60	PC	>80	yes	-	385/425/340	993404
434	58800	90	PC	>80	yes	-	385/425/340	993411
466	59200	RM7	tempered glass	>70	-	-	385/425/340	993008
466	59400	PP1	tempered glass	>70	-	-	385/425/340	993039
466	59200	RM3	tempered glass	>70	-	-	385/425/340	993060
466	59200	RM7	tempered glass	>70	yes	-	385/425/340	993558
466	59400	PP1	tempered glass	>70	yes	-	385/425/340	993565
466	59200	RM3	tempered glass	>70	yes	-	385/425/340	993572
466	58000	120	tempered glass	>70	-	-	385/425/340	993701
466	58000	120	tempered glass	>70	yes	-	385/425/340	993800
562	73000	15	PC	>80	-	-	385/425/340	987052
562	71800	30	PC	>80	-	-	385/425/340	987069
562	74200	45	PC	>80	-	-	385/425/340	987076
562	73800	60	PC	>80	-	-	385/425/340	987083
562	75400	90	PC	>80	-	-	385/425/340	987090
562	71800	30	PC	>80	-	Metal peszel	385/425/340	684289
FACTOR LED 3 modules
303	44400	15	PC	>80	-	-	580/425/340	987311
303	43800	30	PC	>80	-	-	580/425/340	987328
303	45000	45	PC	>80	-	-	580/425/340	987335
303	45000	60	PC	>80	-	-	580/425/340	987342
303	48000	90	PC	>80	-	-	580/425/340	987359
360	51000	RM7	tempered glass	>70	-	-	580/425/340	993169
360	52800	PP1	tempered glass	>70	-	-	580/425/340	993190
360	51600	RM3	tempered glass	>70	-	-	580/425/340	993220
360	49800	120	tempered glass	>70	-	-	580/425/340	993756
489	67200	15	PC	>80	-	-	580/425/340	987519
489	66300	30	PC	>80	-	-	580/425/340	987526
489	68400	45	PC	>80	-	-	580/425/340	987533
489	67800	60	PC	>80	-	-	580/425/340	987540
489	69600	90	PC	>80	-	-	580/425/340	987557
582	77400	RM7	tempered glass	>70	-	-	580/425/340	993152
582	78900	PP1	tempered glass	>70	-	-	580/425/340	993183
582	77400	RM3	tempered glass	>70	-	-	580/425/340	993213
582	75900	120	tempered glass	>70	-	-	580/425/340	993749
651	85500	15	PC	>80	-	-	580/425/340	987717
651	84000	30	PC	>80	-	-	580/425/340	987724
651	87000	45	PC	>80	-	-	580/425/340	987731
651	86400	60	PC	>80	-	-	580/425/340	987748
651	88200	90	PC	>80	-	-	580/425/340	987755
651	85500	15	PC	>80	yes	-	580/425/340	993428
651	84000	30	PC	>80	yes	-	580/425/340	993435
651	87000	45	PC	>80	yes	-	580/425/340	993442
651	86400	60	PC	>80	yes	-	580/425/340	993459
651	88200	90	PC	>80	yes	-	580/425/340	993466
699	88800	RM7	tempered glass	>70	-	-	580/425/340	993145
699	89100	PP1	tempered glass	>70	-	-	580/425/340	993176
699	88800	RM3	tempered glass	>70	-	-	580/425/340	993206
699	88800	RM7	tempered glass	>70	yes	-	580/425/340	993589
699	89100	PP1	tempered glass	>70	yes	-	580/425/340	993596
699	88800	RM3	tempered glass	>70	yes	-	580/425/340	993602
699	87000	120	tempered glass	>70	-	-	580/425/340	993732
699	87000	120	tempered glass	>70	yes	-	580/425/340	993817
843	109500	15	PC	>80	-	-	580/425/340	987106
843	107700	30	PC	>80	-	-	580/425/340	987113
843	111300	45	PC	>80	-	-	580/425/340	987120
843	110700	60	PC	>80	-	-	580/425/340	987137
843	113100	90	PC	>80	-	-	580/425/340	987144
843	107700	30	PC	>80	-	Metal peszel	580/425/340	684296
FACTOR LED 4 modules
404	59200	15	PC	>80	-	-	774/425/340	987366
404	58400	30	PC	>80	-	-	774/425/340	987373
404	60000	45	PC	>80	-	-	774/425/340	987380
404	60000	60	PC	>80	-	-	774/425/340	987397
404	64000	90	PC	>80	-	-	774/425/340	987403
480	68000	RM7	tempered glass	>70	-	-	774/425/340	993251
480	70400	PP1	tempered glass	>70	-	-	774/425/340	993282
480	68000	RM3	tempered glass	>70	-	-	774/425/340	993312
480	66400	120	tempered glass	>70	-	-	774/425/340	993787
652	89600	15	PC	>80	-	-	774/425/340	987564
652	88400	30	PC	>80	-	-	774/425/340	987571
652	91200	45	PC	>80	-	-	774/425/340	987588
652	90400	60	PC	>80	-	-	774/425/340	987595
652	92800	90	PC	>80	-	-	774/425/340	987601
776	103200	RM7	tempered glass	>70	-	-	774/425/340	993244
776	105200	PP1	tempered glass	>70	-	-	774/425/340	993275
776	103200	RM3	tempered glass	>70	-	-	774/425/340	993305
776	101200	120	tempered glass	>70	-	-	774/425/340	993770
868	114000	15	PC	>80	-	-	774/425/340	987762
868	112000	30	PC	>80	-	-	774/425/340	987779
868	116000	45	PC	>80	-	-	774/425/340	987786
868	115200	60	PC	>80	-	-	774/425/340	987793
868	117600	90	PC	>80	-	-	774/425/340	987809
868	114000	15	PC	>80	yes	-	774/425/340	993473
868	112000	30	PC	>80	yes	-	774/425/340	993480
868	116000	45	PC	>80	yes	-	774/425/340	993497
868	115200	60	PC	>80	yes	-	774/425/340	993503
868	117600	90	PC	>80	yes	-	774/425/340	993510
932	118400	RM7	tempered glass	>70	-	-	774/425/340	993237
932	118800	PP1	tempered glass	>70	-	-	774/425/340	993268
932	118400	RM3	tempered glass	>70	-	-	774/425/340	993299
932	118400	RM7	tempered glass	>70	yes	-	774/425/340	993619
932	118800	PP1	tempered glass	>70	yes	-	774/425/340	993626
932	118400	RM3	tempered glass	>70	yes	-	774/425/340	993633
932	116000	120	tempered glass	>70	-	-	774/425/340	993763
932	116000	120	tempered glass	>70	yes	-	774/425/340	993824
1124	146000	15	PC	>80	-	-	774/425/340	987151
1124	143600	30	PC	>80	-	-	774/425/340	987168
1124	148400	45	PC	>80	-	-	774/425/340	987175
1124	147600	60	PC	>80	-	-	774/425/340	987182
1124	150800	90	PC	>80	-	-	774/425/340	987199
1124	143600	30	PC	>80	-	Metal peszel	774/425/340	684302

Accessories

Hide accessories

Index	Accessory name
684791	Protective grid Factor LED 4M RAL7016
684784	Protective grid Factor LED 3M RAL7016
684777	Protective grid Factor LED 2M RAL7016
684760	Protective grid Factor LED 1M RAL7016

Protective grid Factor LED 4M RAL7016 (684791)

Protective grid Factor LED 3M RAL7016 (684784)

Protective grid Factor LED 2M RAL7016 (684777)

* When protective grids are used, the luminaire flux decreases by 1/3 compared to the tested flux declared on the data sheet of the respective floodlight.

Related products

Please leave for us your contact information

Contact details

We are available from Monday to Friday 8:00-16:00

tel. +48 61 28 60 333
e-mail: hello@lenalighting.pl

Lena Lighting
Street: Kornicka 52
City: Sroda Wielkopolska
ZIP code: 63-000
Country: Poland

Consent to process the form

I give consent for my personal data to be processed for marketing and promotional purposes by the company Lena Lighting S.A. with the registered office at ul. Kórnicka 52, 63-000 Środa Wielkopolska.

Read the information clause on the protection of personal data

Pursuant to Art. 13 points 1 and 2 of Regulation (EU) 2016/679 of the European Parliament and of the Council of April 27, 2016 on the protection of individuals with regard to the processing of personal data and on the free movement of such data, and repealing Directive 95/46/EC, referred to as the GDPR, we would like to inform you that:

The administrator of your personal data is Lena Lighting S.A. with headquarters at ul. Kórnicka 52, 63-000 Środa Wielkopolska. Correspondence address: ul. Kórnicka 52, 63-000 Środa Wielkopolska, tel. +48 61 28 60 300, email: hello@lenalighting.pl.
You can contact the data protection officer at the correspondence address shown below: Lena Lighting S.A. with its head office at Kórnicka 52, 63-000 Środa Wielkopolska, or at the following email address: iod@lenalighting.pl.
Your personal data is processed on the basis of the GDPR, in particular:
1. Article 6(1a) of the GDPR – the data subject has voluntarily consented to the processing of his/her personal data for one or more specific purposes;
2. Article 6(1)(b) GDPR – processing is necessary for the performance of a contract to which the data subject is party, or to take steps at the request of the data subject prior to entering into a contract;
3. Article 6(1)(c) GDPR – processing is necessary for the fulfillment of the legal obligation incumbent on the administrator;
4. d. Article 6(1)(f) GDPR – processing is necessary for the purposes of the legitimate interests pursued by the administrator or by a third party.
The purposes of processing your personal data are, among others:
1. answering the questions asked via the contact form;
2. acceptance of a complaint;
3. acceptance of a warranty extension application;
4. introducing current job offers;
5. participation in programs, competitions and other events organized by Lena Lighting S.A.;
6. providing information about products and services offered by Lena Lighting S.A .;
7. conducting sales, promotional and marketing activities.
Providing your data is voluntary, but necessary to achieve the purposes for which it was collected. Failure to provide this data may result in the inability to achieve these purposes.
Maintaining contact with you via various communication channels, such as e-mail, telephone or through traditional contact is an integral part of achieving the above-mentioned goals.
If you have given relevant consents regarding marketing and sales activities through specific communication channels, we will process your personal data for the purpose of direct marketing of our products and services. In pursuing the above purpose, the basis for the processing of your personal data will be Article 6(1)(f) GDPR, i.e. a legitimate interest in conducting marketing and sales activities in connection with your consent to receive marketing content through specific communication channels. If you consent to the use of your personal data for the implementation of marketing activities by Lena Lighting S.A., your data will be processed on the basis of Article 6(1)(a) GDPR.
Your personal data may be made available to appropriate recipients, in particular to institutions authorised to control the activities of the administrator or authorised entities to obtain personal data on the basis of separate legal provisions.
The recipients of your personal data will also include service providers supplying the administrator with technical solutions and organisation management, entities providing legal and advisory services and entities providing the administrator with assistance in pursuing due claims.
You have the right to:
1. rectify your incorrect data;
2. request to delete your data (the right to be forgotten) in the event of circumstances provided for in Art. 17 of the GDPR;
3. request to limit data processing in cases indicated in Art. 18 of the GDPR;
4. object to data processing in cases indicated in Art. 21 of the GDPR;
5. transfer the provided data, processed in an automated manner.
Personal data belonging to you will not be profiled and will not be transferred to countries outside the European Economic Area.
Your data processed in connection with the implementation of direct marketing of products and services offered by Lena Lighting S.A. will be stored for 5 years or until an objection is raised against this purpose of processing or until the consent is withdrawn, if the data is processed on the basis of such consent. In the event of the conclusion of the contract, the data will be kept for the entire duration of the contract and the time necessary for its settlement. The provisions of generally applicable law may extend these periods.
If you believe that the provided personal data are processed unlawfully, you can lodge a complaint with the supervisory body (Personal Data Protection Office, ul. Stawki 2, 00-193 Warsaw).

Light source	LED
Colour temperature	4000K
Diffuser type	transparent
Mounting version	post top
Application	industrial sports

Factor LED

Technical specifications

Downloads

Features of Factor LED:

Multiple light distributions

Easy and quick installation

Easy and quick mounting

Modular design

Related products

Quest 2 LED Resist

Quest 2 LED

Oculus LED Pole

Please leave for us your contact information

Contact details

Contact

Menu

New products

Shortcuts

Product categories
